Spec: Working Voltage: 6-26S Li-Po Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions) Diameter of Switch Button: 16mm (Self-lock switch) Size: 97*57*27mm Weight: 356g Features: Metal shielding cover for good heat dissipation and reducing electromagnetic interference.  Equipped with LED indicator light, users can check the status of the light to determine whether it works normally. If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit protection function has been triggered. Soft start-up: Increasing the current/voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.  Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.  Wiring diagram: Manual: https://cdn.shopify.com/s/files/1/0011/4039/1996/files/Anti-spark_Switch_V4.0_User_Manual_98d83a39-fc34-40f6-8283-0ac4f56058c5.pdf?v=1764408572

Read more less

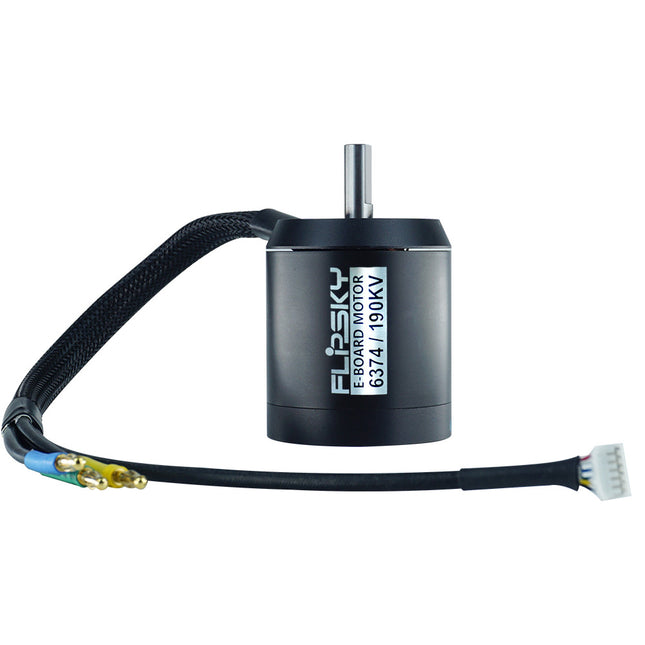

Specifications:  KV: 140/170/190 Max Power: 3500Watts Max Current: 85 Amps Max Volts: 14S Max Torque:8Nm Motor Resistance: 0.05Ohm Recommend ESC: 3-12S 50A (FSESC4.12 50AorFSESC 6.6 60A) The number of pole: 14 Net weight: 980g Motor wire:12AWG Wire Configuration Blue=U (A) Yellow=V (B) Green= W (C) Shaft Size: 8MM / 10MM   Reference Information: 1.The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts. 2.Screws to mount the motor are not included with the motor. 3.If you choose round shaft motor, shipping includes the key for the keyway 4.If you choose the shipping comes with pulley, will come with 8mm steel material pulley. 5.The Flipsky logo is in different places, will be shipped randomly.

Read more less

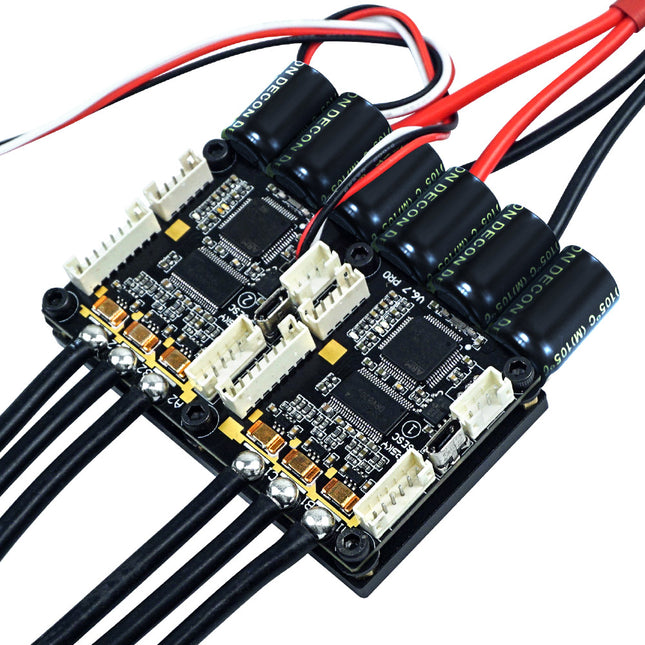

Specs: Firmware: Latest Version Continuous current: single 70A, dual 140A; instantaneous current: single 200A, dual 400A Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1A ERPM: 150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM, ADC, NRF, UART, SPI, IIC (for IMU) Modes:DC, BLDC, FOC (sinusoidal) Regenerative capacity: Yes Programmable: Yes Motor wire: 12AWG Power cable:14AWG (with XT90 connector) Size: 79.8 x 66.8 x 17.8 mm(Including heatsink) Feature: Support four control modes: Current/Dutycycle/Speed /Position control mode. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160. Wiring diagram:

Read more less

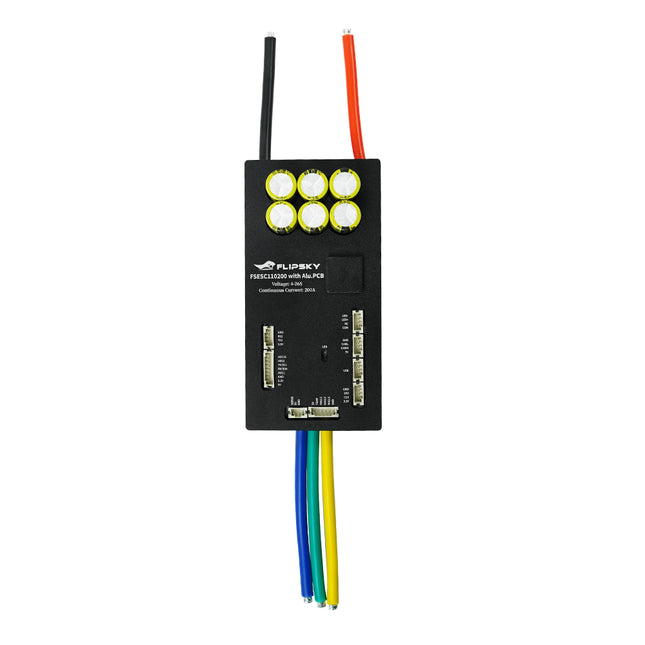

Specs:Firmware: 6.05 (or above in the future)Voltage: 14-110V (safe for 4-26S)Continuous current: 110V/200A (Values depend on the mounting,ambient temperature and air/water circulation around the device!); Burst: 400ABEC: 5V@3ASupport Modes: BLDC, FOC (sinusoidal)ERPM: 150000Communication Ports: USB, CAN, UART, SPI, IICSupported Sensors: ABI, HALL, AS5047, AS5048AInput Source Support: PPM, ADC, NRF, UARTSupported Sensorless: YesRegenerative capacity: YesProgrammable via VESC_TOOL: YesSize: 144.70x72.80x40.60mmMotor/power wire size: 8AWGPhase Filter: YesPower Switch Button: RedFeature:Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.Support various control modes: Current / Duty cycle / Speed / PID control modes.CPU: SMT32F405 with frequency 168MHzDesign with Aluminum PCB with good heat dissipation to expand life span.FSESC110200 with aluminum pcb: supports serial port function,and built with powe on/off switch.Wiring diagram:

Read more less

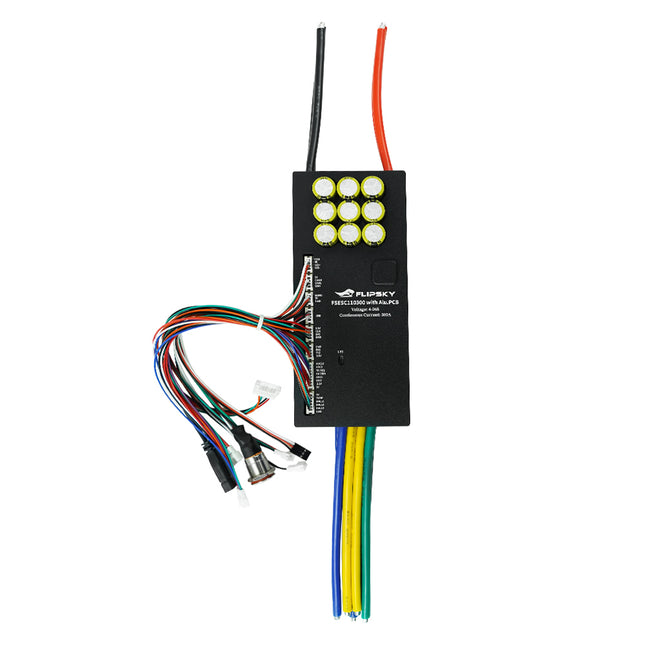

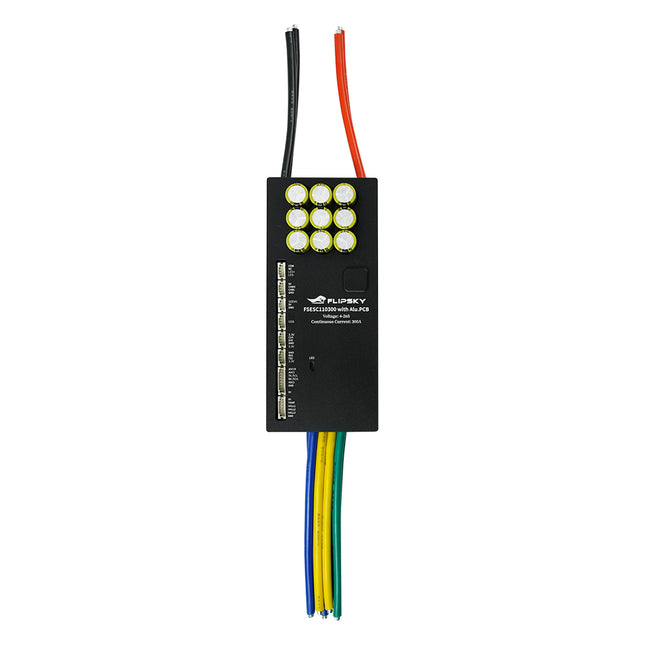

Specs:Firmware: 6.05 (or above in the future)Voltage: 14-110V (safe for 4-26S)Continuous current: 110V/300A (Values depend on the mounting,ambient temperature and air/water circulation around the device!); Burst: 800ABEC: 5V@3ASupport Modes: BLDC, FOC (sinusoidal)ERPM: 150000Communication Ports: USB, CAN, UART, SPI, IICSupported Sensors: ABI, HALL, AS5047, AS5048AInput Source Support: PPM, ADC, NRF, UARTSupported Sensorless: YesRegenerative capacity: YesProgrammable via VESC_TOOL: YesSize: 183.8*80.2*43.8mmMotor/power wire size: 8AWGPhase Filter: YesPower Switch Button: RedFeature:Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.Support various control modes: Current / Duty cycle / Speed / PID control modes.CPU: SMT32F405 with frequency 168MHzDesign with Aluminum PCB with good heat dissipation to expand life span.FSESC110300 with aluminum pcb: supports serial port function,and built with powe on/off switchWiring diagram:

Read more less

Specifaction: Voltage:14-84V( safe for 3-20S)Continuous Current : 50V/300A,75V/200AMax Current :350ASupported sensors: ABI, HALL, AS5047,AS5048AEPRM:150000Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors) Feature: Regenerative brakingThe CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;Sensored or sensorless operation + hybrid modeConfigurable RPM-, current-, voltage- and power limitsInput source: PPM, ADC, NRF,UART,PASCommunication ports: USB, CAN, UART,SPI,IICThrottle curve and ramping for all input sourcesSeamless 4-quadrant operationMotor revolution, ampere hour, watt hour countingReal-time data analysis and readout through the communication port.Adjustable protection against:Low input voltageHigh input voltageHigh motor currentHigh input currentHigh regenerative braking current (separate limits for the motor and the input)High RPM (separate limits for each direction)Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurateMotor wire: 8AWGPower cable: 8AWGWaterproof level(with water cooling enclosure):IP67 Wire Connection:

Read more less

Specifications: Voltage:14-84V( safe for 3-20S) Continuous Current : 50V/350A,75V/250A Max Current :800A Supported sensors: ABI, HALL, AS5047,AS5048A EPRM:150000 Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors) Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200 ! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Feature: 1.Regenerative braking 2.The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function; 3.Sensored or sensorless operation + hybrid mode 4.Configurable RPM-, current-, voltage- and power limits 5.Input source: PPM, ADC, NRF,UART,PAS 6.Communication ports: USB, CAN, UART,SPI,IIC 7.Throttle curve and ramping for all input sources 8.Seamless 4-quadrant operation 9.Motor revolution, ampere hour, watt hour counting 10.Real-time data analysis and readout through the communication port. 11.Adjustable protection against: 12.Low input voltage 13.High input voltage 14.High motor current 15.High input current 16.High regenerative braking current (separate limits for the motor and the input) 17.High RPM (separate limits for each direction) 18.Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate. 19.Motor wire: 8AWG 20.Power cable: 8AWG 21.Waterproof level(with water cooling enclosure):IP67 Wire Connection:

Read more less

Specs: Firmware: 5.2, supports firmware upgrade Voltage: 14-84V (safe for 4-20S) Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A BEC: 5V@1A Support Modes: DC, BLDC, FOC (sinusoidal) ERPM: 150000 Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART Supported Sensorless: Yes Regenerative capacity: Yes Programmable via VESC_TOOL: Yes Red Switch Button: Yes Phase filter: Yes Size:227.5*140*54mm(Including Water Cooling Enclosure) Features: Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection. Support various control modes: Current / Duty cycle / Speed / PID control modes. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160. CPU:STM32F405 with frequency 168MHz Aluminum PCB with good heat dissipation to expand life span. Built with ignite power on/off switch button. Wiring Diagram:

Read more less

Specifications:Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)Voltage: 14-110V(safe for 4-26S)Continuous current: 100A (Values depend on the mounting, ambient temperature and air/water circulation around the device!)Peak Current: 250ACommunication Ports: USB, CAN, UART, PPM, ADC, PASInput Signals Support: PPM, ADC, PAS (Cadence Input Signal), UART (compatible with all Flipsky VX Series remotes)BEC: 5V@1AProgrammable Tool: Flipsky ESC TOOLPWM Frequency Control: YESMultiple Speed Gear Limit Control: YES (UART&ADC)Regenerative Capacity: YESIntegrated Self-locking Switch: 16mm Red ButtonMotor/power wire size: 10 AWGSize: L117.7*W62.4*H21.7mm (Including Alu. Case)Feature:Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.Programmable via Flipsky VX4Pro remote (remote firmware version: VX4 Pro_V1.2 or above).Supporting motor FOC with low working noise and smooth starting.Supporting real-time data and fault alerts.Supporting adaptive variable PWM frequency control.Supporting save / load configuration files via ESC Tool.Supporting multiple speed levels: Level 1 (Low), Level 2 (Medium), Level 3 (High), Level 4 (PAS Only), Level 5 (PAS Only).Supporting sensor mode (HALL, ENCODER) and sensorless mode (IPDS, HFPI, OPEN).Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER (such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)Traction Control: YESSupporting control types: Current, Duty Cycle, Speed control, Position Control.Supporting PAS cadence sensor.Supporting emergency stop and shutdown.Support safe power-on protection (in PPM&ADC control modes only).Protection functions: low and high voltage protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection, motor over-temperature protection.Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ , PT1000, PTC-1K-100℃ , KTY and so on.Application Fields:Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys / Boat / Kayak etc.Wiring diagram:

Read more less

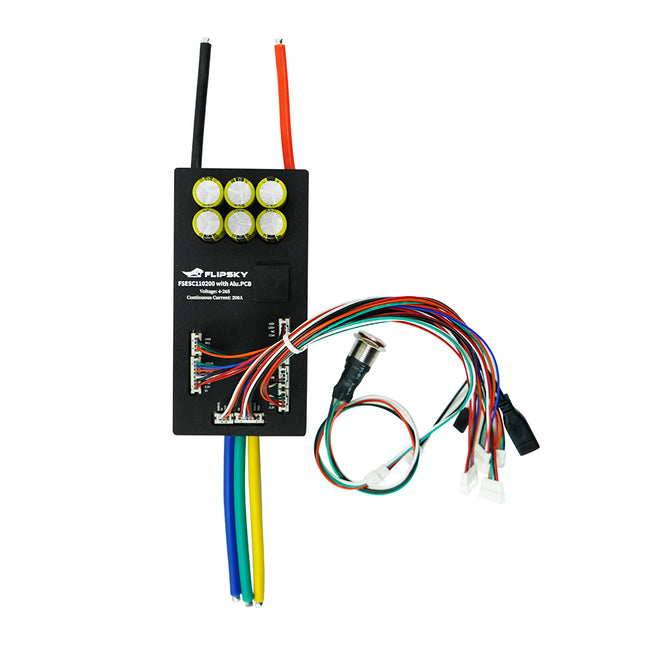

Specifications:Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)Voltage: 14-110V(safe for 4-26S)Continuous current: 200A (Values depend on the mounting, ambient temperature and air/watercirculation around the device!)Peak Current: 400ACommunication Ports: USB, CAN, UART, PPM, ADC/PASInput Signals Support: PPM, ADC, PAS(Cadence Input Signal), UART (compatible with all Flipsky VXSeries remotes)BEC: 5V@1AProgrammable Tool: Flipsky ESC TOOLPWM Frequency Control: YESMultiple Speed Gear Limit Control: YES(UART&ADC)Regenerative Capacity: YESIntegrated Self-locking Switch: 16mm Red ButtonMotor/power wire size: 8AWGSize: L144.7*W72.8*H40.6mm(Including Alu. Case)Features:Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequencyand the motor RPM.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different batteryvoltages and many control ways.Programmable via Flipsky VX4Pro remote(remote firmware version:VX4 Pro_V1.2 or above).Supporting motor FOC with low working noise and smooth starting.Supporting real-time data and fault alerts.Supporting adaptive variable PWM frequency control.Supporting save / load configuration files via ESC Tool.Supporting multiple speed levels: Level 1(Low), Level 2(Medium), Level 3(High), Level 4 (PAS Only),Level 5 (PAS Only).Supporting sensor mode(HALL, ENCODER) and sensorless mode(IPDS, HFPI, OPEN).Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER(such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)Traction Control: YESSupporting control types: Current, Duty Cycle, Speed control, Position Control.Supporting PAS cadence sensor.Supporting emergency stop and shutdown.Support safe power-on protection (in PPM&ADC control modes only).Protection functions: low and high voltage protection, MOSFET over-temperature and over currentprotection, battery overcharge and discharge protection, motor over-temperature protection.Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ ,PT1000, PTC-1K-100℃ , KTY and so on. Wiring diagram:

Read more less

Specifications:Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)Voltage: 14-110V(safe for 4-26S)Continuous current: 300A (Values depend on the mounting, ambient temperature and air/water circulation around the device!)Peak Current: 800ACommunication Ports: USB, CAN, UART, PPM, ADC, PASInput Signals Support: PPM, ADC, PAS (Cadence Input Signal), UART (compatible with all Flipsky VX Series remotes)BEC: 5V@1AProgrammable Tool: Flipsky ESC TOOLPWM Frequency Control: YESMultiple Speed Gear Limit Control: YES (UART&ADC)Regenerative Capacity: YESIntegrated Self-locking Switch: 16mm Red ButtonMotor/power wire size: 8 AWGSize: L183.8*W80.2*H43.8mm (Including Alu. Case)Feature:Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.Programmable via Flipsky VX4Pro remote (remote firmware version: VX4 Pro_V1.2 or above).Supporting motor FOC with low working noise and smooth starting.Supporting real-time data and fault alerts.Supporting adaptive variable PWM frequency control.Supporting save / load configuration files via ESC Tool.Supporting multiple speed levels: Level 1 (Low), Level 2 (Medium), Level 3 (High), Level 4 (PAS Only), Level 5 (PAS Only).Supporting sensor mode (HALL, ENCODER) and sensorless mode (IPDS, HFPI, OPEN).Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER (such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)Traction Control: YESSupporting control types: Current, Duty Cycle, Speed control, Position Control.Supporting PAS cadence sensor.Supporting emergency stop and shutdown.Support safe power-on protection (in PPM&ADC control modes only).Protection functions: low and high voltage protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection, motor over-temperature protection.Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ , PT1000, PTC-1K-100℃ , KTY and so on.Wiring diagram:

Read more less

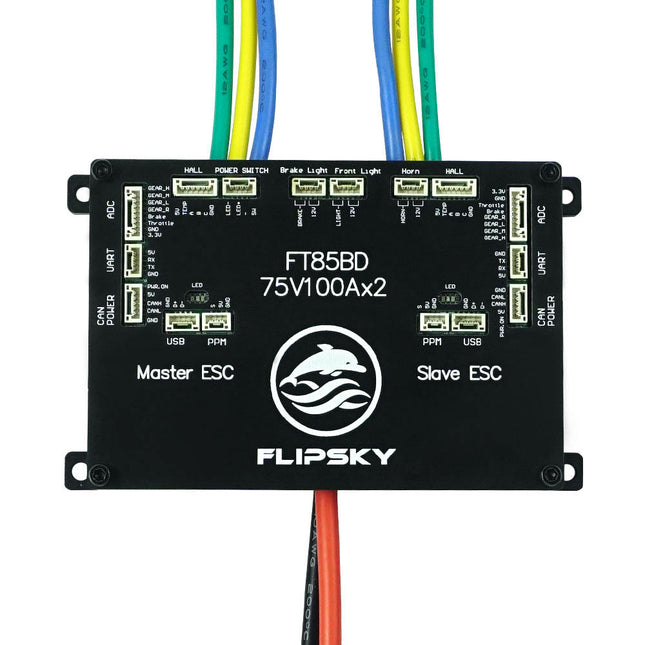

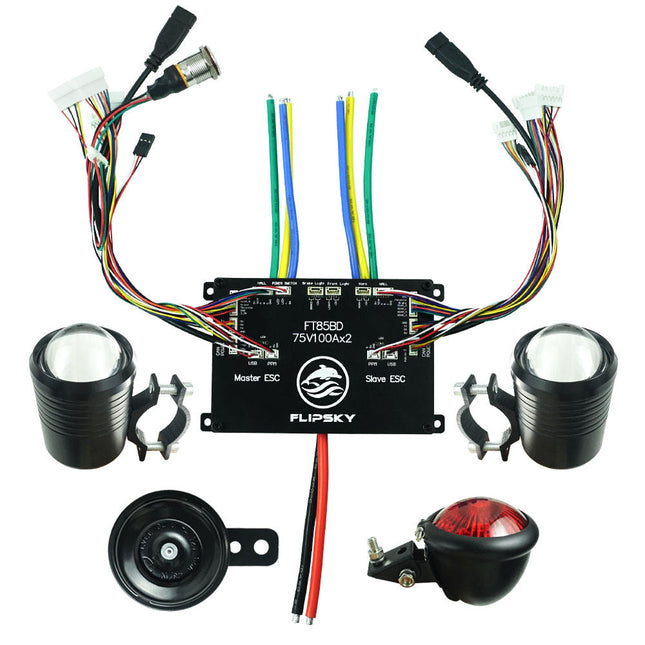

Specifications :  Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14-84V (safe for 4S-20S) Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting  and ambient temperature around the device!) Peak Current: 250A / Single; 500A / Dual Communication Ports: USB, CAN, UART, PPM, ADC Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface) Multiple Speed Gear levels: Low, Medium, High, Reverse Front Lights, Rear Brake Lights & Horn: Support Programmable: Yes Regenerative Capacity: Yes Slide Poweron & Auto shutdown: Yes Self-resetting switch with green LED button Diameter: 16mm Power Wire Size: 10AWG; Motor Wire Size: 12 AWG Size: L132*W81*H26.5mm(Including Alu. Case) Features: Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed. 240MHz and the max PWM switching frequency 45KHz improves the motor RPM. Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways. Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above). Supporting motor FOC with low working noise and smooth starting. Supporting Real-time data and fault alerts. Supporting adaptive variable PWM frequency control. Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI). Supporting control types: Current, Duty Cycle Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL. Supporting extra interface like front lights, rear brake lights and horn fixtures. Wiring diagram: flipsky_esc_tool  software and manual download link
