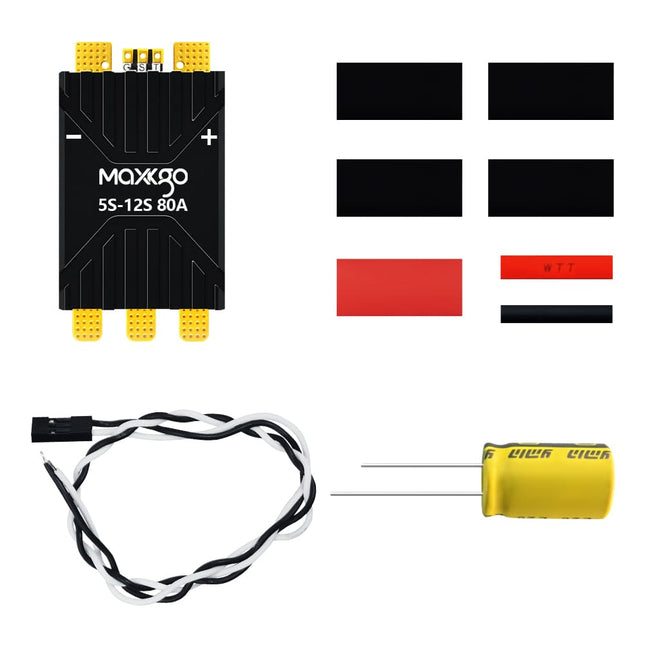

5-12S 80A_ESC Description： 5-12S 80A ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-12S LiPo battery input and delivers a continuous current rating of up to 80A. It is widely used in FPV racing drones, multi-rotor drones, fixed-wing aircraft, RC cars, RC boats, and other model applications.   5-12S 80A ESC Specifications Type: Brushless Motor Electronic Speed Controller (ESC) Continuous Current: 80A Burst Current: 100A Weight (without capacitor): Net Weight 19.2g ± 2g Dimensions: 46.4mm (Length) × 24.8mm (Width) × 9.6mm (Height) Input Power: 5S–12S LiPo Battery Firmware Version: AM32_MAXKGO_F421 Firmware Upgrade: Supports online firmware updates via AM32.ca Communication Protocols: Dshot300, Dshot600, Servo PWM Signal Feedback: The TX telemetry port supports ESC data feedback, including voltage, temperature, and motor RPM (current sensing is not supported) BEC: No BEC output Cooling Fan: No built-in cooling fan Water Resistance: Not waterproof; only resistant to light splashes 5-12S 80A ESC Features MINI Size, MAX Power OutputCompact design with high-performance power output, providing an excellent balance between size and performance. Multiple Protection Functions: Low Voltage Protection Over Temperature Protection Motor Stall Protection Low-Speed Protection Equipped with a high-performance ARM 32-bit Cortex-core MCU with a processing frequency of up to 120MHz. Designed with stall protection for RC cars and crawler vehicles to prevent damage caused by motor blockage. Provides propeller jam (stall) protection for multi-rotor drones, improving flight safety and ESC reliability. Supports firmware upgrades via: Betaflight Passthrough Single-wire UART Arduino Supports parameter configuration through the AM32.ca online configuration tool. Supports Servo PWM and Dshot300 / Dshot600 protocols. Supports EDT (Extended Dshot Telemetry), allowing full telemetry data transmission through the signal wire. Equipped with sine wave startup mode, providing smoother and more responsive startup performance for RC cars and crawler vehicles. 5-12S 80A ESC Applications Multi-rotor drones Fixed-wing model aircraft RC cars RC boats Package Contents Package 1 5-12S 80A ESC × 1 Heat Shrink Tubes × 5 Electrolytic Capacitor × 1 (63V 680μF) 2-Pin Dupont Cable × 1 (33cm) Package 2 5-12S 80A ESC × 1 Heat Shrink Tubes × 5 Electrolytic Capacitor × 1 (63V 680μF) 2-Pin Dupont Cable × 1 (33cm) 3-Pin Dupont Cable × 1 (33cm) XT90 Male Connector × 1 Black Power Wire × 1 (12AWG, 120mm) Red Power Wire × 1 (12AWG, 120mm)

Read more less

4IN1_8S80A_ESC Description： The 4IN1_8S80A_ESC is a high-performance brushless electronic speed controller that supports an input of 4-8S lithium batteries and has a continuous current rating of 80A. It is widely applicable to FPV racing drones, multi-rotor drones, VTOL Fixed-wing UAV , etc.   4IN1_8S80A_ESC Parameters： Type: Brushless Motor Electronic Speed Controller Continuous Current: 80A Peak Current: 100A Weight of bare board (excluding capacitors): 12.5g   Weight of the ESC with heat sink (excluding capacitors): 17.9g±2g Size: 42.2 mm (L) × 43.8mm (W) × 7.4mm (H) Mounting hole spacing: 30.5*30.5mm Mounting aperture: 4mm (M4) Input Power Supply: 4S-8S LiPo Firmware Version: MAXKGO_4IN1_F421 Firmware Upgrade: Supports online upgrade via AM32.ca Communication Protocol: Dshot 300, Dshot 600, Servo PWM Signal Feedback: The TX telemetry feedback port can provide ESC voltage, current, temperature, motor speed and etc. Waterproof: Not support4IN1_8S80A_ESC Features： 1.MINI Size,MAX Power output. 2.Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection. 3.Equipped with high-performance ARM 32-bit Cortex-core MCU, operating frequency up to 120 MHz. 4.Provides paddle stuck (locked-rotor) protection function for multi rotor aircraft. 5.Supports to upgrade firmware via Betaflight, Passthrough, single-wire UART or Arduino. 6.Supports parameter configuration via the AM32.ca web configuration tool. 7.Supports Servo PWM and Dshot300/600 communication Protocol. 8.Supports EDT (Extended Dshot Telemetry). Complete telemetry data can be obtained via signal wire. 4IN1_8S80A_ESC Application Fields： Multi-rotor Drone Fixed-wing Model Aircraft FPV drone Multi-rotor drone VTOL Fixed-wing UAV   Package Content： Option 1: 4IN1_8S80A_ESC *18pin Double-Ended Terminal Wire *1（25mm SH1.0） 8Pin single-head terminal wire  *1 (60mm, SH1.0 terminal) 8Pin empty terminal head  * 1 (SH1.0 terminal) Vibration Damping Ball *5（M3*8） Fixing nuts (M3)*5 Solid Capacitor *1（35V 820μF）XT60 Male Connector *1 Black Power Cable*1（12AWG，120mm） Red Power Cable *1（12AWG，120mm） Option 2: 4IN1_8S80A_ESC*1 heat sink  *1 (installed at the esc before shipment) 8Pin double-ended terminal wire *1 (25mm, SH1.0 terminal) 8Pin single-head terminal wire x 1 (60mm, SH1.0 terminal) 8Pin empty terminal head x 1 (SH1.0 terminal) Damping ball *5 (M3 * 8) Fixing nuts (M3)*5 Solid capacitor *1 (35V 820μF) XT60 male connector *1 4IN1_8S70A_ESC Application Fields： Multi-rotor Drone Fixed-wing Model Aircraft Mountings： 4IN1_8S70A_ESC *18pin Double-Ended Terminal Wire *1（25mm SH1.0）Vibration Damping Ball *5（M3*8）Solid Capacitor *1（35V 820μF）XT60 Male Connector *1 Black Power Cable*1（12AWG，120mm） Red Power Cable *1（12AWG，120mm）Sealed plastic box

Read more less

Description The 5-12S 200A MINI ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-12S LiPo battery input and provides a continuous current rating of up to 200A. Designed for high-power applications, it is widely used in FPV racing drones, multi-axis UAVs, fixed-wing model aircraft, RC cars, RC boats, agricultural spraying drones, electric cruise UAVs, firefighting drones, and other industrial drone platforms. 5-12S 200A MINI ESC Specifications Type: Brushless Motor Electronic Speed Controller (ESC) Continuous Current: 200A Burst Current: 250A Weight: Net Weight 144g ± 5g Dimensions: 84mm (Length) × 43mm (Width) × 28mm (Height) Input Power: 5S–12S LiPo Battery Firmware Version: MAXKGO_12S_F421 Firmware Upgrade: Supports online firmware updates via AM32.ca Communication Protocols: Dshot300, Dshot600, Servo PWM Telemetry Feedback: The TX telemetry port supports ESC data feedback, including voltage, current, temperature, motor RPM, and other operating parameters BEC: No BEC output Cooling Fan: No built-in cooling fan Water Resistance: Not waterproof; only resistant to light splashes 5-12S200A MINI ESC Features Feature Category Description Compact Design MINI Size Protection Functions Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection MCU Performance High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz RC Car Support Stall protection for RC cars and crawlers Drone Protection Stuck rotor protection for multi-rotor drones Firmware Upgrade Firmware upgradable via Betaflight passthrough, single wire serial, or Arduino Web Configurator Web configurator at am32.ca Protocol Support Supports Dshot 300, Dshot 600 and Servo PWM communication protocol Telemetry Support EDT for full Dshot telemetry via signal wires Smooth Startup Sinusoidal startup mode for smoother starting on RC cars and crawlers 5-12S 200A MINI ESC Applications Multi-axis UAVs Fixed-wing model aircraft RC cars RC boats Agricultural spraying drones Electric cruise UAVs Firefighting drones Package Contents Package 1 5-12S 200A ESC × 1 Heat Shrink Tubes × 5 2-Pin Dupont Cable × 1 (33cm) Package 2 5-12S 200A ESC × 1 Heat Shrink Tubes × 5 2-Pin Dupont Cable × 1 (33cm) 3-Pin Dupont Cable × 1 (33cm) XT90 Male Connector × 1 Positive & Negative Power Wires × 1 (8AWG / 200mm)

Read more less

Description The 5-12S 120A ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-12S LiPo battery input and delivers a continuous current rating of up to 120A. It is widely used in FPV racing drones, multi-axis UAVs, fixed-wing model aircraft, multi-rotor aircraft, RC cars, RC boats, and other high-power RC applications. 5-12S 120A ESC Specifications Type: Brushless Motor Electronic Speed Controller (ESC) Continuous Current: 120A Burst Current: 150A Weight: 93g ± 5g Dimensions: 78.8mm (Length) × 34.6mm (Width) × 21.8mm (Height) Input Power: 5S–12S LiPo Battery Firmware Version: MAXKGO_12S_F421 Firmware Upgrade: Supports online firmware updates via AM32.ca Communication Protocols: Dshot300, Dshot600, Servo PWM Telemetry Feedback: The TX telemetry port supports ESC data feedback, including voltage, current, temperature, motor RPM, and other telemetry information BEC: No BEC output Cooling Fan: No built-in cooling fan Water Resistance: Not waterproof; only resistant to light splashes 5-12S 120A ESC Features MINI Size DesignCompact structure with powerful performance, offering an excellent balance between size and power output. Multiple Protection Functions: Low Voltage Protection Over Temperature Protection Motor Stall Protection Low-Speed Protection Equipped with a high-performance ARM 32-bit Cortex-core MCU with a processing frequency of up to 120MHz. Supports AM32 firmware, with online configuration and firmware updates through AM32.ca. Supports Dshot300, Dshot600, and Servo PWM protocols, providing compatibility with various flight controllers and RC platforms. 5-12S 120A ESC Applications Multi-axis drones Fixed-wing model aircraft Multi-rotor aircraft RC cars RC boats Package Contents Package 1 5-12S 120A ESC × 1 Heat Shrink Tubes × 5 2-Pin Dupont Cable × 1 (33cm) Package 2 5-12S 120A ESC × 1 Heat Shrink Tubes × 5 2-Pin Dupont Cable × 1 (33cm) 3-Pin Dupont Cable × 1 (33cm) XT90 Male Connector × 1 Positive & Negative Power Wires × 1 (8AWG / 200mm)

Read more less

5-14S 100A ESC Description The 5-14S 100A ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-14S LiPo battery input and provides a continuous current rating of 100A. It is widely used in FPV racing drones, multi-rotor UAVs, fixed-wing model aircraft, RC cars, RC boats, agricultural spraying drones, and other high-performance RC applications. 5-14S 100A ESC Specifications Type: Brushless Motor Electronic Speed Controller (ESC) Continuous Current: 100A Burst Current: 130A Weight: Net Weight 72g ± 5g Dimensions: 68.5mm (Length) × 34mm (Width) × 24.5mm (Height) Input Power: 5S–14S LiPo Battery Firmware Version: MAXKGO_V1_F421 Firmware Upgrade: Supports online firmware updates via AM32.ca Communication Protocols: Dshot300, Dshot600, Servo PWM Telemetry Feedback: The TX telemetry port supports ESC data feedback, including voltage, current, temperature, motor RPM, and other operating parameters BEC: No BEC output Cooling Fan: No built-in cooling fan Water Resistance: Not waterproof; only resistant to light splashes 5-14S 100A ESC Features Mini Size, Powerful PerformanceCompact design with high power output, providing excellent performance for various RC applications. Multiple Protection Functions: Low Voltage Protection Over Temperature Protection Motor Stall Protection Low-Speed Protection Equipped with a high-performance ARM 32-bit Cortex-core MCU with a processing frequency of up to 120MHz. Stall Protection for RC Cars and CrawlersHelps prevent ESC damage caused by motor blockage during low-speed or high-load operation. Stuck Rotor Protection for Multi-Rotor DronesProvides protection against propeller blockage or sudden motor stoppage during flight. Flexible Firmware Upgrade SupportFirmware can be upgraded through: Betaflight Passthrough Single-wire Serial Arduino AM32 Web Configurator SupportSupports online parameter configuration through AM32.ca. Multiple Protocol CompatibilitySupports: Servo PWM Dshot300 Dshot600 EDT (Extended Dshot Telemetry) SupportEnables full Dshot telemetry feedback through the signal wire for real-time ESC monitoring. Sinusoidal Startup ModeProvides smoother startup performance for RC cars and crawlers, reducing vibration and improving control response. 5-14S 100A ESC Applications Multi-rotor drones Fixed-wing model aircraft RC cars RC boats Package Contents Package 1 5-14S 100A ESC × 1 Heat Shrink Tubes × 5 2-Pin Dupont Cable × 1 (33cm) Package 2 5-14S 100A ESC × 1 Heat Shrink Tubes × 5 2-Pin Dupont Cable × 1 (33cm) 3-Pin Dupont Cable × 1 (33cm) XT90 Male Connector × 1 Positive & Negative Power Wires × 1 (10AWG / 200mm)

Read more less
