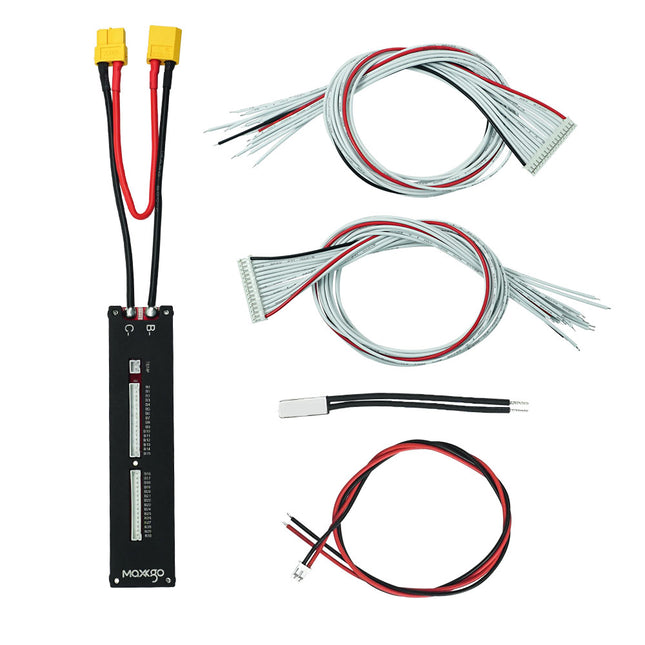

Video: Only Charge Board does not support discharge protection, please do not discharge through this protection board. Specs: Type: Charge only Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 4S-24S Charge Current: 20A Overcharge Voltage: 4.25V Overcharge Reset: 4.19V Balance: 30-50mA@4.2V Overtemperature: 60°C Overtemperature Reset: 40°C Size: 110*30*11mm Net weight: 30g Package Included: 1* MKBMS 4S-24S 20A Only Charge Board 1* GH2.0 single head 12P line 1* GH2.0 single head 13P line 1* HY2.0 single head 2P cable with thermal protection switch 1* Charging cable with XT60 or XT30 connectors

Read more less

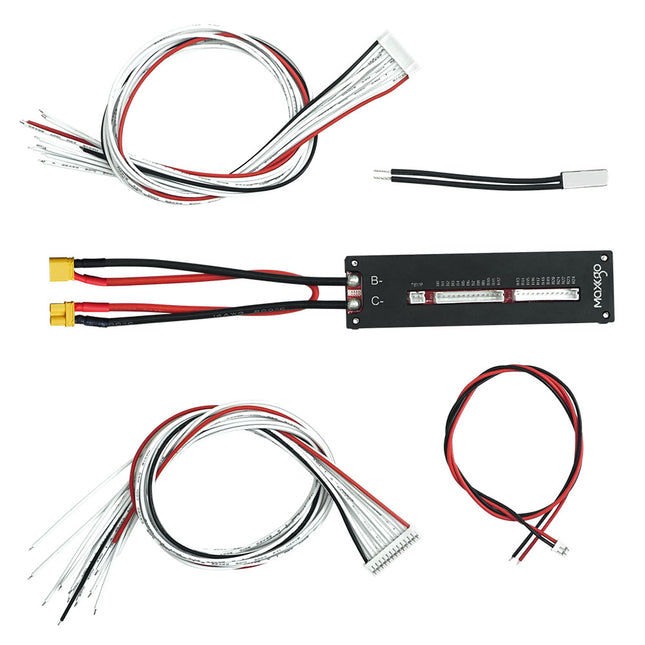

MKBMS 4S-30S 20A Only Charge Battery Protect Board device is designed to reduce the risk of charging. Designed to be ultra-compact and simple to use without any configuration required. Features high charging current, balancing activity LED lights, overcharge, and over temperature protection .Extensive Used in electric bicycles, electric scooters, Onewheels and other fields. MKBMS 4S-30S 20A Only Charge Board does not support discharge protection, please do not discharge through this protection board. adapter board: https://shorturl.at/bhjTY Specs: Type: Charge only Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 4S-30S Charge Current: 20A Overcharge Voltage: 4.25V Overcharge Reset: 4.19V Balance:20-30mA@4.2V（Please balance the battery first before charging） Overtemperature: 60°C Overtemperature Reset: 40°C Size: 130*30*11mm Net weight: 30g Features: Compact charge only design Cell balance indicator LED Compatible with 4s-30s battery Designed to be ultra-compact and simple to use without any configuration required Anodized aluminum heatsink case, stable performance Functions: Balance function Overcharge protection Overtemperature protection Cell balance indicator LED Common Uses: ▪ One-wheeled electric skateboards ▪ Electric Skateboards ▪ Electric Scooters ▪ Electric Bikes ▪ EUCs Package Included: 1* MKBMS 4S-30S 20A Only Charge Board 1* GH2.0 single head 15P line 1* GH2.0 single head 16P line 1* HY2.0 single head 2P cable with thermal protection switch 1* Charging cable with XT30 or XT60 connectors Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B15, B16-B30, the voltage increases from low to high in sequence. This BMS is compatible with battery packs up to 30s, which is over 5V DC when fully charged. Electric shocks from high voltage may cause serious injury. Please pay attention to safety when using. This device is designed to reduce the risk of charging and will not protect against overcurrent discharge, undervoltage, internal pack shorts, pack overtemperature. Video:

Read more less

Product Description-- Charging current: ≤10A Discharge current: 30A Internal resistance: ≤15mΩ Charging voltage:The number of Li-ion batteryin series connection X 4.2VWiring : Same Port   Overcharge protection—— Detection voltage: 4.25±0.025V Detection delay: 1000±500MS Release voltage: 4.15±0.05V Over-discharge voltage protection—— Detection voltage: 2.75±0.1V Detection delay: 1000±500MS Release voltage: 3.0±0.1V Balanced voltage—— Detection voltage: 4.15±0.025V Detection delay: 100±50MS Balance current: 42±5MA Over discharge current protection—— Detection voltage: 50±15MV Detection delay: 1000±500MS Current protection: 50±8A Short circuit protection-- Trigger condition: external short circuit Detection delay: 300us Release condition: disconnect the load Temperature control protection—— Charge and discharge over-temperature protection: 55℃ Charge and discharge high temperature release temperature: 75℃ Release condition:During normal working temperature Self-consumption—— Working power consumption: <35UA Over-discharge power consumption(Sleeping State): <10UA Operating temperature range: -30°~+80°C   Product Features-- Overcharge protection Over discharge protection Overcurrent protection Balanced protection Temperature control protection Applicablefor 4S-7S / 8S-14S Li-ion battery   Package—— 4S-7S: 1* 4-7S BMS PCBA board 1*HY2.0 single head 8P line Net weight:12.2g Weight:87g Size:47.6*32*9.2mm 8S-14S: 1* 8-14S BMS PCBA board 1*HY2.0 single head 7P line 1*HY2.0 single head 8P line Net weight:13.3g Weight:96g Size:47.6*32*9.2mm   ATTENTION—— 1. It is strictly forbidden to insert balance wires into BMS before connecting batteries.Must make sure that the cable is soldered correctly first , and then connect the BMS board. 2. The sequence of connecting wires for BMS: a.From thin black balance wire to stare, the 2ndwire(thin red wire)connect with the 1stbattery’s positive pole.Then connect each cell’s positive pole in order until the last one B+. b.Please do not insert the plug directly after the cable is connected.Measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary polymer battery, the voltage should be between 3.0 ~4.2V, and the voltage of the iron-lithium battery should be between 2.0 ~3.6V. The voltage should be between 1.5~2.75V. c.After confirming that the wiring sequence and voltage of the cables are correct, insert them into the socket of the protection board. Attentionplease: The cables of different manufacturers are not universal, please make sure to use the matching cables. 3. After the wiring is completed, measure whether the voltage of battery B+and B- ,andthe voltage of B-and C- are equal. If they are equal, the protection board is working normally and can be used normally. If it is not equal, please check the wiring again.

Read more less

Product Description-- Charging current: <60A Discharge current: < 150A Internal resistance: ≤15mΩ   Charging voltage: The number of Li-ion battery in series connection X 4.2VWiring : same port or different ports（When using the charging and discharging same port, disconnect the p-）   Overcharge protection—— Detection voltage: 4.25±0.025V Detection delay: 1000±500MS Release voltage: 4.15±0.05V   Over-discharge voltage protection—— Detection voltage: 2.75±0.1V Detection delay: 1000±500MS Release voltage: 3.0±0.1V   Balanced voltage—— Detection voltage: 4.15±0.025V Detection delay: 100±50MS Balance current: 42±5MA   Over discharge current protection—— Detection voltage: 50±15MV Detection delay: 1000±500MS Current protection: 300±50A 450±50A 600±60A   Short circuit protection-- Trigger condition: external short circuit Detection delay: 300us Release condition: disconnect the load   Temperature control protection—— Charge and discharge over-temperature protection: 55℃ Charge and discharge high temperature release temperature: 75℃ Release condition:During normal working temperature          Self-consumption—— Working power consumption: <35UA Over-discharge power consumption(Sleeping State): <10UA Operating temperature range: -30°~+80°C   Product Features-- Overcharge protection Over discharge protection Over current protection Balanced protection Temperature control protection Applicable for 8-14S battery   Size:121*50*12.8mm Net weight:244g Weight: 331.5g   Package: 1* PCBA board 1*HY2.0 single head 15P line   Wiring diagram

Read more less

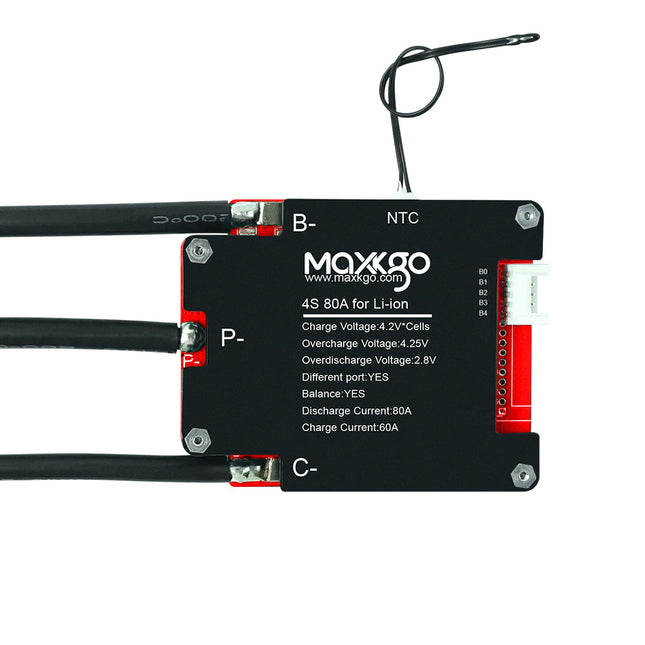

MKBMS 4-14S_80A BMS board is a full-function Li-ion battery protection board with passive balance. The continuous current can reach to 80A. It supports overcharge protection, overcharge protection, over current protection, ,over temperature protection, short circuit protection, etc. Extensive evaluation of e-bike, e-skateboard,electric motorcycles, e-scooters, electric balance cars and other fields. Parameters:  Feature: Wiring : same port or different ports（When using the charging and discharging same port, disconnect the p-） Balance function, fully activate the battery capacity No need to adjust parameters, the operation is easier Metal heat sink, more stable performance With locking cable arrangement, the wiring is more secure Function: 1 .Over charge protection Over discharge protection Overcurrent protection Short circuit protection Temperature control protection Balanced protection Static protection Load detection function Application : Electric skateboard Electric bicycle Smart balance car Electric Scooter Forklift Cleaning car Sightseeing car Three-wheels car  Shipping list: 1X MKBMS（4/7/10/13/14）S 80A Li-ion BMS Board 1X GH2.0 single head（5/8/11/14/15）P line（with buckle） Operational matters: Please ensure the correctness of the wiring sequence during wiring.Please arrange the lines in order from B0-B14.After the battery is fully powered, the voltage will reach a maximum of 100V. There is a risk of electric shock, so please pay attention to protection.

Read more less

Specification: Charging Voltage: 6*4.2VCharging Currect: 15ACharging Overcurrent Protection Value: 26ABalance Enable Voltage: 4.125VBattery Balance Current: 25 ± 5mAOvercharge Detection Voltage: 4.25 ± 0.05VOvercharge Release Voltage: 4.15 ± 0.05VDischarge Current: 30ADischarge Overcurrent Protection Value: 66AOver-discharge Detection Voltage: 2.8 ± 0.05VOver-discharge Release Voltage: 3.0 + 0.05VOver-discharge Detection Delay: 1Sshort Circuit Detection Delay: 200-500 μS (The actual results are subject to the customer's return and inspection)Working Temperature Range: -30°C~70°CStorage Temperature Range: -40°C~125°CTemperature Protection: Charging: -10°C~50°C, Discharging: -30°C~70°C (can be customized)Sleep Current (Battery Over-discharge): 10μA

Read more less

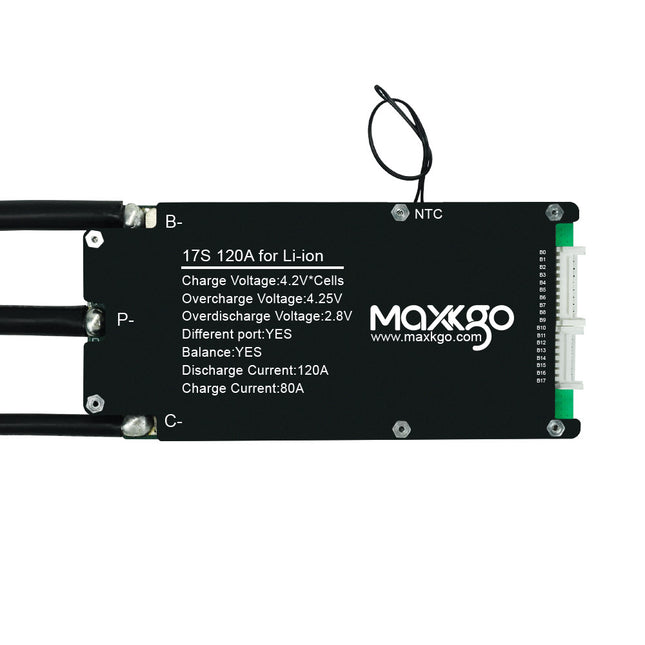

MKBMS 15-24S_120A BMS board is a full-function Li-ion battery protection board with passive balance. The continuous current can reach to 120A. It supports overcharge protection, overcharge protection, over current protection, ,over temperature protection, short circuit protection, etc. Extensive evaluation of e-bike, e-skateboard,electric motorcycles, e-scooters, electric balance cars and other fields.  Parameters: wiring: same port or different ports（When using the charging and discharging port, disconnect the p-） Battery type: li-ion battery (standard voltage 3.7V) Balance method: passive balance Number of battery strings: 15S-24S Overcharge voltage: 4.25V Overcharge recovery voltage: 4.15V Over-discharge threshold: 2.8V Over-discharge release: 3.0V Passive equalization turn-on voltage: 4.125V Charging current: 80A Discharge current: 120A Charging overcurrent: 200A Discharge overcurrent: 480A Charging protection temperature: 50°C Charging recovery temperature: <45°C Discharge protection temperature: 70°C Discharge recovery temperature: <60°C Size: 140*66*16mm For detailed parameters, please refer to “15-24S BMS Parameter Table” Feature: Balance function, fully activate the battery capacity No need to adjust parameters, the operation is easier Metal heat sink, more stable performance With locking cable arrangement, the wiring is more secure Function: Over charge protection Over discharge protection Overcurrent protection Short circuit protection Temperature control protection Balanced protection Static protection Load detection function Application : Electric skateboard Electric bicycle Smart balance car Electric Scooter Forklift Cleaning car Sightseeing car Energy storage Outdoor power supply Shipping list: 1X MKBMS Li-ion BMS Board 1X GH2.0 single head P line（with buckle） Operational matters: please ensure the correctness of the wiring sequence during wiring. Please arrange the lines in order from B0-B12, B13-B24. After the battery is fully powered, the voltage will reach a maximum of 100V. There is a risk of electric shock, so please pay attention to protection.
