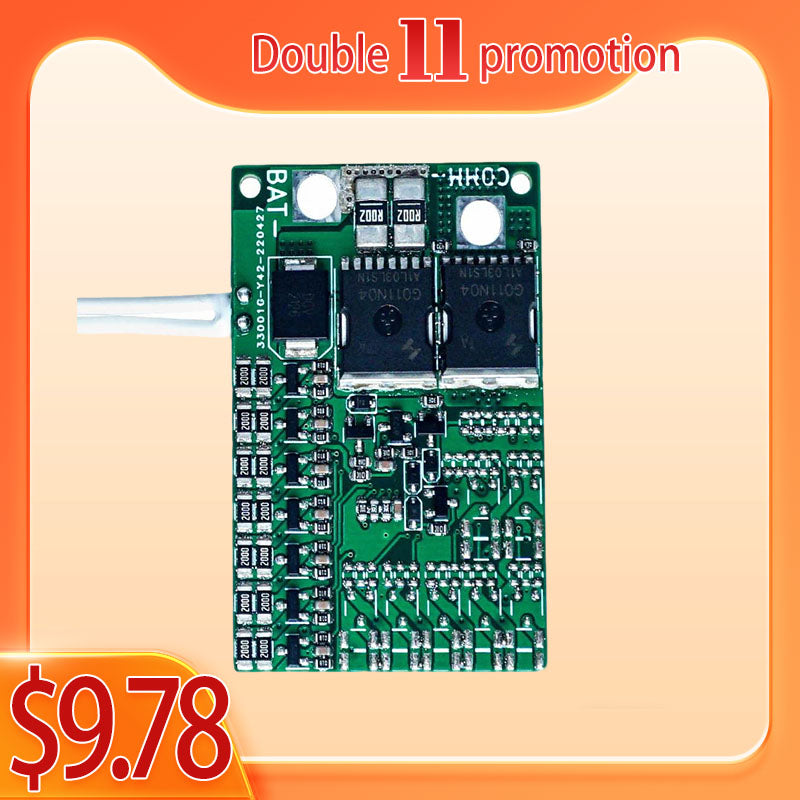

MAXKGO 4S-14S 30A BMS Protection Board Hardware Ternary Polymer Lithium Battery BMS Board

Description

Product Description--

Charging current: ≤10A

Discharge current: 30A

Internal resistance: ≤15mΩ

Charging voltage:The number of Li-ion batteryin series connection X 4.2V
Wiring : Same Port



Overcharge protection——

Detection voltage: 4.25±0.025V

Detection delay: 1000±500MS

Release voltage: 4.15±0.05V


Over-discharge voltage protection——

Detection voltage: 2.75±0.1V

Detection delay: 1000±500MS

Release voltage: 3.0±0.1V


Balanced voltage——

Detection voltage: 4.15±0.025V

Detection delay: 100±50MS

Balance current: 42±5MA


Over discharge current protection——

Detection voltage: 50±15MV

Detection delay: 1000±500MS

Current protection: 50±8A


Short circuit protection--

Trigger condition: external short circuit

Detection delay: 300us

Release condition: disconnect the load


Temperature control protection——

Charge and discharge over-temperature protection: 55℃

Charge and discharge high temperature release temperature: 75℃

Release condition:During normal working temperature


Self-consumption——

Working power consumption: <35UA

Over-discharge power consumption(Sleeping State): <10UA

Operating temperature range: -30°~+80°C



Product Features--

  • Overcharge protection
  • Over discharge protection
  • Overcurrent protection
  • Balanced protection
  • Temperature control protection
  • Applicablefor 4S-7S / 8S-14S Li-ion battery



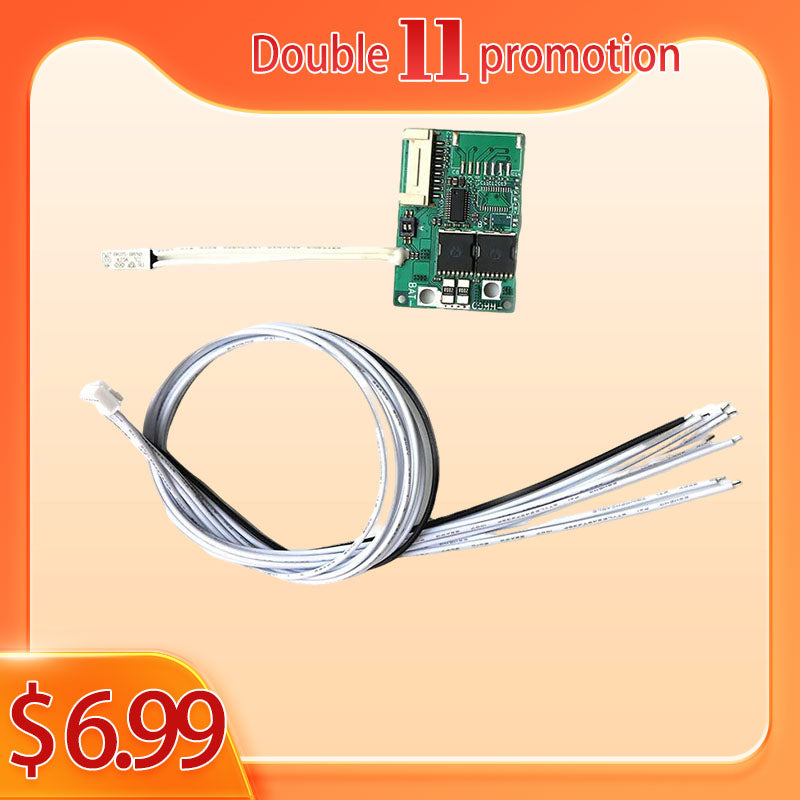

Package——

4S-7S:
1* 4-7S BMS PCBA board
1*HY2.0 single head 8P line

Net weight:12.2g

Weight:87g

Size:47.6*32*9.2mm

8S-14S:
1* 8-14S BMS PCBA board
1*HY2.0 single head 7P line
1*HY2.0 single head 8P line


Net weight:13.3g

Weight:96g

Size:47.6*32*9.2mm



ATTENTION——

1. It is strictly forbidden to insert balance wires into BMS before connecting batteries.Must make sure that the cable is soldered correctly first , and then connect the BMS board.

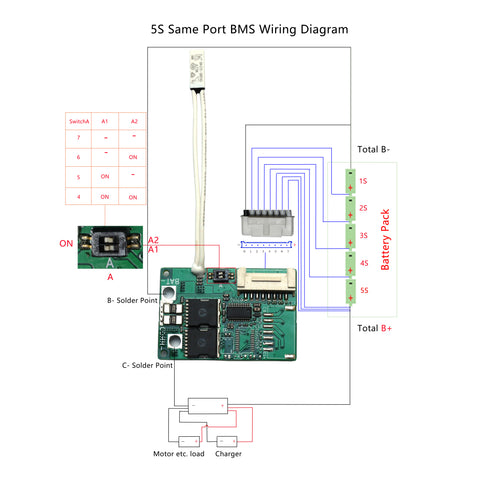

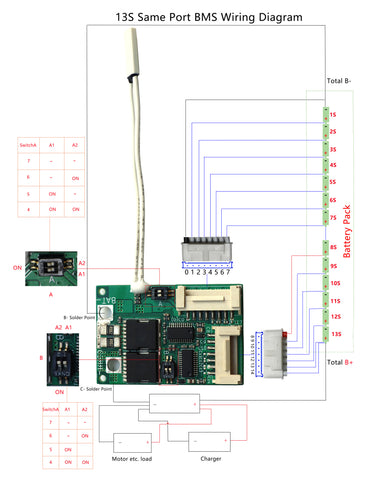

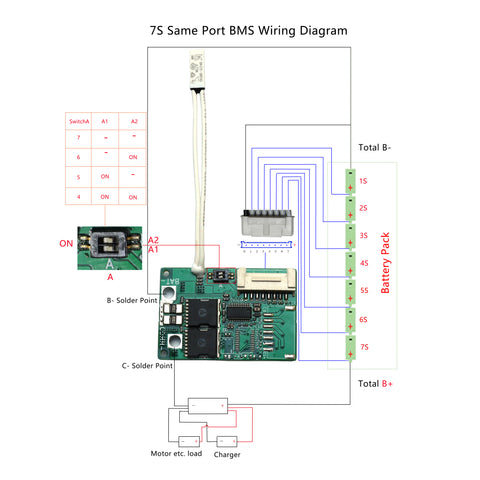

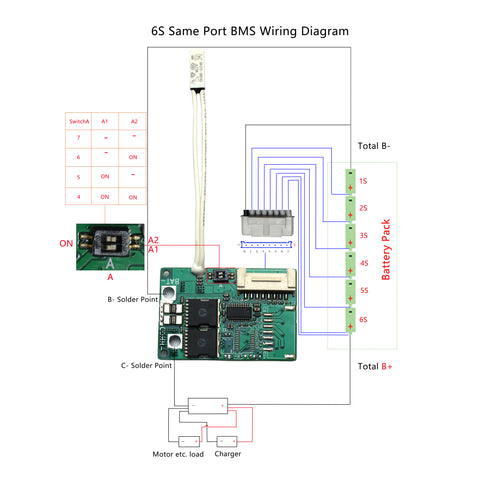

2. The sequence of connecting wires for BMS:

a.From thin black balance wire to stare, the 2ndwire(thin red wire)connect with the 1stbattery’s positive pole.Then connect each cell’s positive pole in order until the last one B+.
b.Please do not insert the plug directly after the cable is connected.Measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary polymer battery, the voltage should be between 3.0 ~4.2V, and the voltage of the iron-lithium battery should be between 2.0 ~3.6V. The voltage should be between 1.5~2.75V.
c.After confirming that the wiring sequence and voltage of the cables are correct, insert them into the socket of the protection board.

Attentionplease: The cables of different manufacturers are not universal, please make sure to use the matching cables.

3. After the wiring is completed, measure whether the voltage of battery B+and B- ,andthe voltage of B-and C- are equal. If they are equal, the protection board is working normally and can be used normally. If it is not equal, please check the wiring again.


MAXKGO 4S-14S 30A BMS Protection Board Hardware Ternary Polymer Lithium Battery BMS Board

Product form

Product Description-- Charging current: ≤10A Discharge current: 30A Internal resistance: ≤15mΩ Charging voltage:The number of Li-ion batteryin series connection X 4.2VWiring :... Read more

SKU: BMS4S7S02
Barcode: BMS4S7S02

$15.80 $6.99 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product

      Description

      Product Description--

      Charging current: ≤10A

      Discharge current: 30A

      Internal resistance: ≤15mΩ

      Charging voltage:The number of Li-ion batteryin series connection X 4.2V
      Wiring : Same Port



      Overcharge protection——

      Detection voltage: 4.25±0.025V

      Detection delay: 1000±500MS

      Release voltage: 4.15±0.05V


      Over-discharge voltage protection——

      Detection voltage: 2.75±0.1V

      Detection delay: 1000±500MS

      Release voltage: 3.0±0.1V


      Balanced voltage——

      Detection voltage: 4.15±0.025V

      Detection delay: 100±50MS

      Balance current: 42±5MA


      Over discharge current protection——

      Detection voltage: 50±15MV

      Detection delay: 1000±500MS

      Current protection: 50±8A


      Short circuit protection--

      Trigger condition: external short circuit

      Detection delay: 300us

      Release condition: disconnect the load


      Temperature control protection——

      Charge and discharge over-temperature protection: 55℃

      Charge and discharge high temperature release temperature: 75℃

      Release condition:During normal working temperature


      Self-consumption——

      Working power consumption: <35UA

      Over-discharge power consumption(Sleeping State): <10UA

      Operating temperature range: -30°~+80°C



      Product Features--

      • Overcharge protection
      • Over discharge protection
      • Overcurrent protection
      • Balanced protection
      • Temperature control protection
      • Applicablefor 4S-7S / 8S-14S Li-ion battery



      Package——

      4S-7S:
      1* 4-7S BMS PCBA board
      1*HY2.0 single head 8P line

      Net weight:12.2g

      Weight:87g

      Size:47.6*32*9.2mm

      8S-14S:
      1* 8-14S BMS PCBA board
      1*HY2.0 single head 7P line
      1*HY2.0 single head 8P line


      Net weight:13.3g

      Weight:96g

      Size:47.6*32*9.2mm



      ATTENTION——

      1. It is strictly forbidden to insert balance wires into BMS before connecting batteries.Must make sure that the cable is soldered correctly first , and then connect the BMS board.

      2. The sequence of connecting wires for BMS:

      a.From thin black balance wire to stare, the 2ndwire(thin red wire)connect with the 1stbattery’s positive pole.Then connect each cell’s positive pole in order until the last one B+.
      b.Please do not insert the plug directly after the cable is connected.Measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary polymer battery, the voltage should be between 3.0 ~4.2V, and the voltage of the iron-lithium battery should be between 2.0 ~3.6V. The voltage should be between 1.5~2.75V.
      c.After confirming that the wiring sequence and voltage of the cables are correct, insert them into the socket of the protection board.

      Attentionplease: The cables of different manufacturers are not universal, please make sure to use the matching cables.

      3. After the wiring is completed, measure whether the voltage of battery B+and B- ,andthe voltage of B-and C- are equal. If they are equal, the protection board is working normally and can be used normally. If it is not equal, please check the wiring again.
