MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages within 150V. MKBMS Master Board ( MKBMS-LV Master Mini ) Features: With charger voltage measurement, humidity sensor, isolated on-board 5V power supply for isolating CAN bus interface and USB Type-C 17V to 150V operation Voltages measurements for load & battery pack Bi-directional current monitoring (up to 2500A pulsed, 500A continuous) Isolated charger detection circuit Isolated CAN bus interface Daisychain Master/Slave ISOSPI communication Single PCB pattern for bolt-on contactor It can internal power supply or external power supply voltage is 12V Integrated predischarge circuit USB & serial interface for configuring and firmware upgrades with the ENNOID-BMS-Tool OLED display output ON/OFF toggle switch input SWD burn debugging or update firmware interface   MKBMS Slave Board Features: MKBMS slave board is made of aluminum base plate, which has better heat dissipation effect. Scalable & isolated 1000VDC+ Compatible with MKBMS Master boards From 5 to 18 cell levels monitoring per board Daisychain Master/Slave ISOSPI communication Parameters fully programmable through an easy to use graphical user interface 33 ohm balance resistors (0.125A capacity) on all channels Self powered by monitored cells 1.2mV accuracy, -40 to 120C operation Extra low power consumption (Sleep mode = 6uA) Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps)       Variant:      LTC6811 : Up to 12 series-connected battery cells & 1+4 temperature sensors* per slave      LTC6812 : Up to 15 series-connected battery cells & 1+8 temperature sensors* per slave      LTC6813 : Up to 18 series-connected battery cells & 1+8 temperature sensors* per slave      *The first temperature channel is used by slave board itself. The following 4 or 8 temperature sensors are not in the package lists but means an interface to connect 4 temp sensors at most or to connect 8 temp sensors at most. *For uneven cell count in series, only the last slave board in the daisy-chained loop should have one cell less connected than the other slaves. Ex: 39S = 10S + 10S + 10S + 9S MKBMS battery management system implements the following functions: 1. Current and voltage protection: protect the battery pack from overcharge and overdischarge, thereby extending the cycle life. 2. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. 3. Thermal management: Overheating and under-temperature protection. 4. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate 5. Intelligent battery balance: passive balance  6. Field programmable 7. Current limit calculation 8. Fully programmable CANBUS interface, programmable structure of all CAN messages 9. Drift state of charge 10. Reliability, speed and accuracy 11. Integration with other devices 12. Multiple BMS units connected in series 13. Current sensor support 14. Isolation from fault detection 15. Automotive grade design, automotive grade locking connector 16. Software for data logging and programming MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc. Video: Shipping list: MKBMS-LV Master Mini Package 1X   PCBA board MKBMS-LV Master Mini V1.4 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 3X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X  12MM 3-6V button switch   LTC6811-12S Package 1X   PCBA board LTC6811-12W-AL V1.2 slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 1X   HY2.0 single head 5P line 1X   HY2.0 single head 13P line 4X   Nylon column 4X   Nylon nut     LTC6813-18S  Package 1X PCBA board LTC6813-18S V1.4 slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 1X HY2.0 single head 6P line 1X HY2.0 single head 13P line 1X HY2.0 single head 16P line 4X nylon column 4X nylon nut   LTC6812-15S  Package—— 1X   PCBA board LTC6812-15S slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 2X   HY2.0 single head 8P line 1X   HY2.0 single head 16P line 4X   Nylon column 4X   Nylon nut    MKBMS hardware design file: LTC6811-12W_V1.2 MKBMS-LV_Master_Mini_V1.4

Read more less

  MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages with 400V. MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials. MKBMS HV Master Mini Board Features： With charger voltage measurement, humidity sensor, isolated on-board 5V power supply for isolating CAN bus interface and USB Type-C 100V to 400V operation Voltages measurements for load & battery pack Bi-directional current monitoring (up to 2500A pulsed, 500A continuous) Isolated charger detection circuit Isolated CAN bus interface Daisychain Master/Slave ISOSPI communication Single PCB pattern for bolt-on contactor It can internal power supply or external power supply voltage is 12V Integrated predischarge circuit USB & serial interface for configuring and firmware upgrades with the ENNOID-BMS-Tool OLED display output ON/OFF toggle switch input SWD burn debugging or update firmware interface MKBMS battery management system implements the following functions: Current and voltage protection: protect the battery pack from overcharge and overdischarge, thereby extending the cycle life. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. Thermal management: Overheating and under-temperature protection with fan control for cooling or heating. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate Intelligent battery balance: passive balance and active balance Rugged and anti-EMI Field programmable Current limit calculation Drift state of charge Reliability, speed and accuracy Integration with other devices Multiple BMS units connected in series Current sensor support Isolation from fault detection Automotive grade design, automotive grade locking connector Software for data logging and programming MKBMS can be roughly divided into three aspects: automobile, industry, and consumption． Shipping List: 1X   PCBA board MKBMS-HV Master Board2X   GH1.25 single head 2P line1X   GH1.25 double head 2P same direction line5X   HY2.0 single head 2P line2X   GH1.25 single head 5P line1X   GH1.25-5P to Dupont line1X   USB cable type-C data cable1X   2.0MM jumper cap1X   1.3 inch OLED display LCD screen module1X   Switch wiring diagram:

Read more less

MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials. Maybe you need more MKBMS options: https://bit.ly/3xR2DJS MKBMS Slave Board Features: MKBMS slave board is made of aluminum base plate, which has better heat dissipation effect. Scalable & isolated 1000VDC+ Compatible with MKBMS Master boards From 5 to 18 series-connected battery cells per board Daisychain Master/Slave ISOSPI communication Parameters fully programmable through an easy to use graphical user interface 33 ohm balance resistors (0.125A capacity) on all channels Self powered by monitored cells 1.2mV accuracy, -40 to 120C operation Extra low power consumption (Sleep mode = 6uA) Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps)       Variant:            LTC6813 : Up to 18 cells voltage monitoring & 1+8 temperature sensors* per slave      *The first temperature channel is used by slave board itself. The following 4 or 8 temperature sensors are not in the package lists but means an interface to connect 8 temp sensors at most.    MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc.   LTC6813-18S  Package 1X PCBA board LTC6813-18S V1.4 slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 1X HY2.0 single head 6P line 1X HY2.0 single head 13P line 1X HY2.0 single head 16P line 4X nylon column 4X nylon nut

Read more less

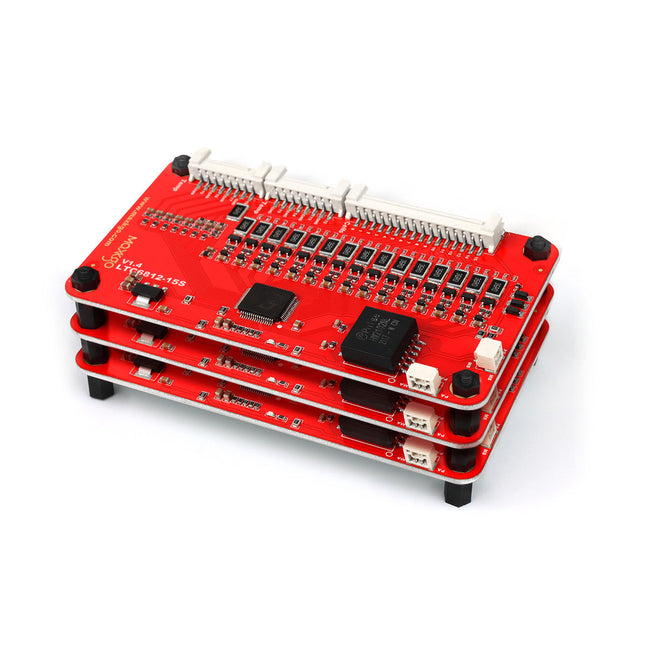

MKBMS is based on the modular BMS of LTC6812, and is connected to one or more slave boards and integrated boards of different sizes through the ISOSPI interface.   MKBMS Function —— Overcharge protection: Yes Over discharge protection: Yes Temperature protection: Yes Thermal management: Yes Balance function: Yes Balance method: passive balance  Battery pack capacity detection: Yes Battery internal resistance detection: Yes Support battery: support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.   LTC6212 15S Slave Board Features —— 1. Aluminum alloy PCB, better heat dissipation effect. 2. Compatible with MKBMS and ENNOID BMS. 3. From 5-15 series-connected battery cells per board. 4. 1+8 temperature sensors per slave. 5. Self-powered by the monitored cells. 6.Ultra-low power consumption, sleep mode=6uA. 7. It can be connected to multiple slave boards to form an integrated board through the ISOSPI interface 8. Daisychain Master / Slave ISOSPI communication 9. 1.2mV accuracy, -40 to 120C operation 10. 33 ohm balance resistors (0.125A capacity) on all channels 11. Scalable & isolated 1000VDC+ 12. Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps) *The first temperature channel is used by slave board itself. The following 8 temperature sensors are not in the package lists but means an interface to connect 8 temp sensors at most.   MKBMS Functions: Current and voltage protection: protect the battery pack from overcharge and over discharge, thereby extending the cycle life. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. Thermal management: Overheating and under-temperature protection. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate Intelligent battery balance: passive balance  Field programmable Current limit calculation Fully programmable CANBUS interface, programmable structure of all CAN messages Drift state of charge Reliability, speed and accuracy Integration with other devices Multiple BMS units connected in series Current sensor support Isolation from fault detection Automotive grade design, automotive grade locking connector Software for data logging and programming   MKBMS can be divided into three aspects: automobile, industry, consumption: Electric vehicles Electric patrol car Scenic sightseeing car Handling robots Automatic forklift Electric two-wheeler AGV forklift Sightseeing car Electric tricycle Electric mobility vehicles RV Solar street light Outdoor energy storage Home energy storage equipment Robotand etc.   Shipping List:  LTC6812-15S  Slave Board Package—— 1X   PCBA board LTC6812-15S slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 2X   HY2.0 single head 8P line 1X   HY2.0 single head 16P line 4X   Nylon column 4X   Nylon nut   Specification Size：100 x 60mm Net Weight：31.8g Package Size：140 x110 x 50 mm Package Weight：120g Outer Package Size：160*120*75mm Outer Package Weight ：240g

Read more less

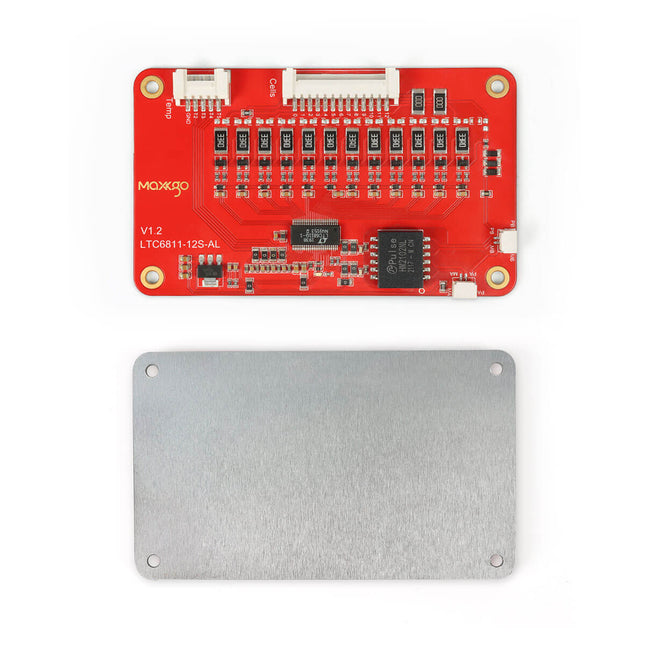

MKBMS is based on the modular BMS of LTC6811, and is connected to one or more slave boards and integrated boards of different sizes through the ISOSPI interface.  LTC6211 12S Slave BMS Features —— 1. Aluminum alloy PCB, better heat dissipation effect. 2. Compatible with MKBMS and ENNOID BMS. 3. from 5-12 series-connected battery cells per board. 4. 1+4 temperature sensors per slave. 5. Self-powered by the monitored cells. 6. Ultra-low power consumption, sleep mode = 6uA. 7.It can be connected to multiple slave boards to form an integrated board through the ISOSPI interface 8.Daisychain Master ISOSPI communication 9.1.2mV accuracy, -40 to 120C operation 10.33 ohm balance resistors (0.125A capacity) on all channels 11.Scalable & isolated 1000VDC+ 12.Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps) Note:　The first temperature channel is used by slave board itself. The following 4 temperature sensors are not in the package lists,  but means an interface to connect 4 temp sensors at most.  Shipping List: 1X   PCBA board LTC6811-12W-AL V1.2 slave board 2X   GH1.25 double head 2P same direction line 1X   HY2.0 single head 5P line 1X   HY2.0 single head 13P line 4X   Nylon column 4X   Nylon nut

Read more less

MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages within 150V. The Lipo Battery Management System Red Board is a must-have for any expert in the field. With its Smart Master slave BMS, it can handle up to 500A and is compatible with ENNOID Firmware and VESC technology. Say goodbye to battery management complications and hello to efficient and reliable power. MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials. Maybe you need more MKBMS options: https://bit.ly/3EQO9Nt  Tutorial on MAXKGO BMS settings with VESC MKBMS battery management system implements the following functions: 1. Current and voltage protection: protect the battery pack from overcharge and overdischarge, thereby extending the cycle life. 2. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. 3. Thermal management: Overheating and under-temperature protection. 4. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate 5. Intelligent battery balance: passive balance  6. Field programmable 7. Current limit calculation 8. Drift state of charge 9. Reliability, speed and accuracy 10. Integration with other devices 11. Multiple BMS units connected in series 12. Current sensor support 13. Isolation from fault detection 14. Automotive grade design, automotive grade locking connector 15. Software for data logging and programming   MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc. Shipping list: MKBMS-LV Master Mini Package 1X   PCBA board MKBMS-LV Master Mini V1.4 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 3X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X  12MM 3-6V button switch   MKBMS-LV Master Mini+ Wiring Terminal Package 1X PCBA board MKBMS-LV Master Mini V1.4 motherboard 2X GH1.25 single head 2P line 1X GH1.25 double head 2P same direction line 3X HY2.0 single head 2P line 2X GH1.25 single head 5P line 1X GH1.25-5P to Dupont line 1X USB cable type-C data cable 1X 2.0MM jumper cap 1X 1.3 inch OLED display LCD screen module 1X 12MM 3-6V key switch 4X 90 degree angle terminal block T90-25/8 (red copper) 2X M8*16 stainless steel round head screws (stainless steel) 2X M8*Stainless steel nuts (stainless steel) 4X M8 Copper Gasket (Red Copper)   MKBMS-LV Master Mini + Main Contactor K4415Package 1X PCBA board MKBMS-LV Master Mini V1.4 motherboard 2X GH1.25 single head 2P line 1X GH1.25 double head 2P same direction line 3X HY2.0 single head 2P line 2X GH1.25 single head 5P line 1X GH1.25-5P to Dupont line 1X USB cable type-C data cable 1X 2.0MM jumper cap 1X 1.3 inch OLED display LCD screen module 1X 12MM 3-6V key switch 1x TE2299223-2 EVC500 Main Contactor 1X HY2.0 single head 2P line   MKBMS-LV Master Mini + DC-DC Step-down module Package 1X PCBA board MKBMS-LV Master Mini V1.4 motherboard 2X GH1.25 single head 2P line 1X GH1.25 double head 2P same direction line 3X HY2.0 single head 2P line 2X GH1.25 single head 5P line 1X GH1.25-5P to Dupont line 1X USB cable type-C data cable 1X 2.0MM jumper cap 1X 1.3 inch OLED display LCD screen module 1X 12MM 3-6V key switch 1X DC-DC step-down power supply module   MKBMS hardware design file: LTC6811-12W_V1.2 MKBMS-LV_Master_Mini_V1.4

Read more less

  MKBMS-HV Master MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages within 400V. The MAXKGO 400V HV Master Board is a smart component that supports up to 500A Charging and discharging and works with VESC and Ennoid systems. This high-voltage input 450V to 12V step-down board is perfect for powering your devices, providing a safe and efficient power supply.  MKBMS HV Master MiniBoard Features With charger voltage measurement, humidity sensor, isolated on-board 5V power supply for isolating CAN bus interface and USB Type-C 150V to 400V operation(Requires use with a 450V-12V step-down module) Voltages measurements for load & battery pack Bi-directional current monitoring (up to 2500A pulsed, 500A continuous) Isolated charger detection circuit Isolated CAN bus interface Daisychain Master/Slave ISOSPI communication Single PCB pattern for bolt-on contactor It can internal power supply or external power supply voltage is 12V Integrated predischarge circuit USB & serial interface for configuring and firmware upgrades with the ENNOID-BMS-Tool OLED display output ON/OFF toggle switch input SWD burn debugging or update firmware interface Shipping List MKBMS-HV Master BoardPackage 1X   PCBA board MKBMS-HVMaster Board 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 5X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X   Switch DCDC 450V to 12V Step-down Power Supply Module Output characteristics Input voltage：150-450VDC Output voltage：12V/4.2A Output voltage accuracy：±1% Ioading effect：10%~100%Ionom △Voutnom≤±0.2% Source effect：Vinmin~Vinmax △Voutnom≤±0.2% Ripple：100mV Conversion efficiency：80% （Typical value） Temperature Coefficient：≤±0.02%/℃（Maximum） Shipping list 1X  MAXKGODC-DC450Vto12VConverter 1X  GH2.0 single head2P cable（With buckle） 1X  Power cable

Read more less

MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages within 150V. MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials.  Maybe you need more MKBMS options: https://bit.ly/3EQO9Nt  MKBMS Master Board ( MKBMS-LV Master Mini ) Features: With charger voltage measurement, humidity sensor, isolated on-board 5V power supply for isolating CAN bus interface and USB Type-C 30V to 150V operation Voltages measurements for load & battery pack Bi-directional current monitoring (up to 2500A pulsed, 500A continuous) Isolated charger detection circuit Isolated CAN bus interface Daisychain Master/Slave ISOSPI communication Single PCB pattern for bolt-on contactor It can internal power supply or external power supply voltage is 12V Integrated predischarge circuit USB & serial interface for configuring and firmware upgrades with the ENNOID-BMS-Tool OLED display output ON/OFF toggle switch input SWD burn debugging or update firmware interface   MKBMS Slave Board (LTC6811-12W-AL) Features: MKBMS slave board is made of aluminum base plate, which has better heat dissipation effect. Scalable & isolated 1000VDC+ Compatible with MKBMS Master boards From 5 to 18 cell levels monitoring per board Daisychain Master/Slave ISOSPI communication Parameters fully programmable through an easy to use graphical user interface 33 ohm balance resistors (0.125A capacity) on all channels Self powered by monitored cells 1.2mV accuracy, -40 to 120C operation Extra low power consumption (Sleep mode = 6uA) Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps)       Variant:      LTC6811 : Up to 12 cells voltage monitoring & 1+4 temperature sensors* per slave       LTC6812 : Up to 15 cells voltage monitoring & 1+8 temperature sensors* per slave      LTC6813 : Up to 18 cells voltage monitoring & 1+8 temperature sensors* per slave    *The first temperature channel is used by slave board itself. The following 4 or 8 temperature sensors are not in the package lists but means an interface to connect 4 temp sensors at most or to connect 8 temp sensors at most. Pack configuration examples: MKBMS monitoring 23S pack : 2 x LTC6811-12S : 12S + 11S ( Optimal)2 x LTC6812-15S : 12S + 11S (Two slaves partially loaded)2 x LTC6813-18S : 12S + 11S (Two slaves partially loaded) MKBMS monitoring 27S pack : 3 x LTC6811-12S: 9S + 9S + 9S (Three slaves partially loaded)2 x LTC6812-15S: 14S + 13S (Optimal)2 x LTC6813-18S: 14S + 13S (Two slaves partially loaded) MKBMS monitoring 29S pack : 3 x LTC6811-12S: 10S + 10S + 9S (Three slaves partially loaded)2 x LTC6812-15S: 15S + 14S ( Optimal)2 x LTC6813-18S: 15S + 14S (Two slaves partially loaded) MKBMS monitoring 30S pack : 3 x LTC6811-12S: 10S + 10S + 10S (Three slaves partially loaded)2 x LTC6812-15S: 15S + 15S ( Optimal)2 x LTC6813-18S: 15S + 15S (Two slaves partially loaded) MKBMS monitoring 35S pack : 3 x LTC6811-12S: 12S+12S+11S (Good)3 x LTC6812-15S: 12S+12S+11S (Three slaves partially loaded)2 x LTC6813-18S: 18S + 17S (Optimal choice) *For uneven cell count in series, only the last slave board in the daisy-chained loop should have one cell less connected than the other slaves. Ex: 39S = 10S + 10S + 10S + 9S     MKBMS battery management system implements the following functions: 1. Current and voltage protection: protect the battery pack from overcharge and overdischarge, thereby extending the cycle life. 2. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. 3. Thermal management: Overheating and under-temperature protection. 4. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate 5. Intelligent battery balance: passive balance  6. Field programmable 7. Current limit calculation 8. Fully programmable CANBUS interface, programmable structure of all CAN messages 9. Drift state of charge 10. Reliability, speed and accuracy 11. Integration with other devices 12. Multiple BMS units connected in series 13. Current sensor support 14. Isolation from fault detection 15. Automotive grade design, automotive grade locking connector 16. Software for data logging and programming   MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc. Shipping list: MKBMS Master Board + Slave Board Package 1X   PCBA board MKBMS-LV Master Mini V1.4 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 3X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X   12MM 3-6V button switch 1X   PCBA board LTC6811-12W-AL V1.2 slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 1X   HY2.0 single head 5P line 1X   HY2.0 single head 13P line 4X   Nylon column 4X   Nylon nut   MKBMS hardware design file: LTC6811-12W_V1.2 MKBMS-LV_Master_Mini_V1.4

Read more less

DC-DC Step-down Power Supply Module Specifications Input voltage: 9V-90V        The minimum voltage difference between the input voltage and the output voltage          is 4V  (when the output is 5V, the input is DC9V-90V, and when the output is 12V,              the input voltage is DC16V-90V. Output voltage: 12V/5V Maximum output current: 3A (that is, the constant current value is 3A, when the customized voltage is higher than 12V, the output current is less than   3A, the power is not recommended to exceed 30W, 12V and 5V can reach 3A.) Typical operating frequency: 140KHz High efficiency: up to 95% (the smaller the pressure difference, the higher the efficiency) Working temperature: industrial grade (-40℃ to +85℃) Module volume: 42*30*17mm  Product Advantages Frequency reduction at light load to improve light load efficiency. Small standby current. Built-in over-temperature, over-current, output short-circuit protection. Built-in soft start. Constant voltage and constant current output.   Instructions 1.First connect the connection line between the module and the power supply, and then power on. (If the input terminal is connected with electricity, it is prone to sparking, especially when the input power supply voltage is high, the pad of the module may even be burnt). 2.After selecting a suitable power supply, use a multimeter or voltmeter to measure whether the output voltage of the module is consistent with the voltage required by the device. 3.Connect electrical equipment or (load) to the output of the module. Package List 1x DC-DC STEP-DOWN POWER SUPPLY MODULE MKBMS LV Master Mini PCBA Board Shipping List MKBMS LV Master Mini Package 1X   PCBA board MKBMS LV Master Mini V1.4 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 3X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X   Switch
