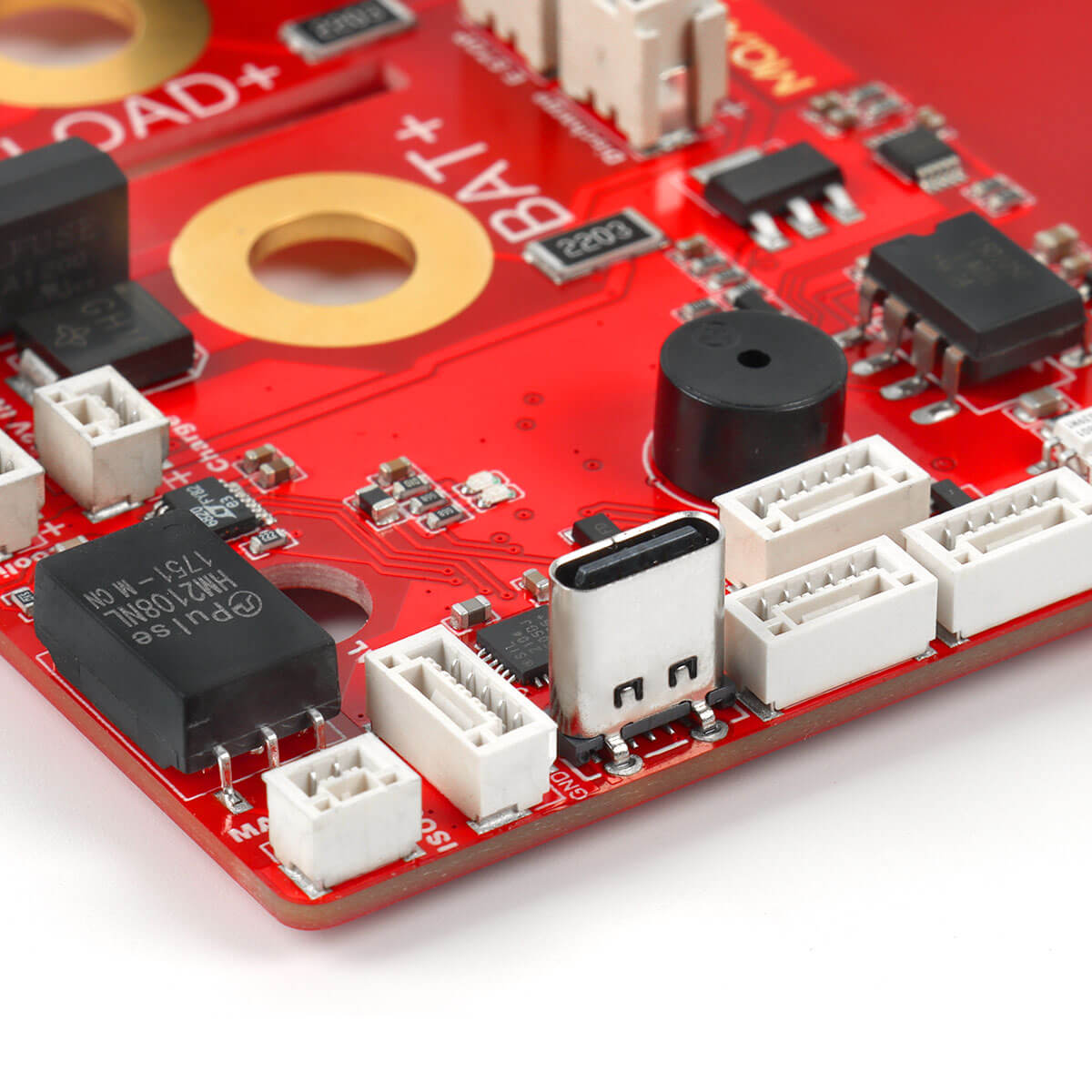

MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages within 150V.
MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials.
Maybe you need more MKBMS options: https://bit.ly/3EQO9Nt
MKBMS battery management system implements the following functions:
1. Current and voltage protection: protect the battery pack from overcharge and overdischarge, thereby extending the cycle life.
2. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack.
3. Thermal management: Overheating and under-temperature protection.
4. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate
5. Intelligent battery balance: passive balance
6. Field programmable
7. Current limit calculation
8. Fully programmable CANBUS interface, programmable structure of all CAN messages
9. Drift state of charge
10. Reliability, speed and accuracy
11. Integration with other devices
12. Multiple BMS units connected in series
13. Current sensor support
14. Isolation from fault detection
15. Automotive grade design, automotive grade locking connector
16. Software for data logging and programming

MKBMS can be roughly divided into three aspects: automobile, industry, and consumption:
1. Electric vehicles;
2. Electric patrol car;
3. Scenic sightseeing car;
4. Handling robots;
5. Automatic forklift;
6. Electric bicycles;
7. Electric skateboard;
8. Electric tools;
9. Consumer robots, etc.

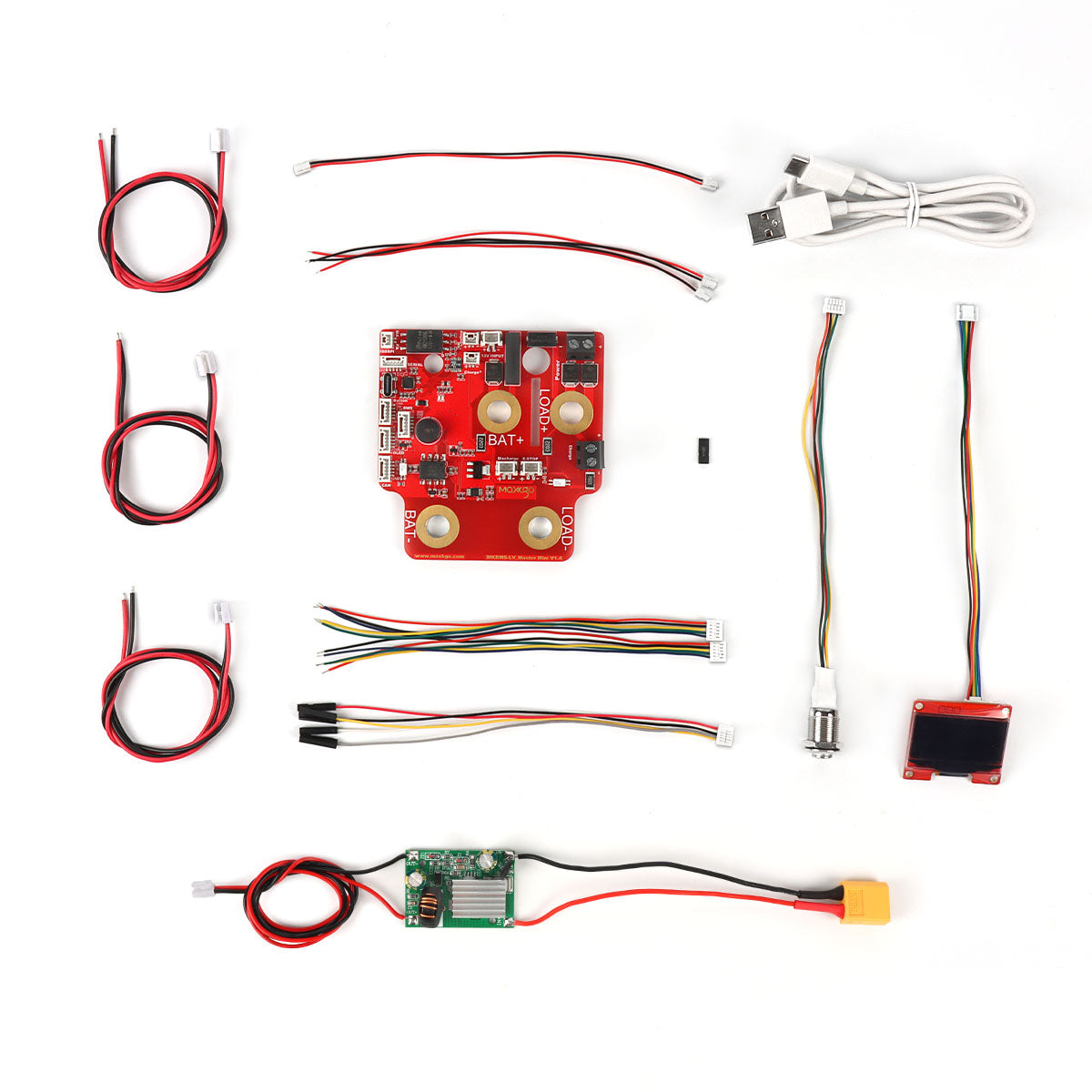

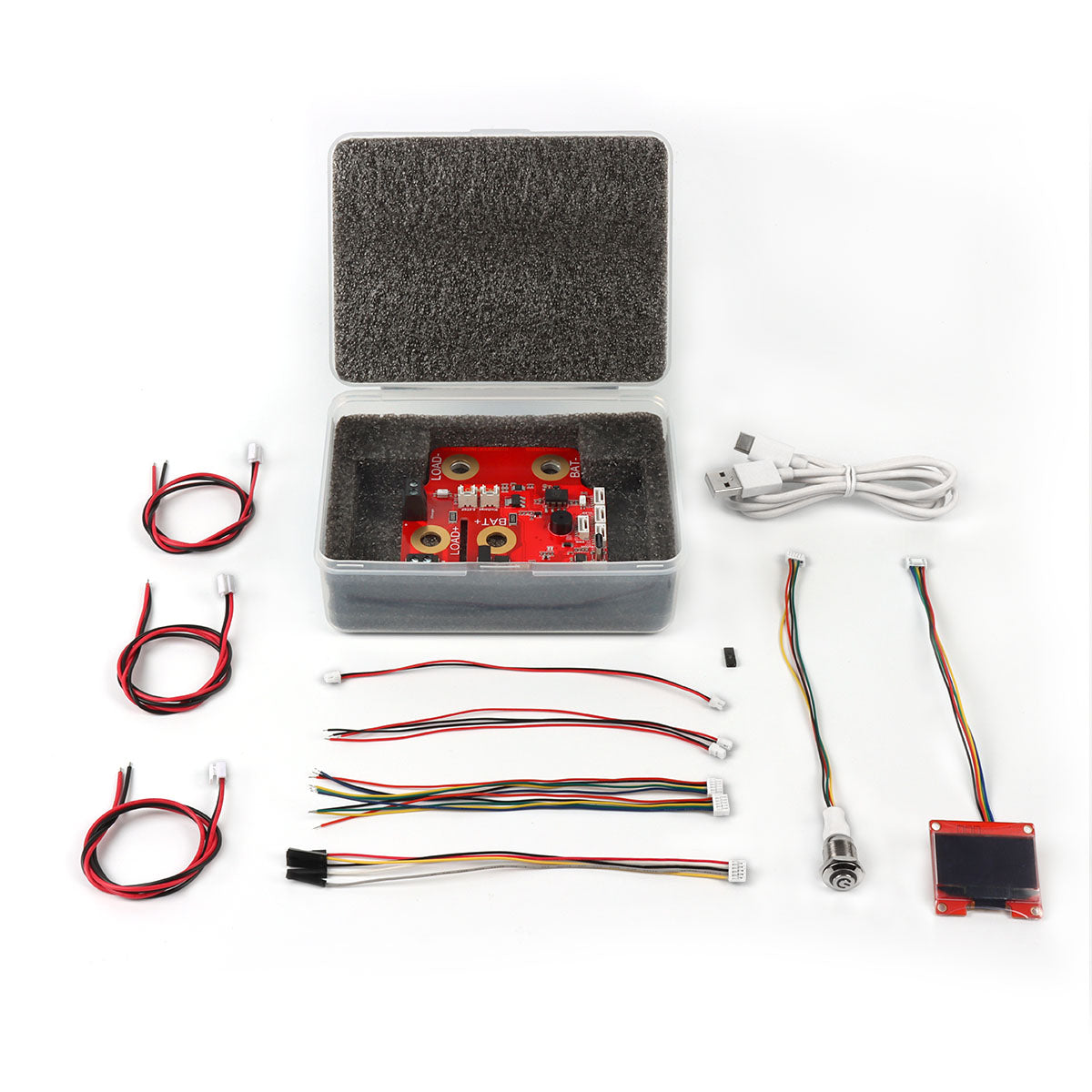

Shipping list:

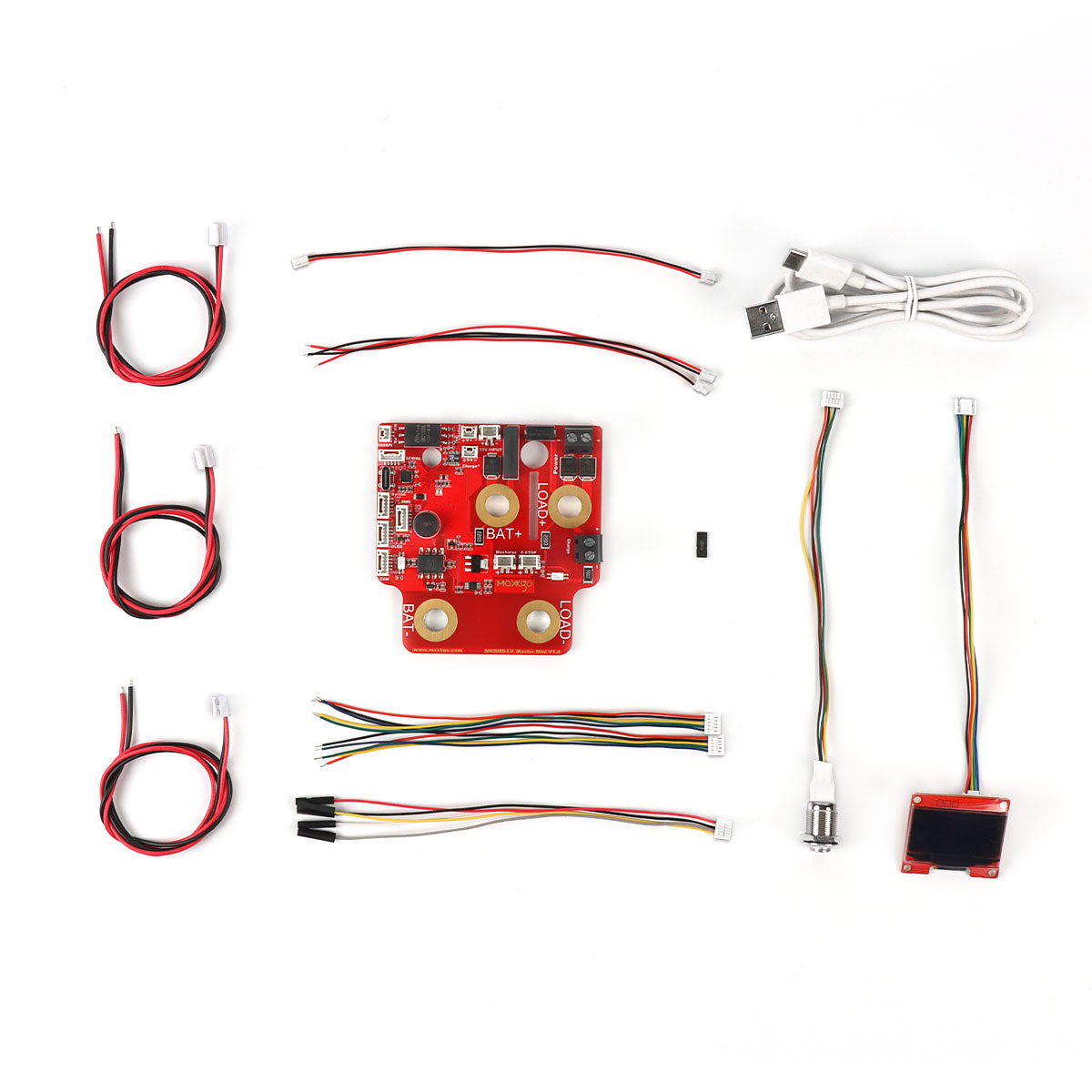

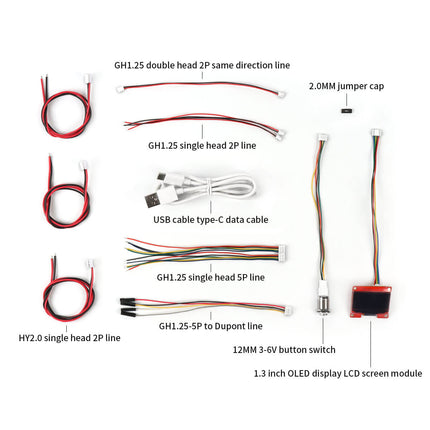

MKBMS-LV Master Mini Package

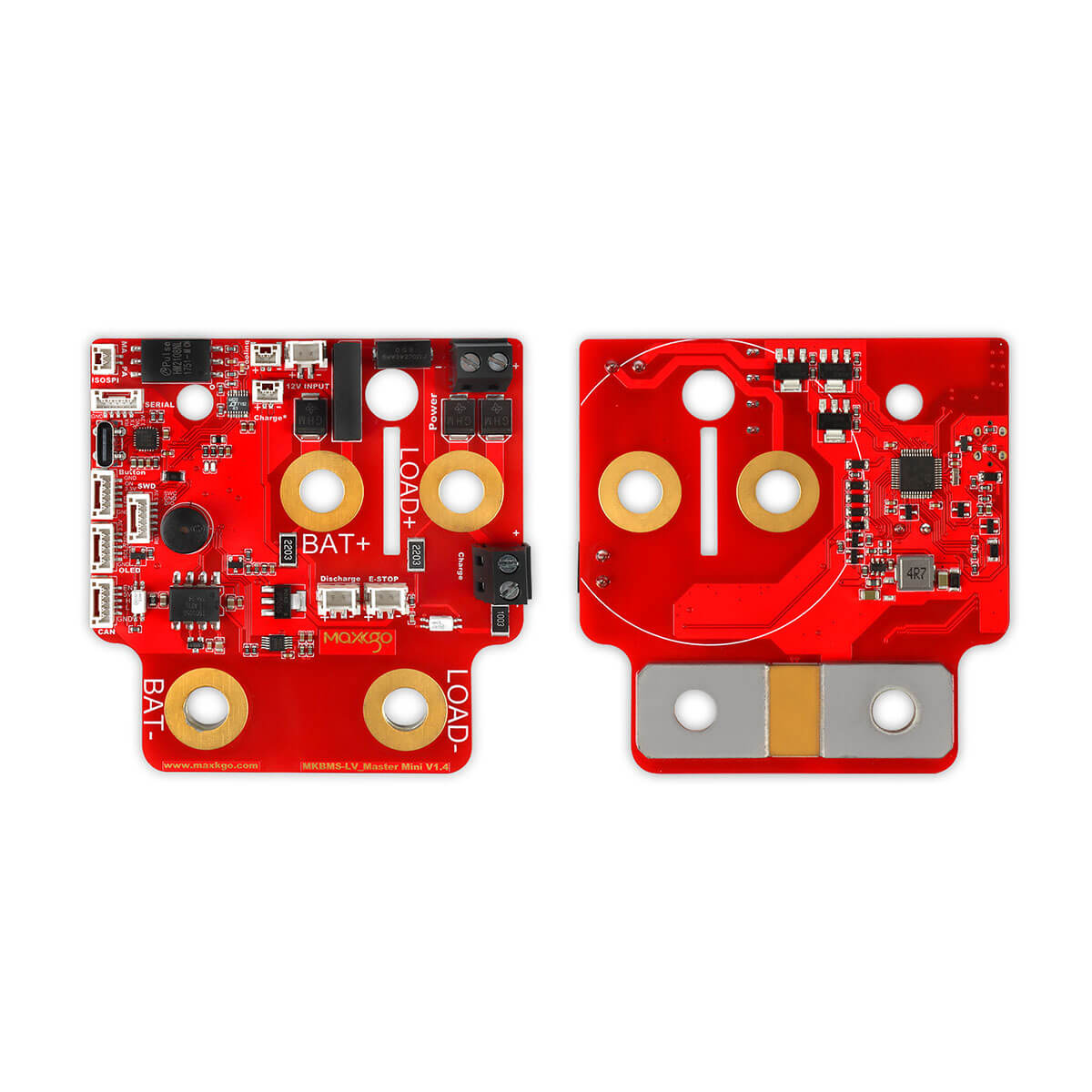

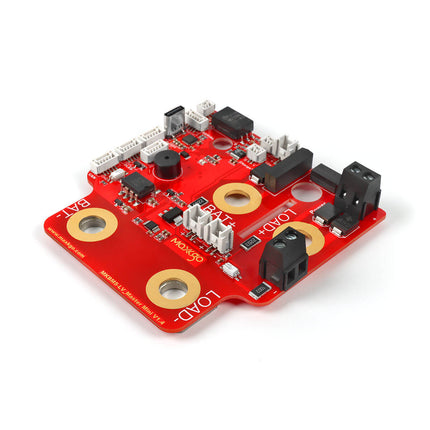

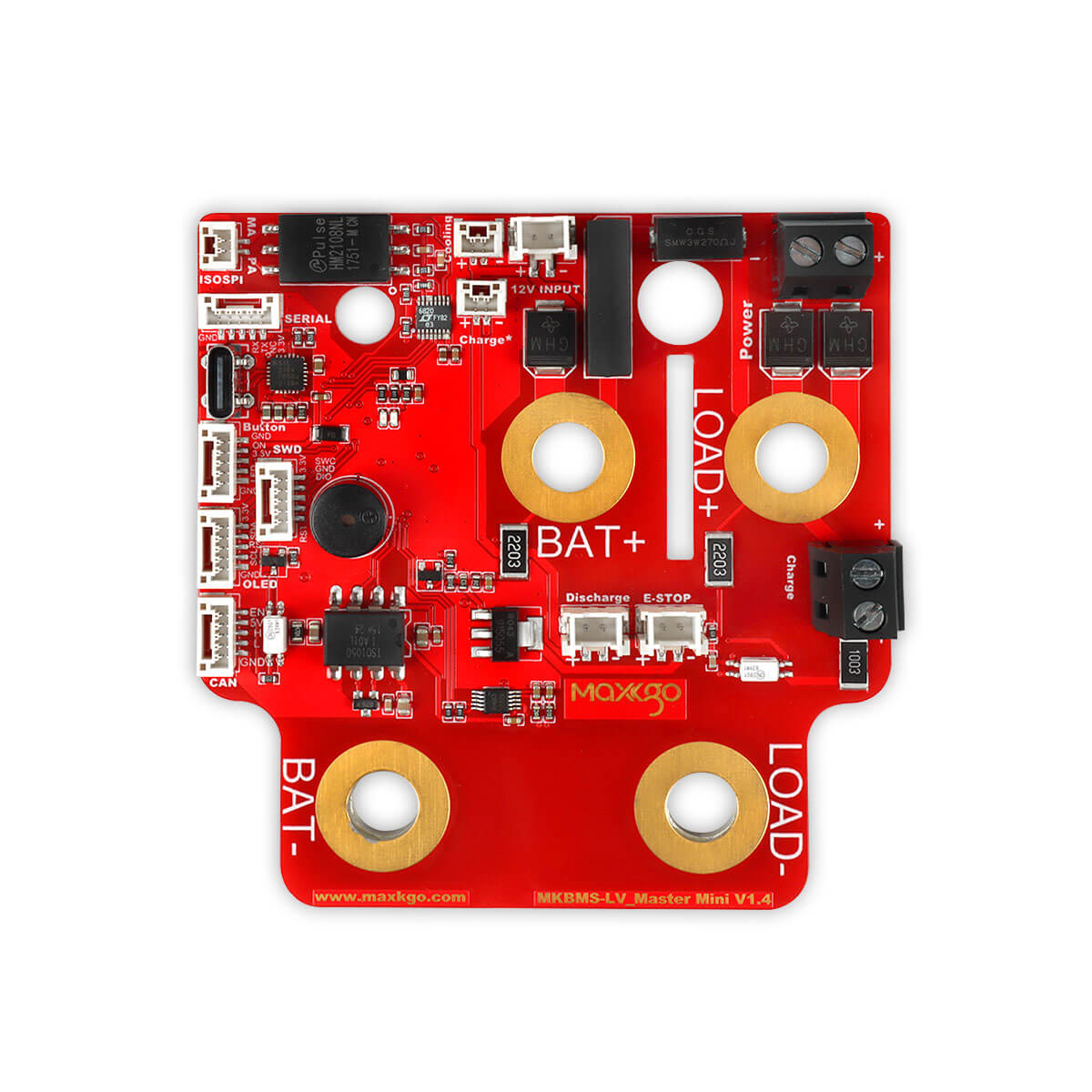

1X PCBA board MKBMS-LV Master Mini V1.4
2X GH1.25 single head 2P line
1X GH1.25 double head 2P same direction line
3X HY2.0 single head 2P line
2X GH1.25 single head 5P line
1X GH1.25-5P to Dupont line
1X USB cable type-C data cable

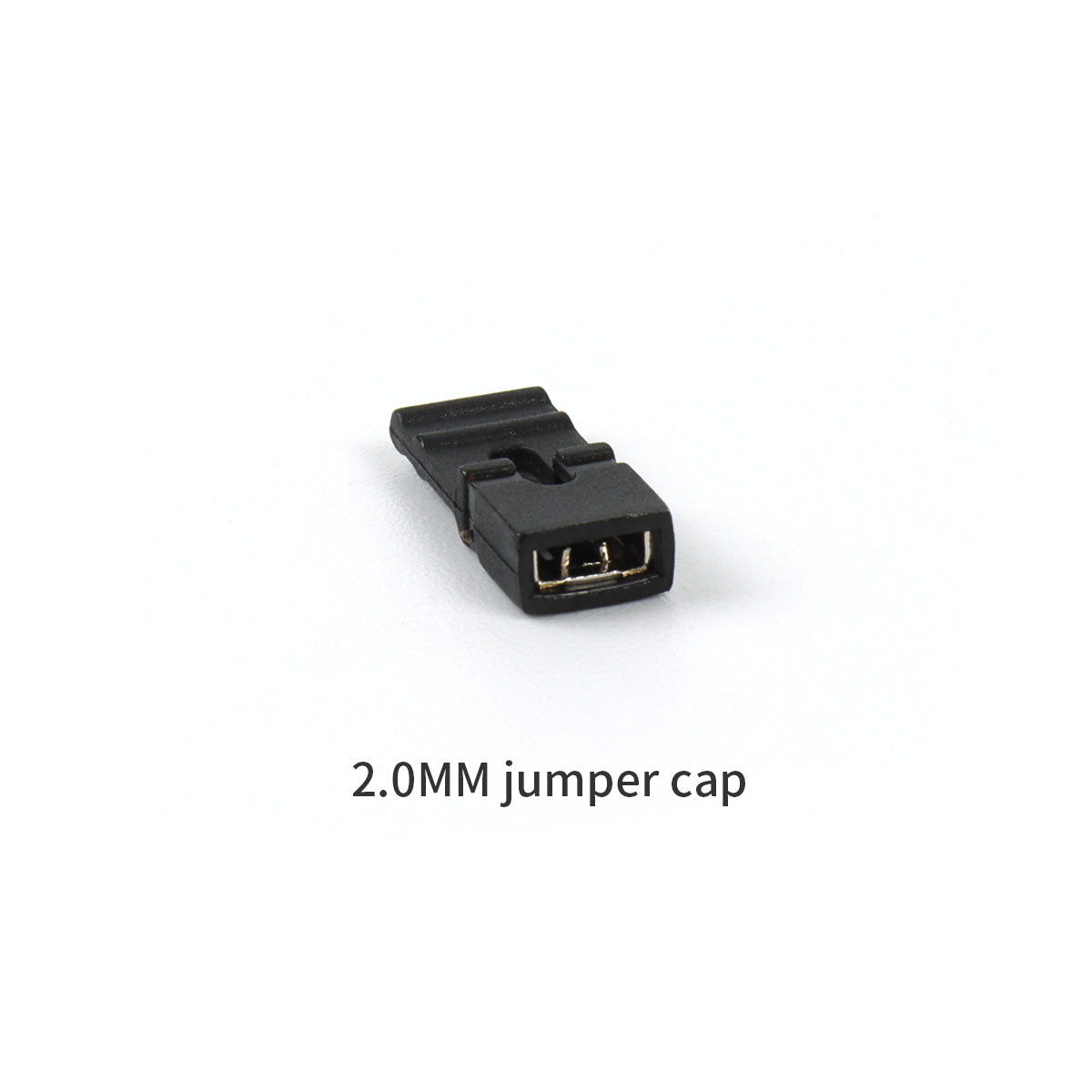

1X 2.0MM jumper cap
1X 1.3 inch OLED display LCD screen module

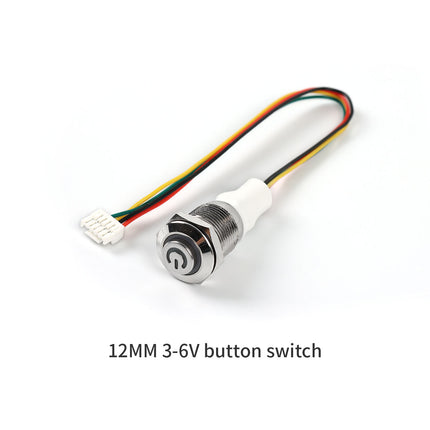

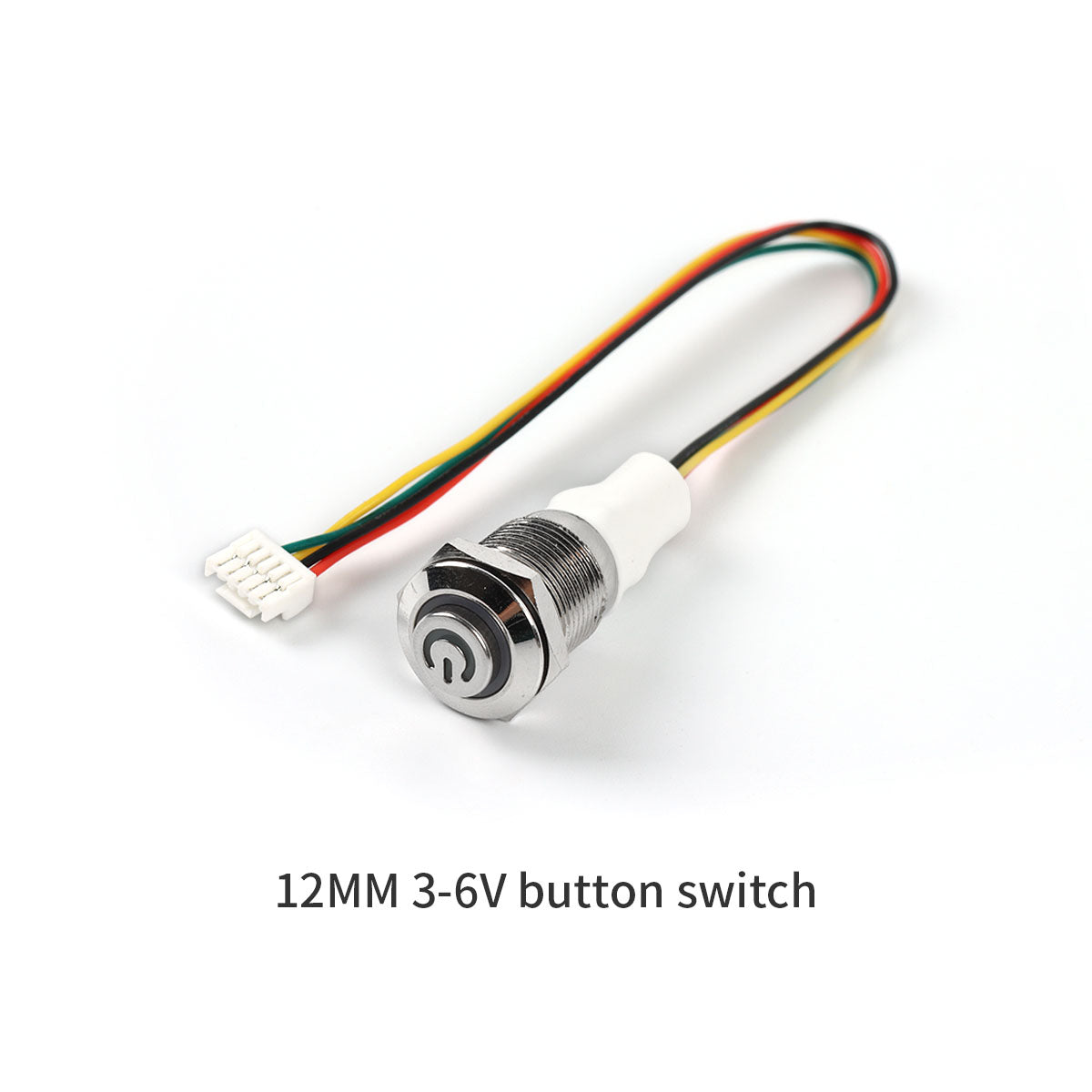

1X 12MM 3-6V button switch

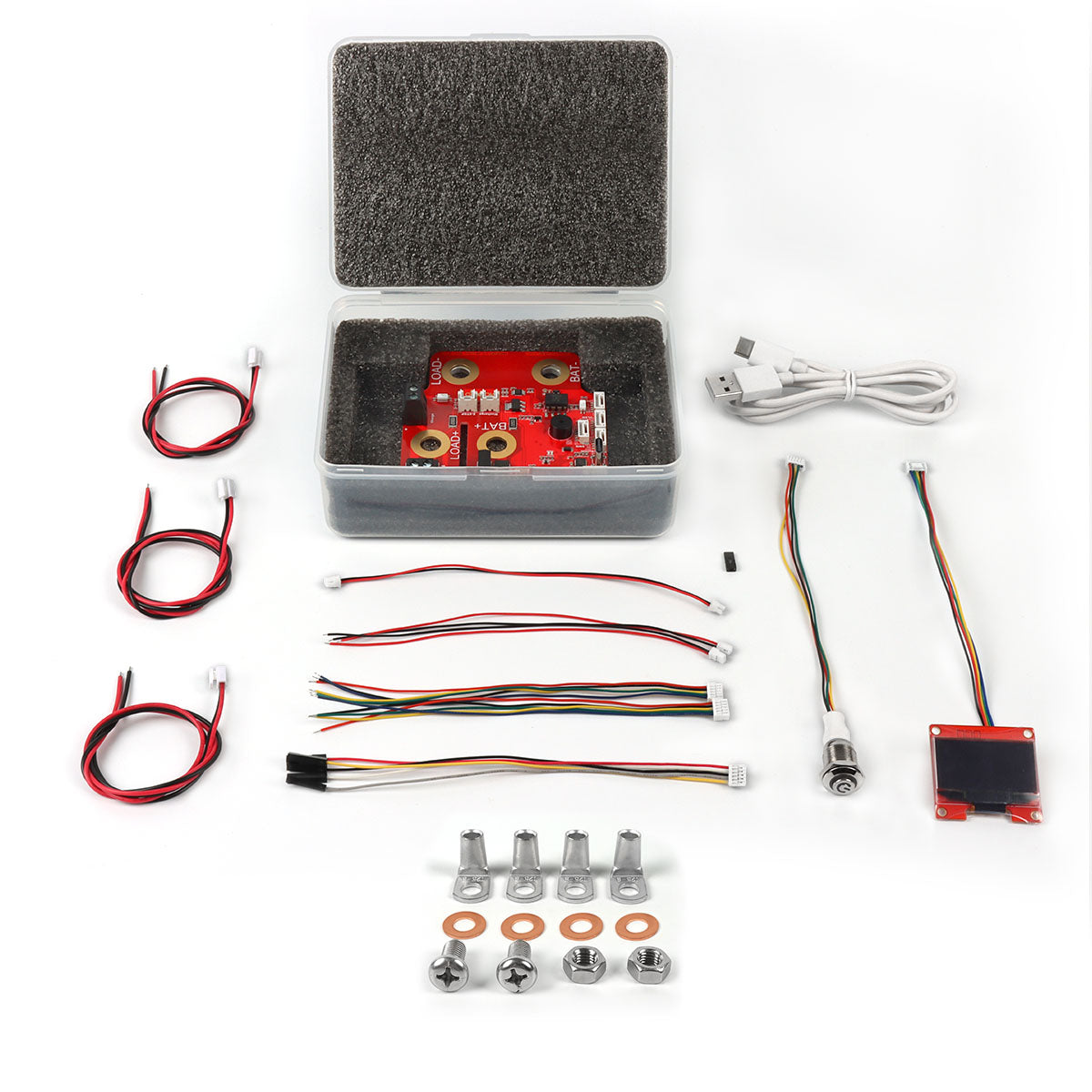

MKBMS-LV Master Mini+ Wiring Terminal Package
1X PCBA board MKBMS-LV Master Mini V1.4 motherboard
2X GH1.25 single head 2P line
1X GH1.25 double head 2P same direction line
3X HY2.0 single head 2P line
2X GH1.25 single head 5P line
1X GH1.25-5P to Dupont line
1X USB cable type-C data cable
1X 2.0MM jumper cap
1X 1.3 inch OLED display LCD screen module
1X 12MM 3-6V key switch
4X 90 degree angle terminal block T90-25/8 (red copper)
2X M8*16 stainless steel round head screws (stainless steel)
2X M8*Stainless steel nuts (stainless steel)
4X M8 Copper Gasket (Red Copper)

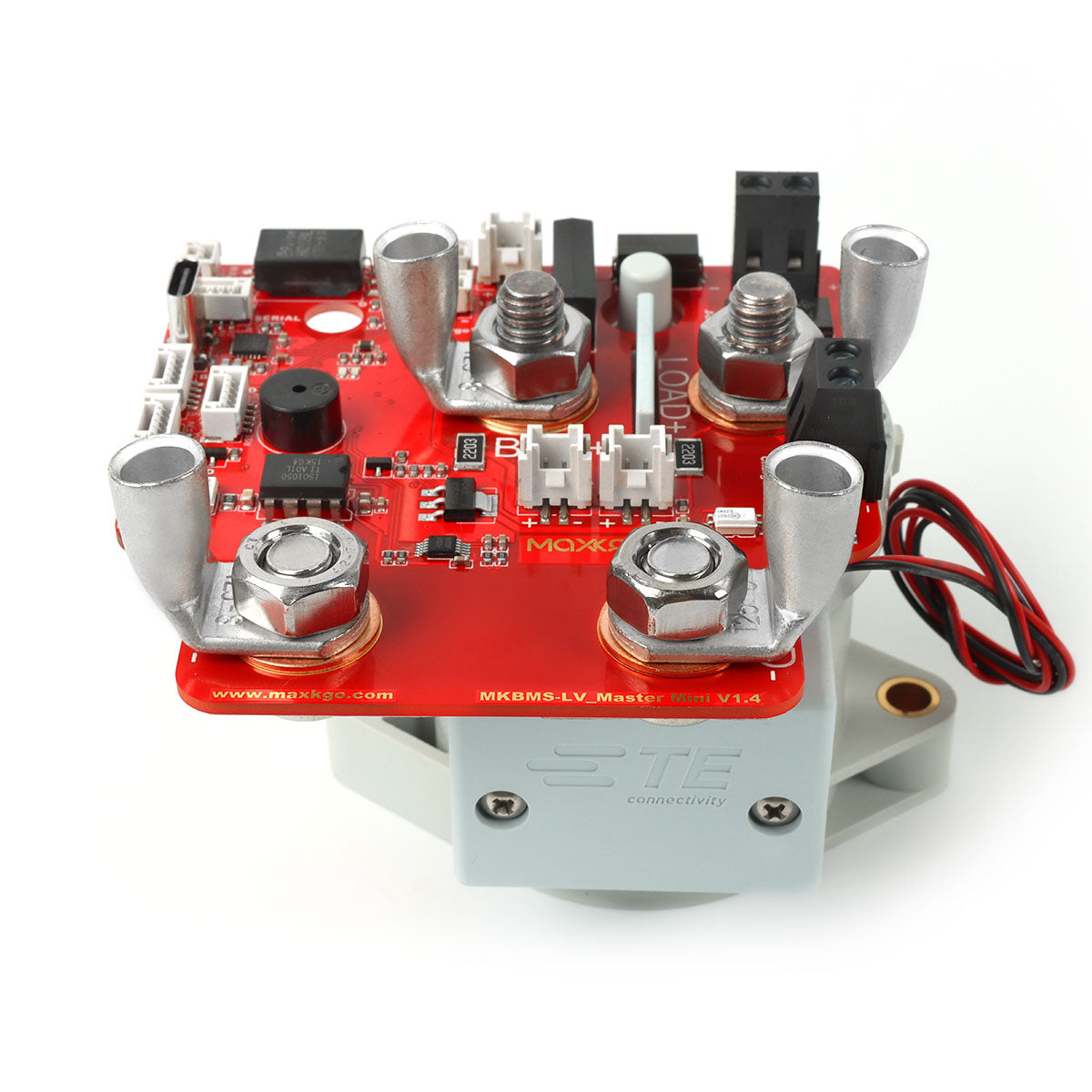

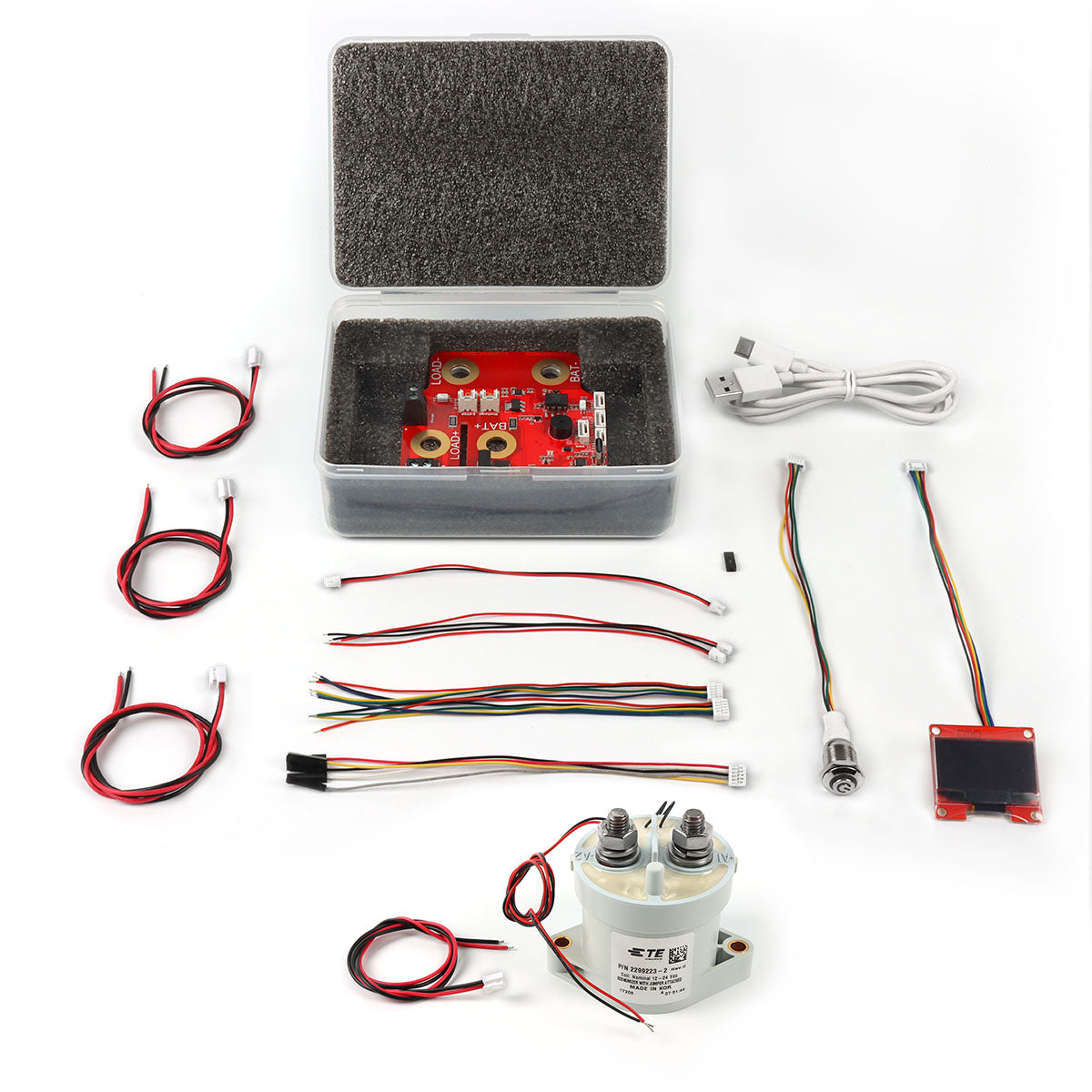

MKBMS-LV Master Mini + Main Contactor K4415Package
1X PCBA board MKBMS-LV Master Mini V1.4 motherboard
2X GH1.25 single head 2P line
1X GH1.25 double head 2P same direction line
3X HY2.0 single head 2P line
2X GH1.25 single head 5P line
1X GH1.25-5P to Dupont line
1X USB cable type-C data cable
1X 2.0MM jumper cap
1X 1.3 inch OLED display LCD screen module
1X 12MM 3-6V key switch

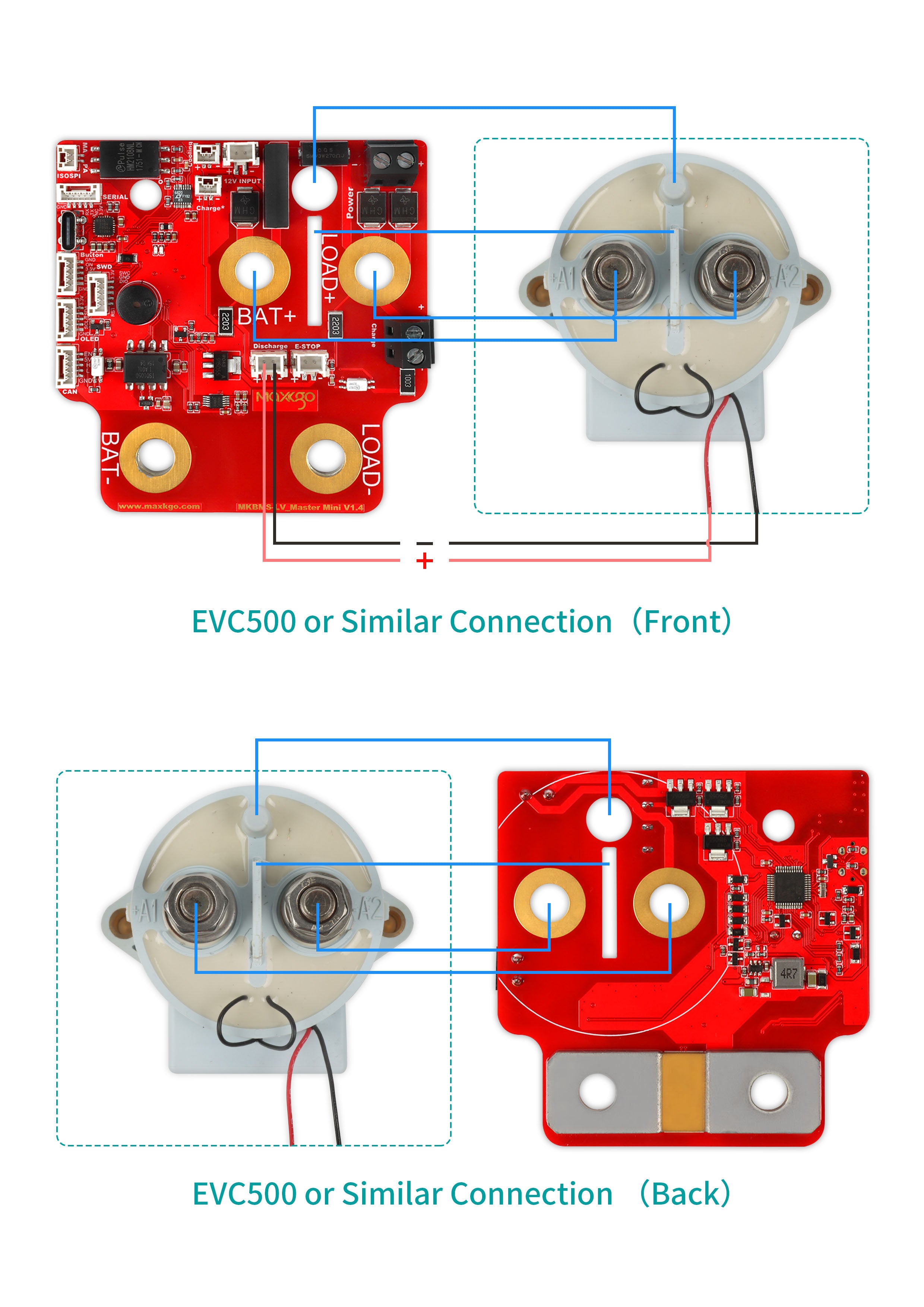

1x TE2299223-2 EVC500 Main Contactor
1X HY2.0 single head 2P line
MKBMS-LV Master Mini + DC-DC Step-down module Package
1X PCBA board MKBMS-LV Master Mini V1.4 motherboard
2X GH1.25 single head 2P line
1X GH1.25 double head 2P same direction line
3X HY2.0 single head 2P line
2X GH1.25 single head 5P line
1X GH1.25-5P to Dupont line
1X USB cable type-C data cable
1X 2.0MM jumper cap
1X 1.3 inch OLED display LCD screen module
1X 12MM 3-6V key switch
1X DC-DC step-down power supply module
MKBMS hardware design file:
LTC6811-12W_V1.2
MKBMS-LV_Master_Mini_V1.4
