Spec: Voltage range: 6-18S Rated power : 2200W ; Max power : 4200W Max Current: 100A Max torque : 9.5 N.M Weight:1.08KG Internal resistance: 0.055ohm Motor structure: 12N/14P Diameter *Length (mm): 70*70 Shaft (mm): 10mm/D-Shaft/Round Shaft Bullet Connector: 4mm Sensor: Yes Line length：32cm Hall lead correspondence: red - 5V, white - TEMP, black - GND, yellow - HALL1,green - HALL2, blue - HALL3 10MM D Shaft Motor Drawings： 10MM Round Shaft Motor Drawings：

Read more less

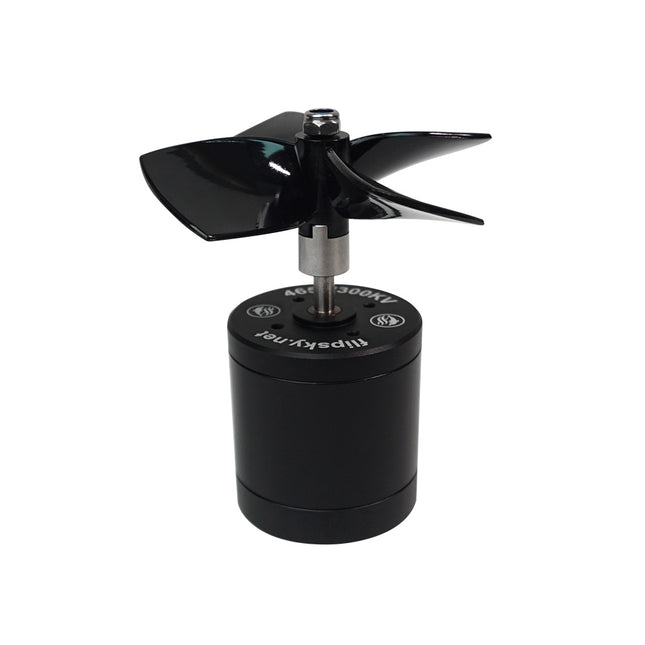

Spec： Voltage range:6～12S Rated voltage:36V Rated current:20A; Maximum current:25A; Rated power:720W; Maximum power:900W No load current:2.3A Motor specifications:Φ46.0×L50.0 Shaft specifications:Φ5 Number of slots & poles:24N/28P Lead wire:14AWG Coil resistance:0.062Ω Coil inductance：0.03mH Maximum thrust::8kgf Insulation voltage & leakage current:500VAC/50HZ/1MA/3S Maximum operating temperature:100℃ Length of lead wire:500mm Protection grade:ip58 Weight:0.37kg 4650 Motor Diagram: Thrust Test:

Read more less

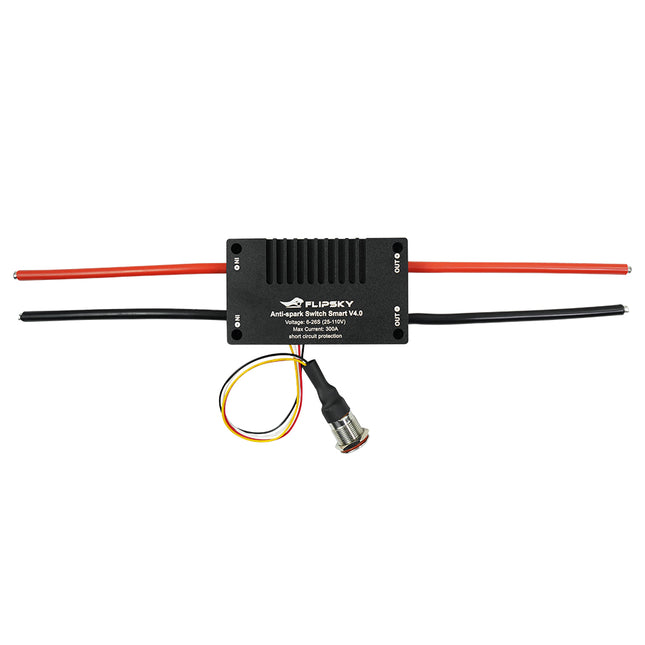

Spec: Working Voltage: 6-26S Li-Po Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions) Diameter of Switch Button: 16mm (Self-lock switch) Size: 97*57*27mm Weight: 356g Features: Metal shielding cover for good heat dissipation and reducing electromagnetic interference.  Equipped with LED indicator light, users can check the status of the light to determine whether it works normally. If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit protection function has been triggered. Soft start-up: Increasing the current/voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.  Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.  Wiring diagram: Manual: https://cdn.shopify.com/s/files/1/0011/4039/1996/files/Anti-spark_Switch_V4.0_User_Manual_98d83a39-fc34-40f6-8283-0ac4f56058c5.pdf?v=1764408572

Read more less

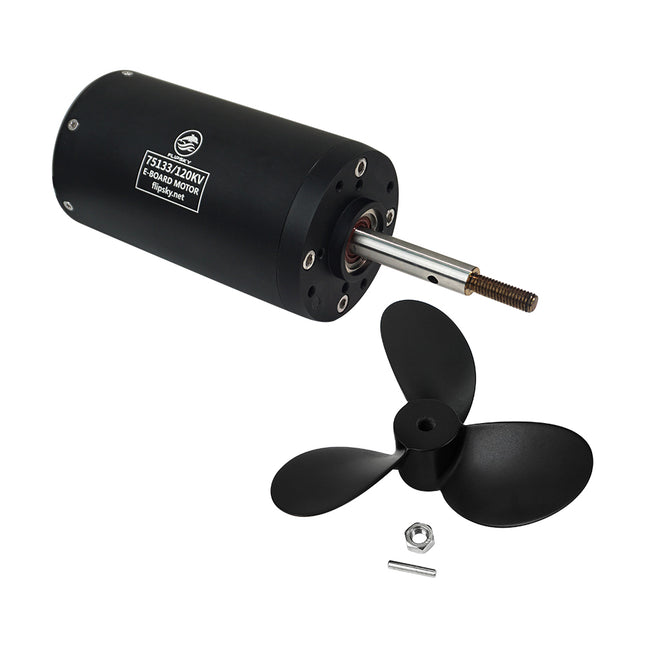

Spec: Voltage range:6～16S Rated current:63A; Maximum current:110A Rated power:3800W; Maximum power:6600W No load current:7.4A Number of slots & poles:12N/14P Motor specifications:Φ75.0×L133.0 Shaft specifications:Φ11.8 Lead wire:10AWG Coil resistance:0.05Ω Coil inductance:0.1mH Length of lead wire:1300mm Connector:8mm lantern plug Maximum thrust:40.1kgf Insulation voltage & leakage current:500VAC/50HZ/1MA/3S Maximum operating temperature:120℃ Waterproof Level:IP68 Weight:2.35kg 75133 Motor Diagram: 152mm 3 Blade Diagram： Paddle Guards Diagram： Thrust Test:

Read more less

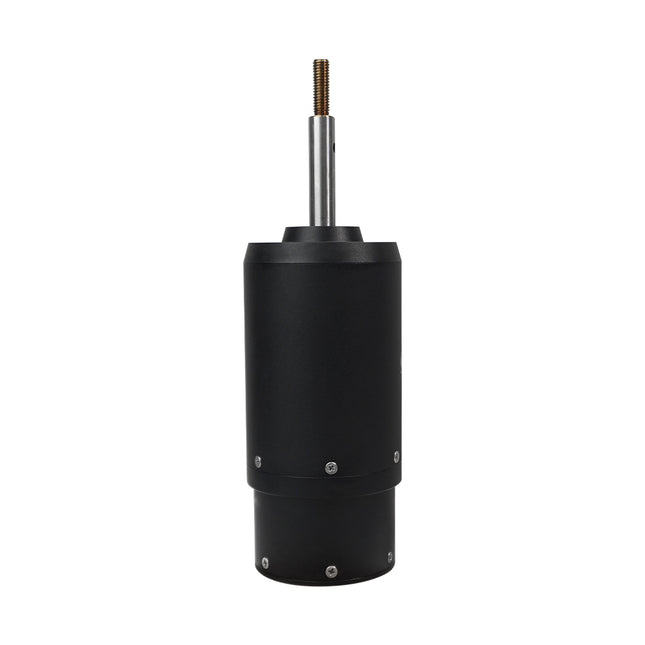

Spec: Voltage range: 6~12S Rated voltage:42V Rated current :50A; Maximum current :60A Rated power:2200W; Maximum power:3000W Number of slots & poles:12N/14P No load current:6.7A Motor specifications:Φ72.0×L150.0 Shaft specifications:Φ11.8 Lead wire:10AWG Coil resistance:0.06Ω Coil inductance:0.13mH Maximum thrust:27.1kgf Maximum operating temperatur:120℃ Insulation voltage & leakage current:500VAC/50HZ/1MA/3S Length of lead wire:1200mm Waterproof Level: IP68 Power plug: XT90 Female Weight:2.1kg 72150 Motor Diagram: ESC integrated Spec: ESC type: Flipsky Mini FSESC6.7 PRO Control Interface Ports: USB,CAN,UART, SPI, IIC Input Set Support: PPM, ADC, NRF, UART Thrust Test:

Read more less
