Description
5-14S 100A ESC
Description
The 5-14S 100A ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-14S LiPo battery input and provides a continuous current rating of 100A. It is widely used in FPV racing drones, multi-rotor UAVs, fixed-wing model aircraft, RC cars, RC boats, agricultural spraying drones, and other high-performance RC applications.

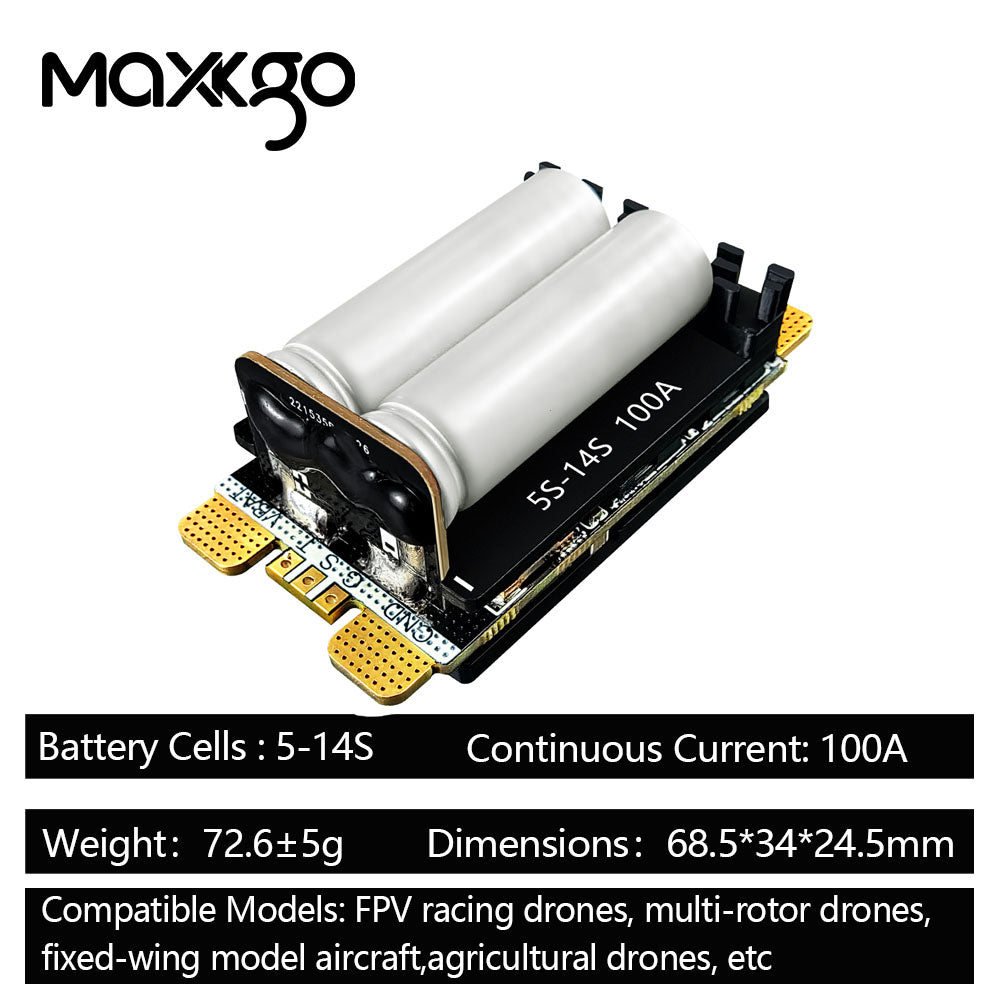

5-14S 100A ESC Specifications
-
Type: Brushless Motor Electronic Speed Controller (ESC)
-
Continuous Current: 100A
-
Burst Current: 130A
-
Weight: Net Weight 72g ± 5g
-

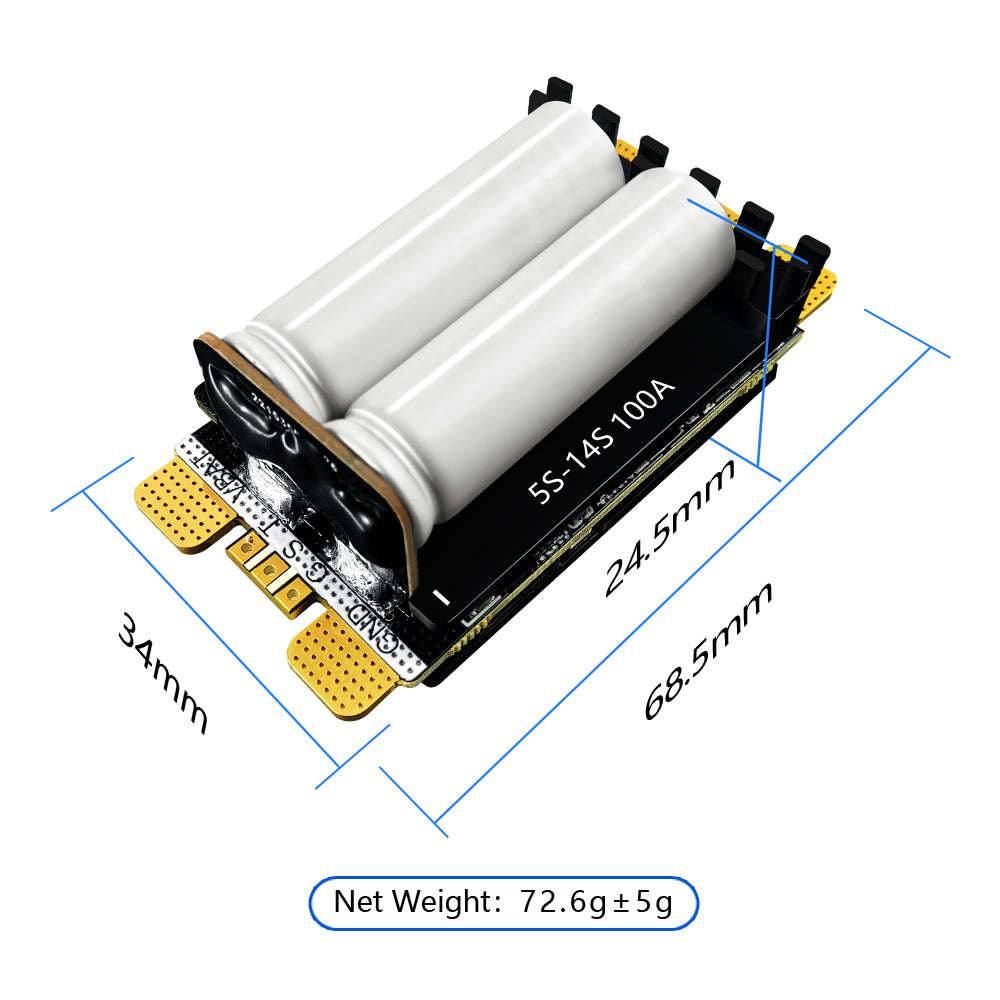

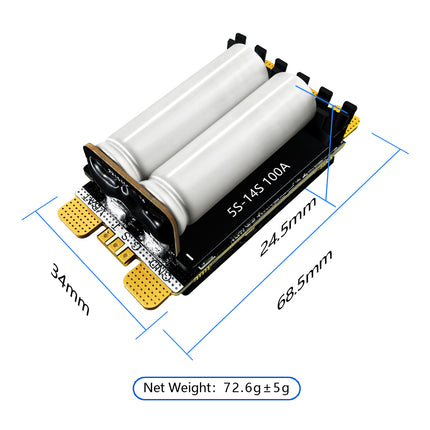

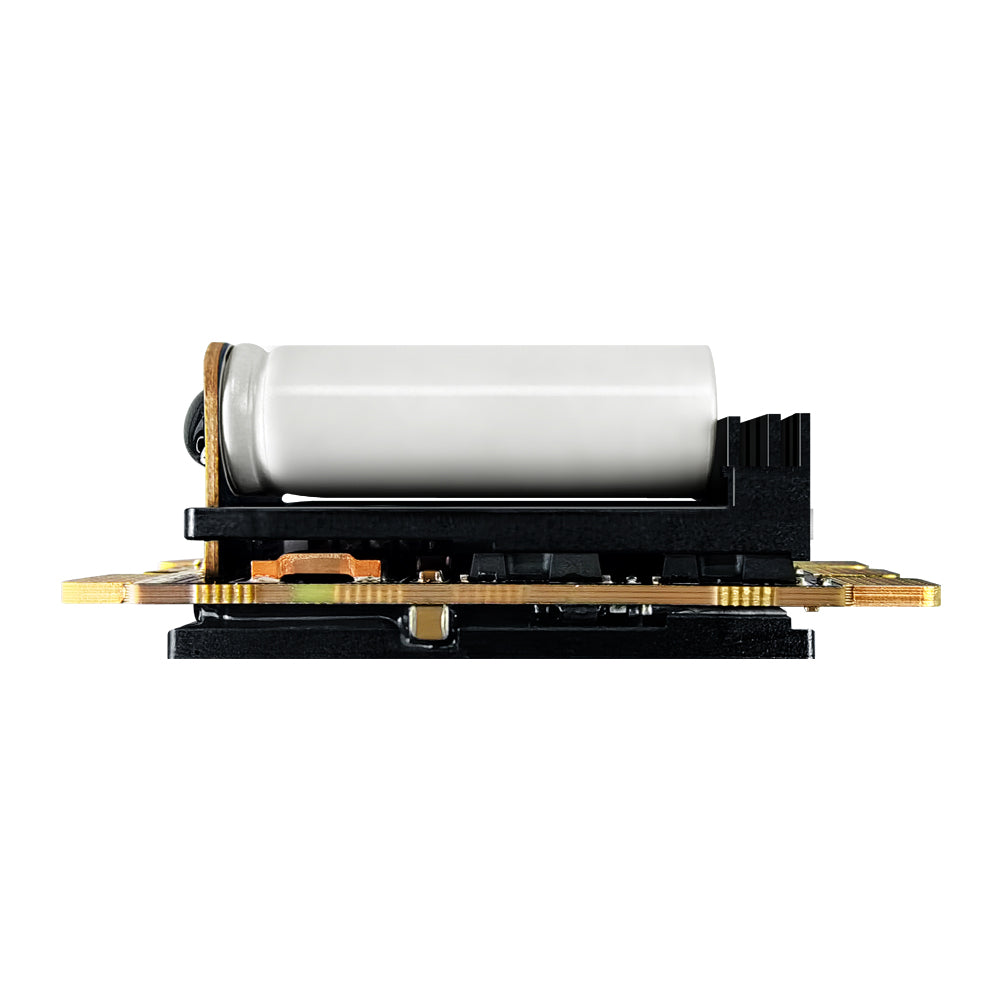

Dimensions: 68.5mm (Length) × 34mm (Width) × 24.5mm (Height)
-
Input Power: 5S–14S LiPo Battery
-
Firmware Version: MAXKGO_V1_F421
-
Firmware Upgrade: Supports online firmware updates via AM32.ca
-
Communication Protocols: Dshot300, Dshot600, Servo PWM
-
Telemetry Feedback: The TX telemetry port supports ESC data feedback, including voltage, current, temperature, motor RPM, and other operating parameters
-
BEC: No BEC output
-
Cooling Fan: No built-in cooling fan
-
Water Resistance: Not waterproof; only resistant to light splashes
5-14S 100A ESC Features
-
Mini Size, Powerful Performance
Compact design with high power output, providing excellent performance for various RC applications.
-
Multiple Protection Functions:
- Low Voltage Protection
- Over Temperature Protection
- Motor Stall Protection
- Low-Speed Protection
- Equipped with a high-performance ARM 32-bit Cortex-core MCU with a processing frequency of up to 120MHz.
-
Stall Protection for RC Cars and Crawlers
Helps prevent ESC damage caused by motor blockage during low-speed or high-load operation.
-
Stuck Rotor Protection for Multi-Rotor Drones
Provides protection against propeller blockage or sudden motor stoppage during flight.
-
Flexible Firmware Upgrade Support
Firmware can be upgraded through:
- Betaflight Passthrough
- Single-wire Serial
- Arduino
-
AM32 Web Configurator Support
Supports online parameter configuration through AM32.ca.
-
Multiple Protocol Compatibility
Supports:
- Servo PWM
- Dshot300
- Dshot600
-
EDT (Extended Dshot Telemetry) Support
Enables full Dshot telemetry feedback through the signal wire for real-time ESC monitoring.
-
Sinusoidal Startup Mode
Provides smoother startup performance for RC cars and crawlers, reducing vibration and improving control response.
5-14S 100A ESC Applications
- Multi-rotor drones
- Fixed-wing model aircraft
- RC cars
- RC boats

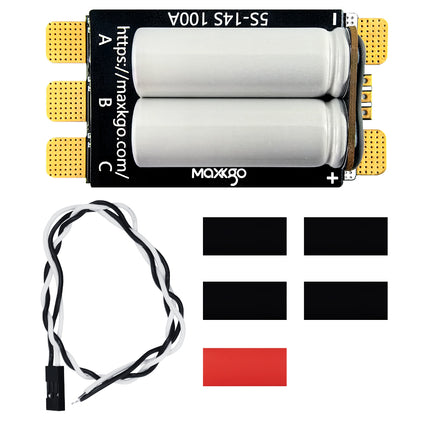

Package Contents

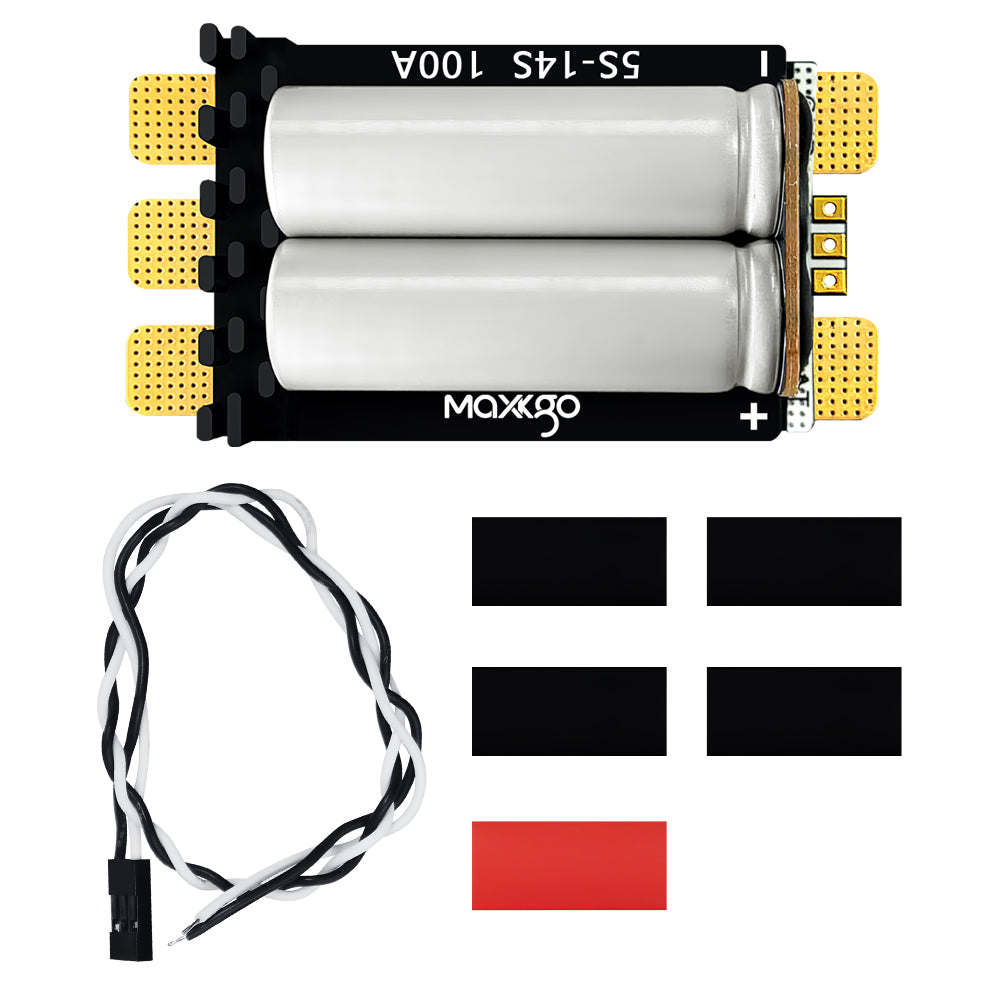

Package 1
- 5-14S 100A ESC × 1
- Heat Shrink Tubes × 5
- 2-Pin Dupont Cable × 1 (33cm)

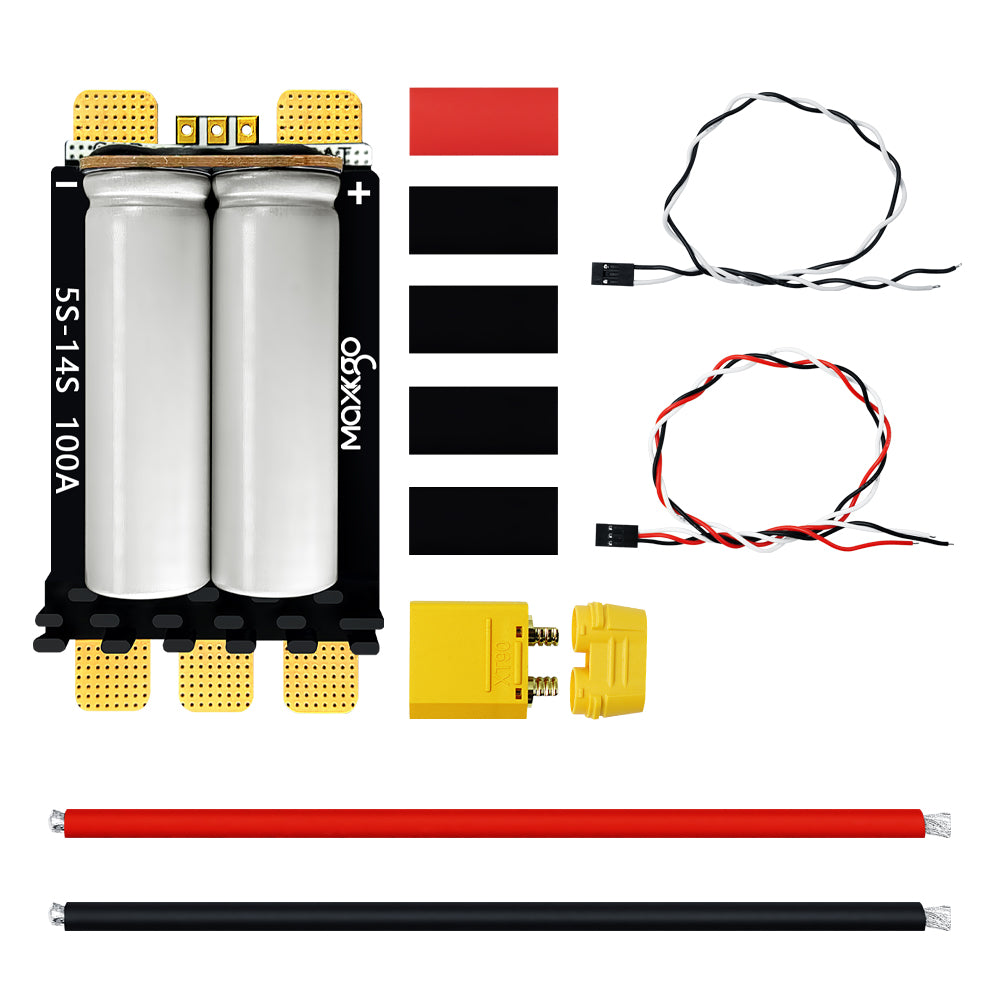

Package 2
- 5-14S 100A ESC × 1
- Heat Shrink Tubes × 5
- 2-Pin Dupont Cable × 1 (33cm)
- 3-Pin Dupont Cable × 1 (33cm)
- XT90 Male Connector × 1
- Positive & Negative Power Wires × 1 (10AWG / 200mm)
