Description
The 5-12S 200A MINI ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-12S LiPo battery input and provides a continuous current rating of up to 200A. Designed for high-power applications, it is widely used in FPV racing drones, multi-axis UAVs, fixed-wing model aircraft, RC cars, RC boats, agricultural spraying drones, electric cruise UAVs, firefighting drones, and other industrial drone platforms.
5-12S 200A MINI ESC Specifications
-
Type: Brushless Motor Electronic Speed Controller (ESC)
-
Continuous Current: 200A
-
Burst Current: 250A
-
Weight: Net Weight 144g ± 5g
-
Dimensions: 84mm (Length) × 43mm (Width) × 28mm (Height)
-
Input Power: 5S–12S LiPo Battery
-
Firmware Version: MAXKGO_12S_F421
-
Firmware Upgrade: Supports online firmware updates via AM32.ca
-
Communication Protocols: Dshot300, Dshot600, Servo PWM
-
Telemetry Feedback: The TX telemetry port supports ESC data feedback, including voltage, current, temperature, motor RPM, and other operating parameters
-
BEC: No BEC output
-
Cooling Fan: No built-in cooling fan
-
Water Resistance: Not waterproof; only resistant to light splashes
5-12S200A MINI ESC Features
| Feature Category |
Description |
| Compact Design |
MINI Size |
| Protection Functions |
Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection |
| MCU Performance |
High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz |
| RC Car Support |
Stall protection for RC cars and crawlers |
| Drone Protection |
Stuck rotor protection for multi-rotor drones |
| Firmware Upgrade |
Firmware upgradable via Betaflight passthrough, single wire serial, or Arduino |
| Web Configurator |
Web configurator at am32.ca |
| Protocol Support |
Supports Dshot 300, Dshot 600 and Servo PWM communication protocol |
| Telemetry Support |
EDT for full Dshot telemetry via signal wires |
| Smooth Startup |
Sinusoidal startup mode for smoother starting on RC cars and crawlers |
5-12S 200A MINI ESC Applications
- Multi-axis UAVs
- Fixed-wing model aircraft
- RC cars
- RC boats
- Agricultural spraying drones
- Electric cruise UAVs
- Firefighting drones
Package Contents
Package 1
- 5-12S 200A ESC × 1
- Heat Shrink Tubes × 5
- 2-Pin Dupont Cable × 1 (33cm)

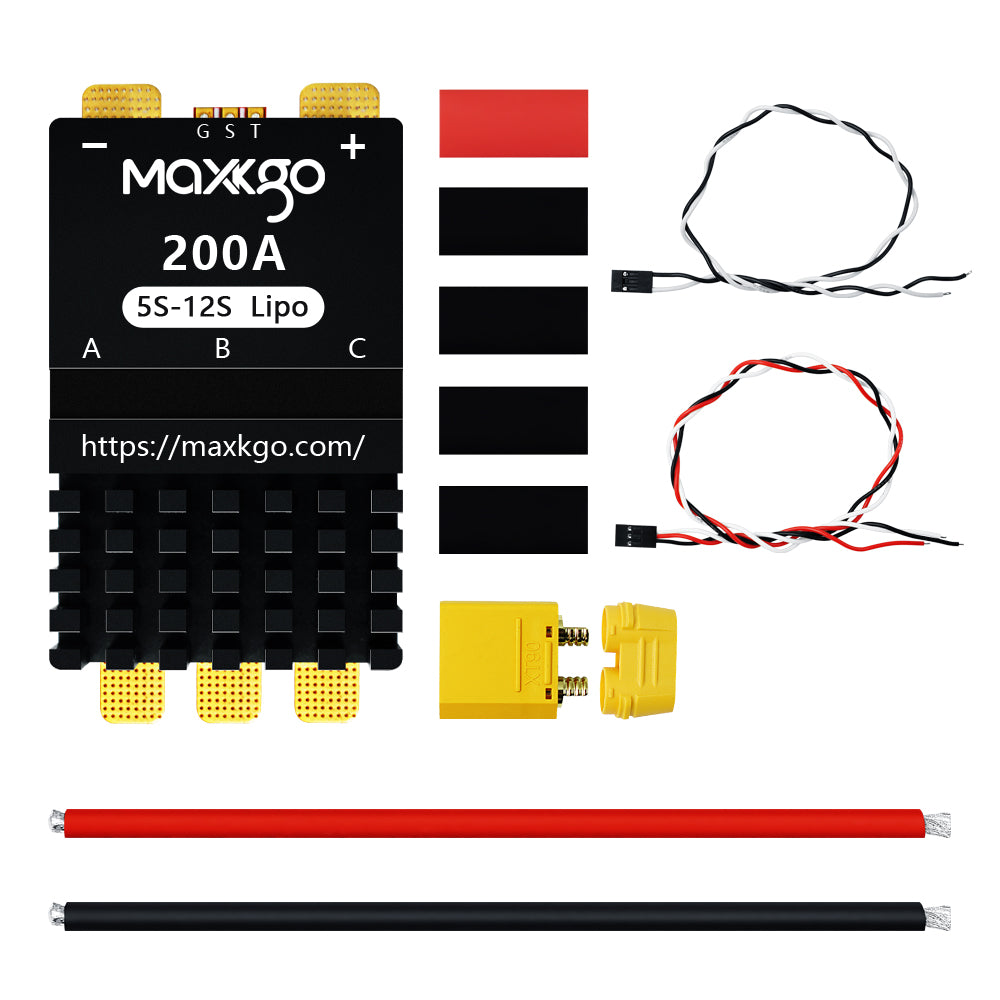

Package 2
- 5-12S 200A ESC × 1
- Heat Shrink Tubes × 5
- 2-Pin Dupont Cable × 1 (33cm)
- 3-Pin Dupont Cable × 1 (33cm)
- XT90 Male Connector × 1
- Positive & Negative Power Wires × 1 (8AWG / 200mm)
