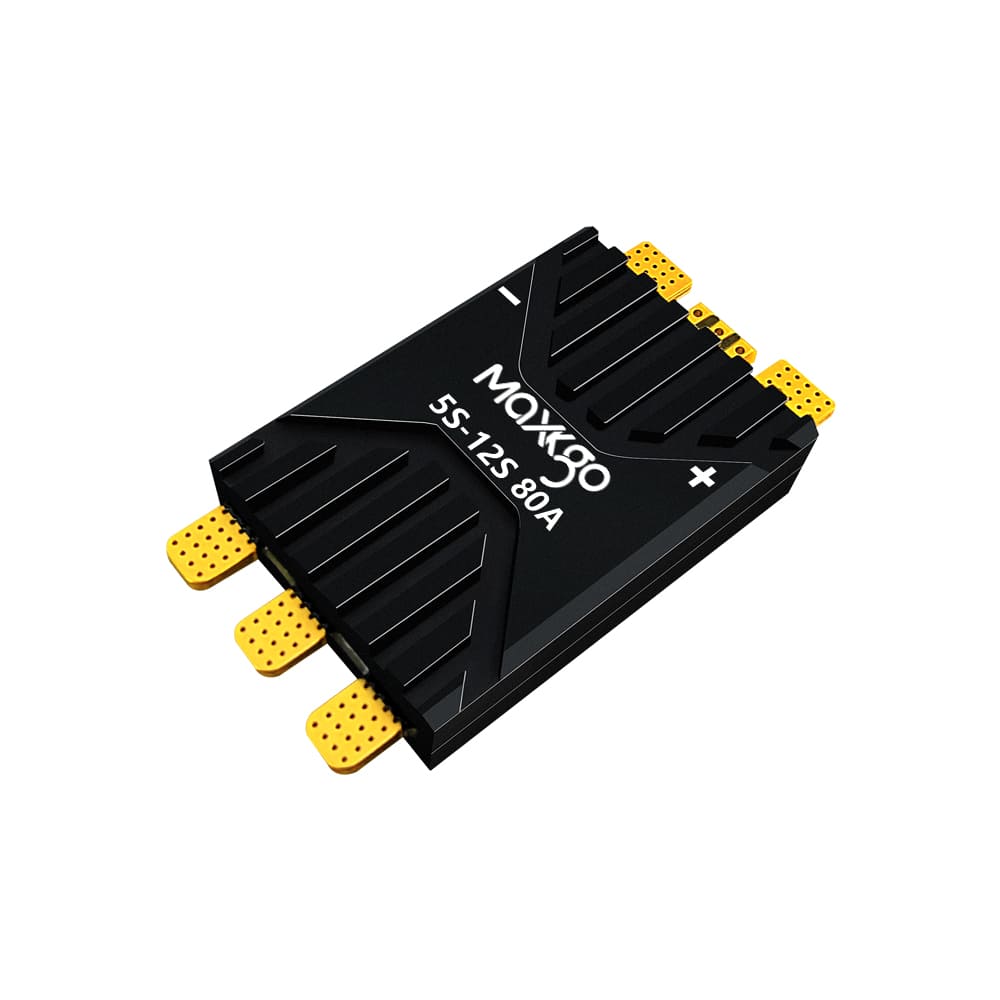

5-12S 80A_ESC
Description：

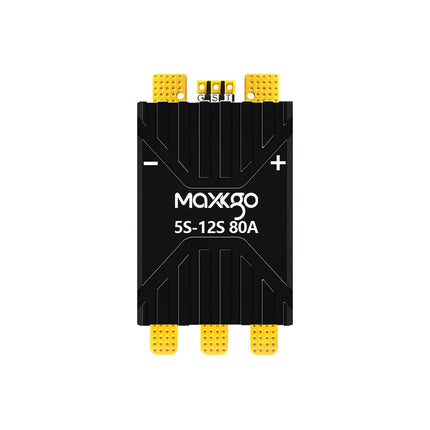

The 5-12S80A_ESC is a high-performance brushless electronic speed controller that supports an input of 5-12S lithium batteries and has a continuous current rating of 80A. It is widely applicable to FPV racing drones, multi-rotor drones, fixed-wing model aircraft, RC model cars, model boats, agricultural spray drones, etc.

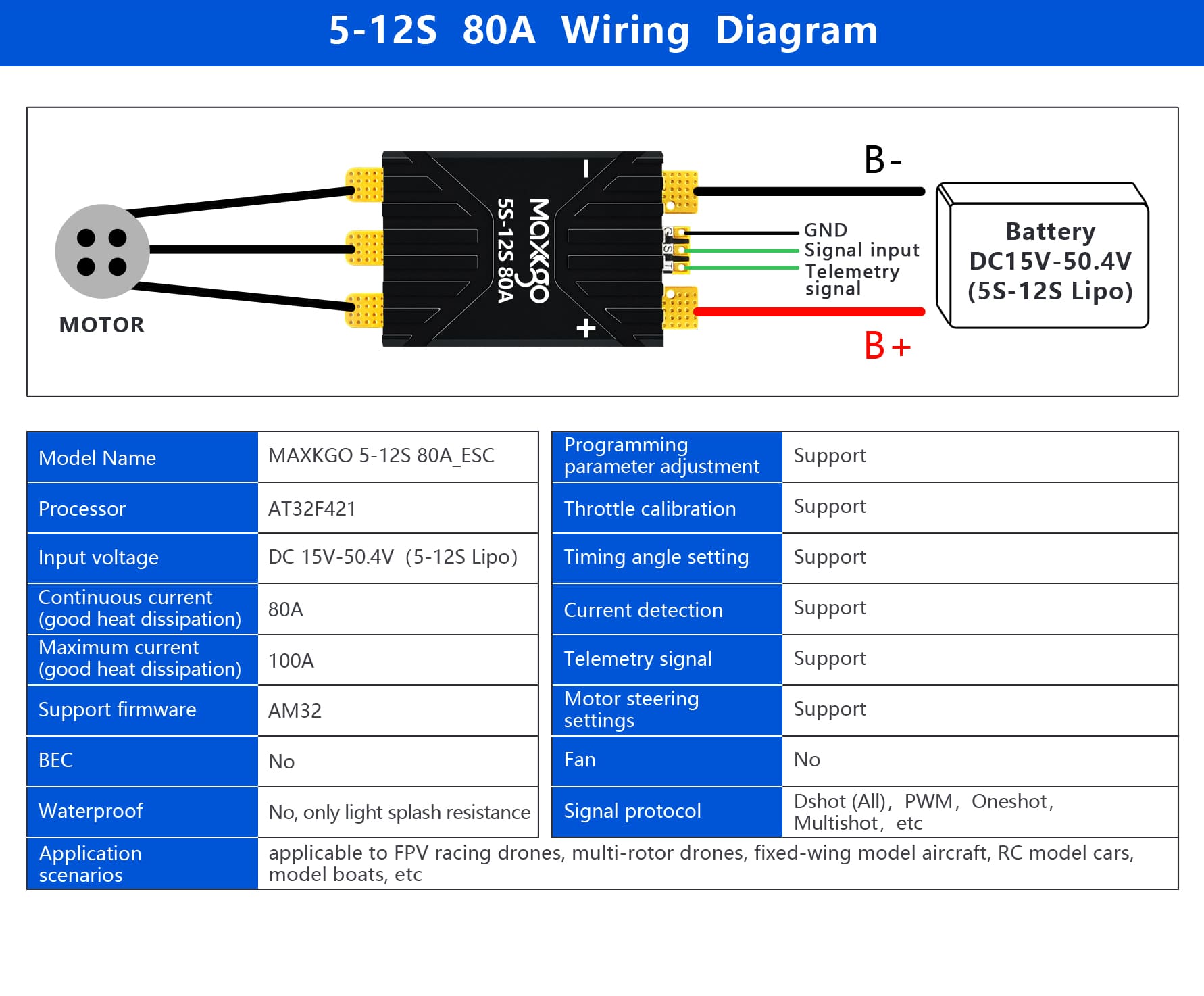

5-12S80A_ESC Parameters：
Type: Brushless Motor Electronic Speed Controller
Continuous Current: 80A
Instantaneous Current: 100A
Weight: Net Weight 19.2g

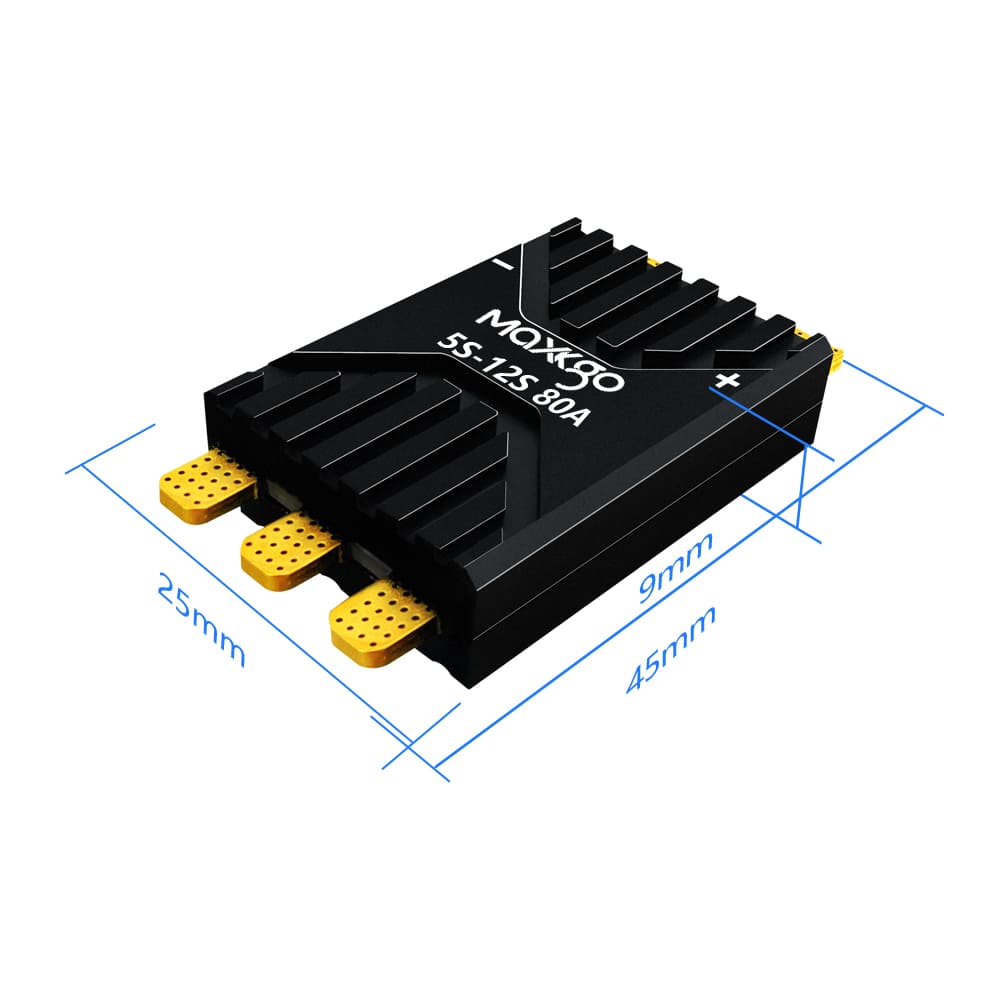

Size: 45mm (L) × 25mm (W) × 9mm (H)
Input Power Supply: 5S-12S LiPo
Firmware Version: MAXKGO_F421
Firmware Upgrade: Supports online upgrade via AM32.ca
Communication Protocol: Dshot 300, Dshot 600, Servo PWM
Signal Feedback: The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed
5-12S80A_ESC Features：
MINI Size,MAX Power.
Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection
High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz
Stall protection for cars and crawlers
Stuck rotor protection for multi-rotors
Firmware upgradable via betaflight passthrough, or single wire serial or Arduino
web configurator at am32.ca
Servo PWM and Dshot300/600
EDT for full Dshot telemetry via signal wires
Sinusoidal startup mode for smoother starting on cars and crawlers
5-12S80A_ESC Application Fields：
Multi-rotor Drone
Fixed-wing Model Aircraft
RC Model Car
Model Boat

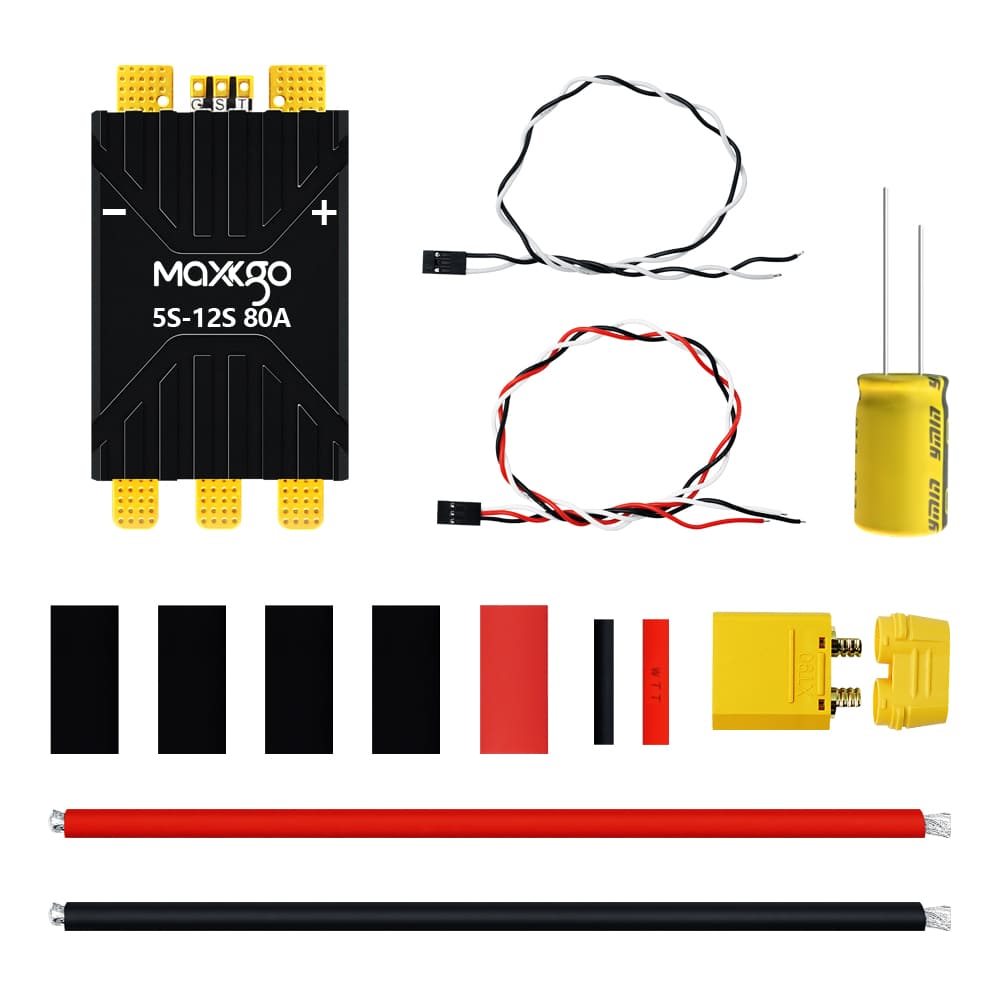

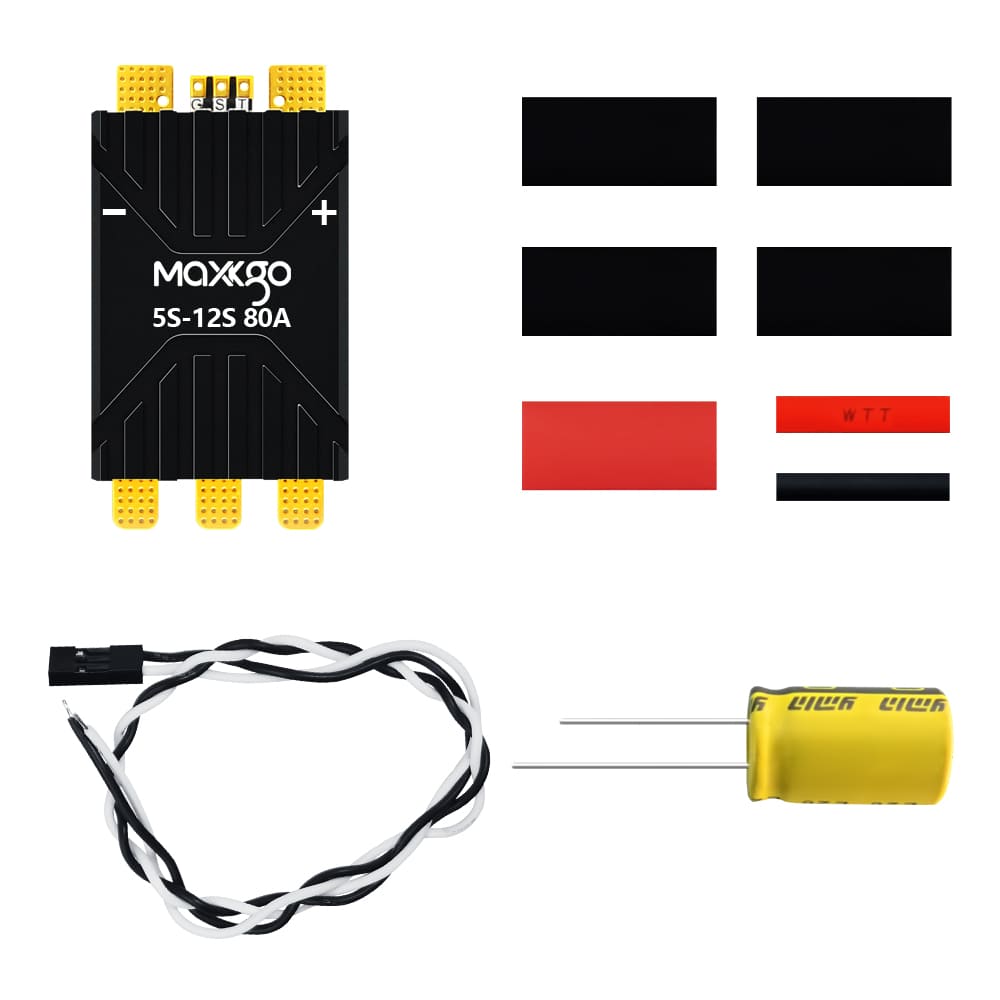

Mountings：
5-12S80A_ESC *1
Heat Shrink Tubing *5
Electrolytic Capacitor *1（63V 680μF）
XT60 Male Connector *1
Black Power Cable*1（12AWG，120mm）
Red Power Cable *1（12AWG，120mm）
