Specifaction:
Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/300A,75V/200A
Max Current :350A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000

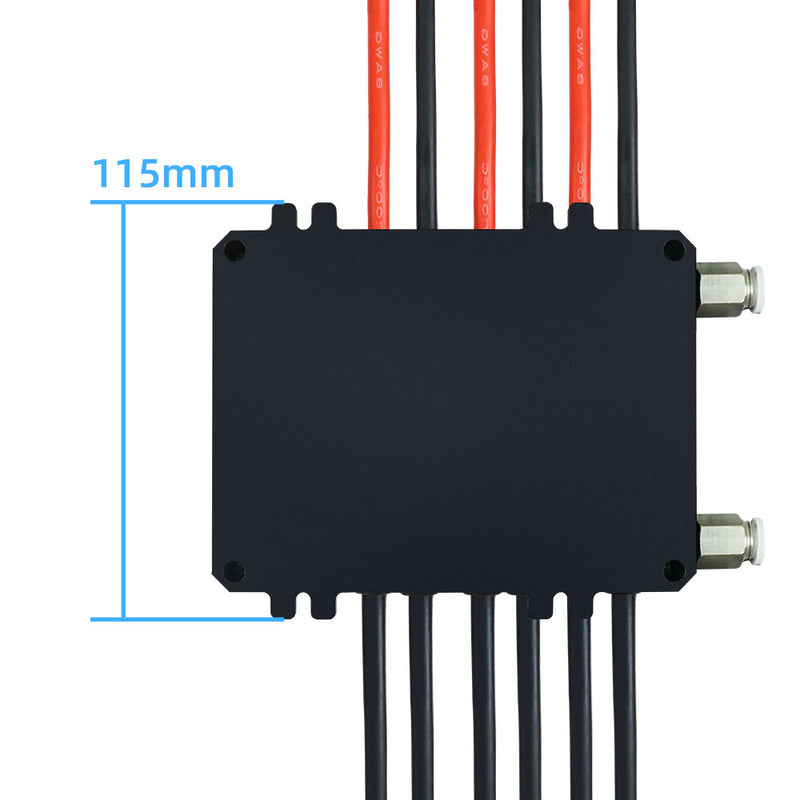

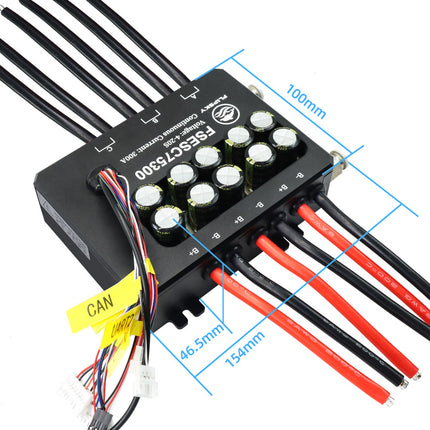

Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)
Feature:
Regenerative braking
The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM-, current-, voltage- and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Real-time data analysis and readout through the communication port.
Adjustable protection against:
Low input voltage
High input voltage
High motor current
High input current
High regenerative braking current (separate limits for the motor and the input)
High RPM (separate limits for each direction)
Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
Motor wire: 8AWG
Power cable: 8AWG
Waterproof level(with water cooling enclosure):IP67
Wire Connection:
