Products
-
$130.00
-
$142.00
-
4 pcs 450V TO 12V DC-DC Step Down Module
Super Value Bundles: 4 pcs 450V TO 12V DC-DC Step Down Module
$196.00
-
BMS Bundles Only Charge 4-24S Li-ion Battery 20A MKBMS Balance Protection Board BMS AAdapter
This BMS board bundle includes 4-24S only charge BMS Board and BMS adapter.
$88.00
-
Ebike TFT RGB Screen FTESC With GPS Function UART 24AWG M8 IP65 Waterproof Portable Time Battery Level Display
Specifications: Name: Ebike TFT Color Disply Dimension: L*W*H (mm): 124.4*68.1*18.5(mm) Display Size: 3.2 “ Display Type: TFT Display Color: RGB Display Image Resolution: 240*320 Voltage/Current: 5V/500mA Working Temperature: -20℃～+70℃ Storage Temperature: -30℃～+70℃ IP Rate: IP65 Weight: 116g Communication Mode: UART Support Esc Types: FTESC: Flipsky Non VESC ESCs FSESC: ESCs based on VESC FOCBOX: FOCBOX Unity Product Common Basic Operations: 1.Gear switch: In the main interface, short press the plus key to switch gears; 2.Parameter description: The gear switch function is only applicable to the PAS mode of the "FTESC" electronic adjustment type. PAS mode: 0 gear 3.The speed is zero, and other different gears can control different speeds. The higher the gear, the faster the speed. 4.Data display: In the main interface, short press the minus key to enter the All data interface; short press the minus key again to return to the main interface. 5.Riding mode: In the main interface, double-click the minus key to enter the riding mode; double-click again to end the current riding record. 6.Riding record: In the main interface, long press the plus key to enter the riding record interface; long press the plus key again to exit; 7.If you want to clear the riding record, long press the minus key. 8.Parameter setting: In the main interface, long press the minus key to enter the parameter setting Wire Connection:
$32.00 - $37.00
-

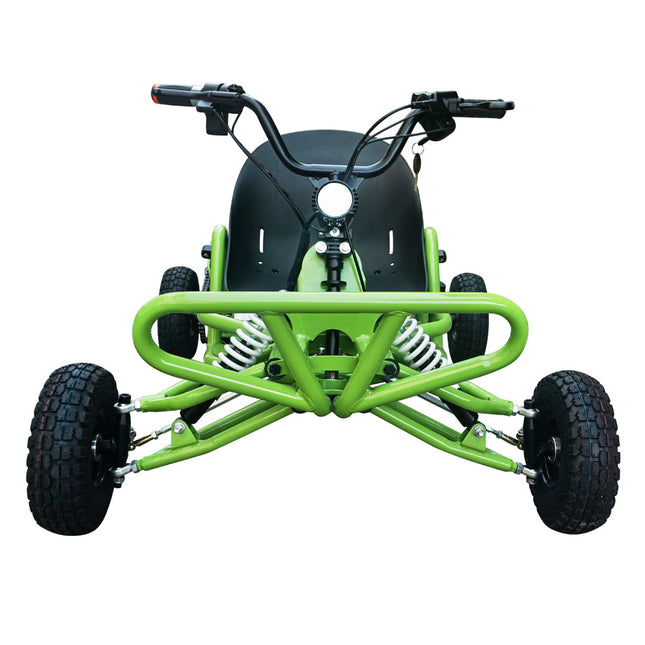

Electric Audlt Outdoor Go Kart Front and Rear Shocks 20ah/1512wh 15000W Mini Buggy Off Road Pedal Acceleration
Power systerm -Rear-mounted mid drive motor with 5000W continuous power and 15000W peak power, delivering instant torque to tackle steep slopes and rugged terrain. -The high performance FT85RS ESC (programmable) with 500A peak current ensures precise throttle control and smooth acceleration for high-speed cornering. -Top speed of 70km/h, far exceeding the 35km/h limit of most karts, enjoy the speed and passion" Chassis Design -High-carbon steel frame and aluminum alloy wheels withstand heavy impacts, supporting up to 200kg load for extreme durability. -Professional-grade shock absorption system and 150mm ground clearance absorb shocks, ensuring stability on rocky or sandy trails." Safety Features -Dual braking system (mechanical + regenerative E-brake) prevents overheating on slopes and ensures reliable emergency stops. -Built-in headlights and brake lights enhance visibility for night rides and signal alerts to others. -Anti-collision footrests and adjustable seat provide stable posture and reduce rollover risks." User-Friendly Operation -3-speed modes (L/M/H) + Reverse gear cater to all skill levels, ideal for tight spaces. -Key-start ignition, quick-adjust seat, and pre-ride checks let you hit the trail in 5 minutes. Long-Lasting Endurance -20Ah 21700 lithium battery provides up to 60km range and fast 4-hour charging for non-stop off-road adventures." Environmentally friendly Zero-emission electric drive system, more environmentally friendly compared to gas-powered karts Warnings: No Overloading: Maximum load capacity: 110 kg (single rider only). No Wading: Battery compartment is IP54-rated. Do not drive in water deeper than 100 mm. Age Restriction: Prohibited for children under 14. Minors aged 14–18 must operate under adults’ supervision after training. Avoid Extreme Operation: Sharp turn or jump may cause rollover. Protective Gear: Always wear helmets and other certified safety protective gear like gloves and knee/elbow pads. Avoid dangerous actions. Usage Areas: Use only in enclosed private areas, professional buggy tracks, or off-road parks. Do not drive on public roads. Power Risks: Radio interference, battery faults, or overcharging may cause sudden power loss or braking. Operate according to the instruction. Novice Caution: Turn the throttle slowly to avoid sudden acceleration and the arising accidents. Slope & High-Speed Risks: Be careful when sliding on the hills or in high speed. Always wear protective gears. Legal Compliance: Drive only in permitted areas to avoid harming others or get injured
$2,219.00
-
ESC E70 G1 2-8S 70A High Performance Controller BLHeli_32-bit 128K 4-in-1 For FPV Racing Drone Racing Freestyle
ESC E70 G1 2-8S 70A High Performance Controller BLHeli_32-bit 128K 4-in-1 For FPV Racing Drone Racing Freestyle (1) STM32G071 high-performance processor, using BLHeli_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A. (2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time. (3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time. (4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure. (5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel. (6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem. (7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty. (8) 20*20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install. Package Content: SEQURE E70 G1 4 in 1 ESC × 1 30AWG 40mm reverse double plug SH1.0-8P cable × 1 30AWG 60mm single plug SH1.0-8P cable × 1 12AWG 100mm power cable (black/red)×2 XT60H-M black male connector×1 35V 680UF solid capacitor×1 M3*8mm shock absorbing washer (black) × 5 M3*4.5mm shock absorbing washer (black) × 5
$88.00 $74.90
-
EVC 500 Main Contactor 1000A DC High Voltage High Current Applications For Battery Charging System Hybrid Electric Vehicles Fuel-cell Cars
Specifications: Model: 2299223-2 Power supply mode: direct current Voltage: 381V-1000V Coil voltage: 12-24V Terminal pass voltage: 450-900V Long-term passing safety current: 500A Maximum current: 1000A Instantaneous current: 2000A Applicable object: automotive relay Relay type: electromagnetic relay Typical application: DC high voltage high current applications Main contactors for hybrid,full battery electric vehicles and fuel-cell cars Battery charging system MKBMS Battery Management System Package List: 1x TE2299223-2 EVC500 Main Contactor 1X HY2.0 single head 2P line
$89.99 $43.00
-
EVC 500 Main Contactor Applications for MKBMS Battery Management System+Wiring Terminal Set
Wiring Terminal Set Specification Brand: MAXKGO Material: copper, stainless steel Net Weight: 62g Package Weight: 100g Package Dimensions: 12cm*8cm*8.5cm Applies to: BMS low voltage master board Model Inside Diameter Outer Diameter Width Front End Thickness Hole Diameter T90-25/8 7.1 9.5 14.0 16.0 2.0 8.3 Size : 90 degree angle terminal block / unit(mm) Features Adopt copper material and stainless steel material. Not easy to rust. Hard to bend. No pollution to the environment. Good taste for collocation for it's beautiful lustre. Outstanding capabilities in anti-corrosion and anti-rust even in the humid environment. Enjoy wide application since it's safe and easy to use. Package Lists 90 degree angle terminal block T90-25/8 X 4 (copper) M8*16 stainless steel round head screw X 2 (stainless steel) M8*Stainless steel nut X 2 (stainless steel) M8 copper gasket X 4 (copper) EVC 500 Main Contacto
$96.97 $49.98
-
Flipsky 4-12S 400A Dual BLDC Motor FSESC6.7 Pro Plus With Aluminum CASE Based on VESC6 Electric Skateboard Speed Controller
Specs: Firmware: Latest Version (support firmware upload) Continuous current: single 100A, dual 200A; instantaneous current: single 400A, dual 800A Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1.5A ERPM: 150000 Control Interface Ports:USB,CAN,UART, SPI, IIC (for IMU) Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM, ADC, NRF, UART Modes: BLDC, FOC (sinusoidal) Regenerative capacity: Yes Programmable: Yes Both sensored/ sensorless motor: Yes Motor wire: 12AWG Power cable:8AWG Size: 81 x 77 x 20 mm(Including heatsink) Feature: Support four control modes: Current/Dutycycle/Speed /Position control mode. Using 12pcs JMSL0601AG high current MOSETS. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050,LSM6DS3, BMI160. Wiring diagram:
$199.00 - $209.00
-
Flipsky 4S-20S 400A FT85GS ESC With Aluminum Case Enclosure NON-VESC For E-Foil Fighting Robot Surfboard AGV Robot
Specifications : Firmware: V1.5 and above (firmware update via Flipsky ESC Tool supported)Voltage: 14V-85V (safe for 4S-20S)Continuous current: 50V/400A; 75V/350A; 85V/300A (Values depend on the mounting, ambient temperature and air/water circulation around the device.)Peak Current: 800ABEC: 5V@1APower/Motor Wires: Integrated M6 terminalsProgrammable Tool: Flipsky ESC TOOLPWM Frequency Control: YESMultiple Speed Gear Limit Control: YES (UART / ADC)Regenerative Capacity: YESCommunication Ports: USB, CAN, UART, PPM, ADC/PASInput Signals Support: PPM, ADC, PAS, UART(compatible with FLIPSKY remote such as VX1, VX1Pro, VX2, VX3, VX3Pro, VX4Pro )Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER(ABI Encoder，AS5047 Absolute Type Encoder SPI Port), OPEN(Sensorless Open-Loop Startup)Traction Control: YESMultiple Speed Gear levels: Low, Medium, High, ReverseSwitch Support: Power on/off button switch or key switchSize:L190*W109.1*H55.8(with aluminum enclosure) Features: 1.Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.2.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and multiple control methods.3.Programmable via Flipsky remote controller VX4Pro(remote firmware version: VX4Pro_V1.1 and above)4.Supporting motor FOC with low working noise and smooth starting.5.Supporting Real-time data and fault alerts.6.Supporting adaptive variable PWM frequency control.7.Supporting sensor mode(HALL,ENCODER) and sensorless mode(IPDS, HFPI,OPEN).8.Supporting control types: Current, Duty Cycle, Speed Control, Position Control.9.Supporting multiple types of motor temperature sensors such as NTC-10k-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY, etc.10.Protection functions: low and high voltage protection, motor over-temperature protection, MOSFET over-temperature and over current protection, battery over discharge protection.11.Integrating power of 12V(3pcs) to provide power for external devices(headlight, brake light, horn, etc.) with two groups normally open and one controlled by brake signal. (Note: maximum output current:4A)12.Supporting brake signal to cut off ESC output. Wire Connection:
$350.00 $227.00
-
Flipsky 6368 140/ 190KV 2700W BLDC High Torque Sensored Outrunner Brushless DC Motor With 10mm D Shaft For Electric Skateboard
Specifications: Weight 0.84KG Max Power 2700W Motor KV 140190 Max current 75A Battery type 4-14S Recommend ESC VESC6 Max Torque 7.5Nm Diameter(mm) 63 Length(mm) 68 Total length (mm)92mm Shaft(mm) 10mm Dshaft Bullet connector 4mm Wire configuration Blue = U White = V Yellow = W BLDC Motor
$79.00 - $85.00
