Description

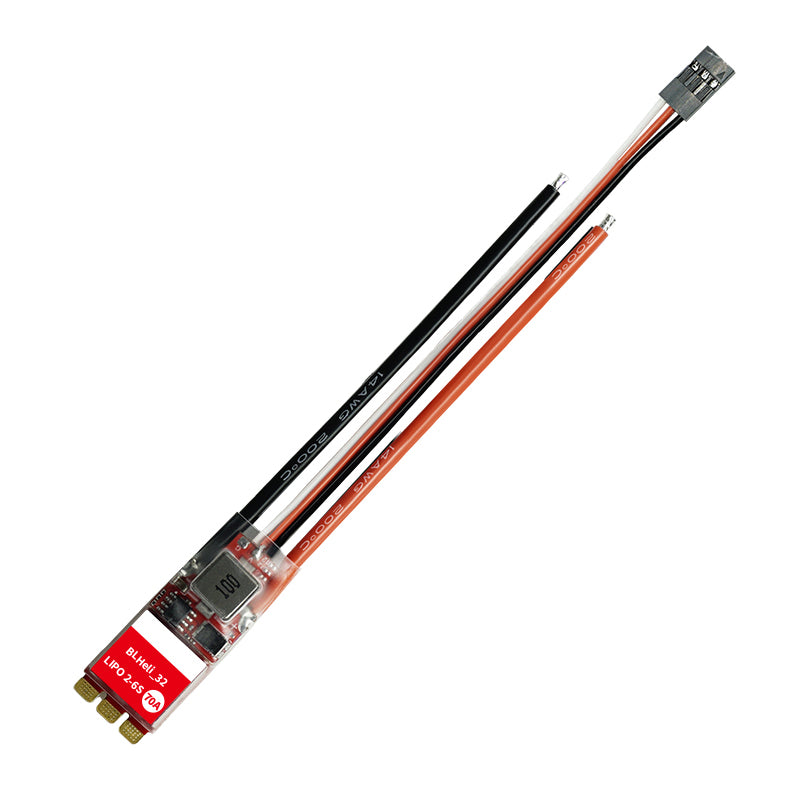

2670 Brushless ESC Product Description:
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
(2) PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible.
(7) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(8) Onboard RGB LED color light settings, multiple LED colors can be customized.
(9) Widely used in FPV racing drone,multi-axis drones, fixed-wing, model ships, climbing vehicles, model cars and other scenarios.
Parameters of 2670 Brushless ESC:
|
Model
|
2670
|
|
Processor
|
STM32G071
|
|
Input voltage
|
DC 7V-25.2V（2-6S Lipo）
|
|
Continuous current (good heat dissipation)
|
70A
|
|
Maximum current (good heat dissipation)
|
110A
|
|
Support firmware
|
BLHeli_32，AM32
|
|

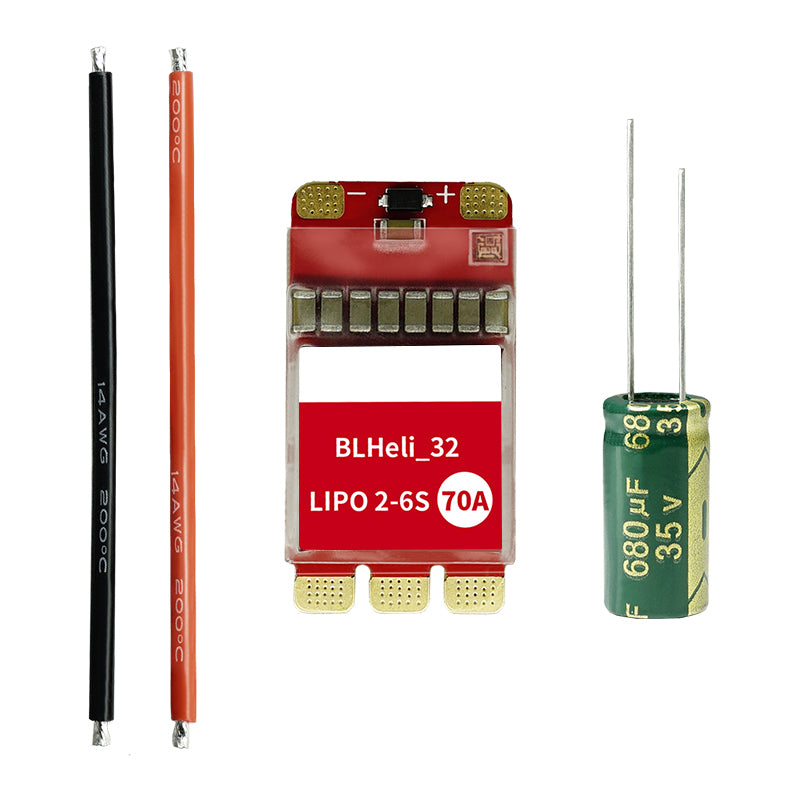

BLHeli_32 firmware
|
SEQURE_G071_01
|
|

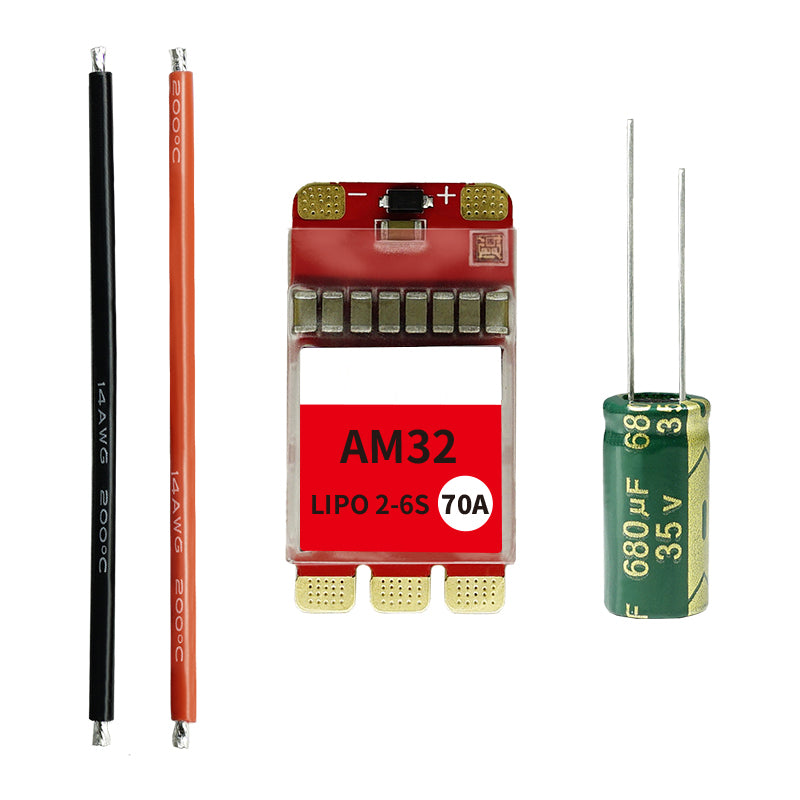

AM32 firmware
|
SEQURE_G071
|
|
Signal protocol
|
Dshot (All), PWM, Oneshot, Multishot, etc.
|
|
Programming parameter adjustment
|
Support
|
|
Throttle calibration
|
Support
|
|
Timing angle setting
|
Support
|
|
Current detection
|
Support
|
|
Telemetry signal
|
Support
|
|
Motor steering settings
|
Support
|
|
RGB LED color lights
|
Support
|
|
BEC (if any)
|
5V/4A，6V/4A，7.2V/4A，8.2V/4A，12V/3A adjustable
|
|
Application scenarios
|
FPV racing drones, multi-axis drones, fixed-wing UAV, model ships, climbing vehicles, model cars, etc.
|
