5-12S200A MINI ESC Specifications Parameter Details Type Brushless Motor Electronic Speed Controller Continuous Current 200A Instantaneous Current 250A Weight Net Weight 140±5g Gross Weight 360g Size 84mm (L) × 43mm (W) × 28mm (H) Input Power Supply 5S–12S LiPo Firmware Version MAXKGO_12S_F421 Firmware Upgrade Supports online upgrade via AM32.ca Communication Protocol Dshot 300, Dshot 600, Servo PWM Signal Feedback The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed Built-in Capacitors We've already soldered three 63V 1000μF capacitors at the power input, so there's no need to add extra ones. 5-12S200A MINI ESC Features Feature Category Description Compact Design MINI Size Protection Functions Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection MCU Performance High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz RC Car Support Stall protection for RC cars and crawlers Drone Protection Stuck rotor protection for multi-rotor drones Firmware Upgrade Firmware upgradable via Betaflight passthrough, single wire serial, or Arduino Web Configurator Web configurator at am32.ca Protocol Support Supports Dshot 300, Dshot 600 and Servo PWM communication protocol Telemetry Support EDT for full Dshot telemetry via signal wires Smooth Startup Sinusoidal startup mode for smoother starting on RC cars and crawlers 5-12S200A MINI ESC Application Fields Application Usage 🚁 Multi-rotor Drone High-performance UAV and FPV applications ✈️ Fixed-wing Model Aircraft Fixed-wing RC aircraft and EDF systems 🚗 RC Model Car High-power RC cars and crawlers 🚤 Model Boat Brushless RC boat applications 🌾 Plant Protection Machine Agricultural UAV and spraying drone systems   Shipping List： 5-12S200AMINI_ESC Main Unit *1 Heat Shrink Tubes *5 PH2.0 Communication Cable *1

Read more less

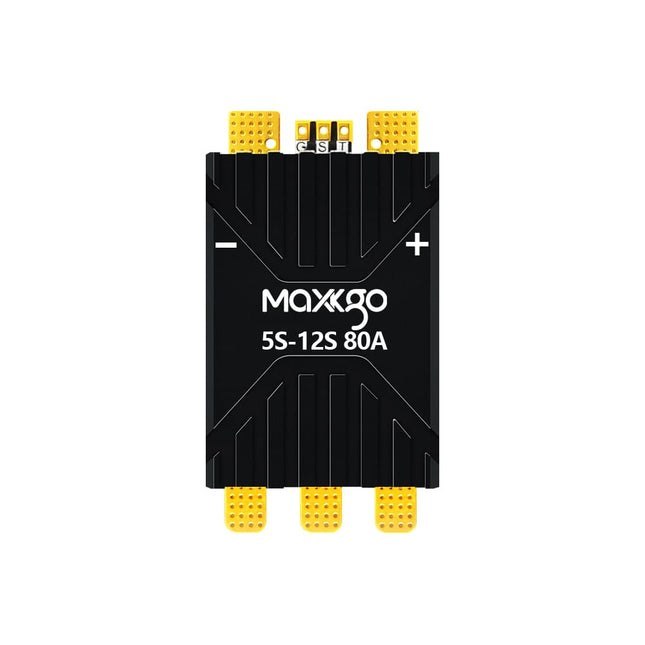

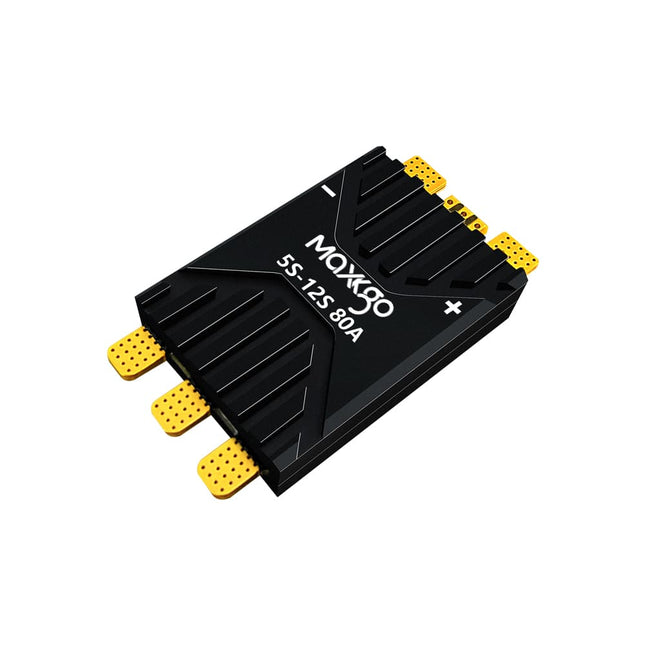

5-12S 80A_ESC Description： The 5-12S80A_ESC is a high-performance brushless electronic speed controller that supports an input of 5-12S lithium batteries and has a continuous current rating of 80A. It is widely applicable to FPV racing drones, multi-rotor drones, fixed-wing model aircraft, RC model cars, model boats, agricultural spray drones, etc.   5-12S80A_ESC Parameters： Type: Brushless Motor Electronic Speed Controller Continuous Current: 80A Instantaneous Current: 100A Weight: Net Weight 19.2g    Size: 45mm (L) × 25mm (W) × 9mm (H) Input Power Supply: 5S-12S LiPo Firmware Version: MAXKGO_F421 Firmware Upgrade: Supports online upgrade via AM32.ca Communication Protocol: Dshot 300, Dshot 600, Servo PWM Signal Feedback: The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed5-12S80A_ESC Features： MINI Size,MAX Power.Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz Stall protection for cars and crawlers Stuck rotor protection for multi-rotors Firmware upgradable via betaflight passthrough, or single wire serial or Arduino web configurator at am32.ca Servo PWM and Dshot300/600 EDT for full Dshot telemetry via signal wires Sinusoidal startup mode for smoother starting on cars and crawlers     5-12S80A_ESC Application Fields： Multi-rotor Drone Fixed-wing Model Aircraft RC Model Car Model Boat   Mountings： 5-12S80A_ESC *1Heat Shrink Tubing *5Electrolytic Capacitor *1（63V 680μF）XT60 Male Connector *1Black Power Cable*1（12AWG，120mm） Red Power Cable *1（12AWG，120mm）

Read more less

Description： The 5-14S100A_ESC is a high-performance brushless electronic speed controller that supports an input of 5-14S lithium batteries and has a continuous current rating of 100A. It is widely applicable to FPV racing drones, multi-rotor drones, fixed-wing model aircraft, RC model cars, model boats, agricultural spray drones, etc. 5-14S100A ESC Specifications Parameter Details Type Brushless Motor Electronic Speed Controller Continuous Current 100A Instantaneous Current 130A Weight Net Weight 72.8g Size 68.5mm (L) × 34mm (W) × 24.5mm (H) Input Power Supply 5S–14S LiPo Firmware Version MAXKGO_V1_F421 Firmware Upgrade Supports online upgrade via AM32.ca Communication Protocol Dshot 300, Dshot 600, Servo PWM Signal Feedback The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed 5-14S100A ESC Features Feature Category Description Compact & Powerful MINI Size, MAX Power Protection Functions Supports low-voltage protection, over-temperature protection, motor stall protection, and low-speed protection MCU Performance High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz Car & Crawler Support Stall protection for cars and crawlers Multi-Rotor Safety Stuck rotor protection for multi-rotors Firmware Upgrade Firmware upgradable via Betaflight passthrough, single wire serial, or Arduino Web Configurator Web configurator available at am32.ca Protocol Support Supports Servo PWM and Dshot300/600 Telemetry EDT for full Dshot telemetry via signal wires Smooth Startup Sinusoidal startup mode for smoother starting on cars and crawlers 5-14S100A ESC Application Fields Application Usage 🚁 Multi-rotor Drone High-performance UAV and FPV applications ✈️ Fixed-wing Model Aircraft Fixed-wing RC aircraft and EDF systems 🚗 RC Model Car High-power RC cars and crawlers 🚤 Model Boat Brushless RC boat applications   Shipping List： 5-14S100A_ESC Main Unit 1 Heat Shrink Tubes *5 PH2.0 Communication Cable *1   Optional： XT90 Connector *1 10AWG * 2 PH2.0 3 wire Communication Cable *1

Read more less

Expertly designed, the MAXKGO smart BMS 12S 60V 70A protection board is compatible with both VESC and FSESC® systems. This smart BMS provides superior protection and efficiency for Ebikes, Esk8s, Escooters, and more. With advanced features including VESC compatibility, this BMS ensures maximum performance for all your electric transportation needs. Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Spec: Cell voltage operating range:2V-5V Recommended series cell:6S-12S Charge / discharge voltage:24V-52V Charge Current：≤20A Abs. Max battery voltage: 60V Minimum operating voltage: 14V Continuous charging current: 20A Over charge detect and release voltage: 2V-5V Over charge protection delay: ≥4ms Discharge current: ≤70A Max. Continuous discharge / regen current: 70A  Over discharge detect / release voltage: 0-5V Over current detect delay:≥4ms Discharge over current protection release condition: off load Short Circuit detect voltage:short circuit of external load Short Circuit detect delay: 320us Short Circuit protection release: off load Battery pack capacity and internal resistance detection: Yes Balance current: 86mA @4.2V Temp Protect: -20℃—+120℃ Working Temp Range:-20℃—+80℃ Storage Temp Range: -20℃—+100℃ Working current: ≤40mA Sleeping current: ≤100uA Size: 89 x 40 x 20.8mm Net weight: 106.5g Packing size: 140 x110 x 50 mm Package weight: 303.5g Including outer carton size: 170*120*100mm Weight with outer carton: 380g Feature: Compact layout and mini Using aluminum alloy material shell, better heat dissipation. Automotive grade design, automotive grade locking connector. Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. Automotive grade monitoring & balancing IC with separate power supply for increased reliability Voltages measurements for load, charger & battery pack Bi-directional current monitoring SOC based on coulomb counting Humidity sensor & board temperature monitoring Charger detection circuit Integrated precharge circuit Power button, USB-C, UART, I2C & isolated CAN bus interface On board High-Efficiency 3.3V regulator powered from the main battery pack High current capacity automotive grade screw connectors for main power connections Buzzer & status LED Support:  overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance). Support:  almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc. Packing list: 1* PCBA 1* HY2.0 single head 10P line 1* HY2.0 single head 13P line 2* GH1.25 single head 5P cable 1* GH1.25-5P to Dupont line 1* USB cable type-C data cable 1* 2.0MM jumper cap 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 4* M5*8 stainless steel round head screws 4* M5 copper gasket 4* 90 degree angle terminal block T90-6/5  1* XT30 (female) Video: If you need more diagrams for different series, please contact us!

Read more less

Specification: Charging Voltage: 6*4.2VCharging Currect: 15ACharging Overcurrent Protection Value: 26ABalance Enable Voltage: 4.125VBattery Balance Current: 25 ± 5mAOvercharge Detection Voltage: 4.25 ± 0.05VOvercharge Release Voltage: 4.15 ± 0.05VDischarge Current: 30ADischarge Overcurrent Protection Value: 66AOver-discharge Detection Voltage: 2.8 ± 0.05VOver-discharge Release Voltage: 3.0 + 0.05VOver-discharge Detection Delay: 1Sshort Circuit Detection Delay: 200-500 μS (The actual results are subject to the customer's return and inspection)Working Temperature Range: -30°C~70°CStorage Temperature Range: -40°C~125°CTemperature Protection: Charging: -10°C~50°C, Discharging: -30°C~70°C (can be customized)Sleep Current (Battery Over-discharge): 10μA

Read more less

MAXKGO 6S-12S 100A  Smart Bluetooth BMS is a Lithium battery protection board with a discharge current of up to 100A. It has charge and discharge overvoltage/overtemperature  overcurrent/short circuit/Disconnection protection function. The product has UART/ CAN communication interface, and can be connected to Bluetooth mobile phone APP and computer BMS-TOOL. It is widely used in Ebicycles/Escooters/Ebalance cars/water electric products.ETC Specs:   Type:Smart BMS Board Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 6S-12S Charge Current: 15A Discharge current:100A Cell voltage operating range: 2v-5v Balance: 42mA@4.2V Shutdown Consumption: <100uA Temp detection channe: 5 NTC Voltage support range: 15V-51V Abs. Max battery voltage: 60V Charge protection Temp: 0°C~100°C Discharge protection Temp: 0°C~100°C Recommended Working Temp:-20°C~+75°C Size: 93.4mm*42.5mm *19.3mm   weight: 116.4g Features: 1. With Discrete BMS TOOL and mobile phone APP 2. Compatible with VESC CAN Port communication protocol 3. Compatible with VESC-TOOL 4. Bluetooth APP communication 5. Real-time Voltage/current/temperature/power monitoring 6. Connect the charger autostart,Fully charged/Unplug the charged autooff 7. Passive Balance Optional activation 8. Support series cell:6S-12S 9. Anodized aluminum heatsink case , stable performance 10. OLED displays various parameters in real time Functions:  1. Balance function 2. Overcharge protection 3. Overtemperature protection 4. CAN Port communication 5. UART communicatiion 6. BLUETOOCH 7. OLED display 8. Button on/off  Common Uses: ▪ Electric bicycle ▪ Electric Skateboards ▪ Electric Scooters ▪ Electric Bikes ▪ Water electric products ▪ EUCs Package Included: 1* MKBMS 6S-12S Smart Bluetooch BMS Board(With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V push button switch 2* GH1.5 single head 5P line 1* GH1.25-5P to Dupont line 1* PH2.0 single head 13P line 1* PH2.0 single head 10P line 5* NTC 100K 4250B Thermistor Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B12, the voltage increases from low to high in sequence. This BMS is compatible with battery packs up to 12s, which is over 50.4V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.

Read more less

MAXKGO-SS BMS is a full-featured battery protection board for electric vehicles, light electric vehicles, and electric skateboards. It is an intelligent mini BMS that integrates charging protection, discharge protection, overcurrent protection, temperature protection, and balance protection.（The factory default setting is 12S. If you need to change it, please modify it yourself.） Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Applicable battery voltage Recommended Battery: 6S-12S Operating Voltage Range per Cell: 2V-5V Charging Charging Voltage: 24V-52V Charging Current: ≤50A Maximum Supported Charging Voltage: 60V Minimum Supported Charging Voltage: 14V Overcharge Protection Overcharge Detection Voltage: 2V-5V Overcharge Protection Delay: ≥4ms Overcharge Release Voltage: 2V-5V Discharging Discharge Current: ≤200A Overcurrent Protection for Discharge: ≤200A Discharge Voltage: 24V-52V Overdischarge Protection Overdischarge Detection Voltage: 0-5V Overdischarge Release Voltage: 0-5V Overcurrent Protection Overcurrent Protection Delay for Discharge: ≥4ms Overcurrent Protection Release Condition: Load Disconnect Short Circuit Protection Short Circuit Protection Condition: External Load Short Circuit Short Circuit Detection Delay: 320µs Short Circuit Protection Release Condition: Load Disconnect Balancing Current: 86mA @4.2V Temperature Protection Temperature Protection: -20℃ to +120℃ Operating Temperature Operating Temperature Range: -20℃ to +80℃ Storage Temperature Storage Temperature Range: -20℃ to +100℃ Self-Consumption Operating Current: ≤40mA Sleep Current: ≤100µA BMS  Details Includes: Overcharge Protection, Overdischarge Protection, Overcurrent Protection, Temperature Protection, Battery Capacity Detection, Battery Internal Resistance Detection, Thermal Management, Balancing Function Balancing Method: Active Balancing and Passive Balancing Short Circuit Protection: External Load Short Circuit Short Circuit Protection Recovery: Load Disconnect Battery Support: Supports nearly all lithium batteries including Li-ion, Li-polymer, LiFePO4, etc. BMS Edge Compact layout, ultra-mini size. Automotive-grade monitoring and balancing IC with independent power supply for enhanced reliability. Voltage detection of load, charger, and battery pack. Bidirectional current monitoring. SOC based on Coulomb counting. Humidity sensor and circuit board temperature monitoring. Charger circuit detection capability. Integrated pre-charge circuit. Features power button, USB-Type C, UART, I2C, and isolated CAN bus interfaces. Onboard efficient 3.3V regulator powered by the main battery pack. Uses high-current capacity automotive-grade screw connectors for main power connection. Includes buzzer and LED display. Aluminum alloy shell for improved heat dissipation. Automotive-grade locking mechanism with reverse interlock to ensure secure connections. Compatible with MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. BMS Safety Features Configurable under-temperature and over-temperature cutoff for charging and discharging. Configurable under/over battery voltage cutoff. Configurable overcurrent cutoff. Configurable minimum pre-charge value. High-side load and charger disconnect. Transient voltage suppression on all inputs. Secondary fuse on all balance channels, USB ports, and power supplies.   Package include： 1* PCB board 1* HY2.0 single-end 10-pin wire 1* HY2.0 single-end 13-pin wire 2* GH1.25 single-end 5-pin wire 1* GH1.25-5P to DuPont wire adapter 1* USB cable, Type-C data cable 1* 2.0MM jumper cap 1* 1.3-inch OLED display LCD module 1* 12MM 3-6V push-button switch 4* M5*8 stainless steel round head screws 2* M5*12 stainless steel round head screws 2* M5 copper nuts 6* M5 purple copper washers 6* 90-degree angled wire terminals T90-6/5 (purple copper) 2* fuses Video:

Read more less

Firmware & software repositories are available click here： MAXKGO MAXKGO BMS User Manual:MAXKGO Remark: Only Support 6S-28S 12A Smart Only Charge BMS and 6S-24S 150A Smart BMS Maxkgo-BMS Privacy Policy (1)Maxkgo-BMS User Protocol (1) Package Included:  1* MKBMS 6S-24S Smart Bluetooch VESC BMS Board(With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 1* GH1.5 single head 5P line 1* GH1.25-5P to Dupont line 1* PH2.0 single head 13P line 1* PH2.0 single head 12P line 1* PH2.0 single head 8P line Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B12, B13-B24, the voltage increases from low to high in sequence. 1. This BMS is compatible with battery packs up to 24s, which is over 102V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.

Read more less

Firmware & software repositories are available click here： MAXKGO MAXKGO BMS User Manual:MAXKGO Maxkgo-BMS Privacy Policy (1)Maxkgo-BMS User Protocol (1) Remark:Only Support 6S-28S 12A Smart Only Charge BMS and 6S-24S 150A Smart BMS Specs: ●Type:Smart Charge only ●Cell Chemistry: Li-ion/LiFePO4 ●Number of Battery Strings: 6S-28S ●Charge Current: 12A ●Single cell voltage Sdetection range: 2v-5v,error value:±2mV ●Balance: 28mA@4.2V,Passive balance ●connector:XT30/XT60 ●Short Circuit Protection:Support. ●Bluetooth Function:with Bluetooth ,Support for Android  ●Temperature detection:-30～125℃. ●Voltage support range: 15V-118V ●Abs. Max battery voltage: 120V ●Shutdown Consumption: <80uA ●Quantity of Temperature Detection: 4 Pcs(NTC) ●SoC estimation accuracy:Error:8%(operating conditions). ●Operating power consumption:<40mA(UART/CAN). ●Standby power consumption:<100uA. ●Charge protection Temp: 0°C~100°C ●Charge Temp Reset: 0°C~100°C ●Recommended Working Temp:-20°C~+75°C ●Size: 112.17*33.7*12.8mm Notice:The Each S voltage can only be set to a maximum of 4.2V for 28S battery pack Package Included: 1* MKBMS 6S-28S 12A Smart Only Charge Board(With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 1* GH1.5 single head 5P line 1* GH1.25-5P to Dupont line 1* PH2.0 single head 15P line 1* PH2.0 single head 14P line 1* PH2.0 single head 8P line Wiring Diagram Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B15, B16-B28, the voltage increases from low to high in sequence. This BMS is compatible with battery packs up to 28s, which is over 118V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using. This device can only be used for charging to reduce the risk of overcharging, but cannot prevent Discharge over-current, short circuit, and over-discharge.

Read more less

Product Description-- Charging current: <60A Discharge current: < 150A Internal resistance: ≤15mΩ   Charging voltage: The number of Li-ion battery in series connection X 4.2VWiring : same port or different ports（When using the charging and discharging same port, disconnect the p-）   Overcharge protection—— Detection voltage: 4.25±0.025V Detection delay: 1000±500MS Release voltage: 4.15±0.05V   Over-discharge voltage protection—— Detection voltage: 2.75±0.1V Detection delay: 1000±500MS Release voltage: 3.0±0.1V   Balanced voltage—— Detection voltage: 4.15±0.025V Detection delay: 100±50MS Balance current: 42±5MA   Over discharge current protection—— Detection voltage: 50±15MV Detection delay: 1000±500MS Current protection: 300±50A 450±50A 600±60A   Short circuit protection-- Trigger condition: external short circuit Detection delay: 300us Release condition: disconnect the load   Temperature control protection—— Charge and discharge over-temperature protection: 55℃ Charge and discharge high temperature release temperature: 75℃ Release condition:During normal working temperature          Self-consumption—— Working power consumption: <35UA Over-discharge power consumption(Sleeping State): <10UA Operating temperature range: -30°~+80°C   Product Features-- Overcharge protection Over discharge protection Over current protection Balanced protection Temperature control protection Applicable for 8-14S battery   Size:121*50*12.8mm Net weight:244g Weight: 331.5g   Package: 1* PCBA board 1*HY2.0 single head 15P line   Wiring diagram

Read more less

Specification MAXKGO DCDC 450V to 12V Step-down Power Supply Module is a high-voltage DC-DC converter from 450V to 12V and can provide a DC current of 4.2A. The input voltage can support the range of 150V-450V.The out voltage is equipped with a fine adjustment that be adjusted with a range of 11.8V-12.2V DC. The converter has good stability and reliability and is widely used in various occasions that require high-voltage conversion to low-voltage. Feature Output characteristics Input voltage：100-450V DC Output voltage：12V/4.2A Output voltage accuracy：±1% Ioading effect：10%~100%Ionom  △Voutnom≤±0.2% Source effect ：Vinmin~Vinmax △Voutnom≤±0.2% Ripple：100mV Conversion efficiency：80% （Typical value） Temperature Coefficient：≤±0.02%/℃（Maximum） Security features Isolation voltage：Vin~Vout   Vin~FG   Vout~FG   All are 500vdc/min Insulation resistance：≥100MΩ Protective function：Short circuit protection（self-recovery） Environmental characteristics Working temperature：-25 ~ +85℃ Storage temperature：-40 ~ +105℃ Relative humidity：10RH ~ 90RH Implementation standards Electromagnetic Compatibility:IEC100、EN61000 Safety：UL1950、IEC950  Features High power density, small size Multiple protection function Enhanced electromagnetic compatibility design, can work in strong electromagnetic environment Integrated potting process, anti-corrosion, moisture-proof and shock-proof Good thermal conductivity and reliability Application MAXKGO Master-slave BMS Energy storage Photovoltaic New energy vehicles Widely used in various occasions requiring DCDC conversion Shipping list 1X    MAXKGO DC-DC 450V to 12V Converter 1X    GH2.0 single head 2P cable（With buckle） 1X   power cable Operational matters Please ensure the correctness of the wiring sequence when wiring. The input voltage will reach a maximum of 450V. There is a risk of electric shock, so please pay attention to protection.
