Description
Firmware & software repositories are available click here： MAXKGO
MAXKGO BMS User Manual:MAXKGO
Maxkgo-BMS Privacy Policy (1)
Maxkgo-BMS User Protocol (1)
Remark:Only Support 6S-28S 12A Smart Only Charge BMS and 6S-24S 150A Smart BMS
Specs:
●Type:Smart Charge only
●Cell Chemistry: Li-ion/LiFePO4
●Number of Battery Strings: 6S-28S
●Charge Current: 12A
●Single cell voltage Sdetection range: 2v-5v,error value:±2mV
●Balance: 28mA@4.2V,Passive balance
●connector:XT30/XT60
●Short Circuit Protection:Support.
●Bluetooth Function:with Bluetooth ,Support for Android
●Temperature detection:-30～125℃.
●Voltage support range: 15V-118V
●Abs. Max battery voltage: 120V
●Shutdown Consumption: <80uA
●Quantity of Temperature Detection: 4 Pcs(NTC)
●SoC estimation accuracy:Error:8%(operating conditions).
●Operating power consumption:<40mA(UART/CAN).
●Standby power consumption:<100uA.
●Charge protection Temp: 0°C~100°C
●Charge Temp Reset: 0°C~100°C
●Recommended Working Temp:-20°C~+75°C
●Size: 112.17*33.7*12.8mm
Notice:The Each S voltage can only be set to a maximum of 4.2V for 28S battery pack
Package Included:

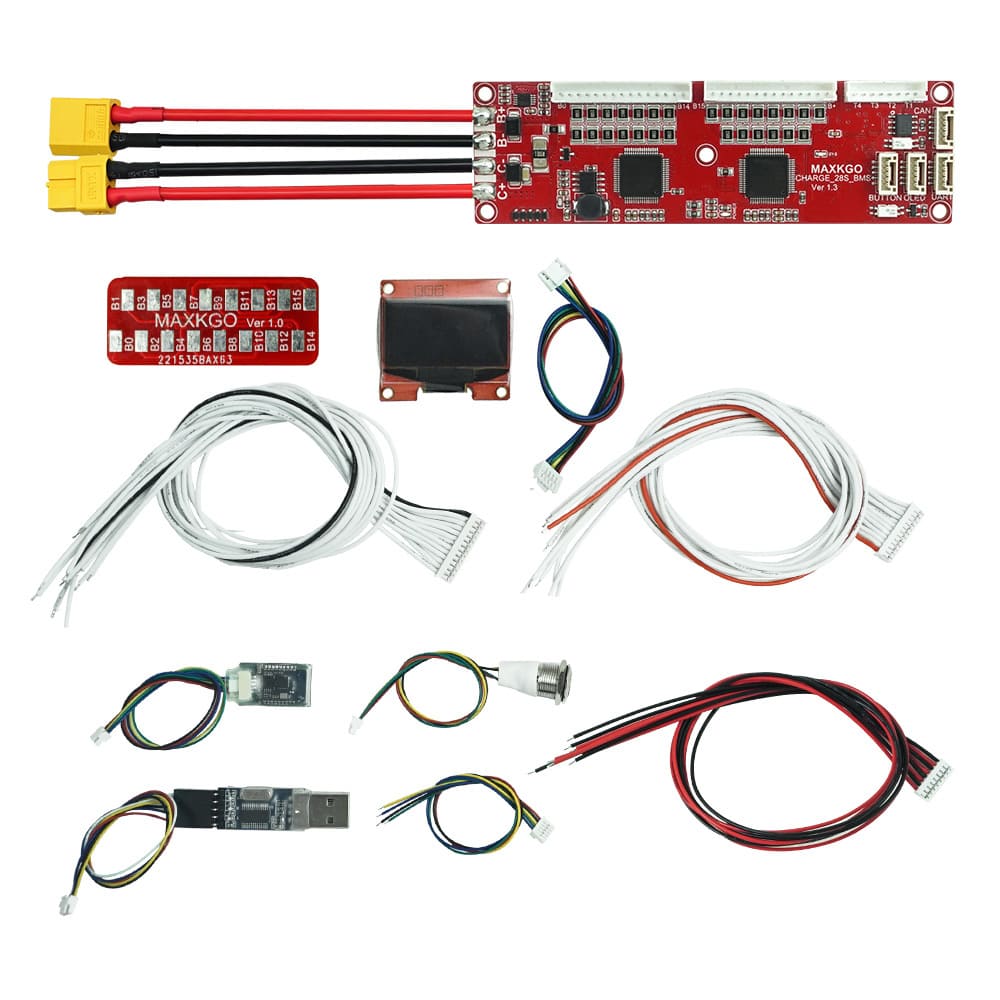

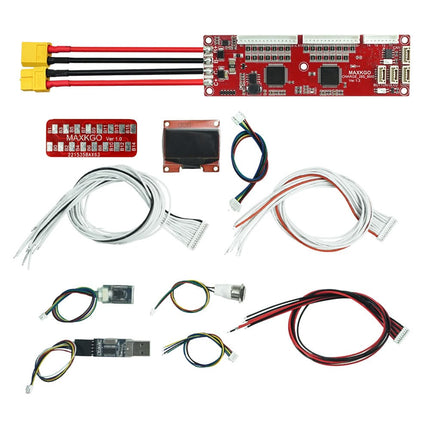

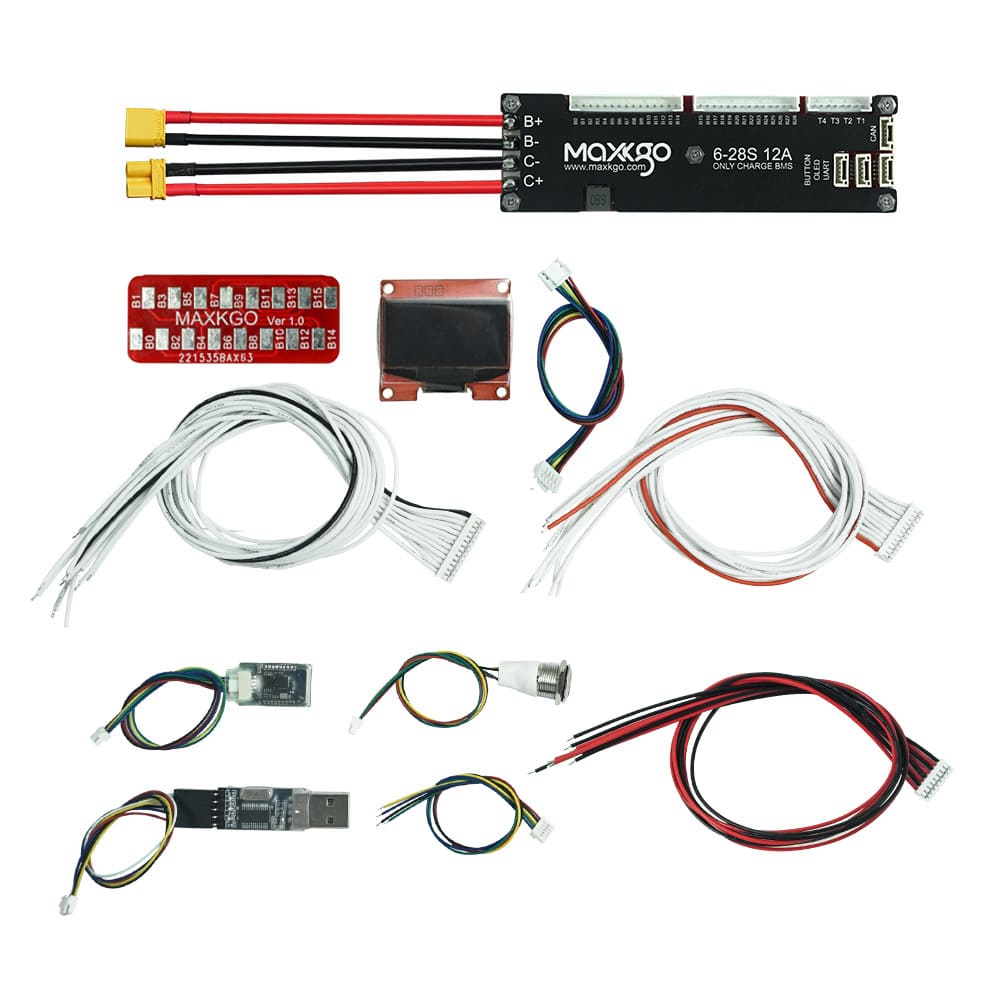

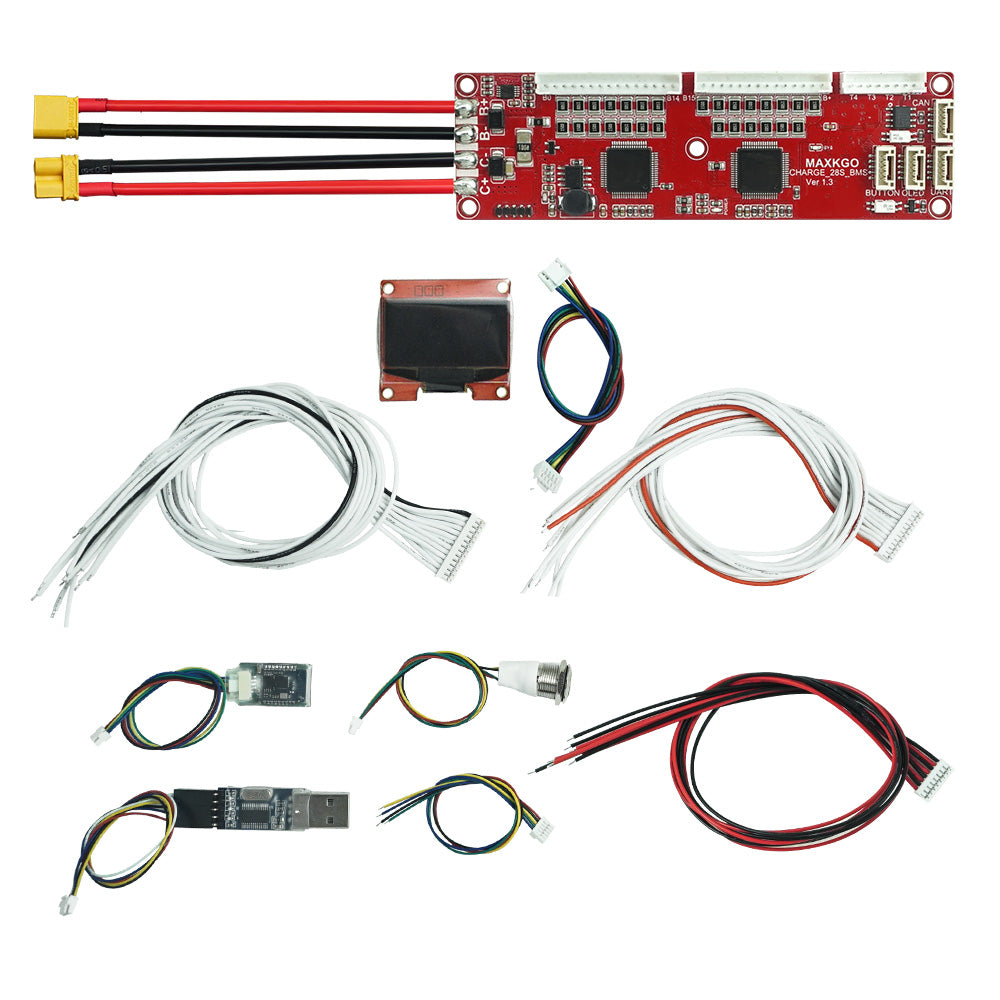

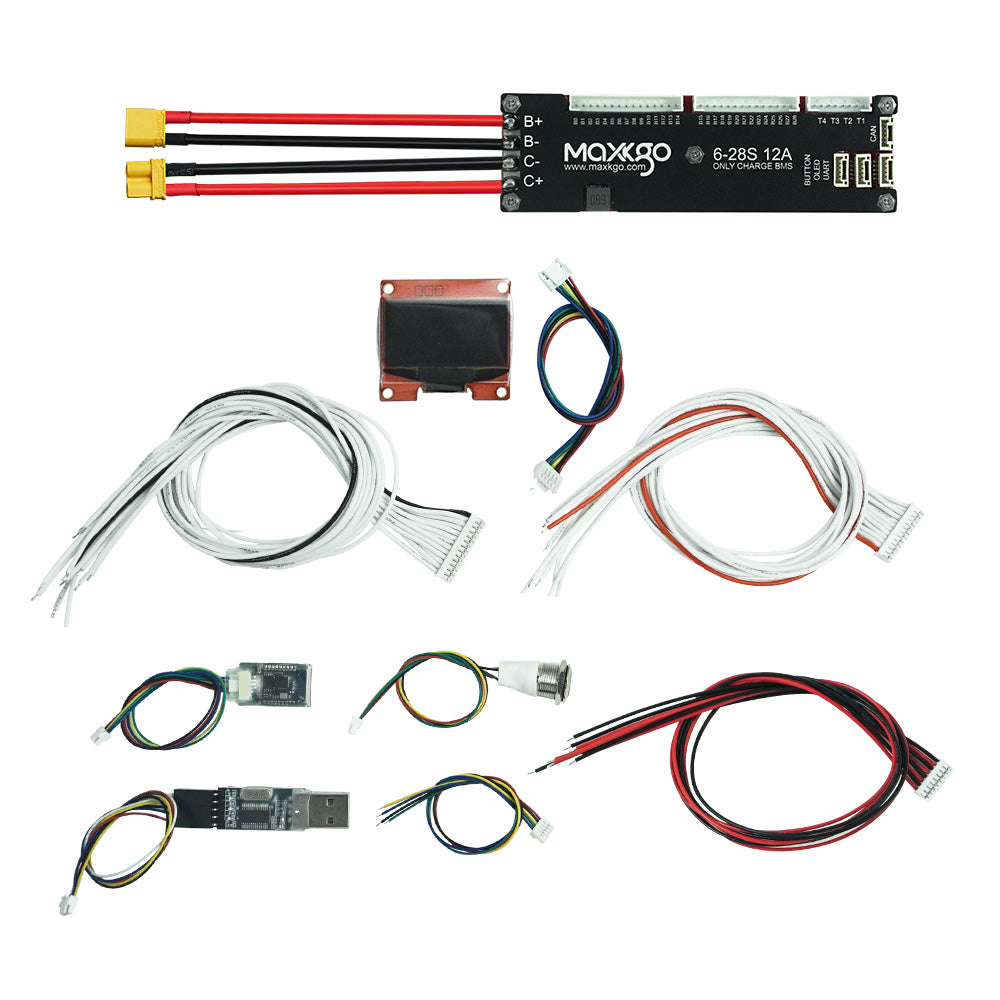

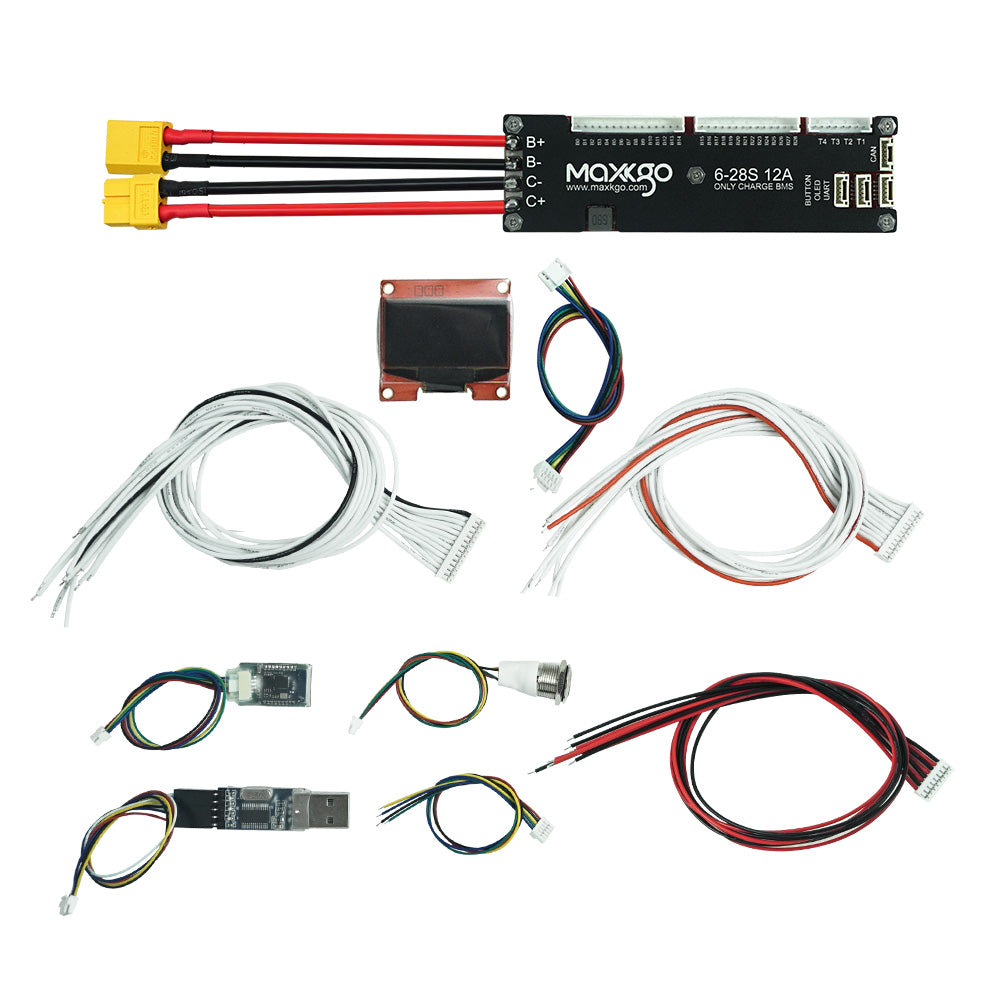

1* MKBMS 6S-28S 12A Smart Only Charge Board(With aluminum shell)
1* Bluetooth module
1* UART module
1* 1.3 inch OLED display LCD screen module
1* 12MM 3-6V key switch
1* GH1.5 single head 5P line
1* GH1.25-5P to Dupont line
1* PH2.0 single head 15P line
1* PH2.0 single head 14P line
1* PH2.0 single head 8P line
Wiring Diagram
Operation Notes:
- Please ensure the correctness of the wiring sequence, from B0-B15, B16-B28, the voltage increases from low to high in sequence.
- This BMS is compatible with battery packs up to 28s, which is over 118V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.
- This device can only be used for charging to reduce the risk of overcharging, but cannot prevent Discharge over-current, short circuit, and over-discharge.
