Description

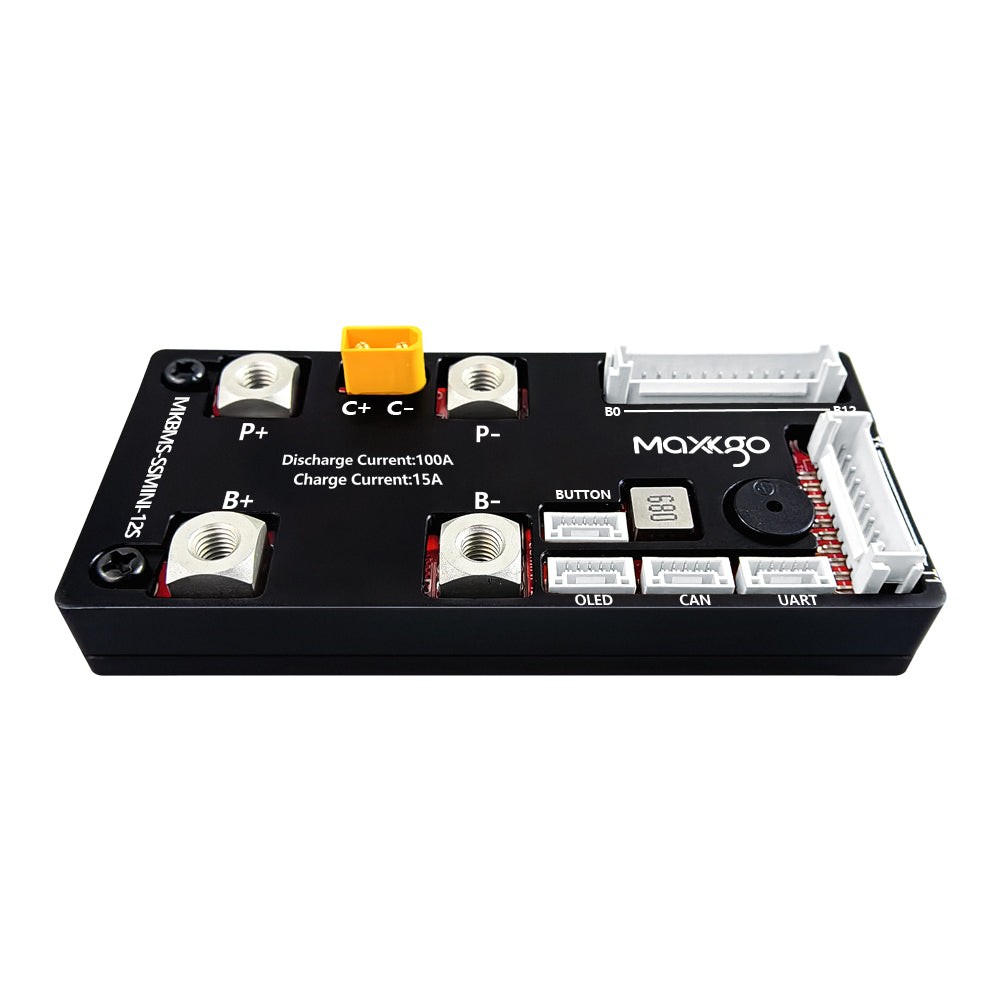

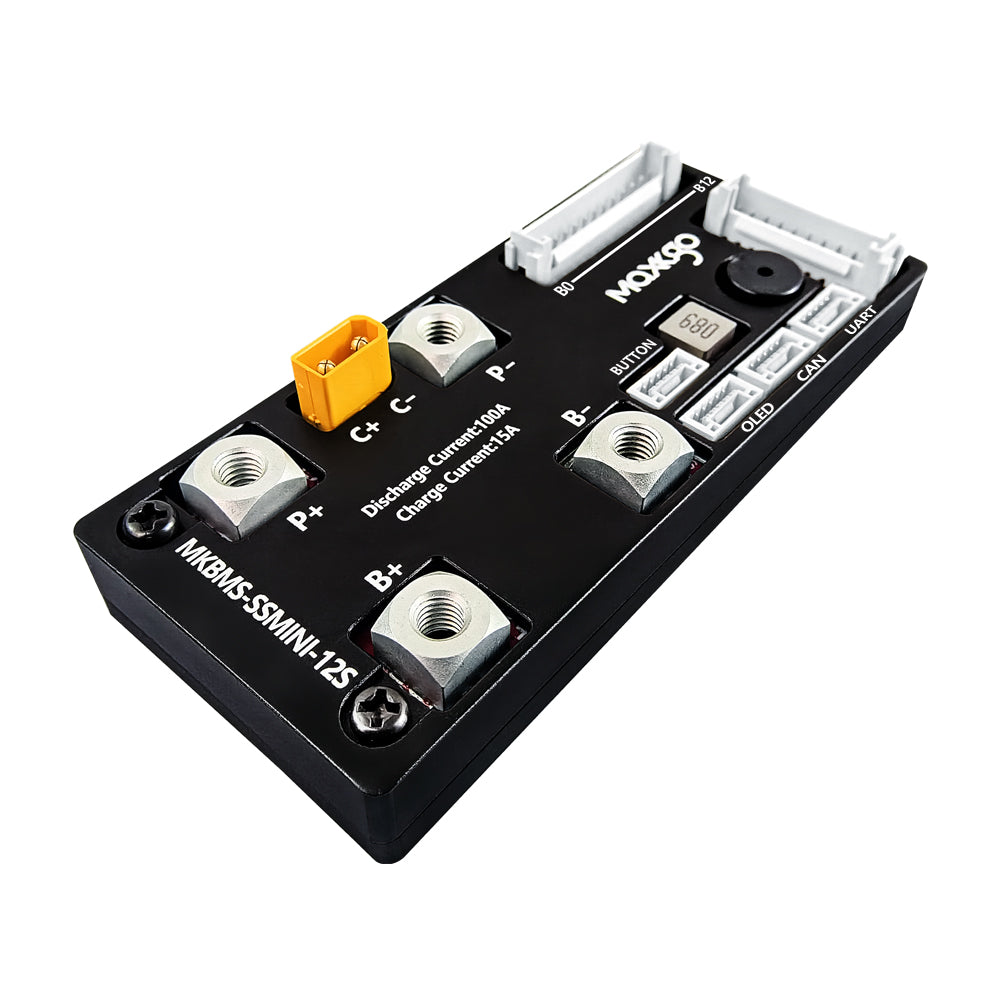

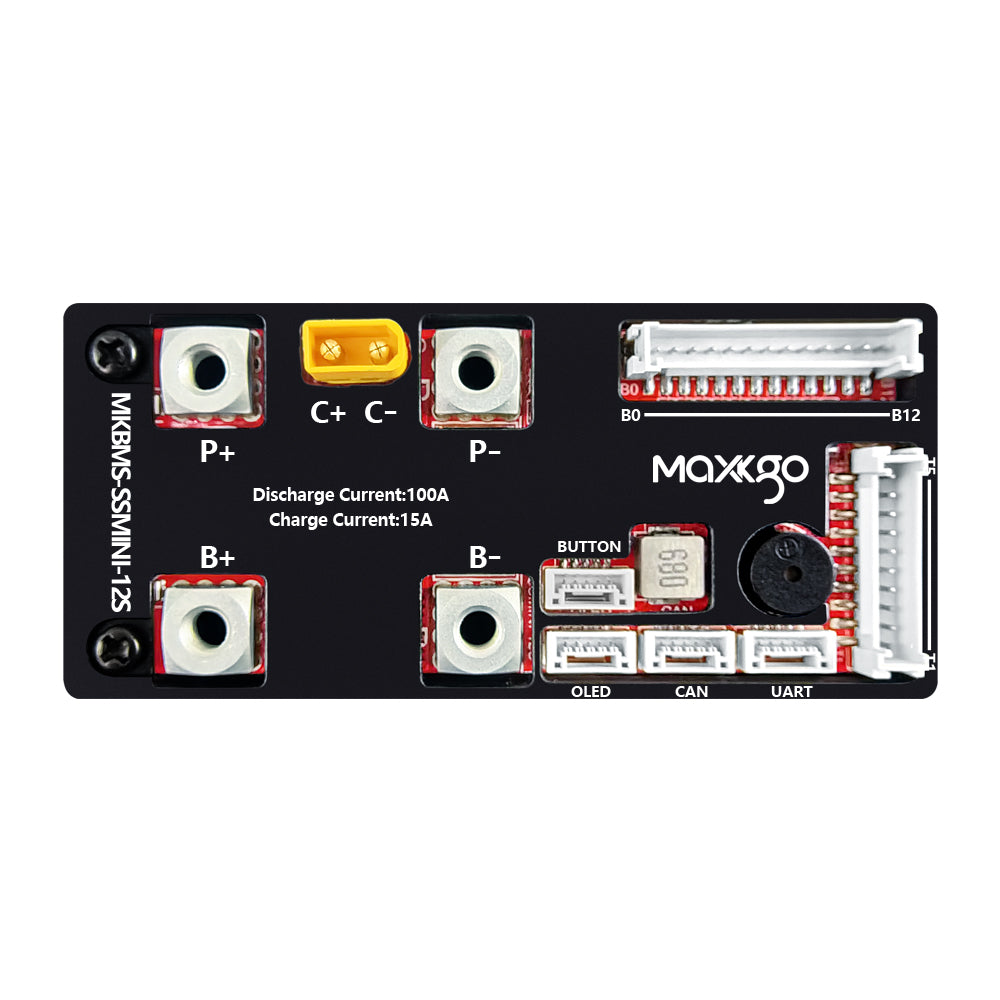

MAXKGO 6S-12S 100A Smart Bluetooth BMS is a Lithium battery protection board with a discharge current of up to 100A. It has charge and discharge overvoltage/overtemperature overcurrent/short circuit/Disconnection protection function. The product has UART/ CAN communication interface, and can be connected to Bluetooth mobile phone APP and computer BMS-TOOL. It is widely used in Ebicycles/Escooters/Ebalance cars/water electric products.ETC
Specs:
- Type:Smart BMS Board
- Cell Chemistry: Li-ion (3.7V nominal)
- Balance method: Passive balance
- Series Count: 6S-12S
- Charge Current: 15A
- Discharge current:100A
- Cell voltage operating range: 2v-5v
- Balance: 42mA@4.2V
- Shutdown Consumption: <100uA
- Temp detection channe: 5 NTC
- Voltage support range: 15V-51V
- Abs. Max battery voltage: 60V
- Charge protection Temp: 0°C~100°C
- Discharge protection Temp: 0°C~100°C
- Recommended Working Temp:-20°C~+75°C

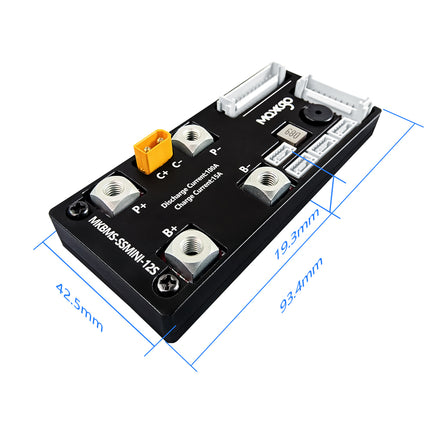

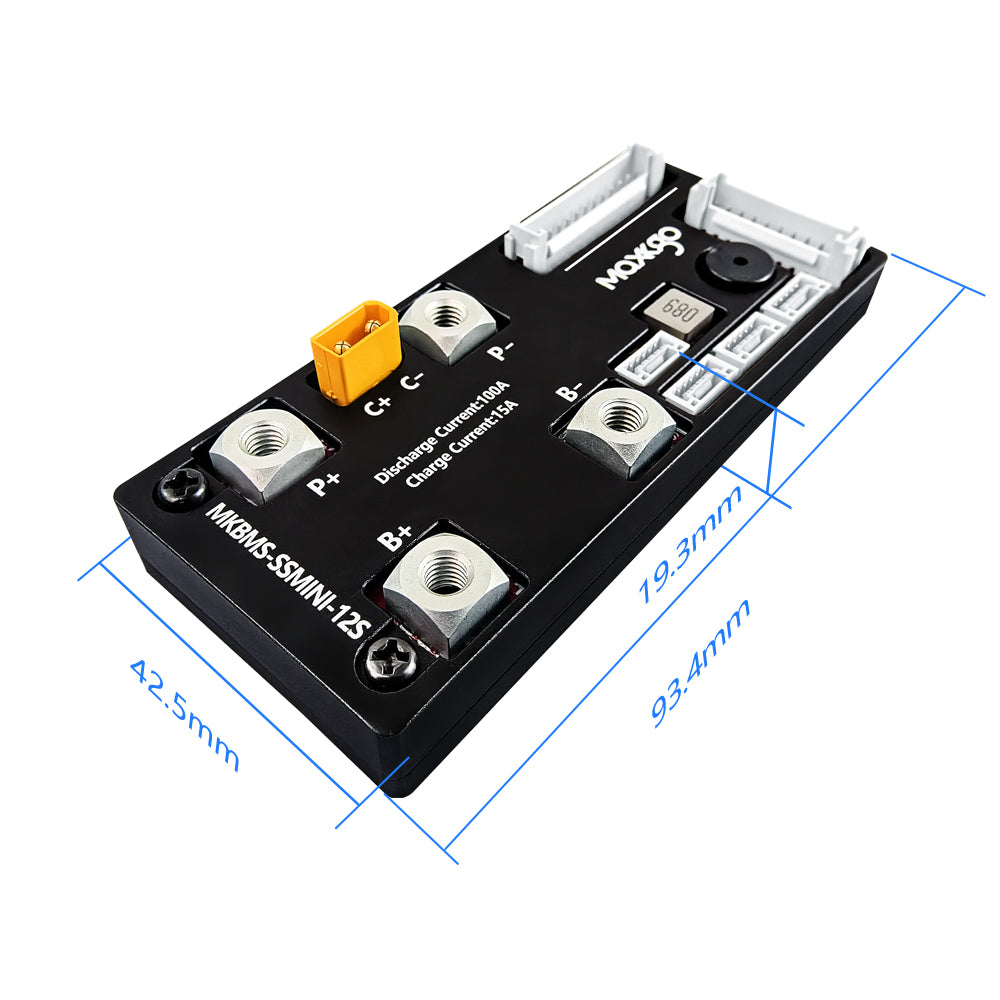

- Size: 93.4mm*42.5mm *19.3mm weight: 116.4g
Features:
1. With Discrete BMS TOOL and mobile phone APP
2. Compatible with VESC CAN Port communication protocol
3. Compatible with VESC-TOOL
4. Bluetooth APP communication
5. Real-time Voltage/current/temperature/power monitoring
6. Connect the charger autostart,Fully charged/Unplug the charged autooff
7. Passive Balance Optional activation
8. Support series cell:6S-12S
9. Anodized aluminum heatsink case , stable performance
10. OLED displays various parameters in real time
Functions:
1. Balance function
2. Overcharge protection
3. Overtemperature protection
4. CAN Port communication
5. UART communicatiion
6. BLUETOOCH
7. OLED display
8. Button on/off
Common Uses:
▪ Electric bicycle
▪ Electric Skateboards
▪ Electric Scooters
▪ Electric Bikes
▪ Water electric products
▪ EUCs

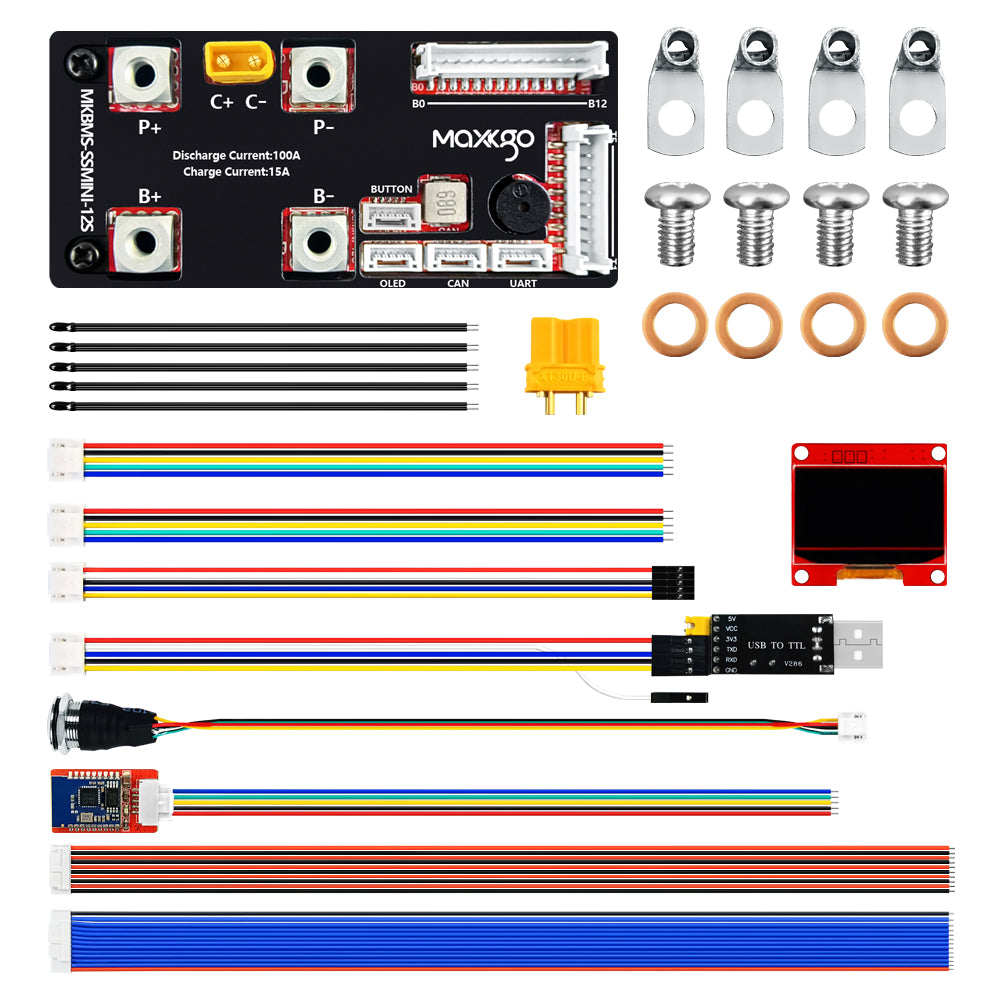

Package Included:
1* MKBMS 6S-12S Smart Bluetooch BMS Board(With aluminum shell)
1* Bluetooth module
1* UART module
1* 1.3 inch OLED display LCD screen module
1* 12MM 3-6V push button switch
2* GH1.5 single head 5P line
1* GH1.25-5P to Dupont line
1* PH2.0 single head 13P line
1* PH2.0 single head 10P line
5* NTC 100K 4250B Thermistor
Operation Notes:

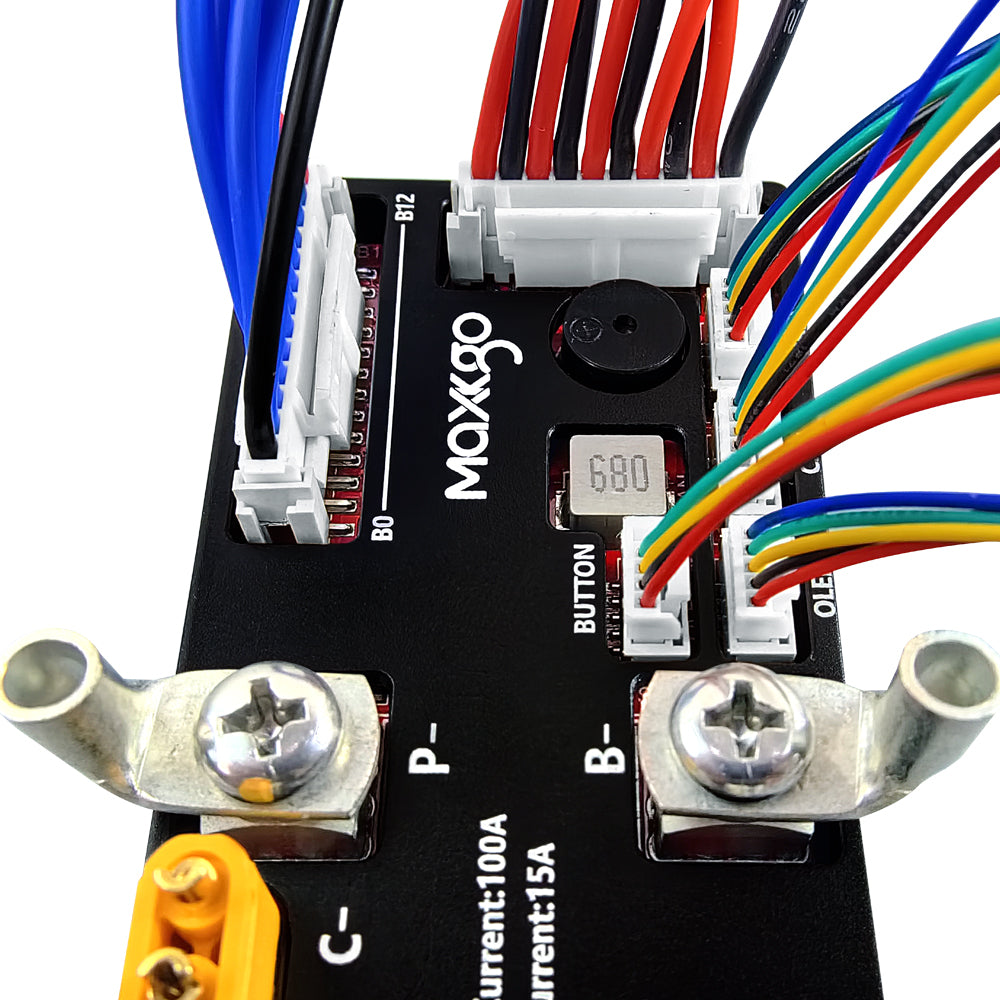

- Please ensure the correctness of the wiring sequence, from B0-B12, the voltage increases from low to high in sequence.
- This BMS is compatible with battery packs up to 12s, which is over 50.4V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.
