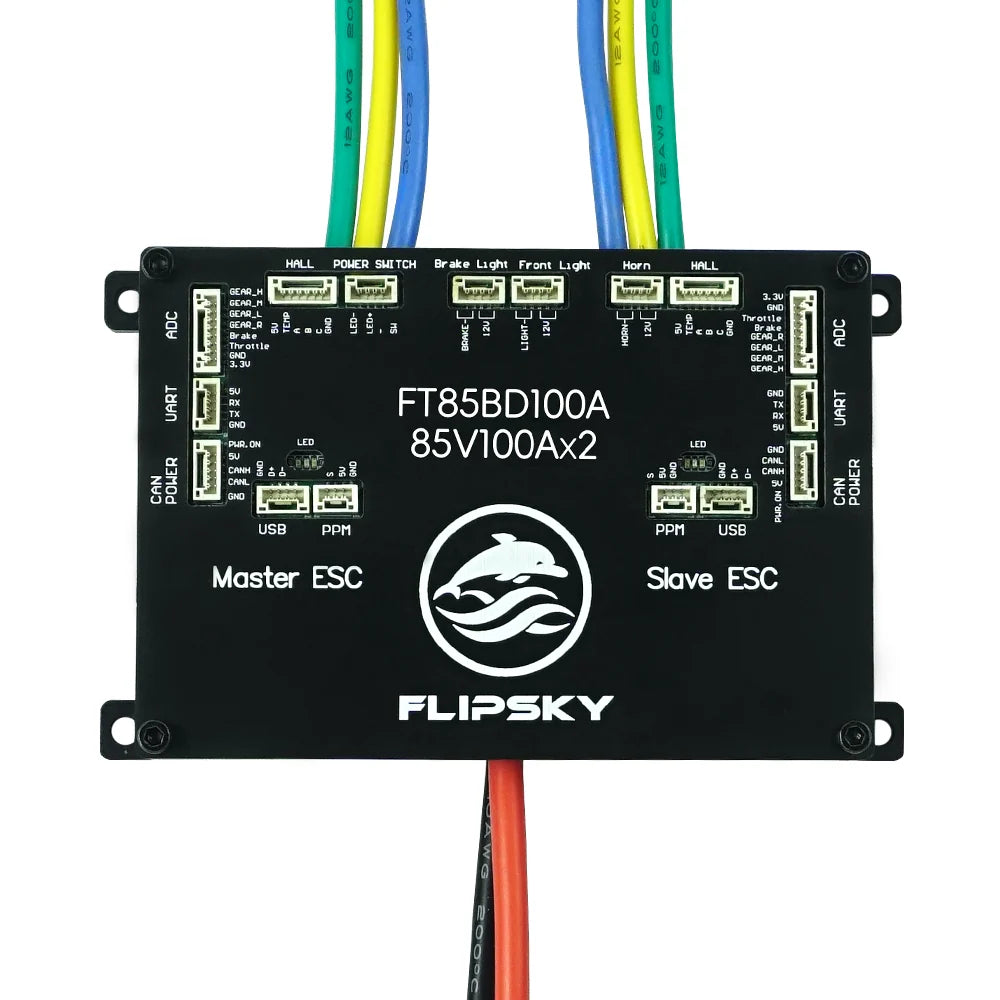

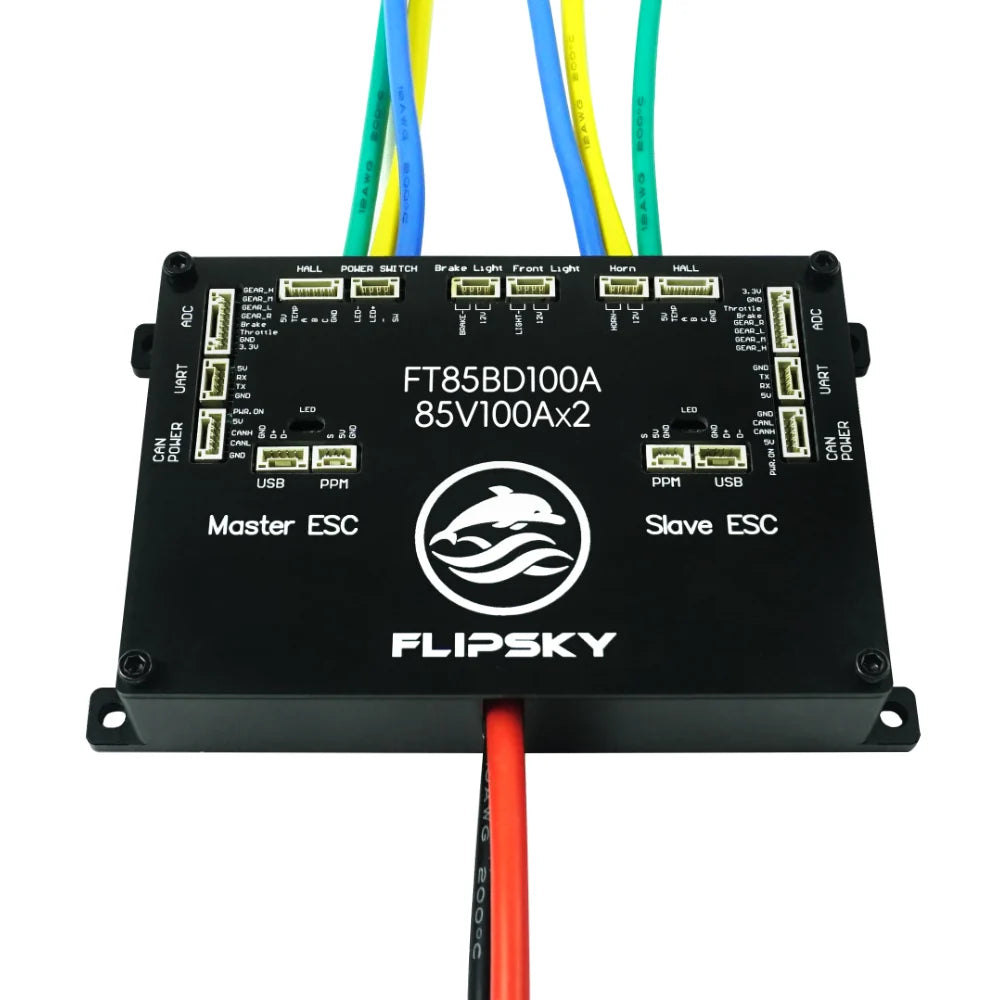

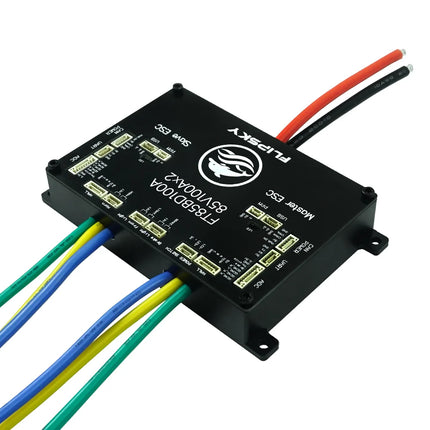

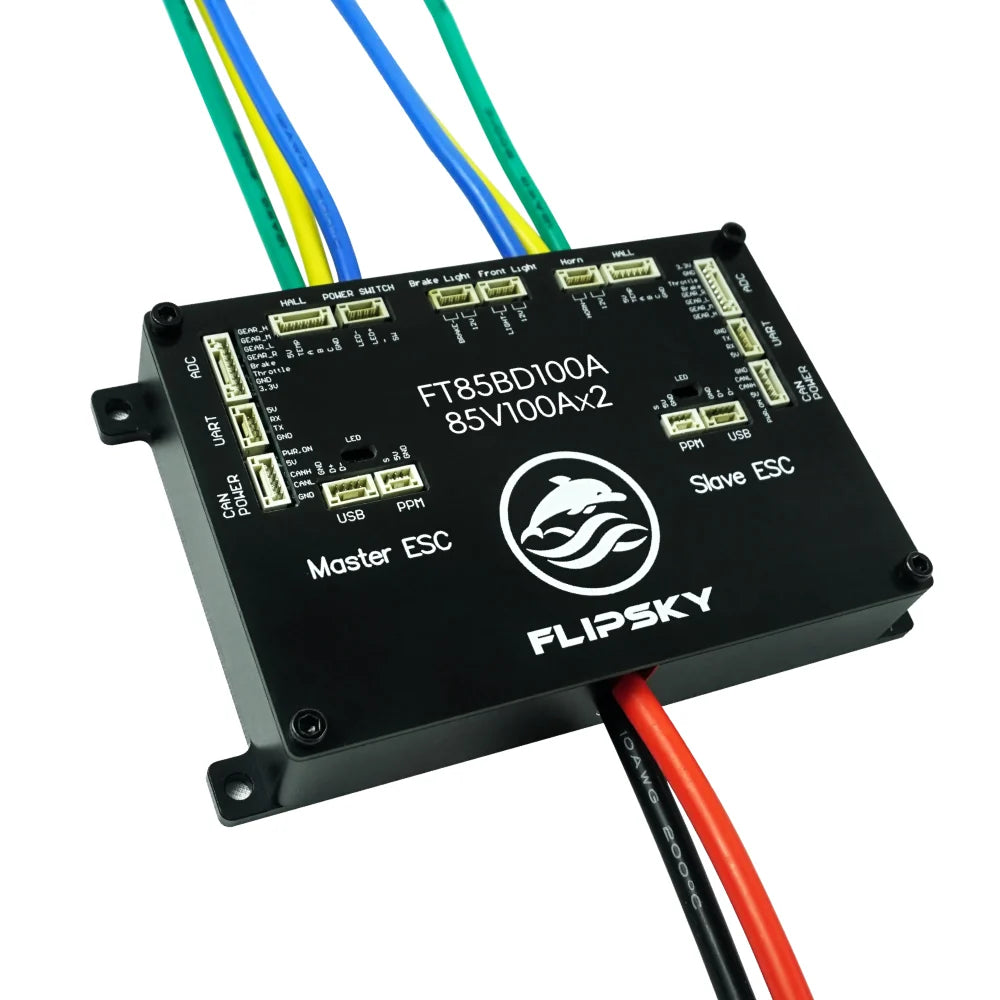

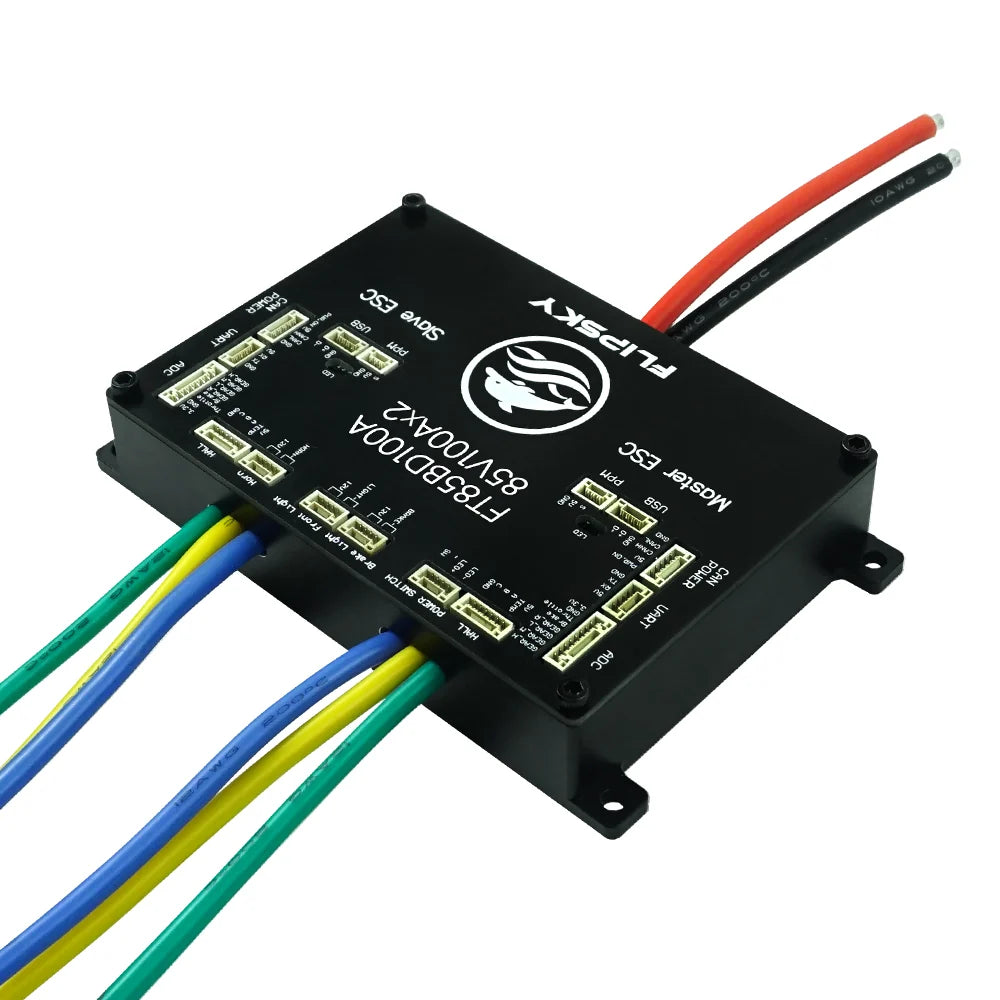

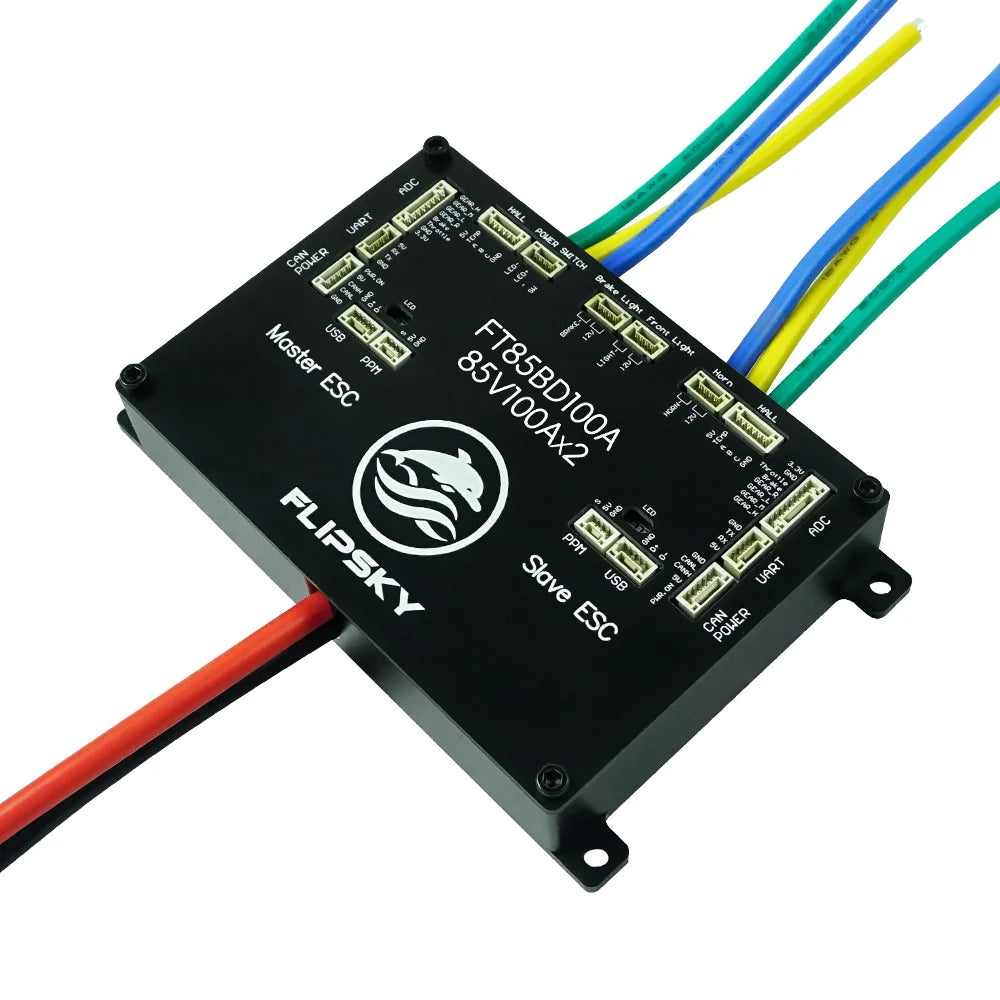

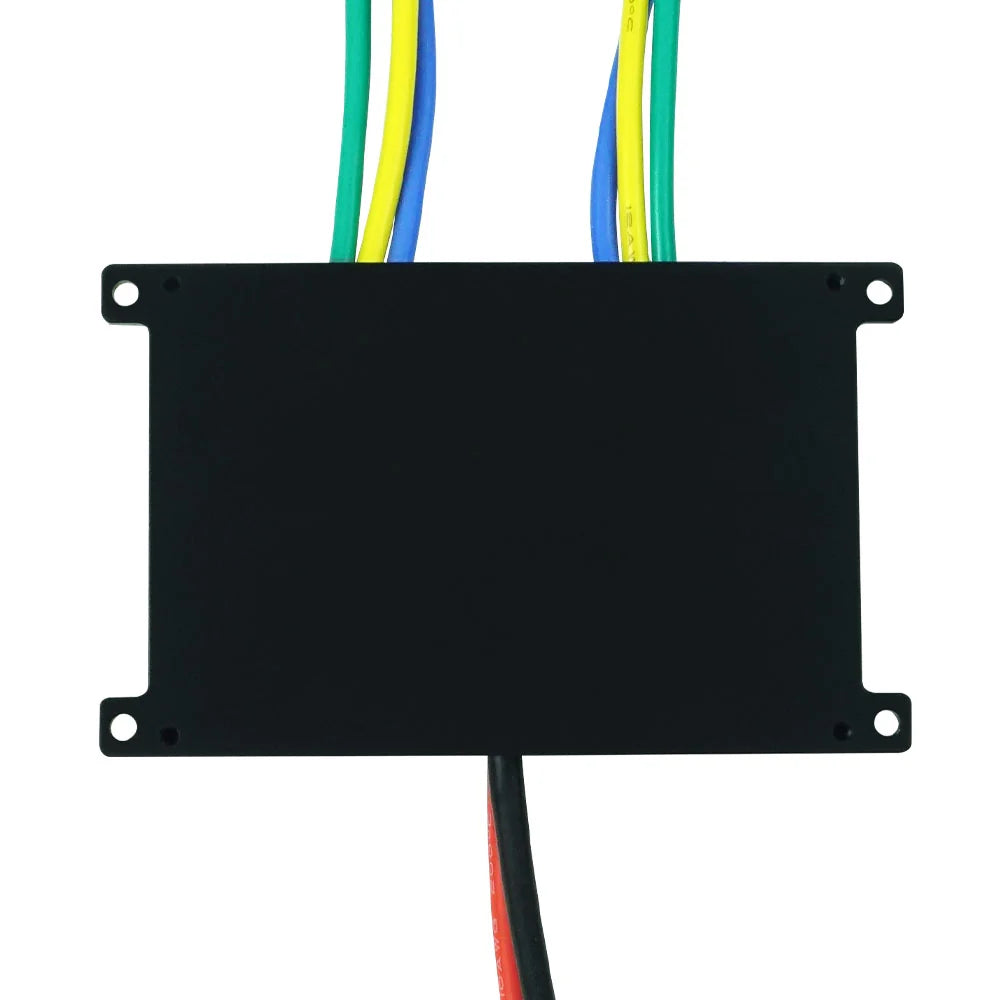

Flipsky FT85BD Dual ESC 84V 200A With Aluminum Case NON-VESC For Electric Skateboard / Electric Scooter / Ebike Speed Controller / Electric Motorcycle / Robotics

Description

Specifications :

  • Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported)
  • Voltage: 14-84V (safe for 4S-20S)
  • Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting  and ambient temperature around the device!)
  • Peak Current: 250A / Single; 500A / Dual
  • Communication Ports: USB, CAN, UART, PPM, ADC
  • Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS
  • Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface)
  • Multiple Speed Gear levels: Low, Medium, High, Reverse
  • Front Lights, Rear Brake Lights & Horn: Support
  • Programmable: Yes
  • Regenerative Capacity: Yes
  • Slide Poweron & Auto shutdown: Yes
  • Self-resetting switch with green LED button Diameter: 16mm
  • Power Wire Size: 10AWG; Motor Wire Size: 12 AWG

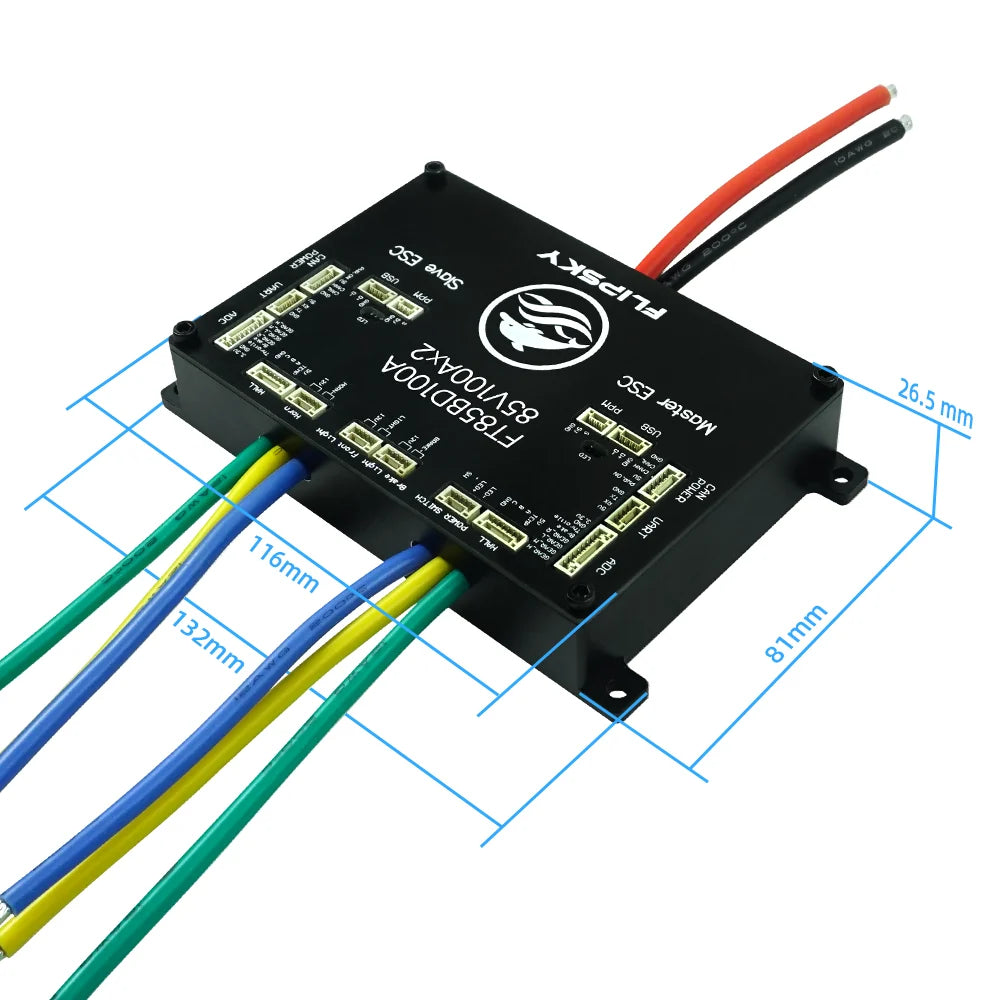

  • Size: L132*W81*H26.5mm(Including Alu. Case)

Features:

  • Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
  • 240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
  • Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
  • Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
  • Supporting motor FOC with low working noise and smooth starting.
  • Supporting Real-time data and fault alerts.
  • Supporting adaptive variable PWM frequency control.
  • Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
  • Supporting control types: Current, Duty Cycle
  • Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
  • Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.

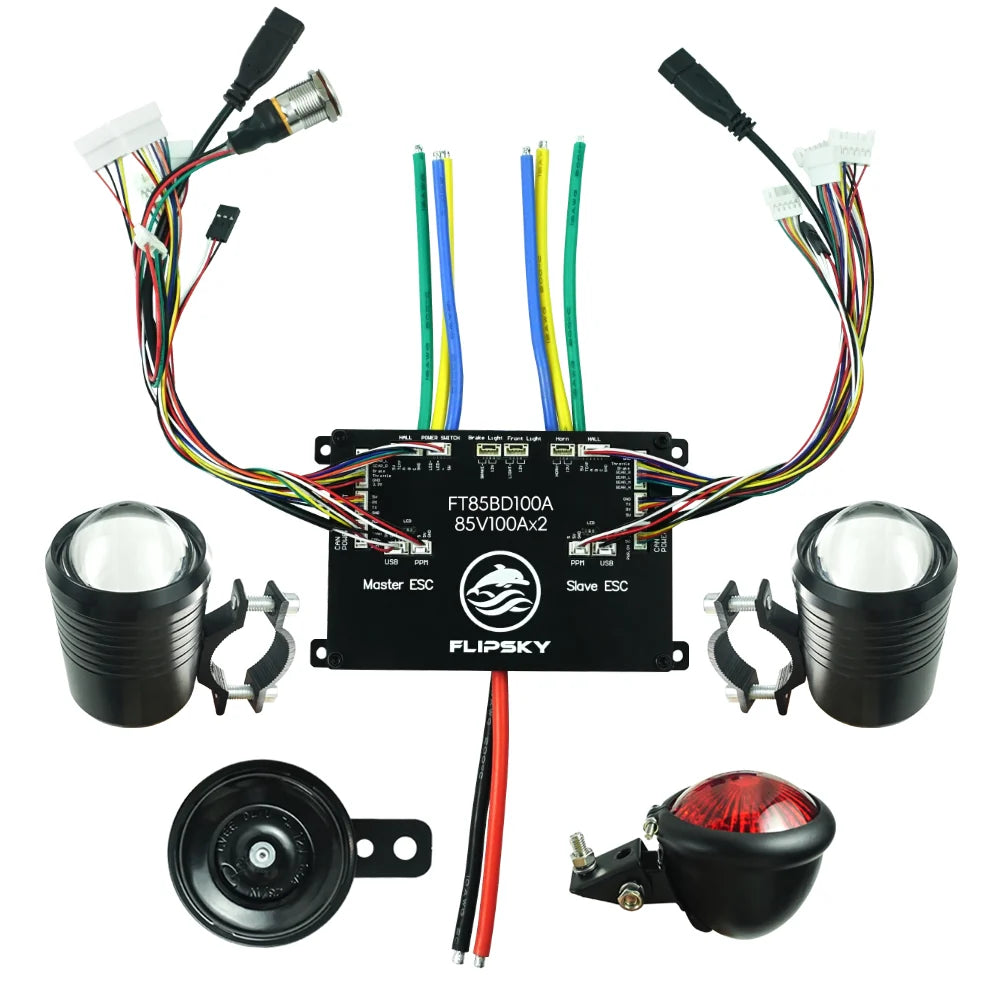

  • Supporting extra interface like front lights, rear brake lights and horn fixtures.

Wiring diagram:


Flipsky FT85BD Dual esc

Flipsky FT85BD Dual ESC 84V 200A With Aluminum Case NON-VESC For Electric Skateboard / Electric Scooter / Ebike Speed Controller / Electric Motorcycle / Robotics

Product form

Specifications :  Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14-84V (safe for 4S-20S) Continuous Current:... Read more

$129.00 $108.00 Excl. VAT

          • Shipped today? Order within: Jul 13, 2026 17:00:00 +0800

          Description

          Specifications :

          • Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported)
          • Voltage: 14-84V (safe for 4S-20S)
          • Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting  and ambient temperature around the device!)
          • Peak Current: 250A / Single; 500A / Dual
          • Communication Ports: USB, CAN, UART, PPM, ADC
          • Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS
          • Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface)
          • Multiple Speed Gear levels: Low, Medium, High, Reverse
          • Front Lights, Rear Brake Lights & Horn: Support
          • Programmable: Yes
          • Regenerative Capacity: Yes
          • Slide Poweron & Auto shutdown: Yes
          • Self-resetting switch with green LED button Diameter: 16mm
          • Power Wire Size: 10AWG; Motor Wire Size: 12 AWG
          • Size: L132*W81*H26.5mm(Including Alu. Case)

          Features:

          • Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
          • 240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
          • Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
          • Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
          • Supporting motor FOC with low working noise and smooth starting.
          • Supporting Real-time data and fault alerts.
          • Supporting adaptive variable PWM frequency control.
          • Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
          • Supporting control types: Current, Duty Cycle
          • Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
          • Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.
          • Supporting extra interface like front lights, rear brake lights and horn fixtures.

          Wiring diagram:


          Flipsky FT85BD Dual esc
