Description
Specifications:
Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)
Voltage: 14-110V(safe for 4-26S)
Continuous current: 200A (Values depend on the mounting, ambient temperature and air/water
circulation around the device!)
Peak Current: 400A
Communication Ports: USB, CAN, UART, PPM, ADC/PAS
Input Signals Support: PPM, ADC, PAS(Cadence Input Signal), UART (compatible with all Flipsky VX
Series remotes)
BEC: 5V@1A
Programmable Tool: Flipsky ESC TOOL
PWM Frequency Control: YES
Multiple Speed Gear Limit Control: YES(UART&ADC)
Regenerative Capacity: YES
Integrated Self-locking Switch: 16mm Red Button
Motor/power wire size: 8AWG

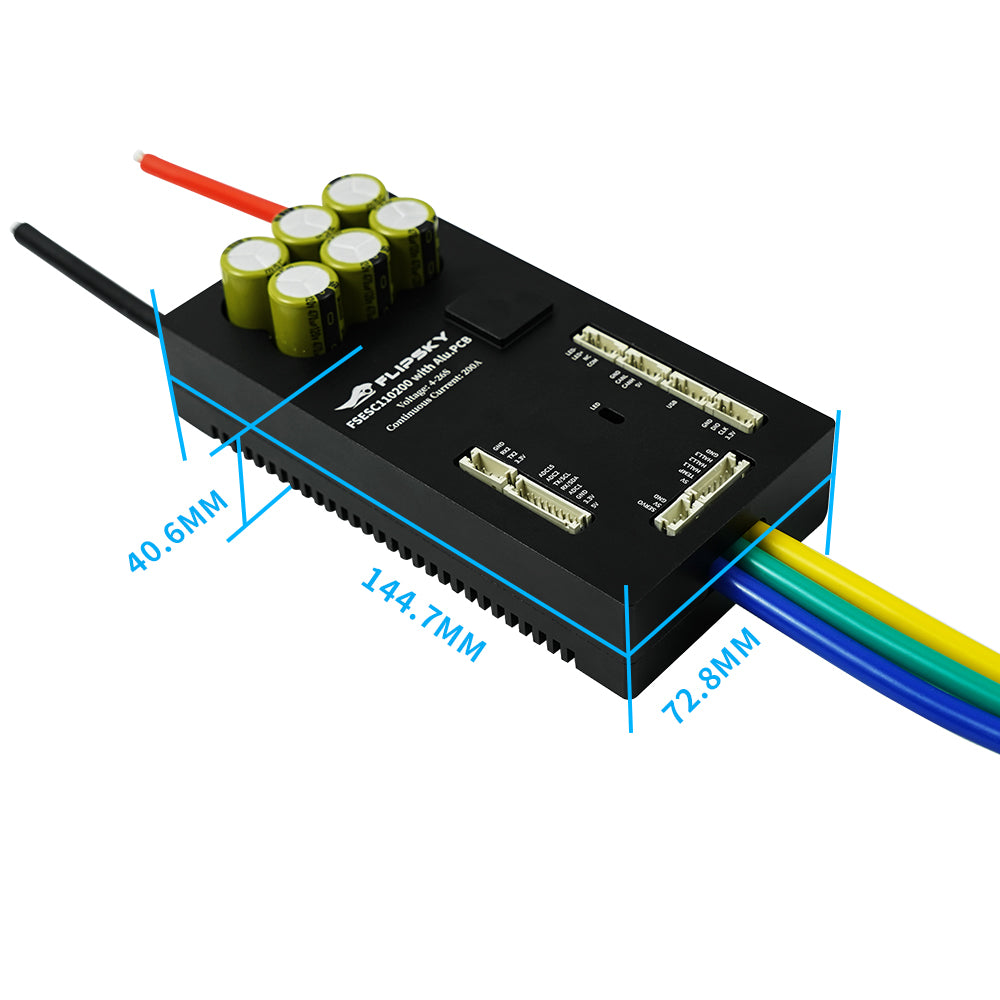

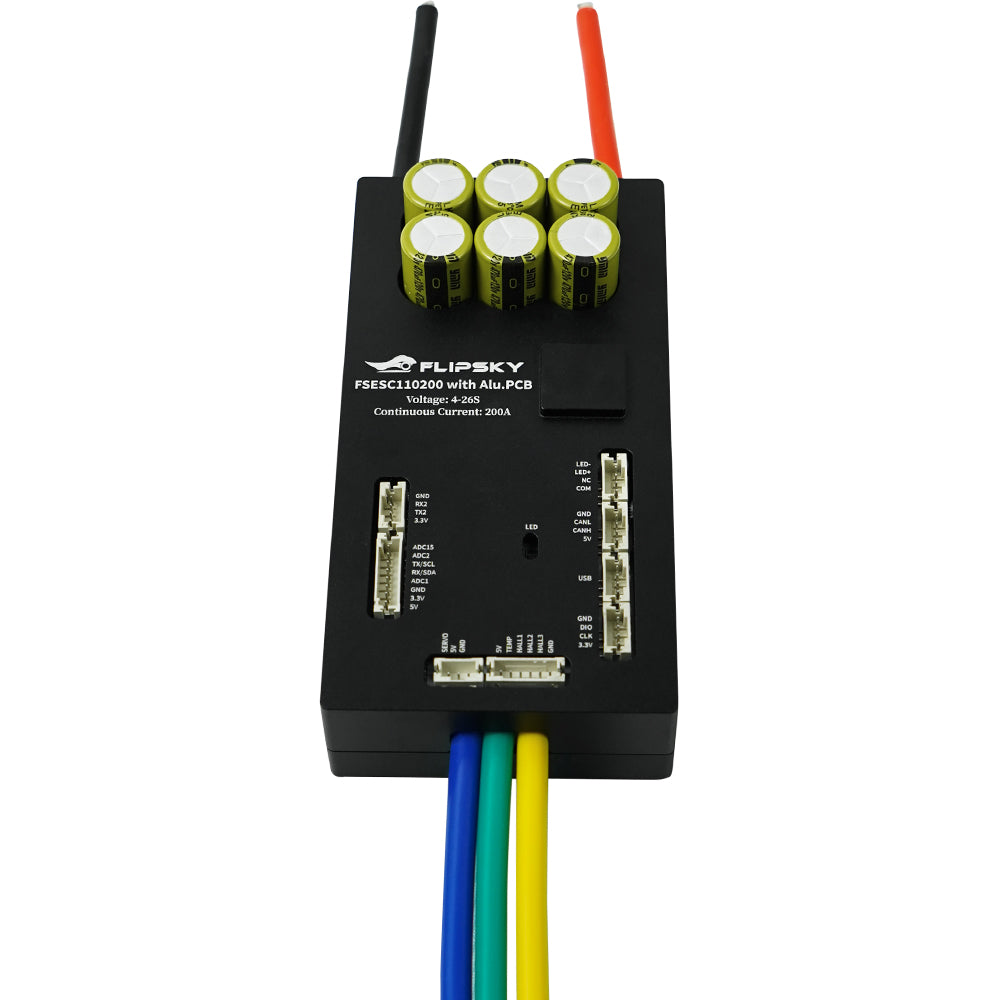

Size: L144.7*W72.8*H40.6mm(Including Alu. Case)
Features:
Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency
and the motor RPM.
Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery
voltages and many control ways.
Programmable via Flipsky VX4Pro remote(remote firmware version:VX4 Pro_V1.2 or above).
Supporting motor FOC with low working noise and smooth starting.
Supporting real-time data and fault alerts.
Supporting adaptive variable PWM frequency control.
Supporting save / load configuration files via ESC Tool.
Supporting multiple speed levels: Level 1(Low), Level 2(Medium), Level 3(High), Level 4 (PAS Only),
Level 5 (PAS Only).
Supporting sensor mode(HALL, ENCODER) and sensorless mode(IPDS, HFPI, OPEN).
Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER
(such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)
Traction Control: YES
Supporting control types: Current, Duty Cycle, Speed control, Position Control.
Supporting PAS cadence sensor.
Supporting emergency stop and shutdown.
Support safe power-on protection (in PPM&ADC control modes only).
Protection functions: low and high voltage protection, MOSFET over-temperature and over current
protection, battery overcharge and discharge protection, motor over-temperature protection.
Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ ,
PT1000, PTC-1K-100℃ , KTY and so on.
Wiring diagram:
![]()
![]()
