Description
Specs:
Firmware: 6.05 (or above in the future)
Voltage: 14-110V (safe for 4-26S)
Continuous current: 110V/300A (Values depend on the mounting,ambient temperature
and air/water circulation around the device!); Burst: 800A
BEC: 5V@3A
Support Modes: BLDC, FOC (sinusoidal)
ERPM: 150000
Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes
Size: 183.8*80.2*43.8mm
Motor/power wire size: 8AWG
Phase Filter: Yes
Power Switch Button: Red
Feature:
Adjustable protection against: low voltage protection, high voltage protection, over current protection,
temperature abnormal protection, mosfets / motor over temperature protection.
Support various control modes: Current / Duty cycle / Speed / PID control modes.
CPU: SMT32F405 with frequency 168MHz
Design with Aluminum PCB with good heat dissipation to expand life span.

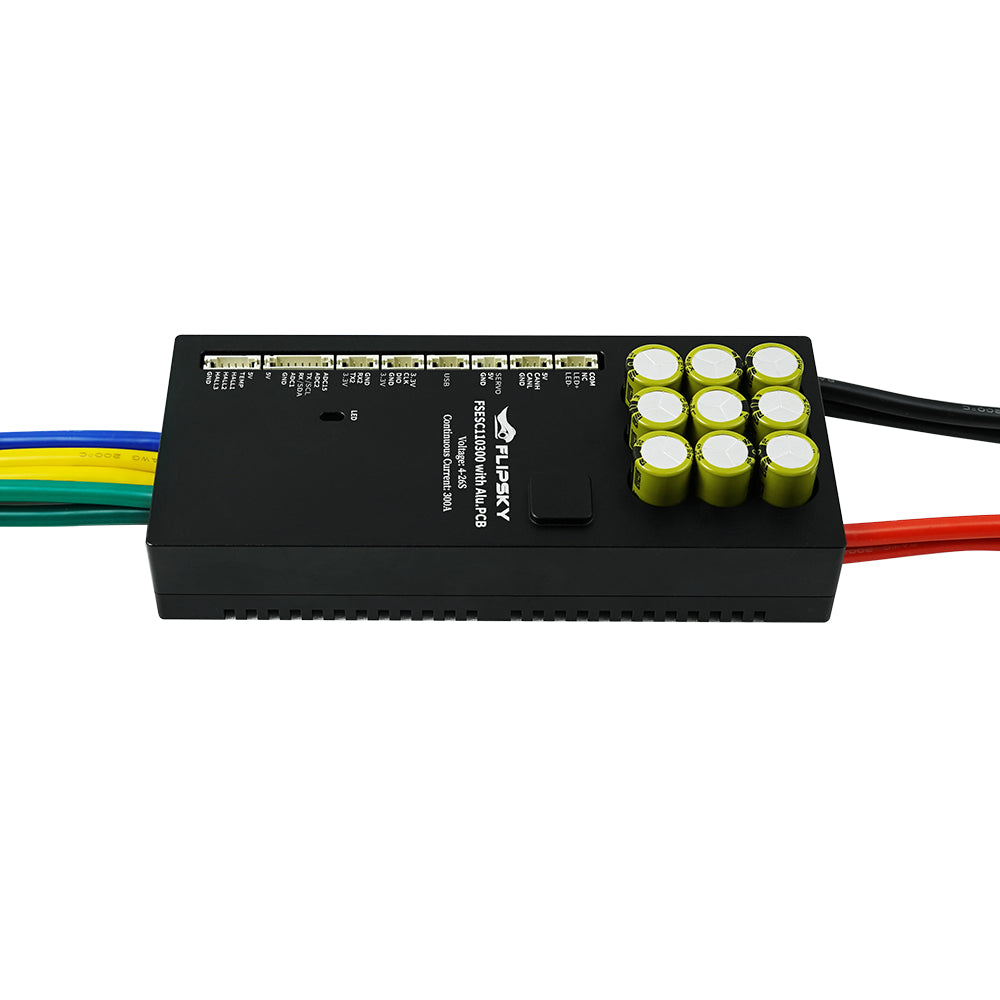

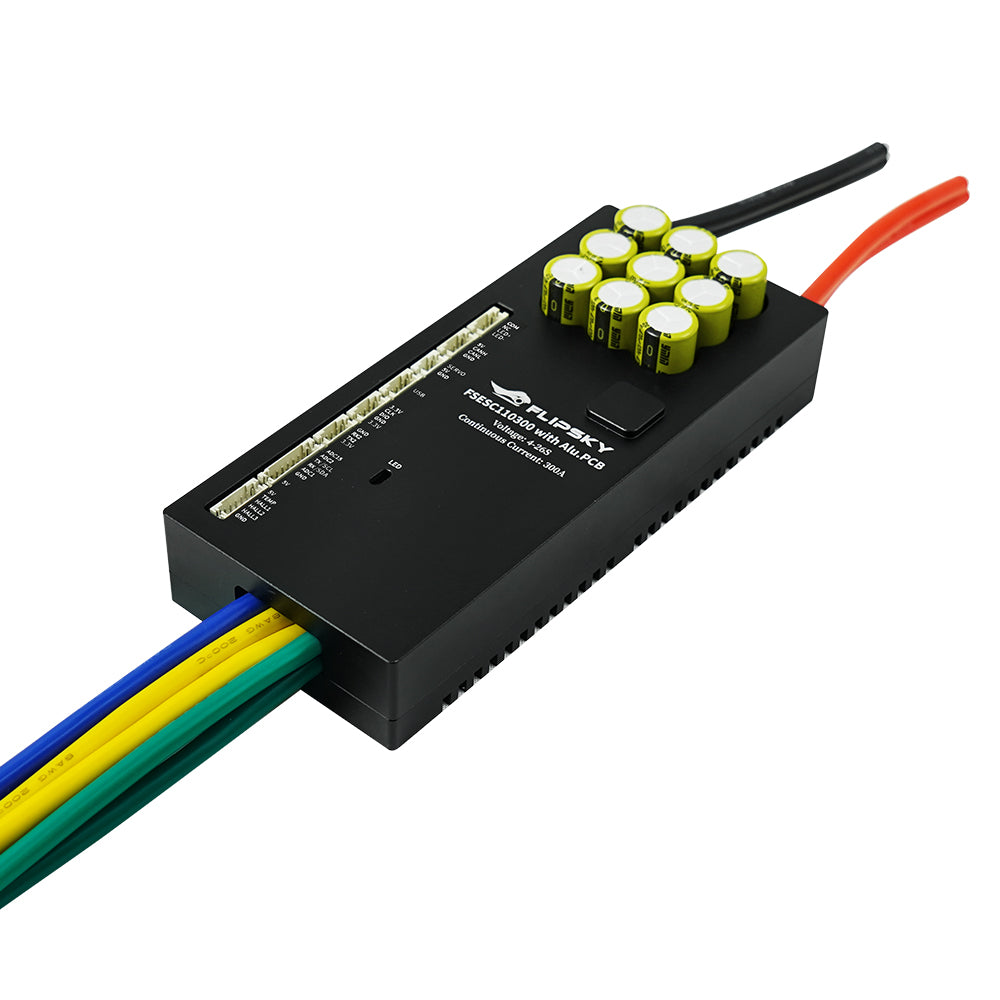

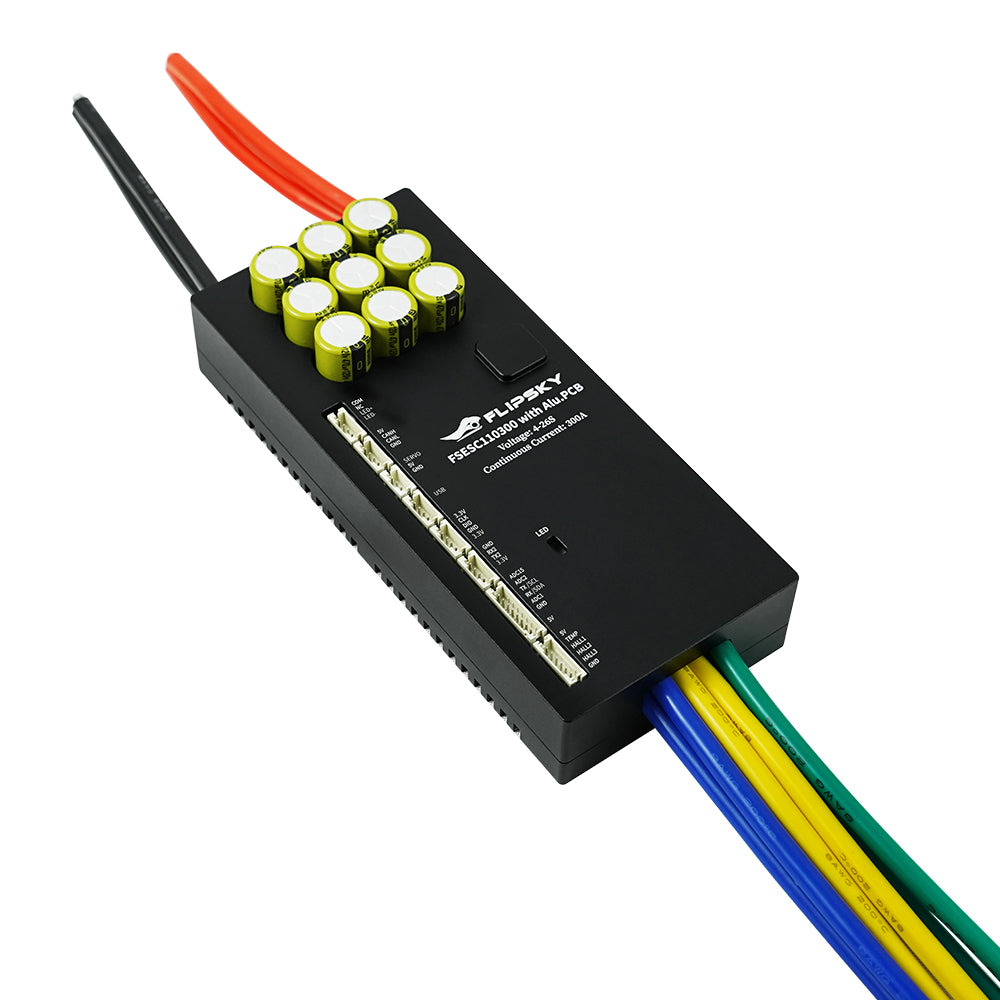

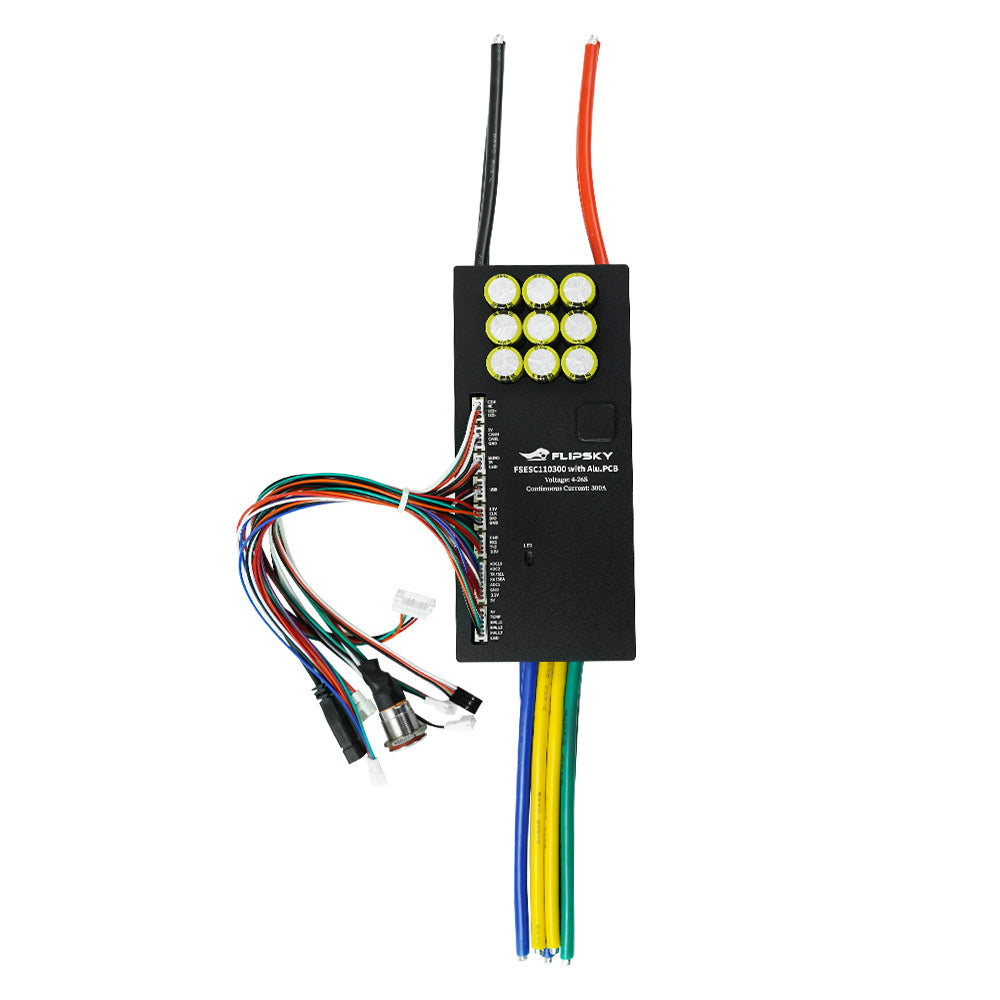

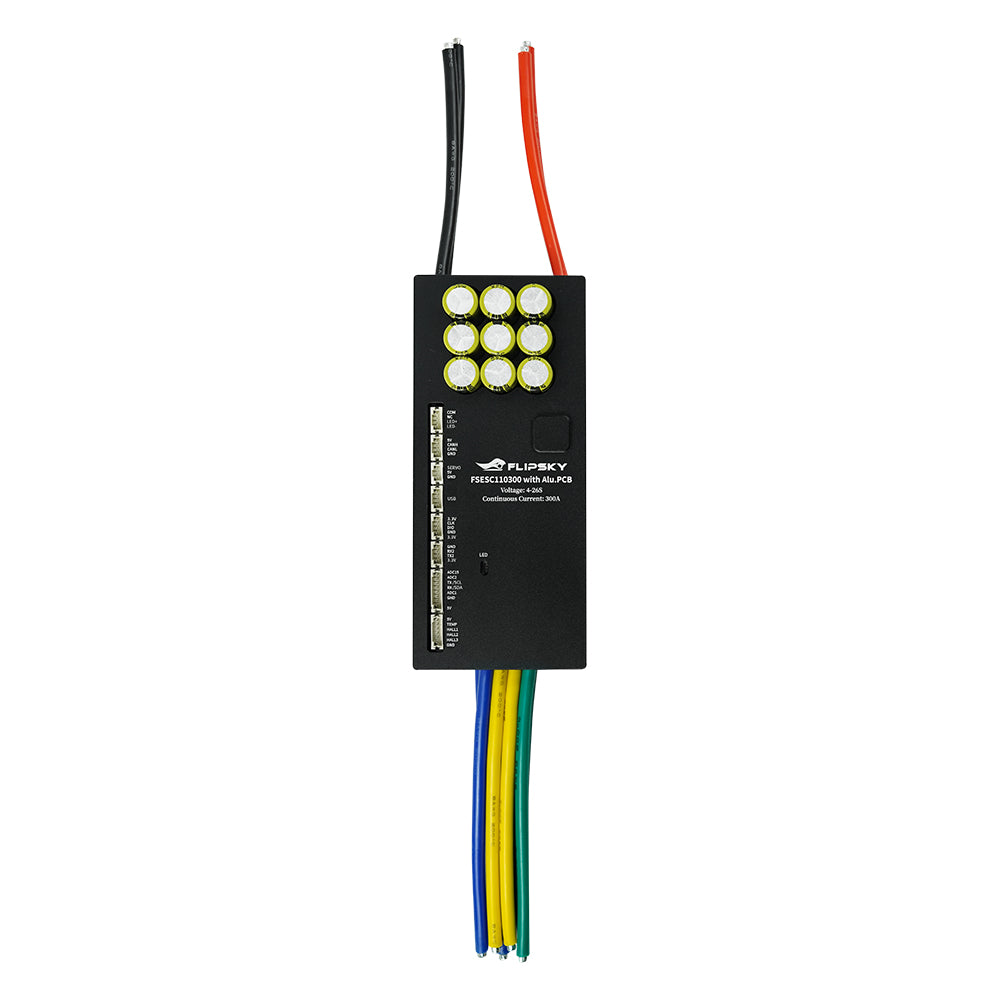

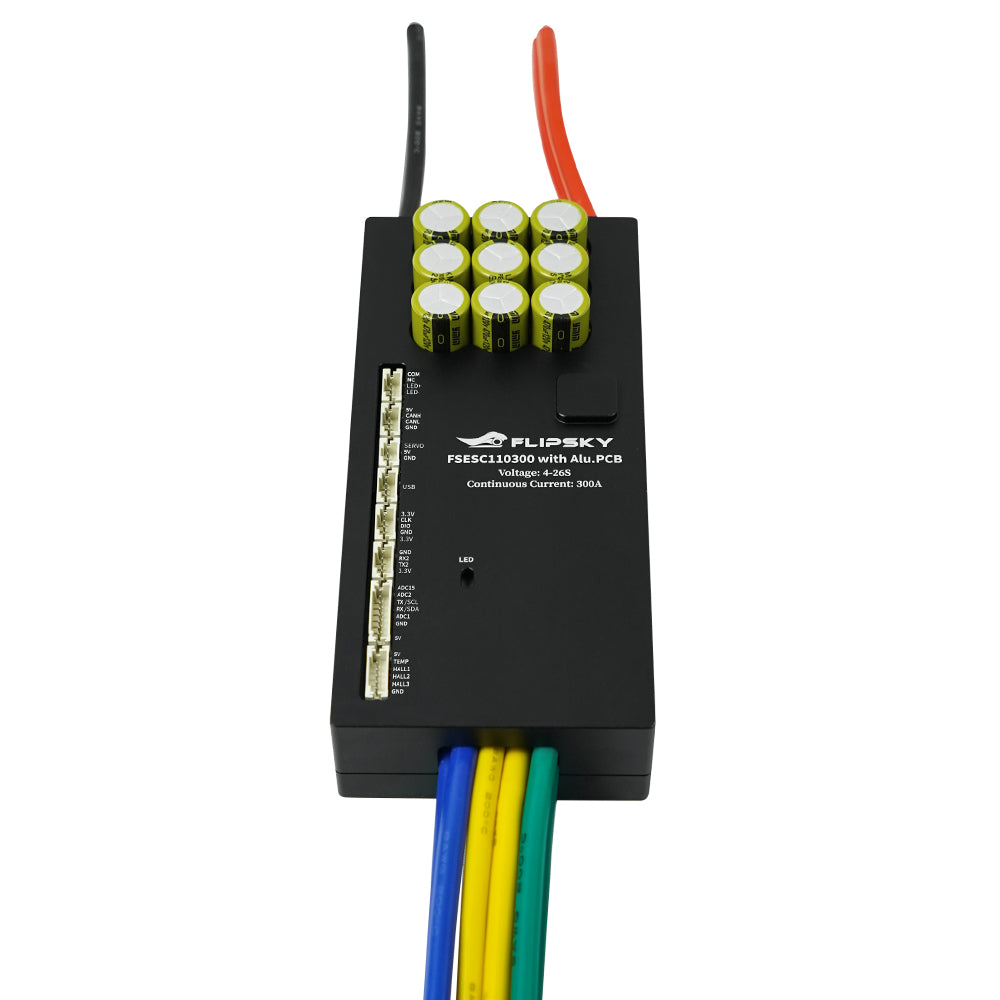

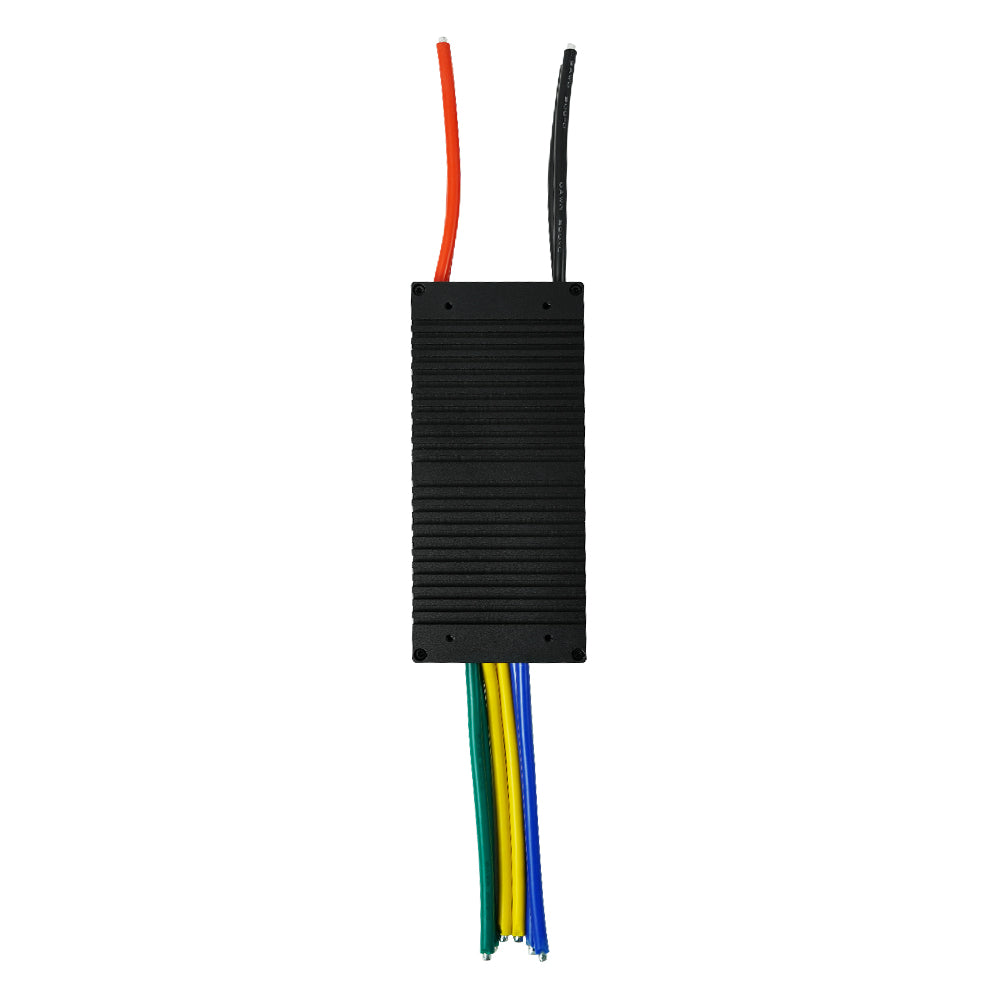

FSESC110300 with aluminum pcb: supports serial port function,and built with powe on/off switch
Wiring diagram:
