5-12S200AMINI_ESC Parameters： Type: Brushless Motor Electronic Speed Controller Continuous Current: 200A Instantaneous Current: 250A Net Weight 140±5g  Gross Weight: 360g Size: 84mm (L) × 43mm (W) × 28mm (H) Input Power Supply: 5S-12S LiPo Firmware Version: MAXKGO_12S_F421 Firmware Upgrade: Supports online upgrade via AM32.ca Communication Protocol: Dshot 300, Dshot 600, Servo PWM Signal Feedback: The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed5-12S200AMINI_ESC Features： MINI SizeSupports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz Stall protection for RC cars and crawlers Stuck rotor protection for multi-rotor drones Firmware upgradable via betaflight passthrough, or single wire serial or Arduino web configurator at am32.ca Supports Dshot 300, Dshot 600 and Servo PWM communication protocol EDT for full Dshot telemetry via signal wires Sinusoidal startup mode for smoother starting on RC cars and crawlers 5-12S200AMINI_ESC Application Fields： Multi-rotor Drone Fixed-wing Model Aircraft RC Model Car Model Boat Plant Protection Machine   Shipping List： 5-12S200AMINI_ESC Main Unit *1 Heat Shrink Tubes *5 PH2.0 Communication Cable *1

Lesen Sie Mehr Weniger

Specifications :  Firmware: 5.2 (supporting firmware upgrade)  Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!)  Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )  BEC: 5V@1.5A; ERPM: 150000  Supported sensors: Sensorless Supported Modes: BLDC, FOC (sinusoidal)  Control Interface Ports: USB UART  Input Set Support: PPM, ADC, NRF, UART  Regenerative capacity: Yes Programmable: Yes   Power Wire: 8AWG 1200mm / Motor Wire: 8AWG 170mm   Size: 103.5x67.6x27.5mm(Including aluminum case)  Features:  1.Fully sealed with IP68 water-proof rate.  VESC ESC: based on vesc6, programmable via VESC_TOOL and support real-time data read.  2.6-layer 3oz special PCB plate with good heat dissipation, support rated current 150Amps. 3.Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.  4.Support three control modes: Current / Dutycycle / Speed.  5.Multiple protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection over 80 ℃.  6.Compact size with high efficiency: 103.5x67.6x27.5mm.  Wiring Diagram:

Lesen Sie Mehr Weniger

Describe: (1) Adopt 32-bit high-performance processor AT32F421, with working frequency 120MHz and maximum motor PWM frequency 128KHz . (2) Adopt high-power MOSFETs and heatsink with good heat dissipation performance in high current. (3) Support multiple motion modes such as uni-direction, bi-direction with braking etc. (4) Support low voltage protection, temperature protection, locked rotor protection, current protection etc. (5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot. (6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings. (7) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars. 2. Parameters of Product Model MAXKGO 5-12S 120A_ESC Processor AT32F421 Input voltage DC 18V-50.4V（5-12S Lipo） Continuous current (good heat dissipation) 120A Maximum current  (good heat dissipation) 150A Support firmware AM32 Signal protocol Dshot (All),PWM,Oneshot,Multishot,etc. Programming parameter adjustment Support Throttle calibration Support Timing angle setting Support Current detection Support Telemetry signal Support Motor steering settings Support Application scenarios Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers. 5-12S120A_ESC Features： MINI SizeSupports various protection functions: low-voltage protection, temperature protection, locked-rotor protection, and low-speed protection High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz   5-12S120A_ESC Application Fields： Multi Axis UAV (Unmanned Aerial Vehicle) Fixed-wing model aircraft Multi-rotor model aircraft RC model car Model boat Packing List： 5-12S120A_ESC Main Unit * 1 Heat Shrink Tubing * 5 PH2.0 Communication Cable * 1

Lesen Sie Mehr Weniger

ODESC V4.2 Single-drive High-current High-precision Brushless Servo Motor Controller, Software Configuration Compatible with Odrivetool, FOC, BLDC ODESC V4.2(24V/56V) high-performance brushless drive is based on the open-source project ODrive for hardware optimization and enhancement, with stable performance and matching ODrive original firmware. The supporting USB connection to the PC terminal can realize motor debugging and complex multi-directional axis control and can realize FOC control for most brushless motors on the market. With the use of the encoder, it can also realize any torque, speed loop, position loop, current loop, and position control based on trajectory planning, etc. It can be widely used in flexible robot joints, robotic arms, 3D printing, camera universal joints, pan rail, CNC milling machine, ship models, car models, and other DIY, industrial and automation fields. Product Parameters: Hardware version: ODESC V4.2 Drive motor: brushless DC motor (BLDC) Braking method: Power resistors, battery recycling Microprocessor: STM32F405RGT6 Working voltage: 8-24V, 8-56V Maximum current: 120A Continuous current: 70A Motion mode: speed, position, current, torque, trajectory and other control modes. Encoder type: incremental encoder (AB, ABI), absolute value encoder (SPI), Hall sensor (HALL), AMT102, AMT103, TLB5012, AS5047P, etc. Communication interface: USB, PWM, UART, CAN, Analog Input, Step & Direction, GPIO, ASCII, etc. Over-current heat dissipation: PCB integrated high-current open skylight design, adopts thick copper layer and special process of immersion gold, and CN custom-made aluminum metal heat sink, which greatly enhances continuous over-current capability and improves operation stability. Apply to: robot joint control, robotic arm, food delivery robot, inspection robot, AGV car, 3D printing, pan-tilt slide rail, CNC milling machine, force feedback simulator, industrial and automation BLDC control field, etc. Product Size: 63*58*30mm Net Weight Of Product: 70g Package Included: ODESC V4.2*1 Type-C Data Cable*1 50W 2Ω Power Resistor*1 12AWG Silicone Wire*2 SH1.0mm 2P Single Head*1 SH1.0mm 5P Single Head*1 SH1.0mm 6P Single Head*1 SH1.0mm 5P Same Direction Double Head*1 Overall Dimension: Product Size: 63*58*30mm Net Weight Of Product: 70g Package Size:190*100*35mm Packing Weight: 143g Package Size (Including Outer Carton)：200*110*45mm Packing Weight (Including Outer Carton)：180g

Lesen Sie Mehr Weniger

Specs: 75100: 75100 Pro: Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous,burst 120A BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode Firmware: latest (firmware update supported) ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Newly upgraded: Change connection wires from 12Awg to 10Awag. More sensitive temperature detection function Integrated bluetooth module design Size & design upgraded Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.Here below video and blog links FYI. Wire Connection: 75100: 75100 Pro:

Lesen Sie Mehr Weniger

2670 Brushless ESC Product Description: (1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.(2) PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.(6)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible.(7) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.(8) Onboard RGB LED color light settings, multiple LED colors can be customized.(9) Widely used in FPV racing drone,multi-axis drones, fixed-wing, model ships, climbing vehicles, model cars and other scenarios. Parameters of 2670 Brushless ESC: Model  2670 Processor STM32G071 Input voltage DC 7V-25.2V（2-6S Lipo） Continuous current (good heat dissipation) 70A Maximum current  (good heat dissipation) 110A Support firmware BLHeli_32，AM32 BLHeli_32 firmware SEQURE_G071_01 AM32 firmware SEQURE_G071 Signal protocol Dshot (All), PWM, Oneshot, Multishot, etc. Programming parameter adjustment Support Throttle calibration Support Timing angle setting Support Current detection Support Telemetry signal Support Motor steering settings Support RGB LED color lights Support BEC (if any) 5V/4A，6V/4A，7.2V/4A，8.2V/4A，12V/3A adjustable Application scenarios FPV racing drones, multi-axis drones, fixed-wing  UAV, model ships, climbing vehicles, model cars, etc.

Lesen Sie Mehr Weniger

Click it MINI V6.8 Specifications :  Firmware:  vesc_tool_3.00 5.2 (supporting firmware upgrade) Continuous current: 100A; instantaneous current: 150A (values depend on the mounting and ambient temperature around the device!) Voltage: 14V-60V(Cells: 4-13S; safe for 4S-12S, voltage spikes may not exceed 60V! )  BEC: 5V@1.5A; ERPM: 150000 Support Hall Sensor: No, Sensorless Supported Modes: BLDC, FOC (sinusoidal) Control Interface Ports: USB, CAN, UART, IIC Input Set Support: PPM, ADC, NRF, UART Regenerative capacity: Yes Programmable: Yes Motor wire: 10AWG; Power cable: 8AWG Size: 64x43.5x34.7mm(Including heatsink) Features: Based on vesc6, programmable via VESC_TOOL and support real-time data read. Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.  Support three control modes: Current / Dutycycle / Speed. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 Wiring diagram: MINI V6.8 Plus Specifications :  Firmware: 5.2 (supporting firmware upgrade) Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!) Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1.5A; ERPM: 150000 Supported sensors: ABI, HALL,AS5047,AS5048A Supported Modes: BLDC, FOC (sinusoidal) Control Interface Ports: USB, CAN, UART, IIC Input Set Support: PPM, ADC, NRF, UART Regenerative capacity: Yes Programmable: Yes Power Wire: 8.0mm bullets female X 2pcs Motor Wire: 8.0mm bullets female X 3pcs Size: 92.7x68x31.5mm(Including aluminum case) Features: 1) Based on vesc6, programmable via VESC_TOOL and support real-time data read. 2) Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed. 3) Support four control modes: Current / Dutycycle / Speed 4) Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. 5) Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 Wiring diagram:

Lesen Sie Mehr Weniger

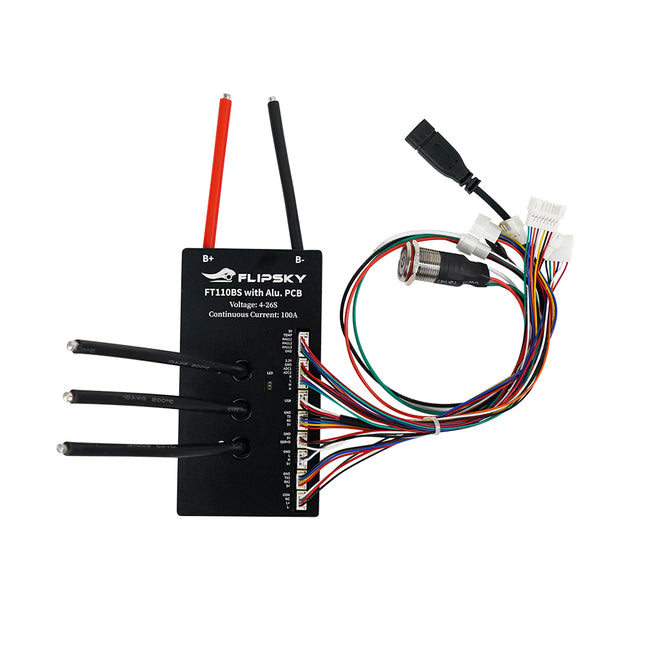

Specifications:Firmware: V1.6 or above (firmware update via Flipsky ESC Tool supported)Voltage: 14-110V(safe for 4-26S)Continuous current: 100A (Values depend on the mounting, ambient temperature and air/water circulation around the device!)Peak Current: 250ACommunication Ports: USB, CAN, UART, PPM, ADC, PASInput Signals Support: PPM, ADC, PAS (Cadence Input Signal), UART (compatible with all Flipsky VX Series remotes)BEC: 5V@1AProgrammable Tool: Flipsky ESC TOOLPWM Frequency Control: YESMultiple Speed Gear Limit Control: YES (UART&ADC)Regenerative Capacity: YESIntegrated Self-locking Switch: 16mm Red ButtonMotor/power wire size: 10 AWGSize: L117.7*W62.4*H21.7mm (Including Alu. Case)Feature:Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.Programmable via Flipsky VX4Pro remote (remote firmware version: VX4 Pro_V1.2 or above).Supporting motor FOC with low working noise and smooth starting.Supporting real-time data and fault alerts.Supporting adaptive variable PWM frequency control.Supporting save / load configuration files via ESC Tool.Supporting multiple speed levels: Level 1 (Low), Level 2 (Medium), Level 3 (High), Level 4 (PAS Only), Level 5 (PAS Only).Supporting sensor mode (HALL, ENCODER) and sensorless mode (IPDS, HFPI, OPEN).Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER (such as ABI Encoder, AS5047 SPI, TLE5012 SPI, AS5600 IIC), OPEN (Sensorless Open-Loop Startup)Traction Control: YESSupporting control types: Current, Duty Cycle, Speed control, Position Control.Supporting PAS cadence sensor.Supporting emergency stop and shutdown.Support safe power-on protection (in PPM&ADC control modes only).Protection functions: low and high voltage protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection, motor over-temperature protection.Supporting multiple typed of motor temperature sensors such as NTC-10K-25℃ , NTC-10K-100℃ , PT1000, PTC-1K-100℃ , KTY and so on.Application Fields:Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys / Boat / Kayak etc.Wiring diagram:

Lesen Sie Mehr Weniger

Specifaction: Voltage:14-84V( safe for 3-20S)Continuous Current : 50V/300A,75V/200AMax Current :350ASupported sensors: ABI, HALL, AS5047,AS5048AEPRM:150000Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors) Feature: Regenerative brakingThe CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;Sensored or sensorless operation + hybrid modeConfigurable RPM-, current-, voltage- and power limitsInput source: PPM, ADC, NRF,UART,PASCommunication ports: USB, CAN, UART,SPI,IICThrottle curve and ramping for all input sourcesSeamless 4-quadrant operationMotor revolution, ampere hour, watt hour countingReal-time data analysis and readout through the communication port.Adjustable protection against:Low input voltageHigh input voltageHigh motor currentHigh input currentHigh regenerative braking current (separate limits for the motor and the input)High RPM (separate limits for each direction)Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurateMotor wire: 8AWGPower cable: 8AWGWaterproof level(with water cooling enclosure):IP67 Wire Connection:

Lesen Sie Mehr Weniger

Specifications: Voltage:14-84V( safe for 3-20S) Continuous Current : 50V/350A,75V/250A Max Current :800A Supported sensors: ABI, HALL, AS5047,AS5048A EPRM:150000 Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors) Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200 ! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Feature: 1.Regenerative braking 2.The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function; 3.Sensored or sensorless operation + hybrid mode 4.Configurable RPM-, current-, voltage- and power limits 5.Input source: PPM, ADC, NRF,UART,PAS 6.Communication ports: USB, CAN, UART,SPI,IIC 7.Throttle curve and ramping for all input sources 8.Seamless 4-quadrant operation 9.Motor revolution, ampere hour, watt hour counting 10.Real-time data analysis and readout through the communication port. 11.Adjustable protection against: 12.Low input voltage 13.High input voltage 14.High motor current 15.High input current 16.High regenerative braking current (separate limits for the motor and the input) 17.High RPM (separate limits for each direction) 18.Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate. 19.Motor wire: 8AWG 20.Power cable: 8AWG 21.Waterproof level(with water cooling enclosure):IP67 Wire Connection:

Lesen Sie Mehr Weniger

Specification: Wire Connection:

Lesen Sie Mehr Weniger

Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC. Specs: Firmware: 5.2, supports firmware upgradeVoltage: 14-84V (safe for 4-20S)Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300ABEC: 5V@1ASupport Modes: DC, BLDC, FOC (sinusoidal)ERPM: 150000Communication Ports: USB, CAN, UART, SPI, IICSupported Sensors: ABI, HALL, AS5047, AS5048AInput Source Support: PPM, ADC, NRF, UARTSupported Sensorless: YesRegenerative capacity: YesProgrammable via VESC_TOOL: Yes75200 Size:130x67.7x40.1mm(Including alu. case)Motor/power wire size: 8 AWGFeatures:Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.Support various control modes: Current / Duty cycle / Speed / PID control modes.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.CPU:32F405 with frequency 168MHzAluminum PCB with good heat dissipation to expand life span.Two COMM ports: UART bluetooth module, screen display or remote controller supportable. Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Wire Connection:
