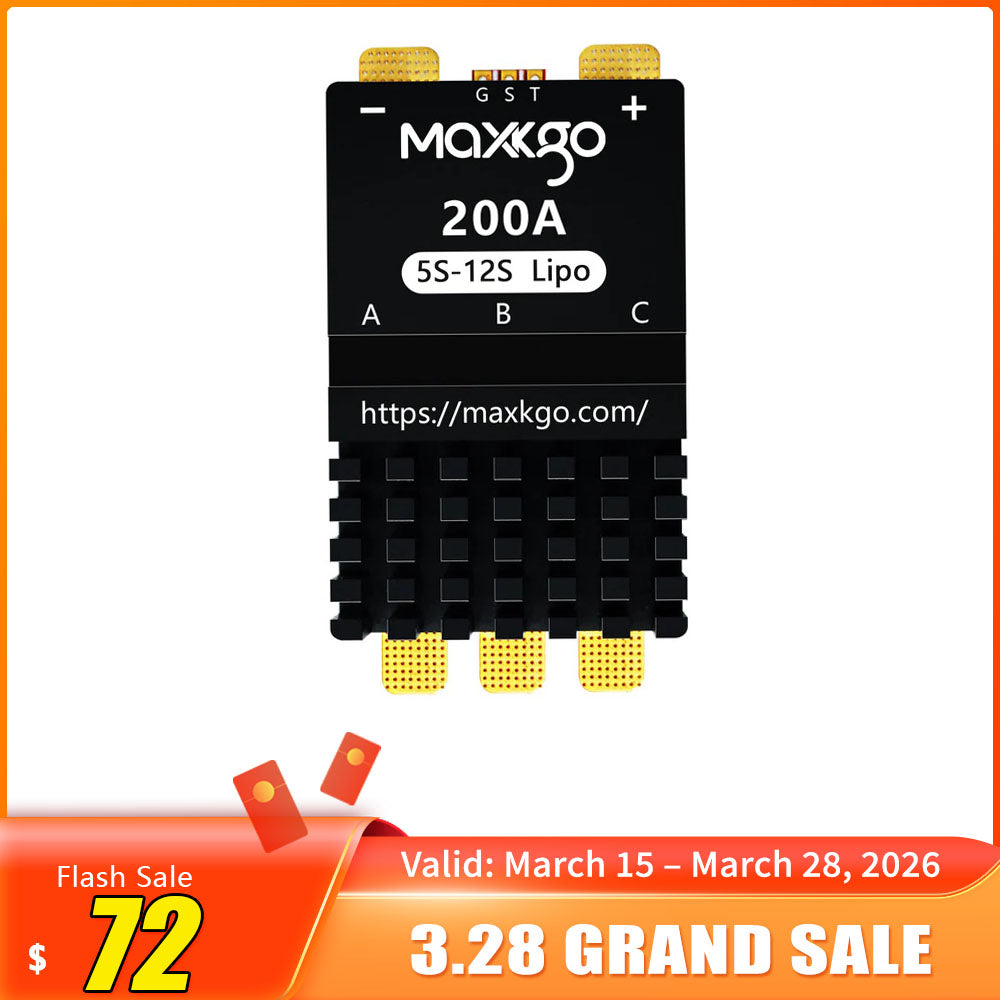

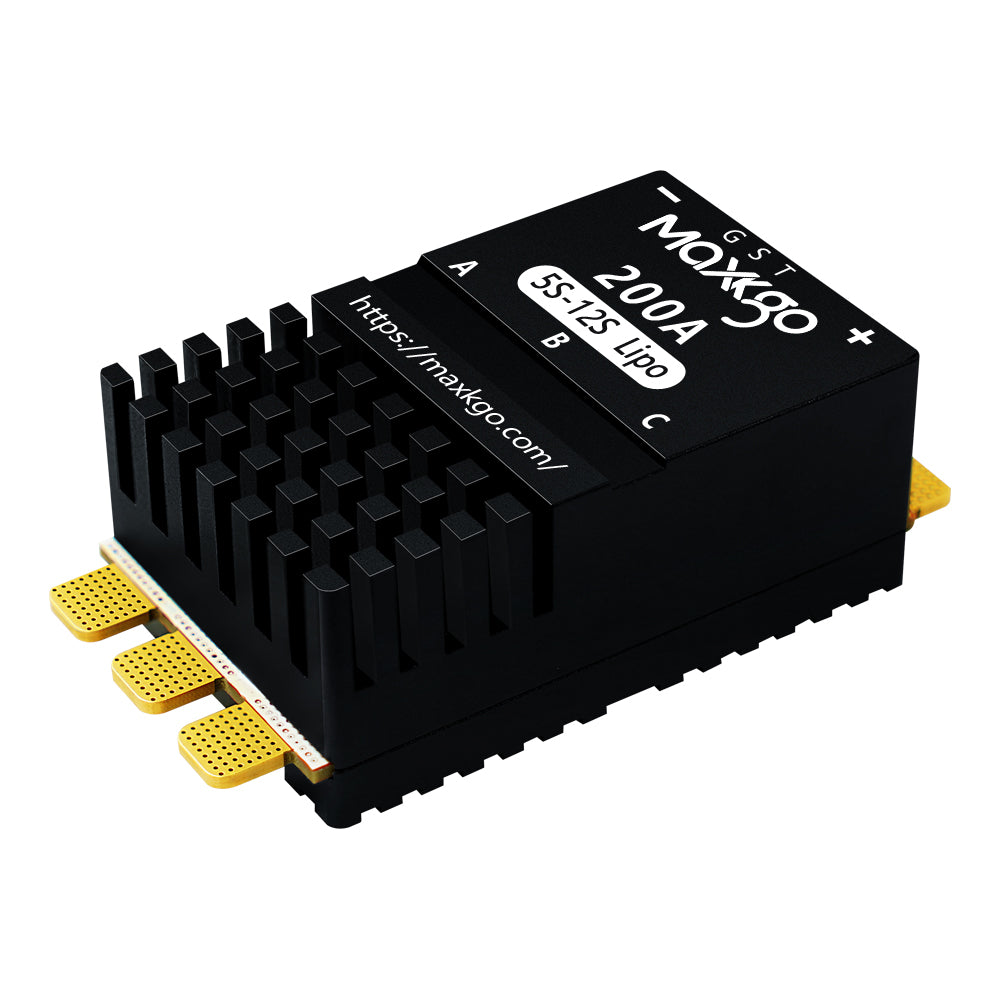

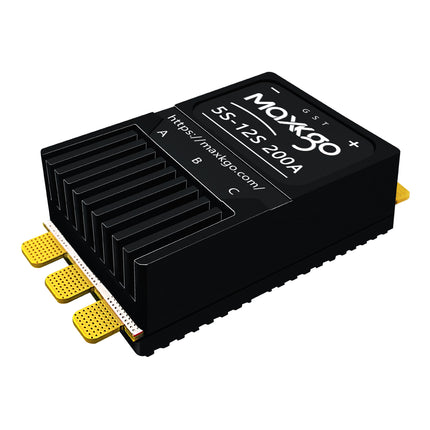

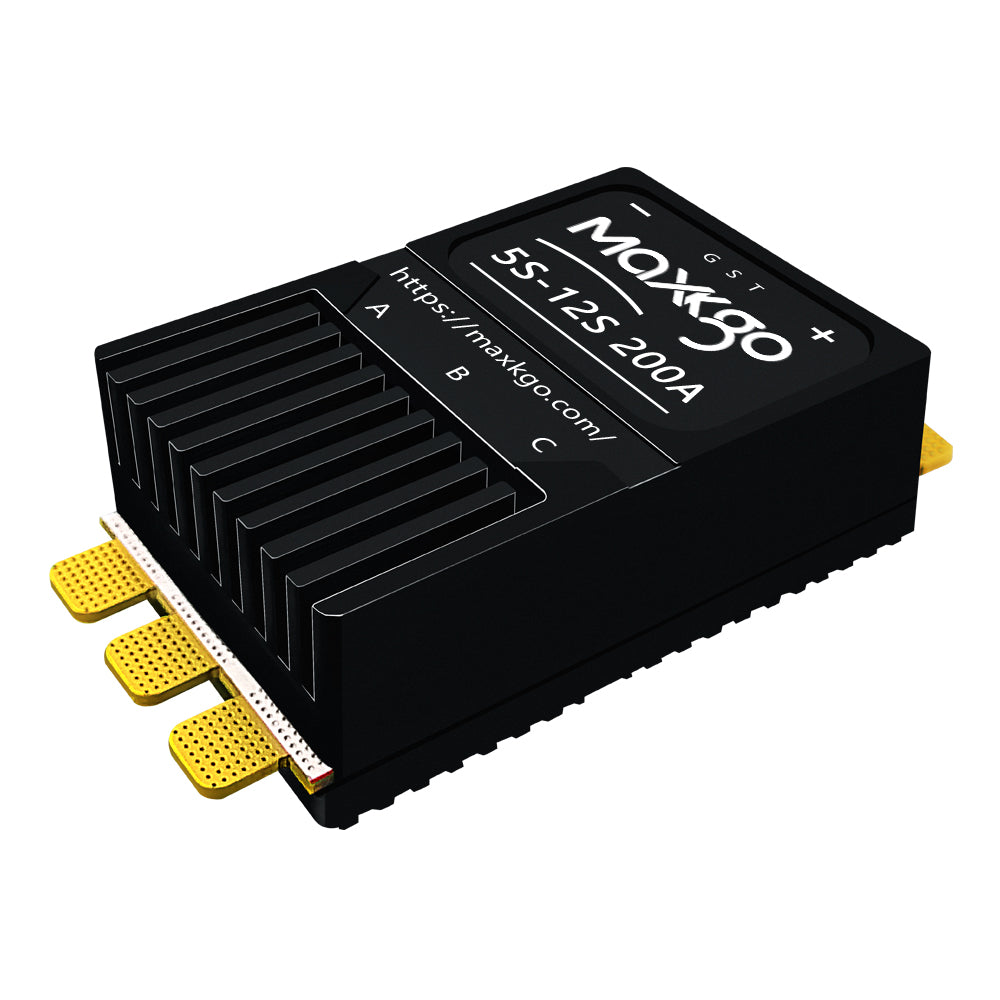

MAXKGO 5-12S 200A MINI ESC with AM32 Firmware for Heavy-Lift UAV, Agri Drone & RC Models

Beschreibung

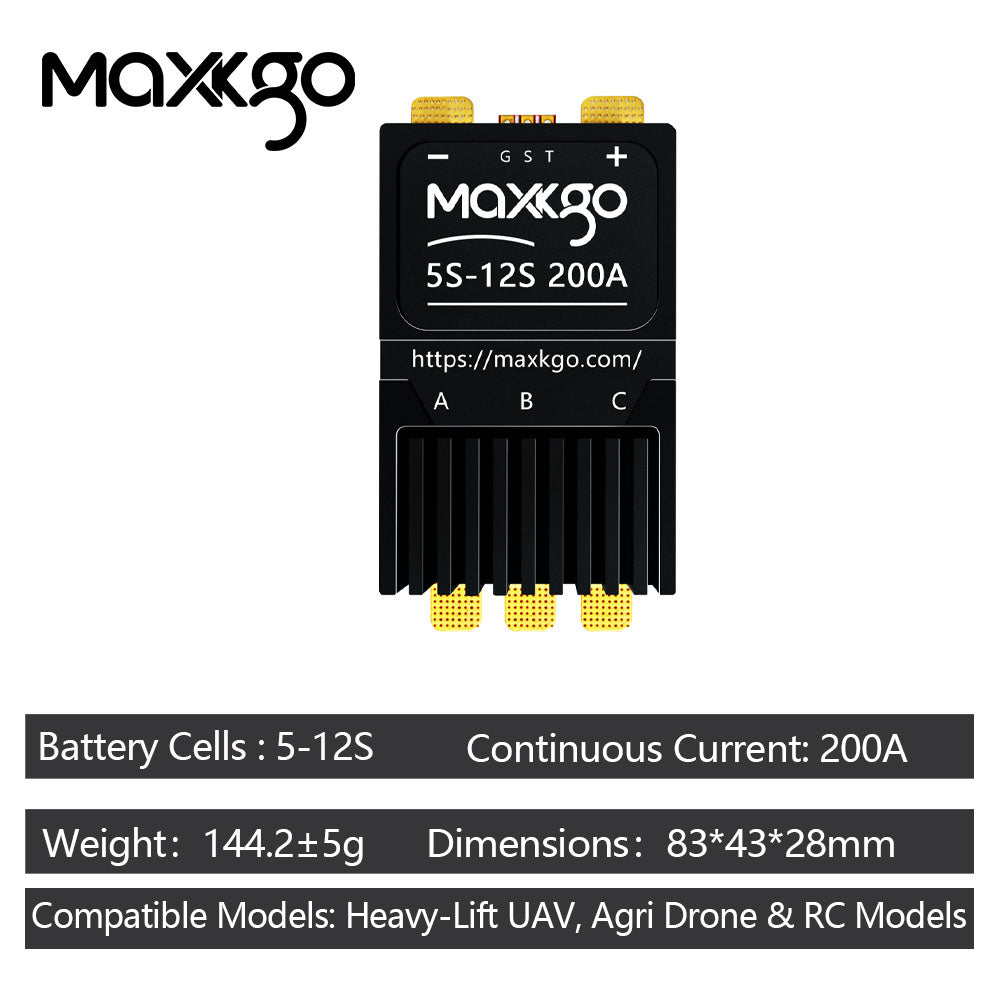

5-12S200A MINI ESC Specifications

Parameter Details
Type Brushless Motor Electronic Speed Controller
Continuous Current 200A
Instantaneous Current 250A
Weight Net Weight 140±5g
Gross Weight 360g

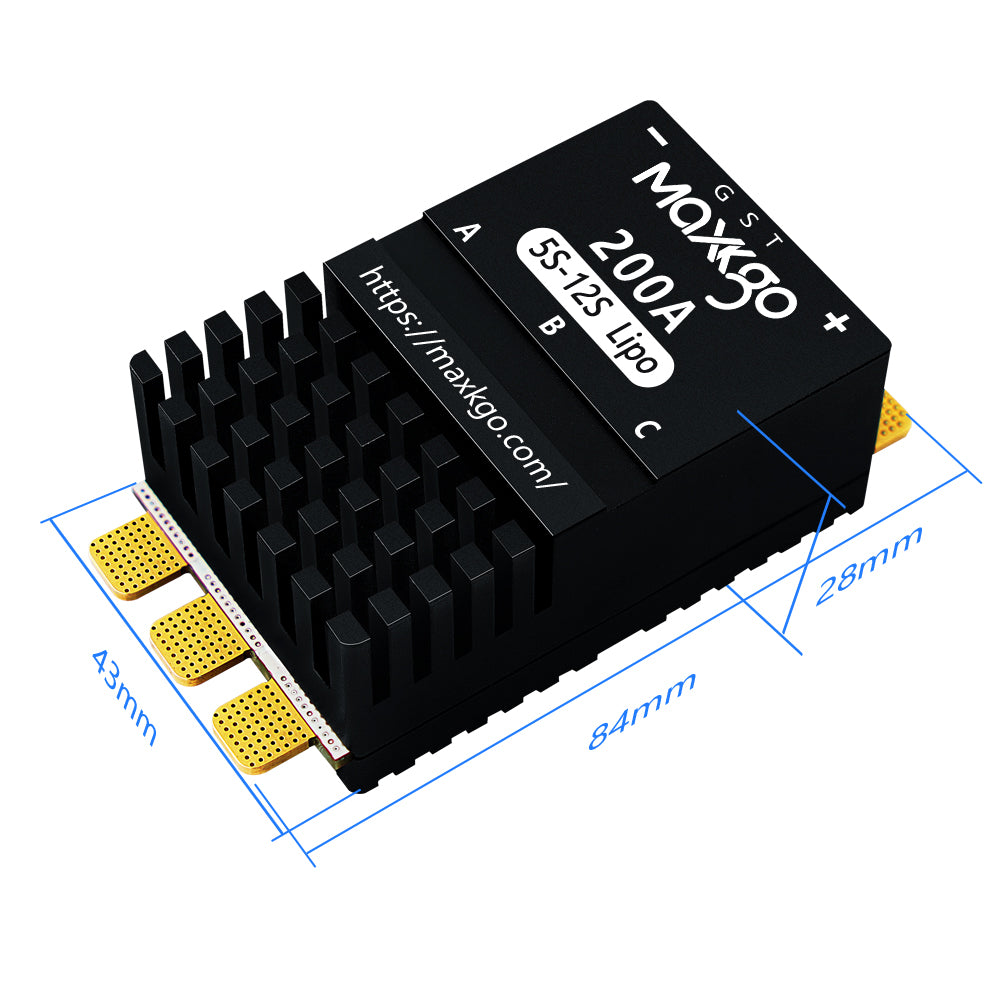

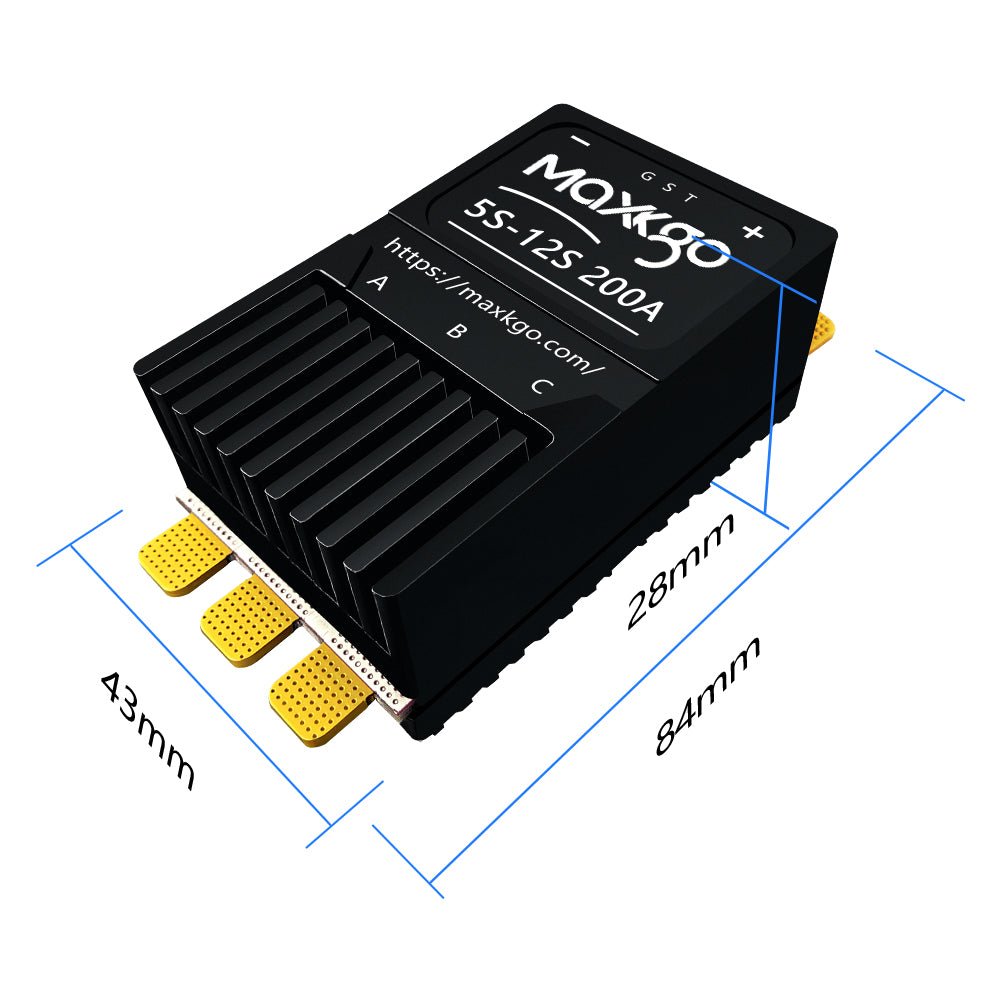

Size 84mm (L) × 43mm (W) × 28mm (H)
Input Power Supply 5S–12S LiPo
Firmware Version MAXKGO_12S_F421
Firmware Upgrade Supports online upgrade via AM32.ca
Communication Protocol Dshot 300, Dshot 600, Servo PWM
Signal Feedback The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed

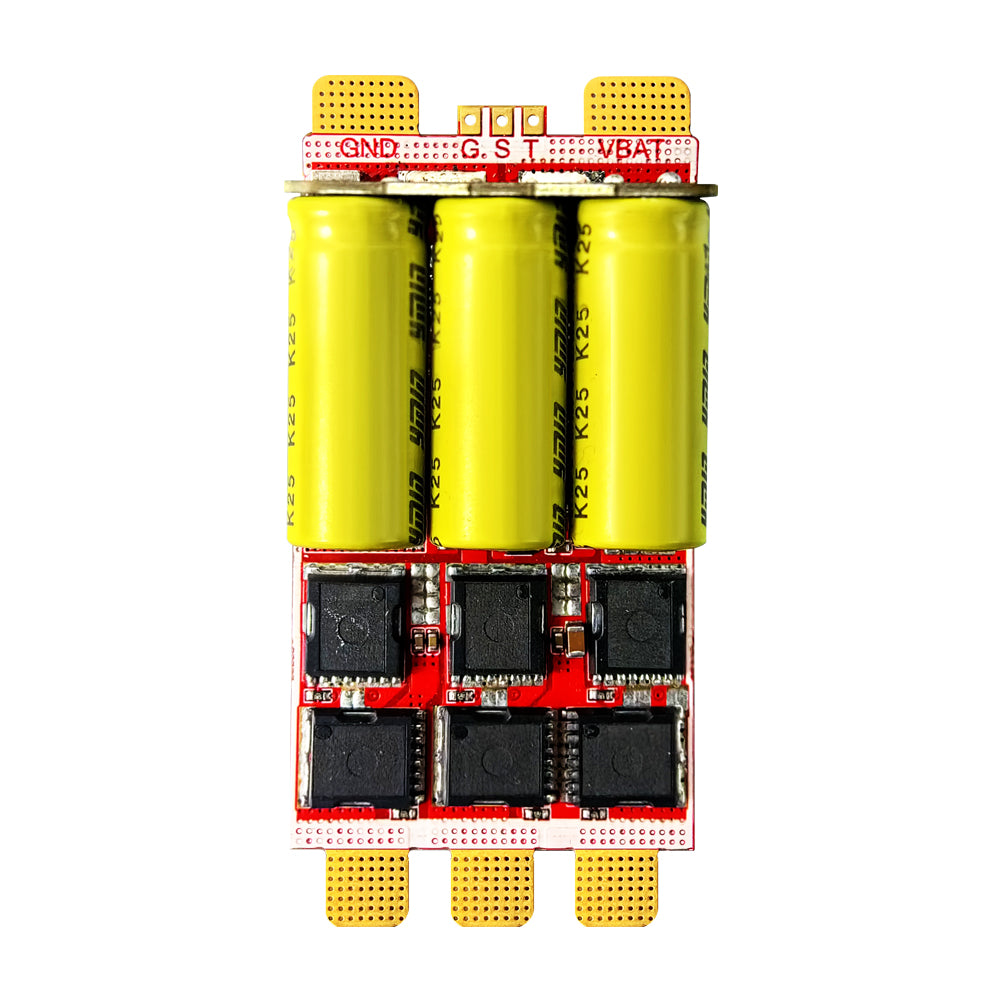

Built-in Capacitors We've already soldered three 63V 1000μF capacitors at the power input, so there's no need to add extra ones.

5-12S200A MINI ESC Features

Feature Category Description
Compact Design MINI Size
Protection Functions Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection
MCU Performance High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz
RC Car Support Stall protection for RC cars and crawlers
Drone Protection Stuck rotor protection for multi-rotor drones
Firmware Upgrade Firmware upgradable via Betaflight passthrough, single wire serial, or Arduino
Web Configurator Web configurator at am32.ca
Protocol Support Supports Dshot 300, Dshot 600 and Servo PWM communication protocol
Telemetry Support EDT for full Dshot telemetry via signal wires
Smooth Startup Sinusoidal startup mode for smoother starting on RC cars and crawlers

5-12S200A MINI ESC Application Fields

Application Usage
🚁 Multi-rotor Drone High-performance UAV and FPV applications
✈️ Fixed-wing Model Aircraft Fixed-wing RC aircraft and EDF systems
🚗 RC Model Car High-power RC cars and crawlers
🚤 Model Boat Brushless RC boat applications
🌾 Plant Protection Machine Agricultural UAV and spraying drone systems

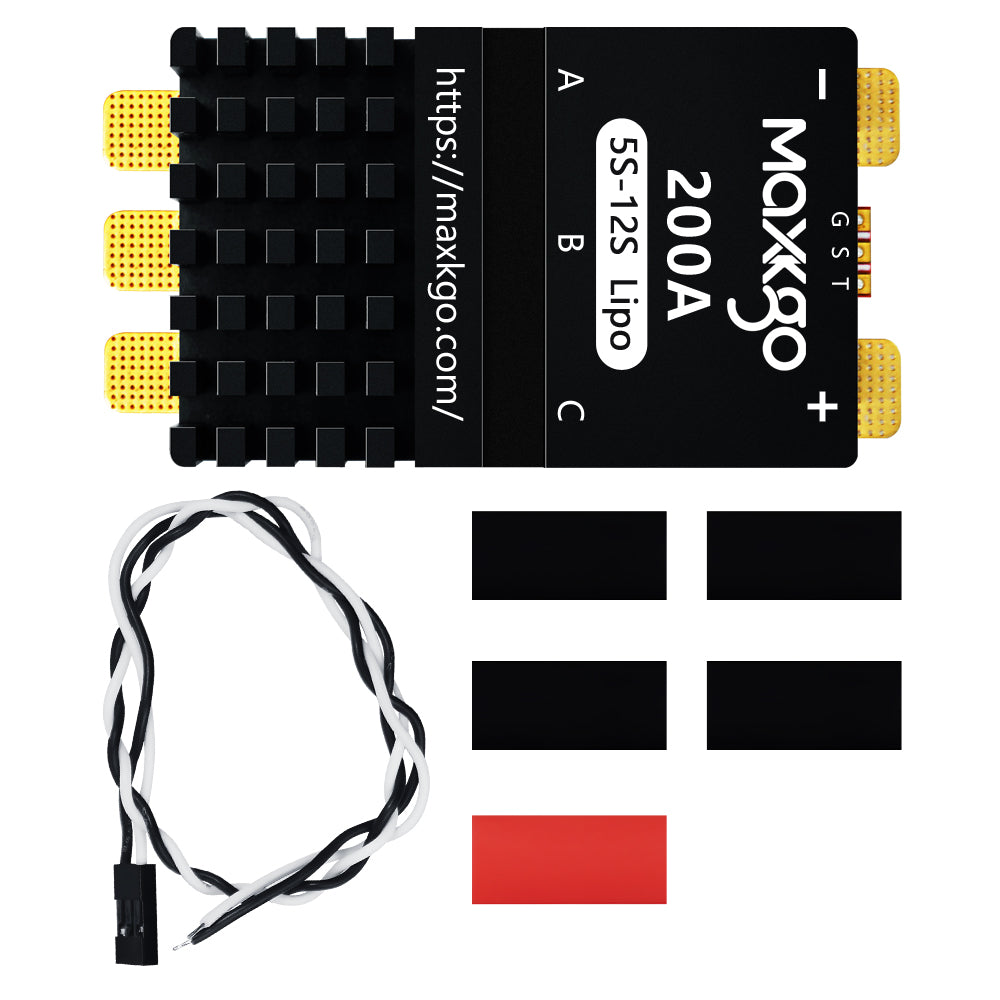

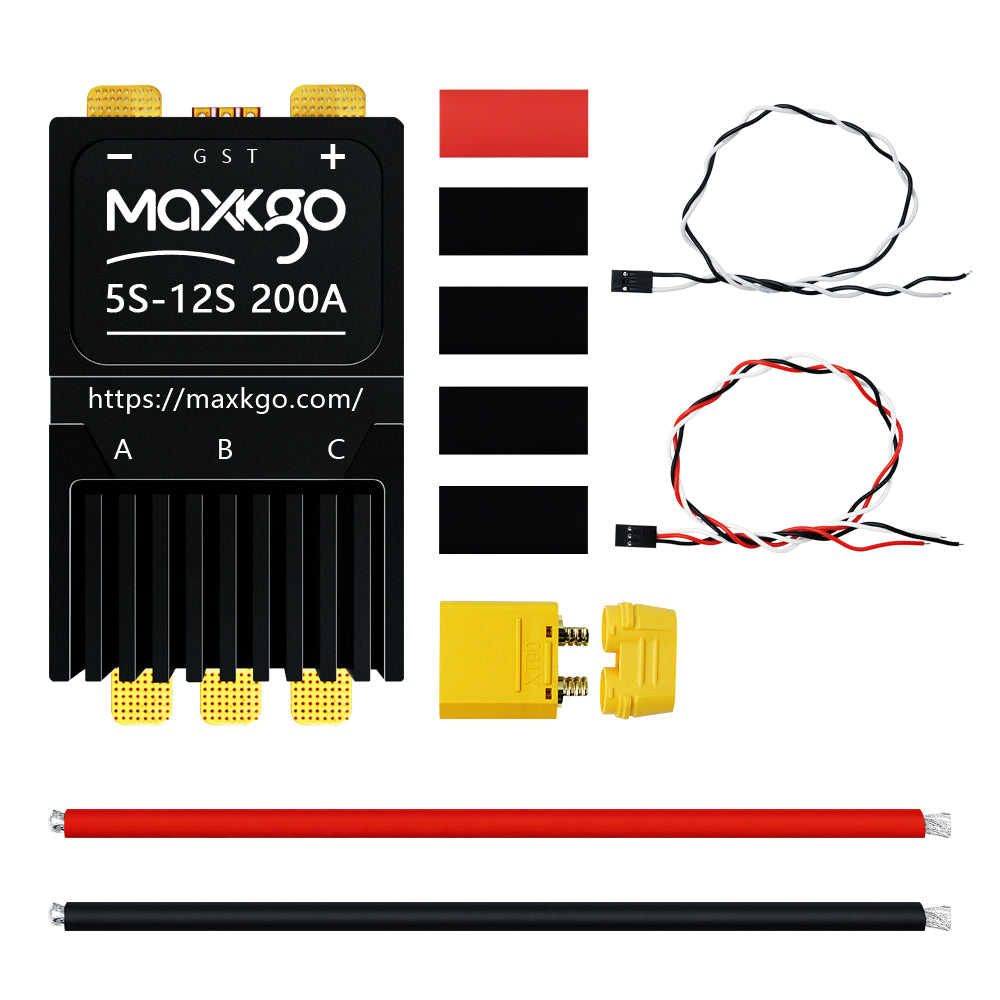

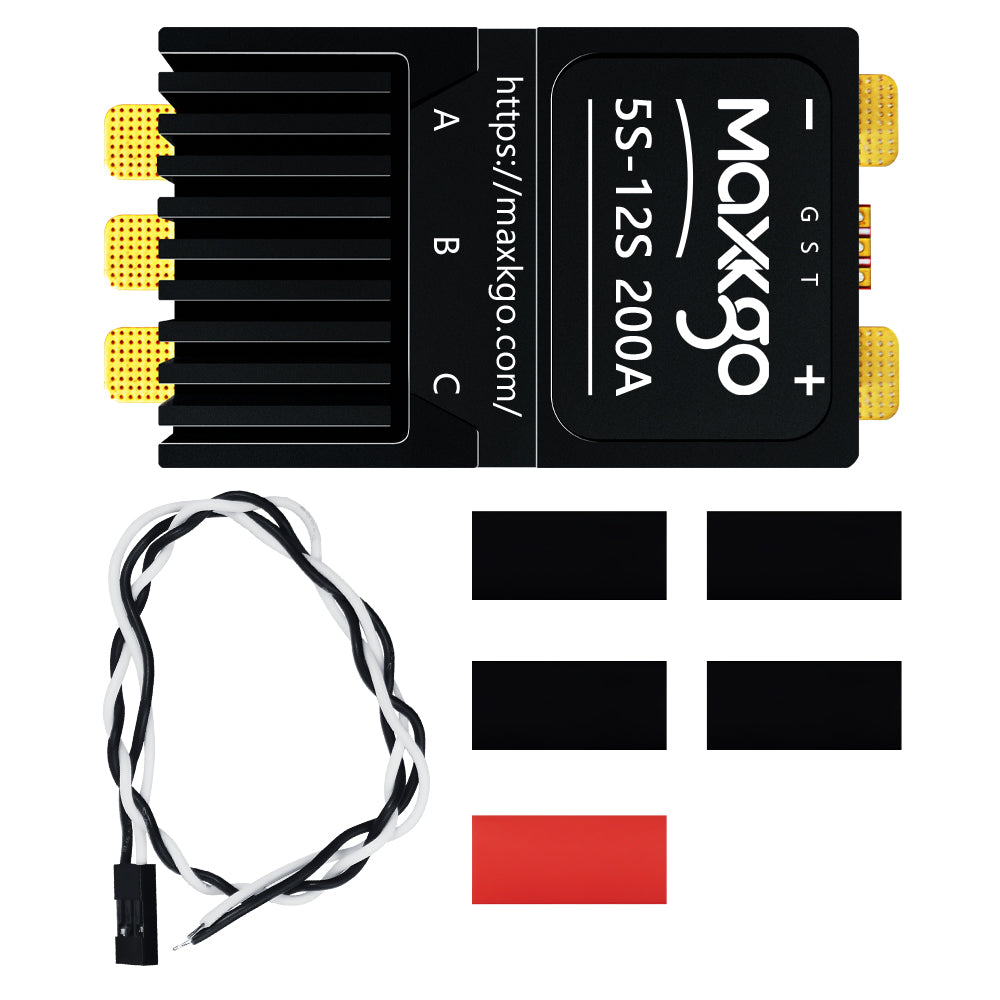

Shipping List：

5-12S200AMINI_ESC Main Unit *1

Heat Shrink Tubes *5

PH2.0 Communication Cable *1
