Beschreibung Description ：
(1) Adopt 32-bit high-performance processor AT32F421, with working frequency 120MHz and maximum motor PWM frequency 128KHz .
(2) Adopt high-power MOSFETs and heatsink with good heat dissipation performance in high current.
(3) Support multiple motion modes such as uni-direction, bi-direction with braking etc.
(4) Support low voltage protection, temperature protection, locked rotor protection, current protection etc.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.

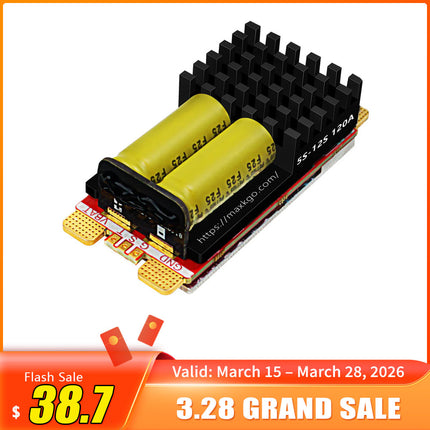

5-12S120A_ESC Parameter ：
Model
MAXKGO 5-12S 120A_ESC
Processor
AT32F421
Input voltage
DC 18V-50.4V （ 5-12S Lipo ）
Continuous current (good heat dissipation)
120A
Maximum current (good heat dissipation)
150A
Support firmware
AM32
Signal protocol
Dshot (All),PWM,Oneshot,Multishot,etc.
Programming parameter adjustment
Support
Throttle calibration
Support
Timing angle setting
Support
Current detection
Support
Telemetry signal
Support
Motor steering settings
Support
Application scenarios
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers.
5-12S120A_ESC Features ：
MINI Size Supports various protection functions: low-voltage protection, temperature protection, locked-rotor protection, and low-speed protection
High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz
5-12S 120A ESC Application Fields ：
Multi A xis UAV (Unmanned Aerial Vehicle)
Fixed-wing model aircraft
Multi - rotor model aircraft
RC model car
Model boat

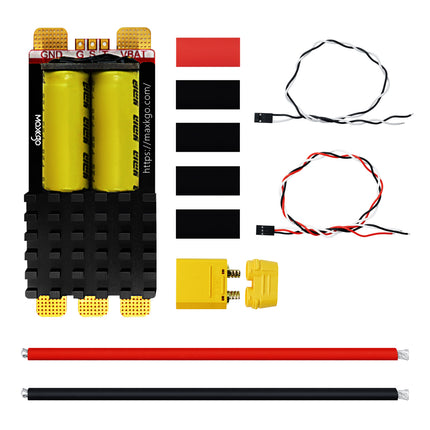

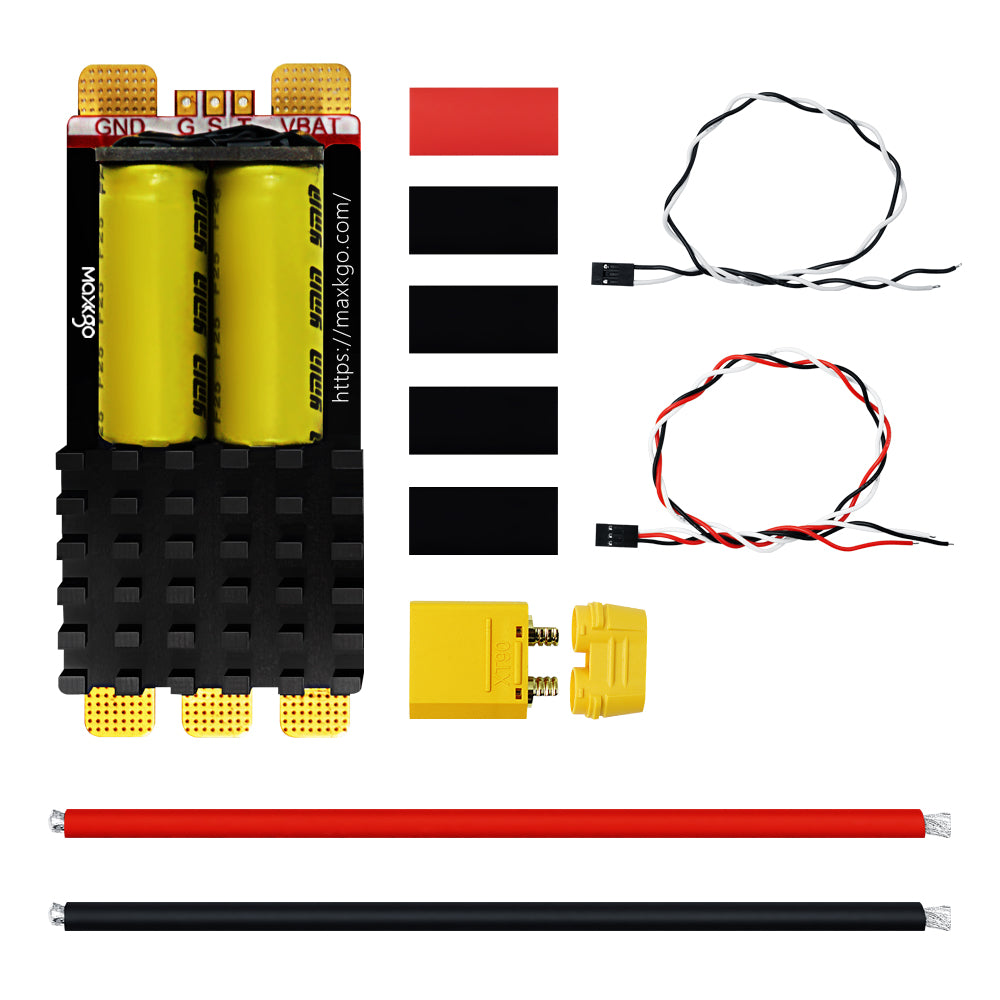

Packing List ： 5-12S120A_ESC Main Unit * 1 Heat Shrink Tubing * 5 PH2.0 Communication Cable * 1
