Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/350A,75V/250A
Max Current :800A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000

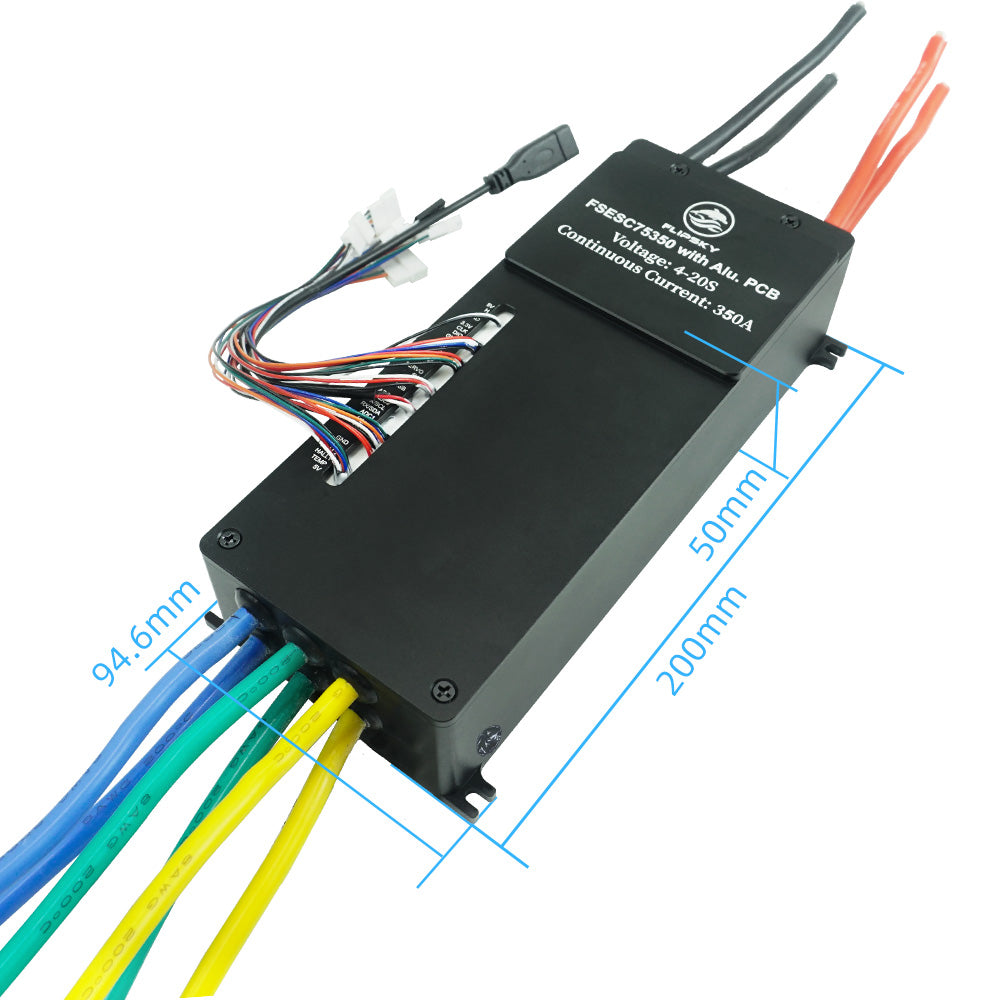

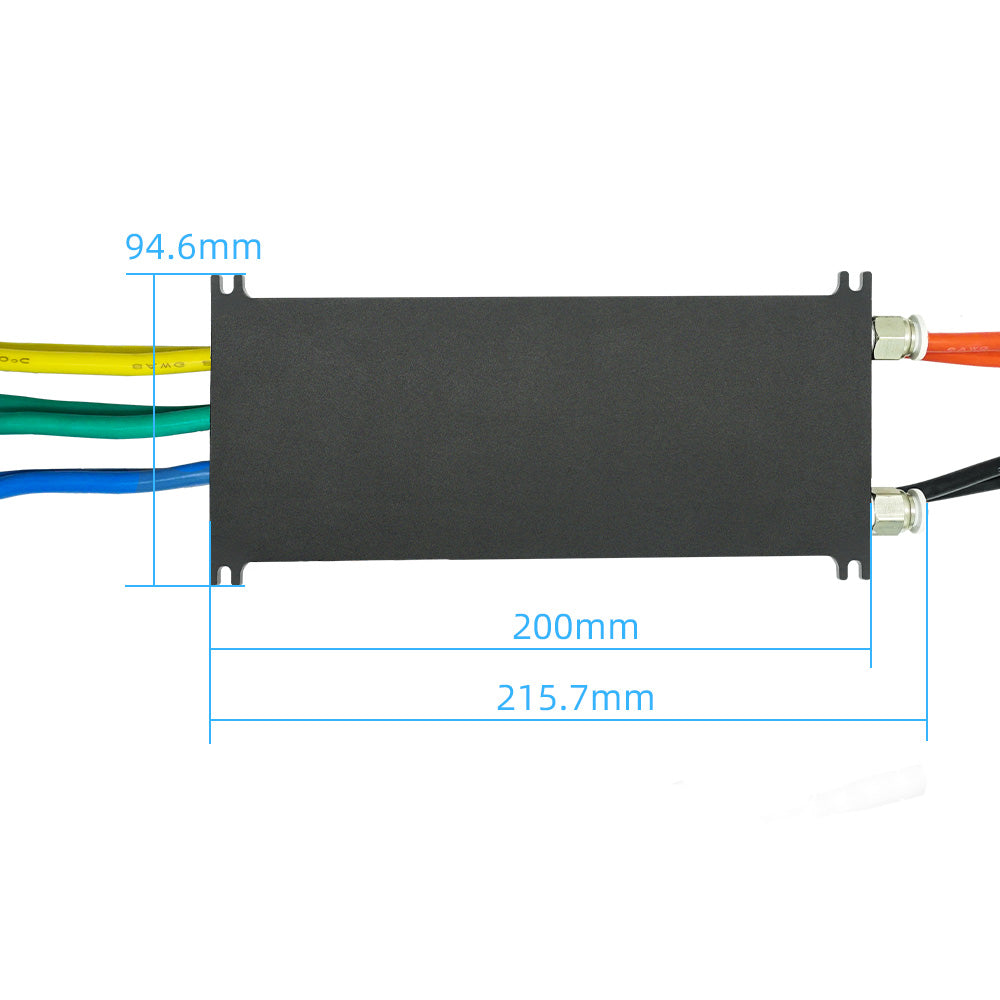

Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors)
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200 !
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Feature:
1.Regenerative braking
2.The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
3.Sensored or sensorless operation + hybrid mode
4.Configurable RPM-, current-, voltage- and power limits
5.Input source: PPM, ADC, NRF,UART,PAS
6.Communication ports: USB, CAN, UART,SPI,IIC
7.Throttle curve and ramping for all input sources
8.Seamless 4-quadrant operation
9.Motor revolution, ampere hour, watt hour counting
10.Real-time data analysis and readout through the communication port.
11.Adjustable protection against:
12.Low input voltage
13.High input voltage
14.High motor current
15.High input current
16.High regenerative braking current (separate limits for the motor and the input)
17.High RPM (separate limits for each direction)
18.Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate.
19.Motor wire: 8AWG
20.Power cable: 8AWG
21.Waterproof level(with water cooling enclosure):IP67

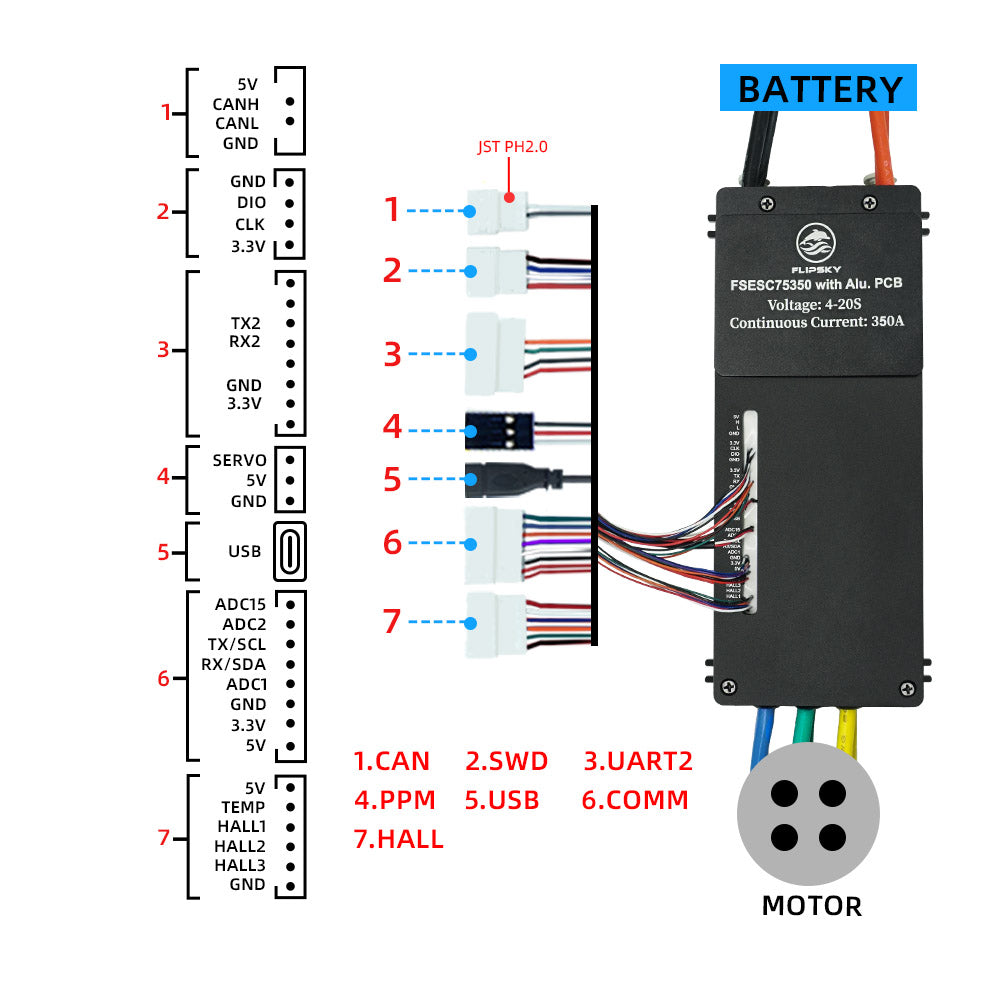

Wire Connection:
