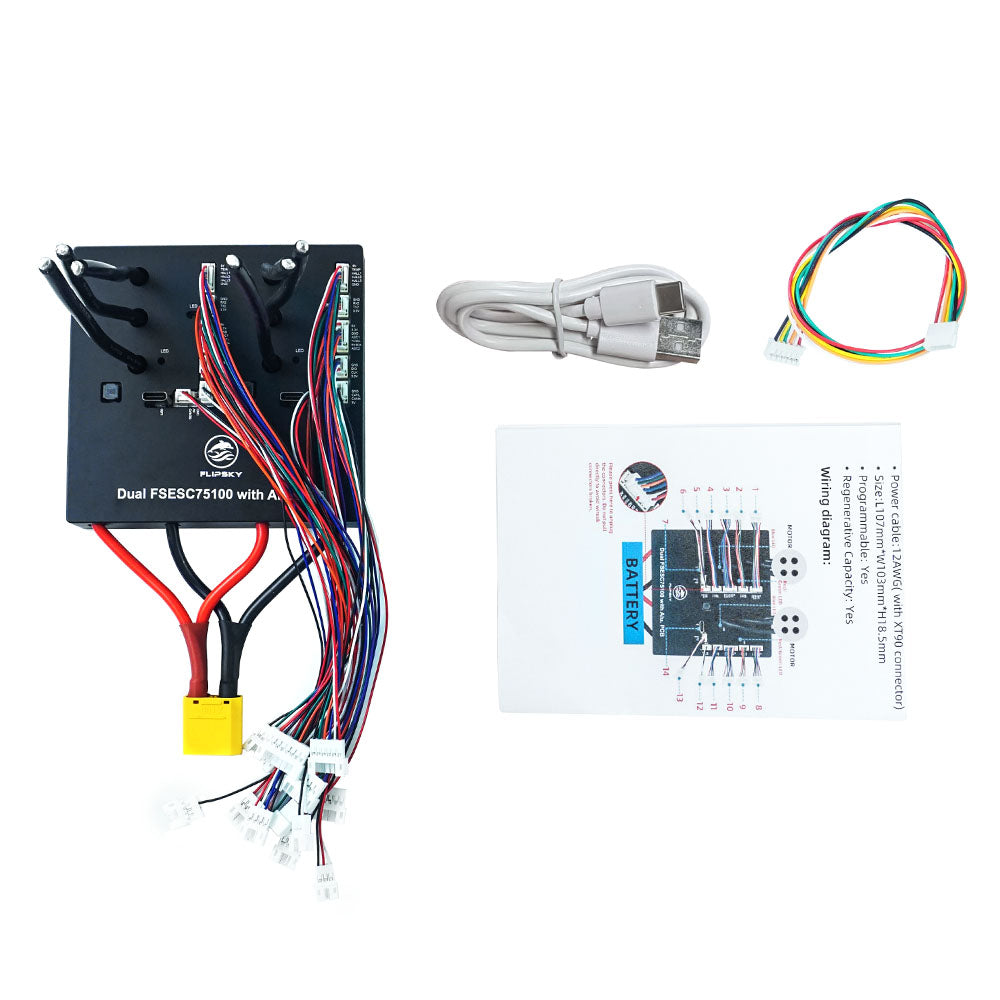

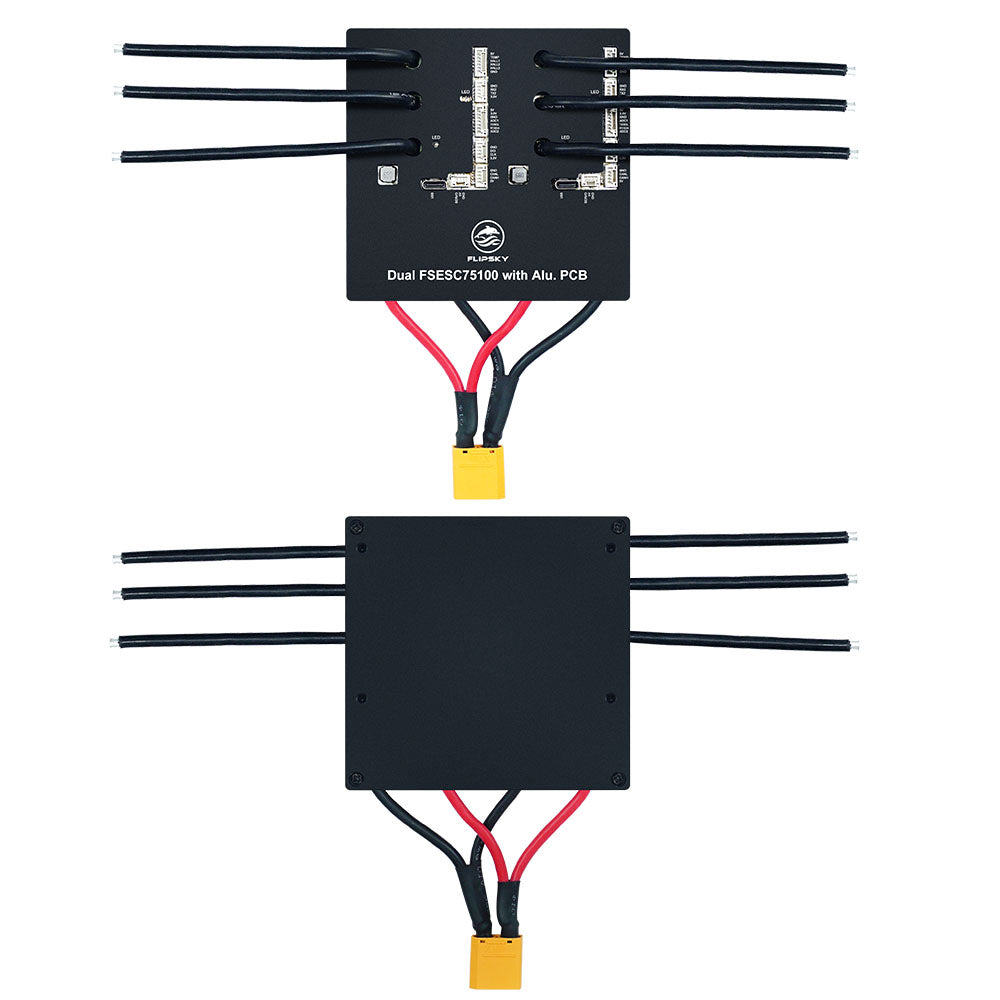

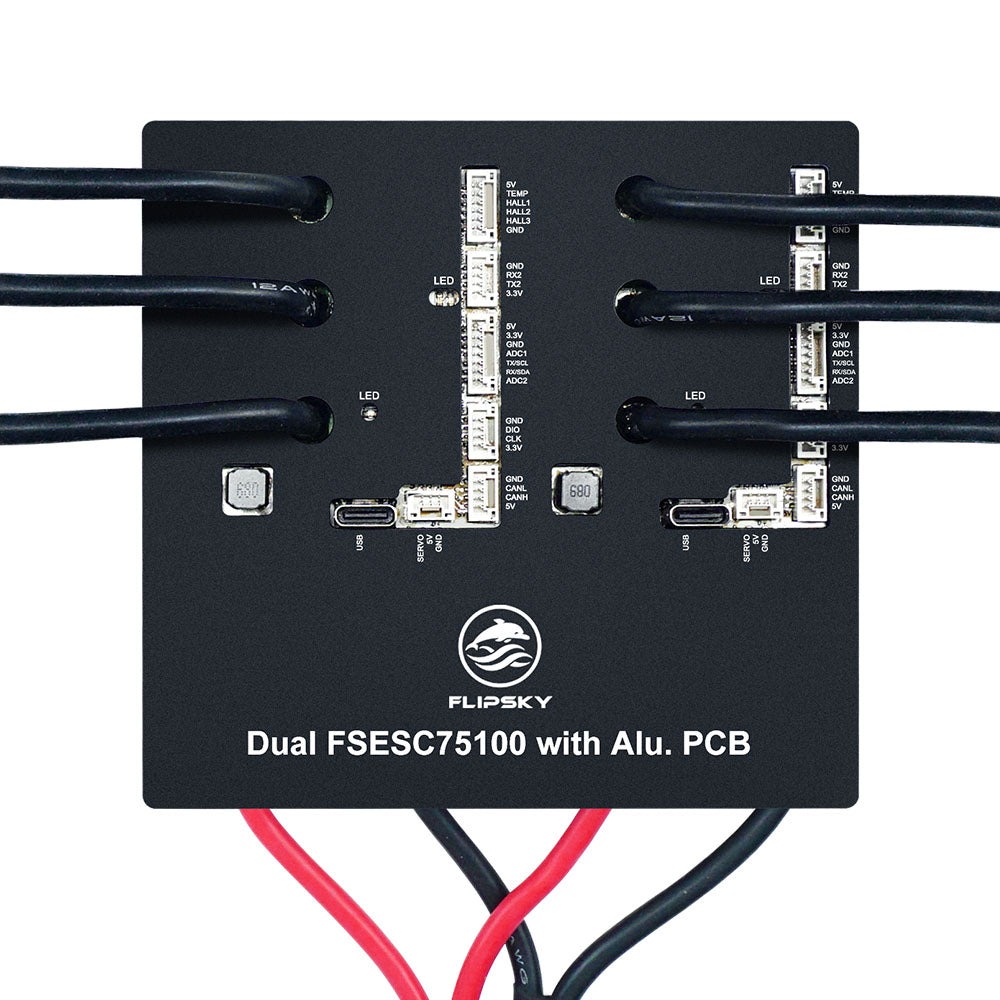

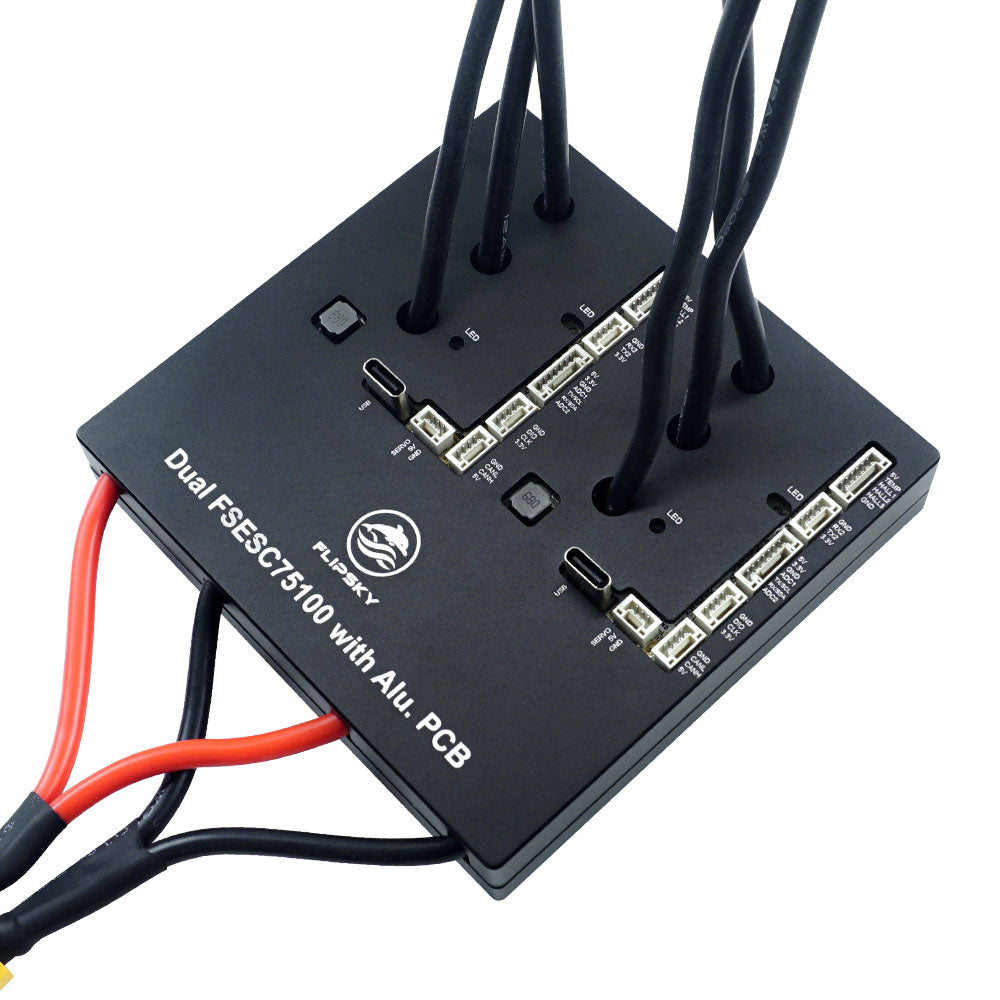

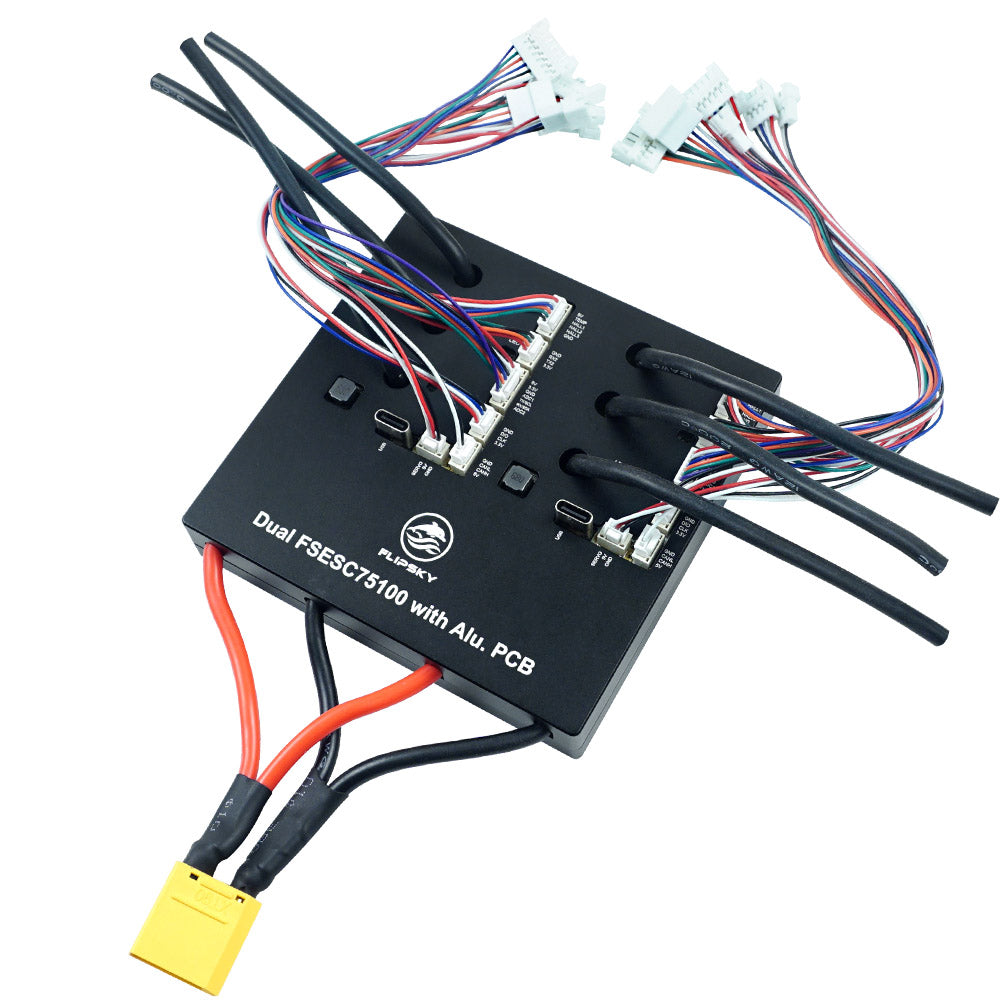

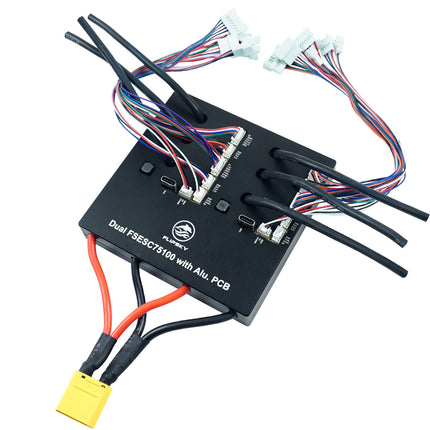

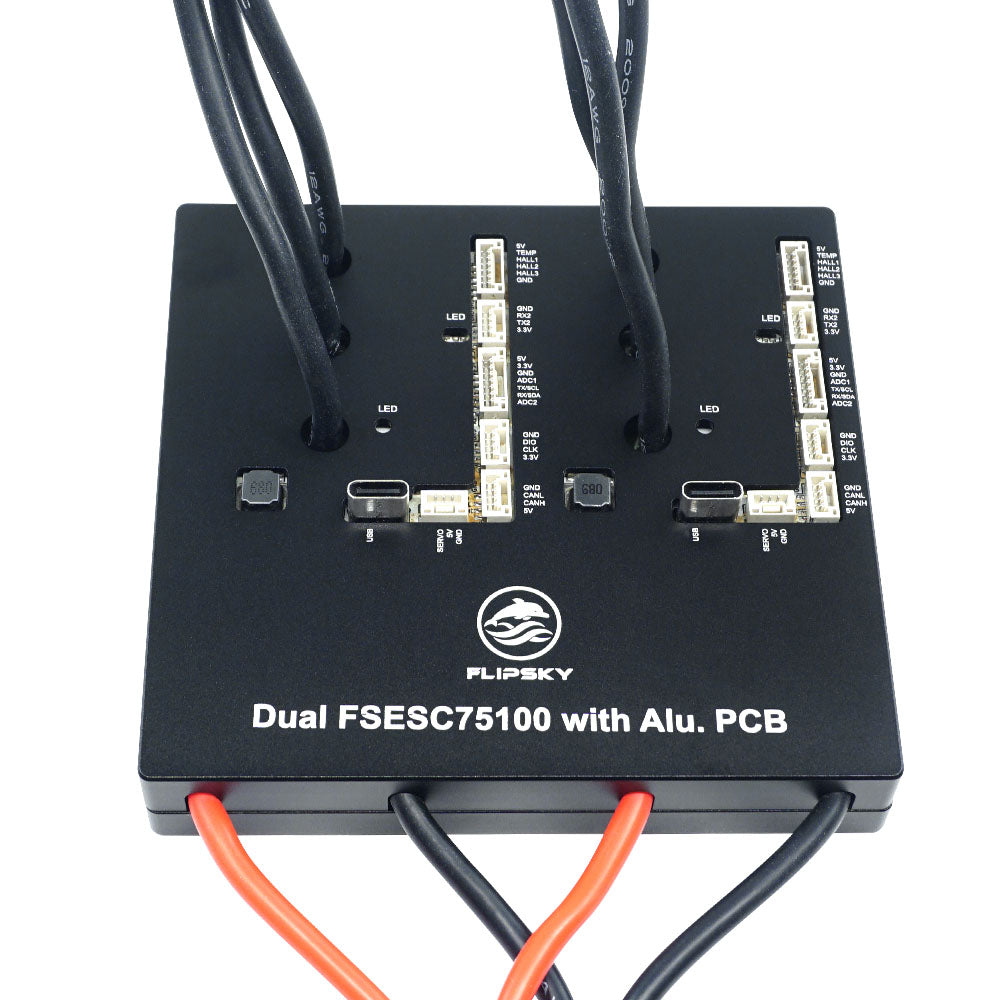

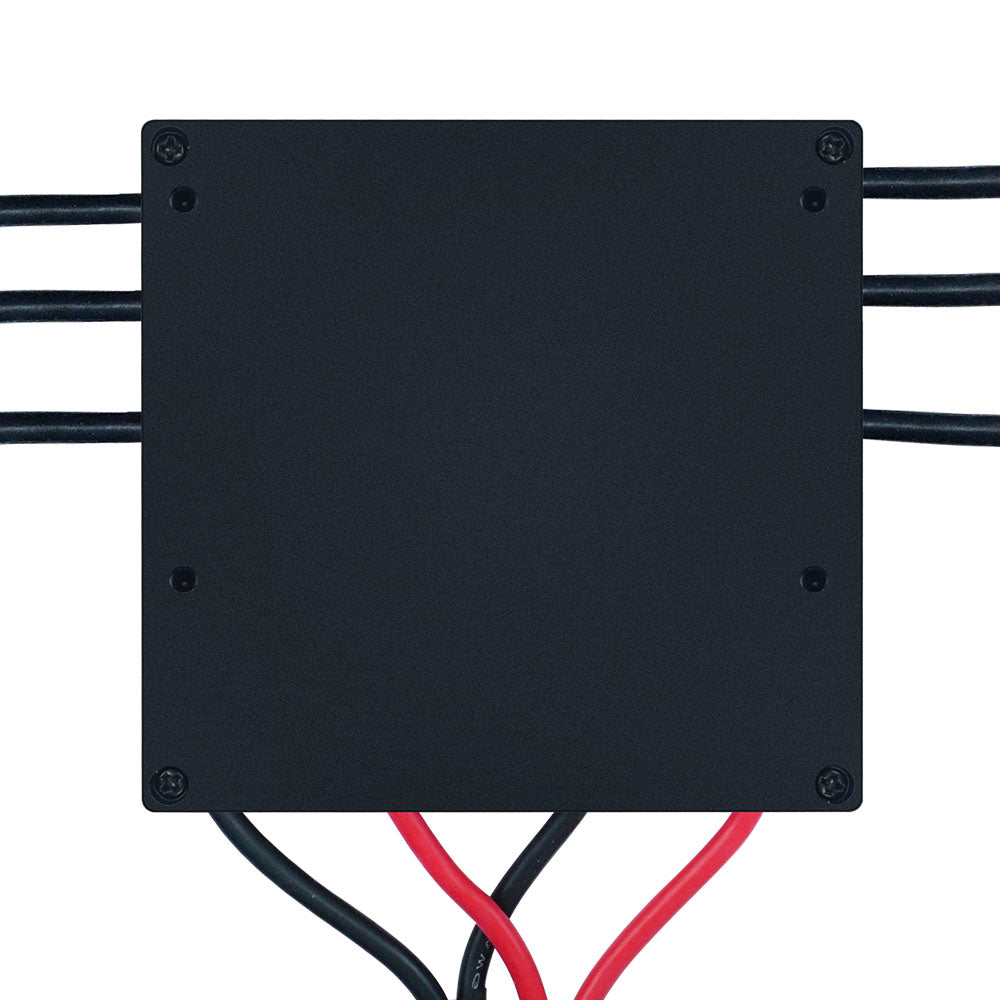

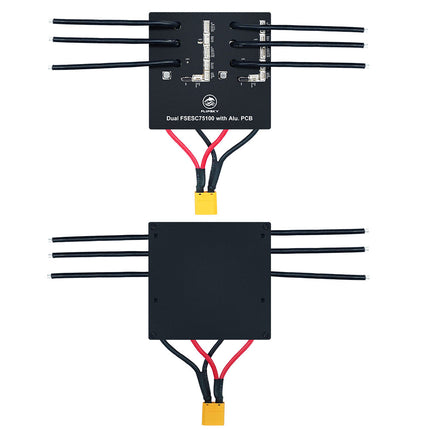

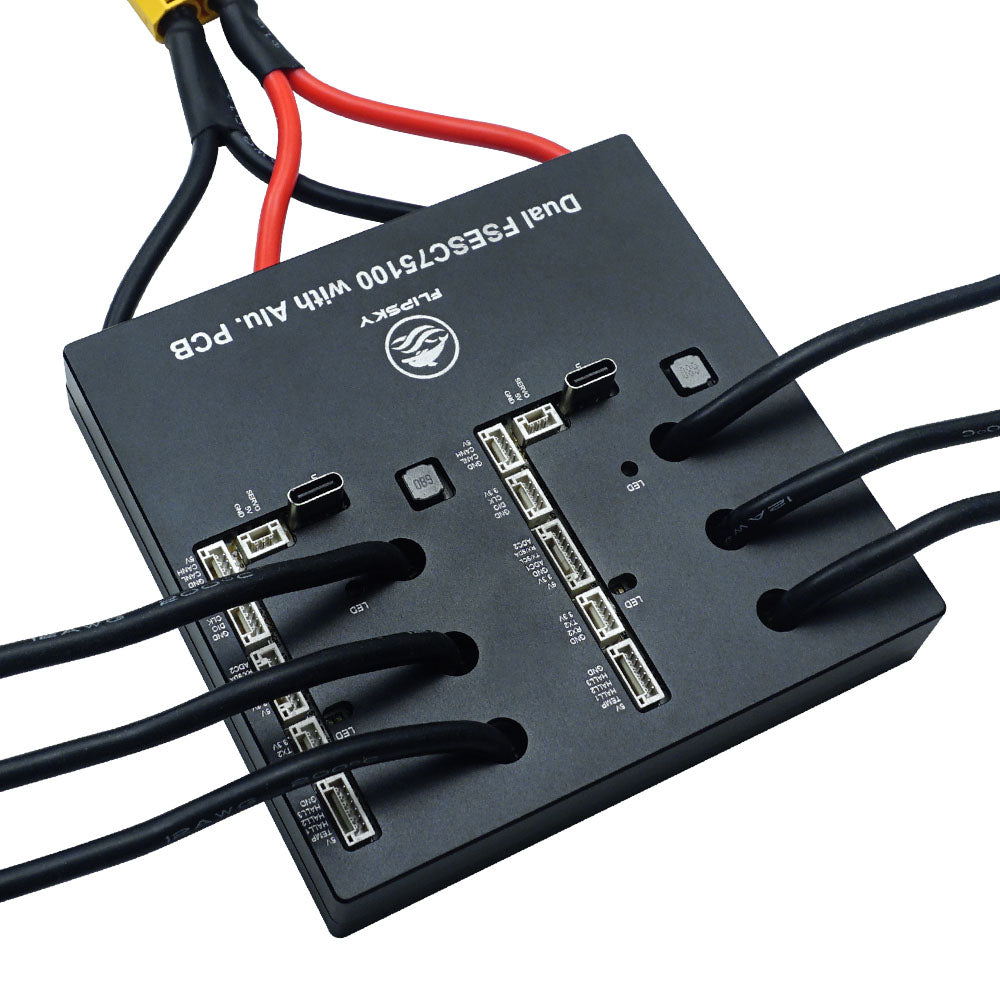

Flipsky 75100 Dual Drive VESC ESC Speed Controller 84 V 240A Peak For E-Skateboard Scooter Ebike With Aluminum PCB Regenerative Capacity

Beschreibung

Speciation:

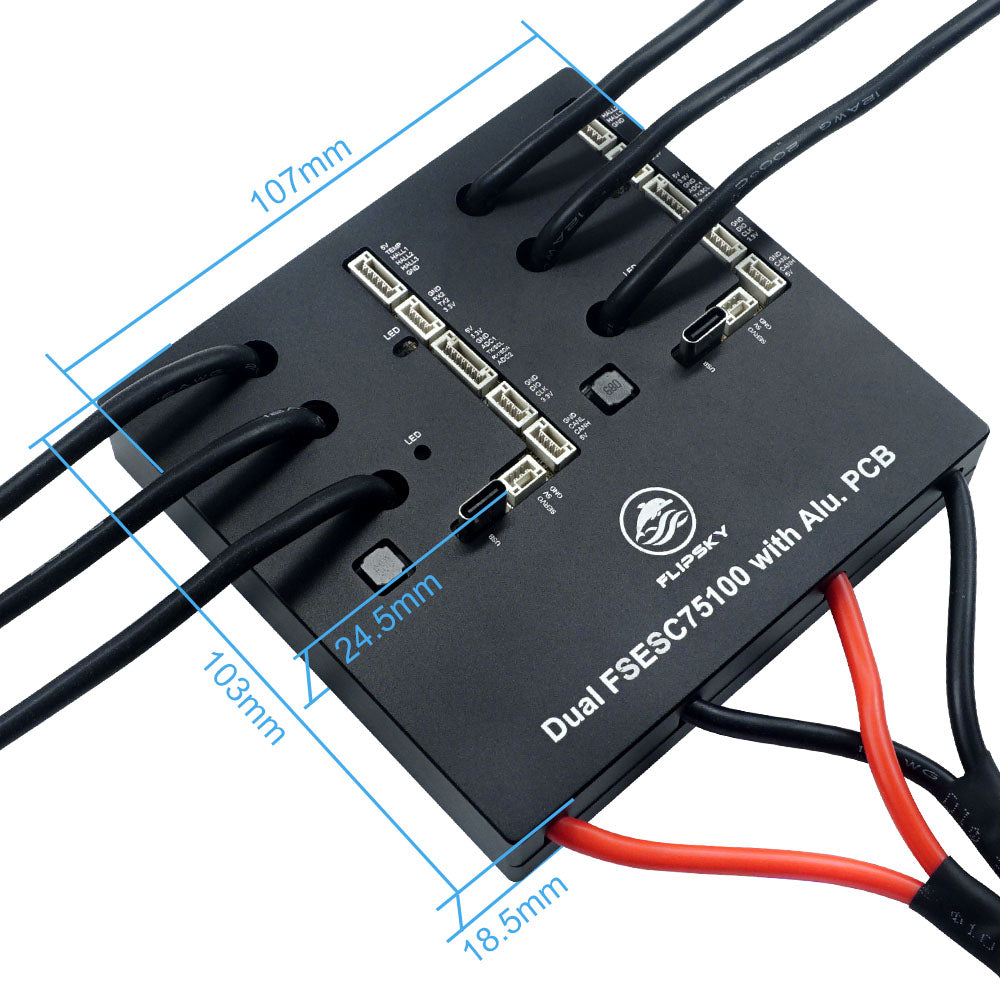

Size:L107mm*W103mm*H18.5mm
Voltage:14-84V (4-20S safey)
Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!
BEC:5V@1A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 12AWG
Programmable: Yes
Regenerative Capacity: Yes

Warm tips:

Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.

Wire Connection:

Flipsky 75100 Dual Drive VESC ESC Speed Controller 84 V 240A Peak For E-Skateboard Scooter Ebike With Aluminum PCB Regenerative Capacity

Produkt Form

Speciation: Size:L107mm*W103mm*H18.5mmVoltage:14-84V (4-20S safey)Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!BEC:5V@1ASupport... Lesen Sie mehr

SKU: VA-75D-N-100

$230.00 $172.00 Exkl. MwSt

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Heute verschickt? Bestellung innerhalb: Oct 24, 2025 17:00:00 +0800

    Beschreibung

    Speciation:

    Size:L107mm*W103mm*H18.5mm
    Voltage:14-84V (4-20S safey)
    Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!
    BEC:5V@1A
    Support BLDC square wave mode control and FOC sine wave mode
    Firmware: latest (firmware update supported)
    ERPM:150000
    Control Interface Ports:USB,CAN,UART
    Supported Sensors:ABI，HALL，AS5047，AS5048A
    Input Set Support:PPM，ADC，NRF,UART
    Wire Size: 12AWG
    Programmable: Yes
    Regenerative Capacity: Yes

    Warm tips:

    Phase filering is not available for Flipsky ESC75100 and 75200!
    Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.

    Wire Connection:
