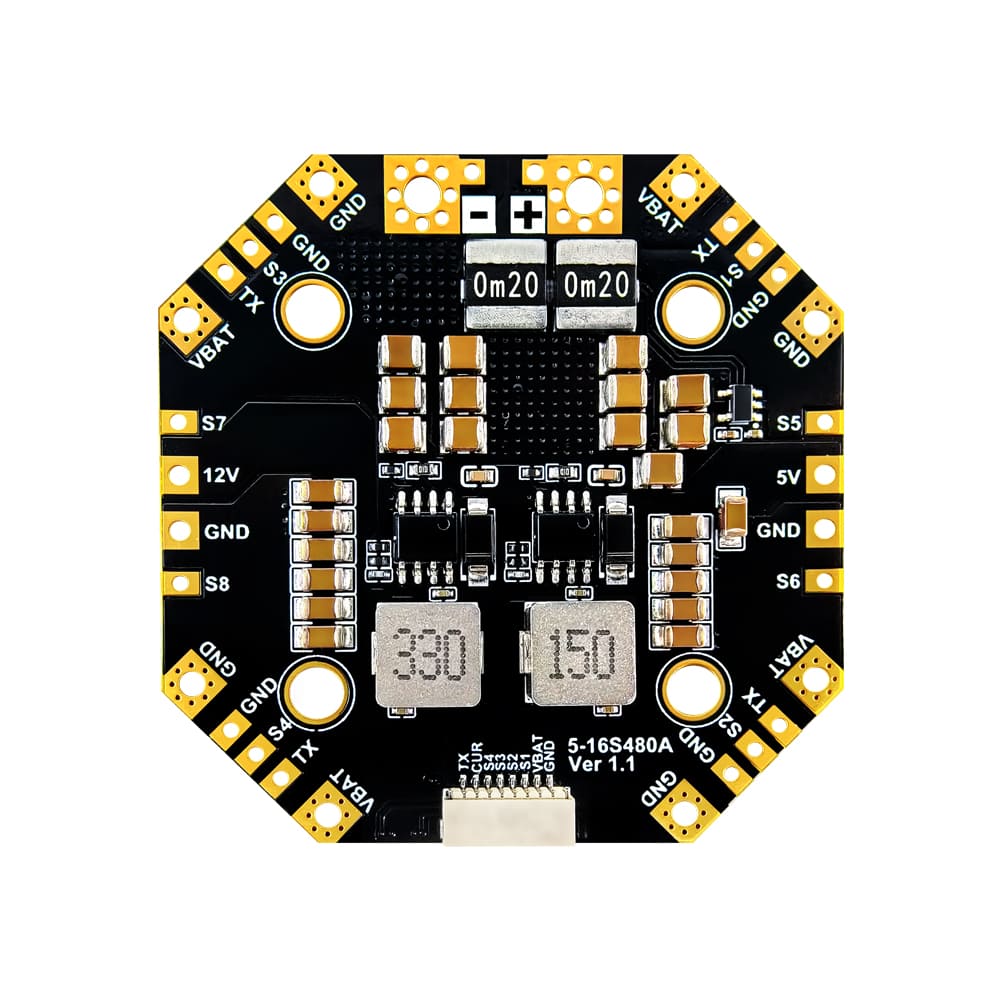

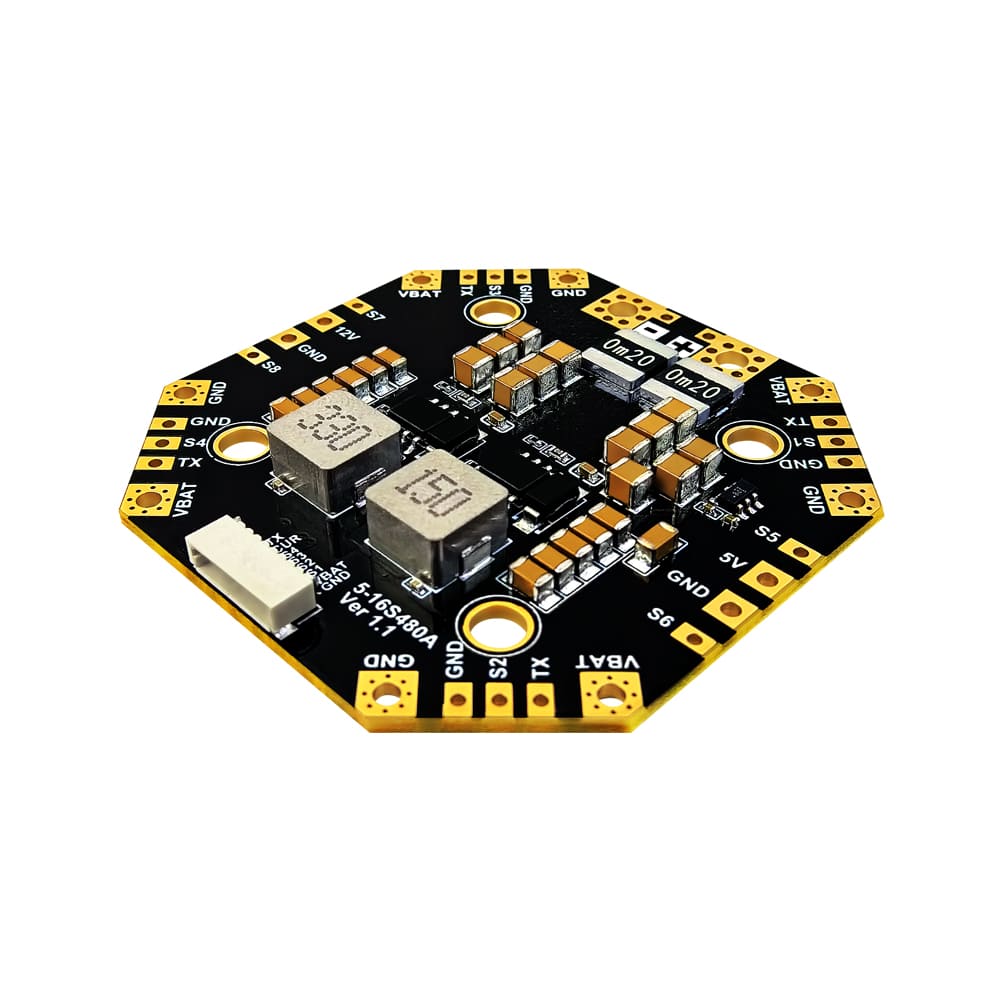

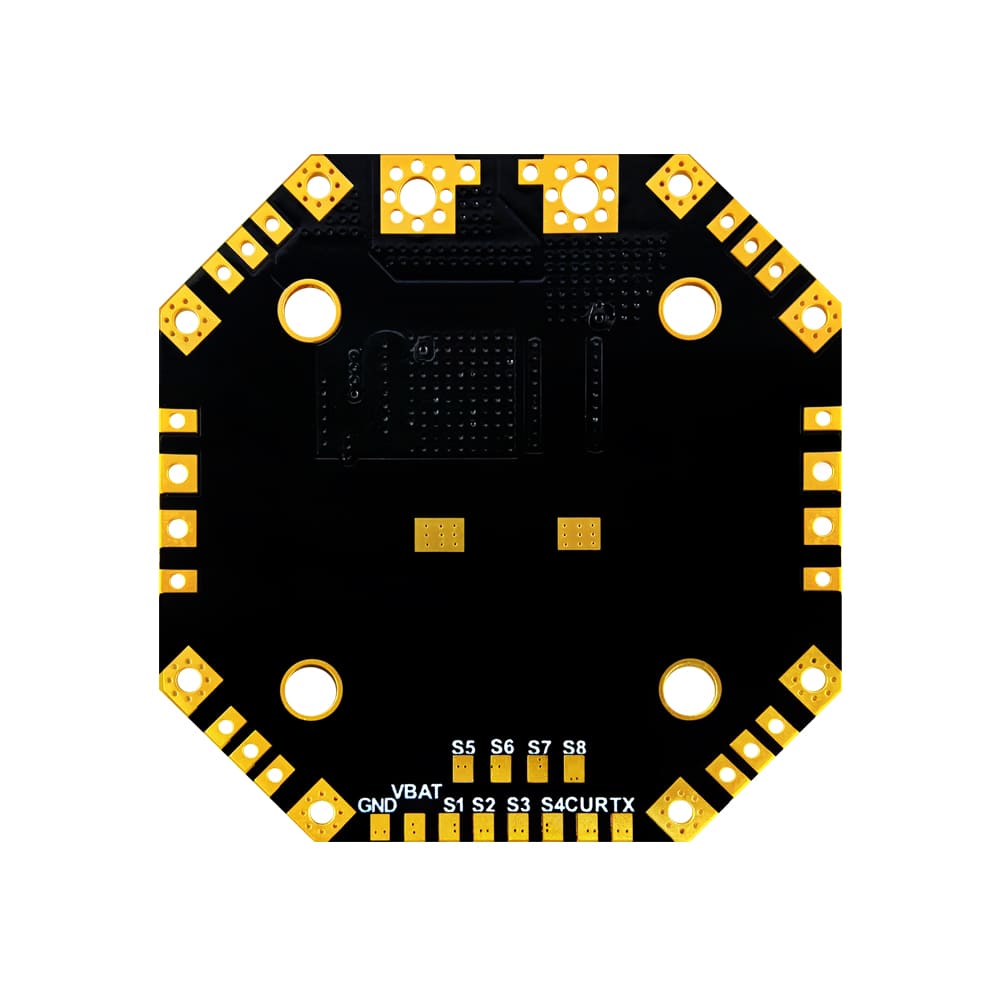

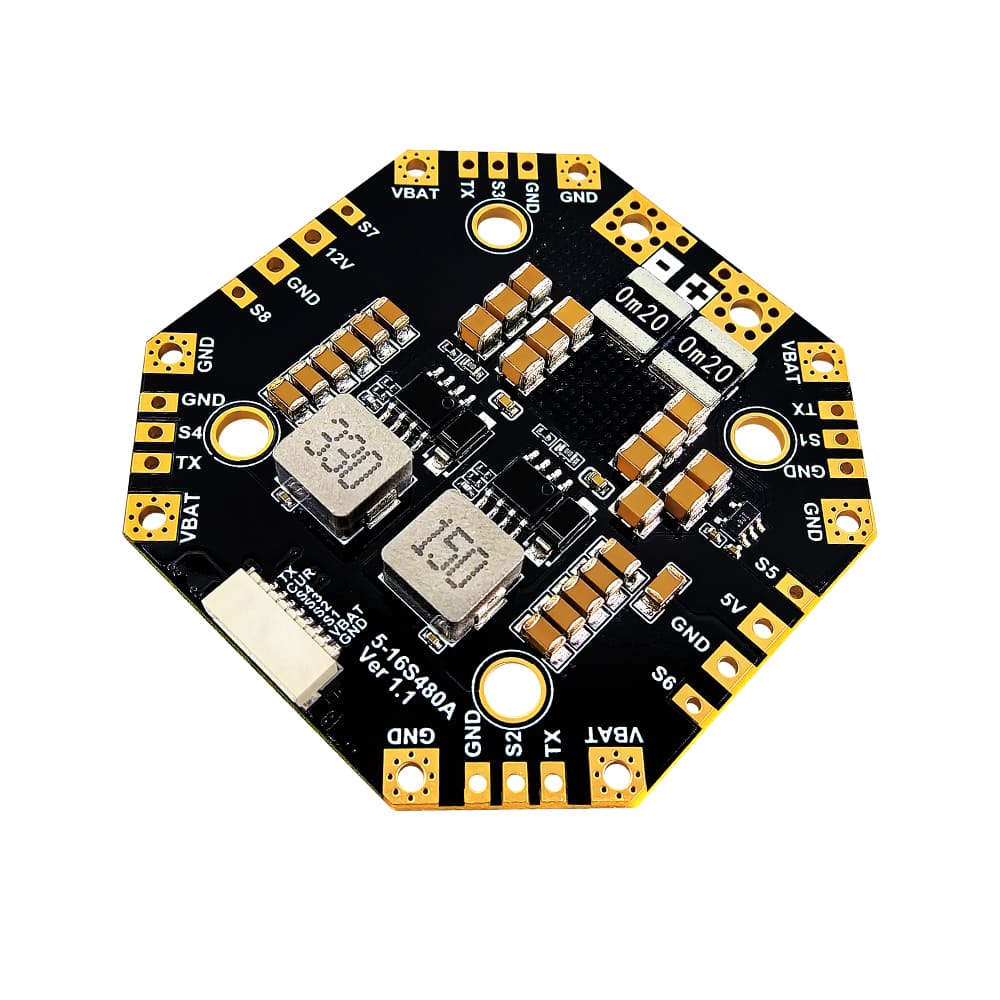

MAXKGO 5-16S 480A High Current Power Distribution Board
The MAXKGO 5-16S 480A Power Distribution Board (PDB) is a high-performance power distribution solution designed for high-power FPV racing drones, multirotor drones, and large UAV platforms.
Supporting 5S to 16S LiPo battery input and delivering up to 480A total continuous current (120A × 4 channels), this PDB provides stable and efficient power distribution for demanding drone applications.
Designed with a lightweight structure and high-current capability, it features a 6-layer PCB with 3oz copper layers, ensuring excellent current handling performance and improved reliability during high-load operation.
The board integrates dual BEC outputs (5V and 12V), allowing direct power supply for flight controllers, cameras, receivers, and other onboard electronics.
Key Features
Ultra High Current Capability
- Supports 5S-16S LiPo battery input
- Total continuous current: 480A
- 4-channel output design:
- 120A continuous current per channel
- 130A peak current per channel
Dual BEC Power Output
Built-in dual voltage BEC outputs:
- 5V / 3A output
- 12V / 3A output
Suitable for powering:
- Flight controllers
- FPV cameras
- Video transmitters
- Other onboard electronics
High-Performance PCB Design
- 6-layer PCB structure
- 3oz copper layers for excellent current capacity
- Lightweight design with only 17.7g net weight
- Compact size for easy installation
Multiple ESC Support
Supports up to 8 ESC connections, making it suitable for larger multirotor platforms.
Technical Specifications
| Item |
Specification |
| Product Type |
High Current Power Distribution Board |
| Battery Input |
5S-16S LiPo |
| Input Voltage Range |
15V-68V |
| Continuous Current |
480A Total (120A × 4) |
| Peak Current |
130A per channel |
| BEC Output 1 |
5V / 3A |
| BEC Output 2 |
12V / 3A |
| ESC Support |
Up to 8 ESCs |
| PCB Structure |
6-layer PCB |
| Copper Thickness |
3oz |
| Efficiency |
≤95% |
| Static Power Consumption |
1mA |
| Current Sensor Ratio |
50 |
| Communication Port |
8-pin SH1.0 connector |
| Mounting Hole Pattern |
30.5 × 30.5mm |
| Mounting Hole Diameter |
4mm (M4) |

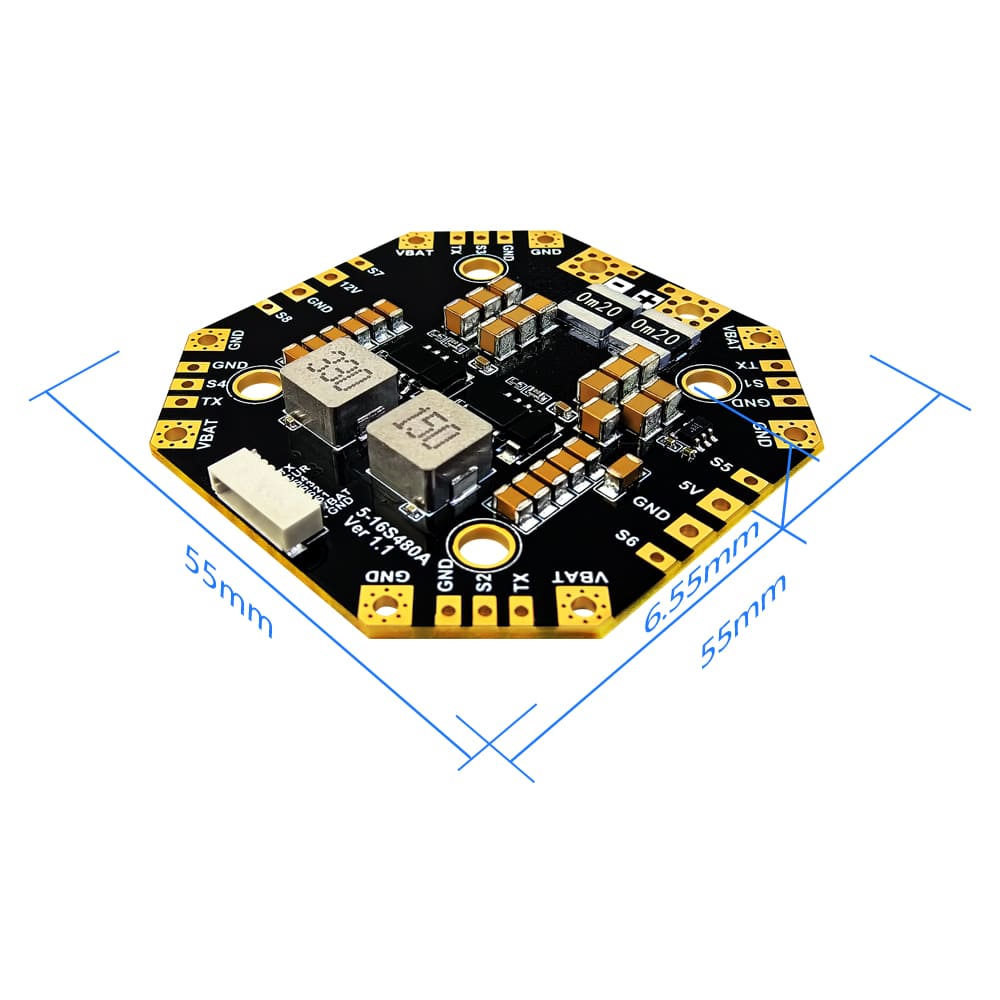

| Dimensions |
55 × 55 × 6.55mm |
| Weight |
17.7g |
| Operating Temperature |
-20℃ to 100℃ |
| Recommended Drone Size |
8-16 inch |
Applications
The MAXKGO 5-16S 480A PDB is ideal for:
- FPV Racing Drones
- Long-range FPV Drones
- Heavy-lift Multirotors
- Industrial UAV Platforms
- High-power Drone Builds

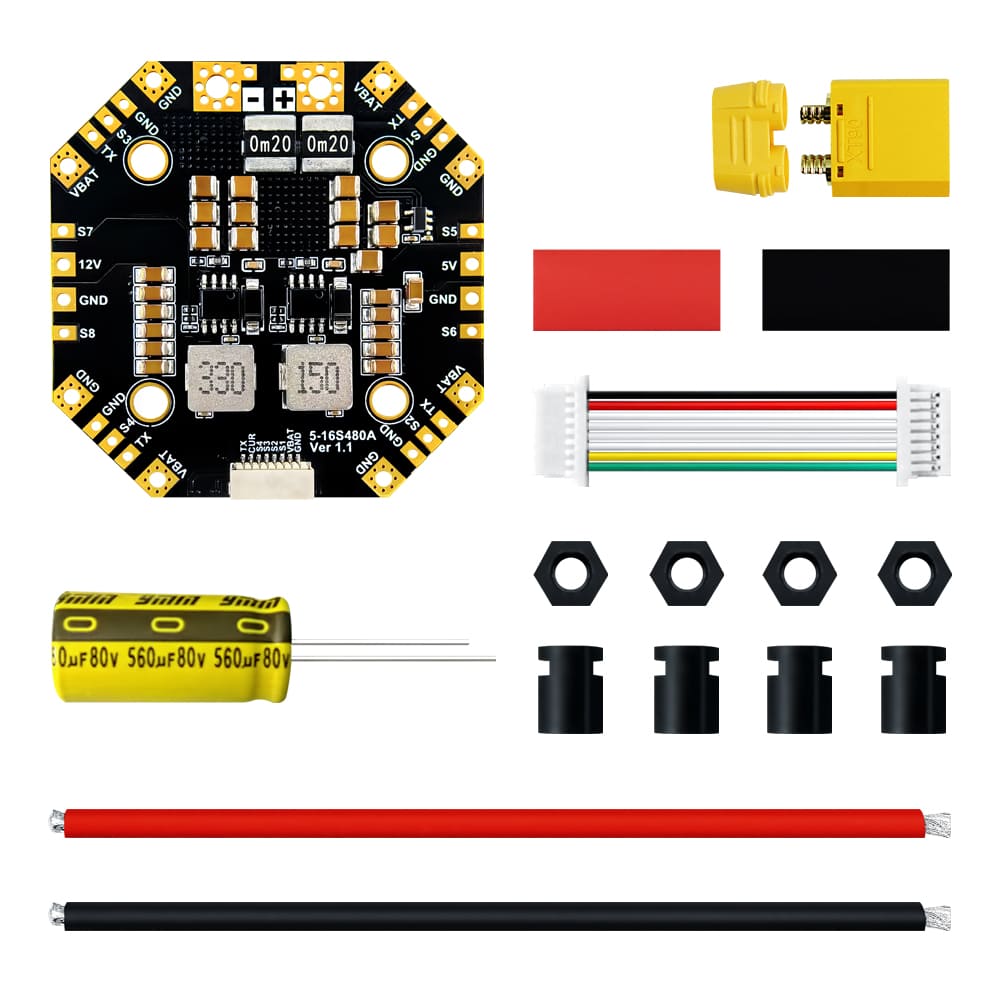

Package Includes
- MAXKGO 5-16S 480A Power Distribution Board ×1
- 8-pin Dual Connector Cable ×1
- Anti-vibration Rubber Balls ×5
- M3 Nuts ×5
- Power Cable (8AWG 120mm) ×1
- XT90 Male Connector ×1
- Capacitor 80V 560μF ×1
- Heat Shrink Tubes ×2
