Flipsky FSESC 75300 84V 350A Maximum ESC Vesc Controller With Alu PCB Water Cooling Enclosure For E-Foil Fighting Robot

Beschreibung

Specifaction:

Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/300A,75V/200A
Max Current :350A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000

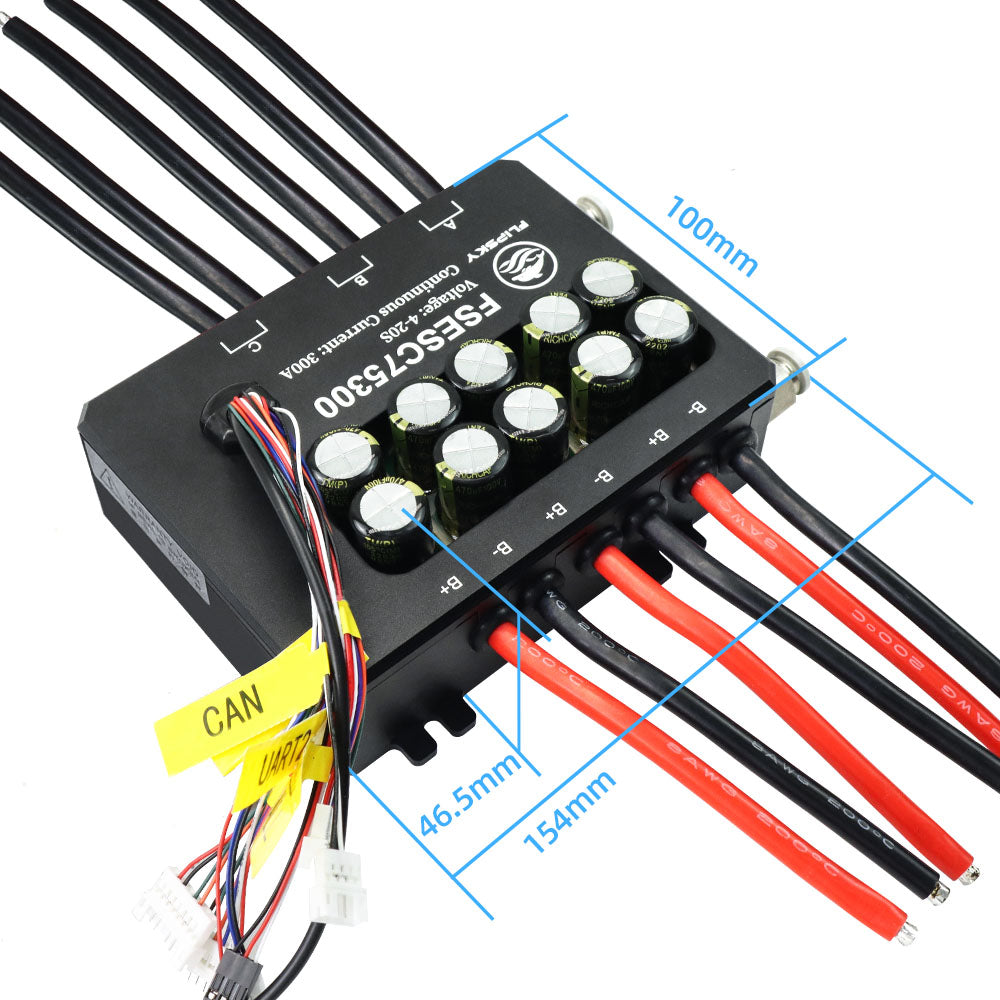

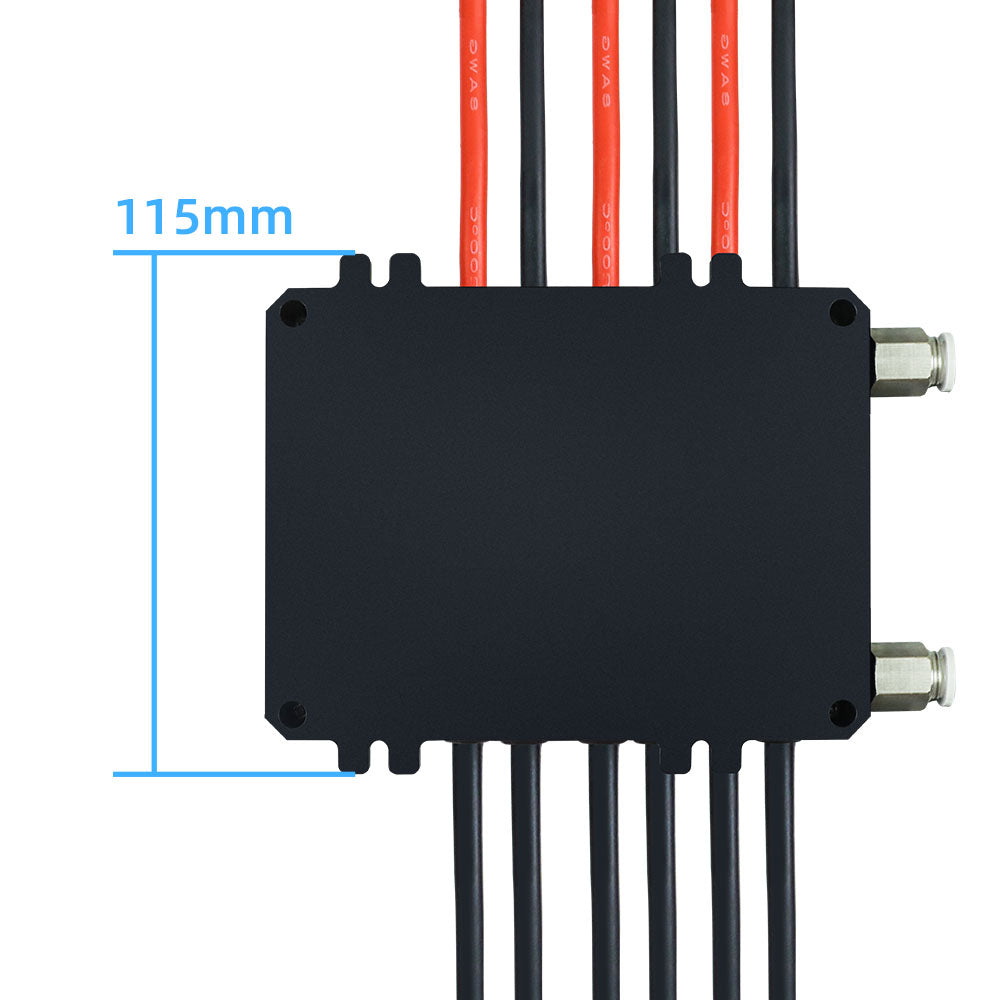

Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)

Feature:

Regenerative braking
The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM-, current-, voltage- and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Real-time data analysis and readout through the communication port.
Adjustable protection against:
Low input voltage
High input voltage
High motor current
High input current
High regenerative braking current (separate limits for the motor and the input)
High RPM (separate limits for each direction)
Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
Motor wire: 8AWG
Power cable: 8AWG
Waterproof level(with water cooling enclosure):IP67

Wire Connection:

Flipsky FSESC 75300 84V 350A Maximum ESC Vesc Controller With Alu PCB Water Cooling Enclosure For E-Foil Fighting Robot

Produkt Form

Specifaction: Voltage:14-84V( safe for 3-20S)Continuous Current : 50V/300A,75V/200AMax Current :350ASupported sensors: ABI, HALL, AS5047,AS5048AEPRM:150000Size:297*115*45mm((Including the height of water pipes and... Lesen Sie mehr

SKU: VW-75S-N-300

$250.00 $236.00 Exkl. MwSt

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product

      Beschreibung

      Specifaction:

      Voltage:14-84V( safe for 3-20S)
      Continuous Current : 50V/300A,75V/200A
      Max Current :350A
      Supported sensors: ABI, HALL, AS5047,AS5048A
      EPRM:150000
      Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)

      Feature:

      Regenerative braking
      The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
      Sensored or sensorless operation + hybrid mode
      Configurable RPM-, current-, voltage- and power limits
      Input source: PPM, ADC, NRF,UART,PAS
      Communication ports: USB, CAN, UART,SPI,IIC
      Throttle curve and ramping for all input sources
      Seamless 4-quadrant operation
      Motor revolution, ampere hour, watt hour counting
      Real-time data analysis and readout through the communication port.
      Adjustable protection against:
      Low input voltage
      High input voltage
      High motor current
      High input current
      High regenerative braking current (separate limits for the motor and the input)
      High RPM (separate limits for each direction)
      Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
      Motor wire: 8AWG
      Power cable: 8AWG
      Waterproof level(with water cooling enclosure):IP67

      Wire Connection:
