5-12S200AMINI_ESC Parameters： Type: Brushless Motor Electronic Speed Controller Continuous Current: 200A Instantaneous Current: 250A Net Weight 160g  Gross Weight: 360g Size: 84mm (L) × 43mm (W) × 28mm (H) Input Power Supply: 5S-12S LiPo Firmware Version: MAXKGO_12S_F421 Firmware Upgrade: Supports online upgrade via AM32.ca Communication Protocol: Dshot 300, Dshot 600, Servo PWM Signal Feedback: The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed5-12S200AMINI_ESC Features： MINI SizeSupports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz Stall protection for RC cars and crawlers Stuck rotor protection for multi-rotor drones Firmware upgradable via betaflight passthrough, or single wire serial or Arduino web configurator at am32.ca Supports Dshot 300, Dshot 600 and Servo PWM communication protocol EDT for full Dshot telemetry via signal wires Sinusoidal startup mode for smoother starting on RC cars and crawlers 5-12S200AMINI_ESC Application Fields： Multi-rotor Drone Fixed-wing Model Aircraft RC Model Car Model Boat Plant Protection Machine   Shipping List： 5-12S200AMINI_ESC Main Unit *1 Heat Shrink Tubes *5 PH2.0 Communication Cable *1

Read more less

Describe: (1) Adopt 32-bit high-performance processor AT32F421, with working frequency 120MHz and maximum motor PWM frequency 128KHz . (2) Adopt high-power MOSFETs and heatsink with good heat dissipation performance in high current. (3) Support multiple motion modes such as uni-direction, bi-direction with braking etc. (4) Support low voltage protection, temperature protection, locked rotor protection, current protection etc. (5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot. (6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings. (7) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars. 2. Parameters of Product Model MAXKGO 5-12S 120A_ESC Processor AT32F421 Input voltage DC 18V-50.4V（5-12S Lipo） Continuous current (good heat dissipation) 120A Maximum current  (good heat dissipation) 150A Support firmware AM32 Signal protocol Dshot (All),PWM,Oneshot,Multishot,etc. Programming parameter adjustment Support Throttle calibration Support Timing angle setting Support Current detection Support Telemetry signal Support Motor steering settings Support Application scenarios Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers. 5-12S120A_ESC Features： MINI SizeSupports various protection functions: low-voltage protection, temperature protection, locked-rotor protection, and low-speed protection High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz   5-12S120A_ESC Application Fields： Multi Axis UAV (Unmanned Aerial Vehicle) Fixed-wing model aircraft Multi-rotor model aircraft RC model car Model boat Packing List： 5-12S120A_ESC Main Unit * 1 Heat Shrink Tubing * 5 PH2.0 Communication Cable * 1

Read more less

Specifications :  Firmware: 5.2 (supporting firmware upgrade)  Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!)  Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )  BEC: 5V@1.5A; ERPM: 150000  Supported sensors: Sensorless Supported Modes: BLDC, FOC (sinusoidal)  Control Interface Ports: USB UART  Input Set Support: PPM, ADC, NRF, UART  Regenerative capacity: Yes Programmable: Yes   Power Wire: 8AWG 1200mm / Motor Wire: 8AWG 170mm   Size: 103.5x67.6x27.5mm(Including aluminum case)  Features:  1.Fully sealed with IP68 water-proof rate.  VESC ESC: based on vesc6, programmable via VESC_TOOL and support real-time data read.  2.6-layer 3oz special PCB plate with good heat dissipation, support rated current 150Amps. 3.Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.  4.Support three control modes: Current / Dutycycle / Speed.  5.Multiple protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection over 80 ℃.  6.Compact size with high efficiency: 103.5x67.6x27.5mm.  Wiring Diagram:

Read more less

Click it MINI V6.8 Specifications :  Firmware:  vesc_tool_3.00 5.2 (supporting firmware upgrade) Continuous current: 100A; instantaneous current: 150A (values depend on the mounting and ambient temperature around the device!) Voltage: 14V-60V(Cells: 4-13S; safe for 4S-12S, voltage spikes may not exceed 60V! )  BEC: 5V@1.5A; ERPM: 150000 Support Hall Sensor: No, Sensorless Supported Modes: BLDC, FOC (sinusoidal) Control Interface Ports: USB, CAN, UART, IIC Input Set Support: PPM, ADC, NRF, UART Regenerative capacity: Yes Programmable: Yes Motor wire: 10AWG; Power cable: 8AWG Size: 64x43.5x34.7mm(Including heatsink) Features: Based on vesc6, programmable via VESC_TOOL and support real-time data read. Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.  Support three control modes: Current / Dutycycle / Speed. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 Wiring diagram: MINI V6.8 Plus Specifications :  Firmware: 5.2 (supporting firmware upgrade) Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!) Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1.5A; ERPM: 150000 Supported sensors: ABI, HALL,AS5047,AS5048A Supported Modes: BLDC, FOC (sinusoidal) Control Interface Ports: USB, CAN, UART, IIC Input Set Support: PPM, ADC, NRF, UART Regenerative capacity: Yes Programmable: Yes Power Wire: 8.0mm bullets female X 2pcs Motor Wire: 8.0mm bullets female X 3pcs Size: 92.7x68x31.5mm(Including aluminum case) Features: 1) Based on vesc6, programmable via VESC_TOOL and support real-time data read. 2) Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed. 3) Support four control modes: Current / Dutycycle / Speed 4) Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. 5) Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 Wiring diagram:

Read more less

2670 Brushless ESC Product Description: (1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.(2) PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.(6)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible.(7) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.(8) Onboard RGB LED color light settings, multiple LED colors can be customized.(9) Widely used in FPV racing drone,multi-axis drones, fixed-wing, model ships, climbing vehicles, model cars and other scenarios. Parameters of 2670 Brushless ESC: Model  2670 Processor STM32G071 Input voltage DC 7V-25.2V（2-6S Lipo） Continuous current (good heat dissipation) 70A Maximum current  (good heat dissipation) 110A Support firmware BLHeli_32，AM32 BLHeli_32 firmware SEQURE_G071_01 AM32 firmware SEQURE_G071 Signal protocol Dshot (All), PWM, Oneshot, Multishot, etc. Programming parameter adjustment Support Throttle calibration Support Timing angle setting Support Current detection Support Telemetry signal Support Motor steering settings Support RGB LED color lights Support BEC (if any) 5V/4A，6V/4A，7.2V/4A，8.2V/4A，12V/3A adjustable Application scenarios FPV racing drones, multi-axis drones, fixed-wing  UAV, model ships, climbing vehicles, model cars, etc.

Read more less

ESC E70 G1 2-8S 70A High Performance Controller BLHeli_32-bit 128K 4-in-1 For FPV Racing Drone Racing Freestyle (1) STM32G071 high-performance processor, using BLHeli_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A. (2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time. (3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time. (4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure. (5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel. (6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem. (7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty. (8) 20*20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.   Package Content: SEQURE E70 G1 4 in 1 ESC × 1 30AWG 40mm reverse double plug SH1.0-8P cable × 1 30AWG 60mm single plug SH1.0-8P cable × 1 12AWG 100mm power cable (black/red)×2 XT60H-M black male connector×1 35V 680UF solid capacitor×1 M3*8mm shock absorbing washer (black) × 5 M3*4.5mm shock absorbing washer (black) × 5

Read more less

Specifications :  Firmware: V1.5 and above (firmware update via Flipsky ESC Tool supported)Voltage: 14V-85V (safe for 4S-20S)Continuous current: 50V/400A; 75V/350A; 85V/300A (Values depend on the mounting, ambient temperature and air/water circulation around the device.)Peak Current: 800ABEC: 5V@1APower/Motor Wires: Integrated M6 terminalsProgrammable Tool: Flipsky ESC TOOLPWM Frequency Control: YESMultiple Speed Gear Limit Control: YES (UART / ADC)Regenerative Capacity: YESCommunication Ports: USB, CAN, UART, PPM, ADC/PASInput Signals Support: PPM, ADC, PAS, UART(compatible with FLIPSKY remote such as VX1, VX1Pro, VX2, VX3, VX3Pro, VX4Pro )Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), ENCODER(ABI Encoder，AS5047 Absolute Type Encoder SPI Port), OPEN(Sensorless Open-Loop Startup)Traction Control: YESMultiple Speed Gear levels: Low, Medium, High, ReverseSwitch Support: Power on/off button switch or key switchSize:L190*W109.1*H55.8(with aluminum enclosure) Features: 1.Adopting ARM Cortex-M4 structure with the max 240MHz , improves PWM switching frequency and the motor RPM.2.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and multiple control methods.3.Programmable via Flipsky remote controller VX4Pro(remote firmware version: VX4Pro_V1.1 and above)4.Supporting motor FOC with low working noise and smooth starting.5.Supporting Real-time data and fault alerts.6.Supporting adaptive variable PWM frequency control.7.Supporting sensor mode(HALL,ENCODER) and sensorless mode(IPDS, HFPI,OPEN).8.Supporting control types: Current, Duty Cycle, Speed Control, Position Control.9.Supporting multiple types of motor temperature sensors such as NTC-10k-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY, etc.10.Protection functions: low and high voltage protection, motor over-temperature protection, MOSFET over-temperature and over current protection, battery over discharge protection.11.Integrating power of 12V(3pcs) to provide power for external devices(headlight, brake light, horn, etc.) with two groups normally open and one controlled by brake signal. (Note: maximum output current:4A)12.Supporting brake signal to cut off ESC output. Wire Connection:

Read more less

Speciation: Size:L107mm*W103mm*H18.5mmVoltage:14-84V (4-20S safey)Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!BEC:5V@1ASupport BLDC square wave mode control and FOC sine wave modeFirmware: latest (firmware update supported)ERPM:150000Control Interface Ports:USB,CAN,UARTSupported Sensors:ABI，HALL，AS5047，AS5048AInput Set Support:PPM，ADC，NRF,UARTWire Size: 12AWGProgrammable: YesRegenerative Capacity: Yes Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Wire Connection:

Read more less

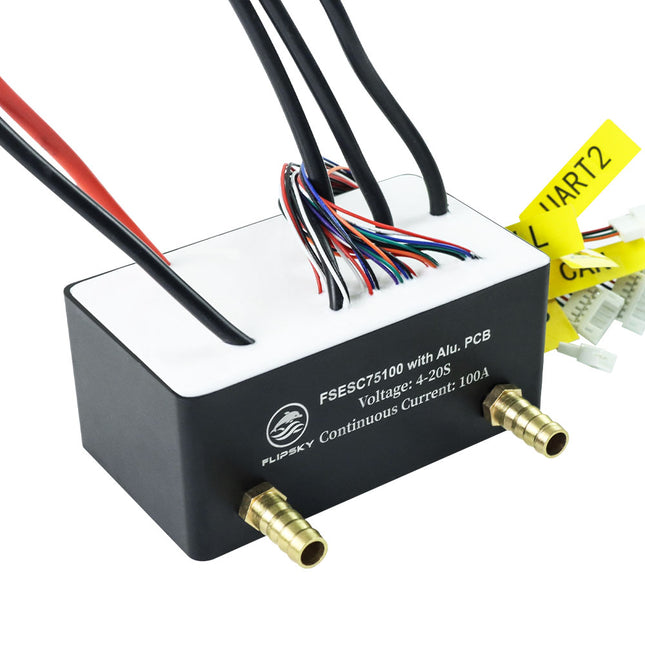

Specs: 75100: 75100 Pro: Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous,burst 120A BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode Firmware: latest (firmware update supported) ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Newly upgraded: Change connection wires from 12Awg to 10Awag. More sensitive temperature detection function Integrated bluetooth module design Size & design upgraded Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.Here below video and blog links FYI. Wire Connection: 75100: 75100 Pro:

Read more less

Specs: 75100 Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE Voltage:14-84V (4-20S) Current:100A Continuous,burst 120A BEC:5V@1.5A Phase filter: No Support BLDC square wave mode control and FOC sine wave mode Firmware: latest (firmware update supported) ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 12AWG(75100) Programmable: Yes Regenerative Capacity: Yes Product Details &Wire Conection: With Outer Shell: With Water Cooling: Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC. Please be careful to limit the Absolute Maximum Current below 250A,setting page New and old shells are shipped randomly 75100 With Water Cooling Enclosure Manual Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.Here below video and blog links FYI.

Read more less

Specifications: Voltage:14-84V( safe for 3-20S) Continuous Current : 50V/350A,75V/250A Max Current :800A Supported sensors: ABI, HALL, AS5047,AS5048A EPRM:150000 Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors) Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200 ! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Feature: 1.Regenerative braking 2.The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function; 3.Sensored or sensorless operation + hybrid mode 4.Configurable RPM-, current-, voltage- and power limits 5.Input source: PPM, ADC, NRF,UART,PAS 6.Communication ports: USB, CAN, UART,SPI,IIC 7.Throttle curve and ramping for all input sources 8.Seamless 4-quadrant operation 9.Motor revolution, ampere hour, watt hour counting 10.Real-time data analysis and readout through the communication port. 11.Adjustable protection against: 12.Low input voltage 13.High input voltage 14.High motor current 15.High input current 16.High regenerative braking current (separate limits for the motor and the input) 17.High RPM (separate limits for each direction) 18.Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate. 19.Motor wire: 8AWG 20.Power cable: 8AWG 21.Waterproof level(with water cooling enclosure):IP67 Wire Connection:

Read more less

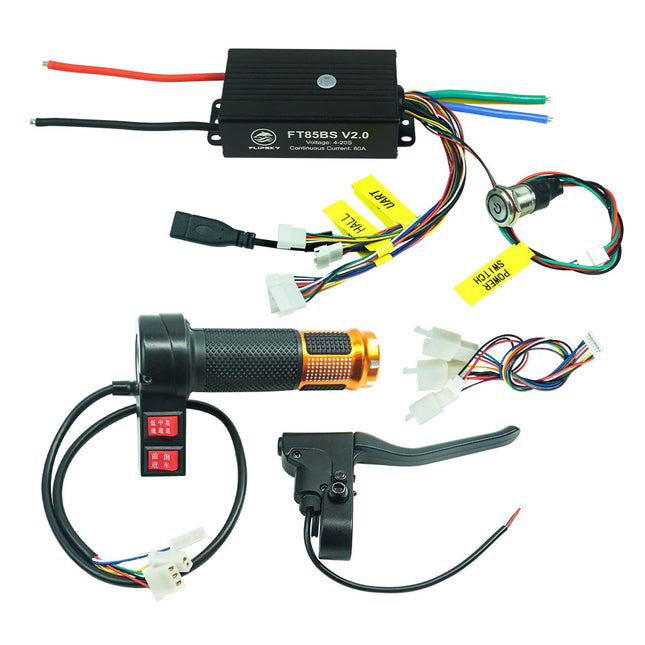

Spec:Firmware supporting update via Flipsky ESC ToolVoltage: 14-84V(safe for 4-20S)Continuous current: 50V/60A; 75V/50A; 84V/40A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Peak Current: 250ACommunication Ports: USB, CAN, UARTInput Signal Support: PPM, UART(compatible with FLIPSKY remote VX4 only), ADCBEC: 5V@1AMultiple Speed Gear levels: Low, Medium, High, ReverseMotor/power wire size: 12 AWGProgrammable: YesRegenerative Capacity: YesSize: L110.5*W55*H30mm(Including Alu. Case)Power Switch Button: Red Features:1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed2.240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different batteryvoltages and many control ways.4.Programmable via Flipsky VX4 remote(Firmware Version:VX4_V1.2)5.Supporting FOC with low working noise and smooth starting.6.Supporting Real-time data and fault alerts.7.Supporting adaptive variable PWM frequency control.8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).9.Supporting control types: Current, Duty Cycle10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. Application Fields:Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys /Boat / Kayak etc Note: USB cable will be shipped randomly in black or white color.
