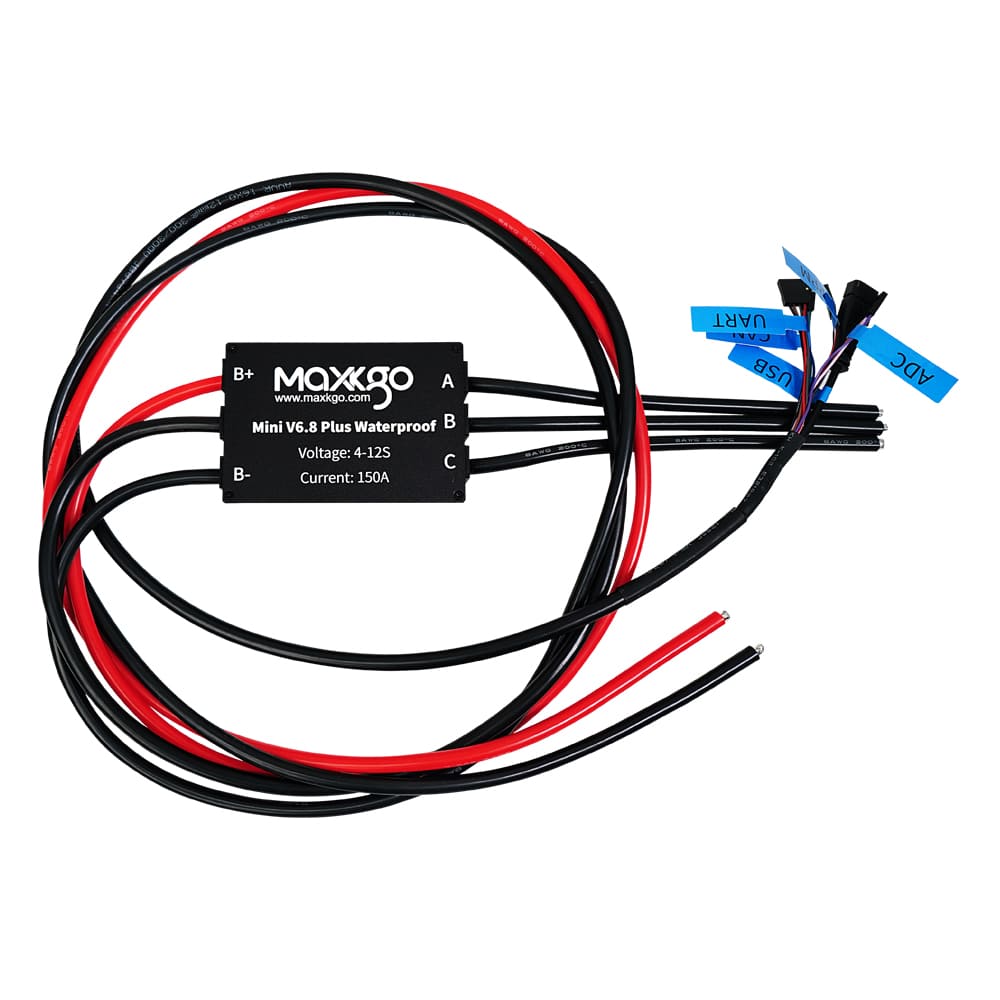

Description
Specifications :
Firmware: 5.2 (supporting firmware upgrade)
Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!)
Voltage: 14V-52V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 52V! )
BEC: 5V@1.5A; ERPM: 150000
Supported sensors: Sensorless
Supported Modes: BLDC, FOC (sinusoidal)

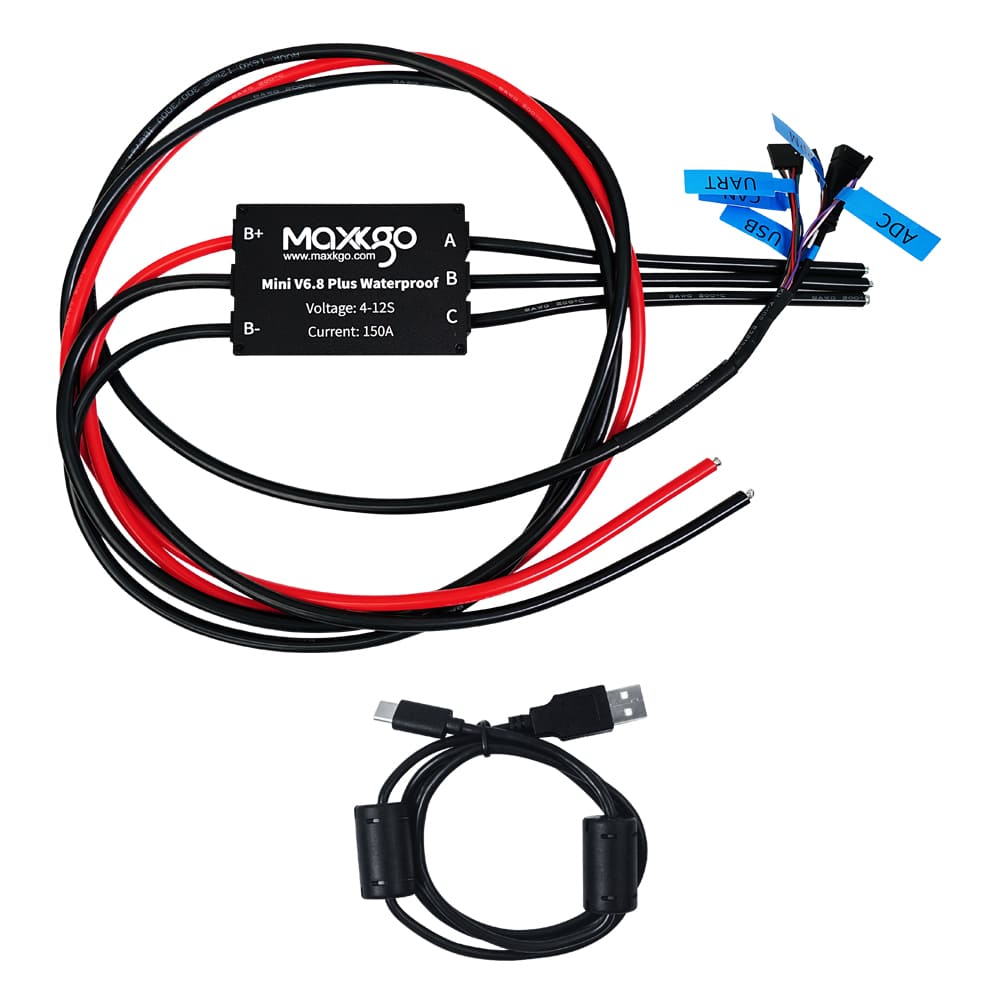

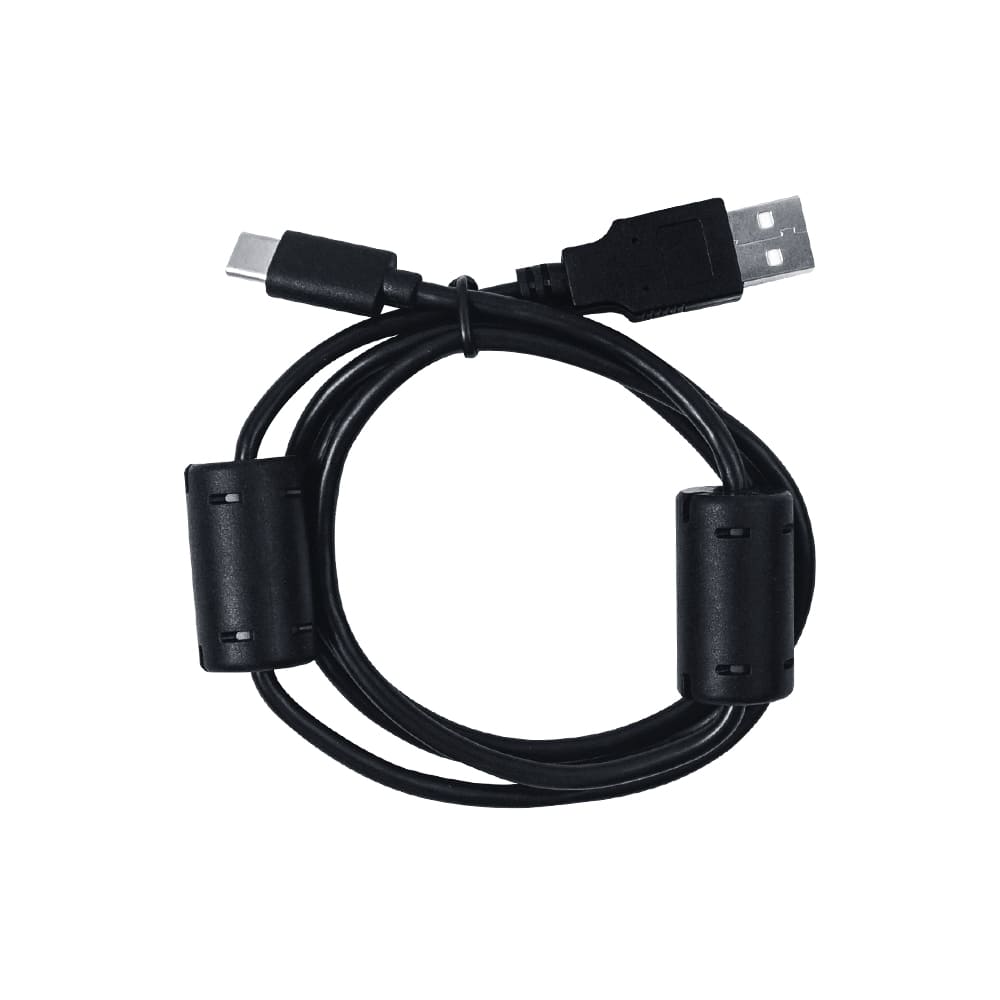

Control Interface Ports: USB UART
Input Set Support: PPM, ADC, NRF, UART
Regenerative capacity: Yes
Programmable: Yes
Power Wire: 8AWG 1200mm / Motor Wire: 8AWG 170mm

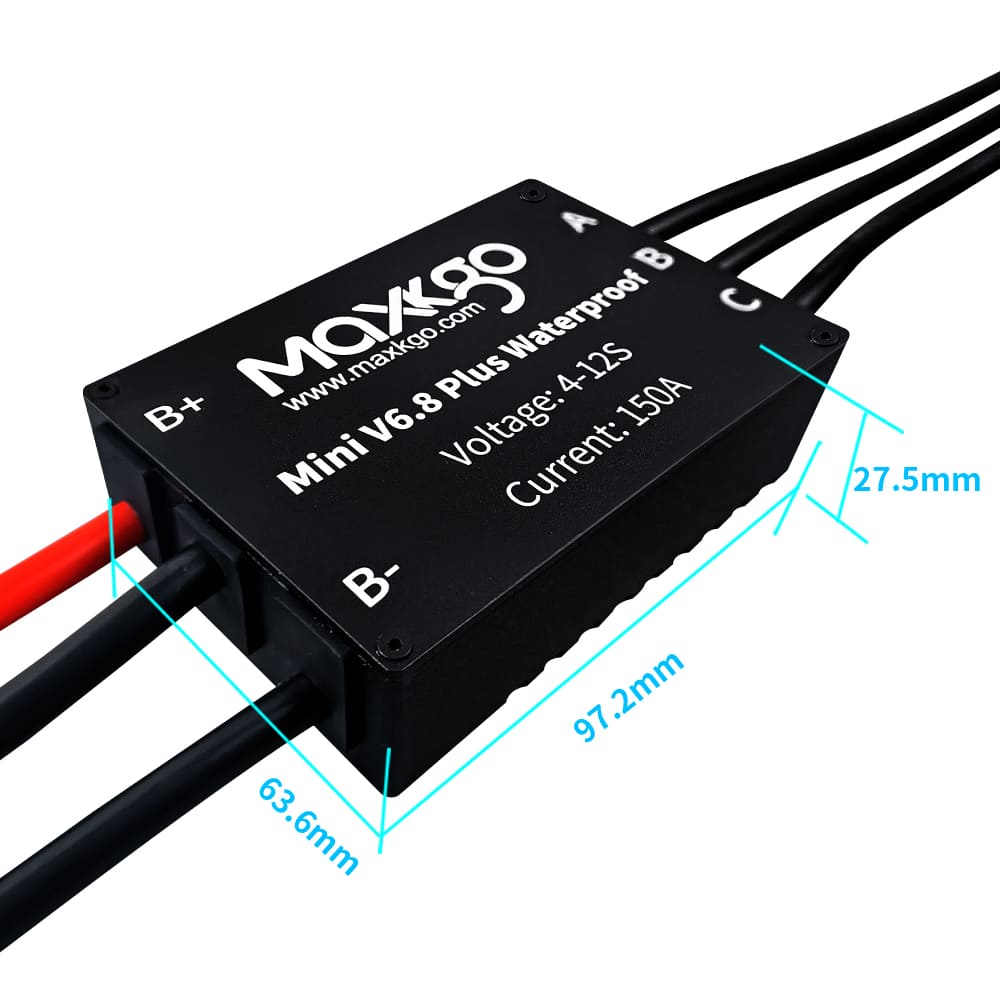

Size: 103.5x67.6x27.5mm(Including aluminum case)
Features:
1.Fully sealed with IP68 water-proof rate.
VESC ESC: based on vesc6, programmable via VESC_TOOL and support real-time data read.
2.6-layer 3oz special PCB plate with good heat dissipation, support rated current 150Amps.
3.Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.
4.Support three control modes: Current / Dutycycle / Speed.
5.Multiple protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection over 80 ℃.
6.Compact size with high efficiency: 103.5x67.6x27.5mm.

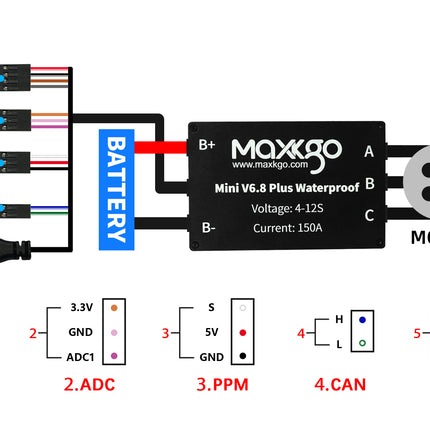

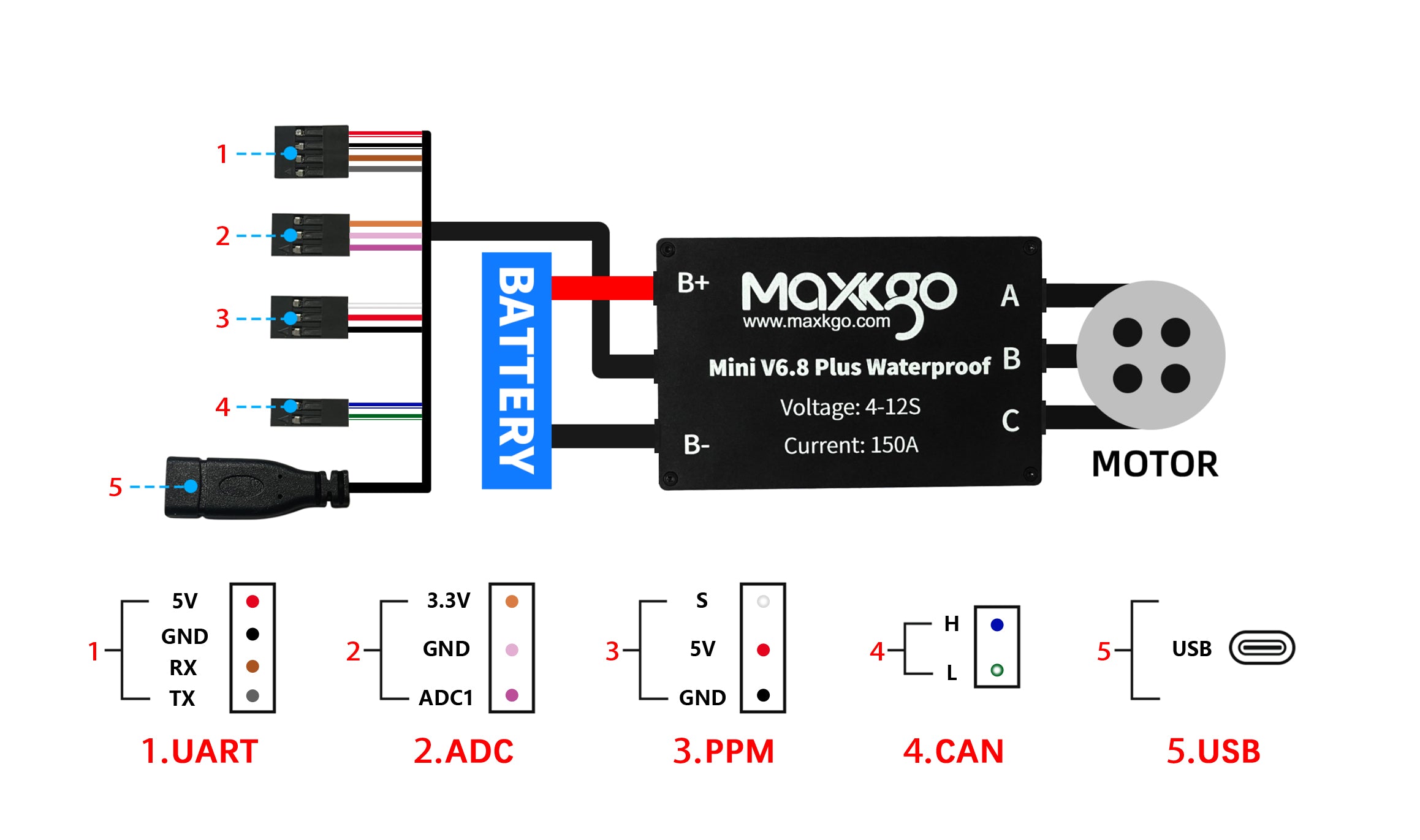

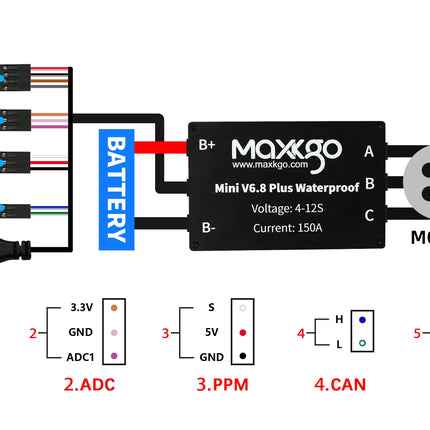

Wiring Diagram:
