Flipsky 75100 Pro ESC With Aluminum PCB High Current MOS For Electric Scooter Support HALL ABI Sensor Control

Description

Specs:

75100:

75100 Pro:

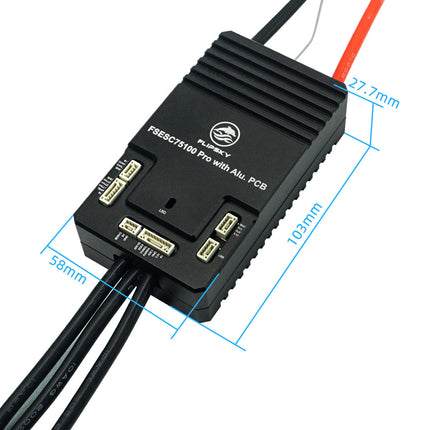

  • Size: L103mm*W58mm*H27.7mm
  • Voltage:14-84V (4-20S)
  • Current:100A
  • Continuous,burst 120A
  • BEC:5V@1.5A
  • Support BLDC square wave mode control and FOC sine wave mode
  • Firmware: latest (firmware update supported)
  • ERPM:150000
  • Control Interface Ports:USB,CAN,UART
  • Supported Sensors:ABI，HALL，AS5047，AS5048A
  • Input Set Support:PPM，ADC，NRF,UART
  • Wire Size: 10AWG(75100 Pro)
  • Programmable: Yes
  • Regenerative Capacity: Yes

Newly upgraded:

  1. Change connection wires from 12Awg to 10Awag.
  2. More sensitive temperature detection function
  3. Integrated bluetooth module design
  4. Size & design upgraded

Warm tips:

Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.

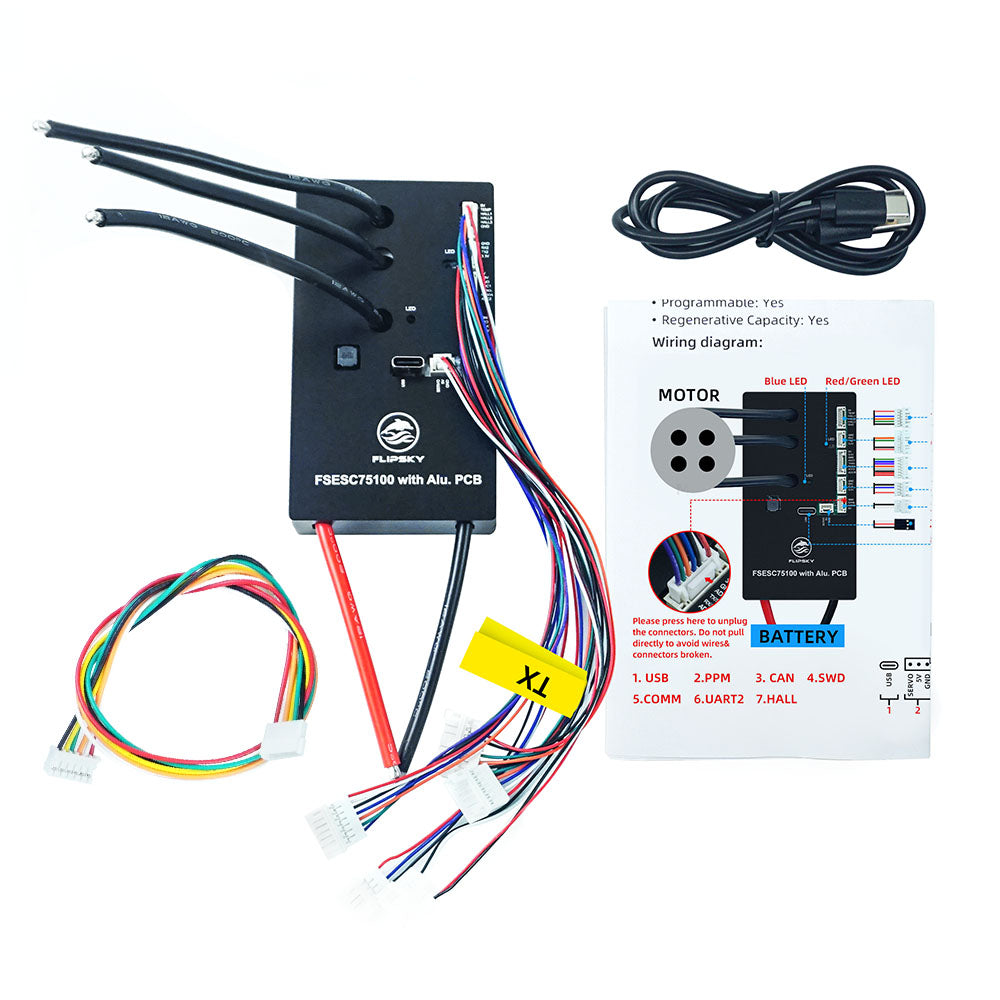

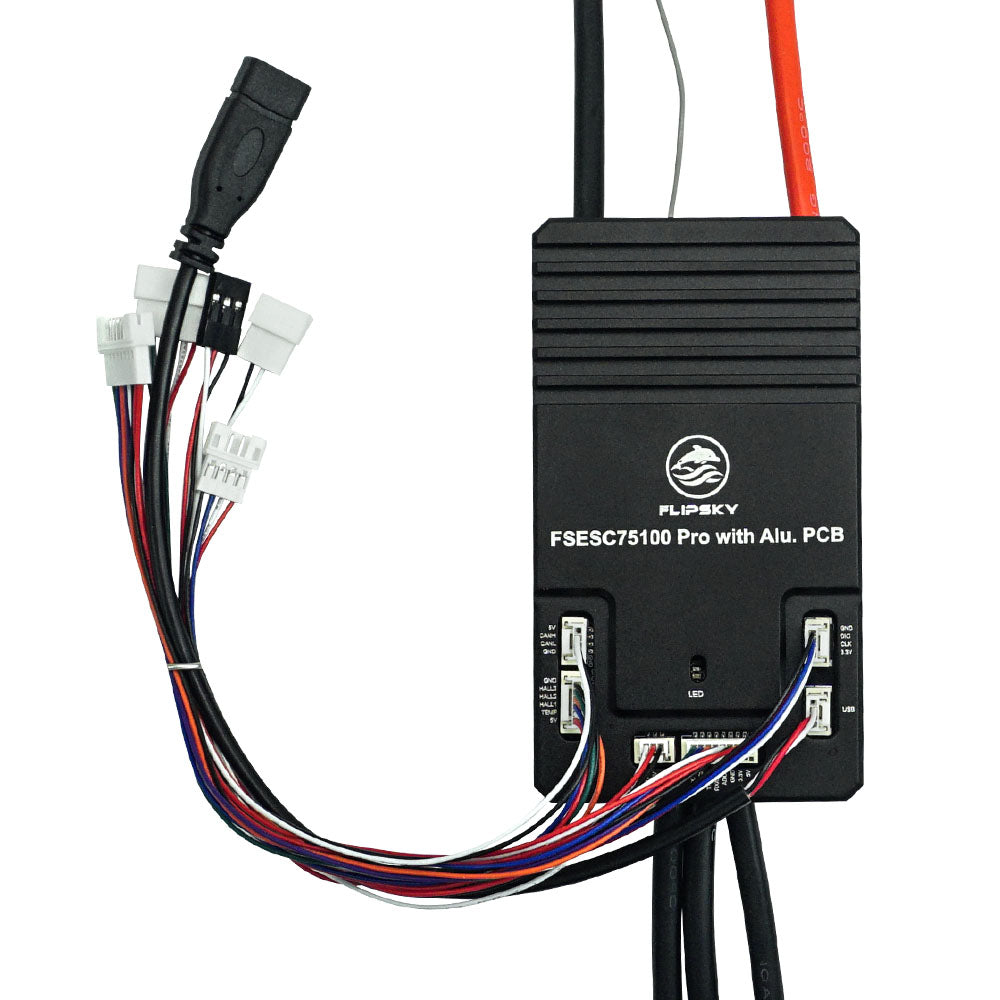

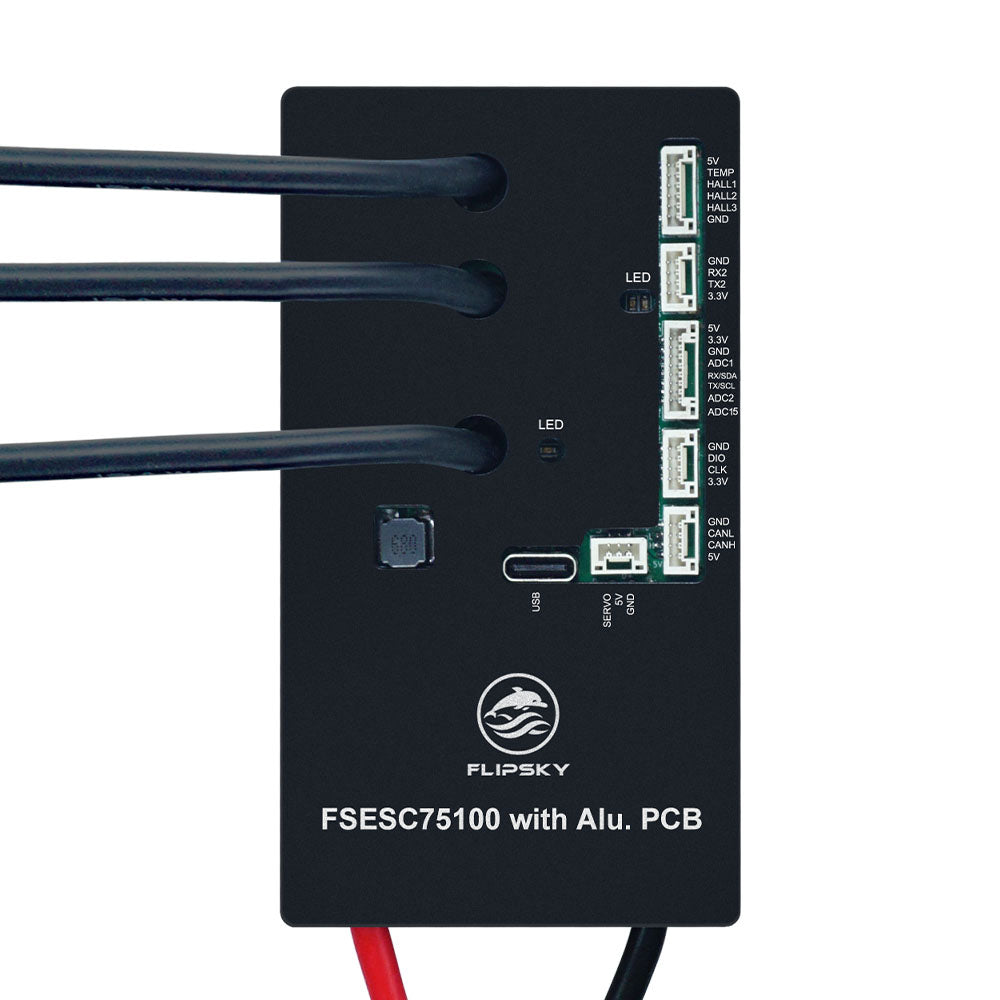

Wire Connection:
75100:
75100 Pro:

Flipsky 75100 Pro ESC With Aluminum PCB High Current MOS For Electric Scooter Support HALL ABI Sensor Control

Product form

Specs: 75100: 75100 Pro: Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous,burst 120A BEC:5V@1.5A Support BLDC square wave mode control and FOC... Read more

$112.00 $86.00 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product

      Description

      Specs:

      75100:

      75100 Pro:

      • Size: L103mm*W58mm*H27.7mm
      • Voltage:14-84V (4-20S)
      • Current:100A
      • Continuous,burst 120A
      • BEC:5V@1.5A
      • Support BLDC square wave mode control and FOC sine wave mode
      • Firmware: latest (firmware update supported)
      • ERPM:150000
      • Control Interface Ports:USB,CAN,UART
      • Supported Sensors:ABI，HALL，AS5047，AS5048A
      • Input Set Support:PPM，ADC，NRF,UART
      • Wire Size: 10AWG(75100 Pro)
      • Programmable: Yes
      • Regenerative Capacity: Yes

      Newly upgraded:

      1. Change connection wires from 12Awg to 10Awag.
      2. More sensitive temperature detection function
      3. Integrated bluetooth module design
      4. Size & design upgraded

      Warm tips:

      Phase filering is not available for Flipsky ESC75100 and 75200!
      Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
      Here below video and blog links FYI.
      Wire Connection:
      75100:
      75100 Pro:
