Flipsky 84V 120A 75100 ESC Motor Controller High Power FOC BLDC Control Based On VESC For Electric Scooter

Roll over image to zoom in Click on image to zoom

Flipsky 84V 120A 75100 ESC Motor Controller High Power FOC BLDC Control Based On VESC For Electric Scooter

Name: Flipsky 84V 120A 75100 ESC Motor Controller High Power FOC BLDC Control Based On VESC For Electric Scooter
Brand: MAXKGO
Price: 86.0 USD
Availability: InStock

Save 28%

MAXKGO

...

Type: With Outer shell

Variant

Price:

$86.00 $120.00

Stock:

In stock (100 units), ready to be shipped

Quantity:

Share this product

Specs:

75100 Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE
Voltage:14-84V (4-20S)
Current:100A Continuous,burst 120A
BEC:5V@1.5A
Phase filter: No
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 12AWG(75100)
Programmable: Yes
Regenerative Capacity: Yes

Product Details &Wire Conection:

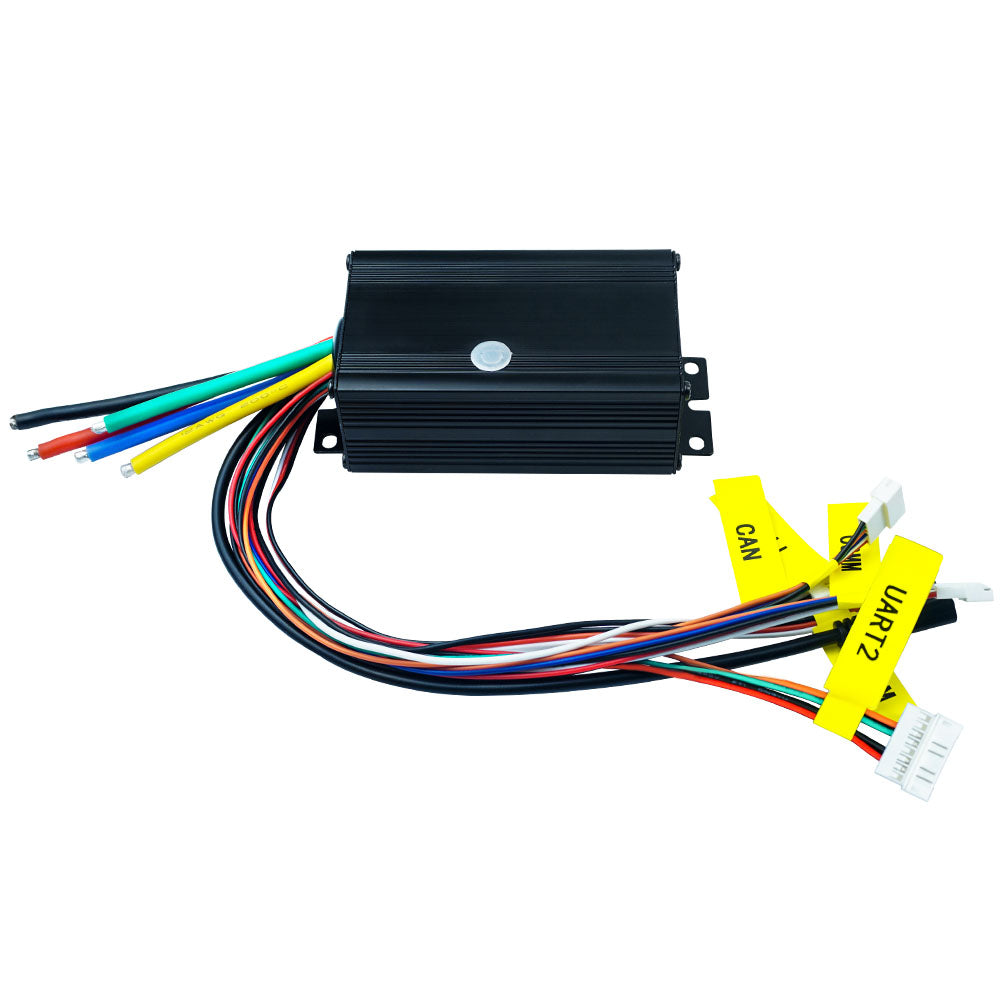

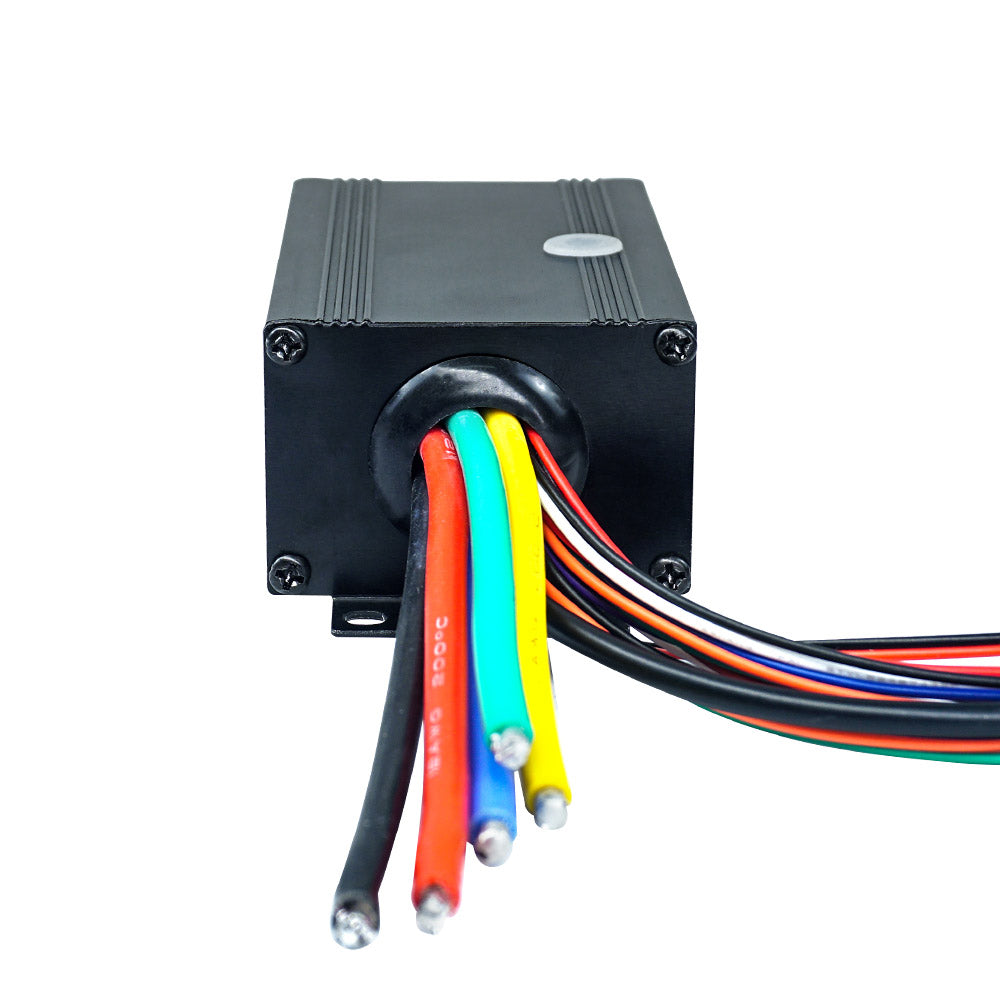

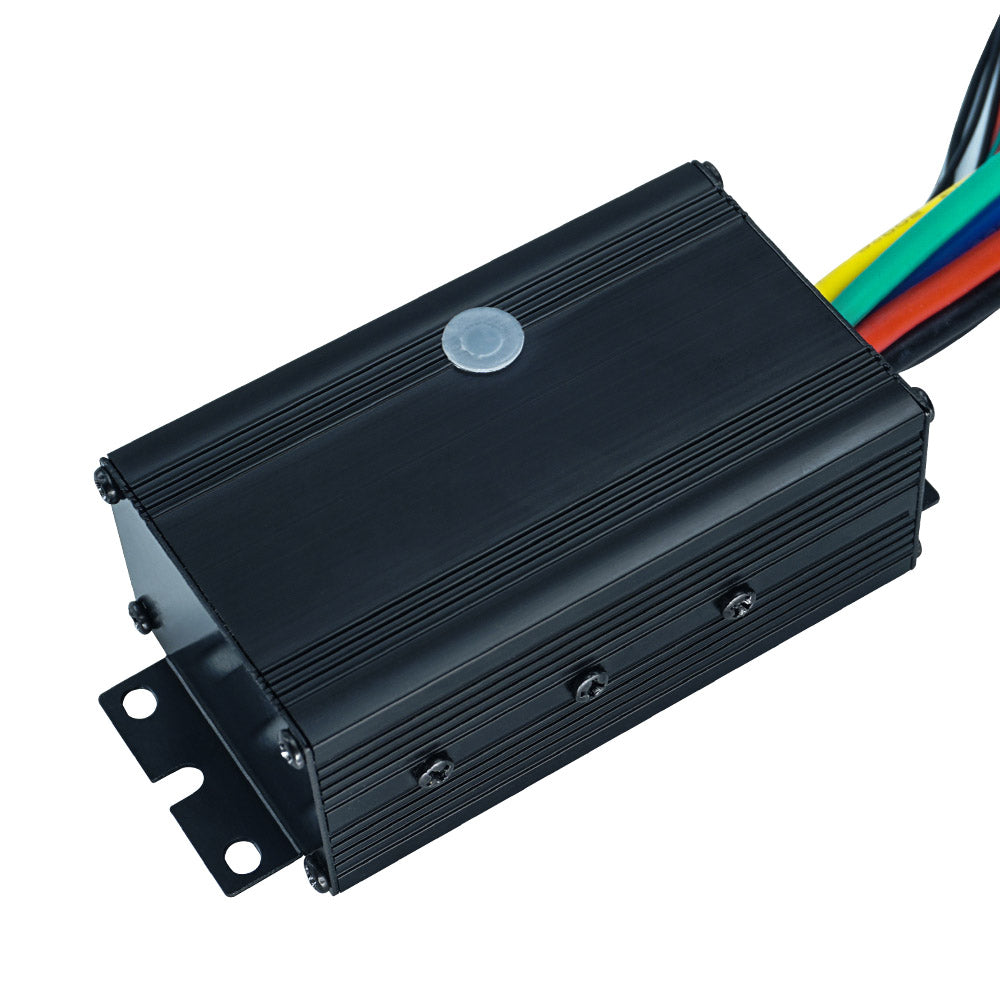

With Outer Shell:

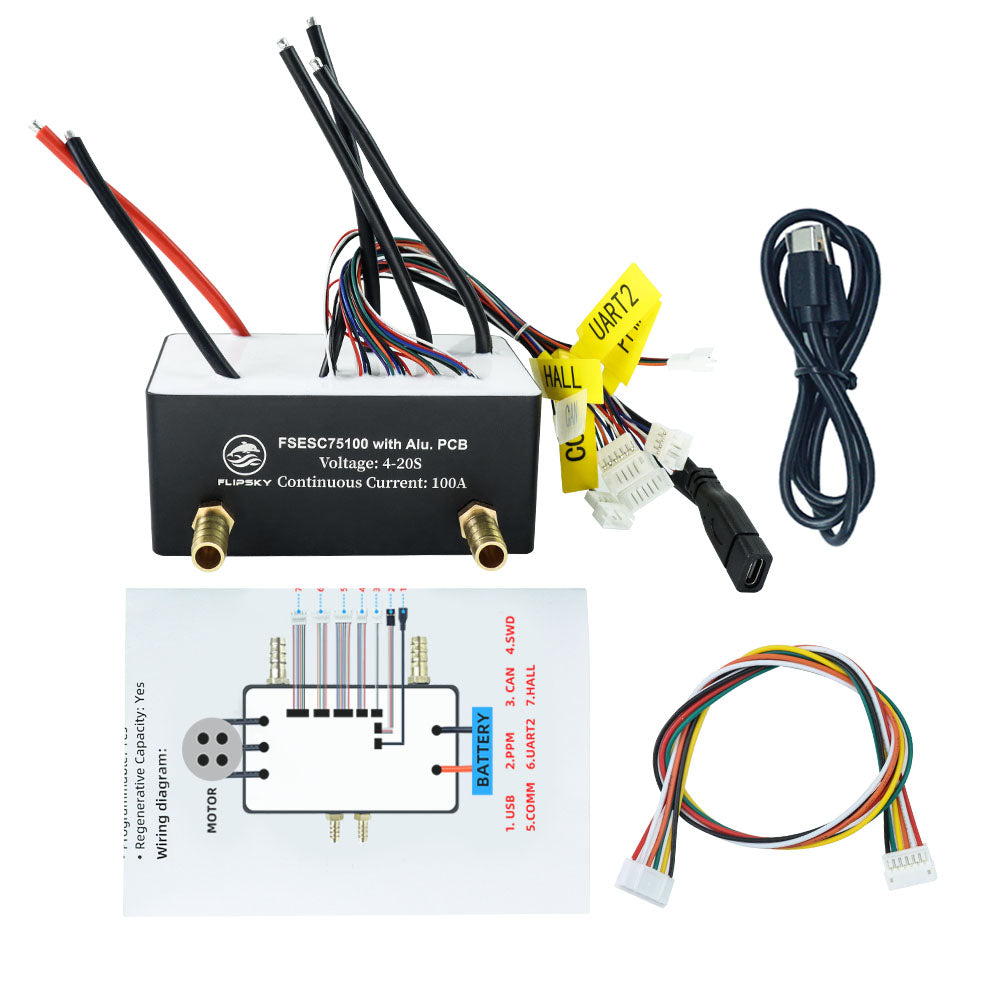

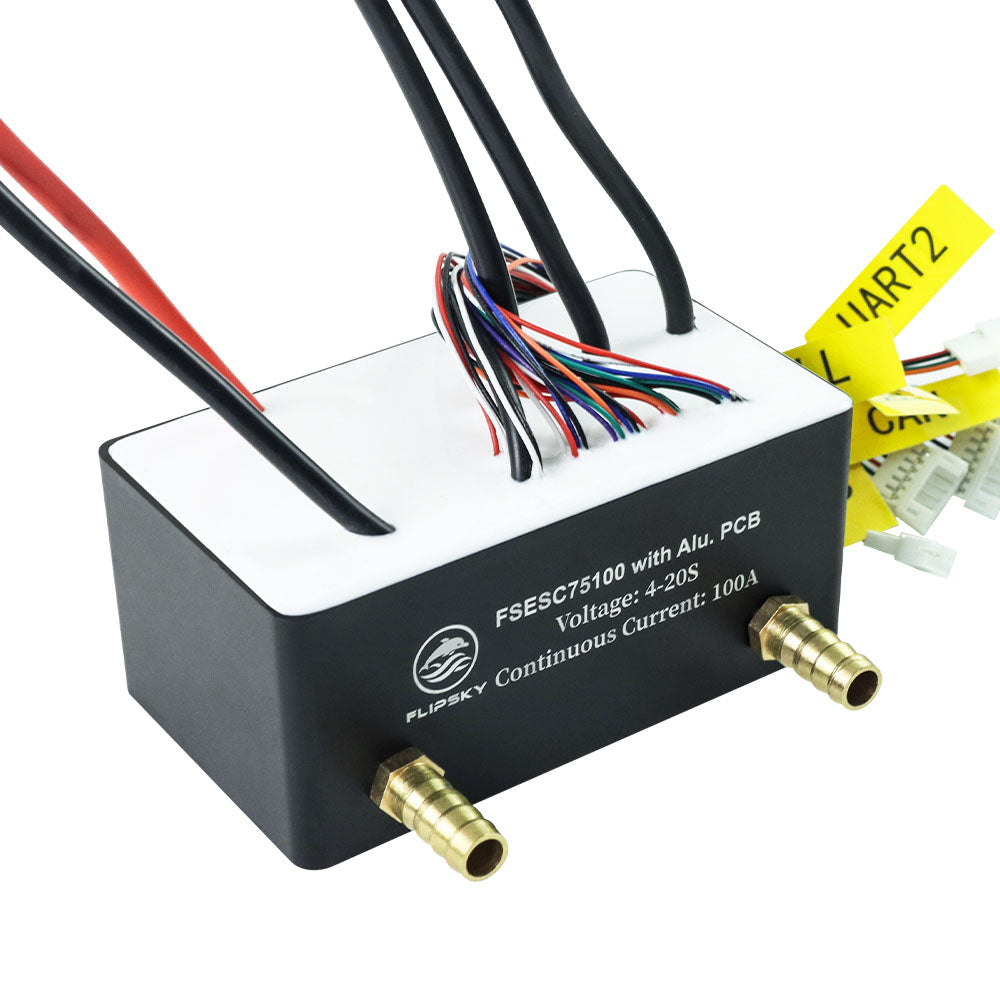

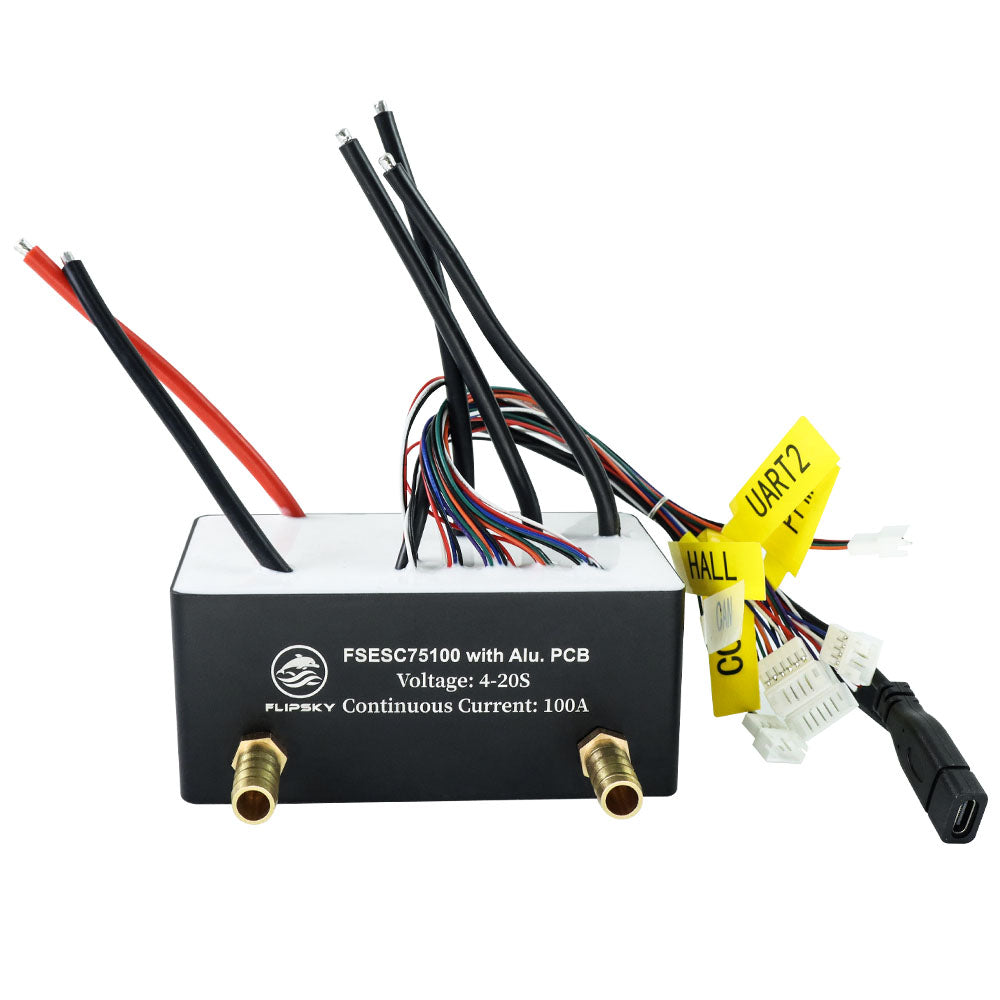

With Water Cooling:

Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Please be careful to limit the Absolute Maximum Current below 250A,setting page

New and old shells are shipped randomly

75100 With Water Cooling Enclosure Manual

Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
