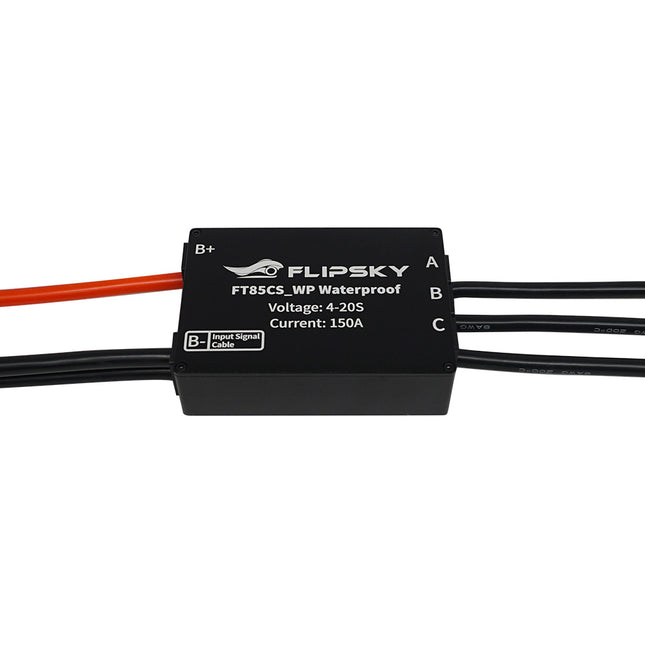

Specification: Firmware: V1.6 and above (firmware update via Flipsky ESC Tool supported) Voltage: 14V-85V (safe for 4-20S) Continuous Current:85V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device.) Peak Current: 250A BEC: 5V@1A Power Wire: 8 AWG (1200mm) Motor Wire: 8 AWG (195mm) Programmable Tool: Flipsky ESC TOOL PWM Frequency Control: YES Multiple Speed Gear Limit Control: YES (UART） Regenerative Capacity: YES Communication Ports: USB，CAN，UART，PPM，ADC Control Signals Support: PPM，ADC，UART (compatible with all FLIPSKY VX Series remotes) Size: L93.8mm*W63mm*H26mm (with aluminum enclosure) Feature: 1.Fully sealed with lP68 water-proof rate. 2.Adopting ARM Cortex-M4 structure with the max 240MHZ,improves PWM switching frequency and the motor RPM. 3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motors, different battery voltages and multiple control methods. 4.Programmable via Flipsky remote controller VX4Pro(remote firmware version: VX4Pro_V1.2 and above). 5.Supporting motor FOC with low working noise and smooth starting. 6.Supporting save / load configuration files via ESC Tool. 7.Supporting adaptive variable PWM frequency control. 8.Supporting real-time data and fault alerts. 9.Supporting multiple speed levels: Level 1 (Low), Level 2 (Medium), Level 3 (High). 10.Supporting Sensorless Mode: IPDS, HFPI, OPEN. 11.Startup Modes Support: IPDS (sensorless), HFPI (sensorless), OPEN (Sensorless Open-Loop Startup). 12.Traction Control: YES. 13.Supporting control types: Current, Duty Cycle, Speed Control. 14.Supporting emergency stop and shutdown. 15.Support safe power-on protection (in PPM&ADC control modes only). 16.Protection functions: low and high voltage protection, MOSFET over-temperature and over current protection, battery overcharge and discharge protection. Wire Connection:

Read more less

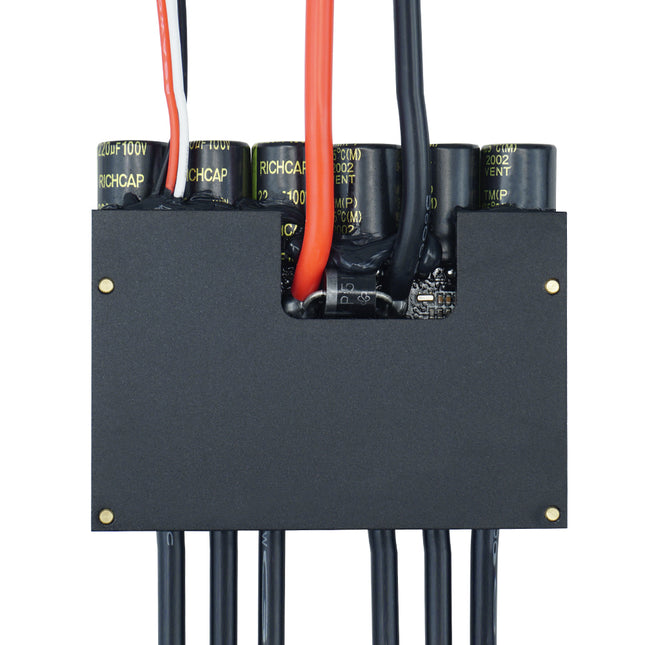

Specs： Hardware:V4.20Firmware:Latest VersionCurrent:50A continuous/single, 100A continuous/dual , Instantaneous current 150A per single, total 300A for system instantaneous current.Voltage: 8V-60V (Cells: 3-13S LiPo,Safe for 3S to 12S LiPo，Voltage spikes may not exceed 60V! )ERPM:60000BEC: 5V@1.5ABEC type: Internal driver support Modes: DC, BLDC, FOC (sinusoidal)Timing: Software calibration Cutoff Voltage: ProgrammableFrequency: PWM input Governor: NoProgramming card: NoReverse: YesMotor wire: 12AWG Power cable: 12AWG Package Contents:  1*Dual FSESC4.20 + Heatsink2*VESC Sensor Wires1*Micro USB 1*Manual Wire Connection:

Read more less

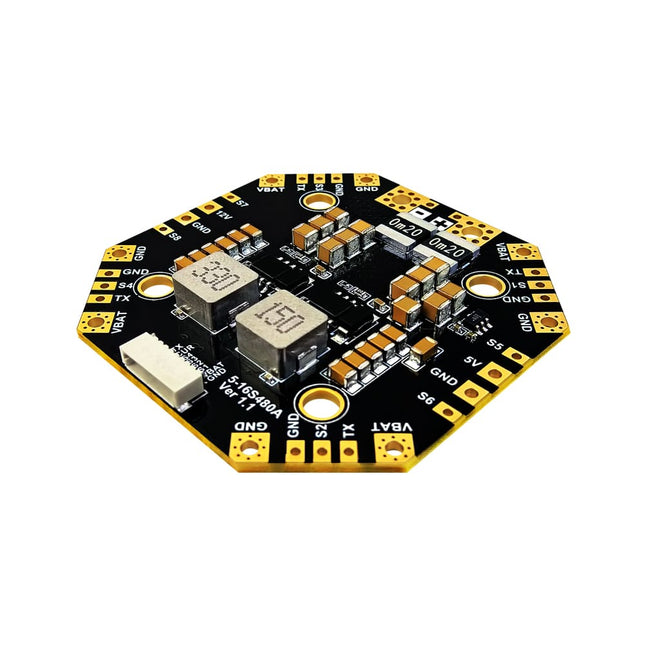

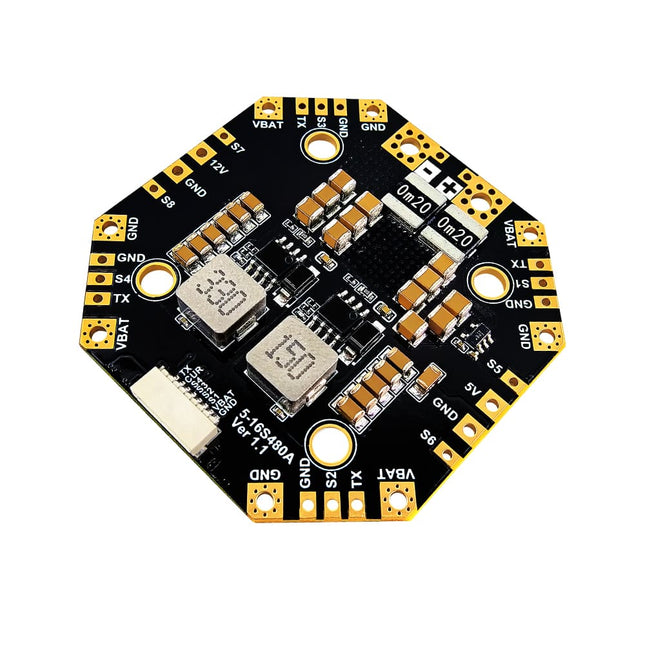

Product DescriptionMAXKGO 5-16S 480A High Current Power Distribution Board The MAXKGO 5-16S 480A Power Distribution Board (PDB) is a high-performance power distribution solution designed for high-power FPV racing drones, multirotor drones, and large UAV platforms. Supporting 5S to 16S LiPo battery input and delivering up to 480A total continuous current (120A × 4 channels), this PDB provides stable and efficient power distribution for demanding drone applications. Designed with a lightweight structure and high-current capability, it features a 6-layer PCB with 3oz copper layers, ensuring excellent current handling performance and improved reliability during high-load operation. The board integrates dual BEC outputs (5V and 12V), allowing direct power supply for flight controllers, cameras, receivers, and other onboard electronics. Key Features Ultra High Current Capability Supports 5S-16S LiPo battery input Total continuous current: 480A 4-channel output design: 120A continuous current per channel 130A peak current per channel Dual BEC Power Output Built-in dual voltage BEC outputs: 5V / 3A output 12V / 3A output Suitable for powering: Flight controllers FPV cameras Video transmitters Other onboard electronics High-Performance PCB Design 6-layer PCB structure 3oz copper layers for excellent current capacity Lightweight design with only 23g±2g net weight Compact size for easy installation Multiple ESC Support Supports up to 8 ESC connections, making it suitable for larger multirotor platforms. Technical Specifications Item Specification Product Type High Current Power Distribution Board Battery Input 5S-16S LiPo Input Voltage Range 15V-68V Continuous Current 480A Total (120A × 4) Peak Current 130A per channel BEC Output 1 5V / 3A BEC Output 2 12V / 3A ESC Support Up to 8 ESCs PCB Structure 6-layer PCB Copper Thickness 3oz Efficiency ≤95% Static Power Consumption 1mA Current Sensor Ratio 50 Communication Port 8-pin SH1.0 connector Mounting Hole Pattern 30.5 × 30.5mm Mounting Hole Diameter 4mm (M4) Dimensions 55 × 55 × 6.55mm Weight 23g±2g Operating Temperature -20℃ to 100℃ Recommended Drone Size 8-16 inch Applications The MAXKGO 5-16S 480A PDB is ideal for: FPV Racing Drones Long-range FPV Drones Heavy-lift Multirotors Industrial UAV Platforms High-power Drone Builds Package Includes MAXKGO 5-16S 480A Power Distribution Board ×1 8-pin Dual Connector Cable ×1 Anti-vibration Rubber Balls ×5 M3 Nuts ×5 Power Cable (8AWG 120mm) ×1 XT90 Male Connector ×1 Capacitor 80V 560μF ×1 Heat Shrink Tubes ×2
