Description
Specification:
Firmware: V1.6 and above (firmware update via Flipsky ESC Tool supported)
Voltage: 14V-85V (safe for 4-20S)
Continuous Current:85V/150A (Values depend on the mounting, ambient temperature and air/water
circulation around the device.)
Peak Current: 250A
BEC: 5V@1A
Power Wire: 8 AWG (1200mm)
Motor Wire: 8 AWG (195mm)
Programmable Tool: Flipsky ESC TOOL
PWM Frequency Control: YES
Multiple Speed Gear Limit Control: YES (UART）
Regenerative Capacity: YES
Communication Ports: USB，CAN，UART，PPM，ADC
Control Signals Support: PPM，ADC，UART (compatible with all FLIPSKY VX Series remotes)
Size: L93.8mm*W63mm*H26mm (with aluminum enclosure)
Feature:
1.Fully sealed with lP68 water-proof rate.
2.Adopting ARM Cortex-M4 structure with the max 240MHZ,improves PWM switching frequency and
the motor RPM.
3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motors, different battery voltages
and multiple control methods.
4.Programmable via Flipsky remote controller VX4Pro(remote firmware version: VX4Pro_V1.2 and above).
5.Supporting motor FOC with low working noise and smooth starting.
6.Supporting save / load configuration files via ESC Tool.
7.Supporting adaptive variable PWM frequency control.
8.Supporting real-time data and fault alerts.
9.Supporting multiple speed levels: Level 1 (Low), Level 2 (Medium), Level 3 (High).
10.Supporting Sensorless Mode: IPDS, HFPI, OPEN.
11.Startup Modes Support: IPDS (sensorless), HFPI (sensorless), OPEN (Sensorless Open-Loop Startup).
12.Traction Control: YES.
13.Supporting control types: Current, Duty Cycle, Speed Control.
14.Supporting emergency stop and shutdown.
15.Support safe power-on protection (in PPM&ADC control modes only).
16.Protection functions: low and high voltage protection, MOSFET over-temperature and over current
protection, battery overcharge and discharge protection.

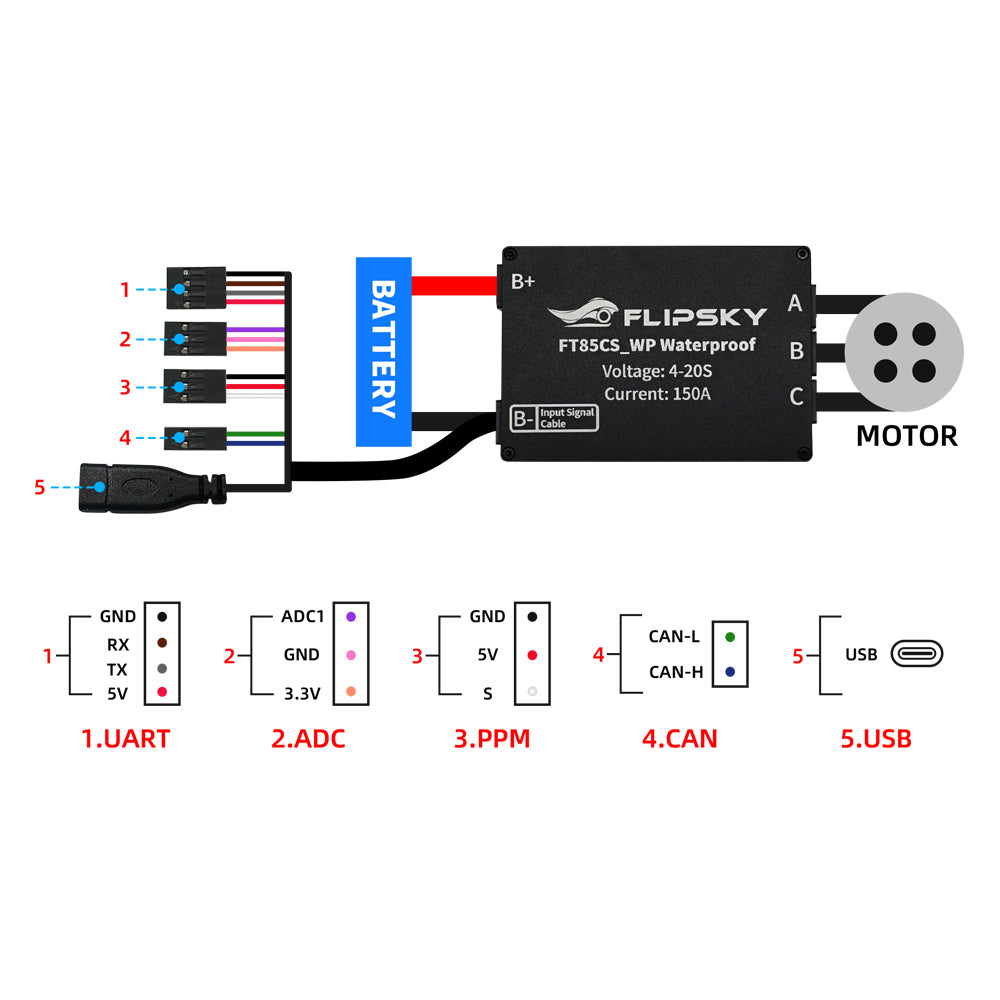

Wire Connection:
