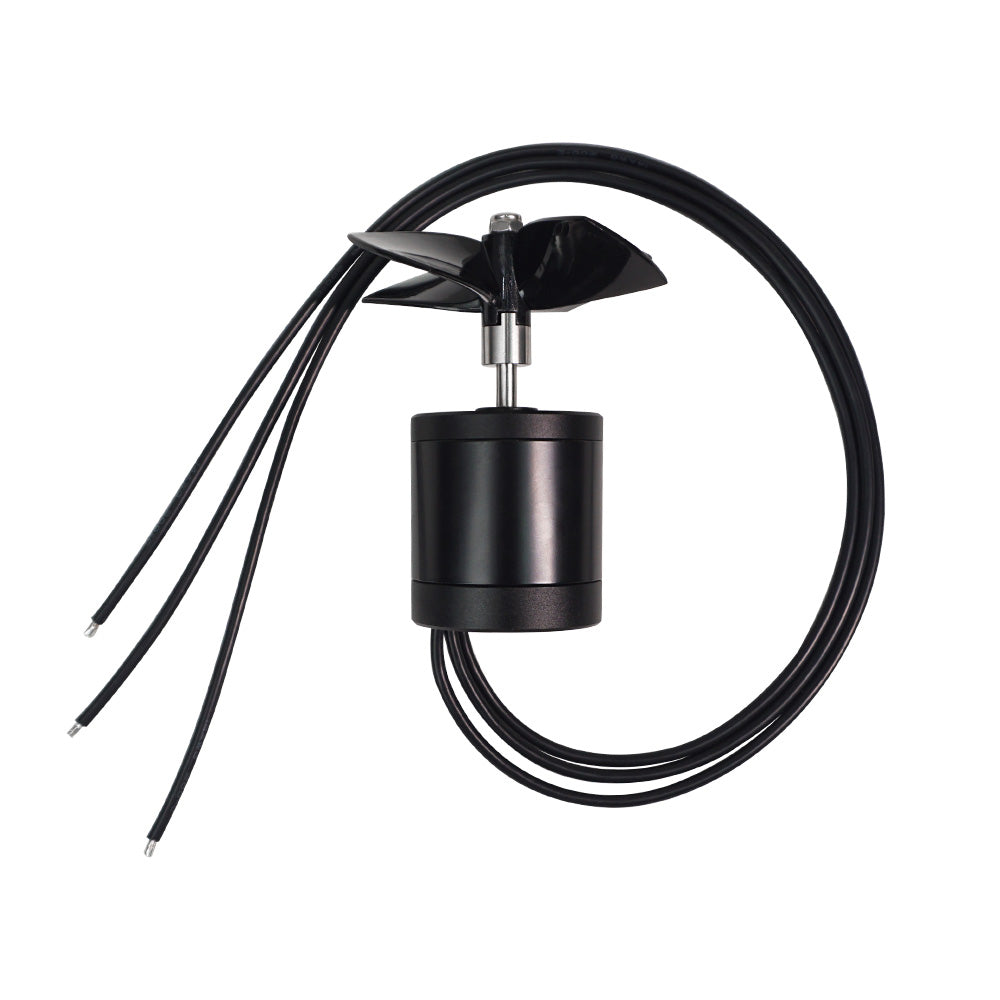

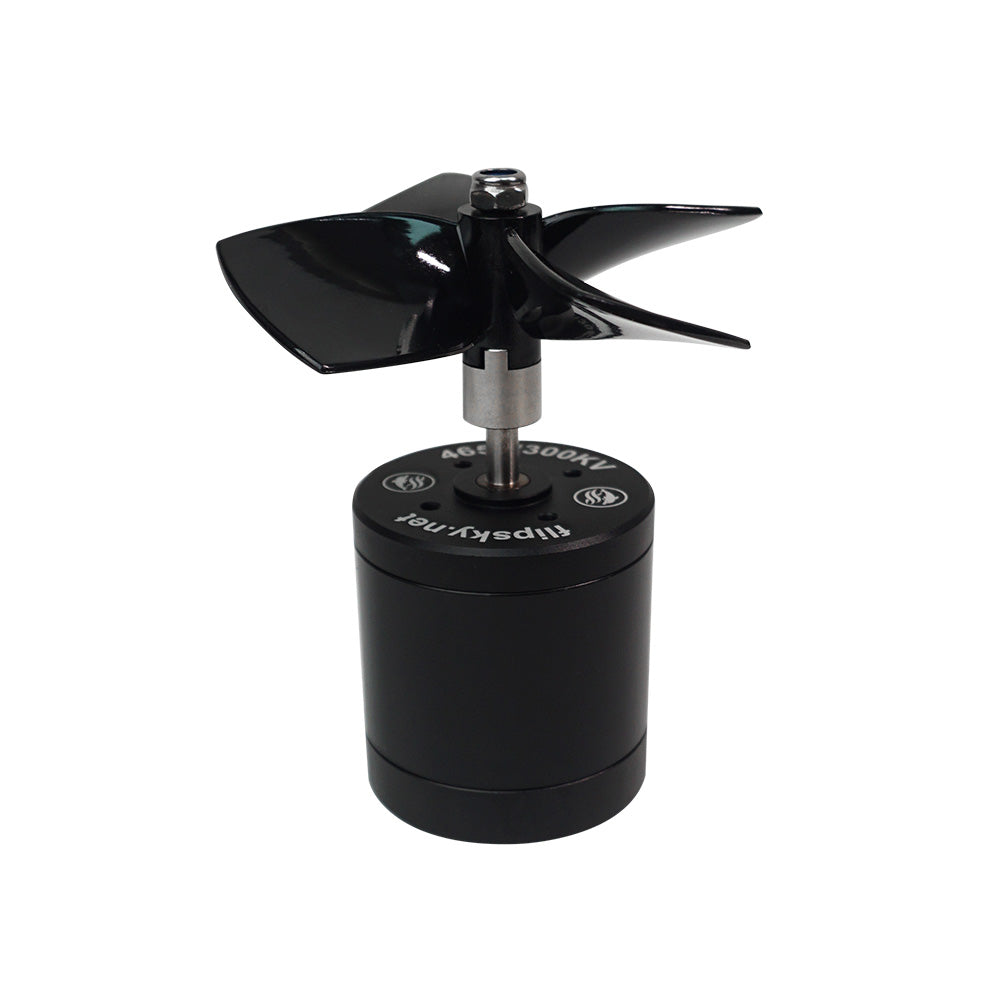

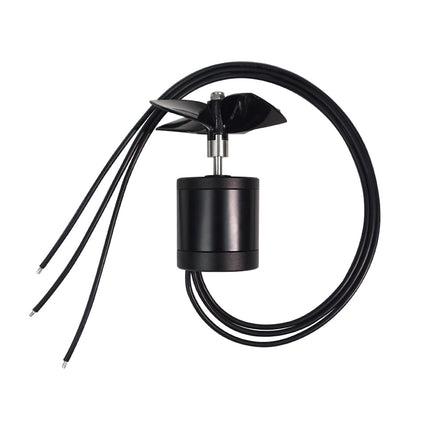

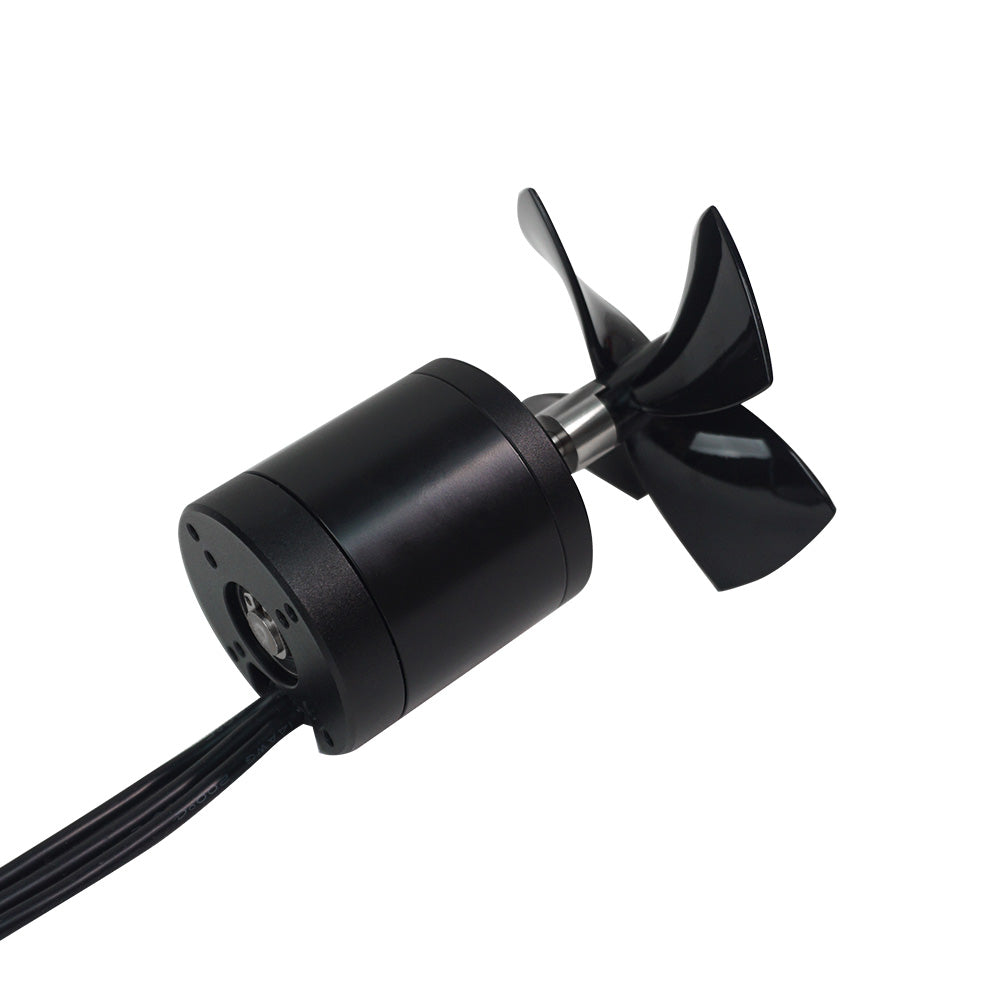

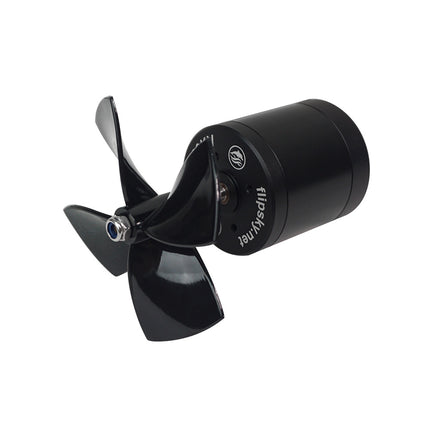

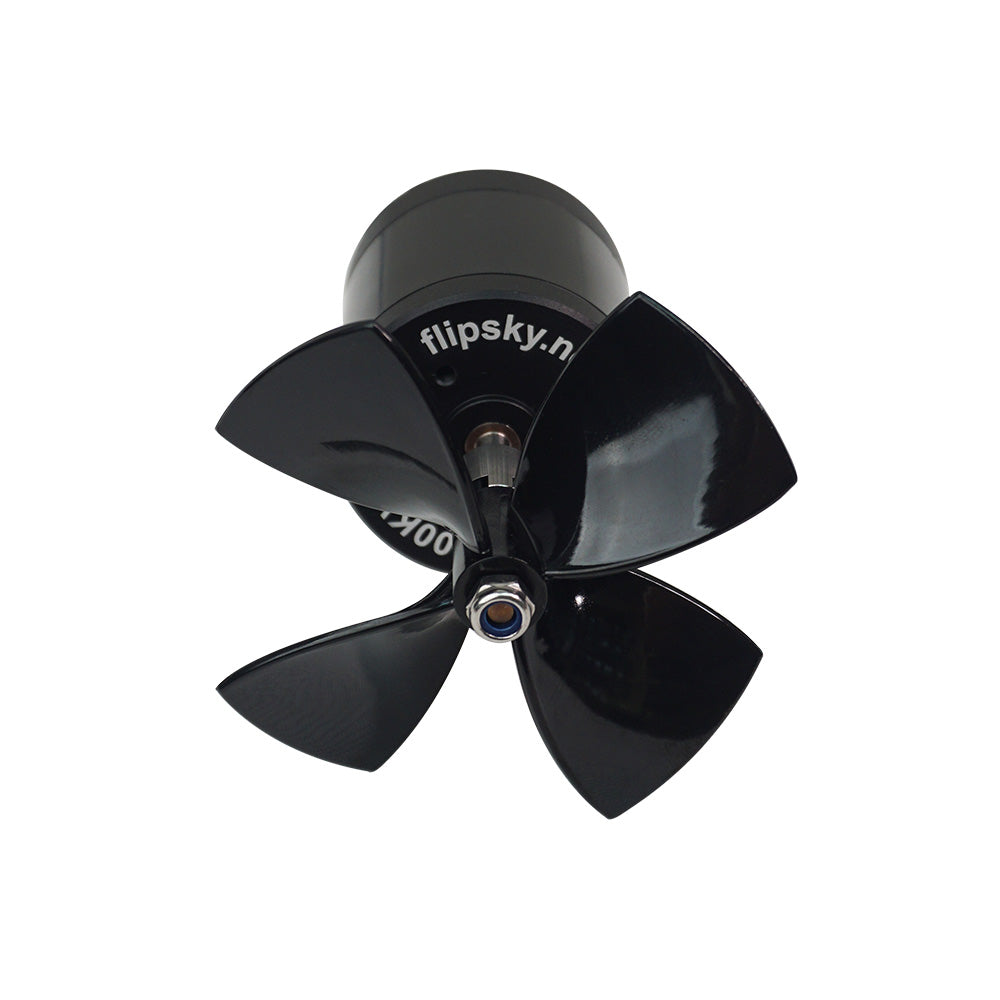

Flipsky Waterproof Brushless DC 4650 Motor 300KV 900W with Propeller For Surfing Boat Underwater Thruster | Hydro | Efoil

Beschreibung

Spec:

  • Voltage range:6~12S
  • Rated voltage:36V
  • Rated current:20A; Maximum current:25A;
  • Rated power:720W; Maximum power:900W
  • No load current:2.3A
  • Motor specifications:Φ46.0×L50.0
  • Shaft specifications:Φ5
  • Number of slots & poles:24N/28P
  • Lead wire:14AWG
  • Coil resistance:0.062Ω
  • Coil inductance:0.03mH
  • Maximum thrust::8kgf
  • Insulation voltage & leakage current:500VAC/50HZ/1MA/3S
  • Maximum operating temperature:100℃
  • Length of lead wire:500mm
  • Protection grade:ip58
  • Weight:0.37kg

4650 Motor Diagram:

Thrust Test:

Flipsky Waterproof Brushless DC 4650 Motor 300KV 900W with Propeller For Surfing Boat Underwater Thruster | Hydro | Efoil

Produkt Form

Spec: Voltage range:6~12S Rated voltage:36V Rated current:20A; Maximum current:25A; Rated power:720W; Maximum power:900W No load current:2.3A Motor specifications:Φ46.0×L50.0 Shaft specifications:Φ5... Lesen Sie mehr

SKU: 90-046050-001-000(300)

$59.00 Exkl. MwSt

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product

      Beschreibung

      Spec:

      • Voltage range:6~12S
      • Rated voltage:36V
      • Rated current:20A; Maximum current:25A;
      • Rated power:720W; Maximum power:900W
      • No load current:2.3A
      • Motor specifications:Φ46.0×L50.0
      • Shaft specifications:Φ5
      • Number of slots & poles:24N/28P
      • Lead wire:14AWG
      • Coil resistance:0.062Ω
      • Coil inductance:0.03mH
      • Maximum thrust::8kgf
      • Insulation voltage & leakage current:500VAC/50HZ/1MA/3S
      • Maximum operating temperature:100℃
      • Length of lead wire:500mm
      • Protection grade:ip58
      • Weight:0.37kg

      4650 Motor Diagram:

      Thrust Test:
