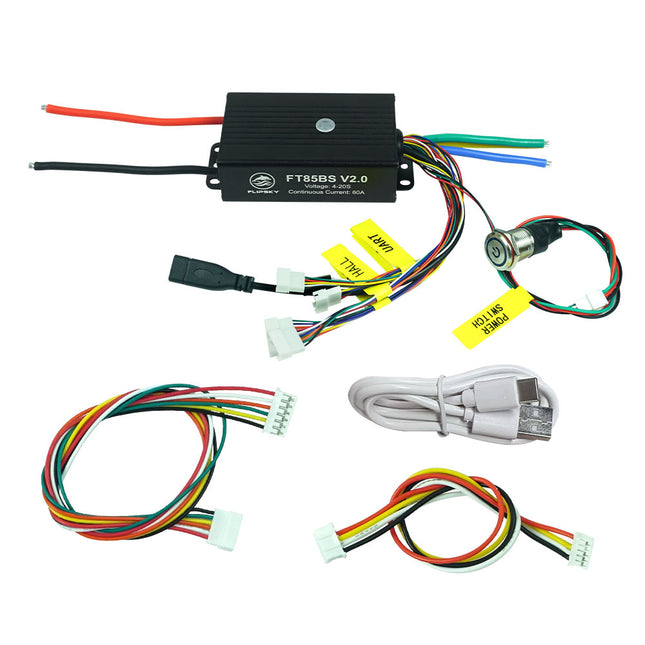

Spec:Firmware supporting update via Flipsky ESC ToolVoltage: 14-84V(safe for 4-20S)Continuous current: 50V/60A; 75V/50A; 84V/40A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Peak Current: 250ACommunication Ports: USB, CAN, UARTInput Signal Support: PPM, UART(compatible with FLIPSKY remote VX4 only), ADCBEC: 5V@1AMultiple Speed Gear levels: Low, Medium, High, ReverseMotor/power wire size: 12 AWGProgrammable: YesRegenerative Capacity: YesSize: L110.5*W55*H30mm(Including Alu. Case)Power Switch Button: Red Features:1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed2.240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different batteryvoltages and many control ways.4.Programmable via Flipsky VX4 remote(Firmware Version:VX4_V1.2)5.Supporting FOC with low working noise and smooth starting.6.Supporting Real-time data and fault alerts.7.Supporting adaptive variable PWM frequency control.8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).9.Supporting control types: Current, Duty Cycle10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. Application Fields:Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys /Boat / Kayak etc Note: USB cable will be shipped randomly in black or white color.

Lesen Sie Mehr Weniger

Specifications: Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14V-60V (safe for 4S-12S) Continuous Current: 60A / Single; 120A / Dual (Values depend on the mounting and ambient temperature around the device) Peak Current: 150A / Single; 300A / Dual Communication Ports: USB, CAN, UART, PPM, ADC Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface) BEC: 5V@1A Multiple Speed Gear Levels: Low, Medium, High, Reverse Front Lights, Rear Brake Lights & Horn: Support Programmable: Yes Regenerative Capacity: Yes Slide Poweron & Auto shutdown: Yes. Auto poweroff time can be customized. Self-resetting switch with green LED button Diameter: 16mm Power Wire Size: 12AWG; Motor Wire Size: 12 AWG Size: L85*W70*H25mm (including heatsink) Features: 1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed. 2.240MHz and the max PWM switching frequency 25KHz improves the motor RPM. Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways. 3.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.4.0 or above). 4.Supporting motor FOC with low working noise and smooth starting. 5.Supporting Real-time data and fault alerts. 6.Supporting adaptive variable PWM frequency control. 7.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI). 8.Supporting control types: Current, Duty Cycle, Speed control, Position Control. 9.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. 10.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via Flipsky ESC Tool. 11.Supporting extra interface like front lights, brake lights and horn fixtures (12V 4A). 12.Supporting multiple typed of motor t emperature sensors such as NTC-10K-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY and so on. ​Wire Connection:

Lesen Sie Mehr Weniger

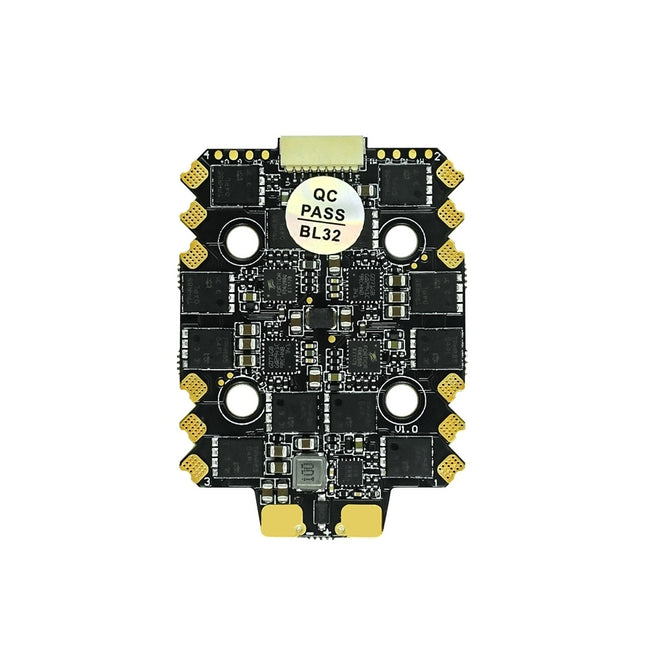

ESC E70 G1 2-8S 70A High Performance Controller BLHeli_32-bit 128K 4-in-1 For FPV Racing Drone Racing Freestyle (1) STM32G071 high-performance processor, using BLHeli_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A. (2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time. (3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time. (4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure. (5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel. (6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem. (7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty. (8) 20*20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.   Package Content: SEQURE E70 G1 4 in 1 ESC × 1 30AWG 40mm reverse double plug SH1.0-8P cable × 1 30AWG 60mm single plug SH1.0-8P cable × 1 12AWG 100mm power cable (black/red)×2 XT60H-M black male connector×1 35V 680UF solid capacitor×1 M3*8mm shock absorbing washer (black) × 5 M3*4.5mm shock absorbing washer (black) × 5
