Beschreibung
Spec:
Firmware supporting update via Flipsky ESC Tool

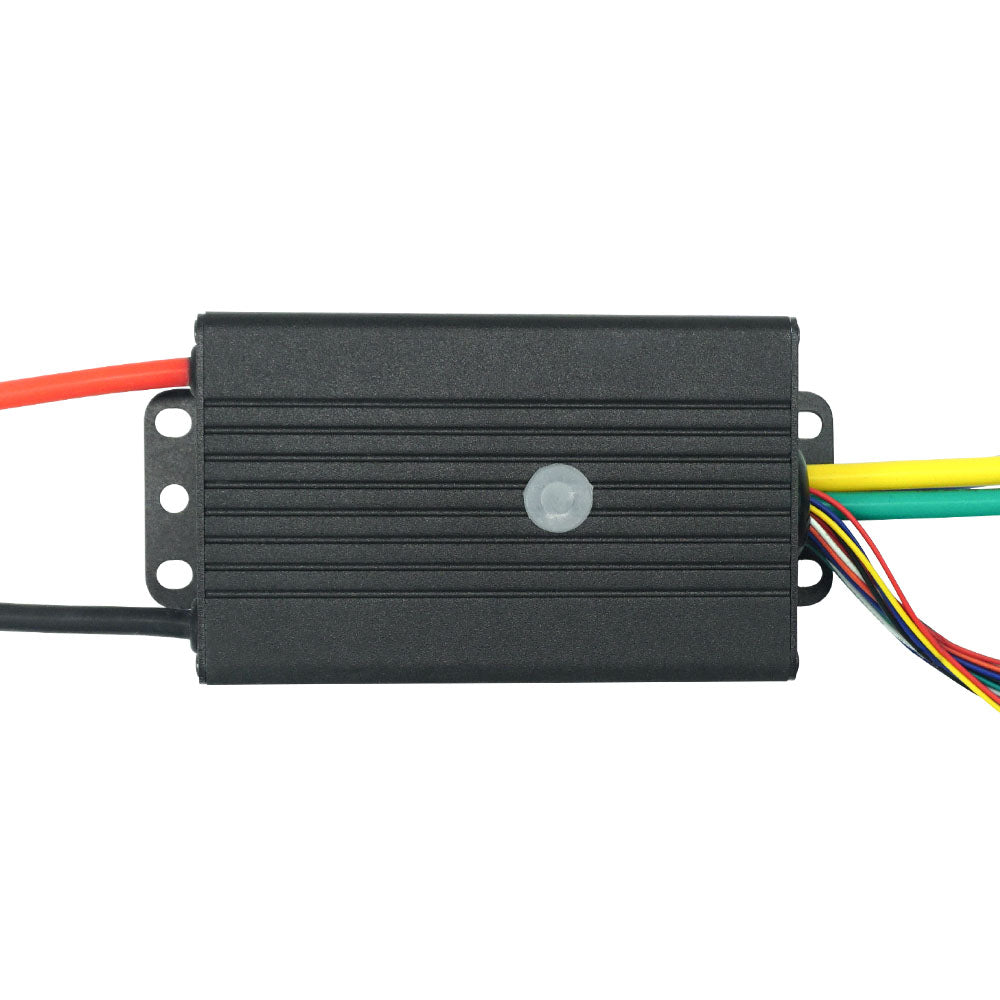

Voltage: 14-84V(safe for 4-20S)
Continuous current: 50V/60A; 75V/50A; 84V/40A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Peak Current: 250A
Communication Ports: USB, CAN, UART
Input Signal Support: PPM, UART(compatible with FLIPSKY remote VX4 only), ADC
BEC: 5V@1A
Multiple Speed Gear levels: Low, Medium, High, Reverse
Motor/power wire size: 12 AWG
Programmable: Yes
Regenerative Capacity: Yes

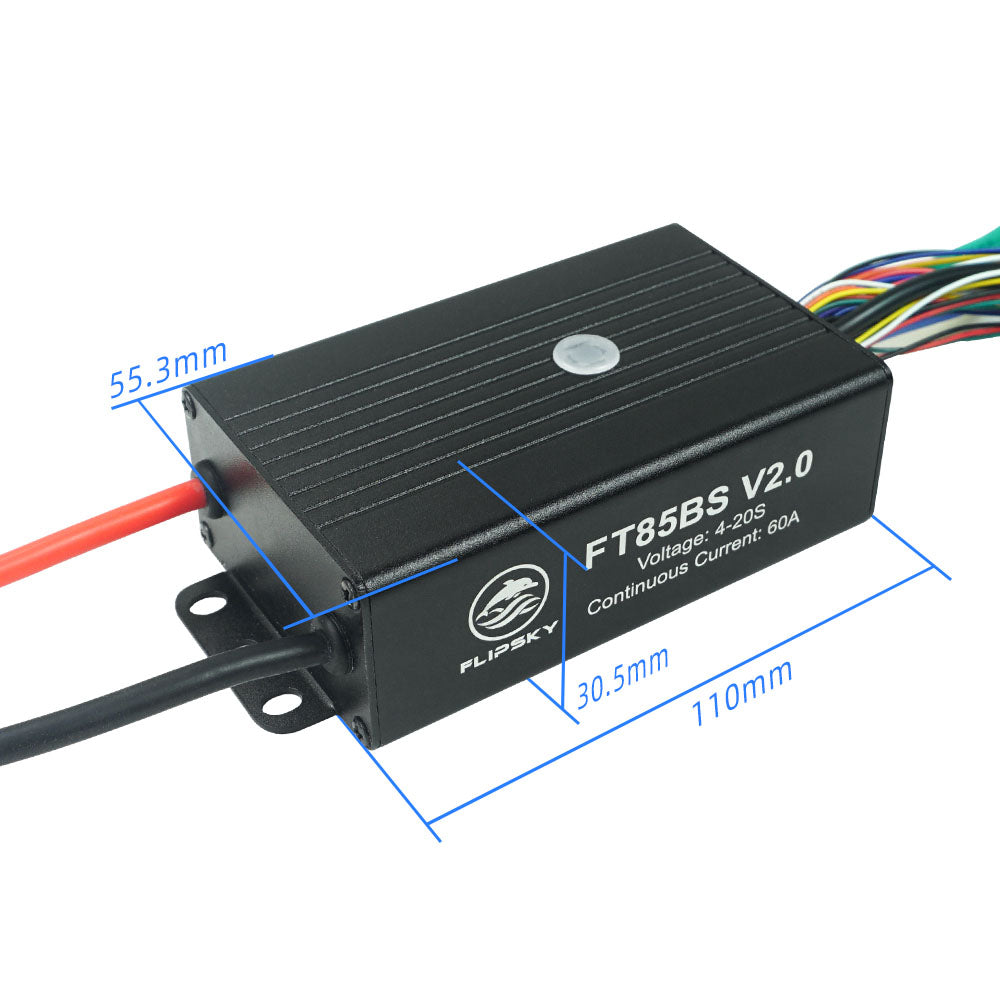

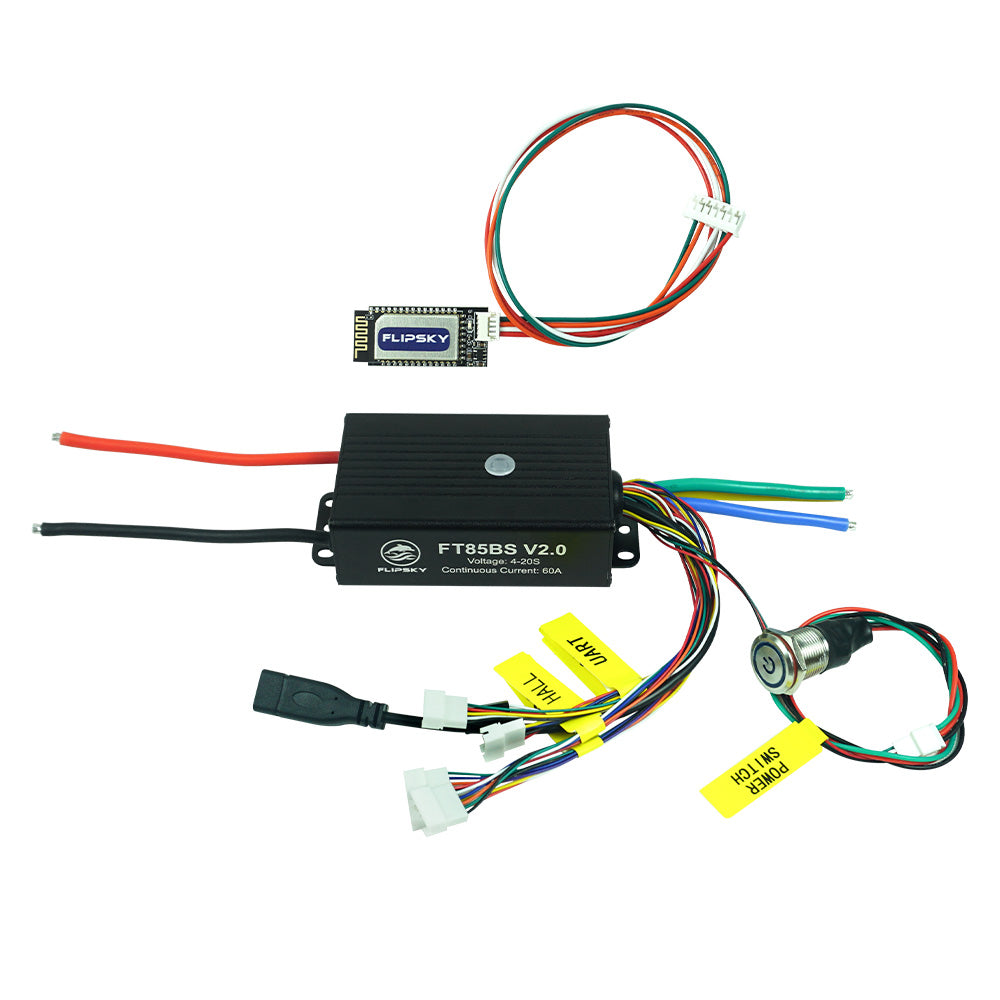

Size: L110.5*W55*H30mm(Including Alu. Case)
Power Switch Button: Red
Features:

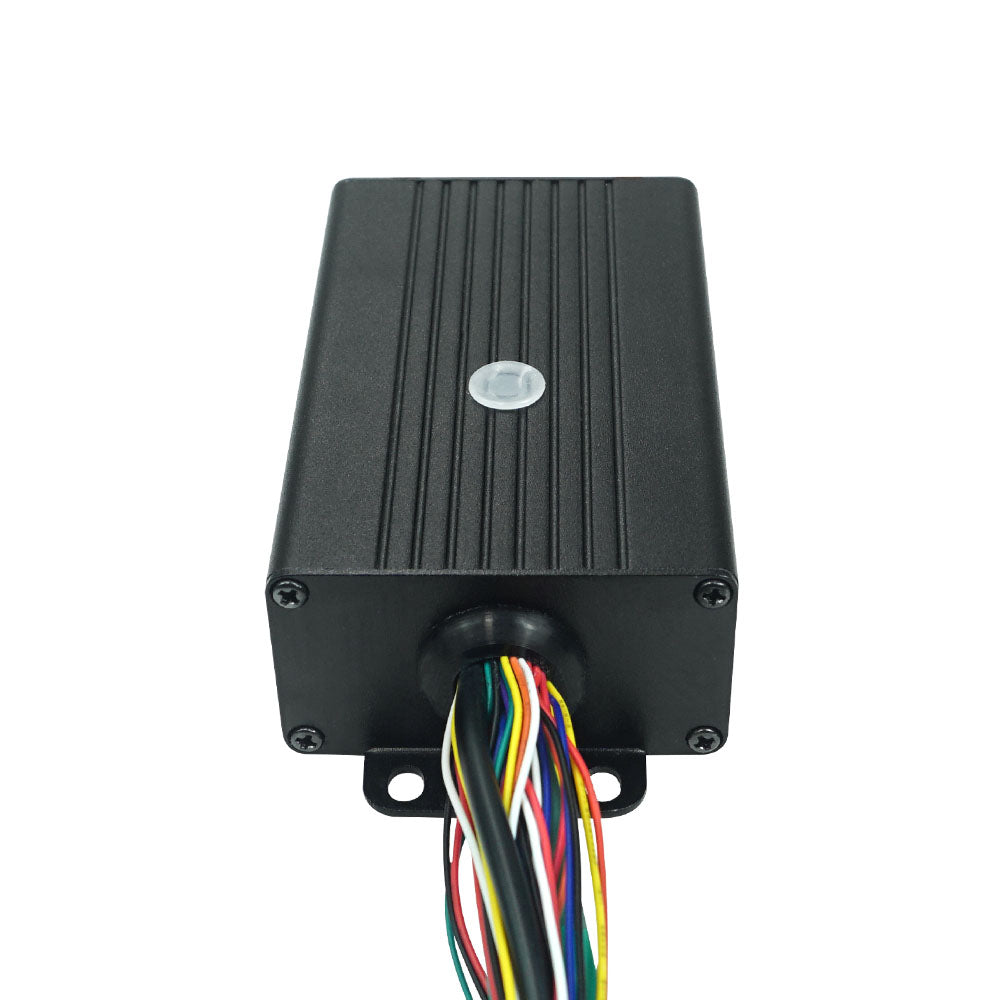

1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed
2.240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.
3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery
voltages and many control ways.
4.Programmable via Flipsky VX4 remote(Firmware Version:VX4_V1.2)

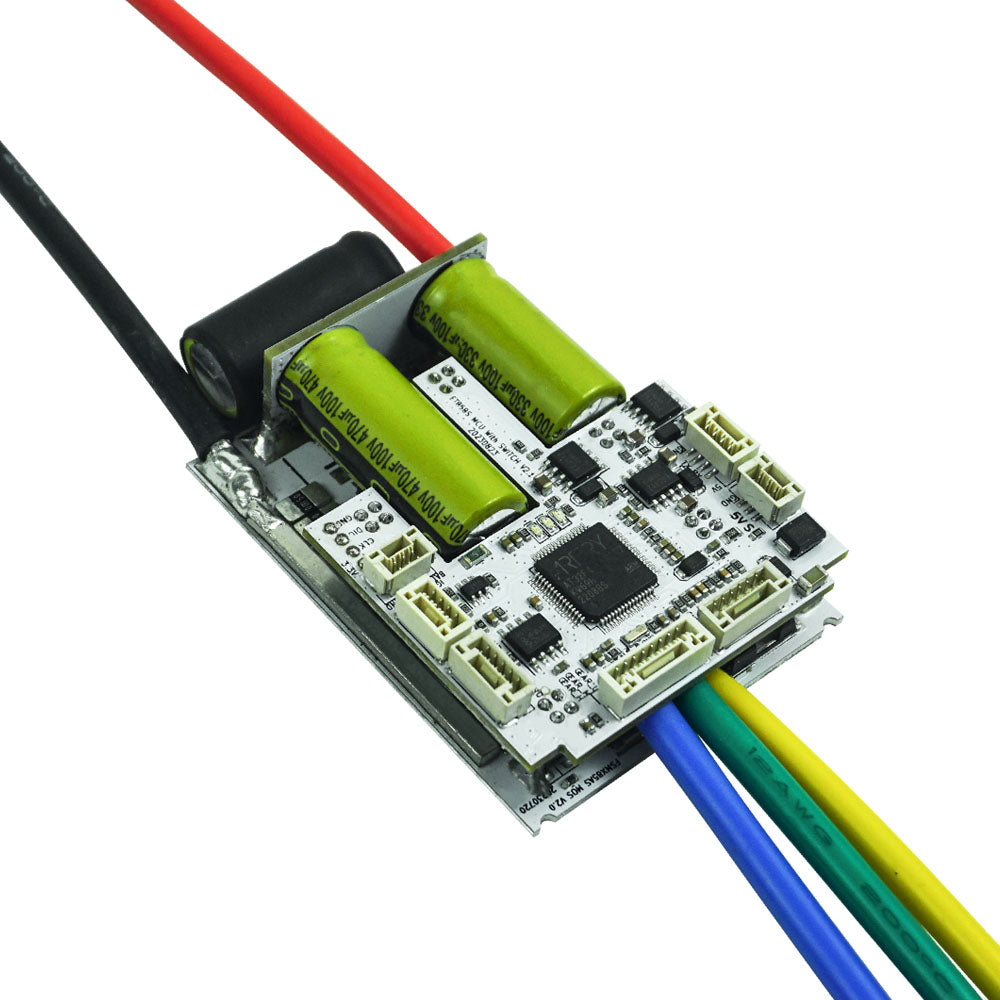

5.Supporting FOC with low working noise and smooth starting.
6.Supporting Real-time data and fault alerts.
7.Supporting adaptive variable PWM frequency control.
8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
9.Supporting control types: Current, Duty Cycle
10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
Application Fields:
Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys /Boat / Kayak etc

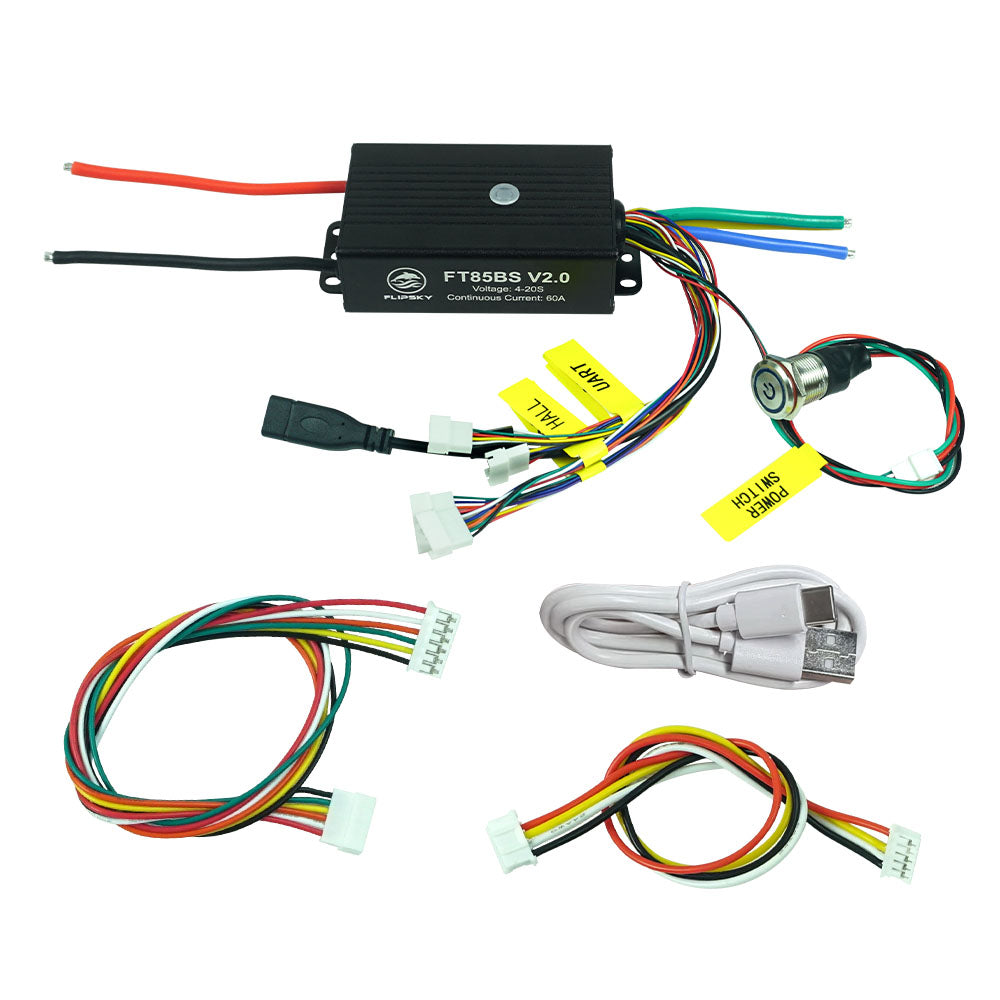

Note: USB cable will be shipped randomly in black or white color.
