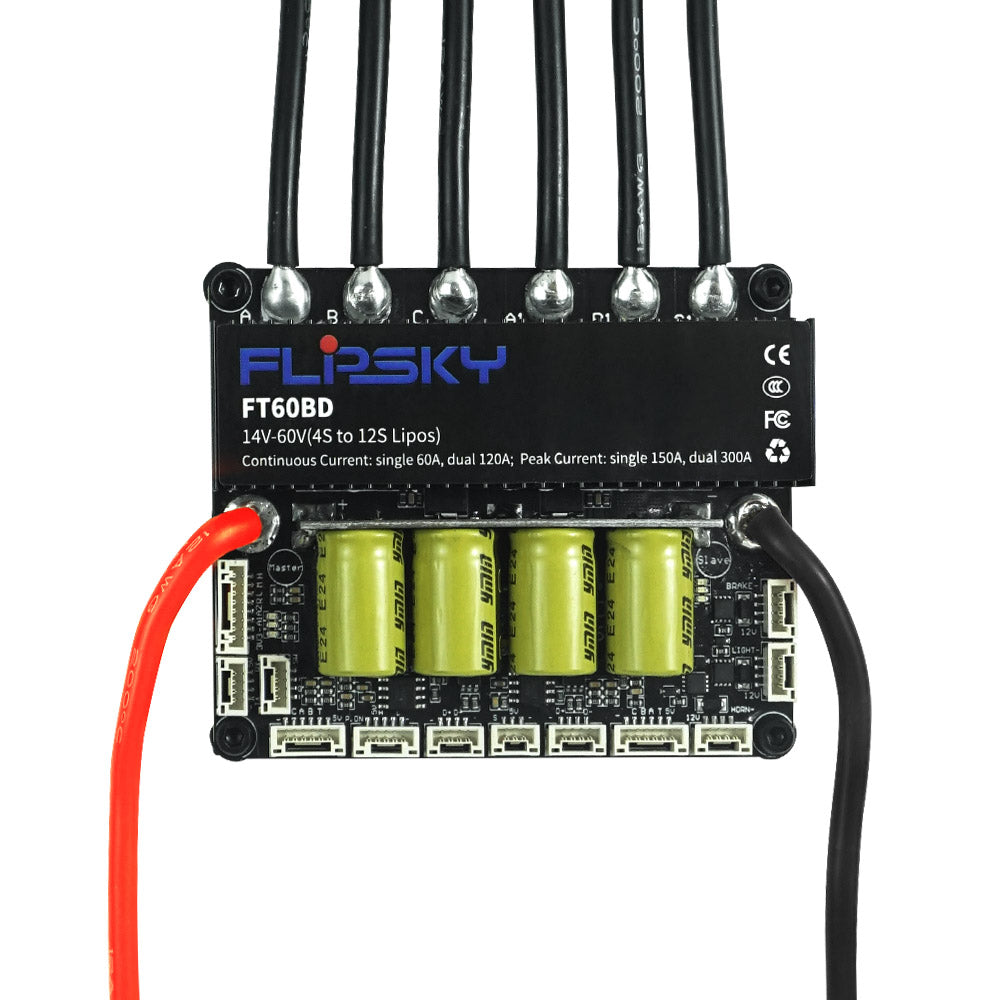

FT60BD Dual Drive ESC 60V 120A HALL Sensor With Heatsink PWM Frequency Controller For DIY Eboard Scooter Ebike

Beschreibung

Specifications :

  • Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported)
  • Voltage: 14V-60V (safe for 4S-12S)
  • Continuous Current: 60A / Single; 120A / Dual (Values depend on the mounting and ambient temperature around the device)
  • Peak Current: 150A / Single; 300A / Dual
  • Communication Ports: USB, CAN, UART, PPM, ADC
  • Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS
  • Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface)
  • BEC: 5V@1A
  • ERPM: 150000
  • Multiple Speed Gear Levels: Low, Medium, High, Reverse
  • Front Lights, Rear Brake Lights & Horn: Support
  • Programmable: Yes
  • Regenerative Capacity: Yes
  • Slide Poweron & Auto shutdown: Yes. Auto poweroff time can be customized
  • Self-resetting switch with green LED button Diameter: 16mm
  • Power Wire Size: 12AWG
  • Motor Wire Size: 12 AWG

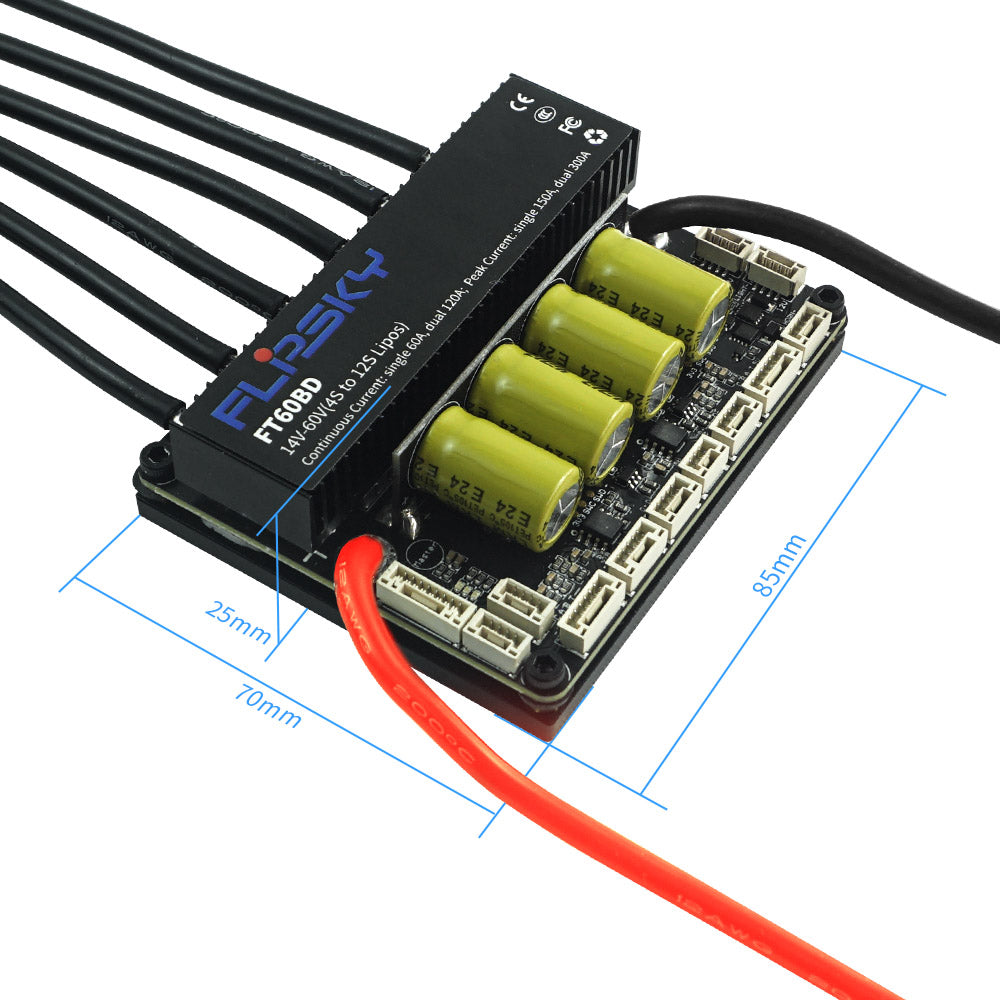

  • ESC Size: L85 * W70 * H25mm (including heatsink)

Features:

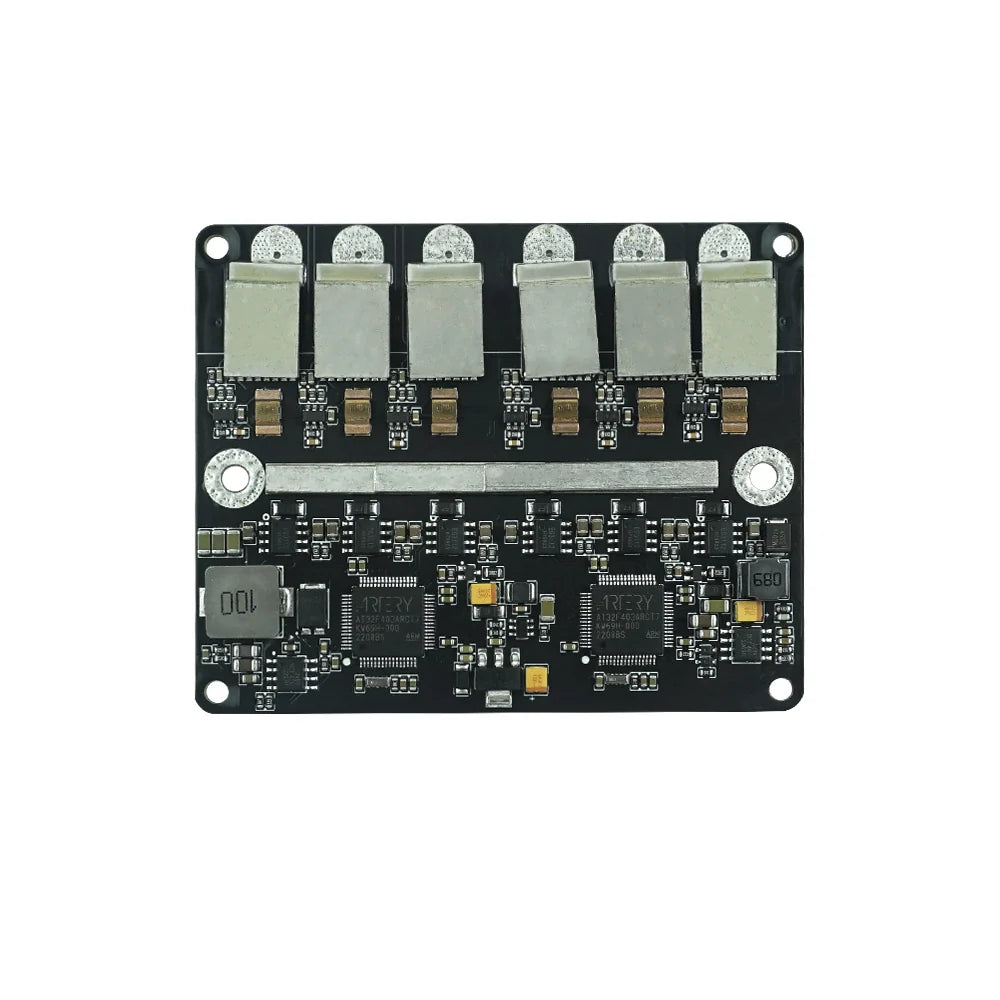

  • Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
  • 240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
  • Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
  • Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.4.0 or above).
  • Supporting motor FOC with low working noise and smooth starting.
  • Supporting Real-time data and fault alerts.
  • Supporting adaptive variable PWM frequency control.
  • Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
  • Supporting control types: Current, Duty Cycle, Speed control, Position Control
  • Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
  • Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via Flipsky ESC Tool.
  • Supporting extra interface like front lights, brake lights and horn fixtures (12V 4A).
  • Supporting multiple typed of motor t emperature sensors such as NTC-10K-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY and so on.

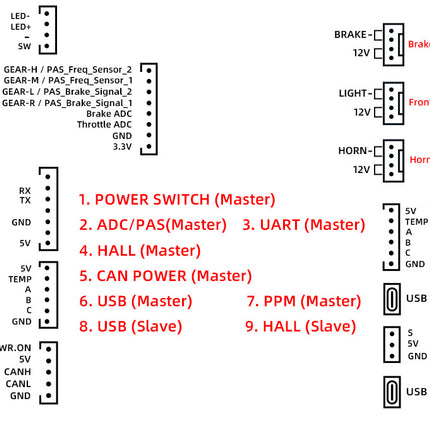

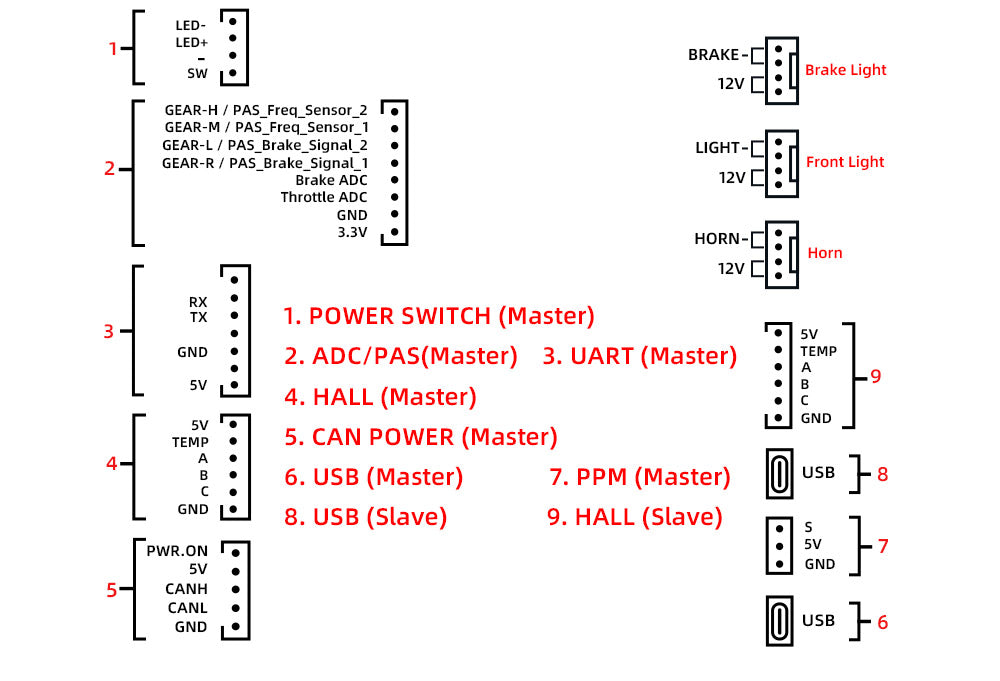

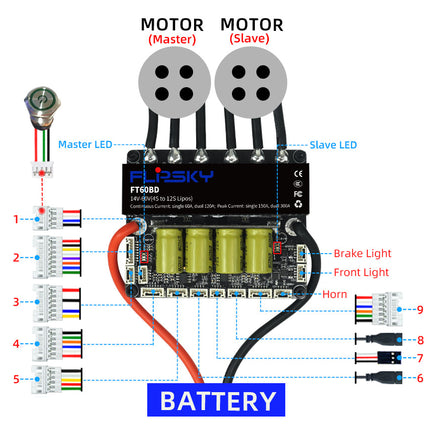

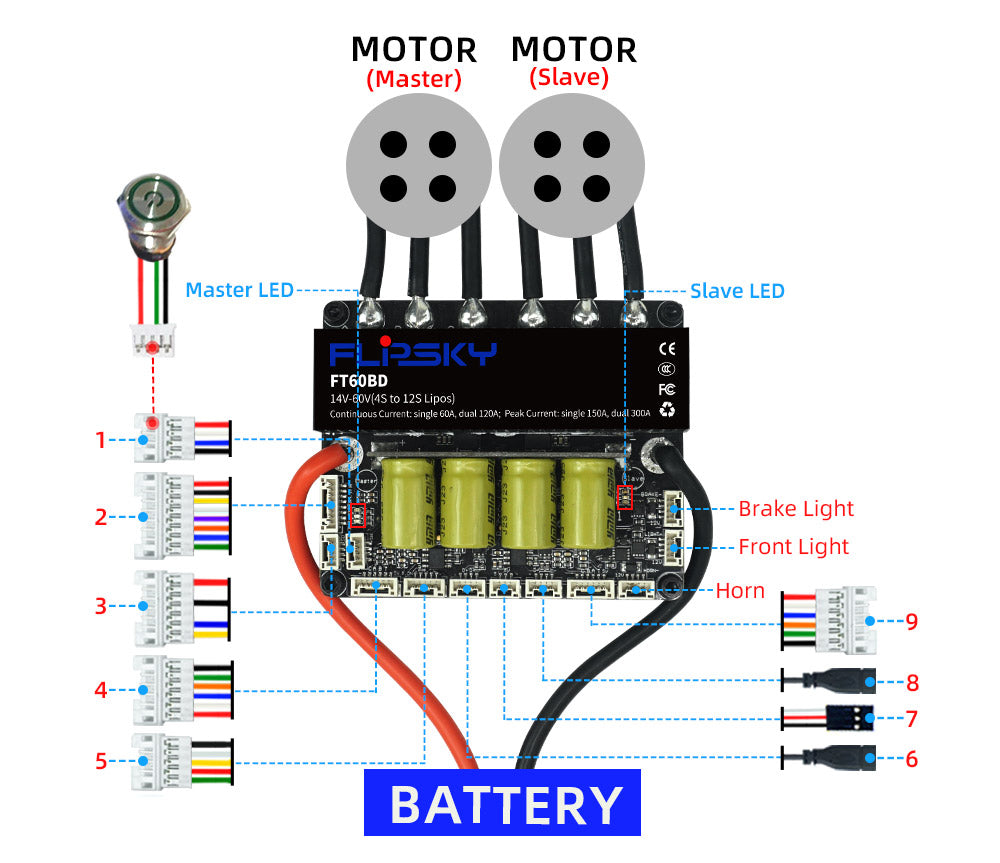

Wiring diagram:

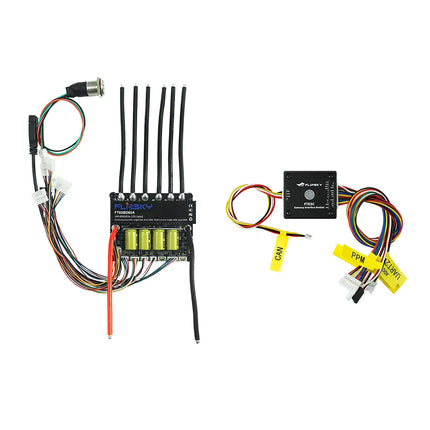

FT60BD Dual Drive ESC 60V 120A HALL Sensor With Heatsink PWM Frequency Controller For DIY Eboard Scooter Ebike

Produkt Form

Specifications :  Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14V-60V (safe for 4S-12S) Continuous Current:... Lesen Sie mehr

SKU: FTC-60D-A-060

$99.00 $79.00 Exkl. MwSt

            Beschreibung

            Specifications :

            • Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported)
            • Voltage: 14V-60V (safe for 4S-12S)
            • Continuous Current: 60A / Single; 120A / Dual (Values depend on the mounting and ambient temperature around the device)
            • Peak Current: 150A / Single; 300A / Dual
            • Communication Ports: USB, CAN, UART, PPM, ADC
            • Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS
            • Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface)
            • BEC: 5V@1A
            • ERPM: 150000
            • Multiple Speed Gear Levels: Low, Medium, High, Reverse
            • Front Lights, Rear Brake Lights & Horn: Support
            • Programmable: Yes
            • Regenerative Capacity: Yes
            • Slide Poweron & Auto shutdown: Yes. Auto poweroff time can be customized
            • Self-resetting switch with green LED button Diameter: 16mm
            • Power Wire Size: 12AWG
            • Motor Wire Size: 12 AWG
            • ESC Size: L85 * W70 * H25mm (including heatsink)

            Features:

            • Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
            • 240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
            • Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
            • Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.4.0 or above).
            • Supporting motor FOC with low working noise and smooth starting.
            • Supporting Real-time data and fault alerts.
            • Supporting adaptive variable PWM frequency control.
            • Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
            • Supporting control types: Current, Duty Cycle, Speed control, Position Control
            • Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
            • Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via Flipsky ESC Tool.
            • Supporting extra interface like front lights, brake lights and horn fixtures (12V 4A).
            • Supporting multiple typed of motor t emperature sensors such as NTC-10K-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY and so on.

            Wiring diagram:
