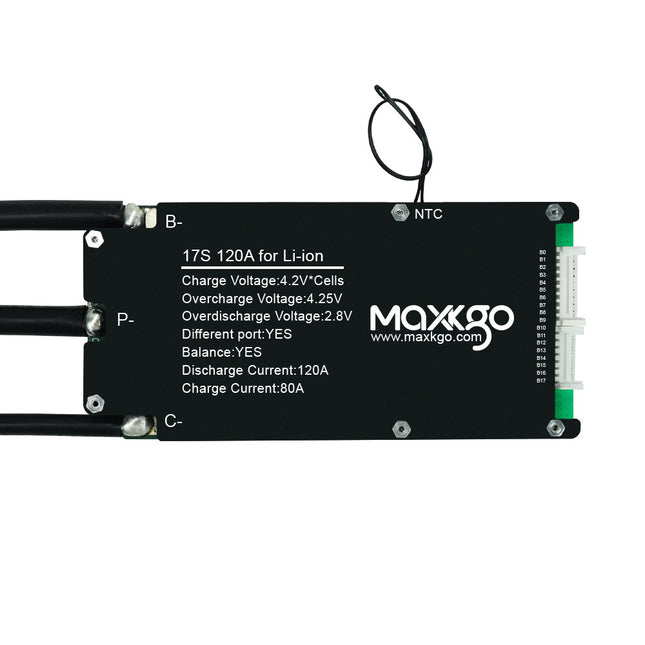

MKBMS 15-24S_120A BMS board is a full-function Li-ion battery protection board with passive balance. The continuous current can reach to 120A. It supports overcharge protection, overcharge protection, over current protection, ,over temperature protection, short circuit protection, etc. Extensive evaluation of e-bike, e-skateboard,electric motorcycles, e-scooters, electric balance cars and other fields.  Parameters: wiring: same port or different ports（When using the charging and discharging port, disconnect the p-） Battery type: li-ion battery (standard voltage 3.7V) Balance method: passive balance Number of battery strings: 15S-24S Overcharge voltage: 4.25V Overcharge recovery voltage: 4.15V Over-discharge threshold: 2.8V Over-discharge release: 3.0V Passive equalization turn-on voltage: 4.125V Charging current: 80A Discharge current: 120A Charging overcurrent: 200A Discharge overcurrent: 480A Charging protection temperature: 50°C Charging recovery temperature: <45°C Discharge protection temperature: 70°C Discharge recovery temperature: <60°C Size: 140*66*16mm For detailed parameters, please refer to “15-24S BMS Parameter Table” Feature: Balance function, fully activate the battery capacity No need to adjust parameters, the operation is easier Metal heat sink, more stable performance With locking cable arrangement, the wiring is more secure Function: Over charge protection Over discharge protection Overcurrent protection Short circuit protection Temperature control protection Balanced protection Static protection Load detection function Application : Electric skateboard Electric bicycle Smart balance car Electric Scooter Forklift Cleaning car Sightseeing car Energy storage Outdoor power supply Shipping list: 1X MKBMS Li-ion BMS Board 1X GH2.0 single head P line（with buckle） Operational matters: please ensure the correctness of the wiring sequence during wiring. Please arrange the lines in order from B0-B12, B13-B24. After the battery is fully powered, the voltage will reach a maximum of 100V. There is a risk of electric shock, so please pay attention to protection.

Read more less

Video: Only Charge Board does not support discharge protection, please do not discharge through this protection board. Specs: Type: Charge only Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 4S-24S Charge Current: 20A Overcharge Voltage: 4.25V Overcharge Reset: 4.19V Balance: 30-50mA@4.2V Overtemperature: 60°C Overtemperature Reset: 40°C Size: 110*30*11mm Net weight: 30g Package Included: 1* MKBMS 4S-24S 20A Only Charge Board 1* GH2.0 single head 12P line 1* GH2.0 single head 13P line 1* HY2.0 single head 2P cable with thermal protection switch 1* Charging cable with XT60 or XT30 connectors

Read more less

MKBMS 4S-30S 20A Only Charge Battery Protect Board device is designed to reduce the risk of charging. Designed to be ultra-compact and simple to use without any configuration required. Features high charging current, balancing activity LED lights, overcharge, and over temperature protection .Extensive Used in electric bicycles, electric scooters, Onewheels and other fields. MKBMS 4S-30S 20A Only Charge Board does not support discharge protection, please do not discharge through this protection board. adapter board: https://shorturl.at/bhjTY Specs: Type: Charge only Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 4S-30S Charge Current: 20A Overcharge Voltage: 4.25V Overcharge Reset: 4.19V Balance:20-30mA@4.2V（Please balance the battery first before charging） Overtemperature: 60°C Overtemperature Reset: 40°C Size: 130*30*11mm Net weight: 30g Features: Compact charge only design Cell balance indicator LED Compatible with 4s-30s battery Designed to be ultra-compact and simple to use without any configuration required Anodized aluminum heatsink case, stable performance Functions: Balance function Overcharge protection Overtemperature protection Cell balance indicator LED Common Uses: ▪ One-wheeled electric skateboards ▪ Electric Skateboards ▪ Electric Scooters ▪ Electric Bikes ▪ EUCs Package Included: 1* MKBMS 4S-30S 20A Only Charge Board 1* GH2.0 single head 15P line 1* GH2.0 single head 16P line 1* HY2.0 single head 2P cable with thermal protection switch 1* Charging cable with XT30 or XT60 connectors Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B15, B16-B30, the voltage increases from low to high in sequence. This BMS is compatible with battery packs up to 30s, which is over 5V DC when fully charged. Electric shocks from high voltage may cause serious injury. Please pay attention to safety when using. This device is designed to reduce the risk of charging and will not protect against overcurrent discharge, undervoltage, internal pack shorts, pack overtemperature. Video:

Read more less

Expertly designed, the MAXKGO smart BMS 12S 60V 70A protection board is compatible with both VESC and FSESC® systems. This smart BMS provides superior protection and efficiency for Ebikes, Esk8s, Escooters, and more. With advanced features including VESC compatibility, this BMS ensures maximum performance for all your electric transportation needs. Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Spec: Cell voltage operating range:2V-5V Recommended series cell:6S-12S Charge / discharge voltage:24V-52V Charge Current：≤20A Abs. Max battery voltage: 60V Minimum operating voltage: 14V Continuous charging current: 20A Over charge detect and release voltage: 2V-5V Over charge protection delay: ≥4ms Discharge current: ≤70A Max. Continuous discharge / regen current: 70A  Over discharge detect / release voltage: 0-5V Over current detect delay:≥4ms Discharge over current protection release condition: off load Short Circuit detect voltage:short circuit of external load Short Circuit detect delay: 320us Short Circuit protection release: off load Battery pack capacity and internal resistance detection: Yes Balance current: 86mA @4.2V Temp Protect: -20℃—+120℃ Working Temp Range:-20℃—+80℃ Storage Temp Range: -20℃—+100℃ Working current: ≤40mA Sleeping current: ≤100uA Size: 89 x 40 x 20.8mm Net weight: 106.5g Packing size: 140 x110 x 50 mm Package weight: 303.5g Including outer carton size: 170*120*100mm Weight with outer carton: 380g Feature: Compact layout and mini Using aluminum alloy material shell, better heat dissipation. Automotive grade design, automotive grade locking connector. Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. Automotive grade monitoring & balancing IC with separate power supply for increased reliability Voltages measurements for load, charger & battery pack Bi-directional current monitoring SOC based on coulomb counting Humidity sensor & board temperature monitoring Charger detection circuit Integrated precharge circuit Power button, USB-C, UART, I2C & isolated CAN bus interface On board High-Efficiency 3.3V regulator powered from the main battery pack High current capacity automotive grade screw connectors for main power connections Buzzer & status LED Support:  overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance). Support:  almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc. Packing list: 1* PCBA 1* HY2.0 single head 10P line 1* HY2.0 single head 13P line 2* GH1.25 single head 5P cable 1* GH1.25-5P to Dupont line 1* USB cable type-C data cable 1* 2.0MM jumper cap 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 4* M5*8 stainless steel round head screws 4* M5 copper gasket 4* 90 degree angle terminal block T90-6/5  1* XT30 (female) Video: If you need more diagrams for different series, please contact us!

Read more less

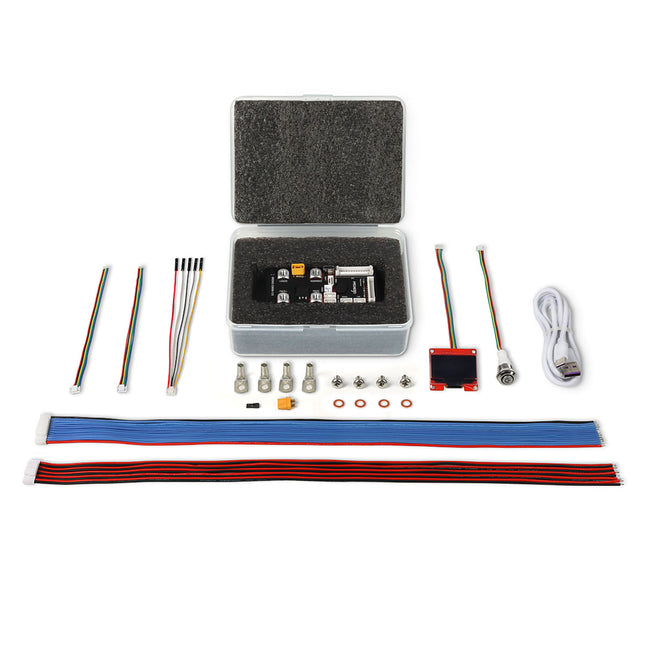

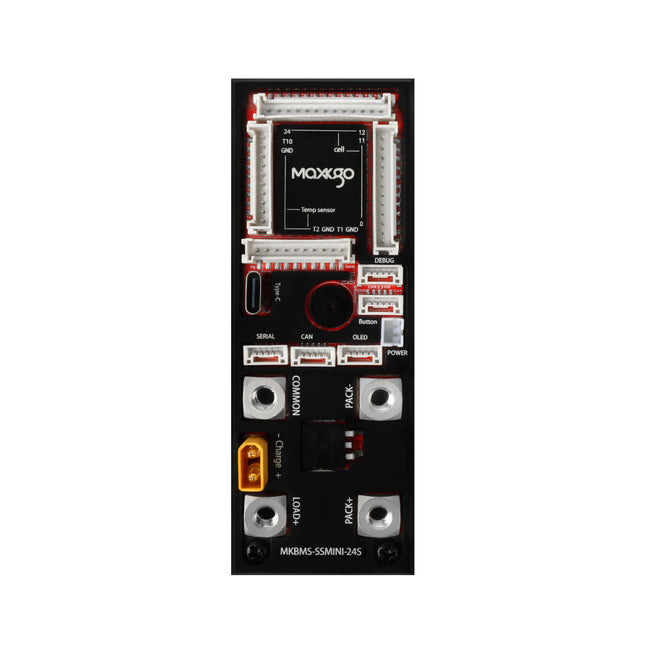

Firmware & software repositories are available click here： MAXKGO MAXKGO BMS User Manual:MAXKGO Remark: Only Support 6S-28S 12A Smart Only Charge BMS and 6S-24S 150A Smart BMS Maxkgo-BMS Privacy Policy (1)Maxkgo-BMS User Protocol (1) Package Included:  1* MKBMS 6S-24S Smart Bluetooch VESC BMS Board(With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 1* GH1.5 single head 5P line 1* GH1.25-5P to Dupont line 1* PH2.0 single head 13P line 1* PH2.0 single head 12P line 1* PH2.0 single head 8P line Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B12, B13-B24, the voltage increases from low to high in sequence. 1. This BMS is compatible with battery packs up to 24s, which is over 102V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.

Read more less

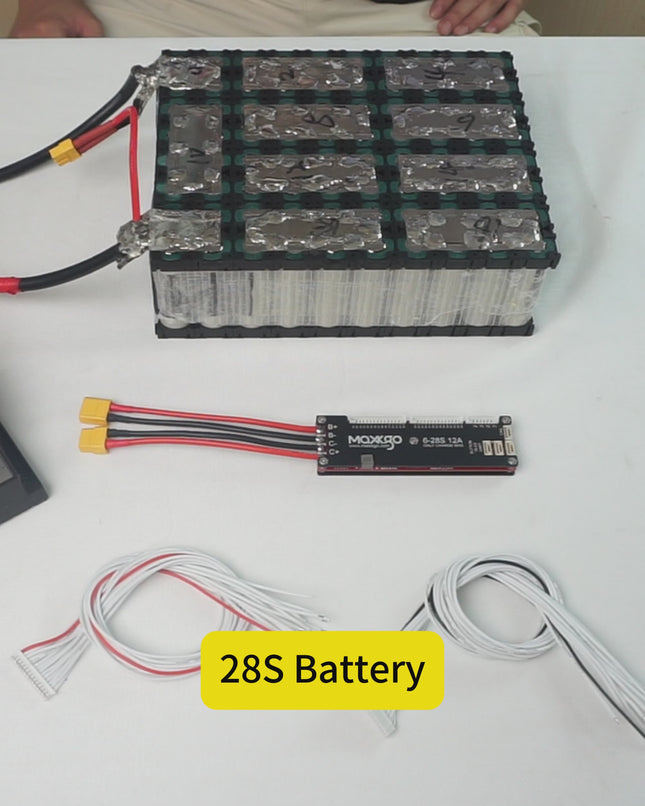

Firmware & software repositories are available click here： MAXKGO MAXKGO BMS User Manual:MAXKGO Maxkgo-BMS Privacy Policy (1)Maxkgo-BMS User Protocol (1) Remark:Only Support 6S-28S 12A Smart Only Charge BMS and 6S-24S 150A Smart BMS Specs: ●Type:Smart Charge only ●Cell Chemistry: Li-ion/LiFePO4 ●Number of Battery Strings: 6S-28S ●Charge Current: 12A ●Single cell voltage Sdetection range: 2v-5v,error value:±2mV ●Balance: 28mA@4.2V,Passive balance ●connector:XT30/XT60 ●Short Circuit Protection:Support. ●Bluetooth Function:with Bluetooth ,Support for Android  ●Temperature detection:-30～125℃. ●Voltage support range: 15V-118V ●Abs. Max battery voltage: 120V ●Shutdown Consumption: <80uA ●Quantity of Temperature Detection: 4 Pcs(NTC) ●SoC estimation accuracy:Error:8%(operating conditions). ●Operating power consumption:<40mA(UART/CAN). ●Standby power consumption:<100uA. ●Charge protection Temp: 0°C~100°C ●Charge Temp Reset: 0°C~100°C ●Recommended Working Temp:-20°C~+75°C ●Size: 112.17*33.7*12.8mm Notice:The Each S voltage can only be set to a maximum of 4.2V for 28S battery pack Package Included: 1* MKBMS 6S-28S 12A Smart Only Charge Board(With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 1* GH1.5 single head 5P line 1* GH1.25-5P to Dupont line 1* PH2.0 single head 15P line 1* PH2.0 single head 14P line 1* PH2.0 single head 8P line Wiring Diagram Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B15, B16-B28, the voltage increases from low to high in sequence. This BMS is compatible with battery packs up to 28s, which is over 118V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using. This device can only be used for charging to reduce the risk of overcharging, but cannot prevent Discharge over-current, short circuit, and over-discharge.

Read more less

Product Description-- Charging current: <60A Discharge current: < 150A Internal resistance: ≤15mΩ   Charging voltage: The number of Li-ion battery in series connection X 4.2VWiring : same port or different ports（When using the charging and discharging same port, disconnect the p-）   Overcharge protection—— Detection voltage: 4.25±0.025V Detection delay: 1000±500MS Release voltage: 4.15±0.05V   Over-discharge voltage protection—— Detection voltage: 2.75±0.1V Detection delay: 1000±500MS Release voltage: 3.0±0.1V   Balanced voltage—— Detection voltage: 4.15±0.025V Detection delay: 100±50MS Balance current: 42±5MA   Over discharge current protection—— Detection voltage: 50±15MV Detection delay: 1000±500MS Current protection: 300±50A 450±50A 600±60A   Short circuit protection-- Trigger condition: external short circuit Detection delay: 300us Release condition: disconnect the load   Temperature control protection—— Charge and discharge over-temperature protection: 55℃ Charge and discharge high temperature release temperature: 75℃ Release condition:During normal working temperature          Self-consumption—— Working power consumption: <35UA Over-discharge power consumption(Sleeping State): <10UA Operating temperature range: -30°~+80°C   Product Features-- Overcharge protection Over discharge protection Over current protection Balanced protection Temperature control protection Applicable for 8-14S battery   Size:121*50*12.8mm Net weight:244g Weight: 331.5g   Package: 1* PCBA board 1*HY2.0 single head 15P line   Wiring diagram

Read more less

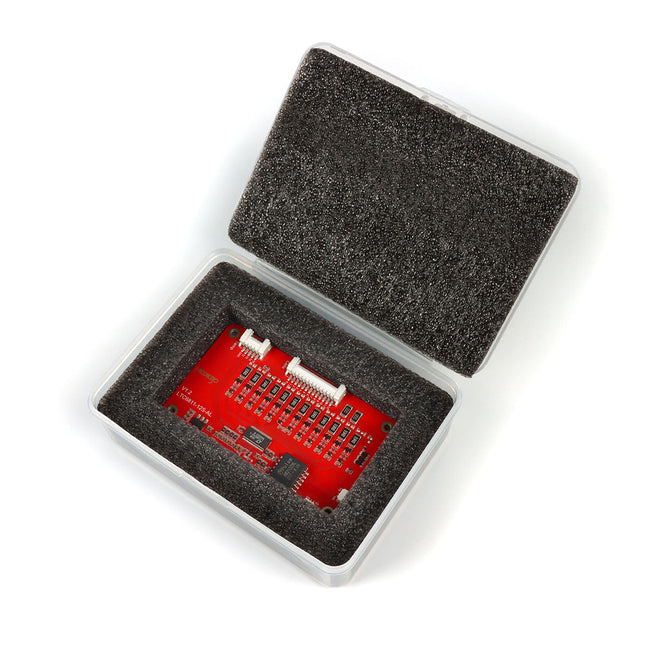

MKBMS is based on the modular BMS of LTC6811, and is connected to one or more slave boards and integrated boards of different sizes through the ISOSPI interface.  LTC6211 12S Slave BMS Features —— 1. Aluminum alloy PCB, better heat dissipation effect. 2. Compatible with MKBMS and ENNOID BMS. 3. from 5-12 series-connected battery cells per board. 4. 1+4 temperature sensors per slave. 5. Self-powered by the monitored cells. 6. Ultra-low power consumption, sleep mode = 6uA. 7.It can be connected to multiple slave boards to form an integrated board through the ISOSPI interface 8.Daisychain Master ISOSPI communication 9.1.2mV accuracy, -40 to 120C operation 10.33 ohm balance resistors (0.125A capacity) on all channels 11.Scalable & isolated 1000VDC+ 12.Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps) Note:　The first temperature channel is used by slave board itself. The following 4 temperature sensors are not in the package lists,  but means an interface to connect 4 temp sensors at most.  Shipping List: 1X   PCBA board LTC6811-12W-AL V1.2 slave board 2X   GH1.25 double head 2P same direction line 1X   HY2.0 single head 5P line 1X   HY2.0 single head 13P line 4X   Nylon column 4X   Nylon nut

Read more less

MKBMS is based on the modular BMS of LTC6812, and is connected to one or more slave boards and integrated boards of different sizes through the ISOSPI interface.   MKBMS Function —— Overcharge protection: Yes Over discharge protection: Yes Temperature protection: Yes Thermal management: Yes Balance function: Yes Balance method: passive balance  Battery pack capacity detection: Yes Battery internal resistance detection: Yes Support battery: support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.   LTC6212 15S Slave Board Features —— 1. Aluminum alloy PCB, better heat dissipation effect. 2. Compatible with MKBMS and ENNOID BMS. 3. From 5-15 series-connected battery cells per board. 4. 1+8 temperature sensors per slave. 5. Self-powered by the monitored cells. 6.Ultra-low power consumption, sleep mode=6uA. 7. It can be connected to multiple slave boards to form an integrated board through the ISOSPI interface 8. Daisychain Master / Slave ISOSPI communication 9. 1.2mV accuracy, -40 to 120C operation 10. 33 ohm balance resistors (0.125A capacity) on all channels 11. Scalable & isolated 1000VDC+ 12. Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps) *The first temperature channel is used by slave board itself. The following 8 temperature sensors are not in the package lists but means an interface to connect 8 temp sensors at most.   MKBMS Functions: Current and voltage protection: protect the battery pack from overcharge and over discharge, thereby extending the cycle life. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. Thermal management: Overheating and under-temperature protection. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate Intelligent battery balance: passive balance  Field programmable Current limit calculation Fully programmable CANBUS interface, programmable structure of all CAN messages Drift state of charge Reliability, speed and accuracy Integration with other devices Multiple BMS units connected in series Current sensor support Isolation from fault detection Automotive grade design, automotive grade locking connector Software for data logging and programming   MKBMS can be divided into three aspects: automobile, industry, consumption: Electric vehicles Electric patrol car Scenic sightseeing car Handling robots Automatic forklift Electric two-wheeler AGV forklift Sightseeing car Electric tricycle Electric mobility vehicles RV Solar street light Outdoor energy storage Home energy storage equipment Robotand etc.   Shipping List:  LTC6812-15S  Slave Board Package—— 1X   PCBA board LTC6812-15S slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 2X   HY2.0 single head 8P line 1X   HY2.0 single head 16P line 4X   Nylon column 4X   Nylon nut   Specification Size：100 x 60mm Net Weight：31.8g Package Size：140 x110 x 50 mm Package Weight：120g Outer Package Size：160*120*75mm Outer Package Weight ：240g

Read more less

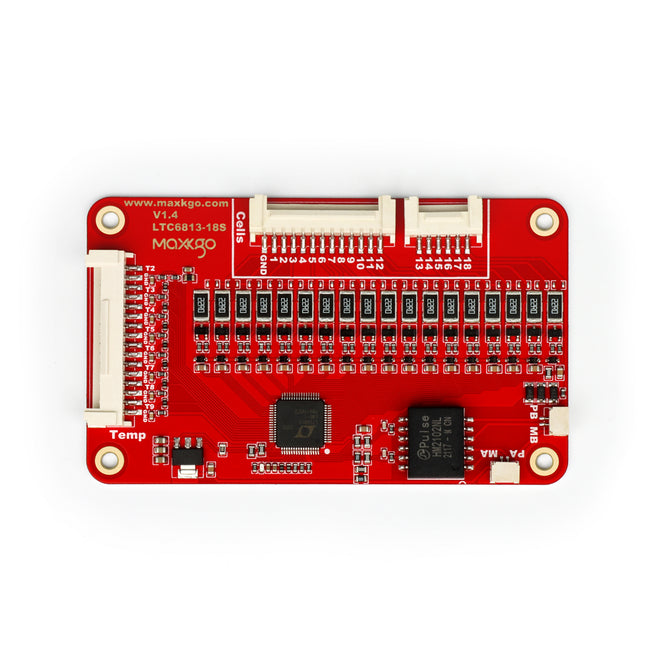

MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials. Maybe you need more MKBMS options: https://bit.ly/3xR2DJS MKBMS Slave Board Features: MKBMS slave board is made of aluminum base plate, which has better heat dissipation effect. Scalable & isolated 1000VDC+ Compatible with MKBMS Master boards From 5 to 18 series-connected battery cells per board Daisychain Master/Slave ISOSPI communication Parameters fully programmable through an easy to use graphical user interface 33 ohm balance resistors (0.125A capacity) on all channels Self powered by monitored cells 1.2mV accuracy, -40 to 120C operation Extra low power consumption (Sleep mode = 6uA) Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps)       Variant:            LTC6813 : Up to 18 cells voltage monitoring & 1+8 temperature sensors* per slave      *The first temperature channel is used by slave board itself. The following 4 or 8 temperature sensors are not in the package lists but means an interface to connect 8 temp sensors at most.    MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc.   LTC6813-18S  Package 1X PCBA board LTC6813-18S V1.4 slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 1X HY2.0 single head 6P line 1X HY2.0 single head 13P line 1X HY2.0 single head 16P line 4X nylon column 4X nylon nut

Read more less

Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Spec: Cell voltage operating range:2V-5V Recommended series cell:18S-24S Charge Voltage:48V-104V Charge Current：≤10A Abs. Max battery voltage: 120V Minimum operating voltage: 28V Continuous charging current: 10A Over charge detect and release voltage: 2V-5V Over charge protection delay: ≥4ms Discharge current: ≤70A Discharge voltage:48V-104V Over discharge detect and release voltage: 0-5V Over current detect delay:≥4ms Discharge over current protection release condition: off load Short Circuit detect voltage:short circuit of external load Short Circuit detect delay: 320us Short Circuit protection release: off load Battery pack capacity and internal resistance detection: Yes Balance current: 50mA @4.2V Temp Protect: -20℃—+120℃ Working Temp Range:-20℃—+80℃ Storage Temp Range: -20℃—+100℃ Working current: ≤40mA Sleeping current: ≤100uA Size: 109 x 40mm Net weight: 126.7g Packing size: 140 x110 x 50 mm Package weight: 370.3g Including outer carton size: 170*120*100mm Weight with outer carton: 420g Feature: Compact layout and mini Using aluminum alloy material shell, better heat dissipation. Automotive grade design, automotive grade locking connector. Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. Automotive grade monitoring & balancing IC with separate power supply for increased reliability Voltages measurements for load, charger & battery pack Bi-directional current monitoring SOC based on coulomb counting Humidity sensor & board temperature monitoring Charger detection circuit Integrated precharge circuit Power button, USB-C, UART, I2C & isolated CAN bus interface On board High-Efficiency 3.3V regulator powered from the main battery pack High current capacity automotive grade screw connectors for main power connections Buzzer & status LED Support overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance). Support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc. Video: If you need wiring diagram of different number of series, pls contact us.

Read more less

DC-DC Step-down Power Supply Module Specifications Input voltage: 9V-90V        The minimum voltage difference between the input voltage and the output voltage          is 4V  (when the output is 5V, the input is DC9V-90V, and when the output is 12V,              the input voltage is DC16V-90V. Output voltage: 12V/5V Maximum output current: 3A (that is, the constant current value is 3A, when the customized voltage is higher than 12V, the output current is less than   3A, the power is not recommended to exceed 30W, 12V and 5V can reach 3A.) Typical operating frequency: 140KHz High efficiency: up to 95% (the smaller the pressure difference, the higher the efficiency) Working temperature: industrial grade (-40℃ to +85℃) Module volume: 42*30*17mm  Product Advantages Frequency reduction at light load to improve light load efficiency. Small standby current. Built-in over-temperature, over-current, output short-circuit protection. Built-in soft start. Constant voltage and constant current output.   Instructions 1.First connect the connection line between the module and the power supply, and then power on. (If the input terminal is connected with electricity, it is prone to sparking, especially when the input power supply voltage is high, the pad of the module may even be burnt). 2.After selecting a suitable power supply, use a multimeter or voltmeter to measure whether the output voltage of the module is consistent with the voltage required by the device. 3.Connect electrical equipment or (load) to the output of the module. Package List 1x DC-DC STEP-DOWN POWER SUPPLY MODULE MKBMS LV Master Mini PCBA Board Shipping List MKBMS LV Master Mini Package 1X   PCBA board MKBMS LV Master Mini V1.4 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 3X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X   Switch

Read more less
