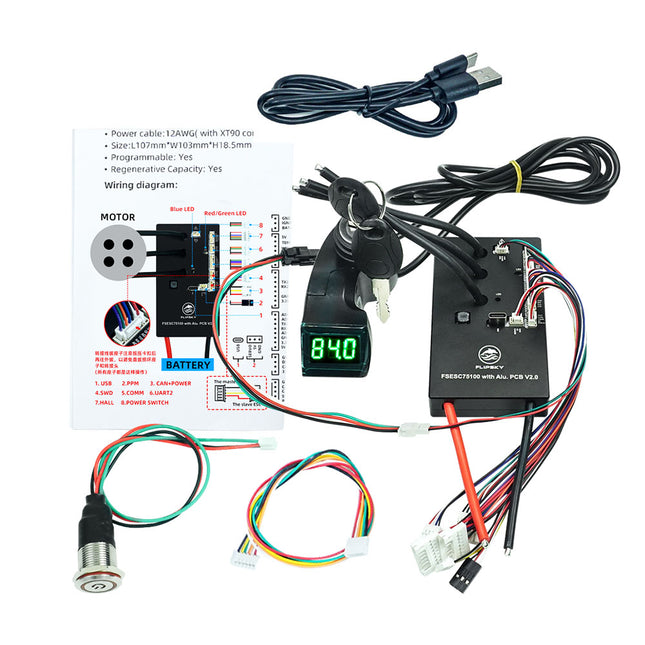

Speciation: Size:L107mm*W103mm*H18.5mmVoltage:14-84V (4-20S safey)Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!BEC:5V@1ASupport BLDC square wave mode control and FOC sine wave modeFirmware: latest (firmware update supported)ERPM:150000Control Interface Ports:USB,CAN,UARTSupported Sensors:ABI，HALL，AS5047，AS5048AInput Set Support:PPM，ADC，NRF,UARTWire Size: 12AWGProgrammable: YesRegenerative Capacity: Yes Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Wire Connection:

Read more less

Specication: Size: 103X58X24mmVoltage:14-84V (4-20S)Continuous Current: 100APeak Current: 250AFirmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)BEC: 5V@1AModes: DC，BLDC，FOC(sinusoidal)Control Interface Ports: USB,CAN,UARTSupported Sensors: ABI，HALL，AS5047，AS5048AInput Set Support: PPM，ADC，NRF,UARTWire Size: 12AWGProgrammable: YesRegenerative Capacity: YesPower Switch Button: Red Wire Connection:

Read more less

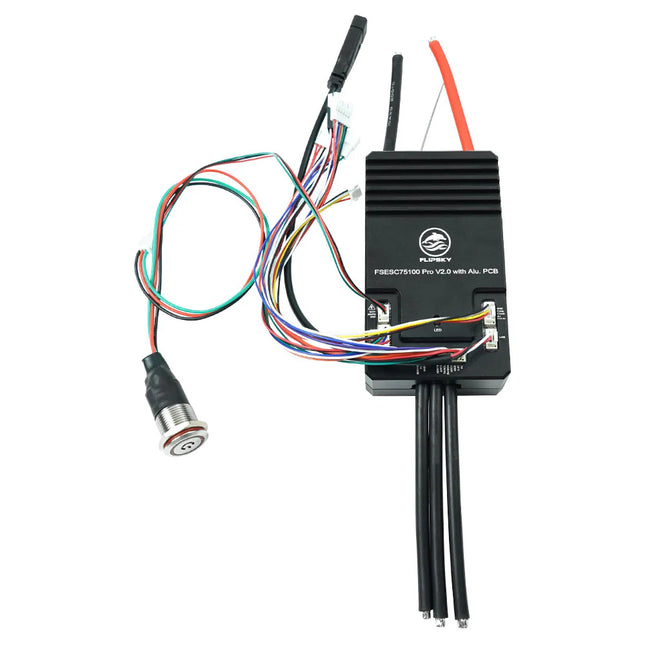

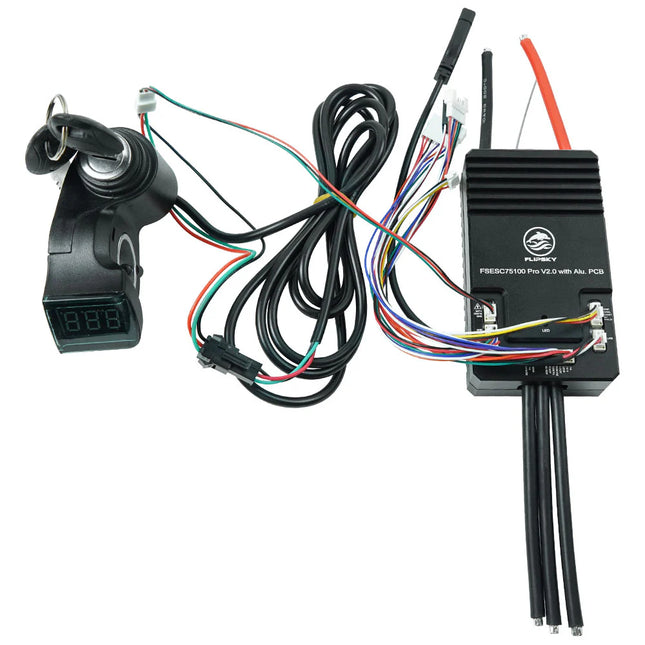

Spec: Firmware: 6.02 (firmware update supported) Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Phase Filter: Yes Power Switch Button: Red integrates Bluetooth module function The maximum peak current is 150A the absolute maximum current is recommended to be set to 200A Wiring diagram: Instruction manual for 75100 Pro V2.0

Read more less

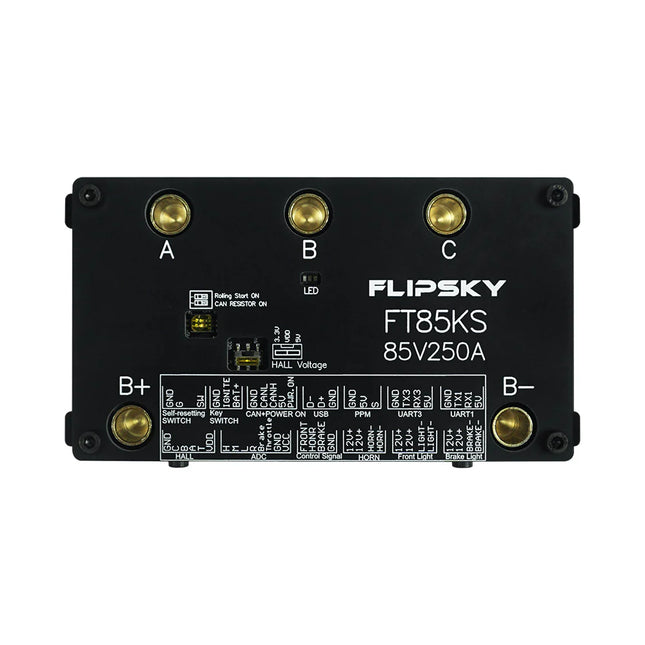

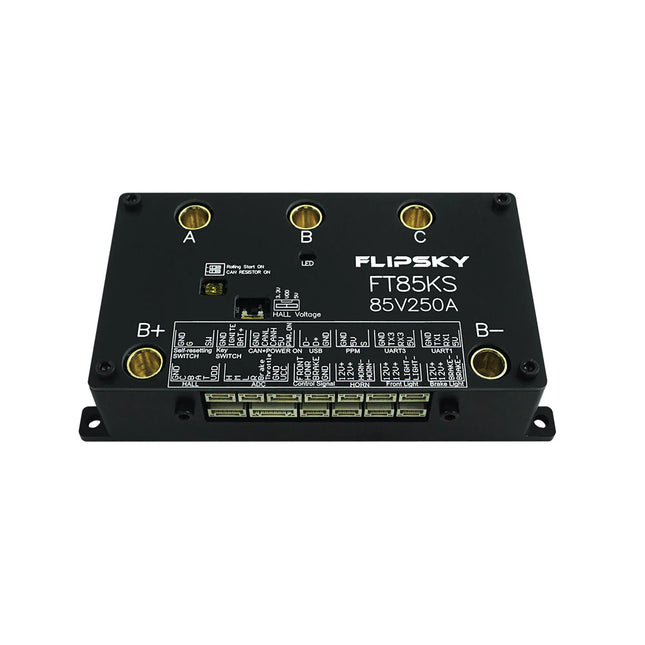

Specifications :  Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14V-85V (safe for 4S-20S) Continuous current: 250A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Peak Current: 400A BEC: 5V@1A Programmable Tool: Flipsky ESC TOOL PWM Frequency Control: YES Multiple Speed Gear Limit Control:YES ( in UART / ADC mode) Regenerative Capacity: Yes Communication Ports: USB, CAN, UART, PPM, ADC IInput Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored),Encoder (ABI, AS5047 SPI interface) Multiple Speed Gear levels: Low, Medium, High, Reverse Integrated Smart Switch Function: supports sliding / rolling on and automatic shutdown function; supports modification of automatic shutdown time (standby current as low as 50uA) Two Power ON/OFF Switch Options: Self-resetting switch with green LED, button diameter: 16mm; Self-locking switch with red LED, button diameter: 16mm (When using the self-locking switch, please remember to OFF the “Rolling Start ON” switch. Otherwise, the ESC can not be powered off.) Built-in IMU chip LSM6DS3TR-C (accelerometer, gyroscope) Power Wire: 8.0mm bullets female X 2pcs Motor Wire: 8.0mm bullets female X 3pcs Size: L140*W69.6*H32mm (including Alu.Case) Features: Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14V-85V (safe for 4S-20S) Continuous current: 250A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Peak Current: 400A BEC: 5V@1A Programmable Tool: Flipsky ESC TOOL PWM Frequency Control: YES Multiple Speed Gear Limit Control:YES ( in UART / ADC mode) Regenerative Capacity: Yes Communication Ports: USB, CAN, UART, PPM, ADC IInput Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored),Encoder (ABI, AS5047 SPI interface) Multiple Speed Gear levels: Low, Medium, High, Reverse Integrated Smart Switch Function: supports sliding / rolling on and automatic shutdown function; supports modification of automatic shutdown time (standby current as low as 50uA) Two Power ON/OFF Switch Options: Self-resetting switch with green LED, button diameter: 16mm; Self-locking switch with red LED, button diameter: 16mm (When using the self-locking switch, please remember to OFF the “Rolling Start ON” switch. Otherwise, the ESC can not be powered off.) Built-in IMU chip LSM6DS3TR-C (accelerometer, gyroscope) Power Wire: 8.0mm bullets female X 2pcs Motor Wire: 8.0mm bullets female X 3pcs Size: L140*W69.6*H32mm (including Alu.Case) Wiring diagram: flipsky_esc_tool  software and manual download link

Read more less

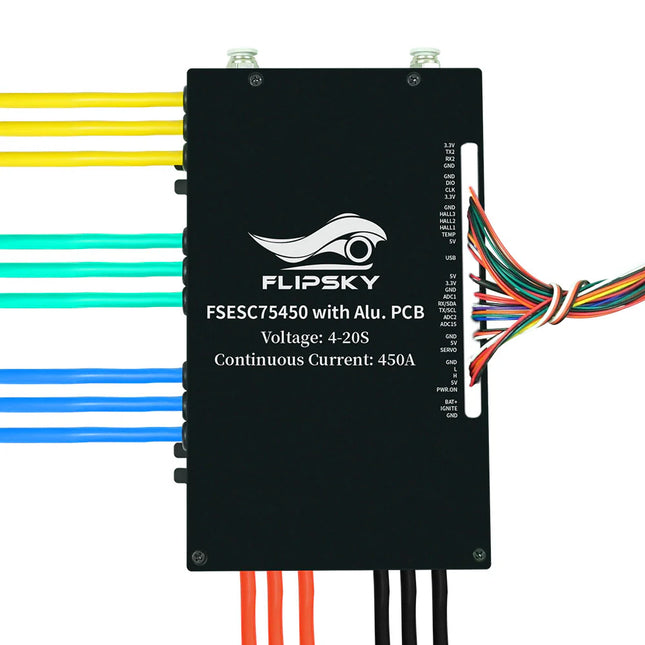

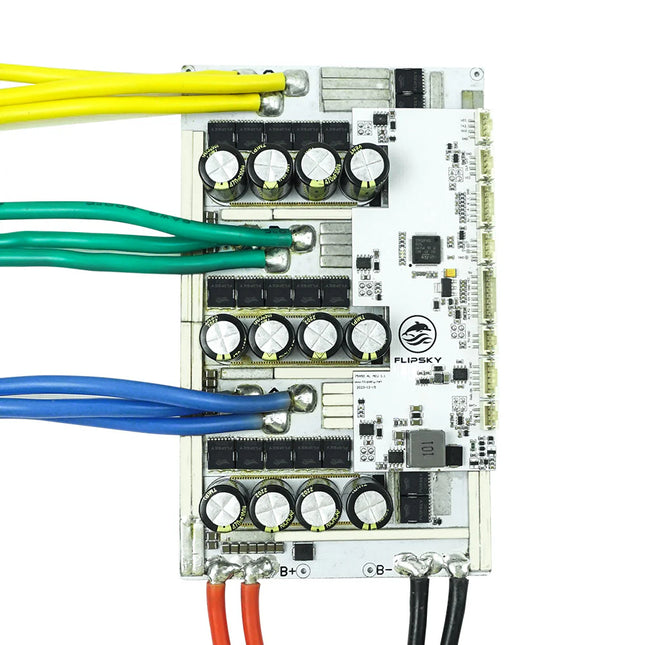

Specs: Firmware: 5.2, supports firmware upgrade Voltage: 14-84V (safe for 4-20S) Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A BEC: 5V@1A Support Modes: DC, BLDC, FOC (sinusoidal) ERPM: 150000 Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART Supported Sensorless: Yes Regenerative capacity: Yes Programmable via VESC_TOOL: Yes Red Switch Button: Yes Phase filter: Yes Size:227.5*140*54mm(Including Water Cooling Enclosure) Features: Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection. Support various control modes: Current / Duty cycle / Speed / PID control modes. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160. CPU:STM32F405 with frequency 168MHz Aluminum PCB with good heat dissipation to expand life span. Built with ignite power on/off switch button. Wiring Diagram:

Read more less

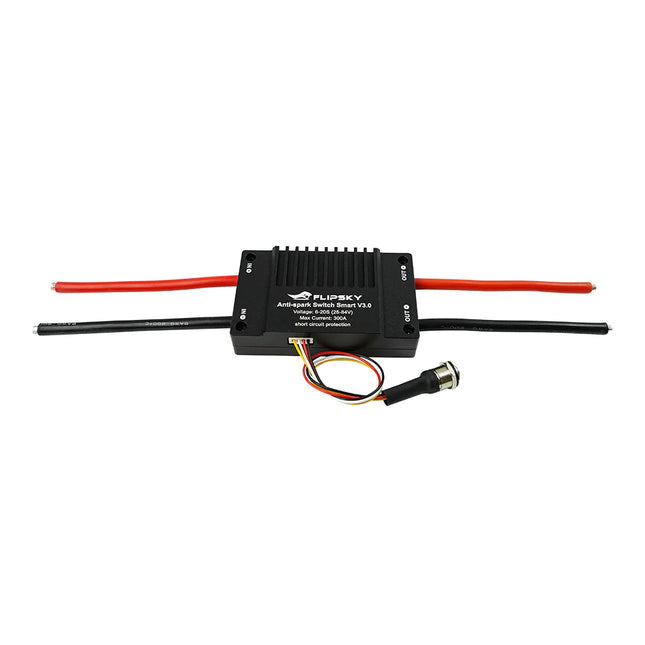

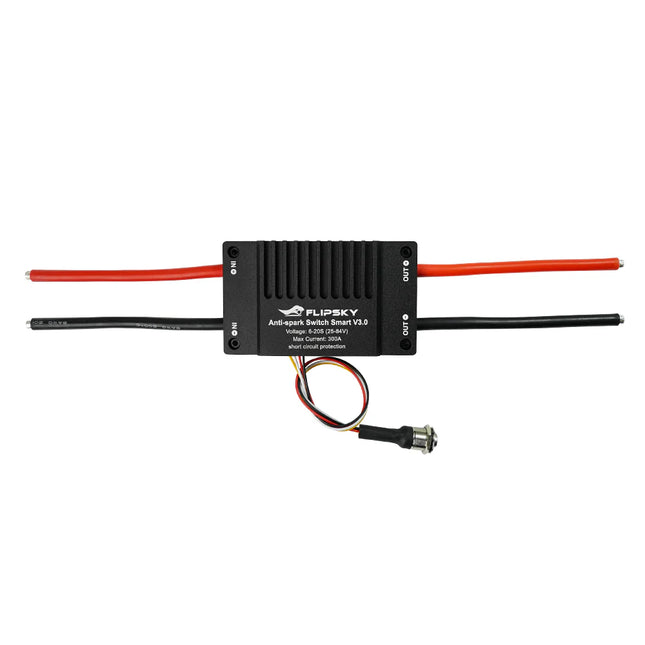

Spec: Working Voltage: 6-20S Li-Po Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions) Diameter of Switch Button: 12mm (Self-lock switch) Size: 97*57*24mm Weight: 311g Features: Metal shielding cover for good heat dissipation and reducing electromagnetic interference.  Equipped with LED indicator light, users can check the status of the light to determine whether it works normally.  If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit protection function has been triggered. Soft start-up: Increasing the current / voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.  Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment. Wiring diagram:
