Flipsky 75100 Pro ESC With Aluminum PCB High Current MOS For Electric Scooter Support HALL ABI Sensor Control

Roll over image to zoom in Click on image to zoom

Flipsky 75100 Pro ESC With Aluminum PCB High Current MOS For Electric Scooter Support HALL ABI Sensor Control

Name: Flipsky 75100 Pro ESC With Aluminum PCB High Current MOS For Electric Scooter Support HALL ABI Sensor Control
Brand: MAXKGO
Price: 86.0 USD
Availability: InStock

Save 23%

MAXKGO

...

Type: 75100

Variant

Price:

$86.00 $112.00

Stock:

In stock (100 units), ready to be shipped

Quantity:

Share this product

Specs:

75100:

75100 Pro:

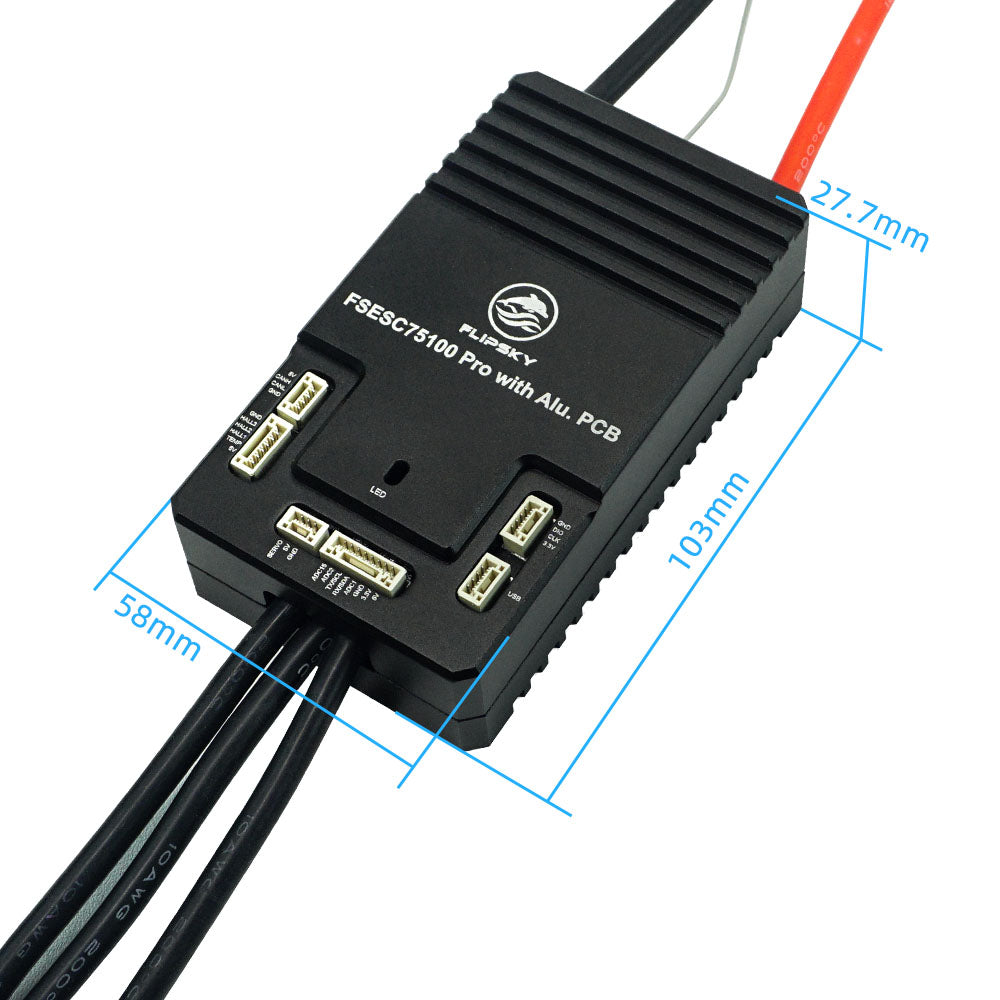

Size: L103mm*W58mm*H27.7mm
Voltage:14-84V (4-20S)
Current:100A
Continuous,burst 120A
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 10AWG(75100 Pro)
Programmable: Yes
Regenerative Capacity: Yes

Newly upgraded:

Change connection wires from 12Awg to 10Awag.
More sensitive temperature detection function
Integrated bluetooth module design
Size & design upgraded

Warm tips:

Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.

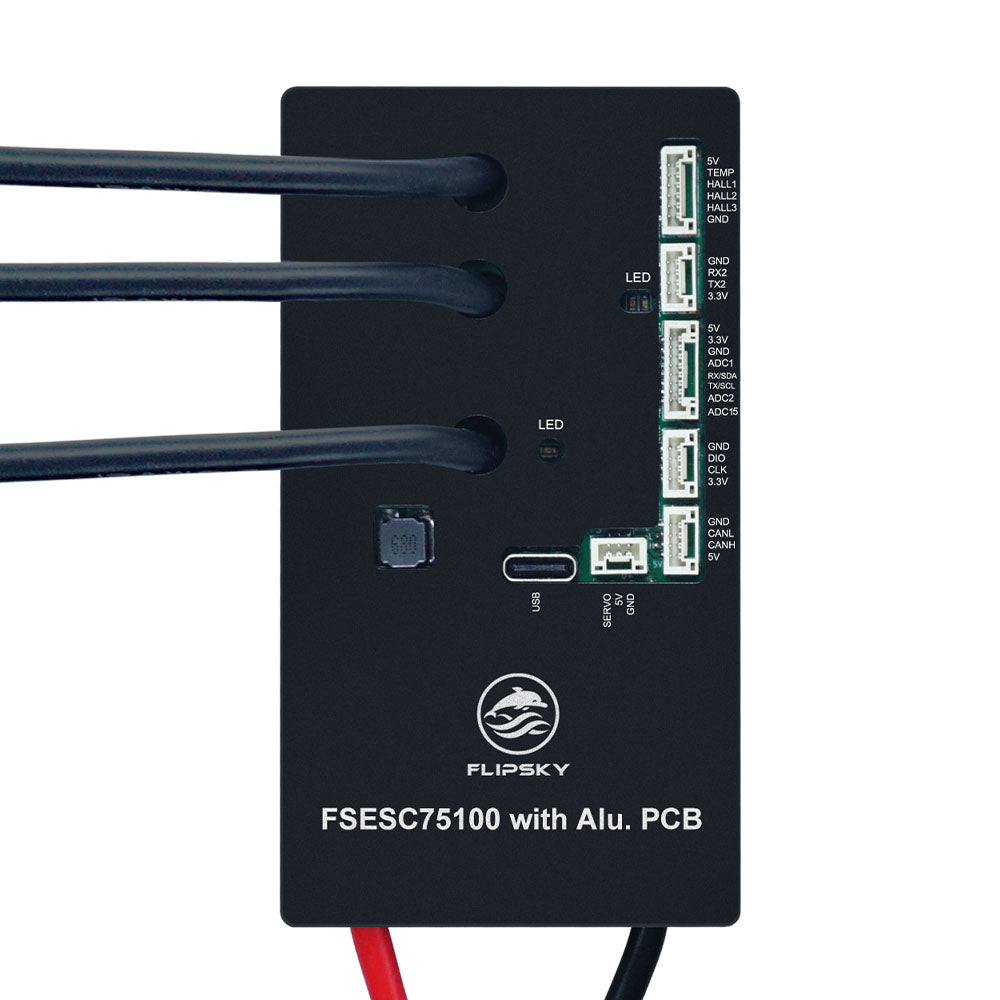

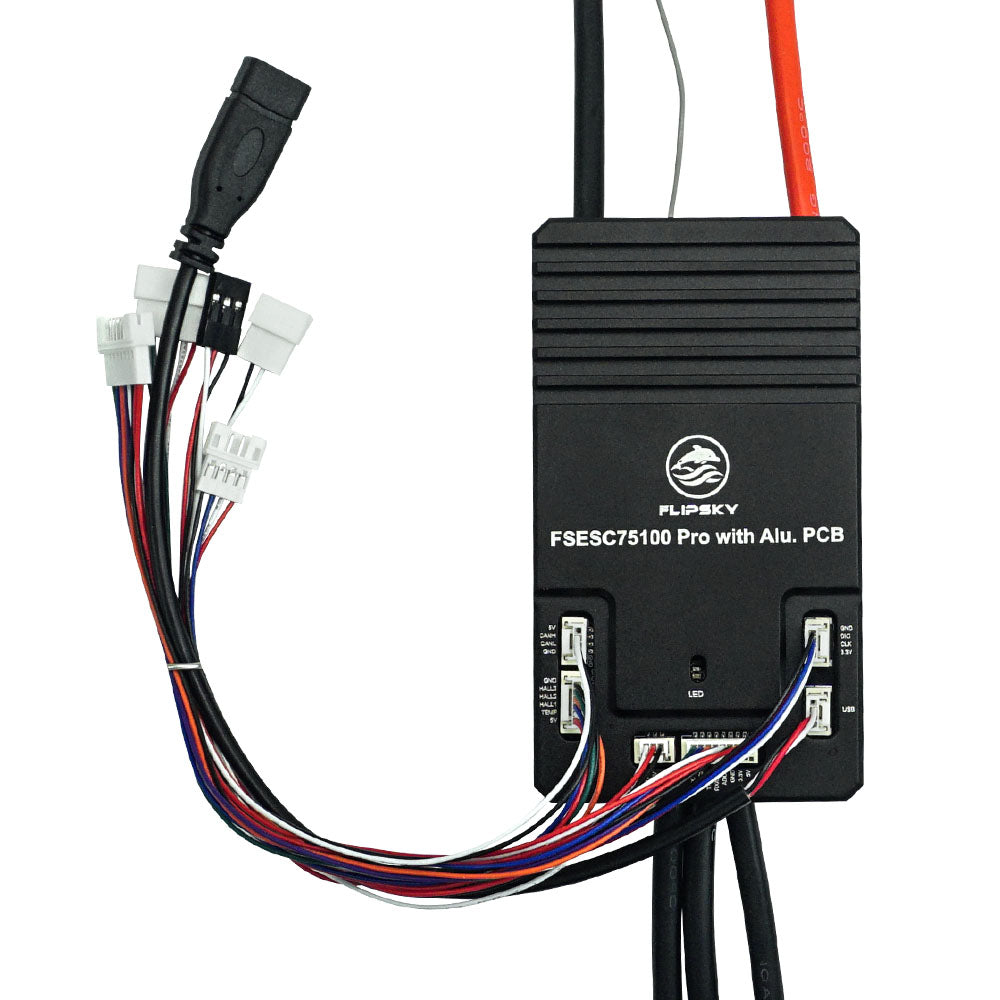

Wire Connection:

75100:

75100 Pro:
