MKBMS is based on the modular BMS of LTC6812, and is connected to one or more slave boards and integrated boards of different sizes through the ISOSPI interface.   MKBMS Function —— Overcharge protection: Yes Over discharge protection: Yes Temperature protection: Yes Thermal management: Yes Balance function: Yes Balance method: passive balance  Battery pack capacity detection: Yes Battery internal resistance detection: Yes Support battery: support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.   LTC6212 15S Slave Board Features —— 1. Aluminum alloy PCB, better heat dissipation effect. 2. Compatible with MKBMS and ENNOID BMS. 3. From 5-15 series-connected battery cells per board. 4. 1+8 temperature sensors per slave. 5. Self-powered by the monitored cells. 6.Ultra-low power consumption, sleep mode=6uA. 7. It can be connected to multiple slave boards to form an integrated board through the ISOSPI interface 8. Daisychain Master / Slave ISOSPI communication 9. 1.2mV accuracy, -40 to 120C operation 10. 33 ohm balance resistors (0.125A capacity) on all channels 11. Scalable & isolated 1000VDC+ 12. Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps) *The first temperature channel is used by slave board itself. The following 8 temperature sensors are not in the package lists but means an interface to connect 8 temp sensors at most.   MKBMS Functions: Current and voltage protection: protect the battery pack from overcharge and over discharge, thereby extending the cycle life. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. Thermal management: Overheating and under-temperature protection. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate Intelligent battery balance: passive balance  Field programmable Current limit calculation Fully programmable CANBUS interface, programmable structure of all CAN messages Drift state of charge Reliability, speed and accuracy Integration with other devices Multiple BMS units connected in series Current sensor support Isolation from fault detection Automotive grade design, automotive grade locking connector Software for data logging and programming   MKBMS can be divided into three aspects: automobile, industry, consumption: Electric vehicles Electric patrol car Scenic sightseeing car Handling robots Automatic forklift Electric two-wheeler AGV forklift Sightseeing car Electric tricycle Electric mobility vehicles RV Solar street light Outdoor energy storage Home energy storage equipment Robotand etc.   Shipping List:  LTC6812-15S  Slave Board Package—— 1X   PCBA board LTC6812-15S slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 2X   HY2.0 single head 8P line 1X   HY2.0 single head 16P line 4X   Nylon column 4X   Nylon nut   Specification Size：100 x 60mm Net Weight：31.8g Package Size：140 x110 x 50 mm Package Weight：120g Outer Package Size：160*120*75mm Outer Package Weight ：240g

Read more less

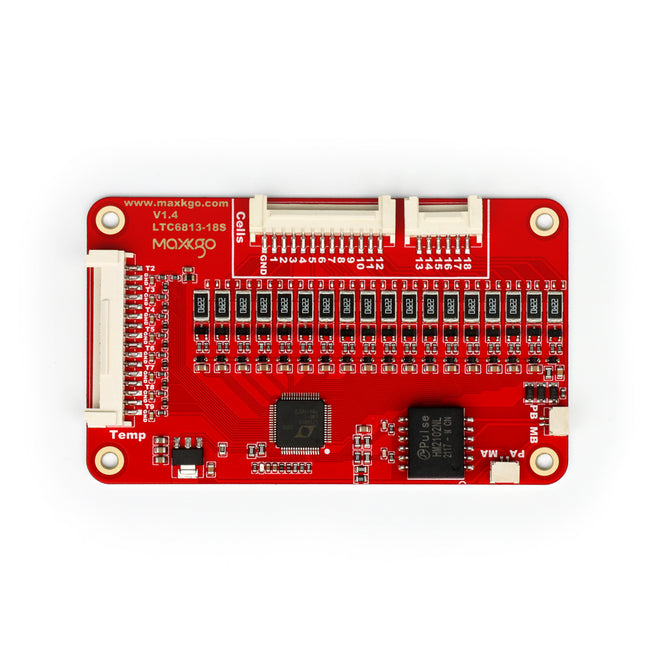

MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials. Maybe you need more MKBMS options: https://bit.ly/3xR2DJS MKBMS Slave Board Features: MKBMS slave board is made of aluminum base plate, which has better heat dissipation effect. Scalable & isolated 1000VDC+ Compatible with MKBMS Master boards From 5 to 18 series-connected battery cells per board Daisychain Master/Slave ISOSPI communication Parameters fully programmable through an easy to use graphical user interface 33 ohm balance resistors (0.125A capacity) on all channels Self powered by monitored cells 1.2mV accuracy, -40 to 120C operation Extra low power consumption (Sleep mode = 6uA) Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps)       Variant:            LTC6813 : Up to 18 cells voltage monitoring & 1+8 temperature sensors* per slave      *The first temperature channel is used by slave board itself. The following 4 or 8 temperature sensors are not in the package lists but means an interface to connect 8 temp sensors at most.    MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc.   LTC6813-18S  Package 1X PCBA board LTC6813-18S V1.4 slave board 1X  GH1.25 double head 2P red-black line (for master board)   1X  GH1.25 double head 2P black-white line (for slave board) 1X HY2.0 single head 6P line 1X HY2.0 single head 13P line 1X HY2.0 single head 16P line 4X nylon column 4X nylon nut

Read more less

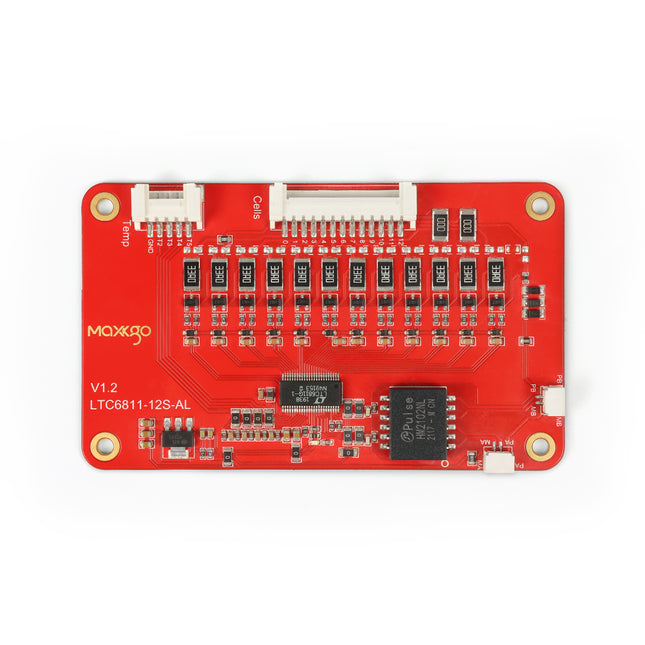

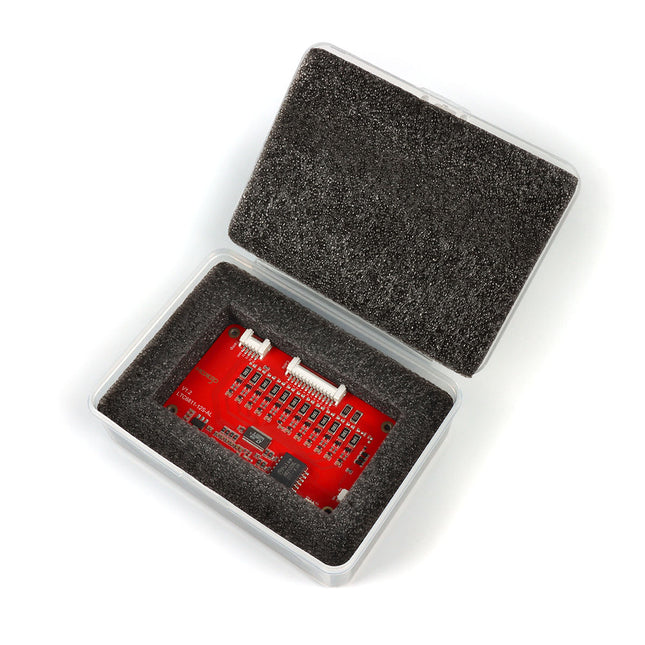

MKBMS is based on the modular BMS of LTC6811, and is connected to one or more slave boards and integrated boards of different sizes through the ISOSPI interface.  LTC6211 12S Slave BMS Features —— 1. Aluminum alloy PCB, better heat dissipation effect. 2. Compatible with MKBMS and ENNOID BMS. 3. from 5-12 series-connected battery cells per board. 4. 1+4 temperature sensors per slave. 5. Self-powered by the monitored cells. 6. Ultra-low power consumption, sleep mode = 6uA. 7.It can be connected to multiple slave boards to form an integrated board through the ISOSPI interface 8.Daisychain Master ISOSPI communication 9.1.2mV accuracy, -40 to 120C operation 10.33 ohm balance resistors (0.125A capacity) on all channels 11.Scalable & isolated 1000VDC+ 12.Molex SL horizontal connectors for balance & temperature. (Comes with male, female + crimps) Note:　The first temperature channel is used by slave board itself. The following 4 temperature sensors are not in the package lists,  but means an interface to connect 4 temp sensors at most.  Shipping List: 1X   PCBA board LTC6811-12W-AL V1.2 slave board 2X   GH1.25 double head 2P same direction line 1X   HY2.0 single head 5P line 1X   HY2.0 single head 13P line 4X   Nylon column 4X   Nylon nut

Read more less

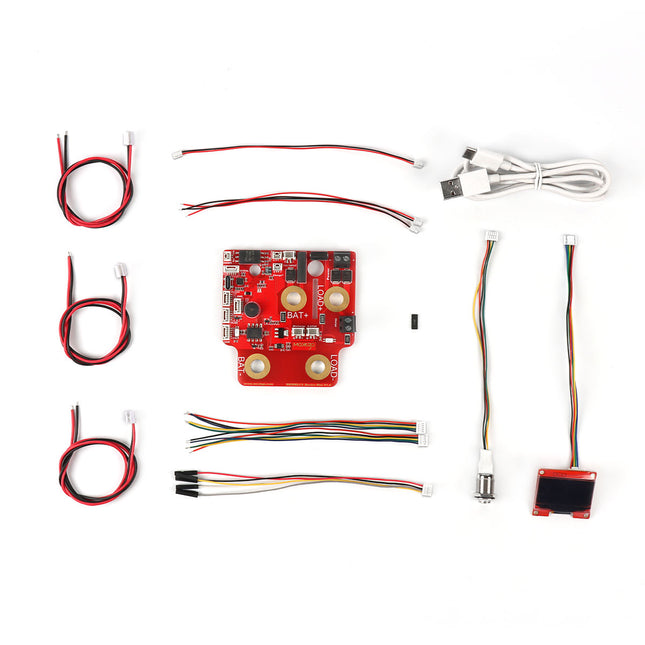

MKBMS is based on the modular BMS of LTC68XX and STM32 MCU, and is connected to one or more slave boards and integrated integrated boards of different sizes through the ISOSPI interface. The modular BMS can be configured for various applications with battery voltages within 150V. The Lipo Battery Management System Red Board is a must-have for any expert in the field. With its Smart Master slave BMS, it can handle up to 500A and is compatible with ENNOID Firmware and VESC technology. Say goodbye to battery management complications and hello to efficient and reliable power. MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware. Here, a special thanks to the developers of open source BMS materials. Maybe you need more MKBMS options: https://bit.ly/3EQO9Nt  Tutorial on MAXKGO BMS settings with VESC MKBMS battery management system implements the following functions: 1. Current and voltage protection: protect the battery pack from overcharge and overdischarge, thereby extending the cycle life. 2. Battery health monitoring: monitor the internal resistance of a single battery and the monitoring capacity of the battery pack. 3. Thermal management: Overheating and under-temperature protection. 4. Support batteries: Li-Ion, Li-Polymer, Li-Phosphate 5. Intelligent battery balance: passive balance  6. Field programmable 7. Current limit calculation 8. Drift state of charge 9. Reliability, speed and accuracy 10. Integration with other devices 11. Multiple BMS units connected in series 12. Current sensor support 13. Isolation from fault detection 14. Automotive grade design, automotive grade locking connector 15. Software for data logging and programming   MKBMS can be roughly divided into three aspects: automobile, industry, and consumption: 1.  Electric vehicles;2.  Electric patrol car;3.  Scenic sightseeing car;4.  Handling robots;5.  Automatic forklift;6.  Electric bicycles;7.  Electric skateboard;8.  Electric tools;9.  Consumer robots, etc. Shipping list: MKBMS-LV Master Mini Package 1X   PCBA board MKBMS-LV Master Mini V1.4 2X   GH1.25 single head 2P line 1X   GH1.25 double head 2P same direction line 3X   HY2.0 single head 2P line 2X   GH1.25 single head 5P line 1X   GH1.25-5P to Dupont line 1X   USB cable type-C data cable 1X   2.0MM jumper cap 1X   1.3 inch OLED display LCD screen module 1X  12MM 3-6V button switch   MKBMS-LV Master Mini+ Wiring Terminal Package 1X PCBA board MKBMS-LV Master Mini V1.4 motherboard 2X GH1.25 single head 2P line 1X GH1.25 double head 2P same direction line 3X HY2.0 single head 2P line 2X GH1.25 single head 5P line 1X GH1.25-5P to Dupont line 1X USB cable type-C data cable 1X 2.0MM jumper cap 1X 1.3 inch OLED display LCD screen module 1X 12MM 3-6V key switch 4X 90 degree angle terminal block T90-25/8 (red copper) 2X M8*16 stainless steel round head screws (stainless steel) 2X M8*Stainless steel nuts (stainless steel) 4X M8 Copper Gasket (Red Copper)   MKBMS-LV Master Mini + Main Contactor K4415Package 1X PCBA board MKBMS-LV Master Mini V1.4 motherboard 2X GH1.25 single head 2P line 1X GH1.25 double head 2P same direction line 3X HY2.0 single head 2P line 2X GH1.25 single head 5P line 1X GH1.25-5P to Dupont line 1X USB cable type-C data cable 1X 2.0MM jumper cap 1X 1.3 inch OLED display LCD screen module 1X 12MM 3-6V key switch 1x TE2299223-2 EVC500 Main Contactor 1X HY2.0 single head 2P line   MKBMS-LV Master Mini + DC-DC Step-down module Package 1X PCBA board MKBMS-LV Master Mini V1.4 motherboard 2X GH1.25 single head 2P line 1X GH1.25 double head 2P same direction line 3X HY2.0 single head 2P line 2X GH1.25 single head 5P line 1X GH1.25-5P to Dupont line 1X USB cable type-C data cable 1X 2.0MM jumper cap 1X 1.3 inch OLED display LCD screen module 1X 12MM 3-6V key switch 1X DC-DC step-down power supply module   MKBMS hardware design file: LTC6811-12W_V1.2 MKBMS-LV_Master_Mini_V1.4
