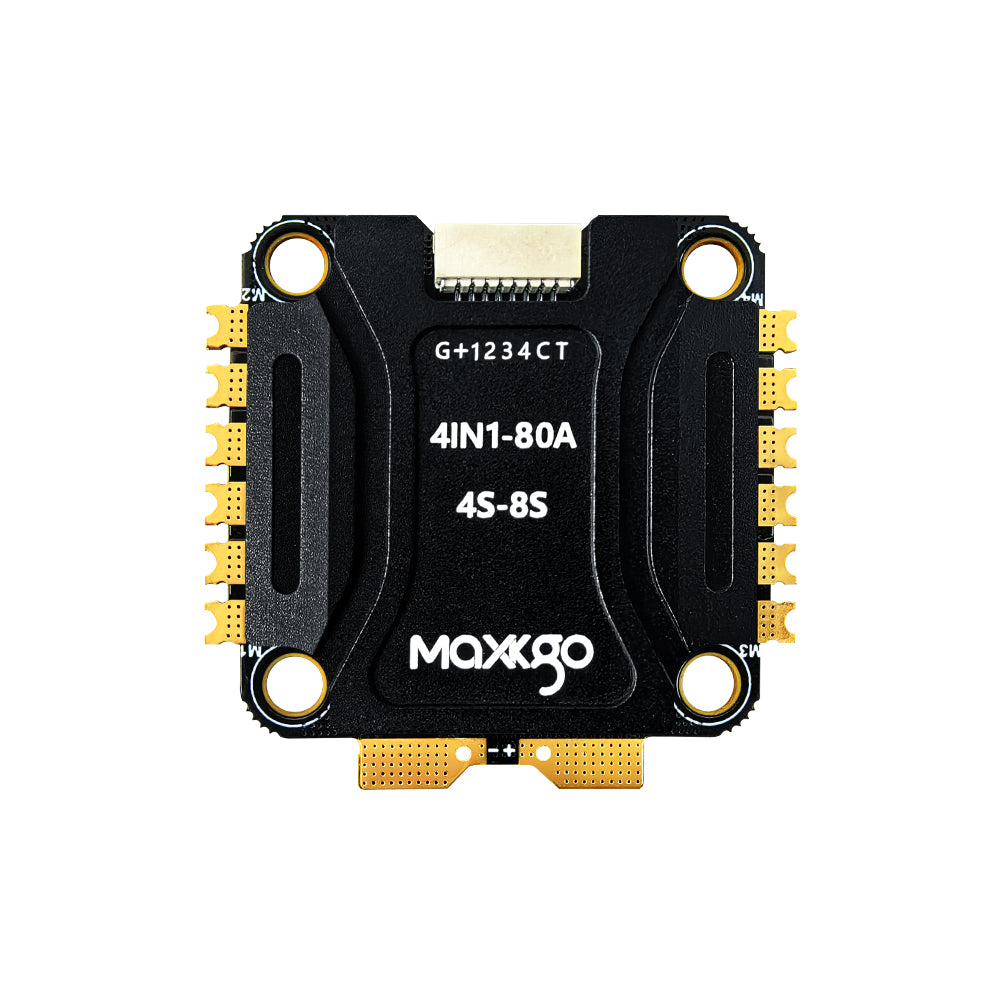

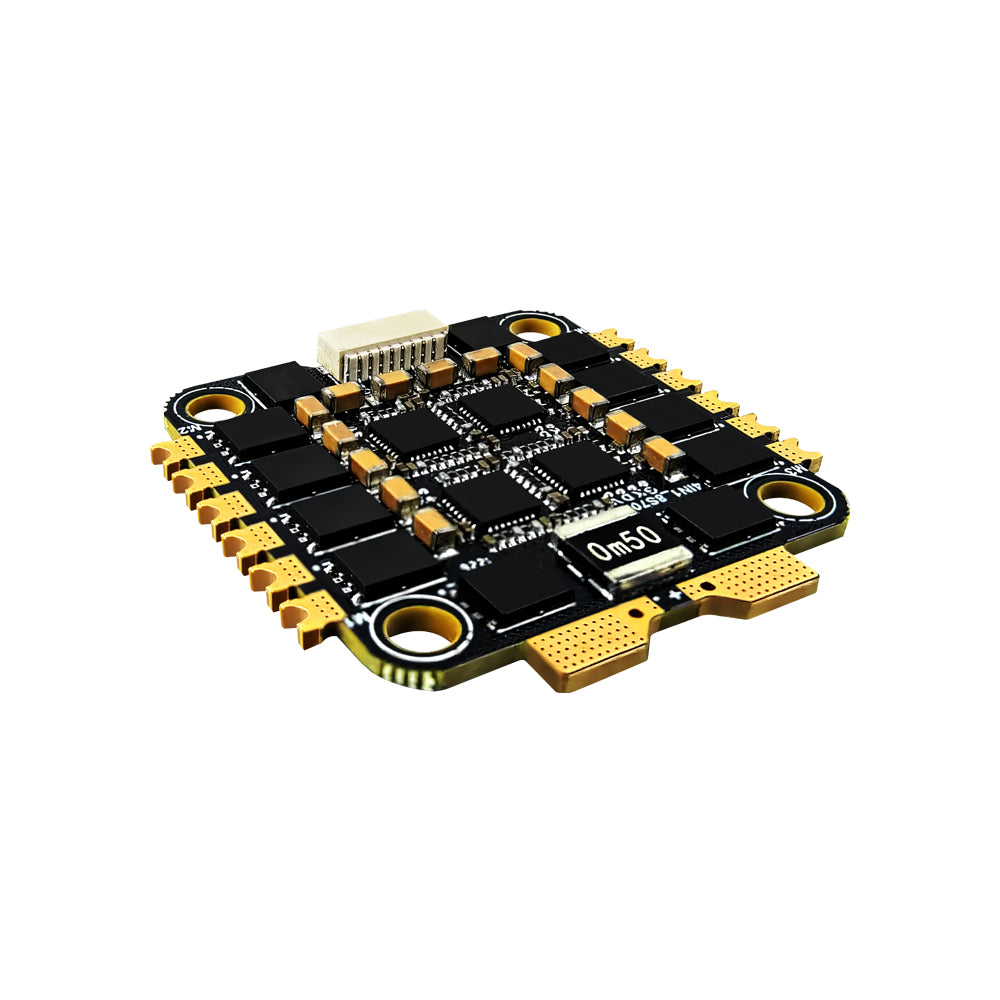

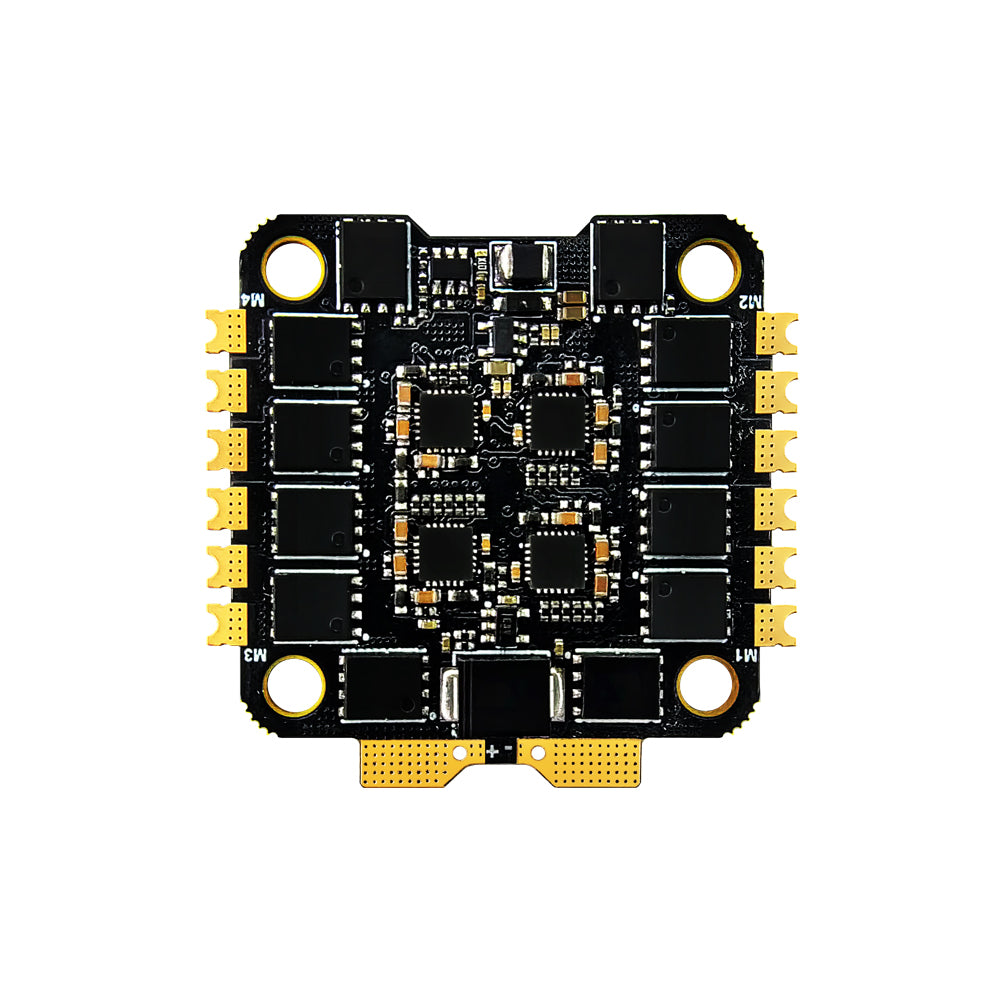

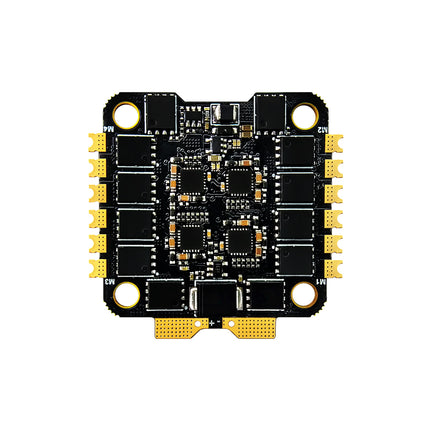

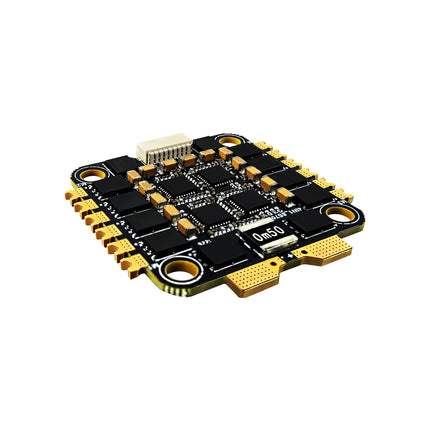

4IN1_8S80A_ESC
Description：
The 4IN1_8S80A_ESC is a high-performance brushless electronic speed controller that supports an input of 4-8S lithium batteries and has a continuous current rating of 80A. It is widely applicable to FPV racing drones, multi-rotor drones, VTOL Fixed-wing UAV , etc.
4IN1_8S80A_ESC Parameters：
Type: Brushless Motor Electronic Speed Controller
Continuous Current: 80A
Peak Current: 100A
Weight of bare board (excluding capacitors): 12.5g

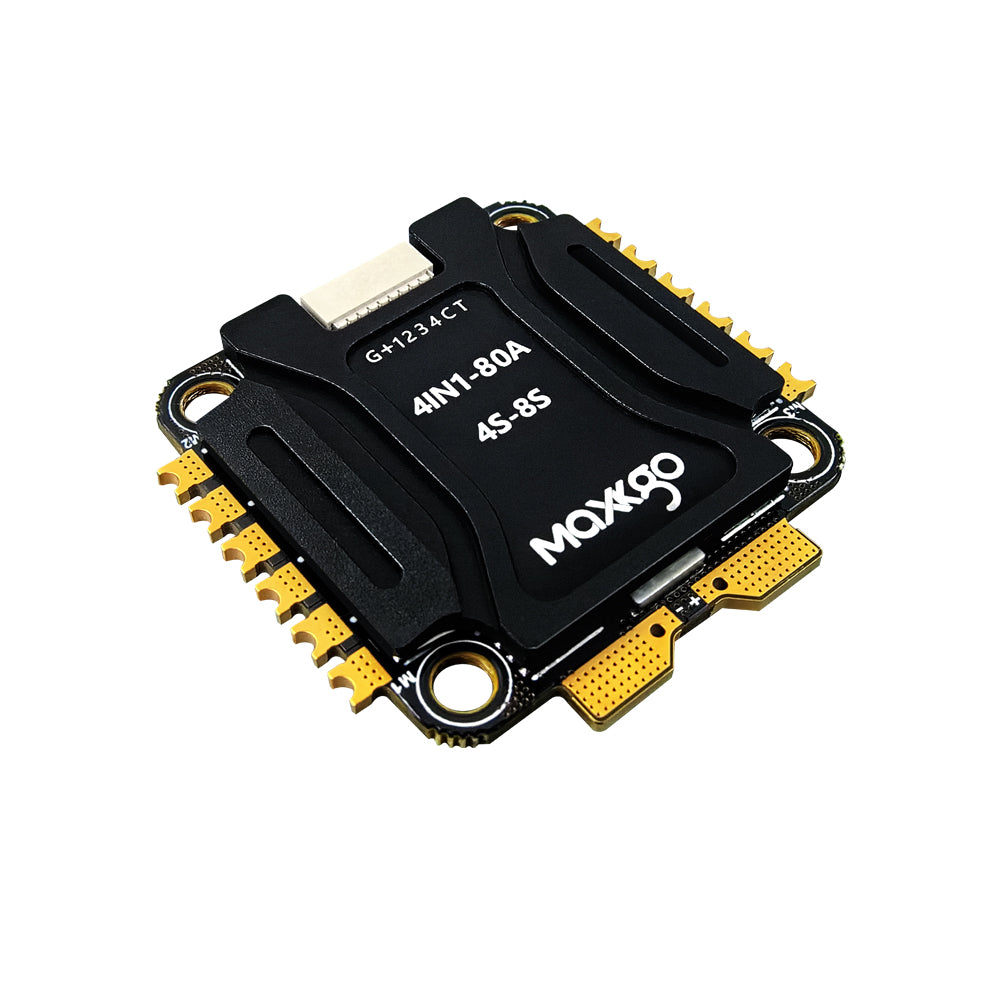

Weight of the ESC with heat sink (excluding capacitors): 17.9g±2g

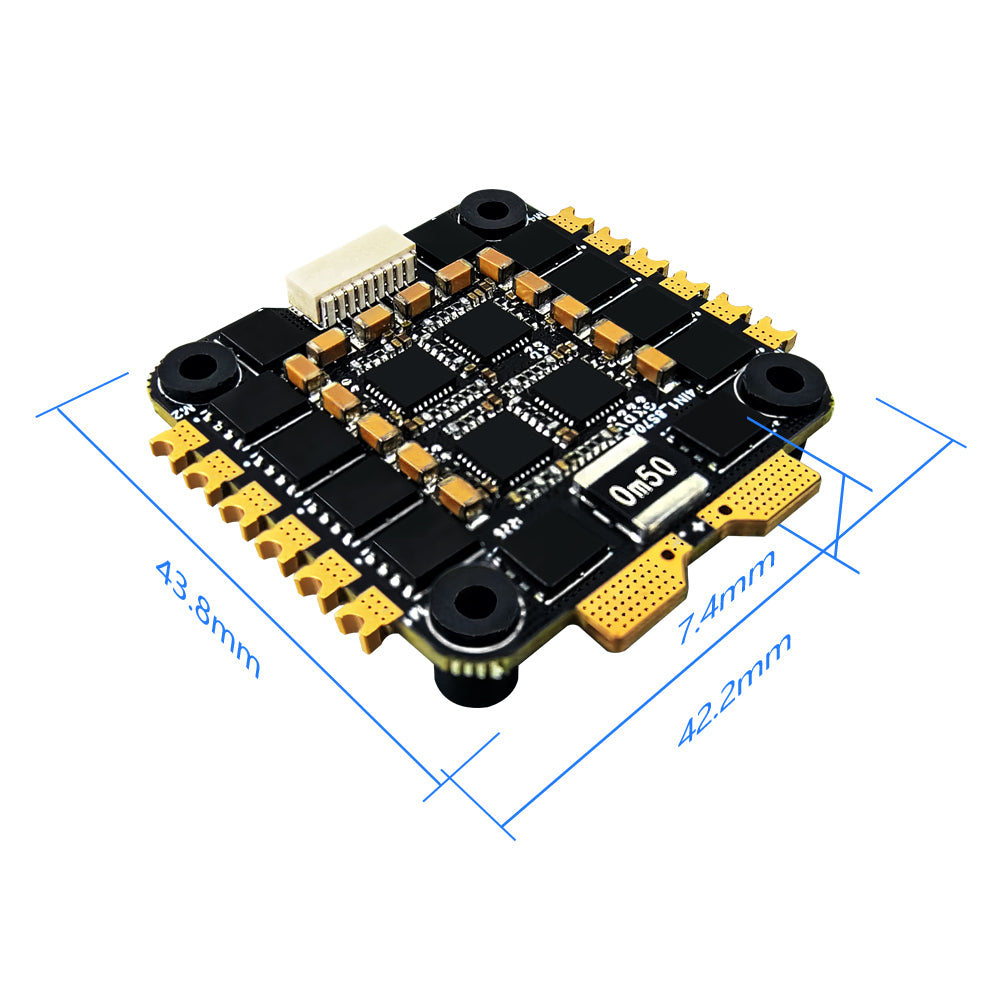

Size: 42.2 mm (L) × 43.8mm (W) × 7.4mm (H)
Mounting hole spacing: 30.5*30.5mm
Mounting aperture: 4mm (M4)
Input Power Supply: 4S-8S LiPo
Firmware Version: MAXKGO_4IN1_F421
Firmware Upgrade: Supports online upgrade via AM32.ca
Communication Protocol: Dshot 300, Dshot 600, Servo PWM
Signal Feedback: The TX telemetry feedback port can provide ESC voltage, current, temperature, motor speed and etc.
Waterproof: Not support
4IN1_8S80A_ESC Features：
1.MINI Size,MAX Power output.
2.Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection.
3.Equipped with high-performance ARM 32-bit Cortex-core MCU, operating frequency up to 120 MHz.
4.Provides paddle stuck (locked-rotor) protection function for multi rotor aircraft.
5.Supports to upgrade firmware via Betaflight, Passthrough, single-wire UART or Arduino.
6.Supports parameter configuration via the AM32.ca web configuration tool.
7.Supports Servo PWM and Dshot300/600 communication Protocol.
8.Supports EDT (Extended Dshot Telemetry). Complete telemetry data can be obtained via signal wire.
4IN1_8S80A_ESC Application Fields：
Multi-rotor Drone
Fixed-wing Model Aircraft
FPV drone
Multi-rotor drone
VTOL Fixed-wing UAV
Package Content：

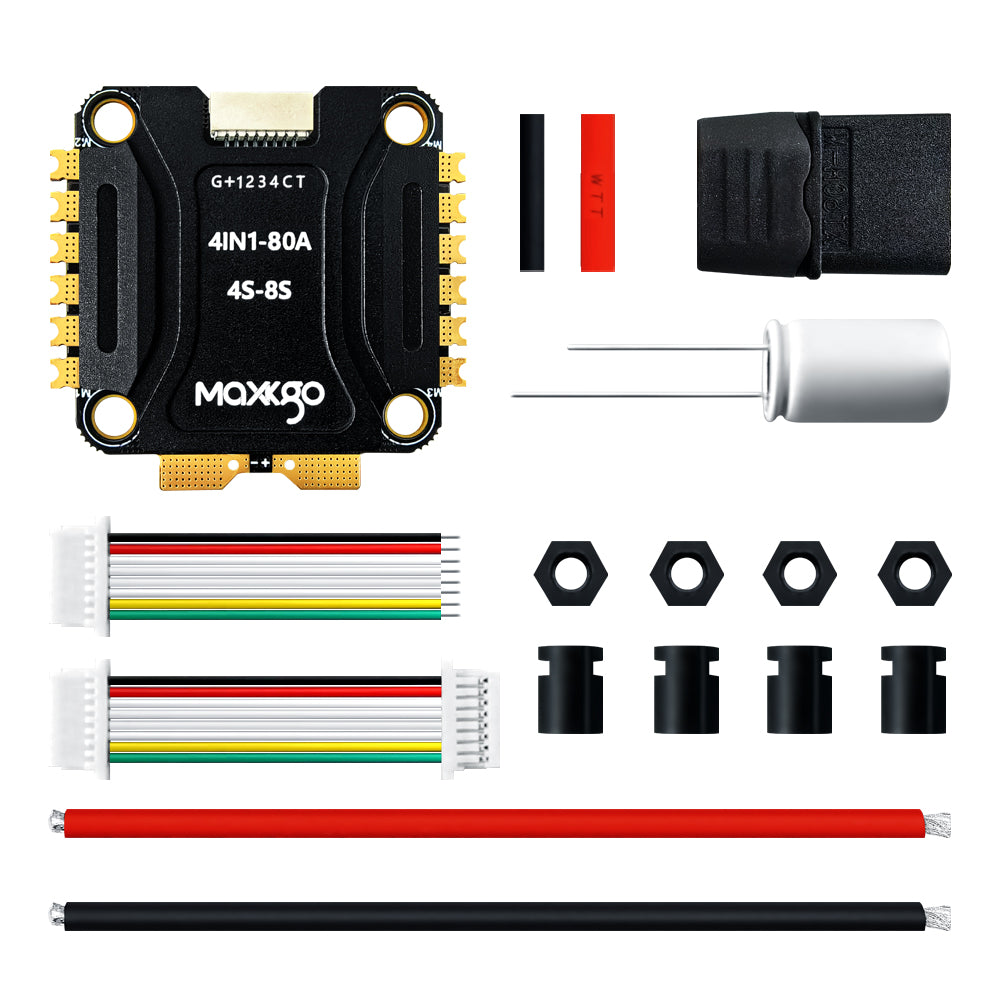

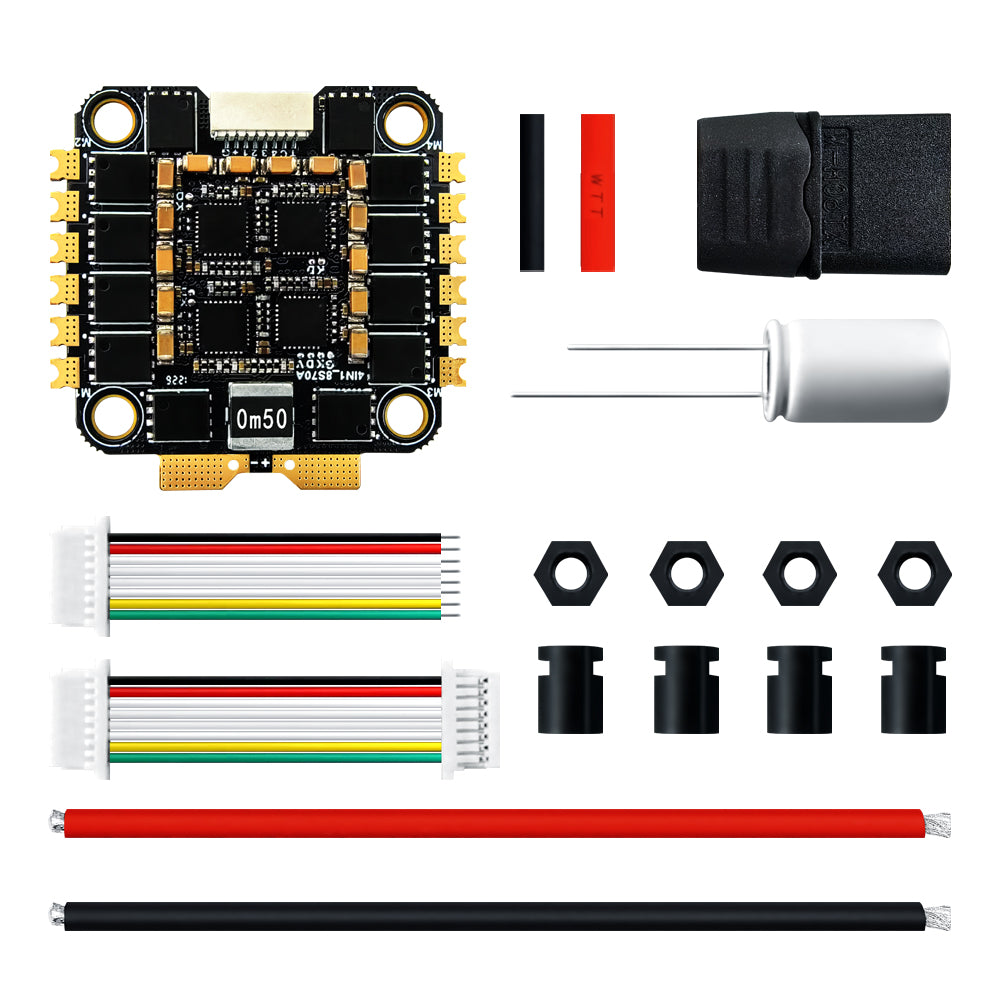

Option 1:
4IN1_8S80A_ESC *1
8pin Double-Ended Terminal Wire *1（25mm SH1.0）
8Pin single-head terminal wire *1 (60mm, SH1.0 terminal)
8Pin empty terminal head * 1 (SH1.0 terminal)
Vibration Damping Ball *5（M3*8）
Fixing nuts (M3)*5
Solid Capacitor *1（35V 820μF）
XT60 Male Connector *1
Black Power Cable*1（12AWG，120mm）
Red Power Cable *1（12AWG，120mm）
Option 2:
4IN1_8S80A_ESC*1
heat sink *1 (installed at the esc before shipment)
8Pin double-ended terminal wire *1 (25mm, SH1.0 terminal)
8Pin single-head terminal wire x 1 (60mm, SH1.0 terminal)
8Pin empty terminal head x 1 (SH1.0 terminal)
Damping ball *5 (M3 * 8)
Fixing nuts (M3)*5
Solid capacitor *1 (35V 820μF)
XT60 male connector *1
