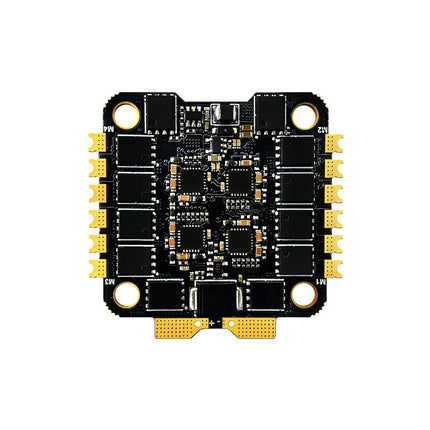

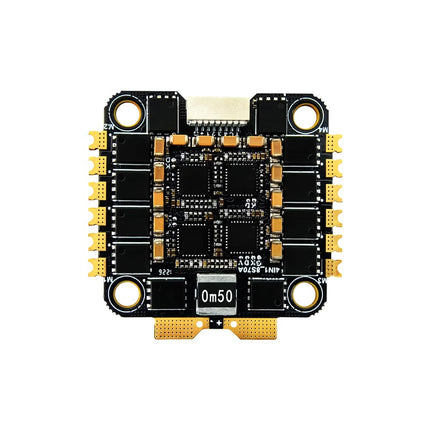

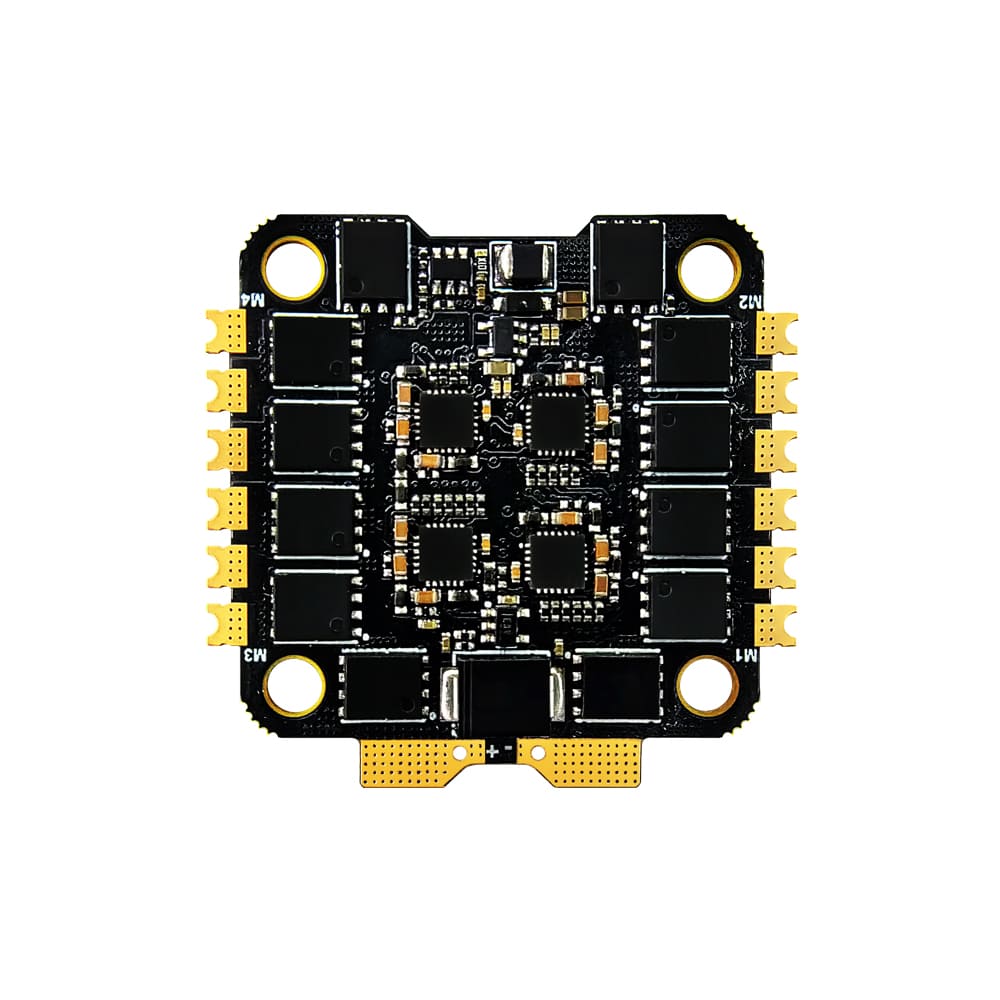

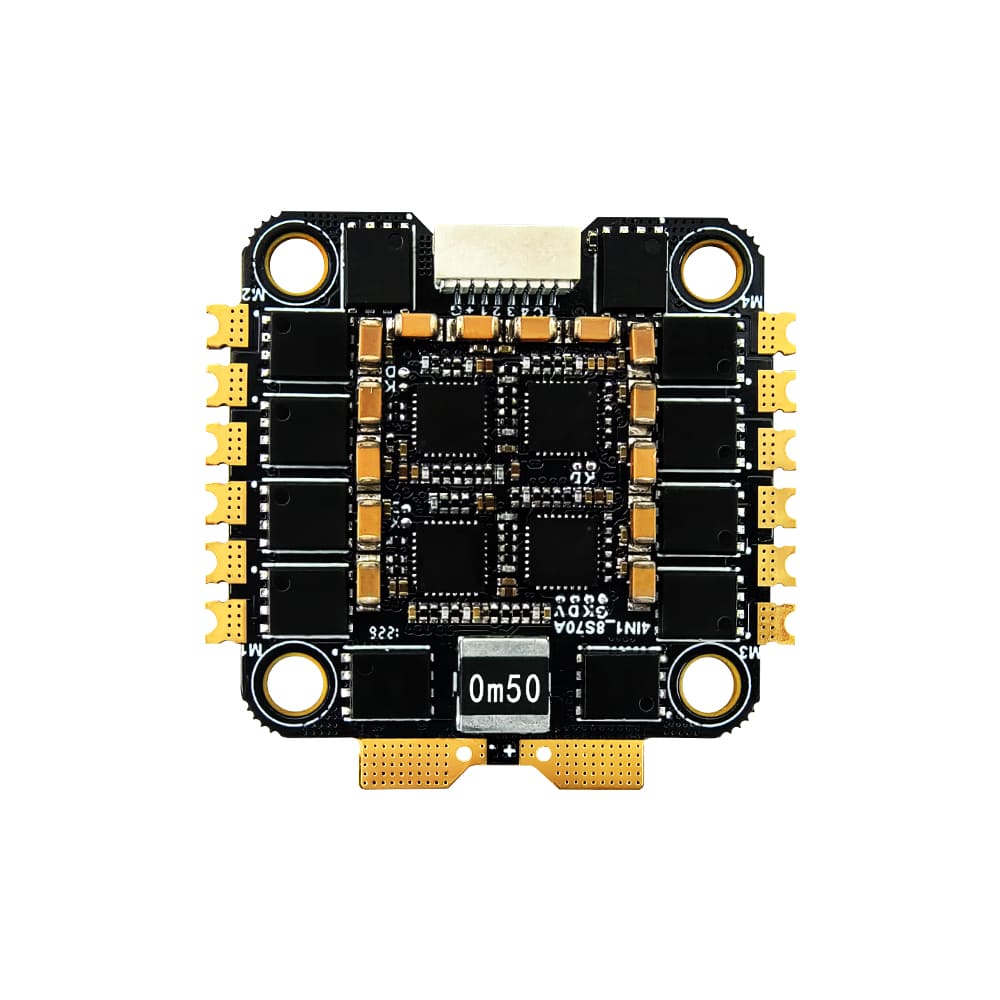

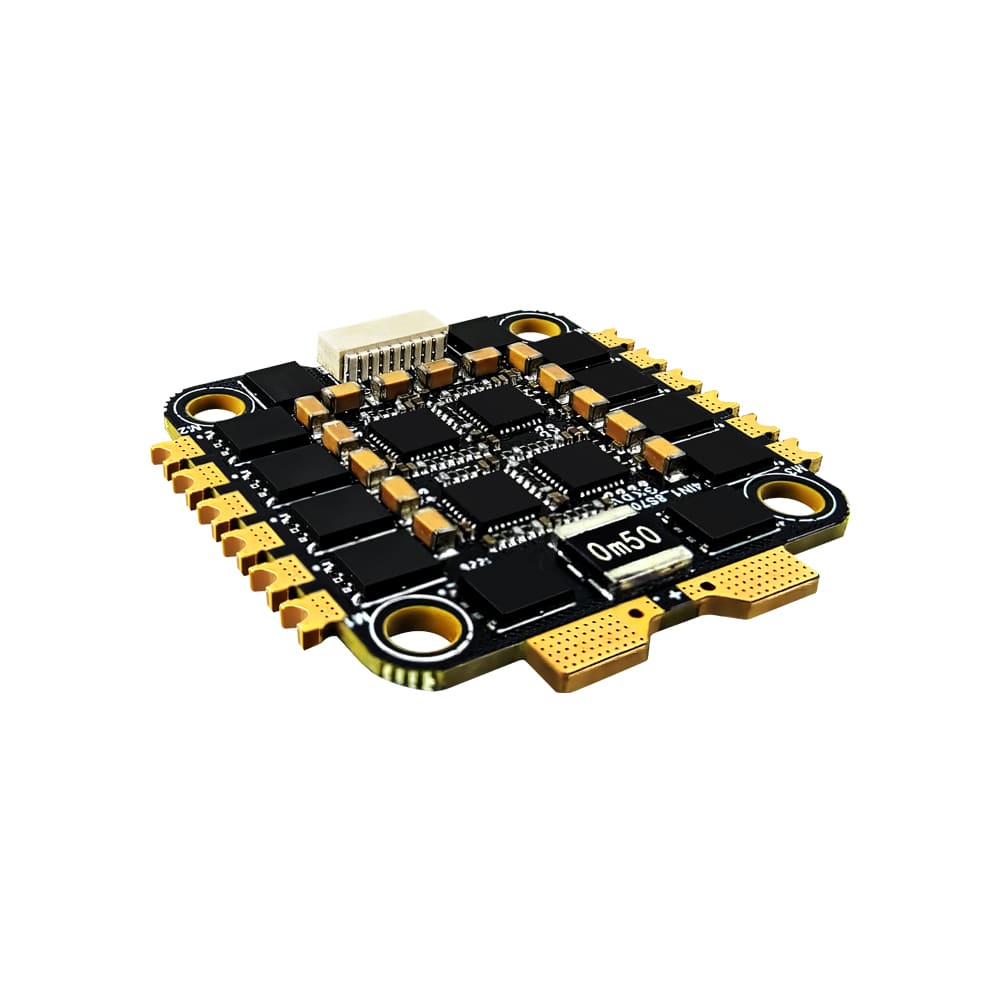

Description 4IN1_8S80A_ESC
D escription ：
The 4IN1_8S80A_ESC is a high-performance brushless electronic speed controller that supports an input of 4-8S lithium batteries and has a continuous current rating of 80A. It is widely applicable to FPV racing drones, multi-rotor drones, VTOL Fixed-wing UAV , etc.
4IN1_8S80A_ESC Parameters ：
Type : Brushless Motor Electronic Speed Controller
Continuous Current: 80A
Peak Current: 100A
Weight of bare board (excluding capacitors): 12.5g
W eight of the ESC with heat sink (excluding capacitors): 17.9g ± 2g

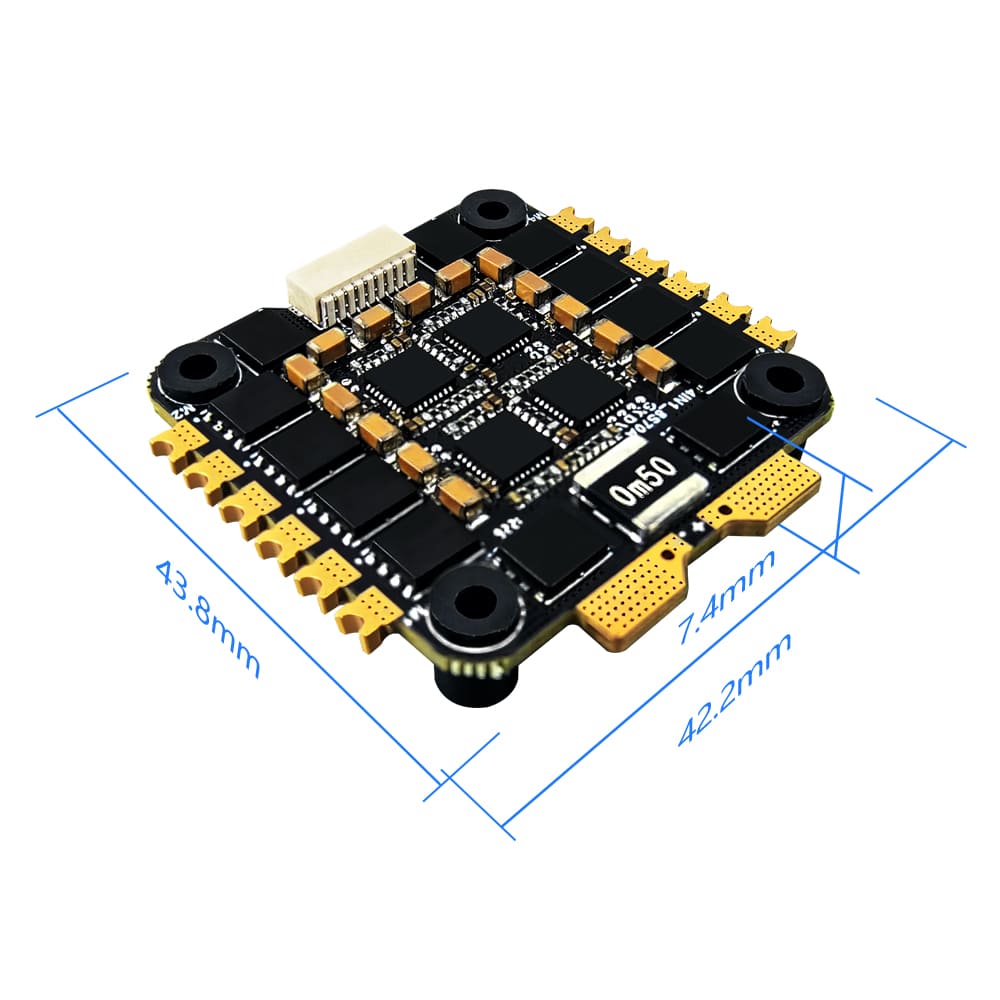

Size : 42.2 mm (L) × 43.8mm (W) × 7.4mm (H)
Mounting hole spacing: 30.5*30.5mm
Mounting aperture: 4mm (M4)
Input Power Supply: 4S-8S LiPo
Firmware Version: MAXKGO_4IN1_F421
Firmware Upgrade: Supports online upgrade via AM32.ca
Communication Protocol: Dshot 300, Dshot 600, Servo PWM
Signal Feedback: The TX telemetry feedback port can provide ESC voltage, current, temperature, motor speed and etc.
Waterproof: Not support 4IN1_8S80A_ESC Features ：
1. M INI Size, MAX P ower output . 2. Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection .
3. Equipped with high-performance ARM 32-bit Cortex-core MCU, operating frequency up to 120 MHz .
4. Provide s paddle stuck (locked-rotor) protection function for multi rotor aircraft .
5 .Supports to upgrad e f irmware via B etaflight , P assthrough , single-wire UART o r Arduino .
6.Supports parameter configuration via the AM32.ca web configuration tool.
7.Supports Servo PWM and Dshot300/600 communication Protocol.
8. Supports EDT (Extended Dshot Telemetry). Complete telemetry data can be obtained via signal wire.
4IN1_8S80A_ESC Application Fields ：
Multi-rotor Drone
Fixed-wing Model Aircraft
FPV drone
M ulti-rotor drone
VTOL Fixed-wing UAV
Don't Just Take Our Word For It.
See how FPV creators tested the MAXKGO 4IN1 ESC in real builds and flight conditions.
VIDEO
VIDEO
VIDEO

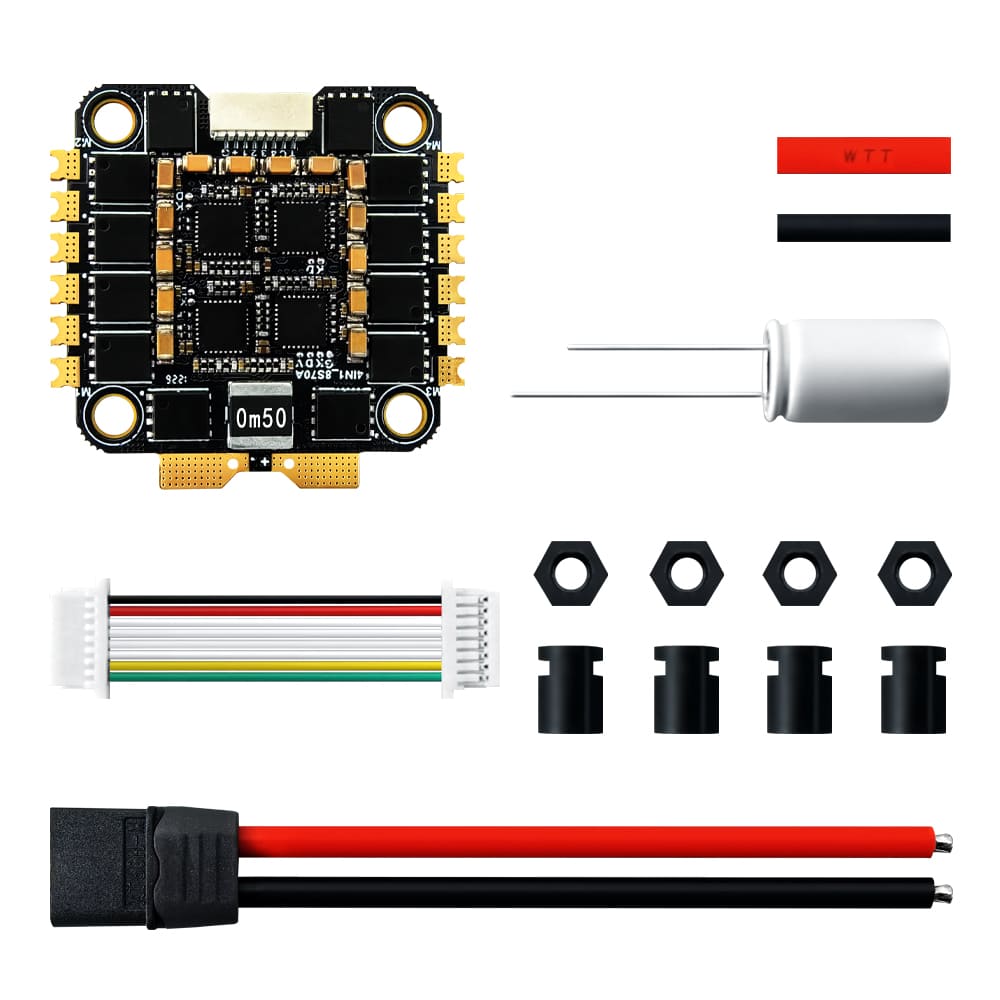

P ackage Content ：
Option 1:
4IN1_8S80A_ESC *1 8pin Double-Ended Terminal Wire *1（ 25mm SH1.0 ）
8Pin single-head terminal wire * 1 (60mm, SH1.0 terminal)
8Pin empty terminal head * 1 (SH1.0 terminal)
Vibration Damping Ball *5（ M3*8 ）
Fixing nuts (M3) * 5
Solid Capacitor *1（ 35V 820μF ） XT60 Male Connector *1
Black Power Cable*1 （ 12AWG ， 120mm ）
Red Power Cable *1 （ 12AWG ， 120mm ）
Option 2 :
4IN1_8S80A_ESC *1
heat sink * 1 (installed at the esc before shipment)
8Pin double-ended terminal wire * 1 (25mm, SH1.0 terminal)
8Pin single-head terminal wire x 1 (60mm, SH1.0 terminal)
8Pin empty terminal head x 1 (SH1.0 terminal)
Damping ball * 5 (M3 * 8)
Fixing nuts (M3) * 5
Solid capacitor * 1 (35V 820 μ F)
XT60 male connector * 1
4IN1_8S70A_ESC Application Fields ：
Multi-rotor Drone
Fixed-wing Model Aircraft
Mountings ：
4IN1_8S70A_ESC *1 8pin Double-Ended Terminal Wire *1（ 25mm SH1.0 ） Vibration Damping Ball *5（ M3*8 ） Solid Capacitor *1（ 35V 820μF ） XT60 Male Connector *1
Black Power Cable*1 （ 12AWG ， 120mm ）
Red Power Cable *1 （ 12AWG ， 120mm ） Sealed plastic box
