MAXKGO 3625 1800KV Brushless Motor 3 Phase 2～4 S 29300rpm Electric Controller For 1/10 RC Climbing Vehicle Rocky Crawler Vehicle

Description

Specifications:
Model: 3625
KV Value: 1800 KV
Axis Extension Size: 16±0.3mm
Outer Diameter Of Silicon Steel Sheet: 30mm
Axial Clearance: <0.1
Silicon Steel Sheet Height: 12mm
Installation Of Threaded Hole Positioning Dimensions: 25±0.1mm
Magnetic Grade: N52H
Screw Hole: 8-M3*3.5
Phases: 3 Phase
Lead Specifications: 16AWG special soft silicone wire/200mm
Slot Poles Number: 12N/14P
Motor Weight (with leads): 92g
Ctator Coil Connection Type: △
Rated Voltage : 16.8V
Insulation Resistance: ≥0.5MΩ
Interphase Resistance R: 20.3mΩ±10%
Motor steering: C.W/C.C.W
No Load Speed : 29300rpm±10%
Voltage Range: 2～4S
No Load Current: 4.5A±20%
Motor Outer Diameter D: 36±0.1mm
Max. Current: 69A
Model Body Height: 25±0.3mm
Max. Power: 1150W
Test Voltage: 16.8V
Resistance: 20.3Ω

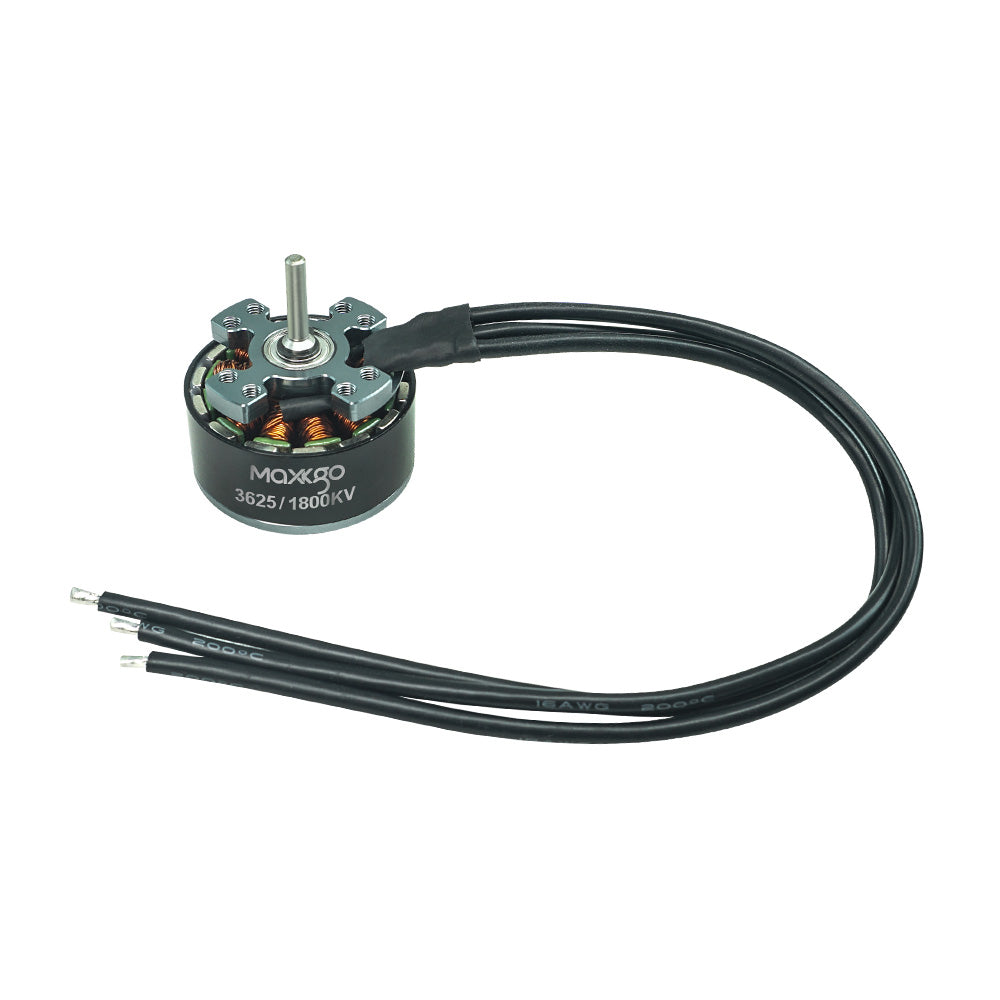

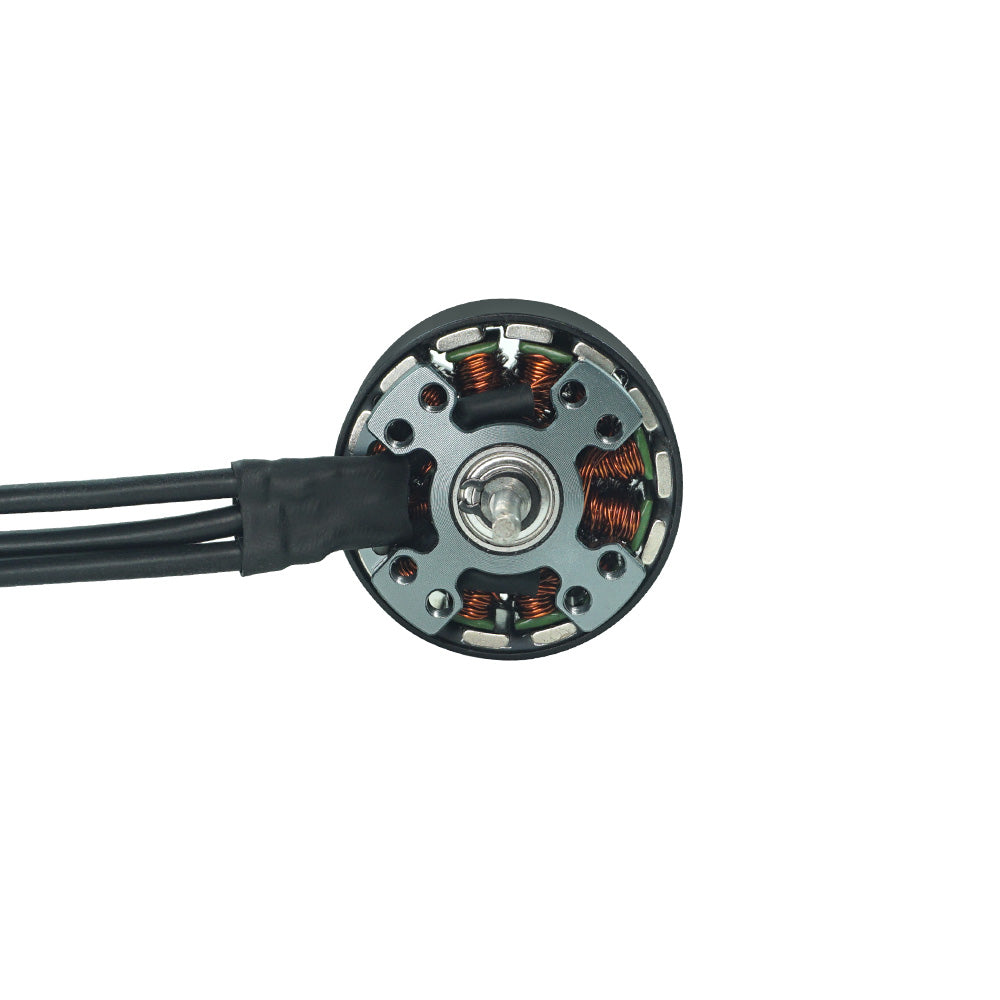

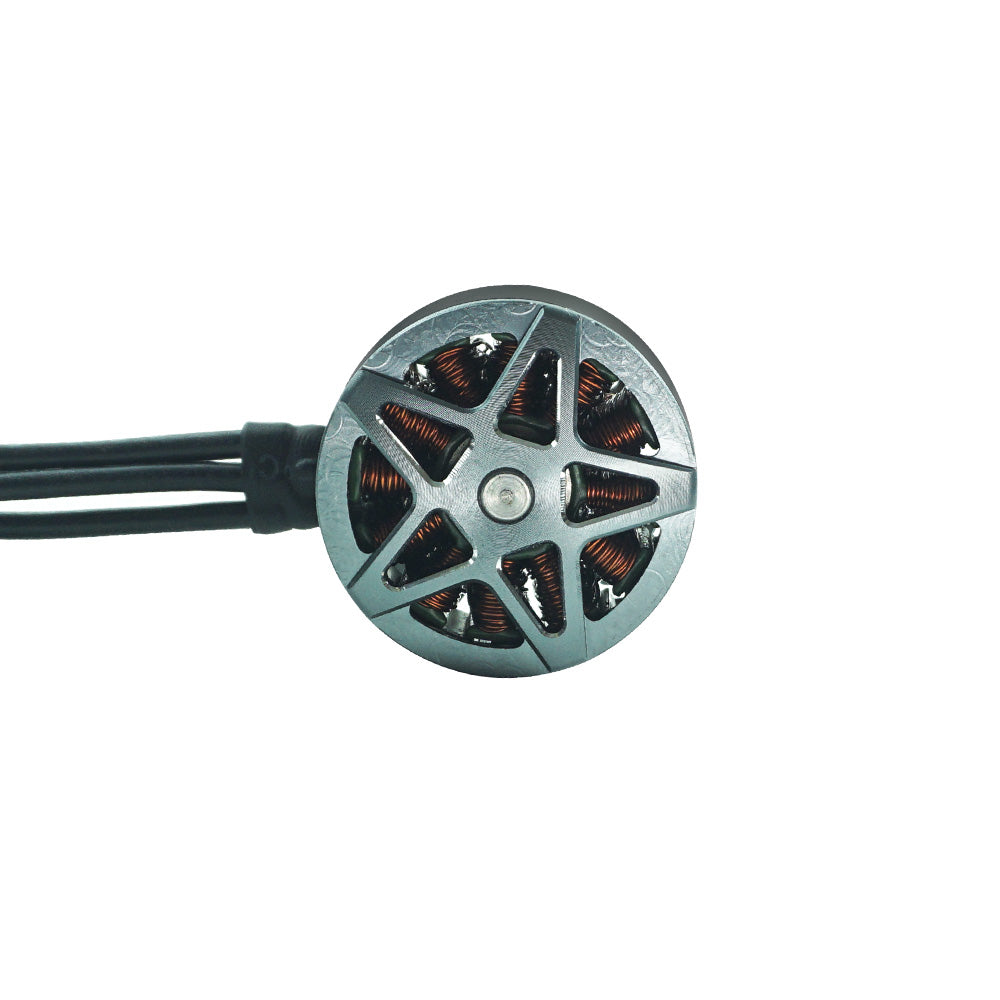

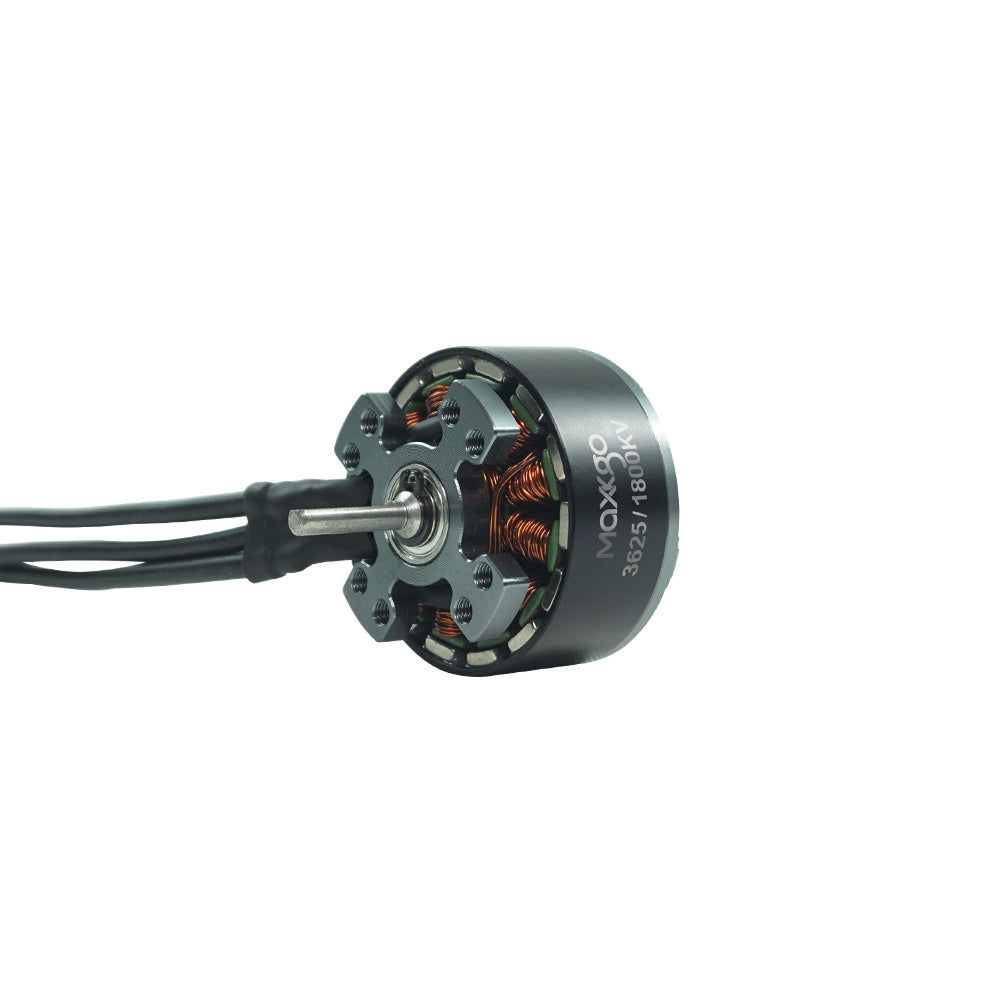

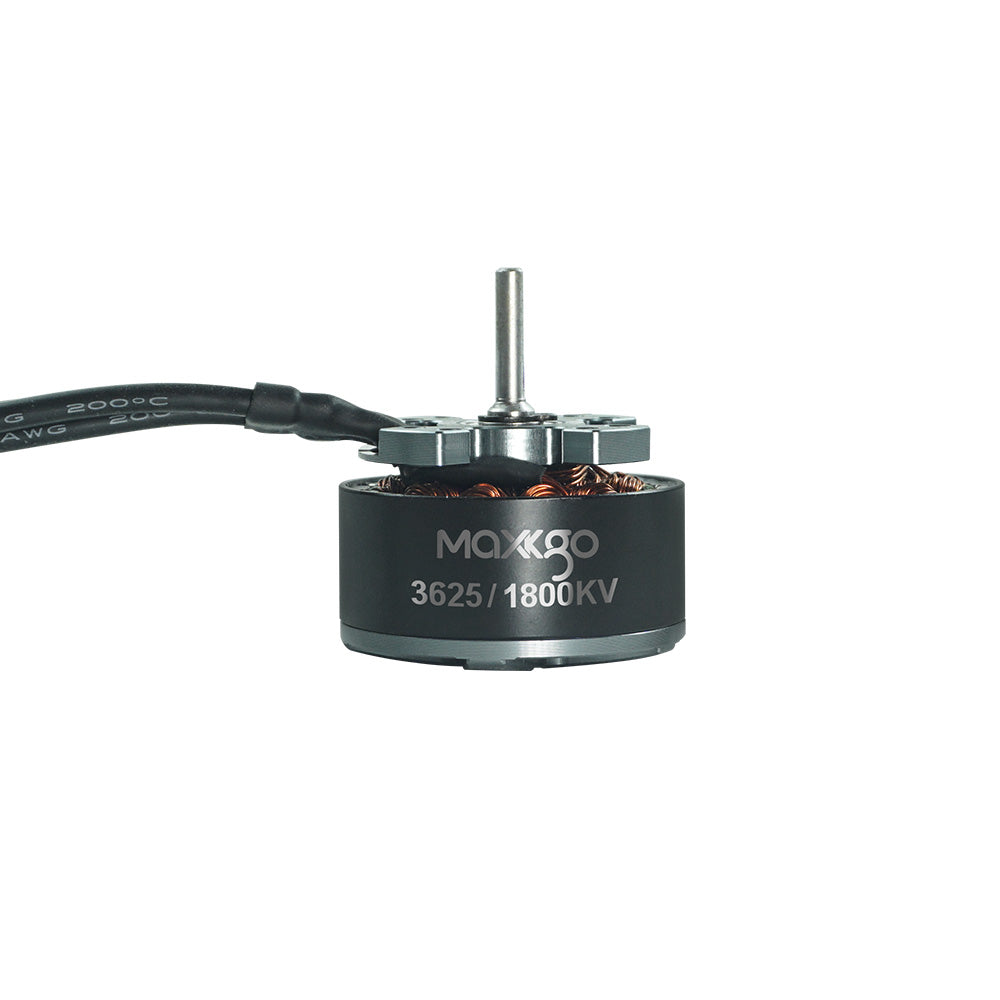

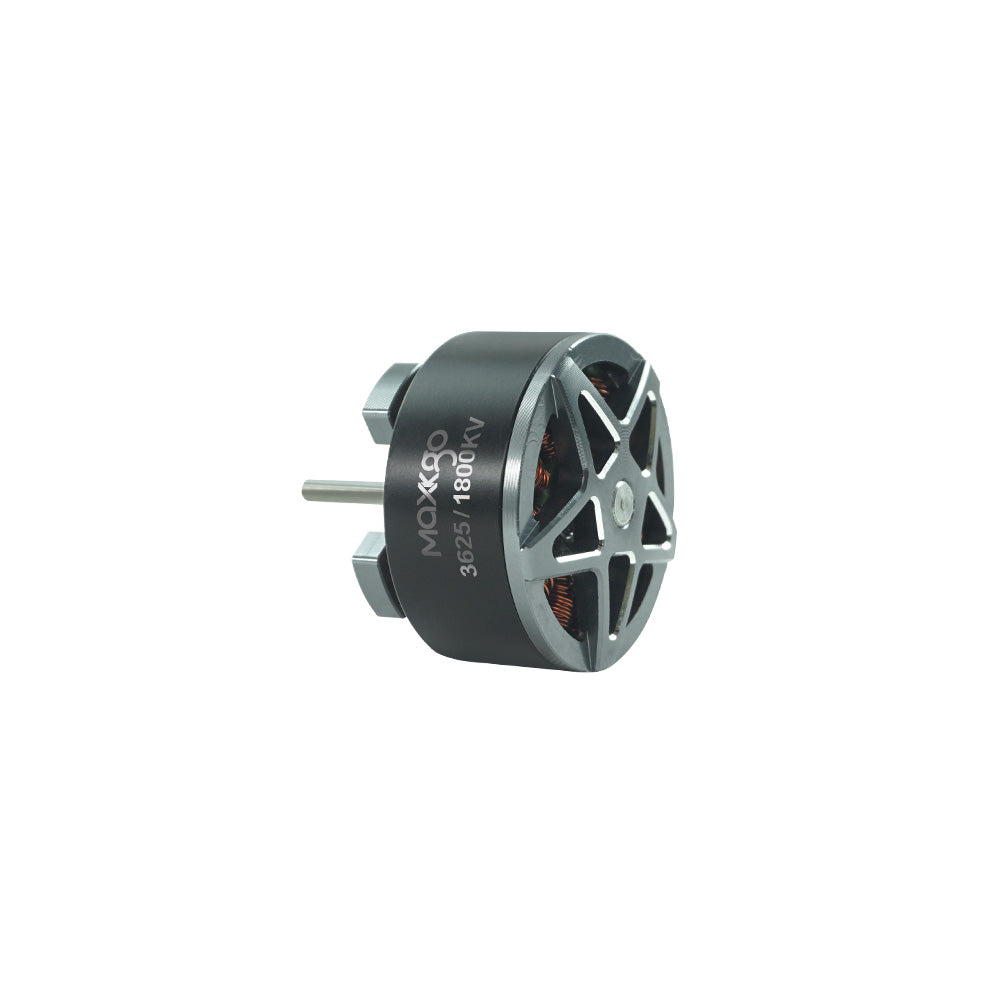

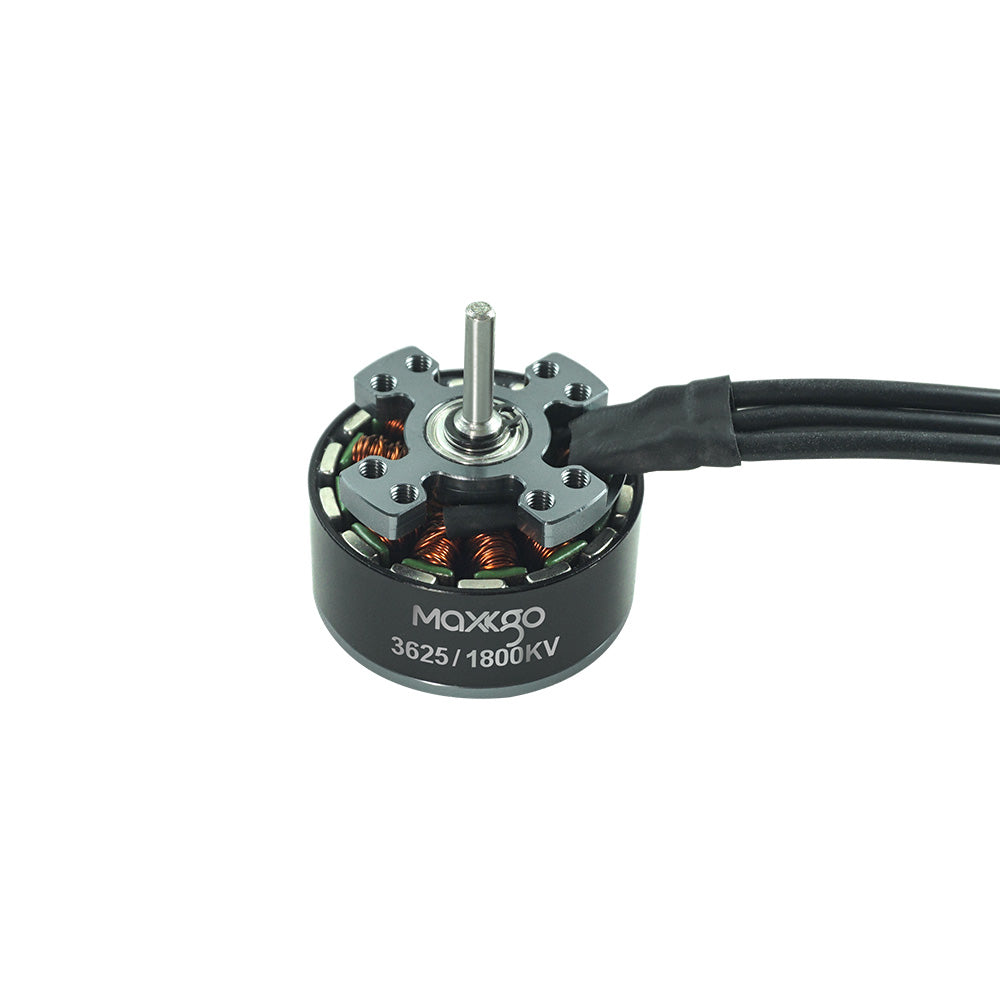

Product Photo:

MAXKGO 3625 1800KV Brushless Motor 3 Phase 2～4 S 29300rpm Electric Controller For 1/10 RC Climbing Vehicle Rocky Crawler Vehicle

Product form

Specifications: Model: 3625 KV Value: 1800 KV Axis Extension Size: 16±0.3mm Outer Diameter Of Silicon Steel Sheet: 30mm Axial Clearance:... Read more

SKU: 90-036025-010-011

$45.49 $34.99 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Shipped today? Order within: Sep 30, 2025 17:00:00 +0800

    Description

    Specifications:
    Model: 3625
    KV Value: 1800 KV
    Axis Extension Size: 16±0.3mm
    Outer Diameter Of Silicon Steel Sheet: 30mm
    Axial Clearance: <0.1
    Silicon Steel Sheet Height: 12mm
    Installation Of Threaded Hole Positioning Dimensions: 25±0.1mm
    Magnetic Grade: N52H
    Screw Hole: 8-M3*3.5
    Phases: 3 Phase
    Lead Specifications: 16AWG special soft silicone wire/200mm
    Slot Poles Number: 12N/14P
    Motor Weight (with leads): 92g
    Ctator Coil Connection Type: △
    Rated Voltage : 16.8V
    Insulation Resistance: ≥0.5MΩ
    Interphase Resistance R: 20.3mΩ±10%
    Motor steering: C.W/C.C.W
    No Load Speed : 29300rpm±10%
    Voltage Range: 2～4S
    No Load Current: 4.5A±20%
    Motor Outer Diameter D: 36±0.1mm
    Max. Current: 69A
    Model Body Height: 25±0.3mm
    Max. Power: 1150W
    Test Voltage: 16.8V
    Resistance: 20.3Ω

    Product Photo:
