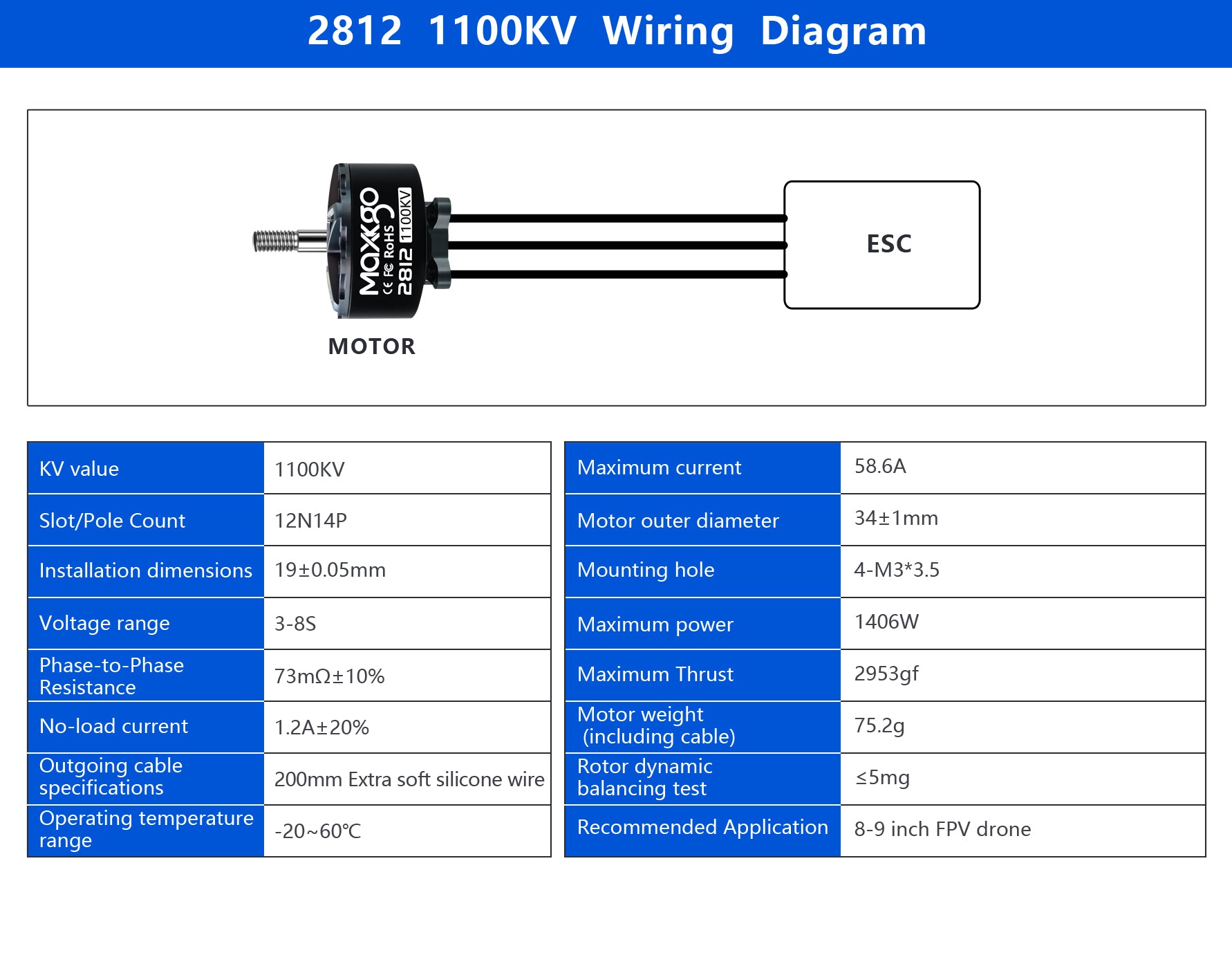

Product Spec：
Voltage range: 3~8S（12.6V~33.6V）
Rated voltage : 24.0V
Max current：58.6A
Max power ：1406W
Slot pole number: 12N/14P
Axis extension size: 16±0.3mm
Silicon steel sheet outer diameter: 28mm
Axial clearance: /
Silicon steel sheet height: 12mm
Mounting threaded hole positioning size: 19±0.05mm
Magnet grade: N52H
Screw hole: 4-M3*3.5
Motor phase number: 3Phase
Lead specification: 18AWG extra soft silicone wire/200mm
Motor weight (with lead): 75.2g
Stator coil connection type: △
Insulation resistance: ≥0.5MΩ
Phase-to-phase resistance R: 55mΩ±10%
Motor direction: C.W/C.C.W
No-load speed n0: 25000rpm±10%
No-load current I0 ：2.2A±20%
Motor outer diameter D ：34±0.1mm
Motor body height H ：25.9±0.3mm
