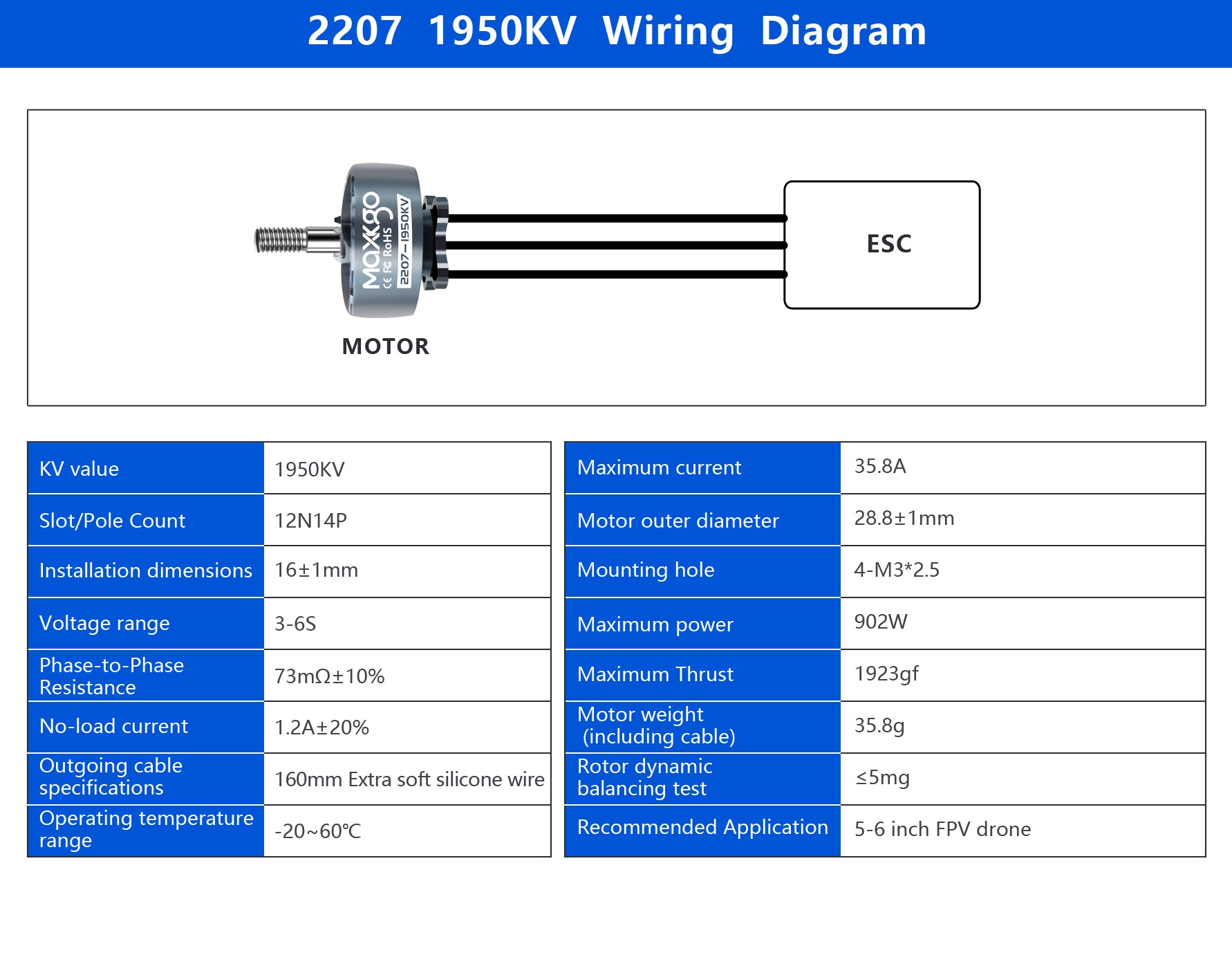

Maxkgo 2207 1950KV Drone motor for Drones

Description


Voltage range: 3~6S（12.6V~33.6V）
Rated voltage : 12.0V
Max current：35.8A
Max power ：902W
Slot pole number: 12N/14P
Axis extension size: 13.5±0.3mm
Silicon steel sheet outer diameter: 22mm
Axial clearance: /
Mounting threaded hole positioning size: 16±1mm
Magnet grade: N52H
Screw hole: 4-M3*2.5
Motor phase number: 3Phase
Lead specification: 20AWG extra soft silicone wire/160mm
Motor weight (with lead): 35.8g
Stator coil connection type: △
Insulation resistance: ≥0.5MΩ
Phase-to-phase resistance R: 73mΩ±10%
Motor direction: C.W/C.C.W
No-load speed n0: 22500rpm±10%
No-load current I0 ：1.2A±20%
Motor outer diameter D ：28.8±0.1mm
Motor body height H ：18.8±0.3mm

Maxkgo 2207 1950KV Drone motor for Drones

Product form

Voltage range: 3~6S（12.6V~33.6V）Rated voltage : 12.0VMax current：35.8AMax power ：902WSlot pole number: 12N/14PAxis extension size: 13.5±0.3mmSilicon steel sheet outer diameter: 22mmAxial... Read more

SKU: 80-022007-010-011(1950)

$17.99 Excl. VAT

            Description


            Voltage range: 3~6S（12.6V~33.6V）
            Rated voltage : 12.0V
            Max current：35.8A
            Max power ：902W
            Slot pole number: 12N/14P
            Axis extension size: 13.5±0.3mm
            Silicon steel sheet outer diameter: 22mm
            Axial clearance: /
            Mounting threaded hole positioning size: 16±1mm
            Magnet grade: N52H
            Screw hole: 4-M3*2.5
            Motor phase number: 3Phase
            Lead specification: 20AWG extra soft silicone wire/160mm
            Motor weight (with lead): 35.8g
            Stator coil connection type: △
            Insulation resistance: ≥0.5MΩ
            Phase-to-phase resistance R: 73mΩ±10%
            Motor direction: C.W/C.C.W
            No-load speed n0: 22500rpm±10%
            No-load current I0 ：1.2A±20%
            Motor outer diameter D ：28.8±0.1mm
            Motor body height H ：18.8±0.3mm
