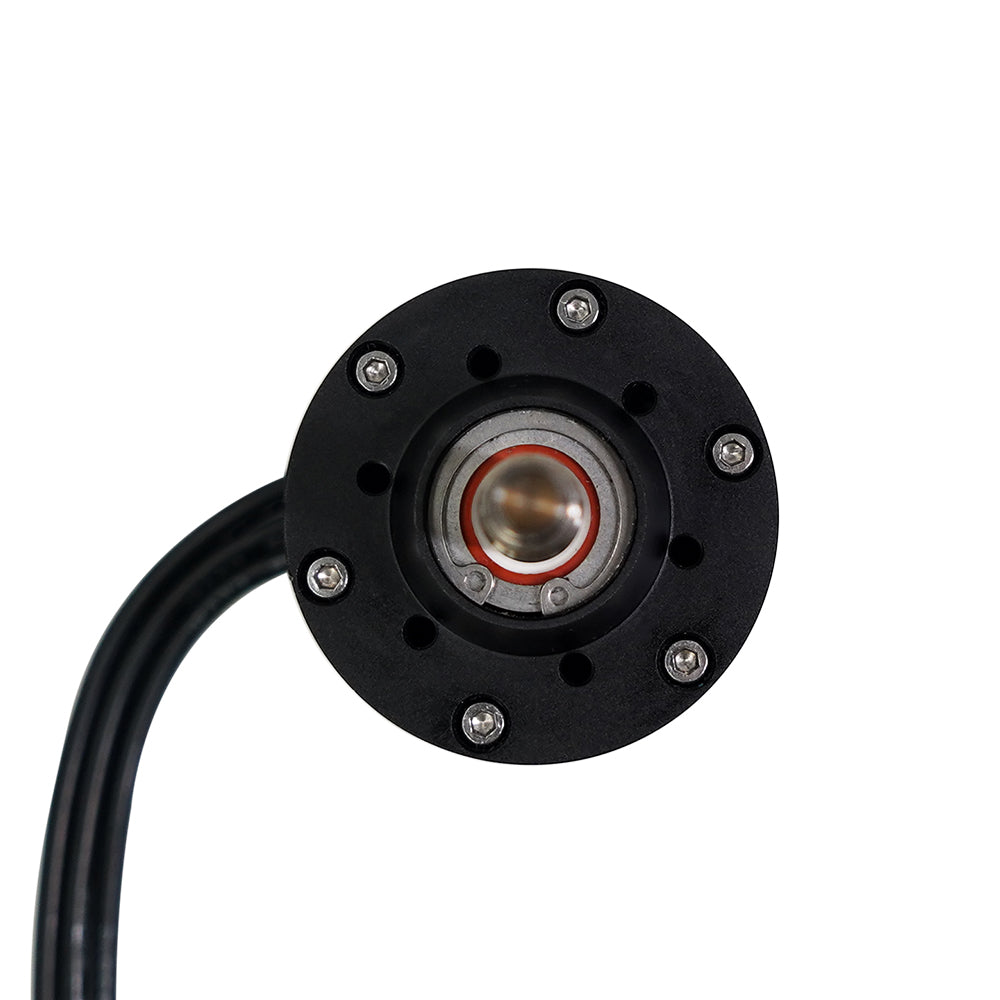

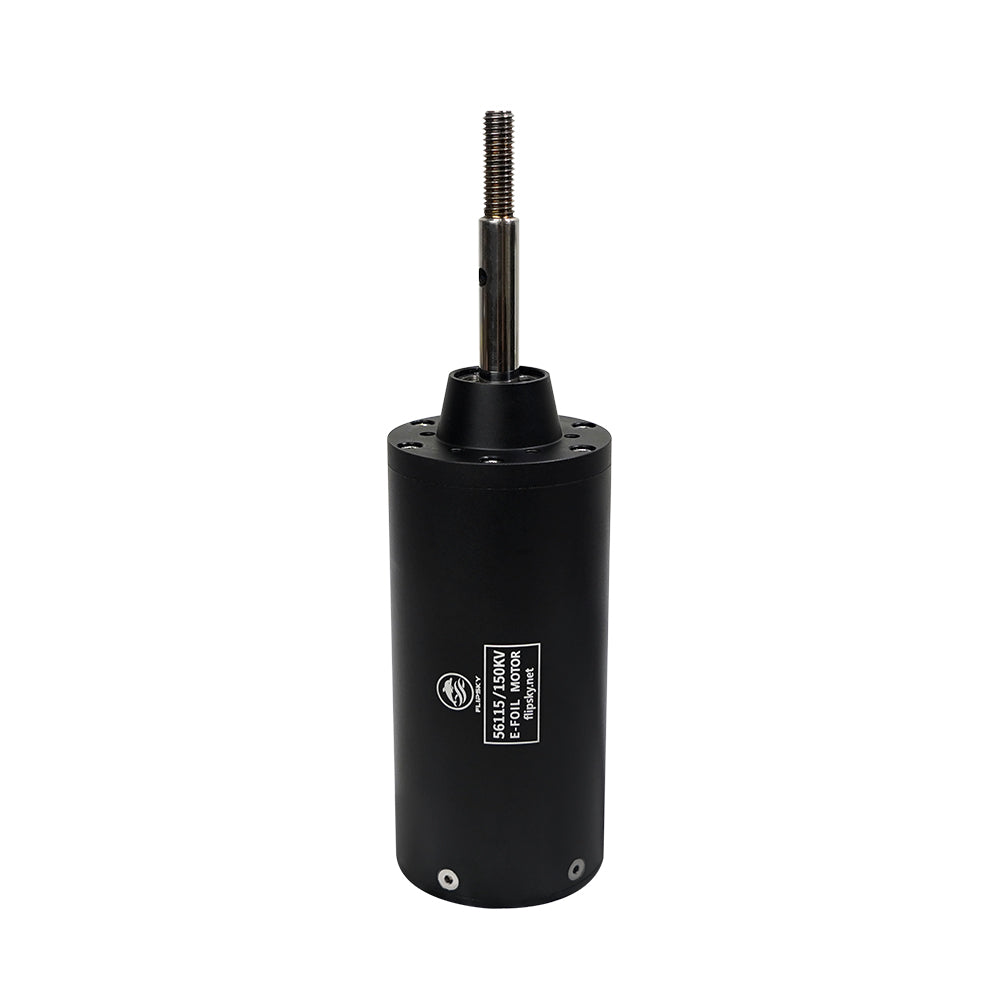

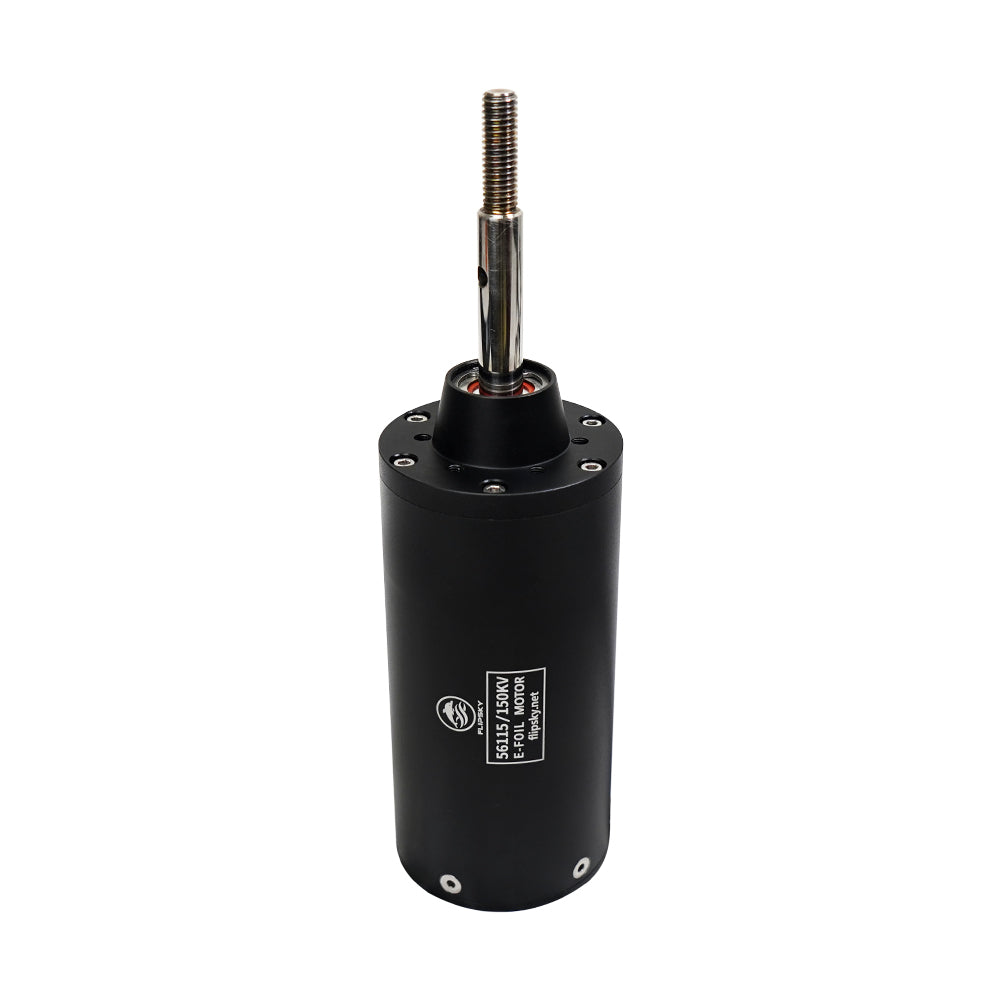

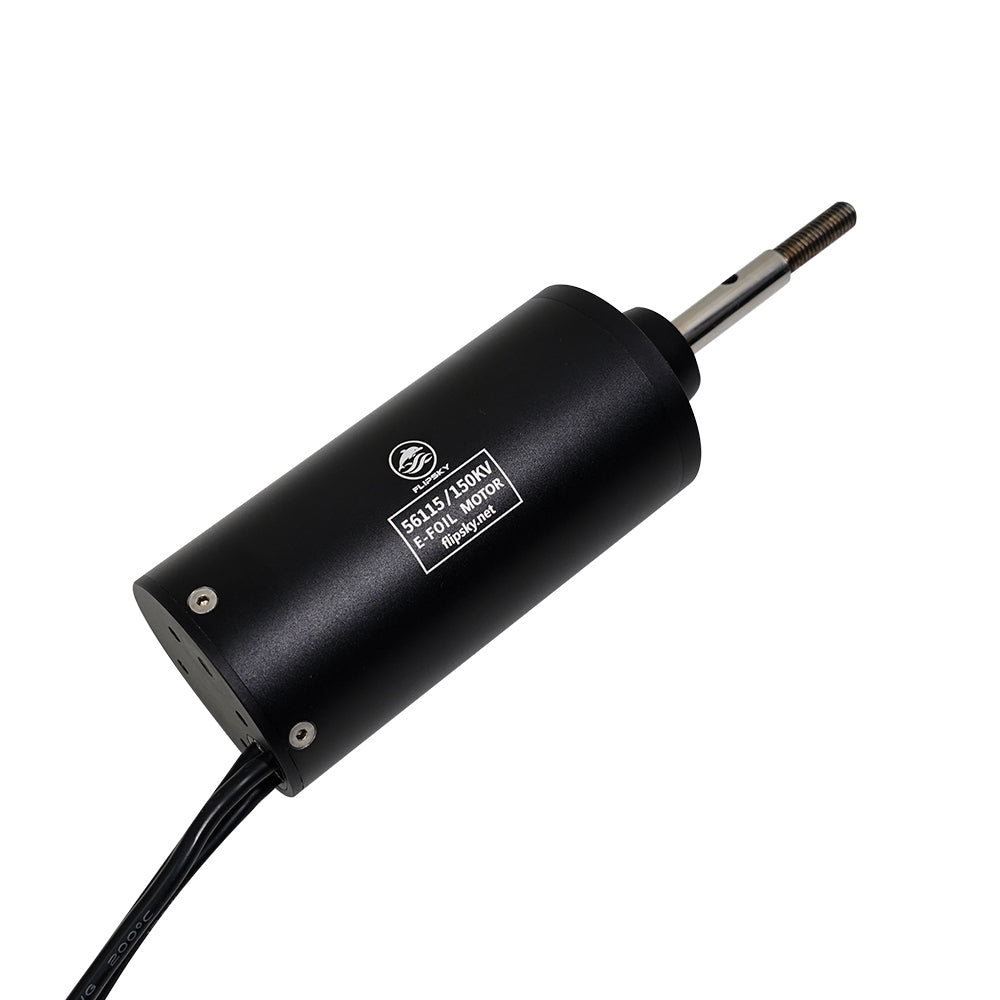

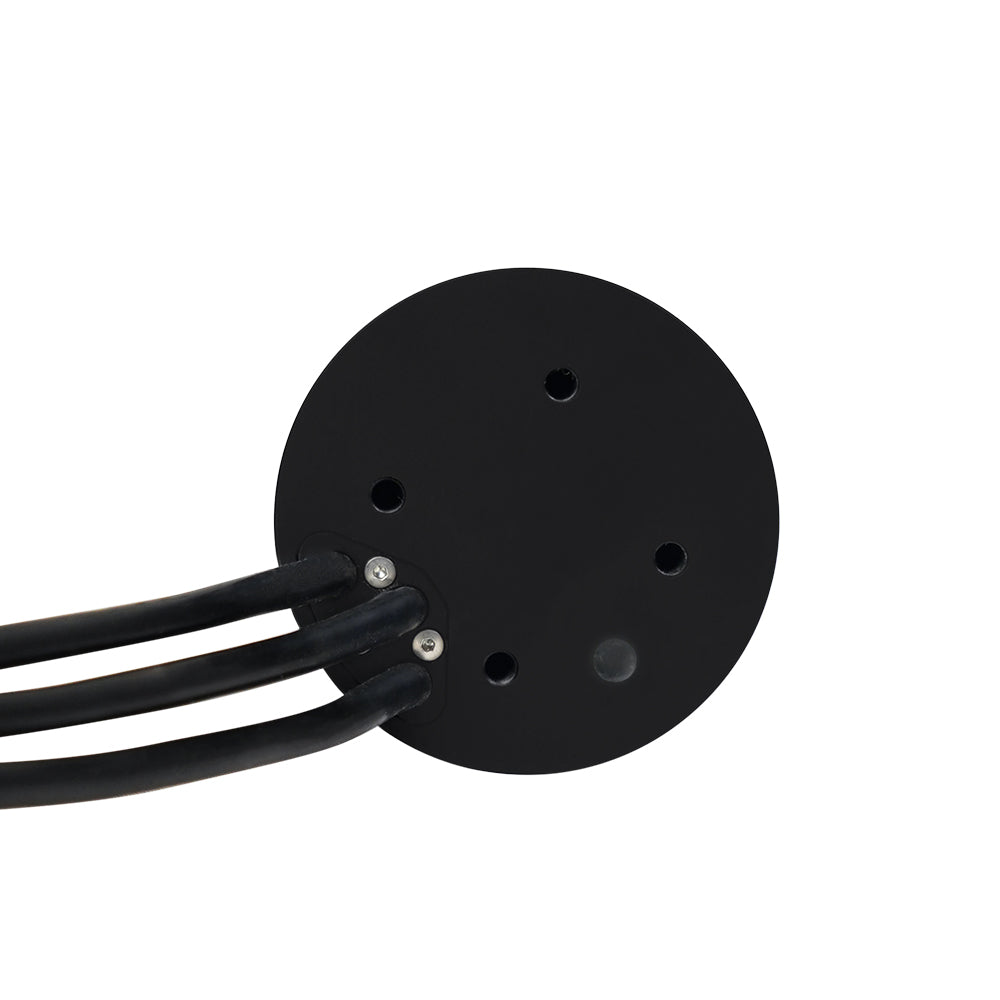

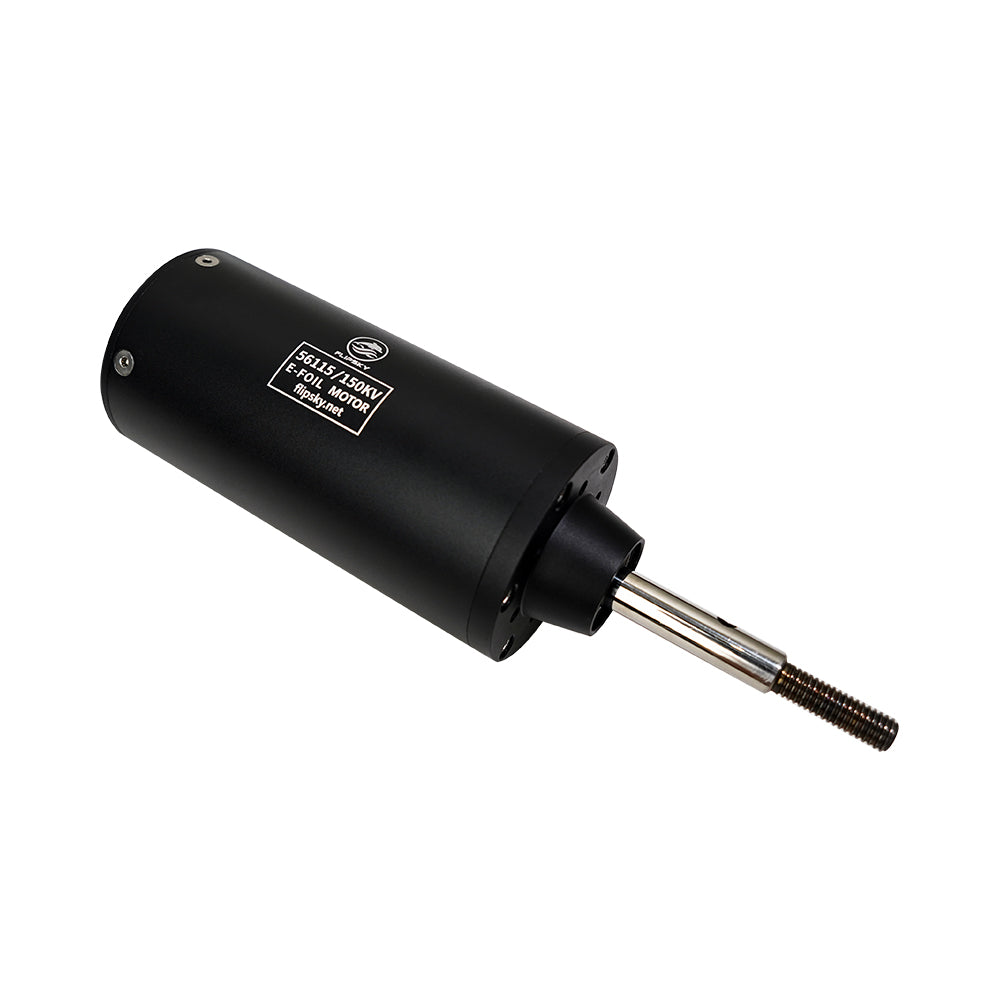

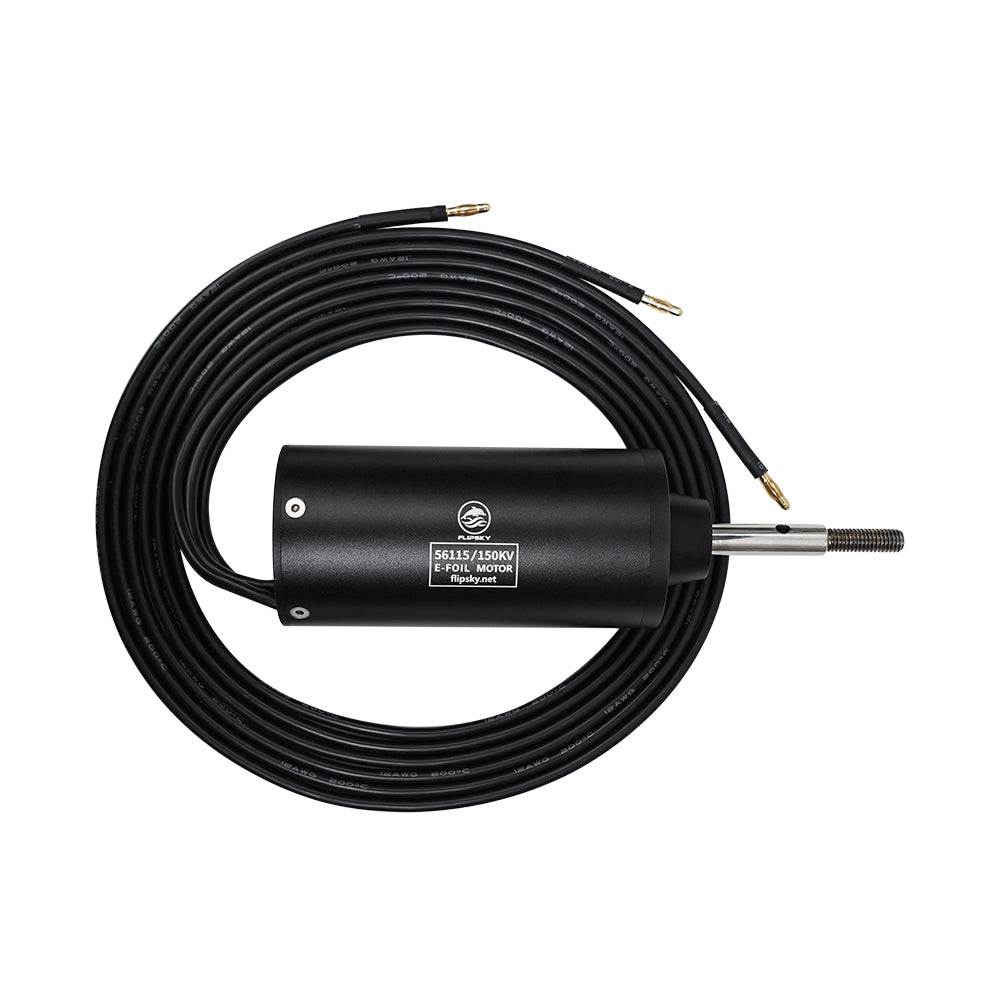

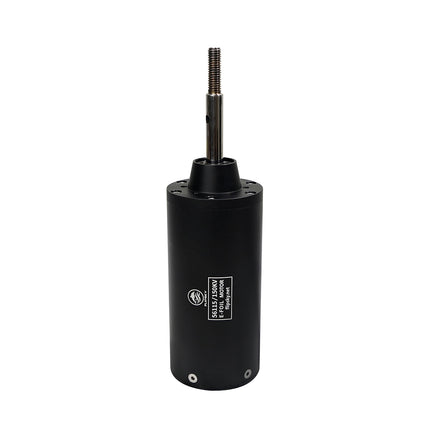

Flipsky Motor 56115 150KV 2400W Round Thread Brushless Motor Sensorless IP68 Waterproof Motor for Efoil

Description

Specifications:
Voltage Range: 6-14S(25.2-58.8V)
Rated Current: 30A ; Max Current: 60A
Rated Power: 1200W ; Max Power: 2400W
Rated Torque: 2.0N·m ; Max Torque: 4.0N·m
Internal Structure: 12N/4p
Thrust F/kgf (48V/30A): 18.3
Thrust F/kgf (48V/60A): 27
Resistance: 123mΩ
Inductance: 220μH
Three-phase leads: 3*12AWG (4.5mm)
Insulation current: AC600V/10mA/3s
Plug: 4mm Banana Plug (male)
Shaft specification: Φ10-0.007
Waterproof level: IP68

Flipsky Motor 56115 150KV 2400W Round Thread Brushless Motor Sensorless IP68 Waterproof Motor for Efoil

Product form

Specifications: Voltage Range: 6-14S(25.2-58.8V)Rated Current: 30A ; Max Current: 60ARated Power: 1200W ; Max Power: 2400WRated Torque: 2.0N·m ; Max... Read more

SKU: 90-056115-101-000

$188.50 $145.00 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Shipped today? Order within: Oct 24, 2025 17:00:00 +0800

    Description

    Specifications:
    Voltage Range: 6-14S(25.2-58.8V)
    Rated Current: 30A ; Max Current: 60A
    Rated Power: 1200W ; Max Power: 2400W
    Rated Torque: 2.0N·m ; Max Torque: 4.0N·m
    Internal Structure: 12N/4p
    Thrust F/kgf (48V/30A): 18.3
    Thrust F/kgf (48V/60A): 27
    Resistance: 123mΩ
    Inductance: 220μH
    Three-phase leads: 3*12AWG (4.5mm)
    Insulation current: AC600V/10mA/3s
    Plug: 4mm Banana Plug (male)
    Shaft specification: Φ10-0.007
    Waterproof level: IP68
