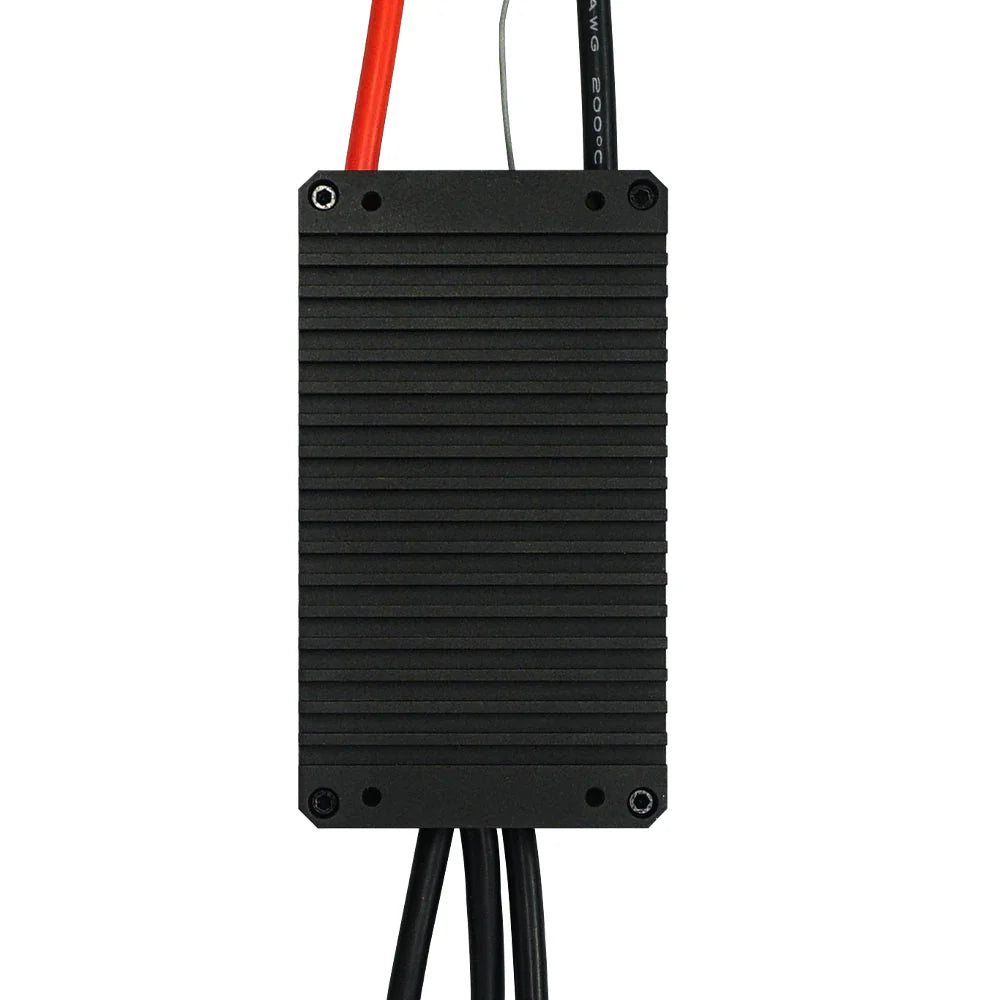

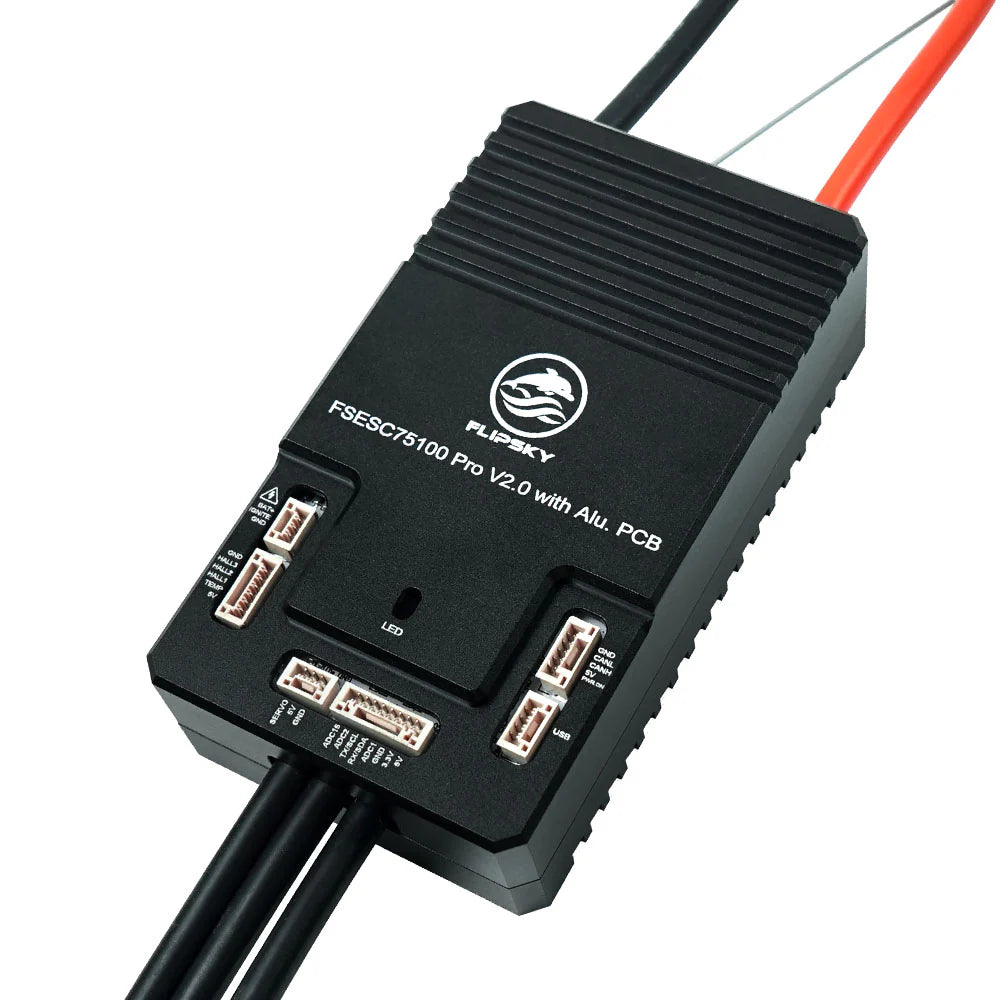

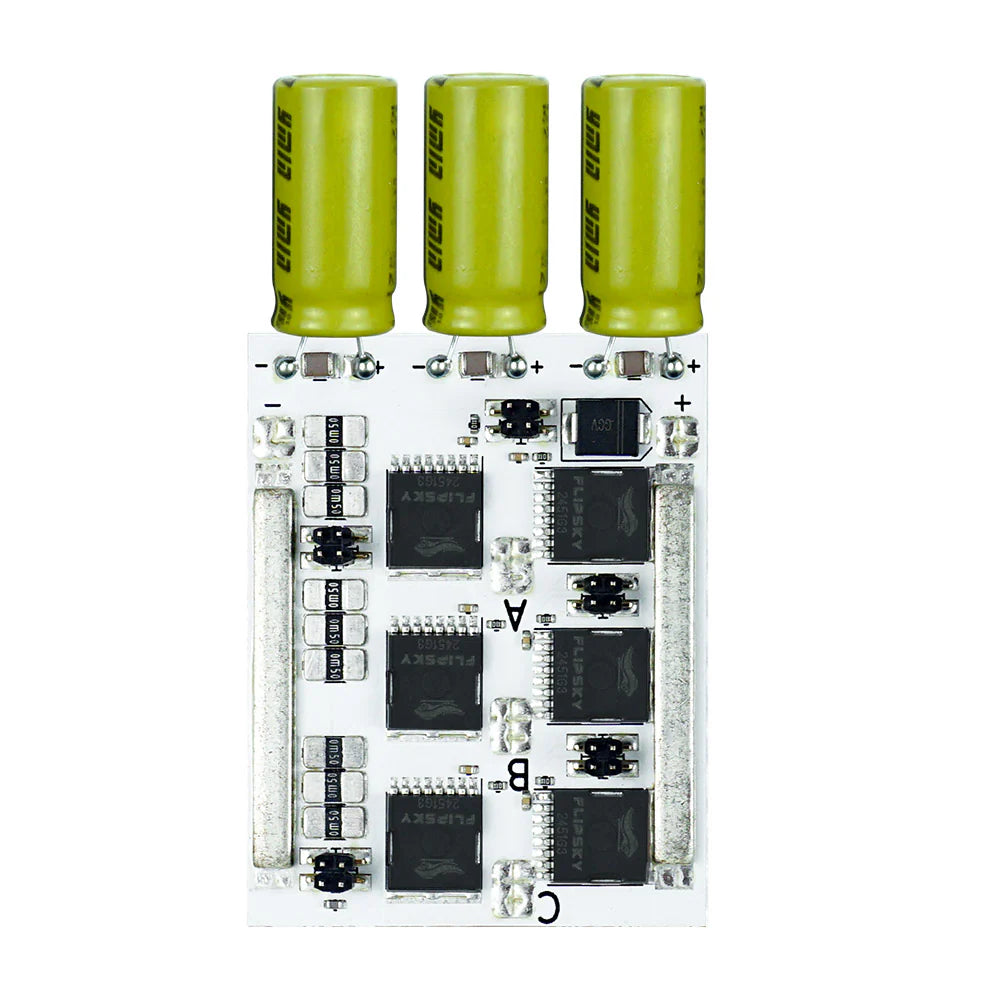

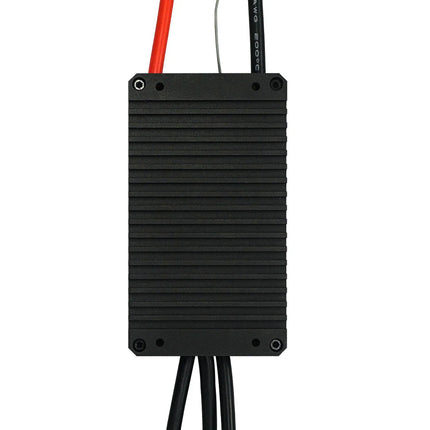

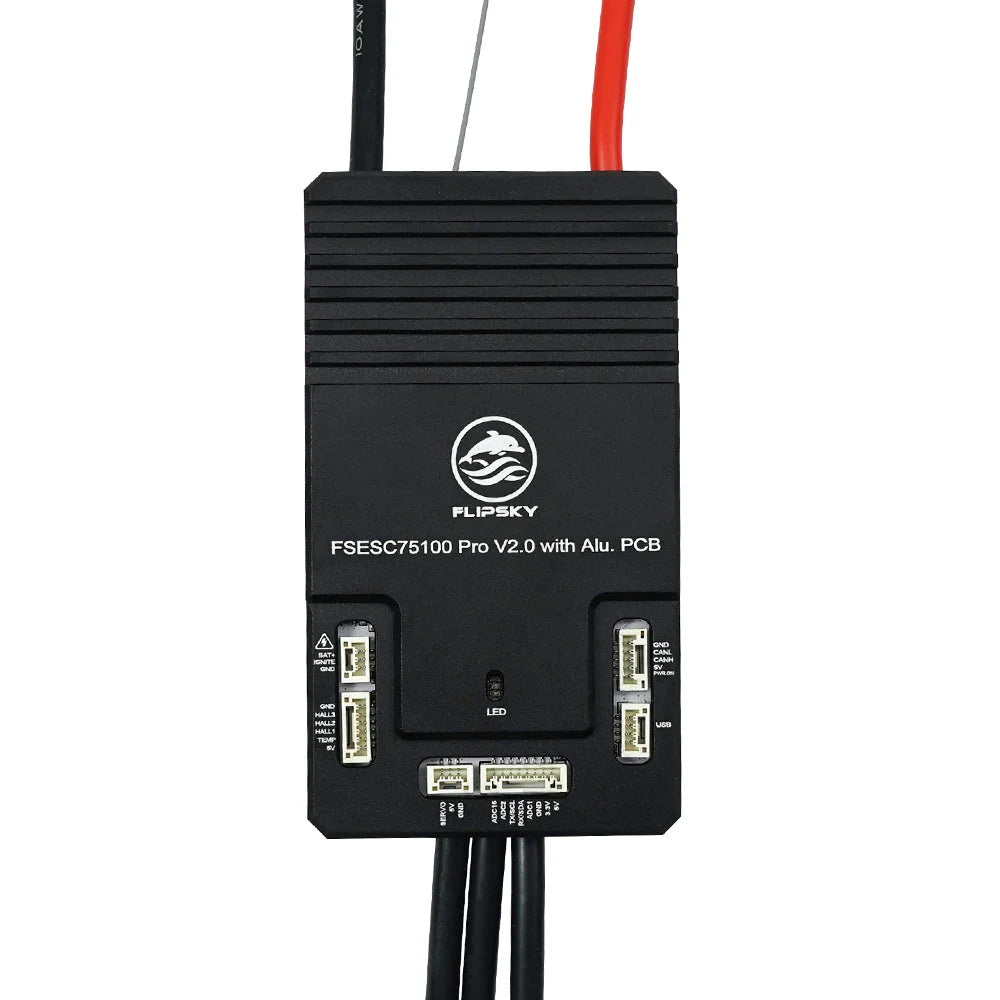

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Electric Scooter / Ebike Speed Controller

Description

Spec:

  • Firmware: 6.02 (firmware update supported)

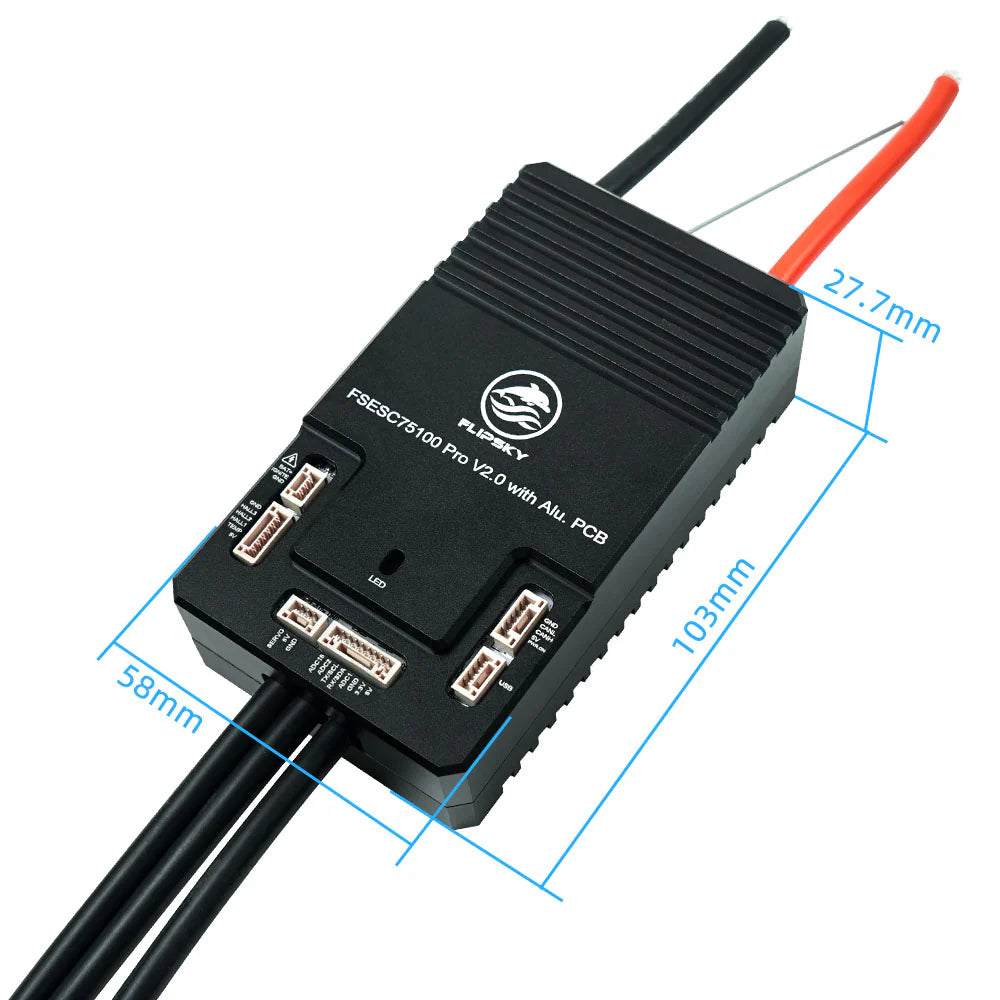

  • Size: L103mm*W58mm*H27.7mm
  • Voltage:14-84V (4-20S)
  • Current:100A Continuous
  • BEC:5V@1.5A
  • Support BLDC square wave mode control and FOC sine wave mode
  • ERPM:150000
  • Control Interface Ports:USB,CAN,UART
  • Supported Sensors:ABI，HALL，AS5047，AS5048A
  • Input Set Support:PPM，ADC，NRF,UART
  • Wire Size: 10AWG(75100 Pro)
  • Programmable: Yes
  • Regenerative Capacity: Yes
  • Phase Filter: Yes

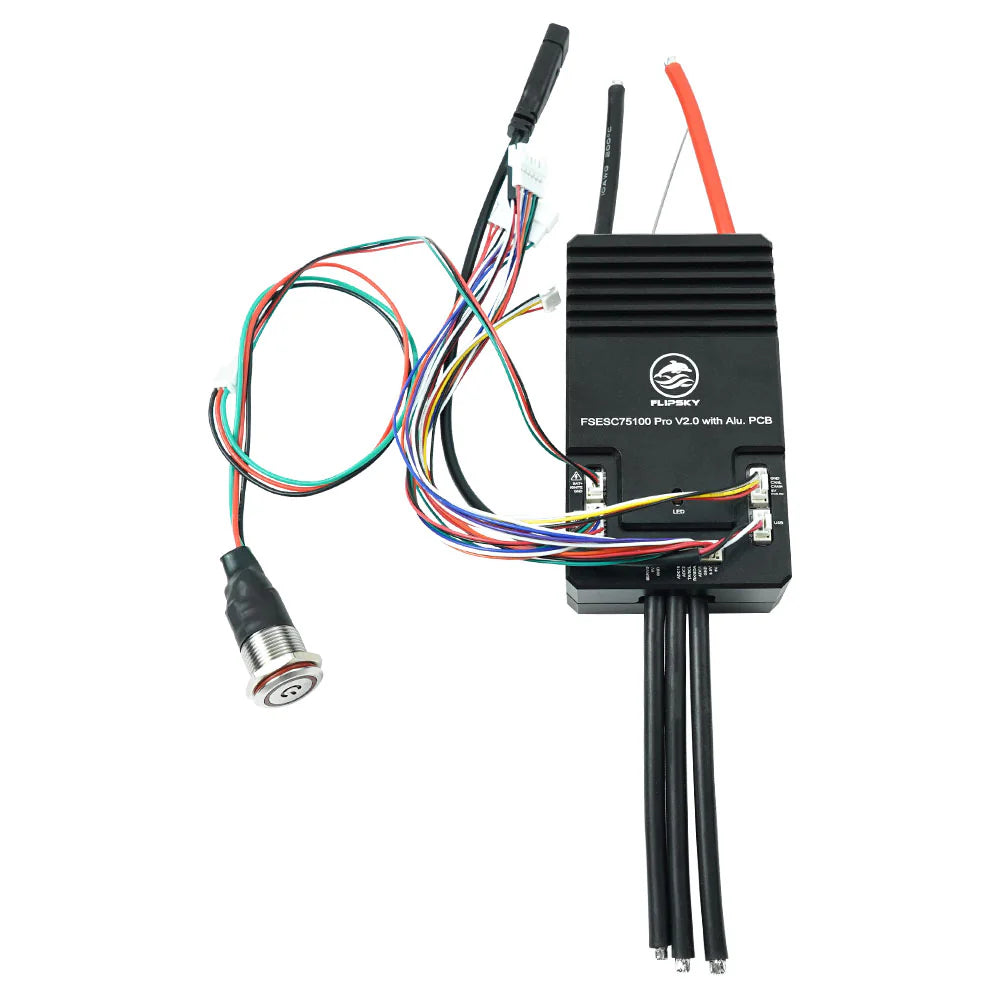

  • Power Switch Button: Red
  • integrates Bluetooth module function
  • The maximum peak current is 150A
  • the absolute maximum current is recommended to be set to 200A

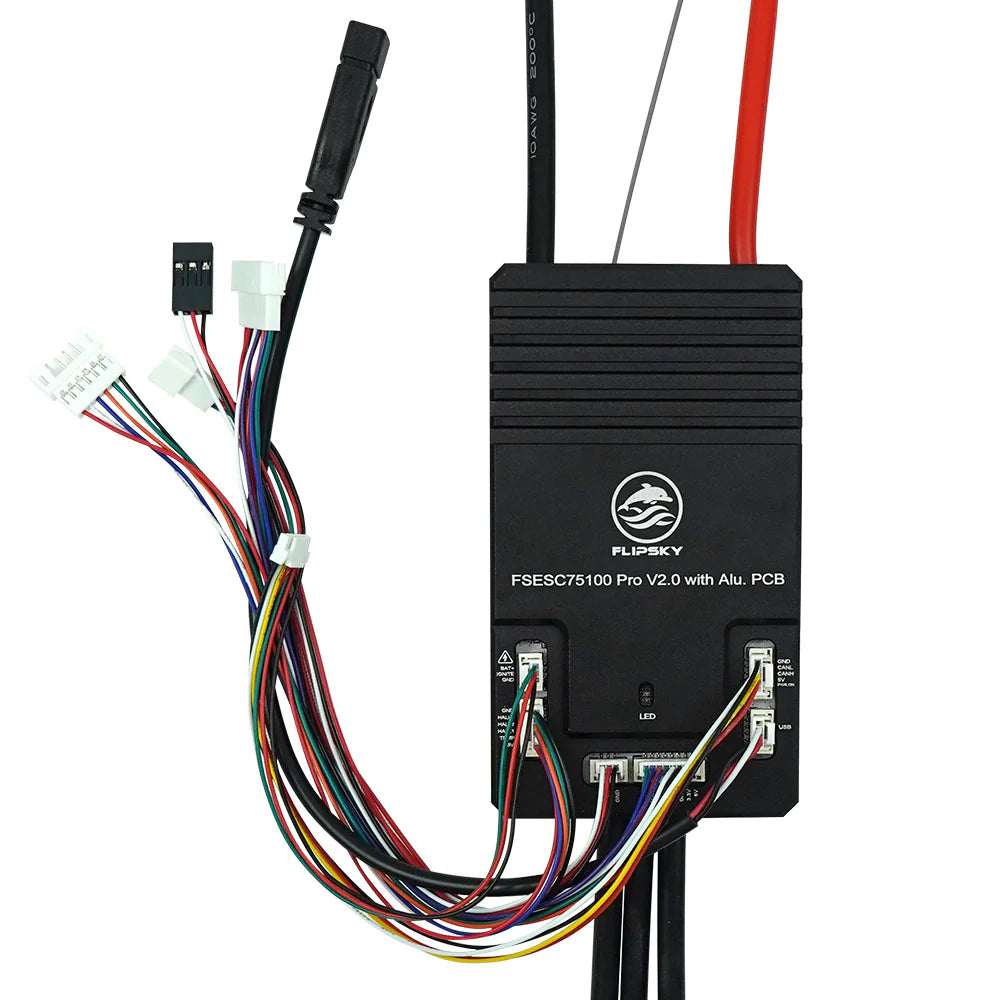

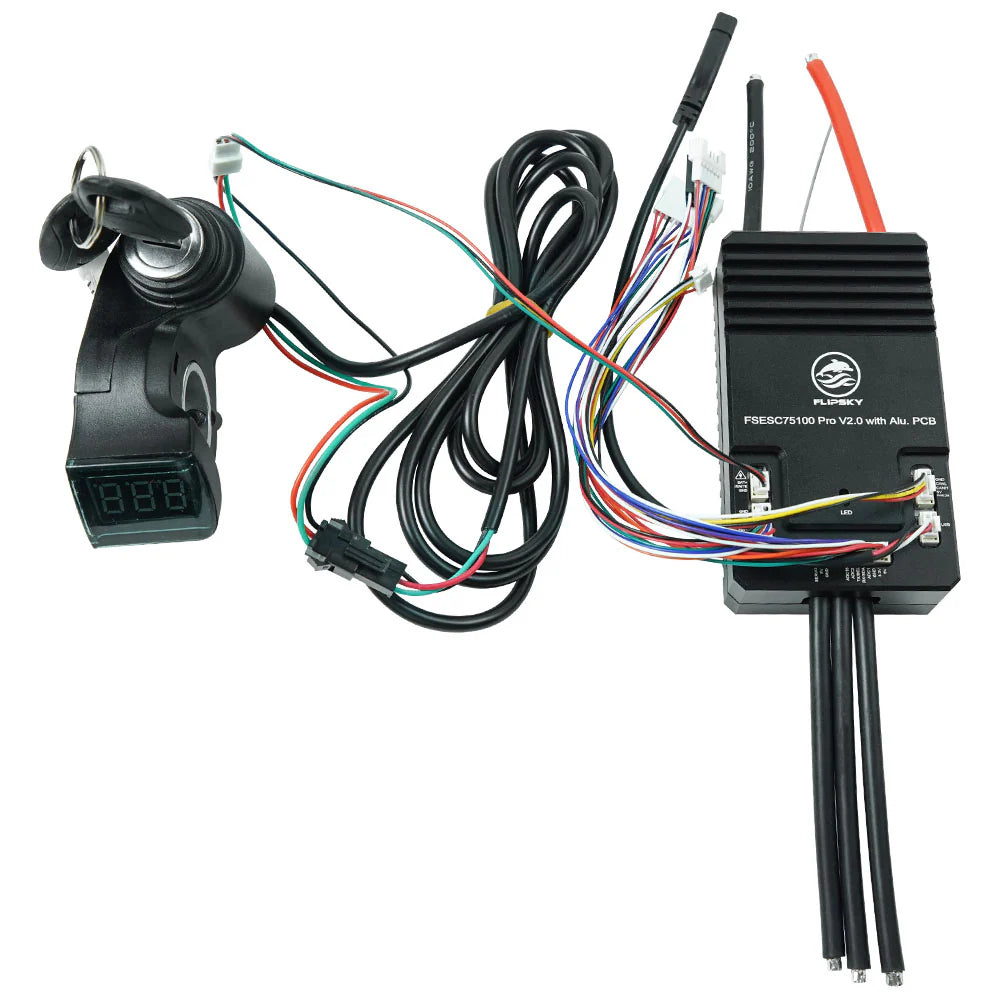

Wiring diagram:

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

Instruction manual for 75100 Pro V2.0

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Electric Scooter / Ebike Speed Controller

Product form

Spec: Firmware: 6.02 (firmware update supported) Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous BEC:5V@1.5A Support BLDC square wave mode control and... Read more

SKU: VA-75PS-B-100

$98.00 Excl. VAT

            Description

            Spec:

            • Firmware: 6.02 (firmware update supported)
            • Size: L103mm*W58mm*H27.7mm
            • Voltage:14-84V (4-20S)
            • Current:100A Continuous
            • BEC:5V@1.5A
            • Support BLDC square wave mode control and FOC sine wave mode
            • ERPM:150000
            • Control Interface Ports:USB,CAN,UART
            • Supported Sensors:ABI，HALL，AS5047，AS5048A
            • Input Set Support:PPM，ADC，NRF,UART
            • Wire Size: 10AWG(75100 Pro)
            • Programmable: Yes
            • Regenerative Capacity: Yes
            • Phase Filter: Yes
            • Power Switch Button: Red
            • integrates Bluetooth module function
            • The maximum peak current is 150A
            • the absolute maximum current is recommended to be set to 200A

            Wiring diagram:

            Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

            Instruction manual for 75100 Pro V2.0
