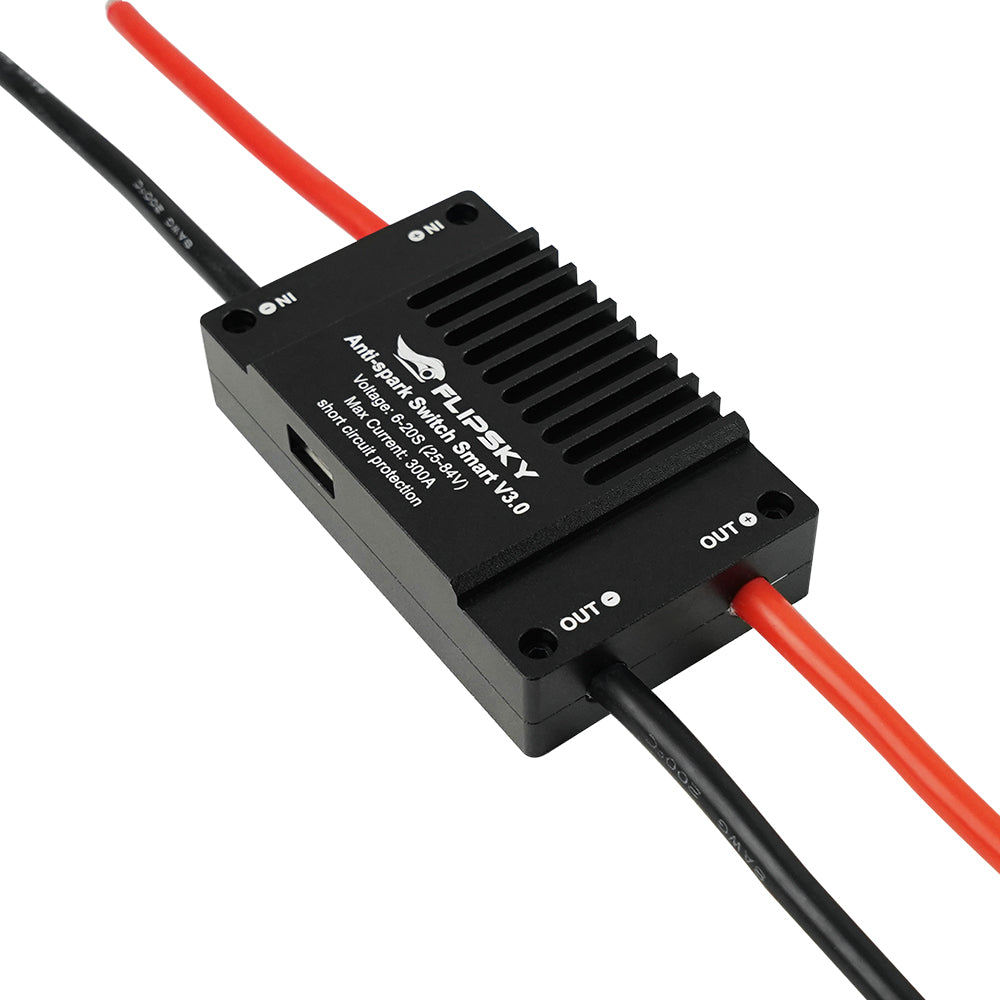

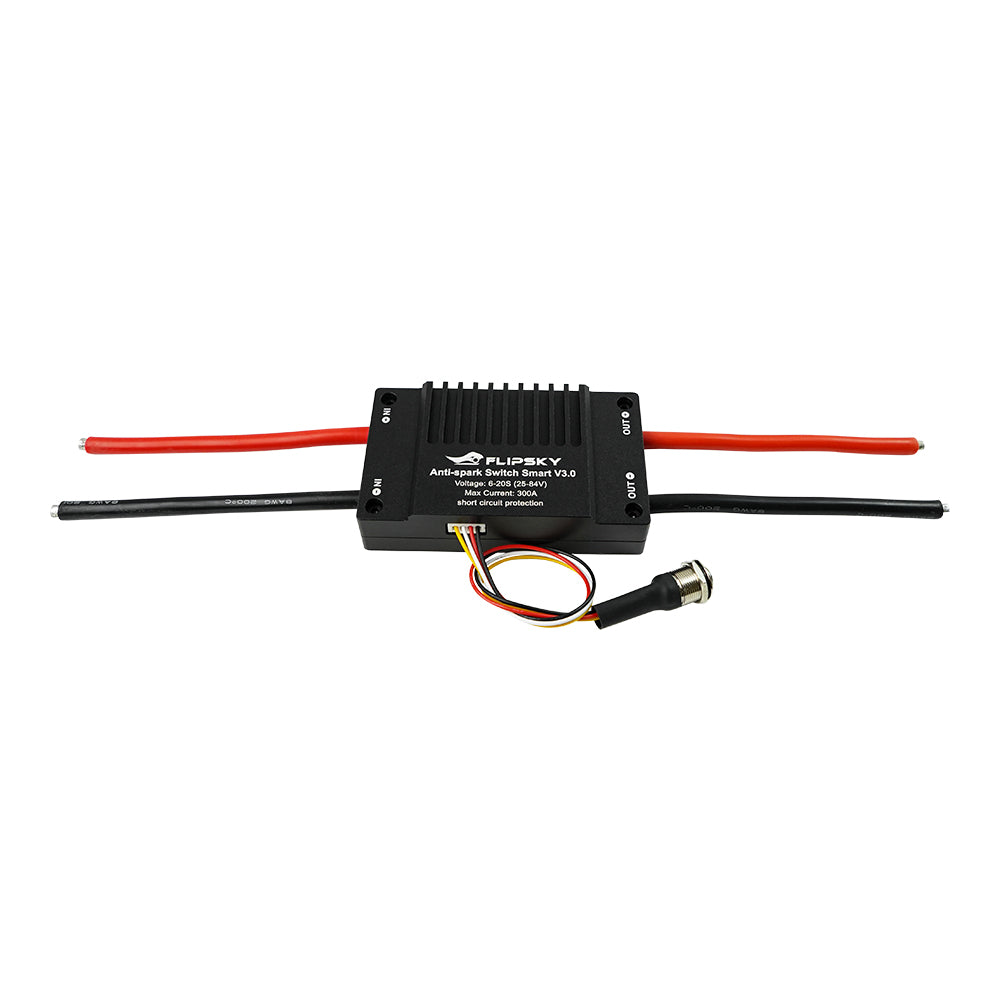

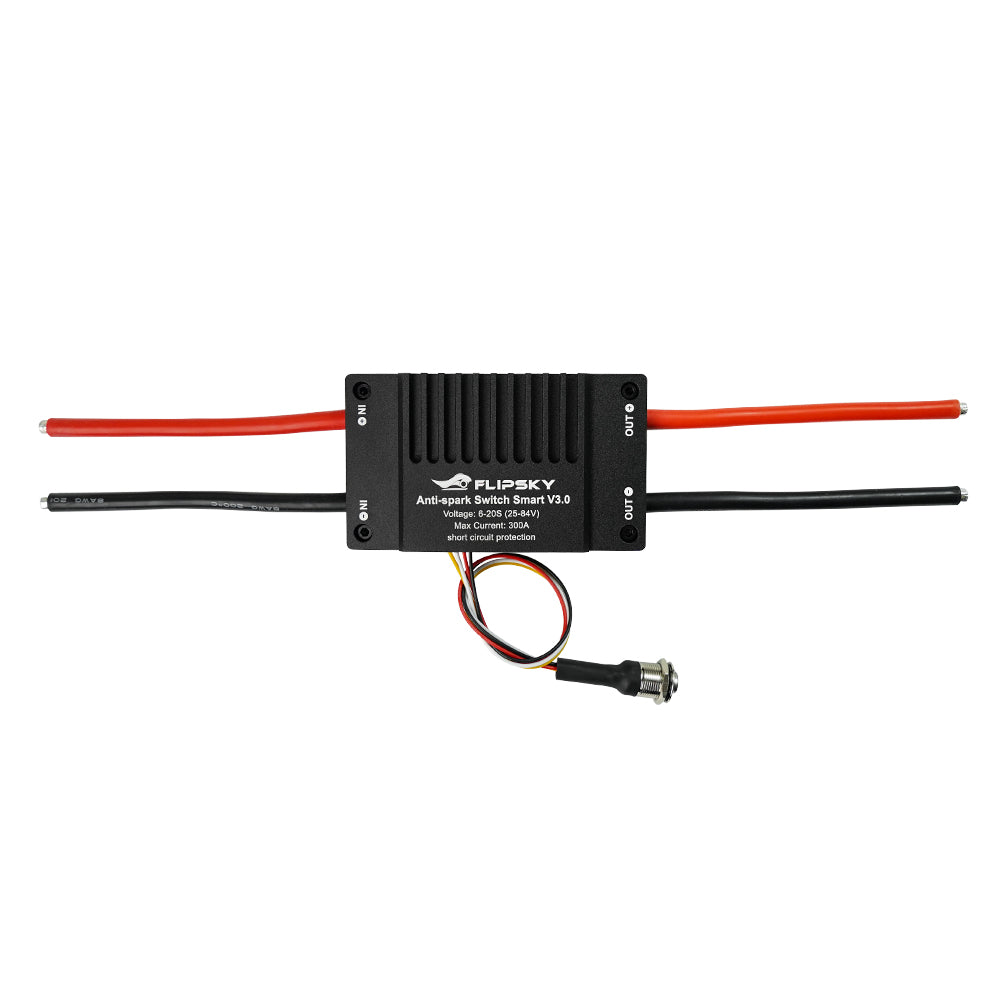

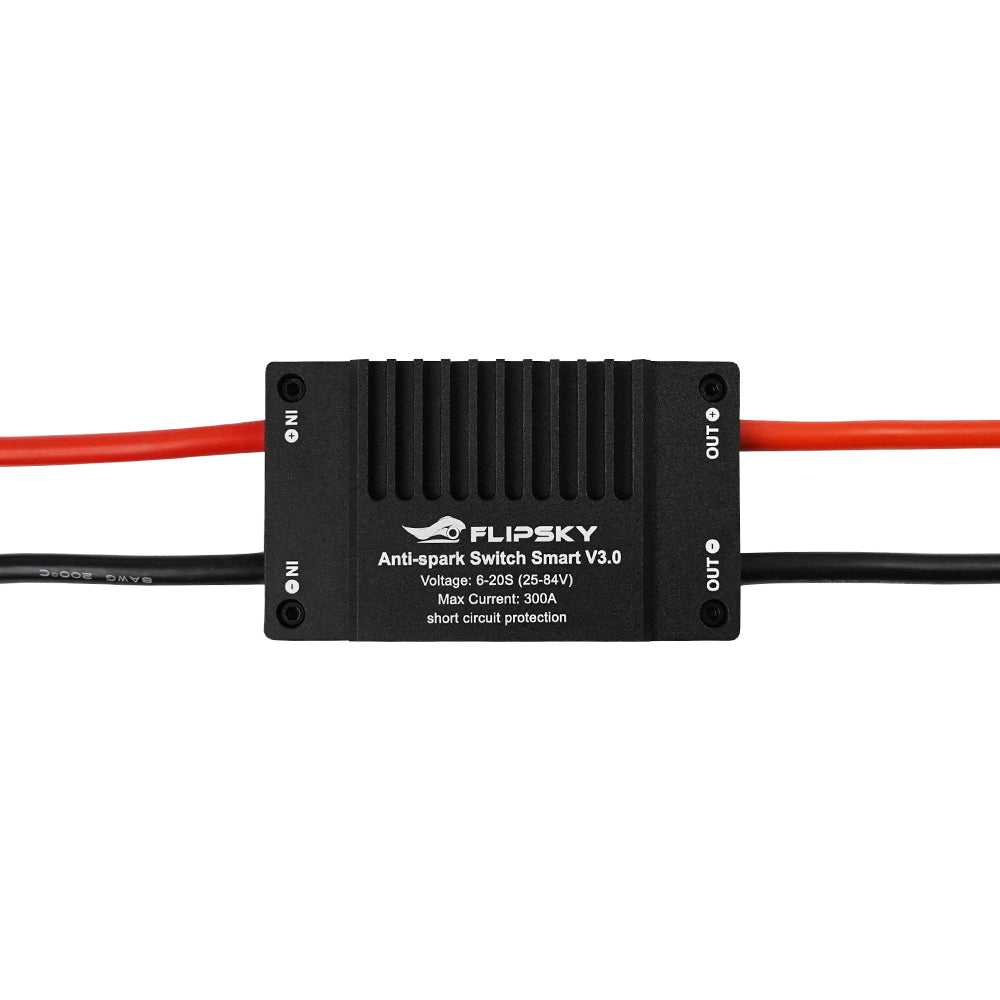

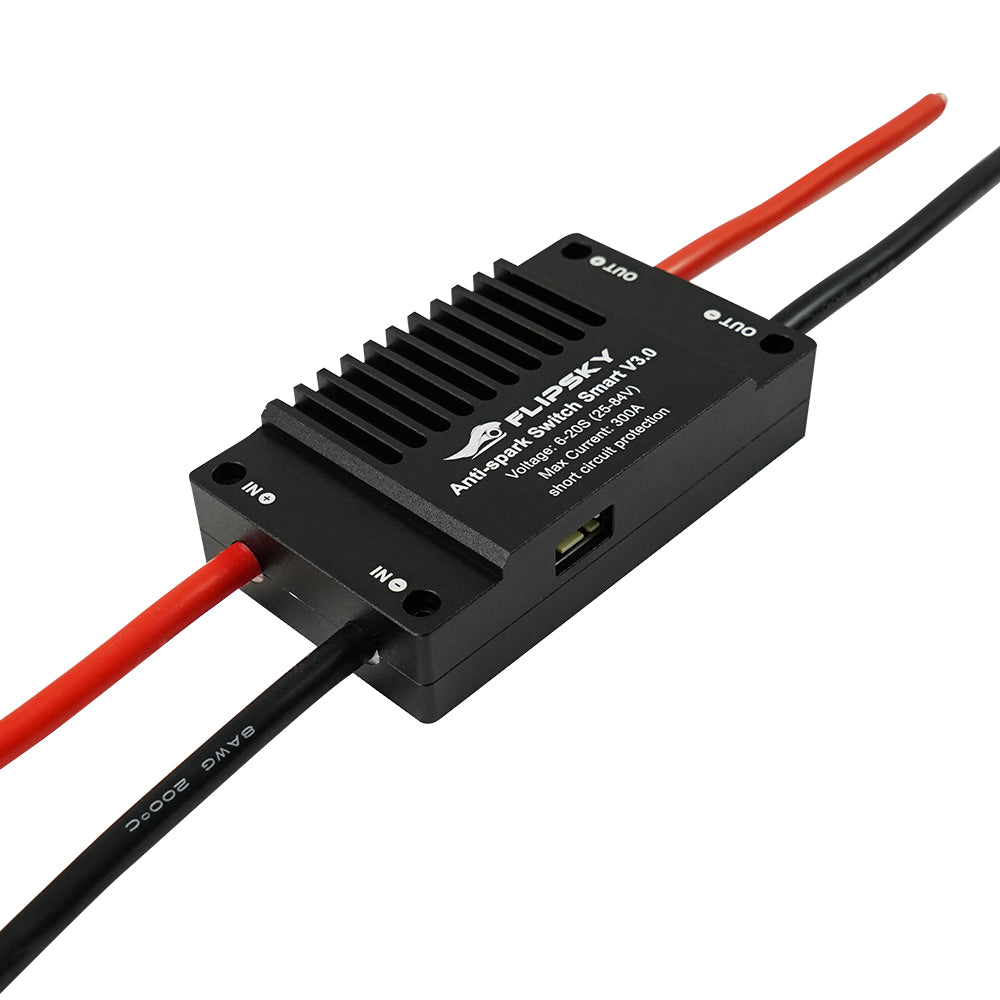

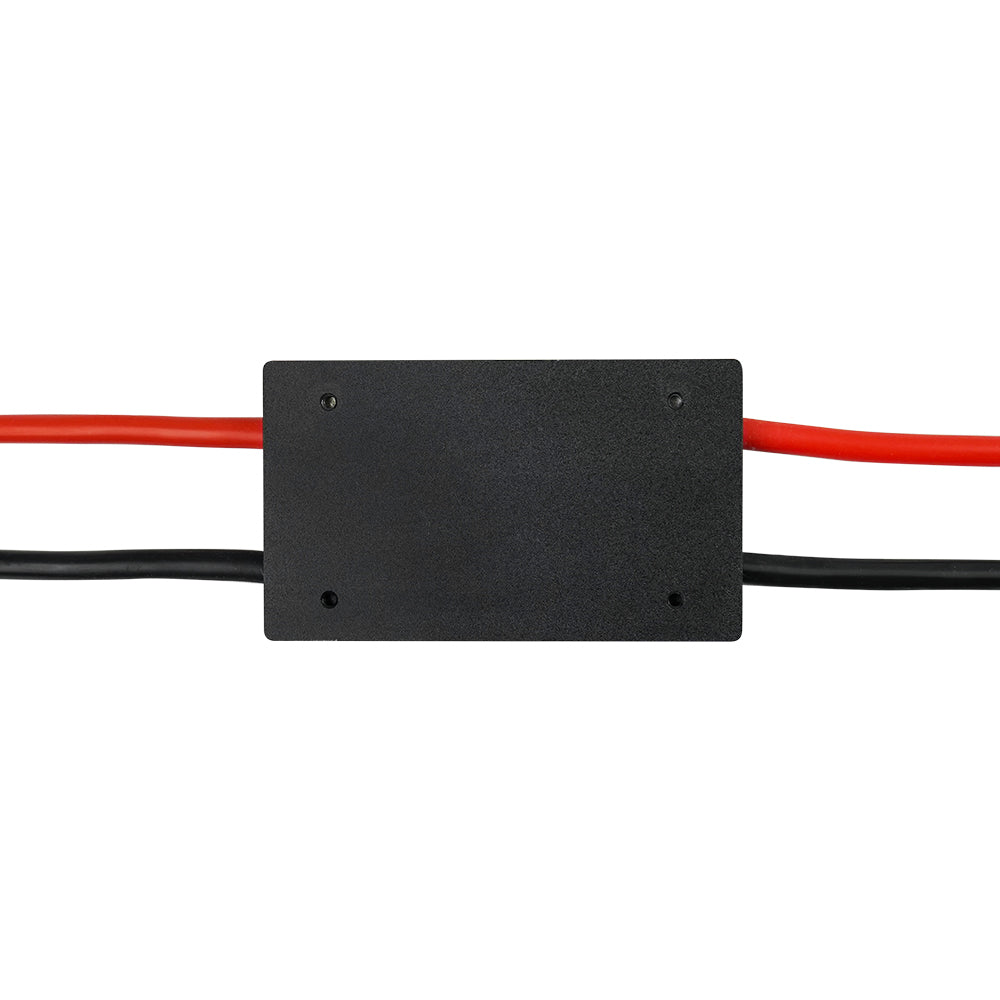

Flipsky 6-20S Li-Po Smart Anti Spark Switch V3.0 With Short Circuit Protection For Electric Skateboard Ebike Scooter Robots

Description

Specifications:
Model: Anti-spark Switch Smart V3.0
Working Voltage: 6-20S Li-Po
Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions)
Diameter of Switch Button: 12mm (Self-lock switch)
Size: 97*57*24mm
Weight: 311g
Features:

1.Metal shielding cover for good heat dissipation and reducing electromagnetic interference.

2.Equipped with LED indicator light, users can check the status of the light to determine whether it works normally.

3.If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit protection function has been triggered.

4.Soft start-up: Increasing the current / voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.

5.Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.

Wire Connection:

Flipsky 6-20S Li-Po Smart Anti Spark Switch V3.0 With Short Circuit Protection For Electric Skateboard Ebike Scooter Robots

Product form

Specifications: Model: Anti-spark Switch Smart V3.0 Working Voltage: 6-20S Li-Po Output Current: Continuous max 300A (duration time depends on external... Read more

SKU: ANSWFS20SC

$57.00 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Shipped today? Order within: Oct 24, 2025 17:00:00 +0800

    Description

    Specifications:
    Model: Anti-spark Switch Smart V3.0
    Working Voltage: 6-20S Li-Po
    Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions)
    Diameter of Switch Button: 12mm (Self-lock switch)
    Size: 97*57*24mm
    Weight: 311g
    Features:

    1.Metal shielding cover for good heat dissipation and reducing electromagnetic interference.

    2.Equipped with LED indicator light, users can check the status of the light to determine whether it works normally.

    3.If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit protection function has been triggered.

    4.Soft start-up: Increasing the current / voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.

    5.Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.

    Wire Connection:
