Description
| Battery Specifications |
| Battery Outer Case Dimensions |
371*269*186mm |
| Waterproof |
IP 67 |
| Battery Box Material |
ABS |
| Voltage |
50.4V |
| Cell Specifications |
Molicel P42A 21700 |
| Battery Capacity |
12S 4P 16.8AH/846.72WH/16800mah, |
| Environment |
(-20°C to +50°C) |
| Charger |
50.4V 6A |
| Charging Time |
About 2.6 hours |
| Endurance Time |
90-120 minutes, recommended cruising power is 500W |
| Motor and ESC Specifications |

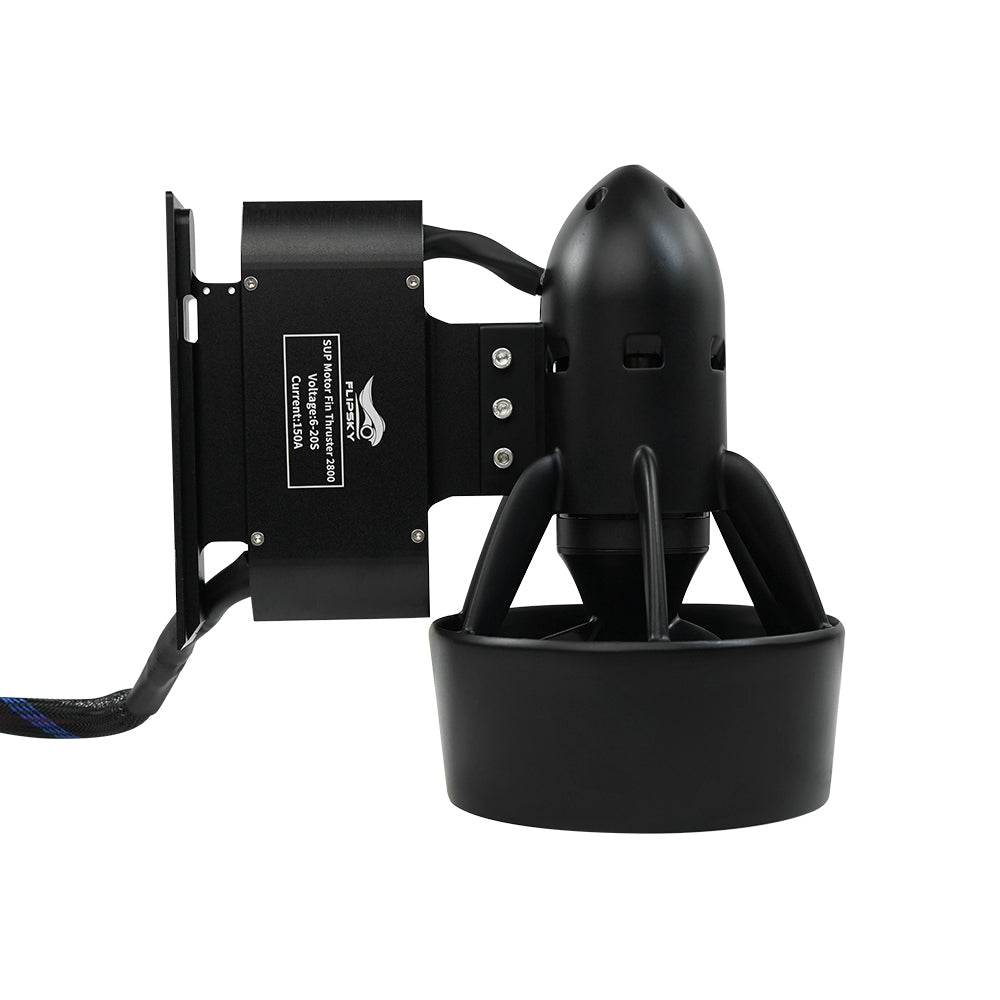

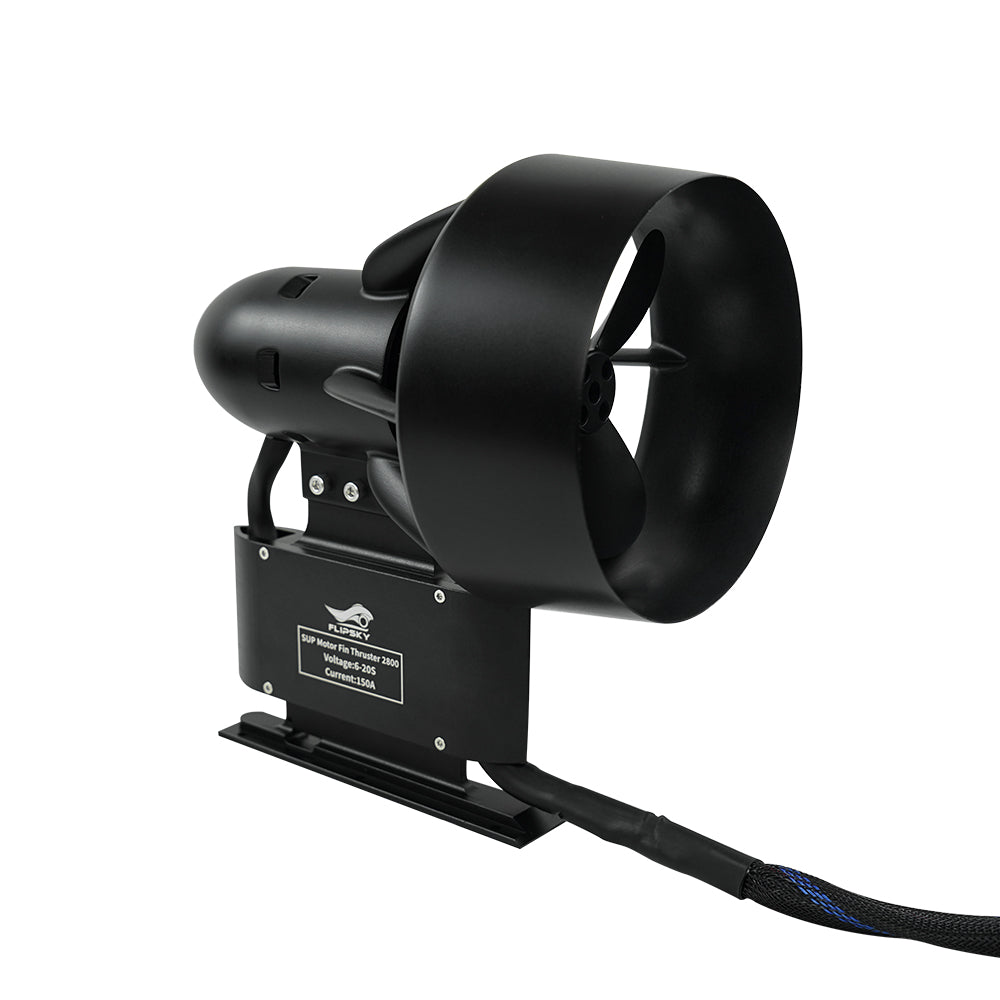

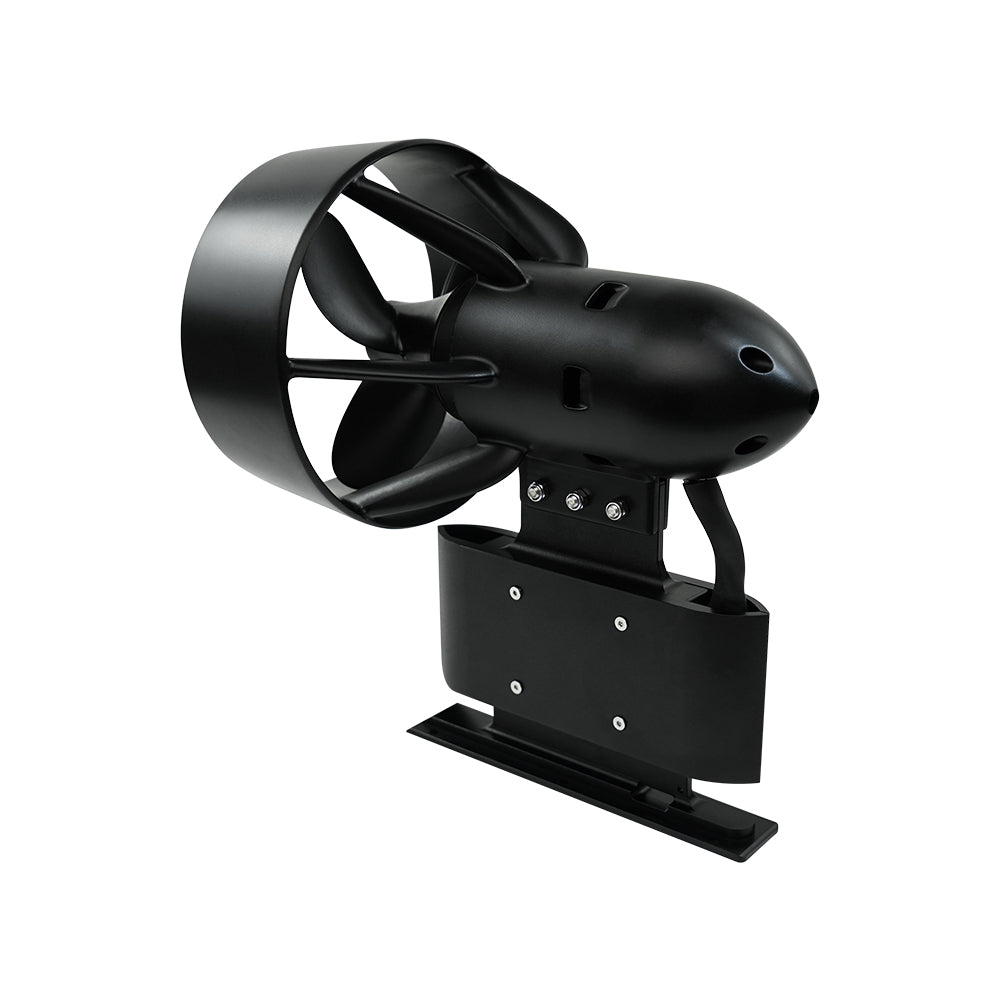

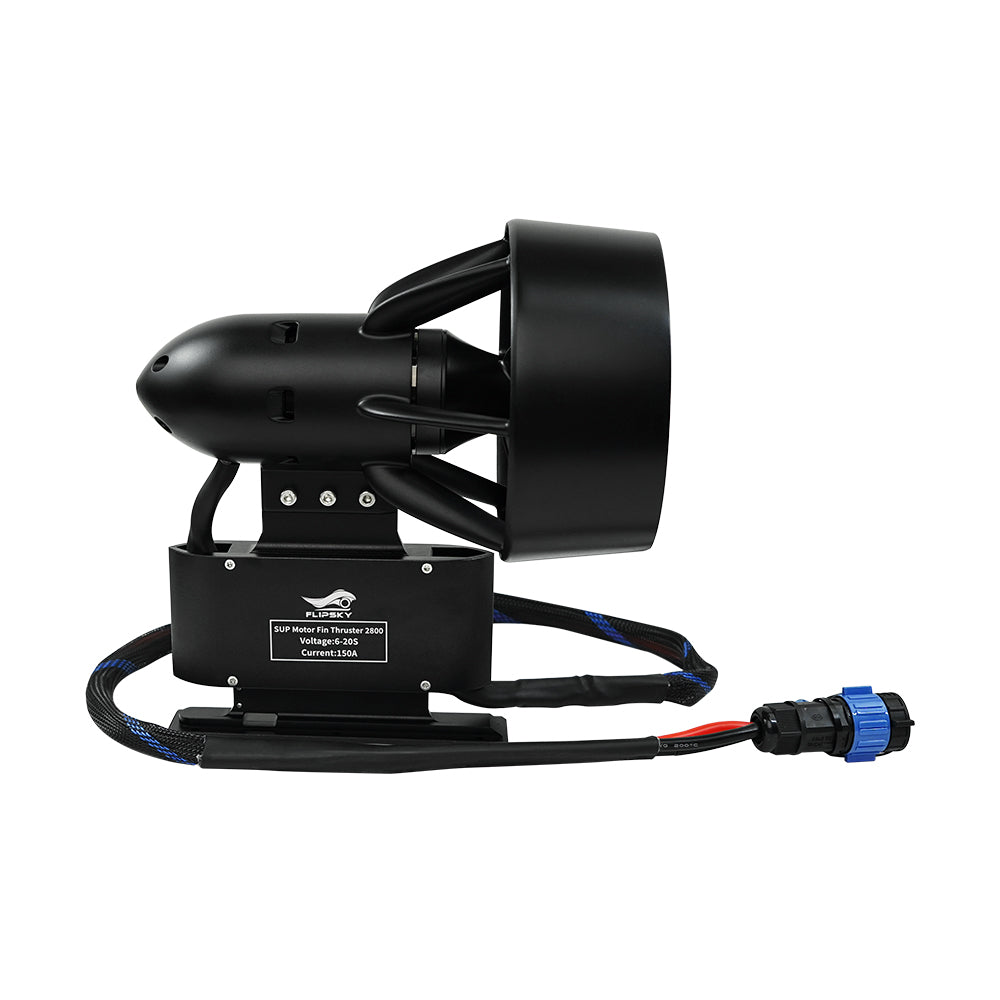

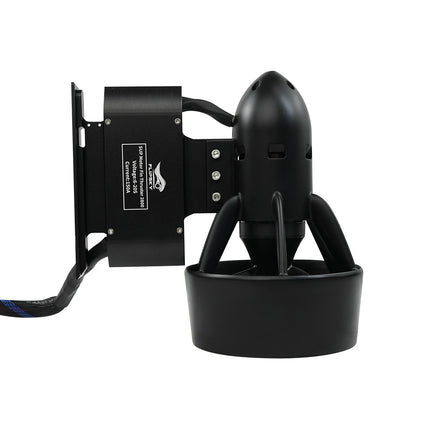

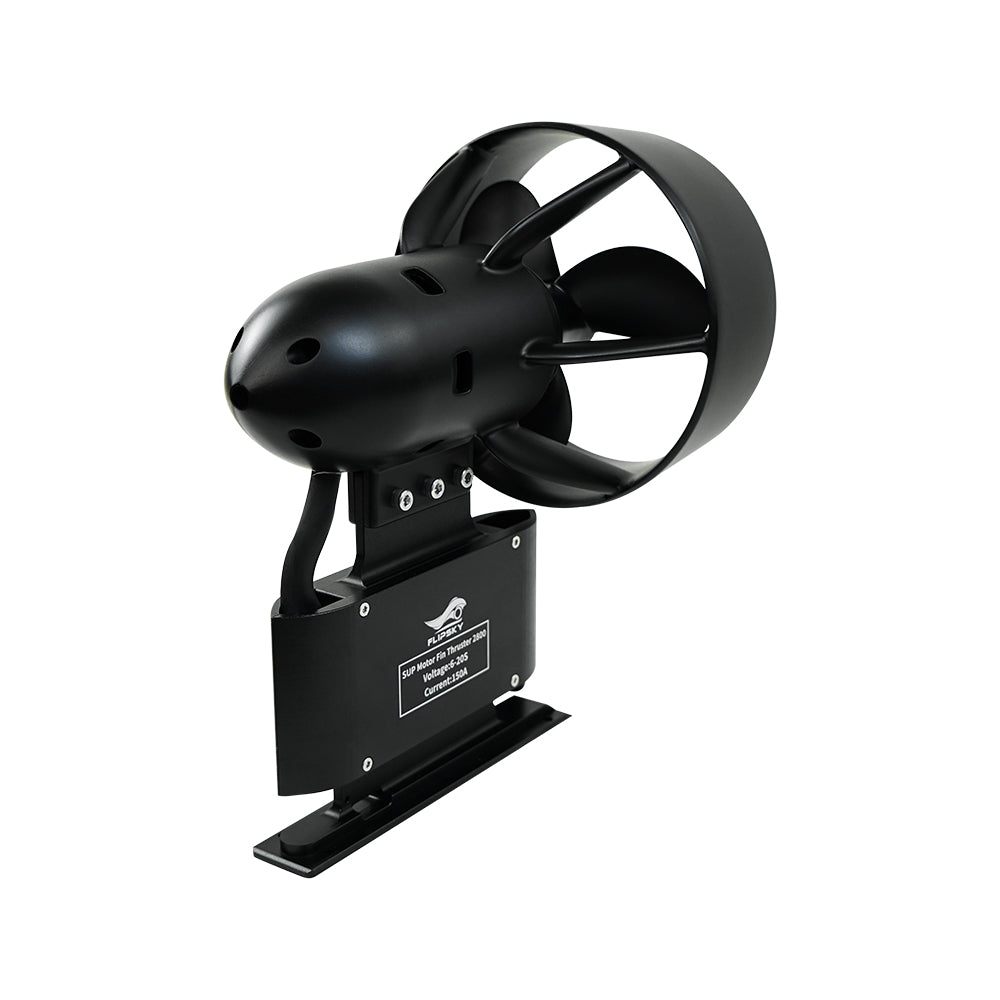

| Motor |
6384 Waterproof Motor |
| Waterproof |
IP 68 |
| Motor Mount Material |
ABS |
| Propeller Guard Material |
ABS |
| 6384 Self-developed ESC Marine Connection Bracket |
Aluminum Alloy |

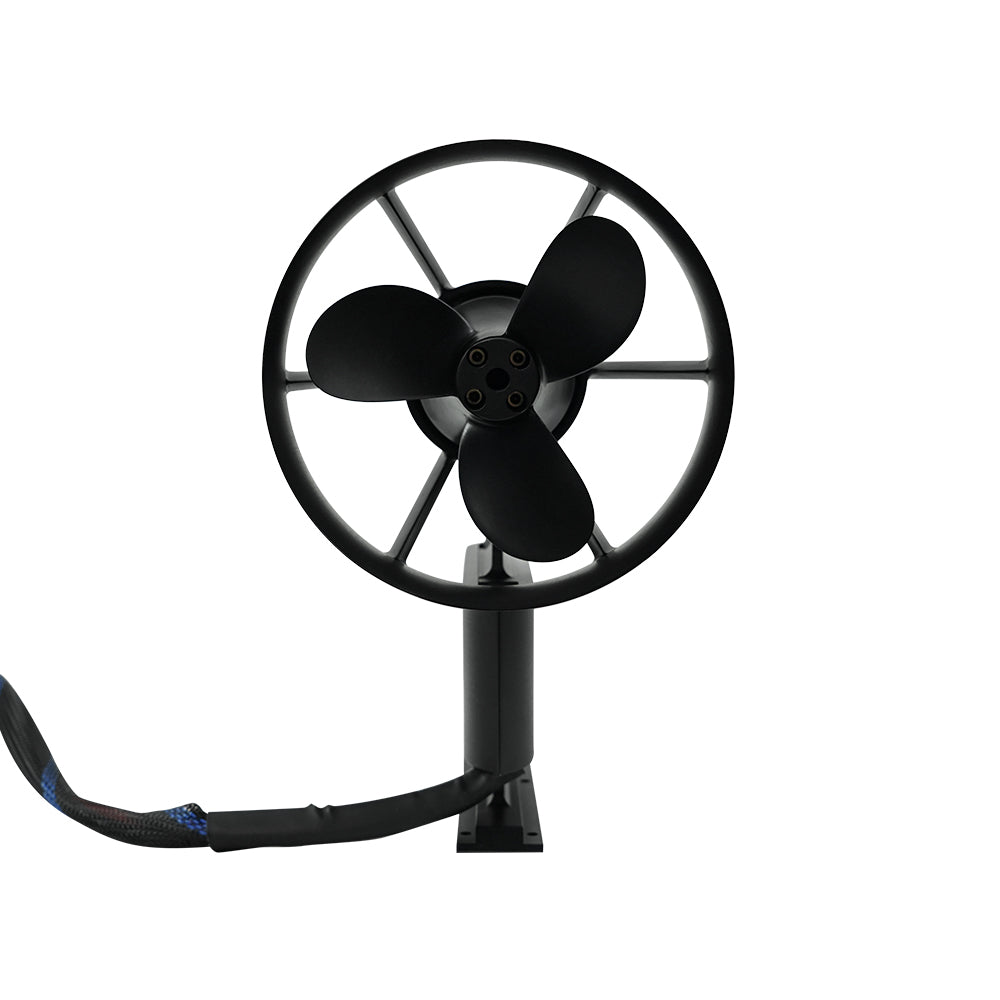

| Propeller |
63 Motor Three-Blade Propeller (140MM) |
| Rated Power |
2800W |
| Max Power |
4200W |
| ESC |
FT85CS_WP (Waterproof ESC) |
| Voltage |
6-20S(24V-84V) |
| Rated Current |
150A |
| Max Current |
200A |
| ESC Drive Mode |
UART |
| Remote Control |
| Remote Control |
VX3 |
| Control Mode |
UART |
| Remote Control Range |
25 meters in a straight line, no interference |
| Waterproof |
IP 68 |
| Gear |
3 gears adjustable in total (L/M/H), with H gear being the maximum |
| Function |
Cruise Control, GPS, Speed Display, Battery Level Display |
| Static Thrust |
| Power(W) |
Thrust(kg)
|
| 500 |
12 |
| 1000 |
18 |
| 1500 |
22 |
| 2000 |
26 |
| 2500 |
29 |
| 2800 |
33 |
| Speed |
The actual speed varies by boat type and operating environment; a paddle board has a tested speed of 25 km/h on calm water |

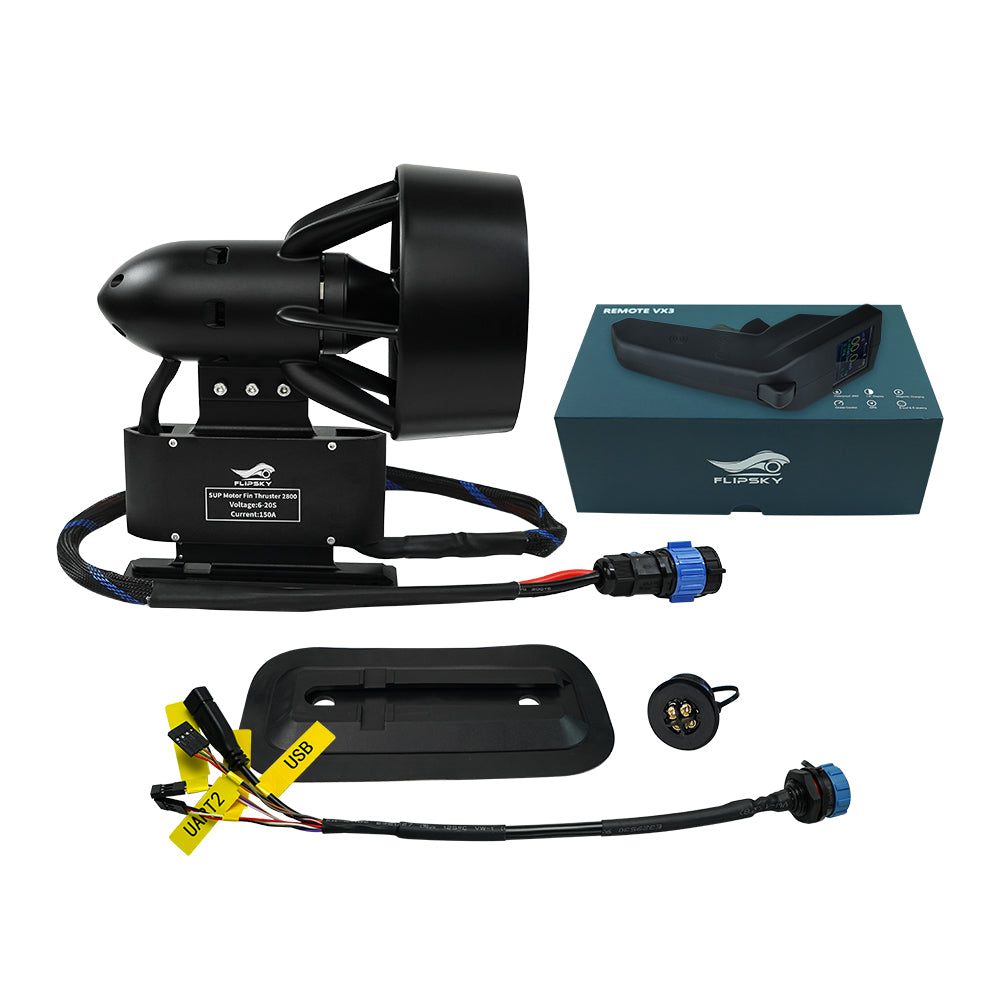

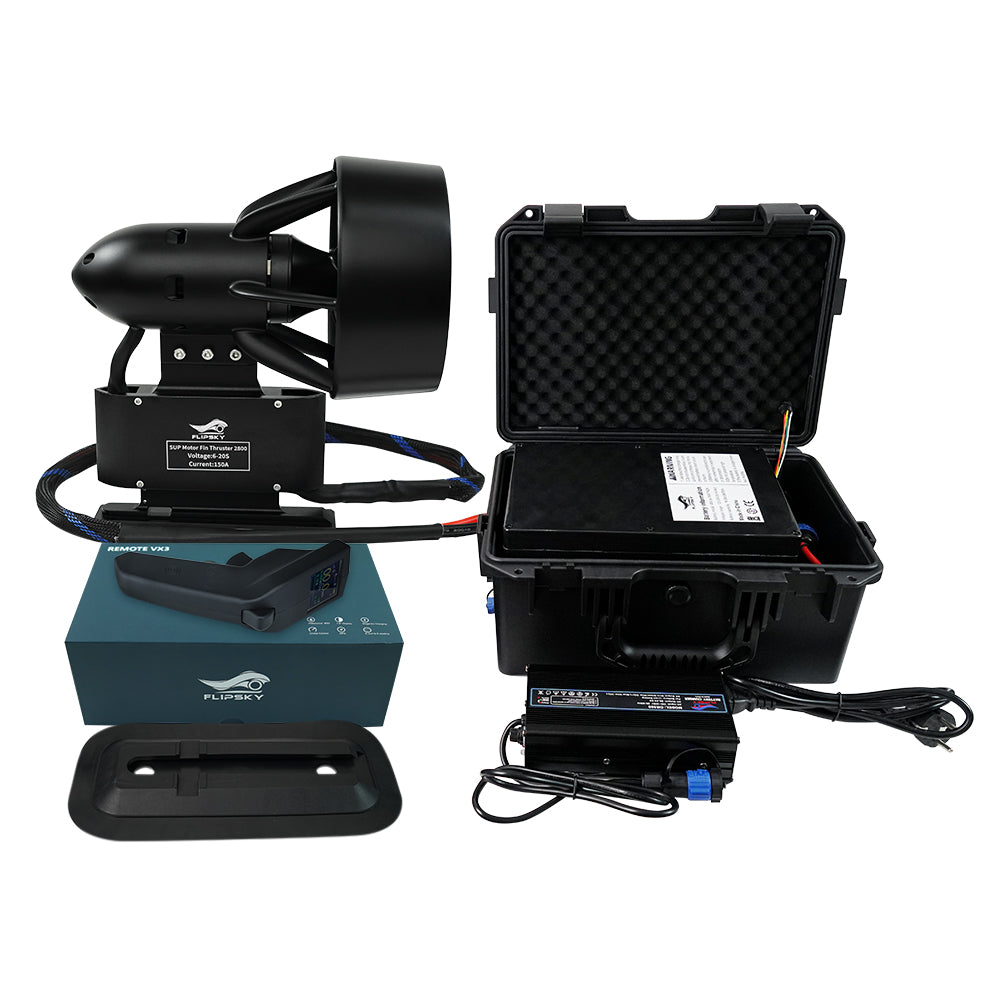

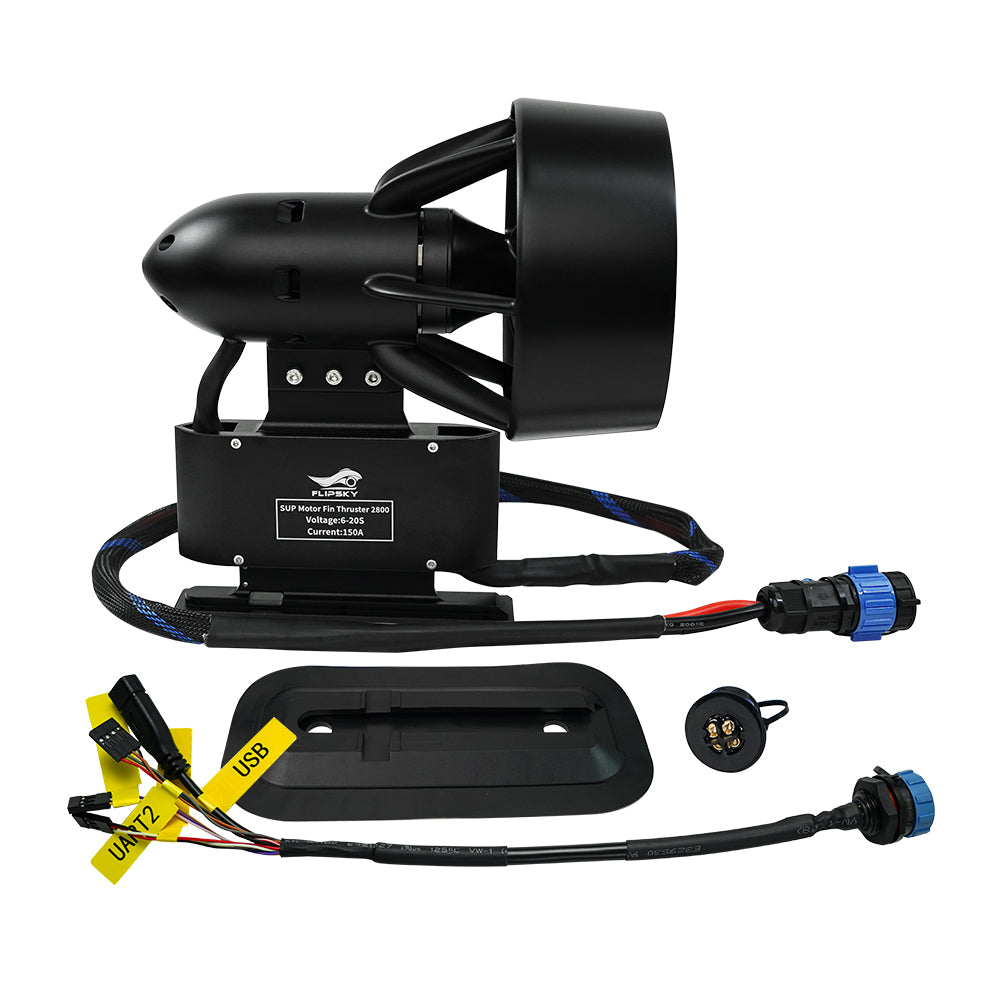

Package includes:
1 x Motor Power Unit,
1 x VX3 Remote Controller,
1 x Battery Box (including 1 x Battery, 1 x VX3 Receiver, 1 x Version 2.0 Spark-proof Switch Aluminum Base Plate)
1 x Battery Charger
Free gifts:
Battery Box Strap
Small Tube of PVC Glue
