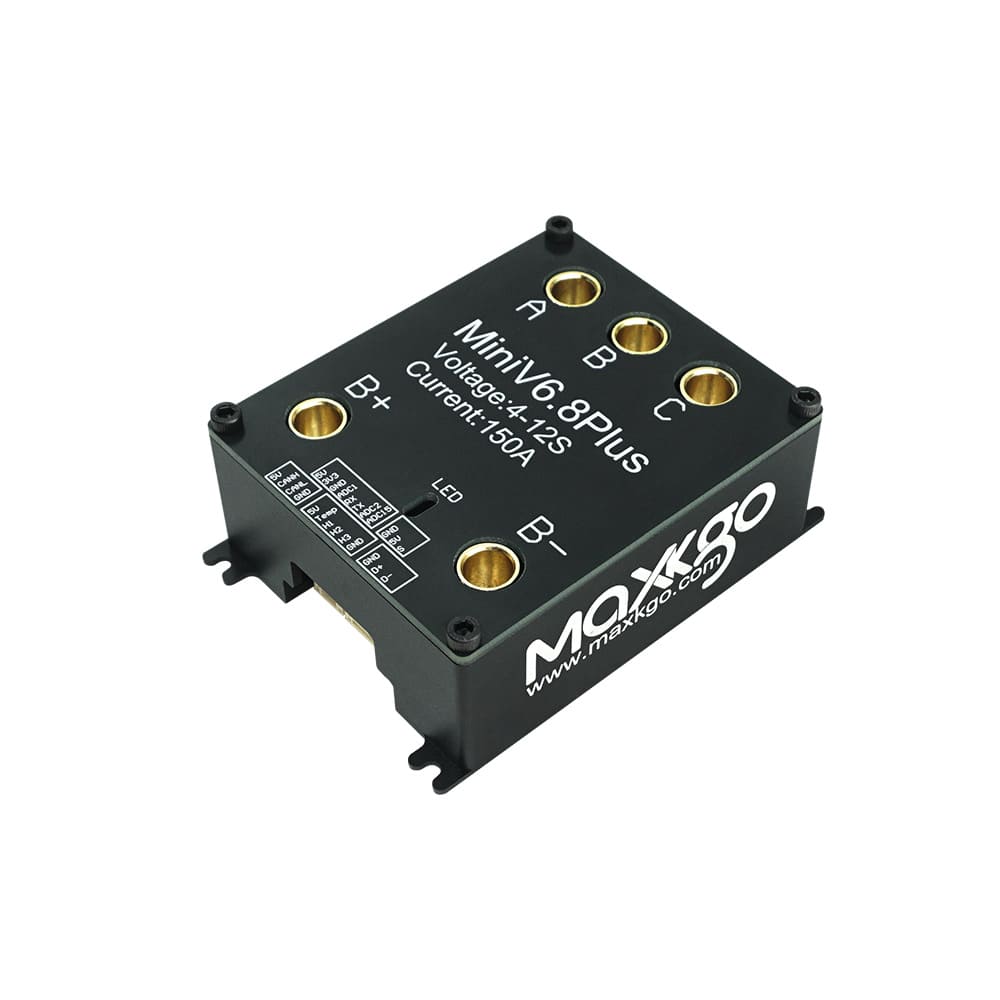

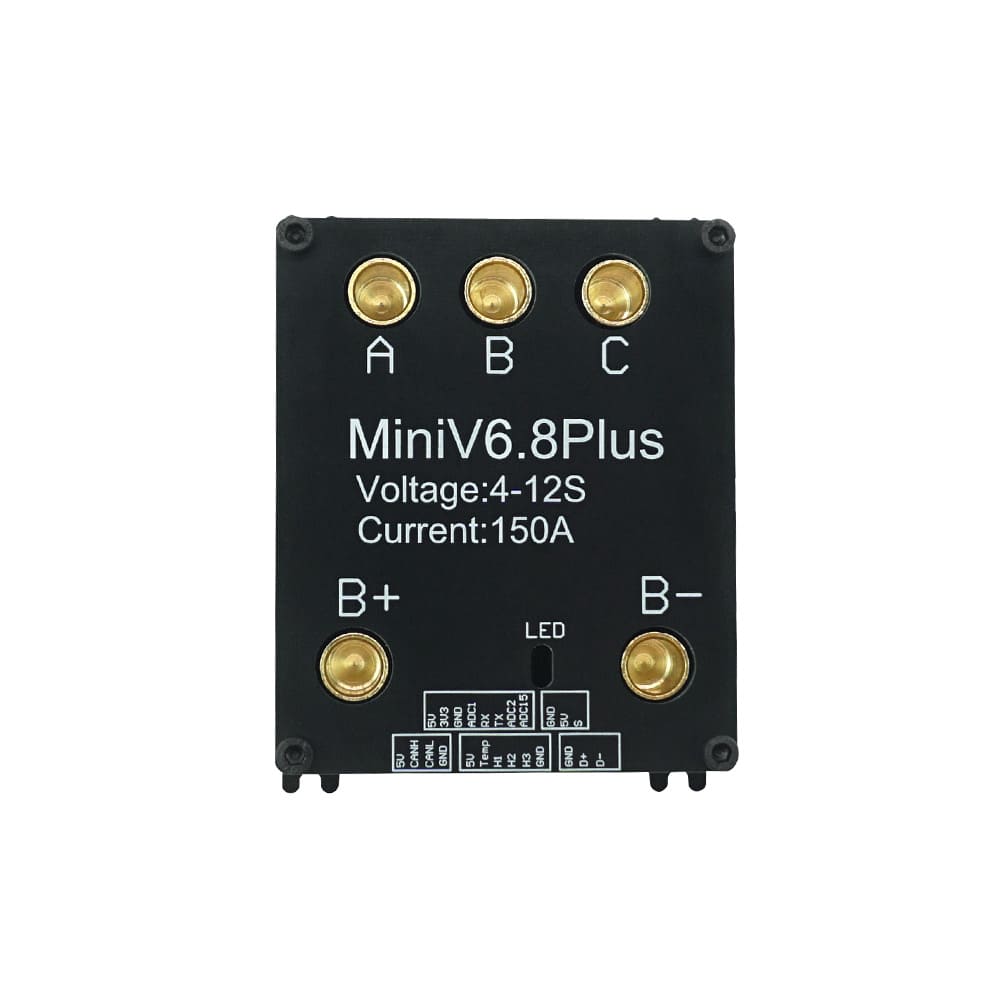

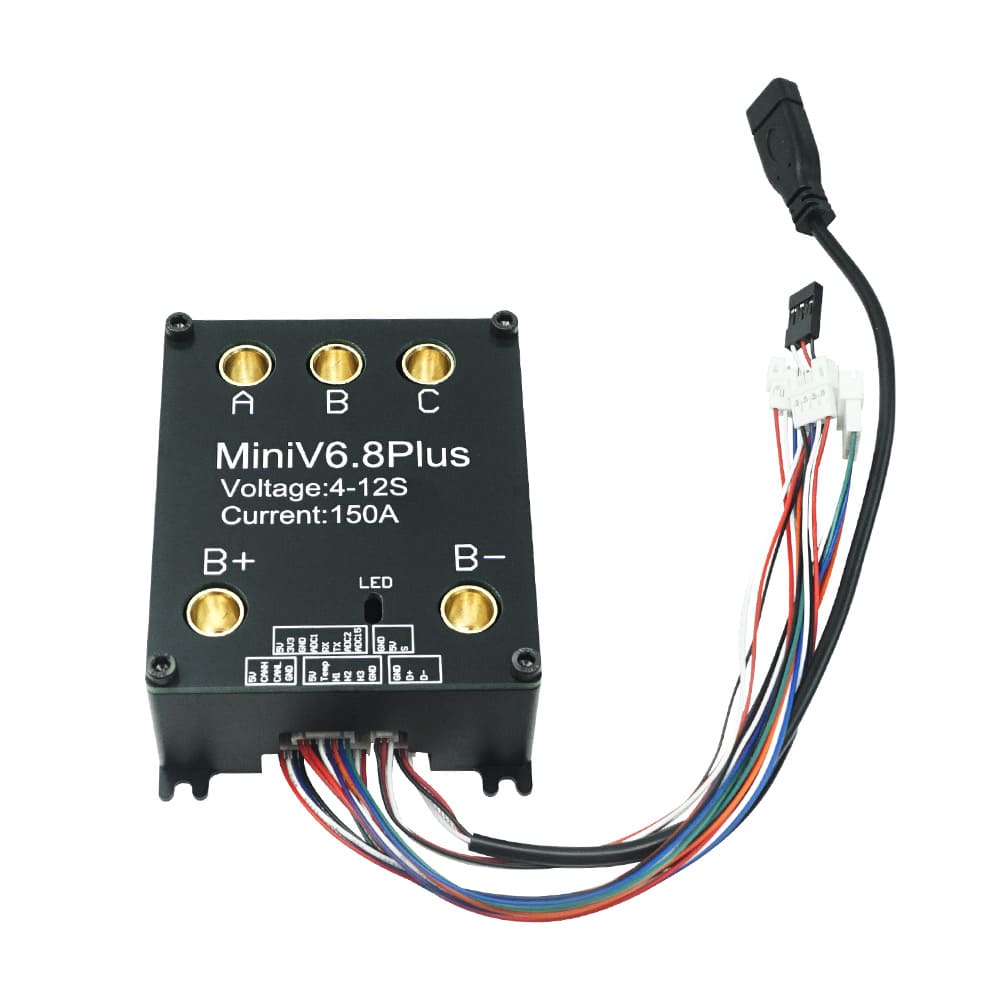

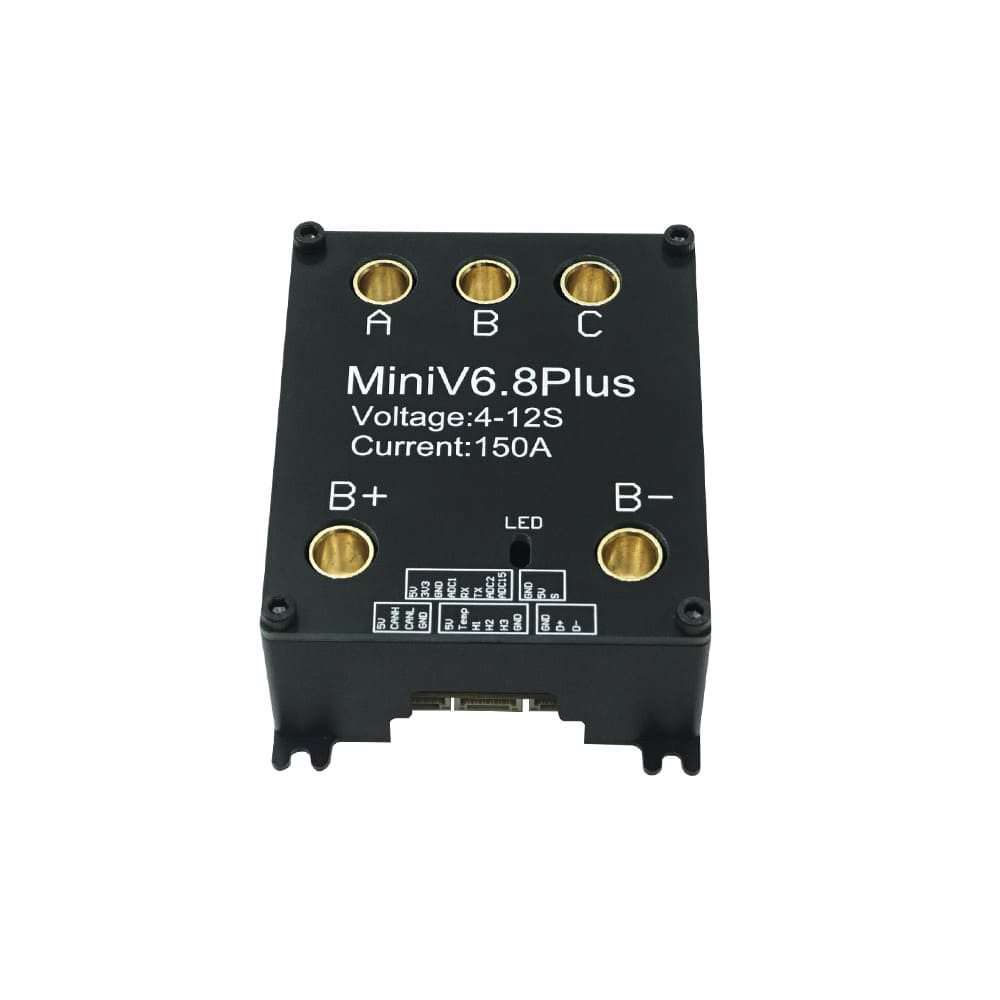

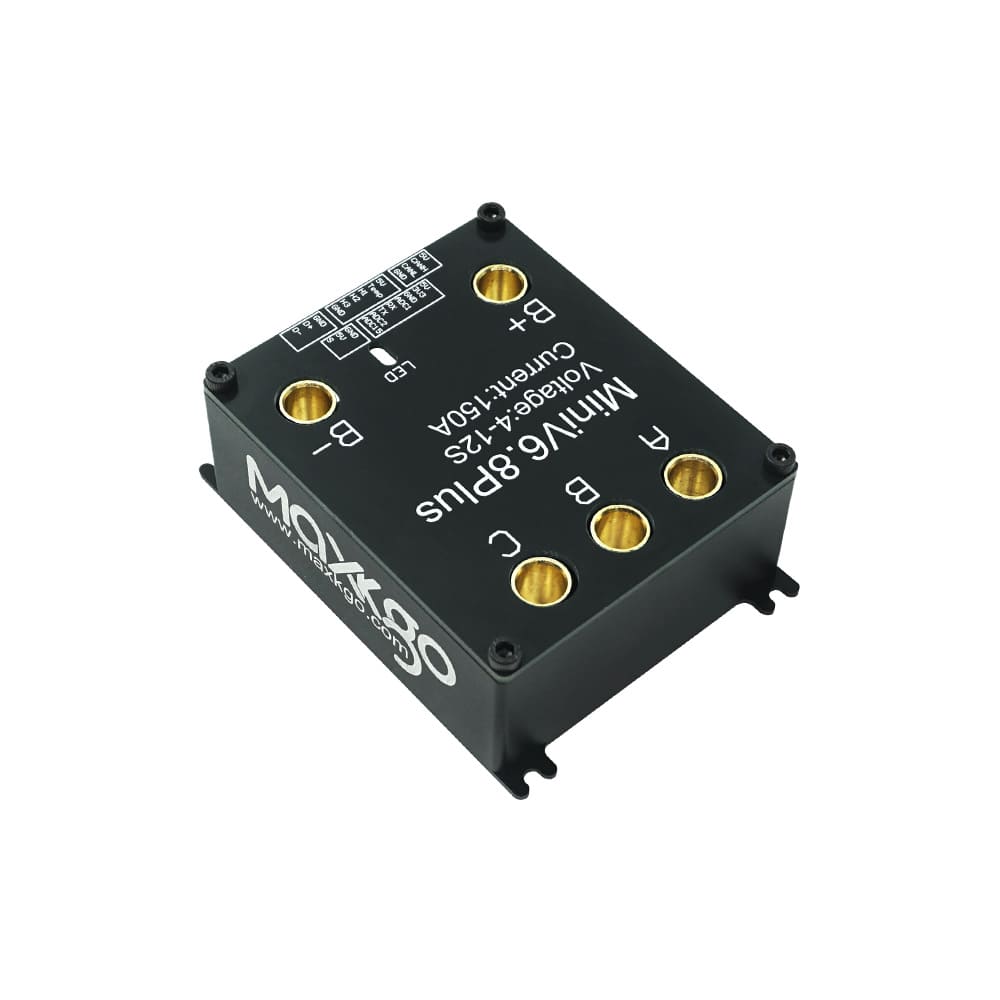

MAXKGO MINI FSESC6.8 PLUS 150A VESC Motor Controller | 4-12S BLDC/FOC ESC with Aluminum Case

Beschreibung

Specifications :

  • Firmware: 5.2 (supporting firmware upgrade)
  • Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!)
  • Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
  • BEC: 5V@1.5A; ERPM: 150000
  • Supported sensors: ABI, HALL,AS5047,AS5048A
  • Supported Modes: BLDC, FOC (sinusoidal)
  • Control Interface Ports: USB, CAN, UART, IIC
  • Input Set Support: PPM, ADC, NRF, UART
  • Regenerative capacity: Yes
  • Programmable: Yes
  • Power Wire: 8.0mm bullets female X 2pcs
  • Motor Wire: 8.0mm bullets female X 3pcs
  • Size: 92.7x68x31.5mm(Including aluminum case)

Features:

  • Based on vesc6, programmable via VESC_TOOL and support real-time data read.
  • Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.
  • Support four control modes: Current / Dutycycle / Speed
  • Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
  • Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160

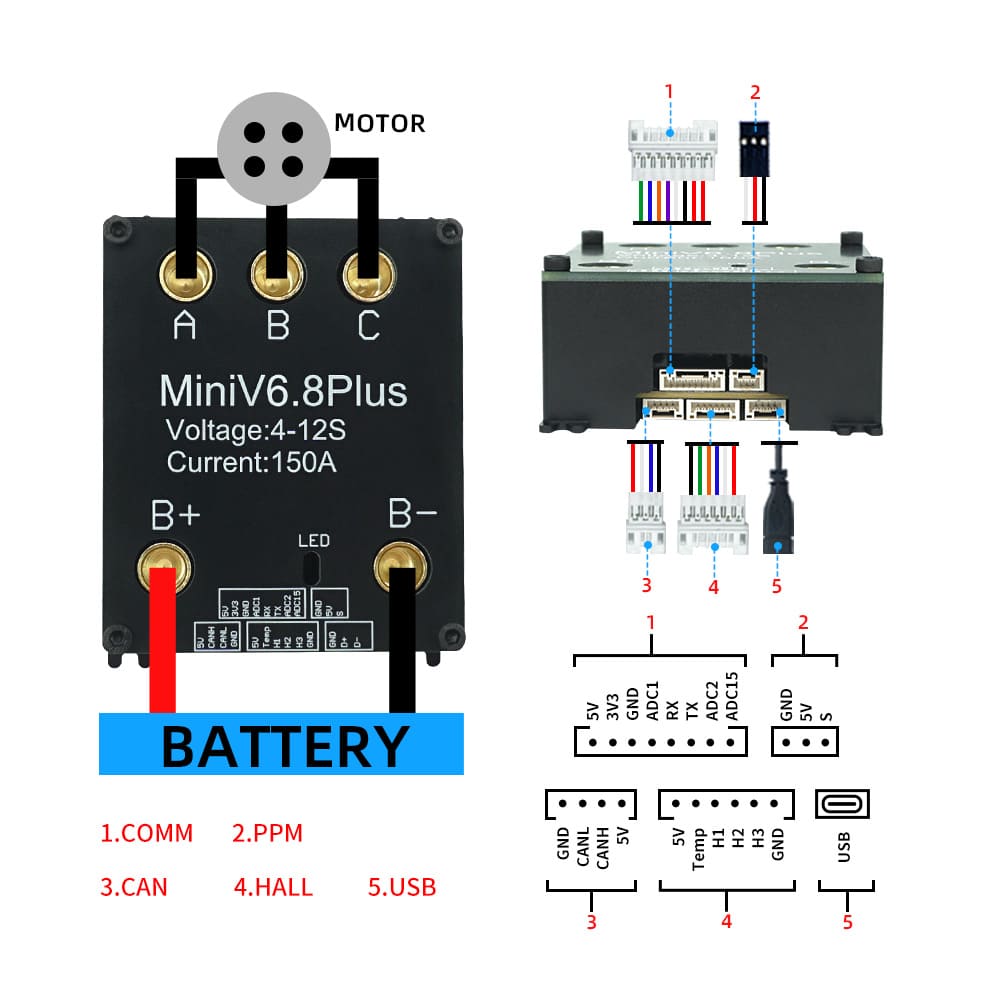

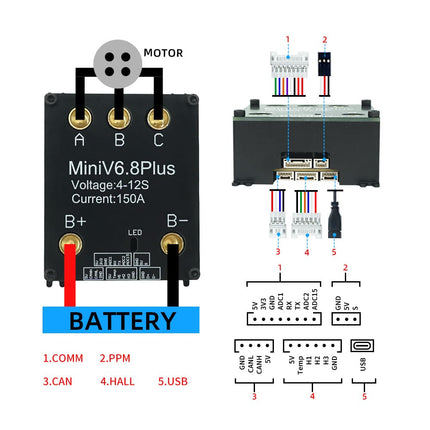

Diagram :

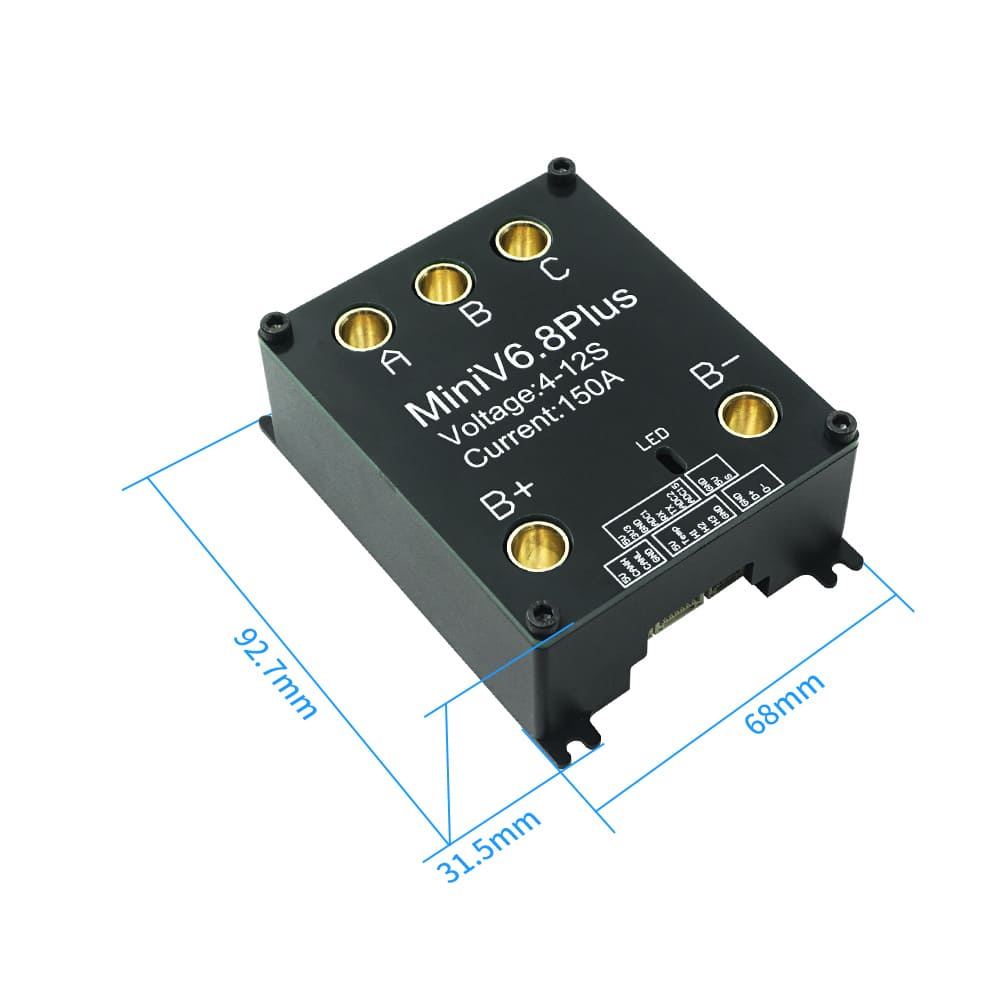

dimension drawing:

MAXKGO MINI FSESC6.8 PLUS 150A VESC Motor Controller | 4-12S BLDC/FOC ESC with Aluminum Case

Produkt Form

Specifications : Firmware: 5.2 (supporting firmware upgrade) Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature... Lesen Sie mehr

SKU: D12S150AC01

$113.00 $105.00 Exkl. MwSt

          • Heute verschickt? Bestellung innerhalb: Jul 13, 2026 17:00:00 +0800

          Beschreibung

          Specifications :

          • Firmware: 5.2 (supporting firmware upgrade)
          • Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!)
          • Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
          • BEC: 5V@1.5A; ERPM: 150000
          • Supported sensors: ABI, HALL,AS5047,AS5048A
          • Supported Modes: BLDC, FOC (sinusoidal)
          • Control Interface Ports: USB, CAN, UART, IIC
          • Input Set Support: PPM, ADC, NRF, UART
          • Regenerative capacity: Yes
          • Programmable: Yes
          • Power Wire: 8.0mm bullets female X 2pcs
          • Motor Wire: 8.0mm bullets female X 3pcs
          • Size: 92.7x68x31.5mm(Including aluminum case)

          Features:

          • Based on vesc6, programmable via VESC_TOOL and support real-time data read.
          • Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.
          • Support four control modes: Current / Dutycycle / Speed
          • Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
          • Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160

          Diagram :

          dimension drawing:
